PMD 2315 X - Microwave Philco - Free user manual and instructions

Product Type	Built-in Microwave
Brand	Philco
Model	PMD 2315 X
Installation Type	Built-in
Capacity	23 L
Microwave Power	800 W
Grill Power	1000 W
Voltage	220-240 V ~ 50 Hz
Power Consumption	1300 W (microwave), 1700 W (grill)
Display	LED digital display
Functions	Microwave, Grill, Microwave+Grill, Defrost, Auto Menus, Timer, Clock, Child Lock
Dimensions (H x W x D)	45.5 x 59.5 x 56 cm
Height (Built-in)	45.5 cm
Width (Built-in)	59.5 cm
Depth (Built-in)	56 cm
Weight	Approx. 25 kg
Cavity Material	Stainless steel
Turntable	Yes, 31.5 cm glass turntable
Cleaning	Wipe with damp cloth, mild detergent; avoid abrasive cleaners
Safety Features	Child lock, door interlock, overheat protection
Spare Parts	Turntable, glass plate, grill rack, filter (if applicable)
Repairability	Repairable by qualified technician; spare parts available from manufacturer
Warranty	2 years standard
Manual Languages	EN, CS, SK (and more on request)
Manual Format	PDF, 68 pages

Frequently Asked Questions - PMD 2315 X Philco

How do I set the clock on the Philco PMD 2315 X microwave?

Press the 'Clock' button, then use the numeric keypad to enter the time (24-hour format). Press 'Clock' again to confirm. The time will blink if not set.

How do I use the child lock feature?

Press and hold the 'Stop/Clear' button for 3 seconds until the display shows 'LOC'. To unlock, press and hold again for 3 seconds. The door will not open if locked.

What is the maximum cooking time?

The maximum cooking time is 99 minutes and 59 seconds for microwave mode. For grill or combination modes, it may be less.

Can I use metal containers in this microwave?

No, do not use metal containers, aluminum foil, or metal utensils as they can cause arcing and damage the appliance. Use microwave-safe glass or plastic containers.

How do I defrost food?

Press the 'Defrost' button and select the weight of the food using the numeric pad. The microwave will automatically calculate the defrosting time. Turn food occasionally.

What does the 'Microwave+Grill' function do?

This function uses both microwave and grill heating to cook food evenly and give a crisp surface. Ideal for dishes like roasted chicken or gratin.

How do I clean the microwave?

Unplug the appliance. Wipe the interior and exterior with a soft damp cloth and mild detergent. Do not use abrasive cleaners. The turntable is dishwasher safe.

Why is the microwave not heating?

Check the power supply, door closure, and ensure the child lock is off. If the problem persists, the magnetron or fuse may be faulty. Contact a qualified technician.

Can I change the language of the display?

The display shows symbols and numbers, not text. The manual is available in multiple languages (EN, CS, SK). You can request other languages via the manufacturer.

Where can I find spare parts for this model?

Spare parts such as the turntable, glass plate, and grill rack can be ordered from Philco authorized service centers or online parts retailers. Refer to the manual for part numbers.

USER MANUAL PMD 2315 X Philco

Famous for Quality the World Over

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: SAFETY PRECAUTIONS ...... 2

• Important safety instructions....2
• Radio wave interference ....4
• Grounding instructions ....4

PART 2: PRODUCT DESCRIPTION ...... 7

PART 3: INSTALLATION .... 8

• Turntable Installation....8
• Countertop Installation....8

PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN ...... 10

PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN....12

PART 6: MAINTENANCE AND CLEANING....16

PART 7: TROUBLESHOOTING....17

PART 8: TECHNICAL SPECIFICATIONS....18

PART 1: SAFETY PRECAUTIONS

Recommendation:

Carefully read these instructions before installing and operating this microwave oven.

Write down the serial number found on the rating label of the oven in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can find out about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

1. Under no circumstances should you start the microwave oven with the door open as you could expose yourself to the effects of dangerous microwave energy radiation. It is important that you do not damage or modify the safety locks on the microwave oven door.
2. Do not block the front part of the microwave oven and the door with any object and make sure that dirt or remains of detergent do not accumulate on the oven seals.
3. Do not use the microwave oven if it is damaged. It is especially important that the door is properly shut and also inspect the following for damage:
   a. door (that it is not bent);
   b. door hinges and locks (damaged or loose);
   c. door seals and other seals.

The microwave oven may only be adjusted or repaired by an authorised service technician.

Important safety instructions

Adhere to all basic safety measures when using electrical appliances, including the following.

WARNING!

Adhere to the directives below to avoid the dangers of burns, injury by electrical shock, fire hazards, injuries or explosion caused by large amounts of microwave energy.

- This appliance may not be used by any persons (including children) with mental disabilities, weak strength or by inexperienced persons, unless they have been properly trained or schooled in

the safe use of the product, or unless they are properly supervised by a qualified person who is responsible for their safety. Children must be supervised to ensure that they do not play with the product.

WARNING!

To limit the risk of a fire hazard, electric shock, injury or exposure to excessive amounts of microwave energy:

• Before using this appliance read all the instructions.
• Only use the appliance for the purposes for which it was designed and in the manner described in this user's manual. This oven is designed only to heat, cook or dry food. It is not designed for industrial or laboratory purposes. Do not use caustic chemicals on this appliance.
• Do not attempt to use the microwave oven with the door open. You could expose yourself to the effect of microwaves. Do not run the microwave oven when it is empty.
• Do not use this oven if the power cord or power plug is damaged, if it is not working correctly, if it is damaged or if it has been dropped on the floor. Any repair of the microwave oven or replacement of a damaged power cord may only be carried out by an authorised service centre or another similarly qualified person, as this will prevent causing a dangerous situation.
• WARNING: If the door or the door seal is damaged then the oven must not be used until repaired by an authorised service centre or qualified person.
• WARNING: It is dangerous for anybody other than an authorised service centre or qualified person to carry out any repairs or maintenance whatsoever that leads to the removal of any cover providing protection from microwave energy radiation.

- WARNING: The use of the oven by unsupervised children is only permitted when sufficient instructions were given, so that the child is able to use the oven in a safe manner and understands the danger resulting from incorrect use.

- To limit the risk of a fire hazard inside the oven, use only kitchen dishes suitable for use in microwave ovens. When heating meal in plastic or paper dishes, regularly check the oven to prevent it catching on fire.

- If you notice smoke, turn off the appliance and disconnect the power plug from the socket. Leave the oven door closed to prevent potential fire from spreading.

- If you are not using the oven do not leave paper materials, kitchen dishes or food inside.

- WARNING: Liquids or other meals must not be heated in closed containers, because they could explode.

- Heating of beverages in the microwave may cause a delayed boil and so you should be careful when handling containers and dishes.

- Do not fry food in the microwave oven. Hot oil may damage parts of the oven, dishes or may also cause skin burns.

- Eggs in their shells and whole hard boiled eggs must not be heated in the microwave oven because they could explode.

- Before cooking prick food with a thick peel, such as potatoes, pumpkins, apples and chestnuts.

- The content of baby bottles and baby food needs to be mixed or shaken before being served to the infant and the temperature needs to be checked to prevent burns.

- Kitchen dishes may become hot as a result of the heat transferred from the heated food. Sometimes it may be necessary to use protective gloves.

• IMPORTANT - kitchen dishes and utensils, which must not be used in the microwave oven:
• metal pans and crockery with metal handles or with metal decorations;
• clamps on plastic bags;
• dishes with melamine surface treatment;
• standard thermometers, which are used for measuring the temperature of meat etc.
• The rear surface of appliance shall be placed against a wall.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
• The microwave oven is intended for heating food and beverages. Drying food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Radio wave interference

The use of the oven may cause interference to a radio, television or similar receivers. If interference occurs, it may be limited by the following measures:

1. keeping the door and the surface of the oven seals clean;
2. redirecting the radio or television signal reception antenna;
3. moving the microwave oven further away from the receiver;
4. connecting the microwave oven to a different power socket so that the microwave oven and the receiver do not share the same circuit.

Grounding instructions

This microwave oven must be grounded. The microwave oven is equipped with a power cord, which has a ground wire with a grounding power plug. The power plug must be connected to a mains socket outlet that is correctly installed and grounded. This reduces the risk of injury by electric shock if a short circuit occurs – in such a case the electric current goes through the earthing wire. We recommend that the microwave oven be connected to an independent electrical circuit. The use of high voltage is dangerous and may lead to a fire or another accident that can damage the microwave oven.

WARNING!

An incorrectly grounded power socket may present a danger of electric shock.

NOTE:

1. If you are uncertain about the grounding of your mains power socket, contact an authorised service centre or a qualified electrician.
2. Neither the manufacturer nor the vendor is responsible for damages to property and health if the microwave oven is connected incorrectly and not in accordance with the presented recommendations.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

NOTE:

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

PART 2: PRODUCT DESCRIPTION

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

1. Control panel
2. Glass tray
3. Turntable ring assembly

4. Turntable shaft

5. Door assembly

6. Observation window
7. Safety interlock system

PART 3: INSTALLATION

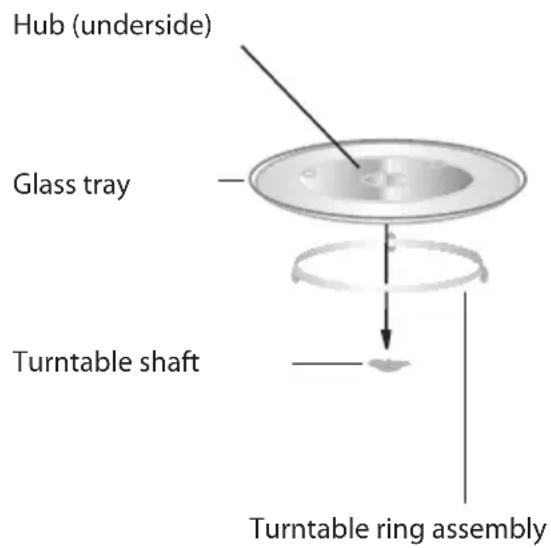

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING!

Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Aluminum foil Shielding	only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow	manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave	-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove	lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags Fol	ow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover	food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Pergamenový papír Use	as a cover to prevent splattering or a wrap for steaming.
Plastové nádobí Microwave	wave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastová obalová fólie	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Teploměry Microwave	safe only (meat and candy thermometers).
Voskový papír Use as a	cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fi re in the oven.
Paper bags May cause a fi re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN

Operation Instructions

When the microwave oven is electrified, the oven will display "WELCOME". Buzzer will ring once. If there is no operation in 1 minute, the oven will turn to clock. If there is no operation in 5 minutes, the oven will enter turn-off state.

1. Clock Setting

1) Press MENU",LED will display "Microwave".

3) Press ☑", LED will display "00:00". The hour figures will flash.

5) Press ▶" to confi rm.

7) Press ☑ "to finish clock setting. ":" will fl ash.

NOTE:

1) If the clock is not set, the clock would not function when powered.
2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Kitchen Timer

1) Press" MENU/FUNCTION ", LED will display "Microwave".

6) When the timer time arrives, LED will display the current time.

Note: The kitchen time is different from 24-hour system. Kitchen Timer is a timer.

3. Microwave Cooking

1) Press MENU",LED will display "Microwave".
2) Press ☑", LED will display "M P100".
4) Press ☑", LED will display "M 00:00".
6) Press ☑" to start cooking. When cooking finishes, LED will display "END".

Microwave Power Chart

Microwave Power 100% 80% 50% 30% 10%
Display P100 P80 P50 P30 P10

4. Grill Cooking

1) Press MENU/FUNCTION", LED will display "Microwave".

4) Turn "7" to enter the cooking time. The time setting should be 0:05-95:00.
5) Press "▶" to start cooking. When cooking finishes, LED will display "END".

NOTE:

If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "▶" to continue cooking. If no operation, it will continue working.

5. Combination Cooking

1) Press MENU/FUNCTION ", LED will display "Microwave".

4) Turn "7" to choose C1(55%microwave+45%grill) or C2 (36%microwave+64%grill). LED will display "C1 M55" or "C2 M36".
5) Press ☑" to choose the combination cooking, LED will display "C1 00:00" or "C2 00:00"
6) Turn "to enter the cooking time. The time setting should be 0:05-95:00."
7) Press ☑" to start cooking. When cooking fi nishes, LED will display "END".

6. Speedy Cooking

1) In waiting state, press "▶" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill and combination cooking and time defrost process, press "▶" to increase the cooking time.
3) In waiting state, turn " 🔥" left to choose the cooking time directly. After choosing the time, press "▶" to start cooking. The microwave power is 100%.

NOTE:

Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing "▶".

7. Weight Defrost

1) Press MENU/FUDI will display "Microwave".

3) Press ☑", LED will display "WD" in the first two digit.

5) Press ☑" to start cooking. When cooking finishes, LED will display "END".

1. Time Defrost

1) Press MENU", LED will display "Microwave".

3) Press ☑", LED will display "TD 00:00".

5) Press ☑" to start cooking. When cooking fi nishes, LED will display "END".

NOTE:

The power level is P30, and it cannot be changed.

9. Multi-Stage Cooking

Two stages can be maximally set. If one stage is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

NOTE:

Auto menu cannot be set as one of the multi-stage.

10. Inquiring Function

In cooking states of microwave, grill and combination cooking, press "MENU/FUNCTION" to check the current power will be displayed for 2-3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "III" for 3 seconds, there will be a long "beep" denoting entering the children-lock state. The screen will display current time if clock has been set. Otherwise, the screen will display "0:00".

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released.

12. Auto Menu

1) In waiting state, turn " ” right to choose the auto menu function.

2) Press ☑" to confirm the menu you choose;

4) Press ☑" to start cooking. When cooking finishes, LED will display "END".

Auto Menu

Menu Weight Display
A-1 Pizza	200g 200
	400g 400
A-2 Meat	250g 250
	350g 350
	450g 450
A-3 Vegetable	200g 200
	300g 300
	400g 400
A-4 Pasta	50g (with water 450g) 50
	100g(with water 800g) 100
A-5 Potato	200g 200
	400g 400
	600g 600
A-6 Fish	250g 250
	350g 350
	450g 450
A-7 Beverage	1 cup (120ml) 1
	2 cup (240ml) 2
	3 cup (360ml) 3
A-8 Popcorn	50g 50
	85g 85
	100g 100

13. Specification

1) The buzzer will sound once when turning the knob at the beginning;
2) “▶” must be pressed to continue cooking if the door is opened during cooking;
3) Once the cooking programme has been set, " ▶" is not pressed in 1 minute.
The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no response.
5) The buzzer will sound fi ve times to remind you when cooking is fi nished.

PART 6: MAINTENANCE AND CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

PART 7: TROUBLESHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light In low power microwave	cooking, oven light may become dim.It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door.It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started. (1) Power cord	not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet Test outlet	with other electrical appliances.
Oven does not heat. (4) Door not closed	well. Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

PART 8: TECHNICAL SPECIFICATIONS

Model PMD 2315 X
Rated Voltage 230V~ 50Hz
Rated Input Power (Microwave) 1250 W
Rated Output Power (Microwave) 800 W
Rated Input Power (Grill) 1000 W
Oven Capacity 23L
Turntable Diameter ∅ 270 mm
External Dimensions 485×395.8×292.5 mm
Net Weight Approx. 13.6 kg

NOTE:

All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Vážený zákazníku

Famous for Quality the World Over

Vážený zákazník
