Product Type	Countertop Microwave Oven
Brand	Amica
Model	AMG20M70GSV
Capacity	20 liters
Microwave Power	800 W
Grill Power	1000 W
Control Type	Digital touch panel
Power Levels	8 (including defrost)
Defrost Function	Yes, by weight or time
Timer	Up to 95 minutes
Child Lock	Yes
Display Type	LED digital display
Interior Light	Yes
Turntable	Yes, 25.5 cm glass
Dimensions (W x D x H)	45.2 x 26.2 x 33.0 cm
Net Weight	11.0 kg
Power Supply	230 V ~ 50 Hz
Cleaning	Wipe interior with damp cloth; avoid abrasives
Safety Features	Door safety interlock, child lock, overheat protection
Spare Parts Availability	Turntable, glass tray, filter available via Amica service
Repair Index (France)	Not applicable (estimated 8.0/10 based on user rating)

Frequently Asked Questions - AMG20M70GSV AMICA

How do I set the timer for cooking?

Press the Time Cook button, then use the numeric keypad to enter the desired cooking time (up to 95 minutes). Press Start to begin.

Can I use metal utensils in this microwave?

No, metal containers or utensils should not be used in microwave mode as they can cause sparks. Use only microwave-safe glass, ceramic, or plastic containers.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a lock symbol appears on the display. Repeat to unlock.

What is the defrost function and how does it work?

The defrost function uses low power to thaw frozen food. Select Defrost, enter the weight, and the microwave will automatically set the time.

Why does the microwave make a humming noise?

A humming sound is normal during operation due to the magnetron and fan. If it becomes unusually loud, check for loose turntable or obstruction.

How do I clean the interior?

Wipe the interior with a damp cloth and mild soap after each use. For stubborn stains, heat a bowl of water with lemon juice for 2 minutes to loosen residue.

Can I use the grill and microwave together?

Yes, you can combine cooking modes by selecting Combi mode. Choose a preset combination for even cooking with both functions.

What should I do if the display shows 'E-01'?

Error code E-01 indicates a fault with the door safety system. Ensure the door is fully closed and press Stop/Clear. If the error persists, contact service.

How much power does this microwave use?

The microwave consumes approximately 1200 W of electricity during operation (800 W microwave output). Standby power is less than 1 W.

Where can I download the user manual?

The user manual for the Amica AMG20M70GSV is available for free download at notice-facile.com in multiple languages.

USER MANUAL AMG20M70GSV AMICA

White microwave oven with black glass door and control knobs (no visible text or symbols)

INSTRUKCJA OBSŁUGI PL NÁVOD K OBSLUZE CZ NÁVOD NA OBSLUHU SK GEBRAUCHSANWEISUNG DE INSTRUCTION MANUAL EN

EN The purchased microwave oven is a modern and easy to use product. This operator's manual will allow you to quickly and thoroughly familiarize yourself with the newly purchased oven. Please carefully read the contents of this manual with particular emphasis on the manufacturer's comments and recommendations

We trust you will be fully satisfied with our product.

Attention!

This microwave oven is designed for household use only. The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Before using the microwave, please carefully read this manual. Store it in such a place, so that it may be used in future. Please follow the instructions to ensure many years of reliable operation of your oven.

SPIS TREŚCI

ŚRODKI OSTROŻNOŚCI 4

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA 4

BEZPIECZENSTWO 5

INSTALACJA OBWODU OCHRONNEGO 7

NACZYNIA 7

NASTAWA KUCHENKI 9

INSTALACJA TALERZA OBROTOWEGO 9

INSTALACJA 10

OBSŁUGA 11

USUWANIE USTEREK 13

UWAGI KOŃCOWE 13

CZYSZCZENIE 14

GWARANCJA 14

OBSAH

PREVENTIVNI 15

DÜLEŽITÉ BEZPEČNOSTNÍ INSTRUKCE 15

BEZPEČNOST 16

UZEMNĚNÍ 18

NÁDOBÍ 18

NASTAVENÍ MIKROVLNNÉ TROUBY 20

INSTALACE OTOČNÉHO TALÍŘE 20

INSTALACE 21

OBSLUHA 22

ŘEŠENÍ PROBLÉMŮ 24

UPOZORNĚNÍ 24

ČISTĚNÍ 25

ZÁRUKA 25

OBSAH

BEZPEČNOST 26

TIPY PRE BEZPEČNOST 26

BEZPEČNOST 27

UZEMNENIE 29

RIAD 29

NASTAVENÍ MIKROVLNNÉ TROUBY 31

INSTALACE OTOČNÉHO TALÍŘE 31

INSTALACE 32

OBŞLUHA 33

RIEŠENIE PROBLÉMOV 35

UPOZORNENIA 35

ČISTENIE 36

ZARUKA 36

INHALT

SAFETY INSTRUCTIONS FOR USE 48

SAFETY 49

INSTALLING THE PROTECTIVE CIRCUIT 51

COOKWARE 51

CLEANING AND CARE 58

53

CELEM UNIKNIĘCIA NARAŻENIA NA EWENTUALNE NADMIERNE DZIAŁANIE ENERGII MIKROFAL

Line drawing of a plug with two leads (no text or symbols)

NACZYNIA

INSTALACJA TALERZA OBROTOWEGO

Line drawing of a hexagonal electrical outlet plug with two leads (no text or symbols)

INSTALACE OTOČNÉHO TALÍŘE

Line drawing of a plug with two leads (no text or symbols)

INSTALACE OTOČNÉHO TALÍŘE

Warning symbol of a steam inside a triangle (no text or numbers)

Line drawing of a plug with two leads (no text or symbols)

GESCHIRR

WARNUNG!

(A) Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.
(B) Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces.
(C) Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to:
(1) DOOR (dent)
(2) HINGES AND LOCKS (broken or loose)
(3) DOOR SEALS AND THE SEALING SURFACE
(D) Any adjustments or repairs should only be entrusted to the manufacturer's properly qualified service personnel.

Specification

Model AMG 20M70 GSV
Power supply 230V~ 50Hz
Microwave Frequency 2450MHz
Sound level 54 [dB (A) re 1pW]
Power Consumption 1200W
Nominal output power of microwaves 700W
Nominal output power of grill 900W
Oven capacity 20 l
Turntable diameter 245 mm
External dimensions (height x width x depth) [mm] 262 x 452 x 330
Net weight 11,3 kg

SAFETY INSTRUCTIONS FOR USE

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
2. WARNING: If the door or door seals are damaged, the oven must not be used until it is repaired by a qualified technician;
3. WARNING: Performing any maintenance or repairs which require removing any shielding protecting against microwave energy is dangerous and should only be entrusted to a qualified technician;
4. WARNING: Liquids and other foodstuffs may not be heated in sealed containers as the containers could explode;
5. WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

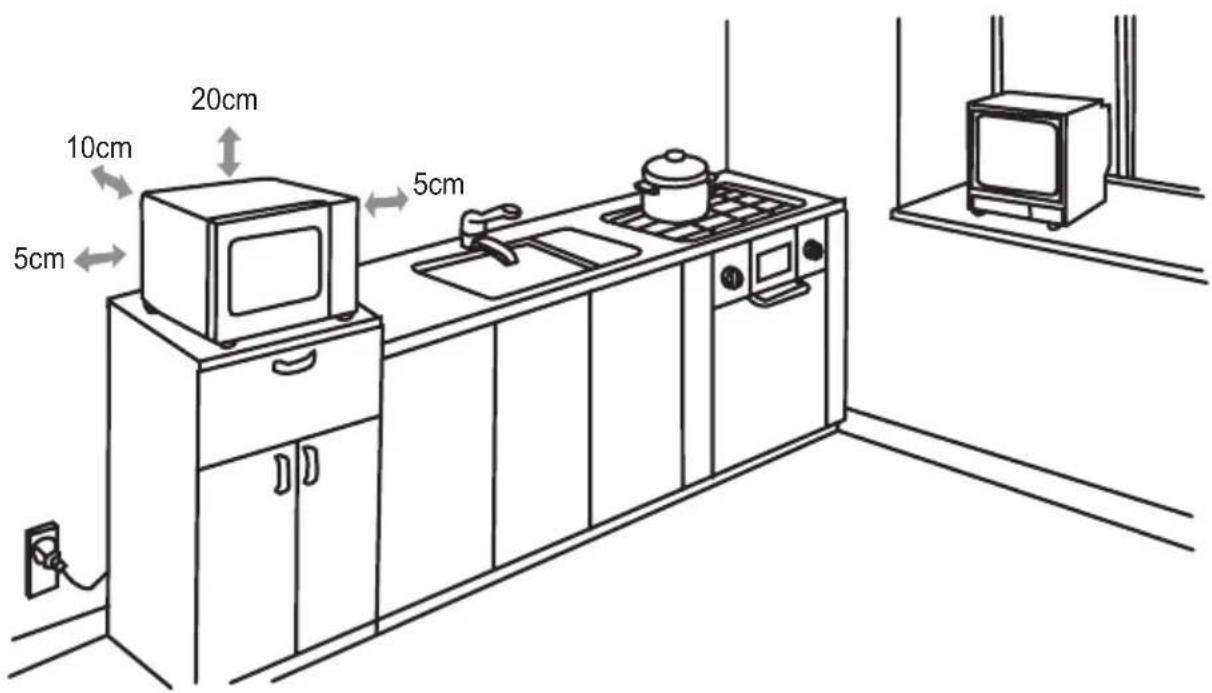

1. The minimum required clearance above the top of the microwave oven is 20 cm;
2. Use only cookware that is suitable for use in microwave ovens;
3. When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;
4. If you see smoke, turn off the appliance or unplug it from power and keep the door closed until the flames are smothered;
5. Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;
6. The contents of feeding bottles and jars with food for children should be stirred or shaken and the temperature checked before serving to prevent burns;
   12.Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they could explode even after the microwave heating;
   13) For details on how to clean door seals and adjacent parts please refer to relevant section of this manual
   14) The oven must be cleaned regularly. Remove any deposits of food and leftovers;
   15) Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations;
   16) Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.
   17) Before using the oven, test heat the grill heater (smoke can be given off through ventilation grid):
7. Switch on the ventilation in the room or open a window,
8. Set the oven to heat the grill heater only for about 3 minutes without heating food.
   18) Microwave oven should not be placed in a cabinet.
   19) The rear surface of appliance shall be placed against a wall.

SAFETY

1. Oven must be placed on flat a surface.
2. Turntable and rotating ring assembly should be in the oven during cooking. Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.
3. Improper use of the browning plate may cause cracking of the turntable due to the high temperature.
4. Only use bags for cooking in microwave ovens, which are correct size.
5. Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open. Do not tamper with these circuit breakers.
6. Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.
7. Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.
8. Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury.
9. Do not use narrow-necked containers such as bottles for syrups.
10. Do not fry in deep fat in the microwave.
11. Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.
12. Do not use microwave oven for commercial purposes. This microwave oven is designed for household use only.
13. In order to avoid delayed boiling of hot liquids and beverages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.
14. Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.
15. When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
16. Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations;
17. This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:

1. Read the user manual before using the appliance.
2. Observe all „PRECAUTIONARY MEASURES TO AVOID POSSIBLE OVER-EXPOSURE TO MICROWAVE ENERGY.”
3. As with most ovens, close supervision is needed to reduce the risk of fire inside the oven chamber.

If ignition occurs:

1. Leave the oven door closed.
2. Switch off the appliance and pull out the plug from the wall socket
3. Disconnect the power by removing or disconnecting the fuse on the distribution board.

Always bear in mind the following principles:

1. Do not overcook dishes. Carefully observe the appliance when paper, plastic or other combustible materials are inserted into the oven in order to facilitate cooking.

2. Do not use the oven for storage. Do not store combustible items inside the oven, such as bread, biscuits, paper products, etc. If lightning strikes in the supply line microwave may switch on automatically.

3. Remove the wire clamps and metal fixtures from containers / paper or plastic bags before placing them in the oven.

4. Microwave oven must be grounded. Only connect to a wall socket with the proper protective conductor. See „Installing the protective circuit.”

5. Install or position the oven strictly in accordance with the instructions.

6. Some products, such as whole eggs, water, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.

7. Use this appliance only for its intended purpose as described in the manual. Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.

8. Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.

9. Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.

10. The appliance should be serviced only by qualified manufacturer service technicians.

11. Do not cover or block the air vents on the oven.

12. Do not store or use the oven outdoors.

13. Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool.

14. Do not immerse the power cord or plug in water.

15. Keep cord away from heated surfaces.

16. Do not allow the connection cord hanging over the edge of a table or counter.

17. Cleaning:

Before cleaning, make sure the oven is disconnected from the power source.

a) After use, clean the inside of the oven using a slightly damp cloth.

b) Clean the accessories in the normal way in soapy water

c) Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth.

UNPACKING WITHDRAWAL FROM USE

The appliance was protected from damage at the time of transport. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operator's Manual or packaging.

The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part

in protecting our environment.

Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

DANGER

Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance.

WARNING

Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded.

Line drawing of a plug with two leads (no text or symbols)

COOKWARE

WARNING

Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking.

This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet.

If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified electrician or service technician. If you must use an extension cord, use only a three-wire extension with an earthing connector. The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit.

1. A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

2. If you use the extension cord: 1) Extension cord must be capable of withstanding nominal current required by the appliance. 2) Extension cord must be 3-wire with earthing,

Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

Materials that can be used and materials to be avoided in the microwave oven.

The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure.

Testing the cookware:

1. Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware.
2. Operate the oven with the maximum power for 1 minute.
3. Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.
4. Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven

Cookware Comments
Aluminium tray May cause an electric arc. Transfer food to microwave-safe cookware.
Cardboard carton with metal handle	May cause an electric arc. Transfer food to microwave-safe cookware.
Metal or cookware with metal frame	Metal shields the food from microwave energy. Metal frame can cause an electric arc.
Metal closure - tightened May cause	an electric arc and fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures.
Wood	Wood dries out when it is heated in the microwave oven and can crack or break.

Materials that can be used in a microwave oven

Cookware Comments
Aluminium foil Only as shielding. Small and smooth pieces can be used for the coating of thin pieces of meat or poultry, to prevent excessive cooking. Arc discharge may occur if the foil is too close to the oven walls. Film must be at least at a distance of 2.5 cm from the oven walls.
Browning plate	Observe the manufacturer's instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable.
Dinner dishes	Suitable for microwave ovens only. Observe the manufacturer's instructions. Do not use cracked or chipped cookware.
Glass jars	Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode.
Glassware	Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware.
Bags for microwave cooking	Observe the manufacturer's instructions. Do not seal with metal clamps.
Paper plates and cups	Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking.
Paper towels	Use to cover food to be heated to absorb fat. Use only for short cooking under constant surveillance.
Parchment paper Use as a cover to prevent splashing or as a container for evaporation.
Plastics	Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package.
Plastic packaging	Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food.
Thermometers Suitable for microwave ovens only (thermometers for meat and sugar).
Wax paper Used as a covering to prevent splashing and to keep moisture.

COOKWARE

Cookware material Microwaves Grill	Combi Mode
Heat-resistant glass YES YES YES
Regular glass NO NO NO
Heat-resistant ceramics YES NO NO
Microwave-safe plastic utensils YES NO NO
Kitchen paper YES NO NO
Metal container NO YES NO
Metal rack (provided for the oven) NO YES NO
Aluminium foil and foil containers	NO YES NO

Microwave oven accessories

Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories:

Turntable 1

Turntable support 1

Operator's Manual 1

A) Control panel
B, C) Spindle
D) Turntable
E) Door glass panel
F) Door assembly
G) System security lock - disconnects power to the oven when the door is opened during operation.

TURNTABLE INSTALLATION

1. Never compress or place the turntable upside down.
2. When cooking always use the turntable and its ring support.
3. For cooking or heating always put the food on the turntable.
4. If the turntable breaks, please contact manufacturer service.

Equipment:

1. Grilling rack
2. Turnable glass
3. Spindle

* Note: The grilling rack supplied with the appliance should only be used when the appliance is set to „GRILL”.

INSTALLATION INSTRUCTIONS

• Remove all packaging materials and components.
• Check the oven for damage such as dents or door misalignment or breakage.
• Remove any protective film from the surface of the cabinet.
• Do not install the oven if it is damaged.

Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron.

Installing

1. The appliance is designed for home use only

Select a level surface to ensure sufficient space for the inlet and outlet ventilation openings.

The required distance between the oven outer surfaces and adjacent walls (or appliances) is presented on the above figure. Do not remove the legs located in the bottom of the appliance.

Blocking the inlet and outlet openings may damage the microwave oven. Place the oven as far away from radio and television as possible. Operating microwave oven may cause interference to radio and television reception.

1. Insert the oven power plug into a standard household wall socket. Make sure beforehand whether voltage and frequency are the same as on the oven's rating plate.

WARNING: Do not install the oven on the gas hob or other heat producing appliance. In the event of such installation, the oven may be damaged and void the warranty.

Accessible surfaces may become hot during oven operation.

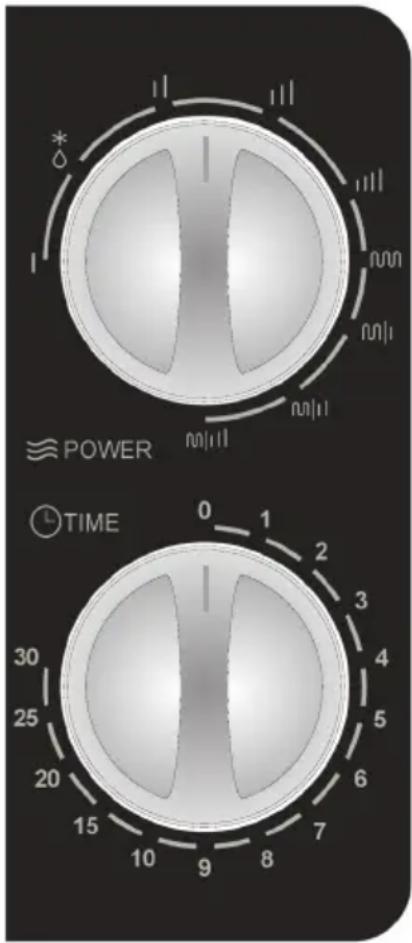

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

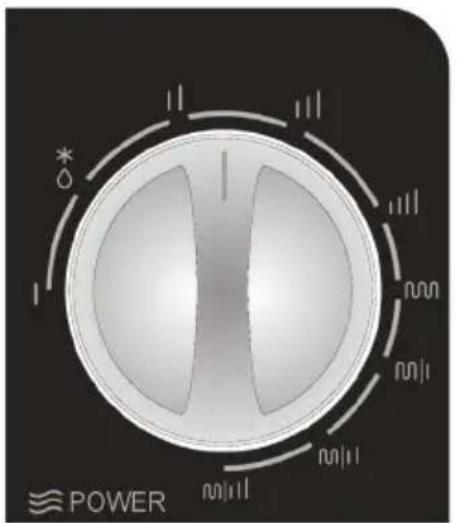

Use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

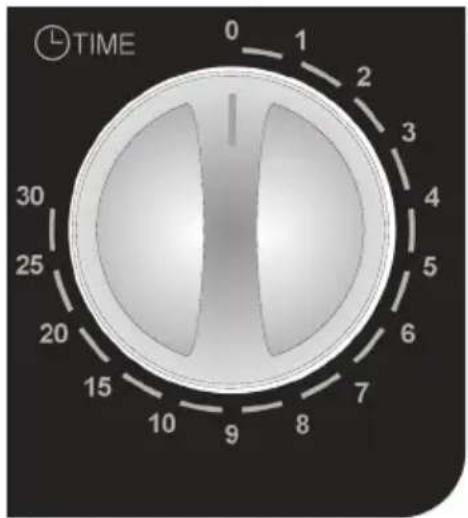

TIMER KNOB

It offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

To set a cooking program:

1. Place food in oven and close the door.
2. Turn Power/Action Selector to select a power level or cooking function.
3. Use Timer knob to set a cooking time

Function/power	Power Output (%)	Description
Low	18% of microwave	Maintain the temperature of food, Soften ice cream
Medium-low (defrosting)	36% of microwave	Defrosting
Medium	58% of microwave	The heating of the cream cake
Medium-high	81% of microwave	Rice, fish, crustaceans, cakes, meat
Higt	100% of microwave l	water heating, cooking, cooking of fresh vegetables, chickens, ducks, heating drinks (without milk)
Combi 1	70% of grill + 30% of microwave	Steak, seafood, lamb, sausages, etc.
Combi 2	51% of grill + 49% of microwave	Beef steak, fried in pork, pieces of chicken, etc.
Combi 3	33% of grill + 67% of microwave	Chickens, ducks, meat dishes, making brittle meat
Grill	100% of grill	Barbeque, smoked fillets, potato chipsWARNING: Only during grill function you can use a special rack that is equipped by the oven.

Function knob Time knob

NOTE:

As soon as the timer is turned, oven starts cooking.

When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Microwave oven interferes with the TV reception	Radio and television reception may be disrupted when the microwave oven operates. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal.
Dimmed oven lighting.	When cooking with low microwave power, oven light may be dimmer. This is normal.
Condensation forms on the door, hot air comes out through vents.	When cooking, steam can be released from food. Most of the steam escapes through the vents. However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal.

Fault Possible cause How to correct
Oven does not start.	(1) power cord unplugged or not plugged properly into the socket	Pull the plug and put it back in after 10 seconds.
	(2) Blown fuse or tripped circuit breaker.	Replace the fuse or turn on the circuit breaker (contact manufacturer service)
	(3) No voltage in the socket	Check the outlet by plugging in other appliance.
The oven does not heat. The door is not closed properly. Close the door fully.
Turntable makes noise when oven operates	Rotating ring or bottom of the oven dirty.	See "Microwave oven maintenance"

FINAL REMARKS

Before using the microwave, please carefully read this manual. Store it in such a place, so that it may be used in future. Do not repair the oven yourself, please contact manufacturer service. The contents of feeding bottles and jars with food for children should be stirred or shaken and the temperature checked before serving to prevent burns; Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven

WARNING:

1. Performing any maintenance or repairs which require removing any shielding protecting against microwave energy is dangerous and should only be entrusted to a qualified technician;
2. Only give the child permission to use the oven without supervision when the child has been given appropriate guidance to use the microwave safely and is aware of the risks of misuse;
3. If the power supply cable is damaged, it should be replaced by the manufacturer or at an authorized servicing outlet.

Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.

Thoroughly clean the door gasket and sealing surfaces. Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to: (1) door (bent), (2) hinges and latches (broken or loosened), (3) gaskets and the door sealing surface. Check cookware and make sure that it is suitable for use in microwave ovens.

When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Amica Wronki S.A.

ul.Mickiewicza 52

64-510 Wronki

tel. [phone]

fax [phone]

www.amica.com.pl

Amica

Centrum Serwisowe

801 801 800

IO 00683/2

(03.2012)
