Product Type	Laundry Work Table
Brand	WHIRLPOOL
Model	WW29000SW
Use	Sorting, folding, laundry handling, storage of laundry products
Compatibility	Front-load washer and dryer, each 27 in (68.6 cm) wide
Required spacing between appliances	Approximately 1 in (2.5 cm)
Added height	3 in (7.6 cm) above the appliances
Surface material	Rubber coating
Cleaning	Sponge or soft damp cloth, mild soap and water, avoid abrasive products
Maintenance	Wipe up spills immediately, clean occasionally to maintain appearance
Safety	Risk of excessive weight – requires two people for moving
Installation	Check that appliances are level, adjust feet if necessary, center the work surface
Necessary tools	Tape measure, level
Warranty	1 year limited (parts and labor)
Usage limitations	Not designed for ironing (risk of discoloration)
Service country	United States and Canada (outside these areas, contact the dealer)

Frequently Asked Questions - WW29000SW WHIRLPOOL

How to install the WW29000SW work table?

Make sure the washer and dryer are level and at the same height. Leave a gap of approximately 1 in (2.5 cm) between the two appliances. Place the work table on the appliances by first hooking the back edge, then center it left to right. Use two people to move it due to the heavy weight.

What are the dimensions of the work table?

Exact dimensions are not provided, but it is designed to fit a washer and dryer each 27 in (68.6 cm) wide with a 1 in (2.5 cm) gap between them. The table adds 3 in (7.6 cm) to the total height of the appliances.

Can I iron on the work table?

No, the work table is not designed for ironing. Using an iron may cause discoloration of the surface.

How to clean the work table?

Use a sponge or soft damp cloth to wipe up spills. For regular cleaning, use mild soap and water. Avoid abrasive products that could damage the surface.

What is the warranty for the Whirlpool WW29000SW work table?

The limited warranty is one year from the date of purchase. It covers replacement parts and labor for defects in materials or workmanship. Service must be provided by a Whirlpool authorized company.

What tools are required for installation?

You will need a tape measure and a level to check dimensions and levelness of the appliances.

Can I use the work table with a top-loading washer?

The instructions indicate that the table is designed for front-load washers and dryers. For top-loading, check compatibility as height and access may differ.

What is the maximum weight supported by the work table?

The instructions do not specify a maximum weight. Use it for sorting and folding laundry, and avoid placing very heavy objects on it. For moving, two people are recommended due to the weight of the table itself.

How to adjust the level of the washer and dryer?

Use a level to check side-to-side and front-to-back levelness. If necessary, adjust the appliance feet following the instructions in their user guide.

Where can I find the serial number of the work table?

The model and serial numbers are on the rating plate located on the product. Note this information along with the purchase date for warranty service.

USER MANUAL WW29000SW WHIRLPOOL

Location Requirements.... 2

INSTALLATION INSTRUCTIONS .... 3

WORKSURFACE CARE .... 3

WARRANTY......4

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Required

■ Measuring tape
Level

Location Requirements

The worksurface can be installed on top of a front-loading washer and dryer pair situated next to each other. The washer and dryer must be level side to side and front to back and at the same height. Proper installation is your responsibility.

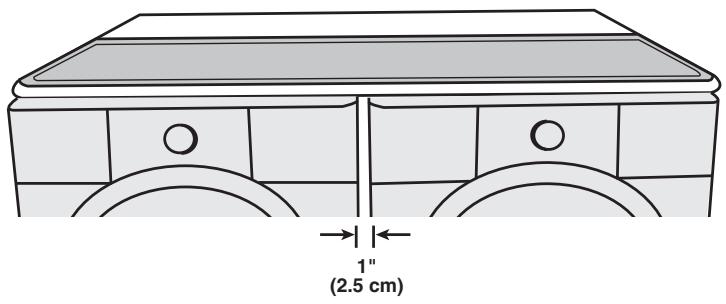

Installation Spacing

■ The worksurface will fit on top of a washer and dryer that are each 27" (68.6 cm) wide and have a spacing of approximately 1" (2.5 cm) between them for the alignment pads.

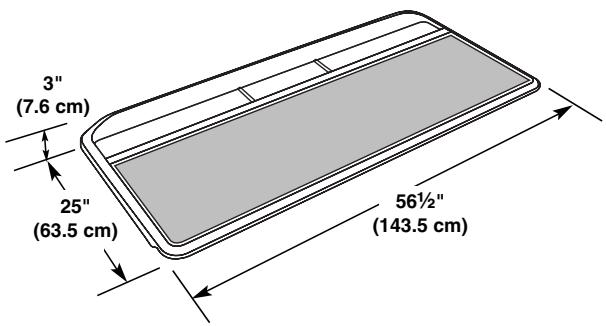

Worksurface Dimensions

Top view
NOTE: The worksurface will add 3" (7.6 cm) to the overall height of your washer and dryer

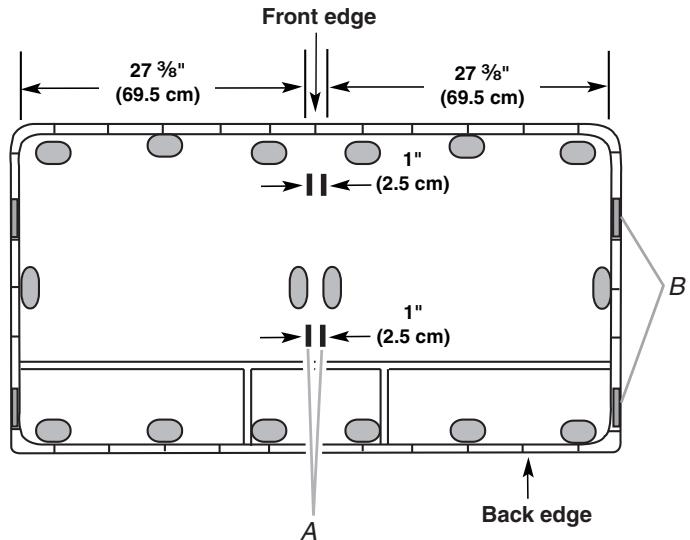

Bottom view
A. Alignment pads
B. Side pads

INSTALLATION INSTRUCTIONS

1. Remove the rubber mat(s) from the top of the worksurface and set aside.

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall washer.

Failure to do so can result in back or other injury.

WARNING

Excessive Weight Hazard

Use two or more people to move and uninstall dryer.

Failure to do so can result in back or other injury.

1. Check the spacing between your washer and dryer. If necessary, move your washer or dryer so that there is a space of approximately 1" (2.5 cm) between them.
2. Check that the washer and dryer are level front to back and side to side and the difference in height is no more than 38 " (0.95 cm). Place a level on both the washer and dryer to determine any difference in height. If necessary, adjust the washer or dryer feet.

NOTE: Refer to your model's Use and Care Guide for tools required and leveling instructions.

1. Place the worksurface on top of the washer and dryer. Holding the front edge up, hook the back edge over the back of the washer and dryer. Center it left to right so that the alignment pads fit in the space between the washer and dryer.
2. Check that the top of the washer and the bottom of the rubber mat(s) are clean and set in place on top of the worksurface.
3. Dispose of/recycle all packaging materials.

WORKSURFACE CARE

The worksurface can be used for sorting, treating and folding laundry and for storing various laundry products.

IMPORTANT: The worksurface is not intended for ironing. Using an iron on the worksurface could cause it to become discolored.

Cleaning the Worksurface

■ Use a soft damp cloth or sponge to wipe up any spills.
Occasionally wipe the worksurface to keep it looking new.
■ Use mild soap and water; do not use abrasive products.

WHIRLPOOL CORPORATION LAUNDRY PRODUCT WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this product is operated and maintained according to instructions attached to or furnished with the product, Whirlpool or Whirlpool Canada (hereafter “Whirlpool”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your product, to instruct you how to use your product, to replace or repair house fuses or to correct house wiring or plumbing.
2. Repairs when your product is used for other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.
4. Replacement parts or repair labor costs for units operated outside the United States or Canada.
5. Pickup and delivery. This product is designed to be repaired in the home.
6. Repairs to parts or systems resulting from unauthorized modifications made to the product.
7. Expenses for travel and transportation for product service in remote locations.
8. The removal and reinstallation of your product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, in the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 6/06

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major product to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name
Address
Phone number
Model number
Serial number
Purchase date

Notes
