M182CB - Air Conditioning LG - Free user manual and instructions

Product Type	Ceiling Cassette Air Conditioner
Model Number	M182CB
Brand	LG
Cooling Capacity	5.2 kW (18,000 BTU/h)
Heating Capacity	5.8 kW (19,800 BTU/h)
Power Supply	220-240 V, 50 Hz, Single Phase
Indoor Unit Dimensions (W x D x H)	840 x 840 x 250 mm
Outdoor Unit Dimensions (W x D x H)	900 x 650 x 300 mm
Indoor Unit Weight	20 kg
Outdoor Unit Weight	60 kg
Refrigerant Type	R410A
Airflow Direction	4-way auto swing (up/down, left/right)
Control Type	Remote control with LCD display
Inverter Technology	DC Inverter (variable speed compressor)
Timer Function	24-hour on/off timer
Sleep Mode	Yes, adjusts temperature gradually
Dehumidification Mode	Yes, dedicated dehumidify mode
Filter Type	Washable antibacterial filter
Filter Cleaning Reminder	Yes, indicator on remote
Safety Features	Overheat protection, frost prevention, self-diagnosis
Energy Efficiency Ratio (EER)	3.5 (cooling)
Seasonal COP (SCOP)	4.0 (heating)
Noise Level (Indoor)	28-36 dB(A)
Noise Level (Outdoor)	52 dB(A)
Refrigerant Leak Detection	Yes, automatic alarm
Compatible Smart Control	LG ThinQ (Wi-Fi module optional)

Frequently Asked Questions - M182CB LG

How do I install the LG M182CB ceiling cassette?

Installation must be performed by a qualified professional. Ensure the ceiling can support the indoor unit (approx. 20 kg) and that the outdoor unit is placed on a level, stable surface with adequate ventilation. Refer to the installation manual for clearances and refrigerant line connections.

How often should I clean the air filter?

Clean the washable antibacterial filter every 2 weeks during heavy use. Lift the intake grille, slide out the filter, wash it with mild detergent, and let it dry completely before reinserting. A dirty filter reduces airflow and efficiency.

What does the remote control display show?

The remote LCD shows the set temperature, mode (cool, heat, dry, fan), fan speed, timer settings, and error codes. It also indicates battery level and filter cleaning reminder.

How do I change the airflow direction?

Press the 'Swing' button on the remote to activate 4-way auto swing. The louvers move up/down and left/right to distribute air evenly. You can also manually adjust individual louvers by hand (when unit is off).

Why is my unit not cooling/heating properly?

Check if the filter is dirty, the set temperature is appropriate, and the doors/windows are closed. Also ensure the outdoor unit is not blocked or covered. If error codes appear, refer to the manual for specific troubleshooting.

How do I set the timer?

Press the 'Timer' button on the remote. Use the +/ - buttons to set the desired on or off time (up to 24 hours). The unit will automatically start or stop at the set time.

What is the sleep mode?

Sleep mode gradually adjusts the temperature to a more comfortable level during the night and reduces fan noise. It can be activated from the remote and improves energy efficiency while you sleep.

How do I interpret error codes?

Error codes appear on the remote display, e.g., 'CH01' (room sensor error) or 'E5' (compressor lock). Refer to the error code table in the user manual for explanations and recommended actions.

Can I connect the unit to WiFi?

The LG M182CB supports LG ThinQ smart control via an optional Wi-Fi module (sold separately). Once installed, you can control the unit via the LG ThinQ app on your smartphone.

What maintenance does the outdoor unit need?

Keep the outdoor unit clear of debris, leaves, and snow. Clean the condenser coils annually with a soft brush or low-pressure water. Check the refrigerant lines for leaks and ensure the base pan is draining properly.

USER MANUAL M182CB LG

Please read this manual carefully before operating your set and retain it for future reference.

TYPE : MULTI

P/NO : MFL62490904

MODELS: M092CD N009 M092CR N009 M092CB N009 M182CX U0 M182CX U1

M122CD N012 M122CR N012 M122CB N012 M242CX U0 M242CX U1

M182CD N018 M182CR N018 M182CB N018 M362CX U0 M362CX U1

M242CD N024 M242CR N024 M242CB N024 M363CX U0 M363CX U1

M092HD N009 M072HR N007 M092HB N009 M483CX U0 M483CX U1

M122HD N012 M092HR N009 M122HB N012 M182HX U0 M182HX U1

M182HD N018 M122HR N012 M182HB N018 M242HX U0 M242HX U1

M242HD N024 M182HR N018 M242HB N024 M362HX U0 M362HX U1

M072HD N007 M242HR N024 M122HT N012 M363HX U0 M363HX U1

M092HD N0091 M365HX u0 M483HX u1

M122HD N0121 M483HX U0

TABLE OF CONTENTS

SY/S5/SE/S8 Chassis

A. Safety Precautions...... 3
B. Electrical Safety......8
C. Product Introduction...... 9
D. Operating Instructions......10
E. Maintenance and Service....24

BT/BT1/BY Chassis

F. Product Introduction......27

G.Operating Instructions......28

H.Care and Maintenance......41

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
  • The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.

Simple line drawing of people enjoying a picnic with sun, palm trees, and food (no text or symbols)

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage.

■Meanings of symbols used in this manual are as shown below.

	Be sure not to do.
	Be sure to follow the instruction.

WARNING

■Installation

Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.

- There is risk of fire or electric shock.

For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized Service Center.

- Do not disassemble or repair the product. There is risk of fire or electric shock.

Illustration of a person using a smartphone to interact with a large electronic device, another person holding a phone in the background (no text or symbols present)

Always ground the product.

- There is risk of fire or electric shock.

Cartoon illustration of a smiling air conditioner unit with a warning symbol (no text or labels)

Install the panel and the cover of control box securely.

• There is risk of fire or electric shock.

Always install a dedicated circuit and breaker.

- Improper wiring or installation may cause fire or electric shock

Use the correctly rated breaker or fuse.

• There is risk of fire or electric shock.

Illustration of a person reading a document with a cartoon character inside a device, no text or symbols present

Illustration of a cartoon character holding a piano keyboard with a pointing finger, accompanied by a warning symbol (no text or labels present)

Do not modify or extend the power cable.

- There is risk of fire or electric shock.

Do not install, remove, or re-install the unit by yourself (customer).

• There is risk of fire, electric shock, explosion, or injury.

Illustration of a person holding a large indoor air conditioner unit with a prohibition symbol (no text or labels)

Be cautious when unpacking and installing the product.

- Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and evaporator.

Illustration of a person using a refrigerant machine with a prohibition symbol (no text or labels)

For installation, always contact the dealer or an Authorized Service Center.

- There is risk of fire, electric shock, explosion, or injury.

Illustration of a person reacting with a phone to a phone screen, next to a magnifying glass (no text or symbols)

Be sure the installation area does not deteriorate with age.

- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury.

Illustration of a box containing an air conditioner unit with smoke and heat, no text or symbols present

Do not install the product on a defective installation stand.

- It may cause injury, accident, or damage to the product.

Cartoon illustration of a distressed air conditioner unit with a warning sign, no text or symbols present

Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open.

- Moisture may condense and wet or damage furniture.

Operation

Do not touch(operate) the product with wet hands.

- There is risk of fire or electrical shock.

Do not place a heater or other appliances near the power cable.

• There is risk of fire and electric shock.

Do not let electric parts of the product get wet.

- It may cause There is risk of fire, failure of the product, or electric shock.

Cartoon illustration of a distressed air conditioner with rain falling, no text or symbols present

Do not store or use flammable gas or combustibles near the product.

- There is risk of fire or failure of product.

If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable.

- There is risk of electric shock or fire.

When the product is soaked (flooded or submerged), contact an Authorized Service Center.

- There is risk of fire or electric shock.

Illustration of a person using a phone to call into a microphone, with an exclamation mark and warning symbol (no text or labels)

Be cautious that water could not enter the product.

- There is risk of fire, electric shock, or product damage.

Illustration of a damaged electrical outlet with smoke and flames, no text or symbols present

Turn the main power off when cleaning or maintaining the product.

• There is risk of electric shock.

Illustration of a woman cleaning a high-speed train with a thought bubble showing a 'BASIC' sign (no text on the train or background)

When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

- There is risk of product damage or failure, or unintended operation.

Illustration of a person reading a book with a thought bubble showing a pencil, next to a person holding a backpack and a warning symbol (no text or symbols present)

Take care to ensure that nobody could step on or fall onto the outdoor unit.

- This could result in personal injury and product damage.

CAUTION

■Installation

Always check for gas (refrigerant) leakage after installation or repair of product.

- Low refrigerant levels may cause failure of product.

Install the drain hose to ensure that water is drained away properly.

• A bad connection may cause water leakage.

Keep level even when installing the product.

- To avoid vibration.

Do not install the product where the noise or hot air from the outdoor unit could be offensive to the neighborhoods or damage property.

- It may cause a problem for your neighbors.

Illustration of a car air conditioner unit connected to a wall-mounted air conditioner unit, with an exclamation mark icon below (no text or symbols on the diagram itself)

Use two or more people to lift and transport the product.

Illustration of a cartoon air conditioner unit with a 90-degree angle indicator (no text or symbols on the device itself)

- Avoid personal injury.

Do not install the product where it will be exposed to sea wind (salt spray) directly.

Illustration of a worker pushing an air conditioner unit with a prohibition symbol (no text or labels)

- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation.

Operation

Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.)

• This could harm to your health.

Illustration of a person peeking from behind a window with a large book, showing a surprised face and a surprised woman (no text or symbols present)

Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

- There is risk of damage or loss of property.

Illustration showing a person inside a smartphone with a thought bubble, and a sleeping person lying on the floor near a potted plant (no text or symbols)

Do not block the inlet or outlet of air flow.

- It may cause product failure.

Illustration of a washing machine with a stack of boxes and a prohibition symbol (no text or labels)

Do not step on or put anything on the product. (outdoor units)

- There is risk of personal injury and failure of product.

Illustration of a multi-tiered air conditioner unit with a prohibition symbol (no text or labels)

Do not drink the water drained from the product.

• It is not sanitary and could cause serious health issues.

Illustration of a person reacting to a large car crash with a no-smoking symbol above (no text or labels)

Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.

• They may burn or explode.

Illustration of a cigarette emitting smoke next to a no-smoking sign and a trash can (no text or symbols)

Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.

• There is risk of fire, electric shock, or damage to the plastic parts of the product.

Always insert the filter securely. Clean the filter every two weeks or more often if necessary.

- A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.

Use a firm stool or ladder when cleaning or maintaining the product.

- Be careful and avoid personal injury.

If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.

• The chemicals in batteries could cause burns or other health hazards.

Do not touch the metal parts of the product when removing the air filter. They are very sharp!

• There is risk of personal injury.

Illustration of a person reacting to a baby on a roof with a no-smoking symbol (no text or labels)

Do not insert hands or other objects through the air inlet or outlet while the product is operated.

• There are sharp and moving parts that could cause personal injury.

Illustration of a person using a high-voltage air conditioner to clean the ceiling, with no text or symbols present.

Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.

• Could adversley effect operation.

If you eat the liquid from the batteries, brush your teeth and see doctor. Do not use the remote if the batteries have leaked.

• The chemicals in batteries could cause burns or other health hazards.

Electrical Safety

▲ WARNING

• This appliance must be properly grounded.
  To minimize the risk of electric shock, you must alway plug into a grounded outlet.
• Do not cut or remove the grounding prong from the power plug.
• Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal and not insulated, and the wall receptacle is grounded through the house wiring.
• If you have any doubt whether the air conditioner is properly grounded, have the wall receptacle and circuit checked by a qualified electrician.

Temporary Use of an Adapter

We strongly discourage the use of an adapter due to potential safety hazards. For temporary connections, use only a genuine adapter, available from most local hardware stores. Ensure that the large slot in the adapter is aligned with the large slot in the receptacle for a proper polarity connection.

To disconnect the power cord from the adapter, use one hand on each to avoid damaging the ground terminal. Avoid frequently unplugging the power cord as this can lead to eventual ground terminal damage.

▲ WARNING

- Never use the appliance with a broken adapter.

Temporary Use of an Extension Cord

We strongly discourage the use of an extension cord due to potential safety hazards.

▲ WARNING

This appliance should be installed in accordance with national wiring regulations. This guide acts as a guide to help to explain product features.

Symbols used in this Manual

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the air conditioner.

NOTE

This symbol indicates special notes.

Product Introduction

Here is a brief introduction of the indoor and outdoor units. Please see the information specific to your indoor unit type.

Indoor Units

Wall Mounted Type

Display panel LED indicators

Art Cool Mirror Type

Display panel LCD indicators

Operation Indication Lamps

Wall Mounted Type

Technical line drawing of a rectangular air conditioner unit (no text or symbols)

① On/Off : Lights up during the system operation, error code and auto restart setting.
Sleep mode : Lights up during sleep mode auto operation.
Energy Saving : Lights up during energy saving mode.
* Defrost mode : Lights up during defrost mode. (Heat Pump model only)
OUT DOOR Outdoor unit : Lights up during outdoor unit operation. (Cooling model only) operation

Art Cool mirror Type

Isometric line drawing of a rectangular electronic component with a textured top surface (no text or symbols)

On/Off : Lights up during the system operation.

Sleep Mode : Lights up during Sleep Mode Auto operation.

Timer : Lights up during Timer operation.

* Defrost mode : Lights up during defrost mode. (Heat Pump model only) Outdoor unit operation : Lights up during outdoor unit operation. (Cooling model only)

88 Desire temperature indicator : For cooling, dehumidification, heating, modes it display Destired temperature • Cooling : 18\~30°C • Al : Auto Operation • Dehumidification : 18\~30°C • Po : Jet Cool • Heating : 16\~30°C • Lo : Test Mode

PLASMA : Indicate PLASMA purifier operation.

Operating Instructions

How to insert the Batteries

1. Remove the battery cover by pulling it according to the arrow direction.
2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTE

1. Use 2 AAA(1.5volt) batteries. Do not use rechargeable batteries.
2. If the system is not to be used for a long time, remove the batteries to save their working life.
3. If the display screen of remote controller starts, fading replace both of the batteries.

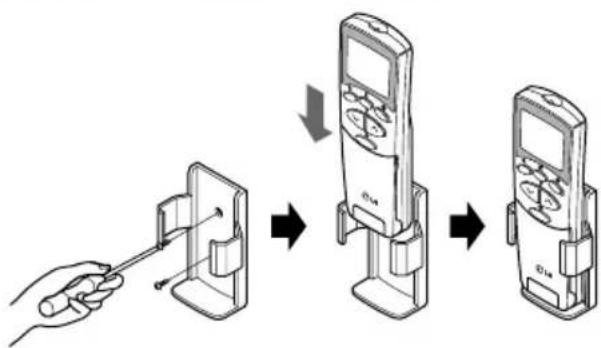

Wireless Remote Controller Maintenance

1. Choose a suitable place where its safe & easy to reach.
2. Fix the holder to wall etc with the supplied screws firmly.
3. Slide the remote controller inside the holder.

NOTE

1. Remote controller should never be exposed to direct sunlight.
2. Signal transmitter & receiver should always be clean for proper communication. Use a soft cloth to clean them.
3. In case some other appliances also get operated with remote control, change their position or consult your serviceman.

Operating Method

1. The signal receiver is inside the unit.
2. Aim the remote controller towards the unit to operate it. There should not be any blockage in between.

Line drawing of a car air conditioner unit with a screwdriver inserted (no text or symbols)

Artcool Mirror TypeWall Mounted

Technical line drawing of a mechanical component with a rod inserted into a housing (no text or symbols)

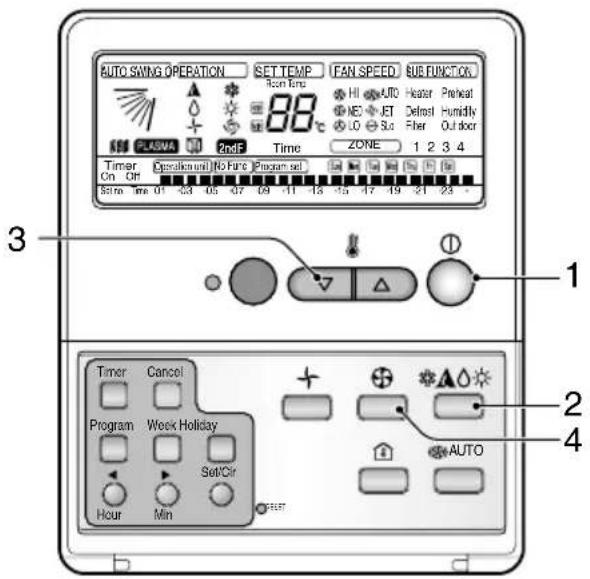

Remote Control Operation

The remote control transmits the signals to the system.

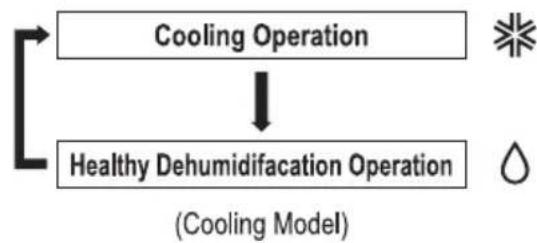

(1) Operation Mode

1 OPERATION DISPLAY

Displays the operation conditions.

CHAOS SWING BUTTON

Used to stop or start louver movement and set the desired up/down airflow direction.

3 OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

OFF TIMER BUTTON

Used to set the time of stopping operation.

START/STOP BUTTON

Operation starts when this button is pressed, and stops when the button is pressed again.

6 ROOM TEMPERATURE SETTING BUTTONS

7 INDOOR FAN SPEED SELECTION BUTTON

JET COOL

Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode.)

ENERGY SAVING

Energy-saving cooling mode can save energy in cooling

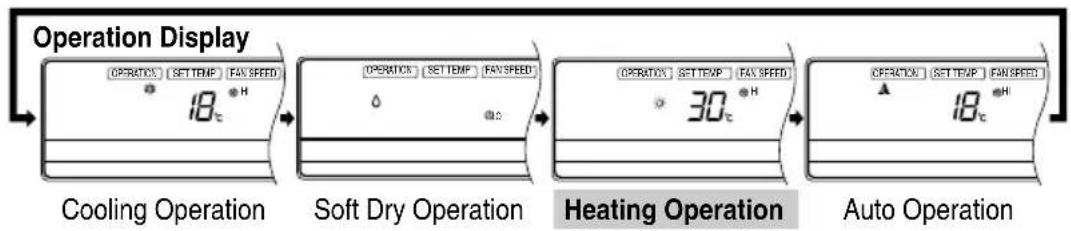


(2) Operation PROCEDURE

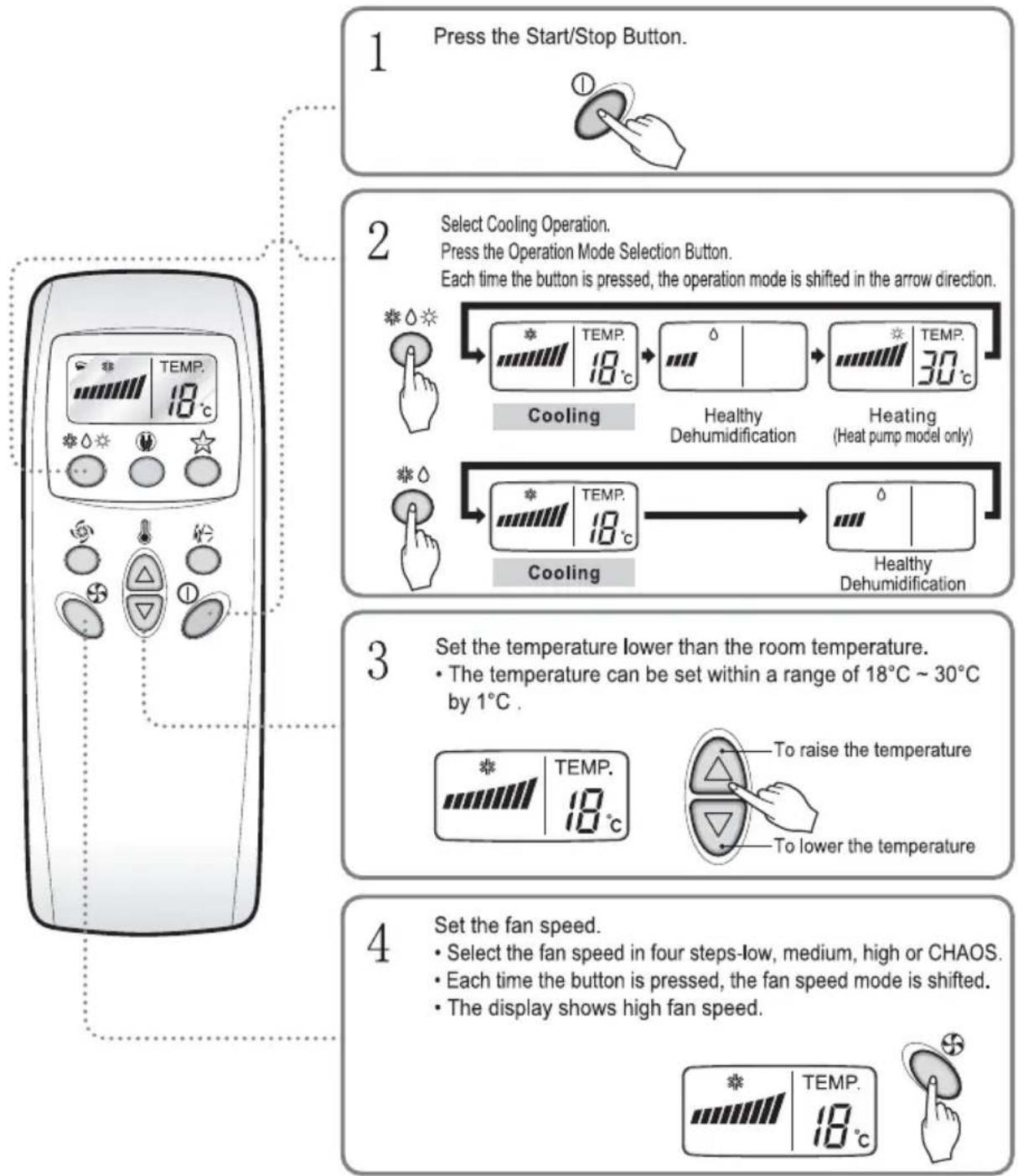

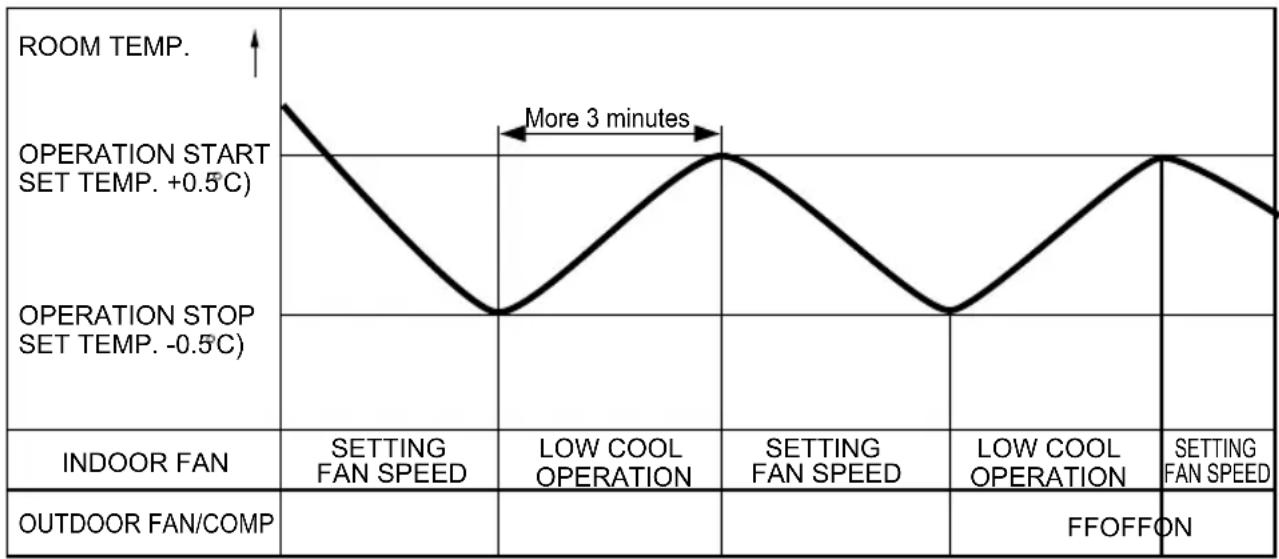

Cooling Operation

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

Healthy Dehumidification Operation Mode

This mode dehumidifies without overcooling.

During Healthy Dehumidification Operation:

☐ If you select the dehumidification mode on the operation selection button, the airconditioner starts to run the dehumidification function, automatically setting the room temp. and airflow volume to the best condition for dehumidification based on the sensed current room temp.

In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the room temp. either.

☐During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status and makes the room condition healthy and comfortable even in the high humidity season.

Heating Operation(Heat pump model only)

Timer control Setting

OFF TIMER CONTROL SETTING

Press the OFF Time Button.

1. Press the OFF Time Button.
2. Check the OFF Time LED of the room air conditioner.
3. The Timer is programmed by 1 hour each pressing the OFF Time button from 1 hour to 7 hours.

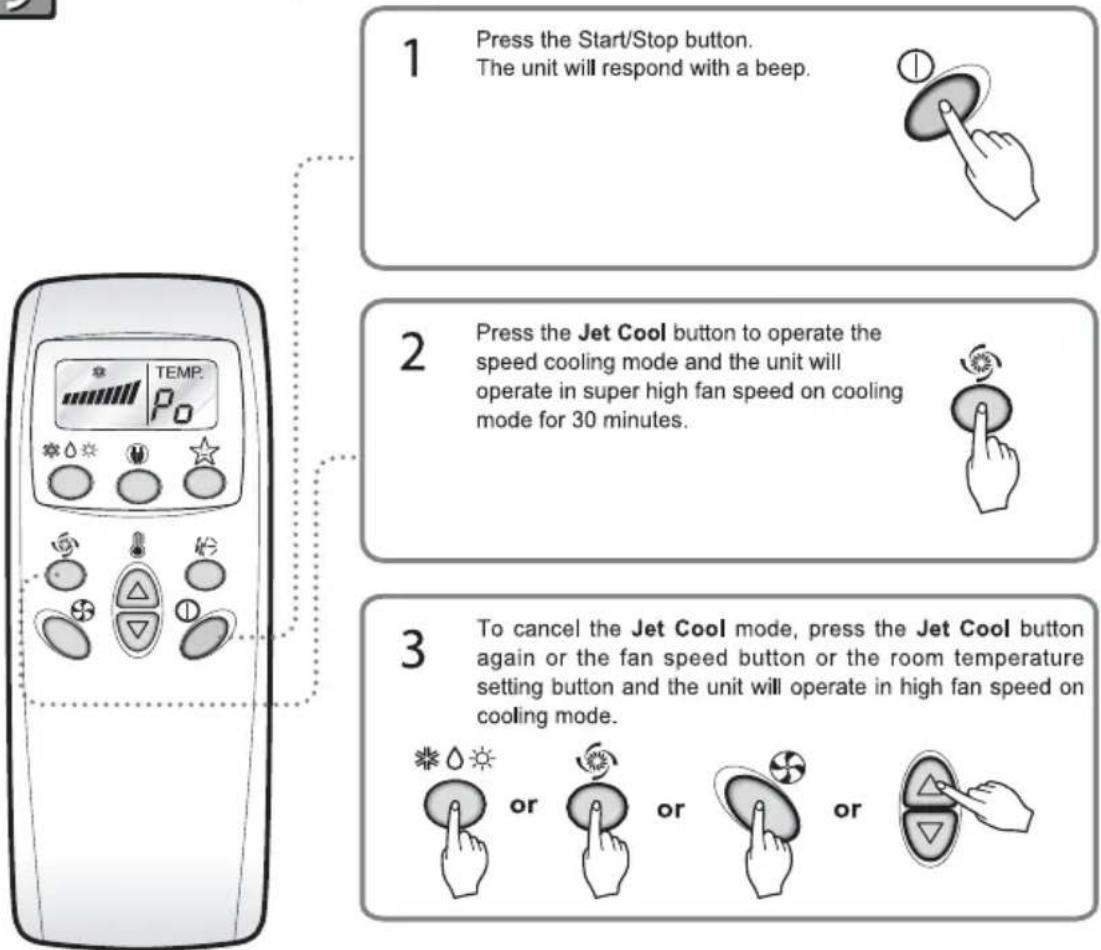

Jet Cool Operation

NOTICE

☐ During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18°C. It is especially used to cool the room temp. in the shortest time in a hot summer. In heat pump mode the JET COOL function is not available.
☐ In order to return to the normal cooling mode from the JET COOL mode, you just press either the operation mode selection button, airflow volume selection or temp. setting button or the JET COOL button again.

Energy-Saving Cooling Mode (Optional)

Energy-saving cooling mode can save energy in cooling and healthy dehumidification operation, because it can operate efficiently by setting body-adaptation time according to the change of time and temperature and adjusting automatically desired temperature.

1. Press the START/STOP BUTTON to start the unit.
2. Open the door on the remote controller. Select cooling operation or healthy dehumidification operation.
3. Press the ENERGY-SAVING COOLING MODE BUTTON.
4. To cancel the energy-saving cooling mode, press the ENERGY-SAVING COOLING MODEL BUTTON again and unit will operate in previous mode(Cooling or healthy dehumidification mode).

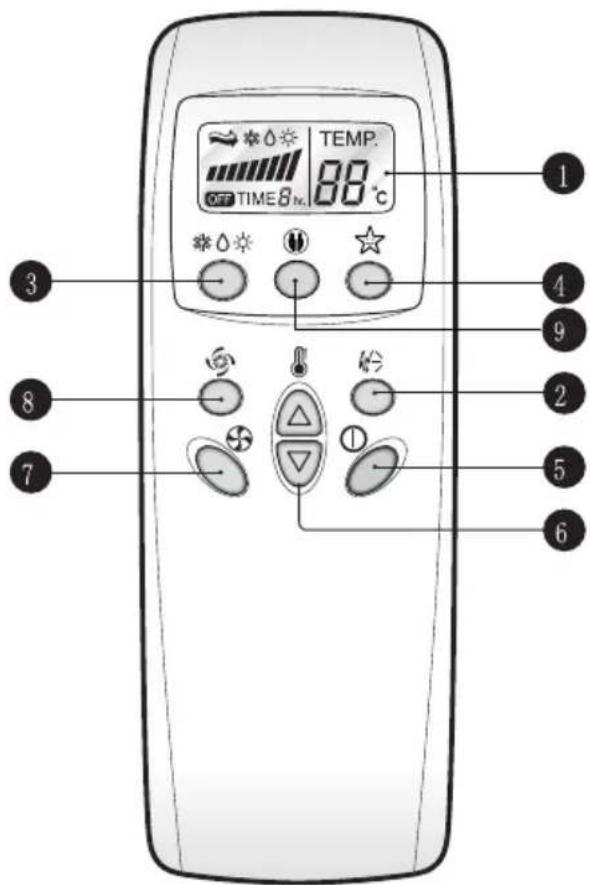

Wireless Remote Controller

The controls will look like the following.

1. START/STOP BUTTON

Used to turn off/on the unit.

1. OPERATION MODE SELECTION BUTTON

Used to select the operation mode.

1. ROOM TEMPERATURE SETTING BUTTONS

Used to select the room temperature.

1. INDOOR FAN SPEED SELECTOR BUTTON

Used to select fan speed in four steps low, medium, high and CHAOS.

1. JET COOL BUTTON

Used to start or stop the speed cooling.

(It operates fan in super high speed in cooling mode)

1. CHAOS SWING BUTTON

Used to stop or start louver movement and set the desired up/down airflow direction.

1. ON/OFF TIMER BUTTONS

Used to set the time of starting and stopping operation.

1. TIME SETTING BUTTONS

Used to adjust the time.

1. TIMER SET/CANCEL BUTTON

Used to set and to cancel the timer operation.

1. SLEEP MODE AUTO BUTTON

Used to set sleep mode auto operation.

1. AIR CIRCULATION BUTTON

Used to circulate the room air without cooling

1. ROOM TEMPERATURE CHECKING BUTTON

Used to check the room temperature.

1. RESET BUTTON

Used prior to resetting time.

1. 2nd F BUTTON (OPTIONAL)

Used prior to using modes printed in blue at the bottom of buttons.

1. PLASMA(OPTIONAL)

Used to start or stop the plasma-purification function.

NOTE

To use the functions printed in blue at the bottom of the buttons press 2^nd F button first and then the required function button. Pressing the 2^nd F button activates the blue printed function of the respective button. To cancel the function press the 2nd F button again else it will automatically cancel if remains idle after 10 seconds.

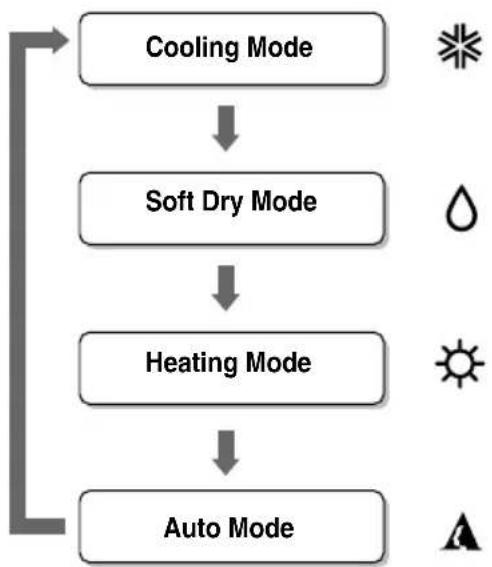

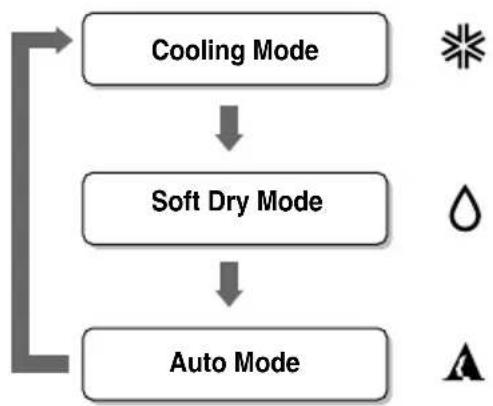

Operation Mode

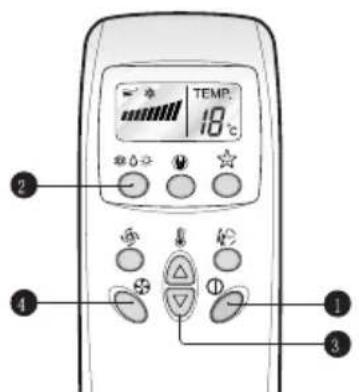

1 Press the START/STOP BUTTON to turn the unit on. The unit will respond with a beep.

Hand pressing a button with an icon (no text or symbols)

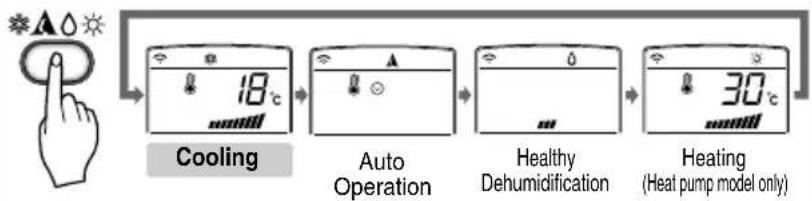

2 Open the door of the remote controller and press the operation mode button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.

3 For cooling or heating operation set the desired indoor temperature by pressing the ROOM TEMPERATURE SETTING BUTTONS.

For cooling the temperature can be set within 18°C-30°C and for heating the temperature range is 16°C-30°C

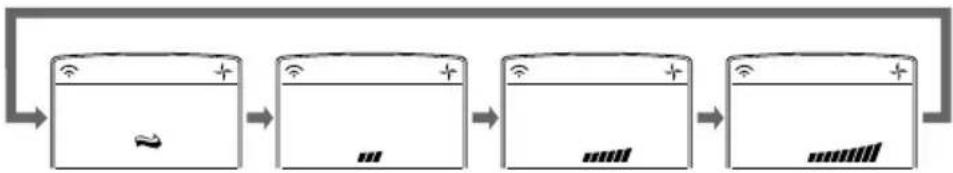

4 Set the fan speed with the remote controller. You can select the fan speed in four steps-low, medium, high and CHAOS by pressing the INDOOR FAN SPEED SELECTOR BUTTON. Each time the button is pressed, the fan speed mode is shifted.

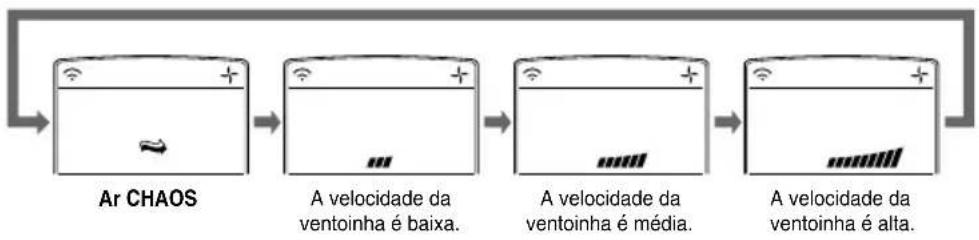

Fan speed is on low. Fan speed is on medium. Fan speed is on high. CHAOS Air

Natural wind by the CHAOS logic

☐ For fresher feeling, press the INDOOR FAN SPEED SELECTOR BUTTON selector and set to CHAOS mode. In this mode, the wind blows like a natural breeze by automatically changing fan speed according to the CHAOS logic.

Healthy Dehumidification Operation

Simple line drawing of a device with Wi-Fi, water droplet, and three symbols (no text or labels)

Healthy Dehumidification

During Healthy Dehumidification Operation

☐If you select the dehumidification mode on the OPERATION MODE SELECTION BUTTON, the product starts to run the dehumidification function. It automatically sets the room temperature and airflow volume to the best condition for dehumidification, based on the sensed current room temperature.

In this case, however, the setting temperature is not displayed on the remote controller and you are not able to control the room temperature either.

☐During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temperature status, so that the room condition is kept healthy and comfortable even in the very humid season.

To run the healthy dehumidification mode follow steps 1, and 2 and 4 (See operation mode)

Auto Operation

Auto

In this operation mode the actual setting temperature and the fan speed are automatically set by the electronic control logic based on the current room temperature. If you feel hot or cold press the temperature setting buttons respectively for more cooling or heating effect.

NOTE : You cannot set the actual setting temperature and the indoor fan speed in this operation mode. But you can use the Chaos swing in this operation. If the system is not operating as desired, switch manually to another mode.

To run the auto operation follow steps 1, and 2. (See operation mode)

Jet Cool Operation

Jet cool function can be used to cool the room quickly in hot summer. When this function is turned on, the air conditioner runs in cooling operation mode with super high fan speed and 18^ C setting temperature for 30 minutes for fast and effective cooling.

You can activate this operation by pressing the JET COOL BUTTON. To change from jet cool mode to high fan speed cooling mode, press the JET COOL BUTTON or INIDOOR FAN SPEED SELECTOR BUTTON or the ROOM TERPERATURE SETTING BUTTON again.

NOTE

• Jet cool function cannot be activated during heating or auto changeover operations.
• Art Cool and Art Cool Wide models close the side discharges during jet cool operation, for strong cooling.

PLASMA Purification Operation (Optional)

Plasma filter is a technology developed by LG to get rid of microscopic contaminants in the intake air by generating a plasma of high charge electrons. This plasma kills and destroys the contaminants completely to provide clean and hygienic air.

Plasma purification can be started by pressing the PLASMA BUTTON on the remote controller. Repressing it will deactivate the operation.

NOTE

This feature can be used in any operation mode and any fan speed can be used while plasma filter is functioning.

Forced operation

Operation procedures when the remote control can't be used. The operation will be started if the ON/OFF button is pressed. If you want to stop operation, re-press the button.

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C ≤ Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling Cooling	Healthy Dehumidification	Heating
Indoor FAN Speed	High High	High High
Setting Temperature	22°C 22°C	23°C 24°C

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets.

If you want to use this operation, Press and hold the ON/OFF button for 3-5 seconds, then the buzzer sound 1 "beep".

If you want to stop the operation, re-press the button.

Sleep Mode

1. Press the SLEEP MODE AUTO BUTTON to set the time when you want the unit to stop automatically.
2. The timer is programmed in one-hour increments by pressing the SLEEP MODE AUTO BUTTON 1 to 7 times.
   The sleep mode is available for 1 to 7 times.
   To alter the time period in steps of 1 hour, press the SLEEP MODE AUTO BUTTON while aiming at air conditioner.
3. Make sure the sleep mode LED lights up.
   To cancel the sleep mode, press the SLEEP MODE AUTO BUTTON several times until the sleep mode LED lights off.

NOTE

- The sleep mode will operate indoor fan at slow speed in cooling mode and at medium speed in heating mode for pleasant sleep.

In cooling mode or healthy dehumidification mode:

The setting temperature will rise automatically two times by 1^ C over next consecutive 30 minutes ( 2^ C in 1 hour) for a comfortable sleep. Now this will be the final setting temperature as long as sleep mode is functioning.

Setting the Current Time

1. Time can be set only when you press the RESET BUTTON. Having replacing the batteries, you should press the RESET BUTTON to reset the time. Press the Start/Stop button.
2. Press 2nd F button and check if 2^ndF icon is on.
3. Press the TIME SETTING BUTTONS until the desired time is set.
4. Press the TIME SET/CANCEL BUTTON.

NOTE

Check the indicator for A.M. and P.M.

Timer Setting

1. Make sure to set current time correctly on the display of the remote controller.
2. Press 2nd F button.
3. Press the ON/OFF TIMER BUTTONS to turn timer on or off.
4. Press the TIME SETTING BUTTONS until the desired time is set.
5. To set the selected time, press the TIMER SETTING BUTTONS aiming the remote controller at the signal receptor.

To cancel the timer setting

Check if 2^ndF icon is off.

Press the TIMER CANCEL BUTTON aiming the remote controller at the signal receptor.

(The timer lamp on the air conditioner and the display will go off.)

NOTE

Select one of the following four types of operation.

Delay off timer Delay on timer Delay off and on timer Delay on and off timer

Vertical / Horizontal Airflow Direction Control (Optional)

The up/down airflow (Vertical airflow) can be adjusted by using the remote controller.

1. Press the START/STOP BUTTON to start the unit.

2. Press CHAOS SWING BUTTON.

3. The louvers will swing up & down automatically.

4. To stop the louver at a desired angle, press again

Illustration of a hand pressing a circular button with a pointer, next to a tilted rectangular device (no text or symbols)

- Adjust the horizontal airflow direction by manually moving the horizontal airflow direction louver by hand.

Caution

- Ensure that the unit is turned off before adjusting the horizontal airflow direction control. Carefully open vertical louver to allow access to the horizontal airflow direction. Adjust the left/right airflow direction by hand.

NOTE

• By pressing the CHAOS SWING BUTTON the horizontal air flow direction is changed automatically based on the chaos algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable as if enjoying natural breeze.
• Always use the remote controller to adjust the up and down air flow direction. Manually moving the vertical air flow direction louver by hand could damage the mechanism. When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

Air Circulation Mode

This operation circulates the air without cooling or heating. It can be activated by pressing the AIR CIRCULATION BUTTON. Once the air circulation is activated you can select the air speed by pressing the INDOOR FAN SPEED SELECTOR BUTTON.

NOTE

CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically changed from high to low or vice versa, depending on the ambient temperature.

Auto Restart Function

This function is useful in the situation of power failure.

When power regains after a failure this feature restore the previous operating condition and the air conditioner will run in the same settings.

NOTE

This feature is enabled by factory default setting, but you can disable it by pressing the ON/OFF button for 6 seconds. The unit will beep twice and the indicator lamp(2) will blink 4 times.

To enable it, press the button again for 6 seconds. The unit will beep twice and the indicator lamp(1) will blink 4 times.

Maintenance and Service

▲ CAUTION

Before performing any maintenance, turn off the main power to the system, disconnect the circuit breaker and unplug the power cord.

Indoor Unit

Clean the unit with a soft dry cloth. Do not use bleach or abrasives.

▲ CAUTION

Never use any of these

• Water hotter than 40^ . It may cause deformation and discoloration.
• Volatile substances. They may damage the surface of the air conditioner.

Air Filters

The air filters behind the front panel / grill should be checked and cleaned once in every 2 weeks or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner or warm soapy water. If dirt is not easily removed, wash with a solution of detergent in luke warm water. Dry well in shade after washing and reinstall the filters back in place.

Illustration of solar panels and a cleaning bottle with a bucket (no text or symbols)

Plasma Filters

The plasma filters behind the air filter should be checked and cleaned once in every 3 months or more often if necessary. To remove the filters see the self explanatory diagrams for each model type. Clean the filters with a vacuum cleaner. If it is dirty wash it with water and dry well in shade an install back in place.

Deodorizer Filters

Remove the deodorizer filters behind the air filter and expose them in direct sunlight for 2 hours.

And then insert these filters into original position.

Illustration of two different mechanical or electrical components: a tool on a grid and a hand holding a tool, both without any text or symbols.

Line drawing of hands holding a cylindrical device (no text or symbols)

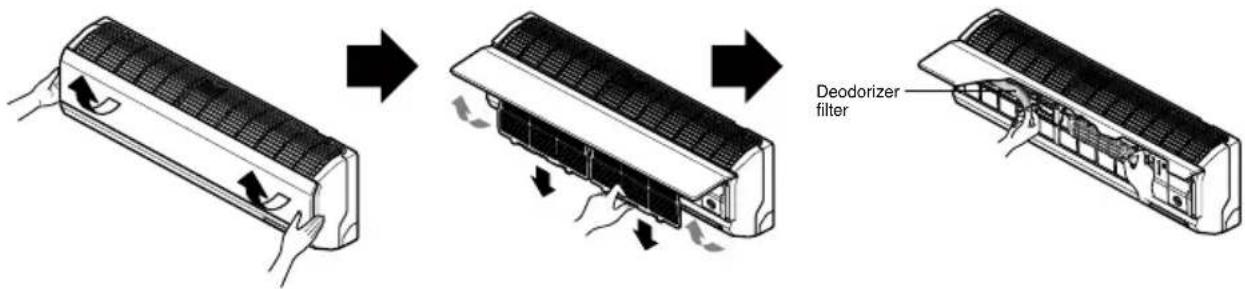

Removal of Filters

Wall Mounted Type

Open the front panel as shown.

Then pull the filter tab slightly forward to remove the air filter.

After removing the air filter remove deodorizer filter by slightly pulling forward.

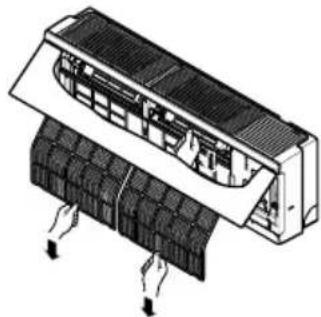

Art Cool Mirror Type

Open the front panel as shown.

Then pull the filter tab slightly forward to remove the air filter.

After removing the air filter remove the deodorizer filter by slightly pulling forward.

Diagram of a heat exchanger or cooling unit with cooling fins and heat sinks (no text or symbols)

Technical illustration of an air conditioner unit with cooling fins and heat sinks (no text or symbols)

How to use the front panel

1. Front panel closing

Move the link upward and close the front panel.

2. Front panel removing

Raise the link up to hook hanger and remove front panel forward.

Two-step illustration showing hands holding a tool, one with an arrow indicating rotation (no text or symbols)

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly.

If clogged with dirt or soot, the heat exchanger

and panel vents may be professionally steam cleaned.

NOTE

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

Operation Tips!

Do not overcool the room.

This is not good for the health and wastes electricity.

Keep blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

Make sure that the doors and windows are shut thight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Clean the air filter regularly.

Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.

Ventilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and ten.

Use high fan speed for effective and fast cooling.

The unit gives its rated cooling capacity when the fan speed is high.

Self-Diagnosis Function

This unit has an inbuilt error diagnosis capability. Unit LED( Ⓞ) will blink in case if thermistor fails. Please contact your serviceman/dealer in such a situation

Error Display LED (1)	Check Point
	Indoor room temperature thermistor open/short.Indoor pipe temperature thermistor open/short.

'CH' will flash in the display PCB when a problem occurs. Then please contact your dealer.

Product Introduction

Here is a brief introduction of the indoor and outdoor units. Please see the information specific to your indoor unit type

Indoor Units

Open Type (BT,BT1,BY Chassis)

Outdoor Units

Operating Instructions

Name and Function of Remote Controller (Heat pump model only)

1. Operation display

Displays the operation conditions.

1. On/Off Button

Operation starts when this button is pressed, and stops when the button is pressed again.

1. Set Temperature Button

Used to set the temperature when the desired temperature is obtained.

1. FAN Operation Button

Used to circulate room air without cooling or heating.

1. Fan Speed Button

Used to set the desired fan speed.

1. Operation Mode Selection Button

Used to select the operation mode.

• Auto Operation Mode

• Cooling Operation Mode

- Soft Dry Operation Mode

- Heating Operation Mode(except cooling model)

1. Room Temperature Checking Button

Used to check the room temperature.

1. Timer Cancel Button

Used to cancel the timer.

1. Timer Set Button

Used to set the timer when the desired time is obtained.

1. Week Button

Used to set a day of the week.

1. Program Button

Used to set the weekly timer.

1. Holiday Button

Used to set a holiday of the week.

1. Time Set Button

Used to set the time of the day and change the time in the weekly timer Function.

1. Set and Clear Button

Used to set and clear the weekly timer.

1. Reset Button

Used to set the current time and clear the setting time.

◆ Display temperature can be different from actual room temperature if the remote controller is installed at the place where sun-rays are falling directly or the place nearby heat source.

Name and Function of Remote Controller ( Cooling only) model

1. Operation display

Displays the operation conditions.

2. On/Off Button

Operation starts when this button is pressed, and stops when the button is pressed again.

3. Set Temperature Button

Used to set the temperature when the desired temperature is obtained.

4. FAN Operation Button

Used to circulate room air without cooling or heating.

5. Fan Speed Button

Used to set desired fan speed.

6. Operation Mode Selection Button

Used to select the operation mode.

• Auto Operation Mode.
• Cooling Operation Mode.
- Soft Dry Operation Mode.
- Heating Operation Mode.(except cooling model)

7. Timer Cancel Button

Used to cancel the timer.

8. Timer Set Button

Used to set the timer when the desired time is obtained.

9. Week Button

Used to set a day of the week.

10. Program Button

Used to set the weekly timer.

11. Holiday Button

Used to set a holiday of the week.

12. Time Set Button

Used to set the time of the day and change the time in the weekly timer Function.

13. Set and Clear Button

Used to set and clear the weekly timer.

14. Room Temperature Checking Button

Used to check the room temperature.

15. Reset Button

Used to set the current time and clear the setting time.

◆ Display temperature can be different from actual room temperature if the remote controller is installed at the place where sun-rays are falling directly or the place nearby heat source.

Set the Current Time and a day of the Week

1 Press the ' Hour' button.

Each time the button is pressed, the number is changed from 00 to 23.

You can set the number of the current hour.

2 Press the ' Min' button.

Each time the button is pressed, the number is increased from 00 to 59.

You can set the number of the current minute.

3 Press' Week 'button.

Each time the button is pressed, a day of the week is shifted from sunday to saturday.

You can set the day of the week.

4 Press the ' RESET ' button.

If you want to reset the current time and a day of the week, click the Reset button.

Weekly Programming

1 Press the Program button.

The remote controller is displayed like a picture. Then 'Program set', 'Sun' and '01' is blinked.

2 Press the 'Week' button.

Press Week button repeatedly until desired mode appears.

For example, if you want Thu, press ☐ button 4 times.

3 Select the time you want.

Press Hour or Min button, then blinking letter is shown. If you press SET/CLR button, then ' shape appears.' shape means that five o'clock is reserved.

Using below buttons, you can reserve time.

* For example, the air-conditioner is on 6,7,8 and 13\~22 o'clock.

4 Press the Program button again to finish weekly programmining.

Holiday Setting

If Tuesday is a holiday in this week, you may set a holiday.

1. Press the Program button.

1. Press the Week button. Select the Tuesday.

2. Press the Holiday button.

Then the remote controller will be displayed 'Tue'. The outside rectangular means holiday.

1. Press the Program button again to finish holiday setting.

Timer Setting(Delay start/Pre-set stop)

This function is used to turn on or turn off in several hours.

1. Press the Timer button to turn Timer on or off.

1. Change the timer setting until the desired time is set.

1. If you want to cancel the timer setting, press the Cancel button.

Operation Mode

(Heat Pump Model)

(Cooling Model)

Operation Procedure

1st On/Off Button
2nd Operation Mode Selection Button
3rd Room Temperature Setting Button
4th Indoor Fan Speed Selection Button

Cooling Operation Mode

1 Press the On/Off Button.

2 Select Cooling Operation. Press the Operation Mode Selection Button. Each time the button is pressed, the operation mode is shifted in the arrow direction.

HEAT PUMP MODEL

Operation Display

Cooling Operation

Soft Dry Operation

Heating Operation

Auto Operation

COOLING MODEL

Operation Display

Cooling Operation Soft Dry Operation
Auto Operation

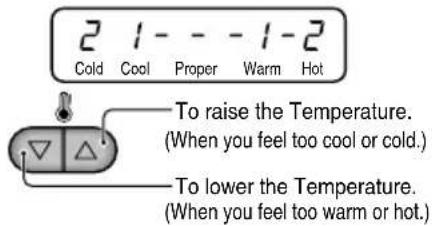

3 Set the temperature lower than the room temperature.

- The temperature can be set within a range of 18^ 30^ by 1^ .

To raise the Temperature.

To lower the Temperature.

4 Set the fan speed.

Operation Display

• Select the fan speed in three steps- high, low, medium.
  • The display shows high fan speed.
  • Each time the button is pressed, the fan speed mode is shifted.

Soft Dry Operation Mode

This mode dehumidifies without overcooling.

1 Press the On/Off Button.

2 Select Soft Dry Operation.

Press the operation Mode Selection Button.

Each time the button is pressed, the operation mode is shifted in the arrow direction.

HEAT PUMP MODEL

COOLING MODEL

3 During Soft Dry Operation.

- The indoor fan speed is automatically set to the low, so the shift of the indoor fan speed is impossible because it's already being set to the best speed for Dry Operation by Micom Control.

Heating Operation Mode (Heat pump model only)

1 Press the On/Off Button.

2 Select Heating Operation.

Press the Operation Mode Selection Button. Each time the button is pressed, the operation mode is shifted in the arrow direction.

3 Set the temperature.

- The temperature can be set within a range of 16^ C 30^ C by 1^ C .

4 Set the fan speed.

• Select the fan speed in three steps - high, low, medium.
  • The display shows high fan speed
  • Each time the button is pressed, the fan speed mode is shifted.

5 This air-conditioner is set to the hot start control in order not to discharge the cold air during the heating operation. This time, the remote controller indicates 'Preheat'.

6 If the outdoor temperature is too low during the heating operation, this air-conditioner is set to the defrosting operation and the remote controller indicates 'Defrost'.

Auto Operation Mode

1 Press the On/Off Button.

2 To select Auto Operation, press the Operation Mode Selection button. Each time the button is pressed, the operation mode is shifted in the direction of the arrow.

HEAT PUMP MODEL

COOLING MODEL

3

HEAT PUMP MODEL

Set the temperature lower than the room temperature. The temperature can be set within a range of 18^ 30^ by 1^ .

COOLING MODEL
Set the temperature upper or lower than the standard temperature. The temperature can be set within a range of -c^2 c^2 by 1 level.

(This indication will be shifted to the initial Auto Mode Display state after 4 seconds.)

During Auto Operation:

☐ You can switch the indoor fan speed.
☐ The system will automatically switch from the cooling mode to the heating mode as the room temperature and set temperature.(Heat pump model only)

FAN Operation

1 Press the On/Off Button.

2 Press FAN Operation Button.

3 Each time Indoor Fan Speed button is pressed, the fan speed mode is shifted in the arrow direction.

- Fan speed is high.

- Fan speed is low.

- Fan speed is medium.

* You can't set the temperature in Fan Operation mode. To exit this mode, press 'Operation Mode' button.

Child Lock Function

This is the Function that any children cannot used to the air-conditioner.

Operation procedure

1. To set the Child-Lock Function

Press the Timer button and Minute Set button for three seconds. Then the operation mode shift to child lock mode and it is displayed 'CL' in the operation display.

When you press any button in this time, the remote controller is not converted to any selected mode and the 'CL' is displayed in the remote controller for about three seconds. But the Room Temperature function is operated in spite of child lock mode.

2. To cancel the Child-Lock Function

Press the Timer button and Minute Set button for three seconds. Then the child-lock mode is cancelled and the preselected mode is displayed in the remote controller.

Operation Details

• Cooling Operation Mode

When the room temperature is higher than the set temperature, it operates in cooling mode at the set temperature, the set fan speed, and then it will be in automatically turn off when the room temperature reaches the set temperature +0.5°C.

Helpful information

Airflow speed and cooling capacity.

The cooling capacity indicated in the specification is the value when the fan speed is set to high, and the capacity will be lower at low or medium fan speed.

High fan speed is recommended when you wish to cool the room quickly.

• After main power is on, Fan will start 7 seconds later.

Self-Diagnosis Function

'CH' will flash in the remote controller display when a problem occurs. Then please contact your dealer.

Care and maintenance

Caution: Before performing any maintenance, turn off the main power to the system.

Indoor Unit

Grille, Case, and Remote Control

* Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

* Never use any of the followings:

• Water hotter than 40^ C Could cause deformation and/or discoloration.

• Volatile substances Could damage the surfaces of the air conditioner.

When the air conditioner is not going to be used for a long time

When air conditioner is not going to be used for a long time.

1. Operate the air conditioner on Air circulation mode for 2 to 3 hours.

• This will dry out the internal parts.

1. Turn off the circuit breaker.

CAUTION Turn off the circuit breaker when the air conditioner is not going to be used for a long time. Dirt may collect and may cause a fire.

When the air conditioner is to be used again.

- Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Operation Tips

Do not overcool the room.

This is not good for your health and wastes electricity.

Keep blinds or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Make sure that the doors and windows are shut tight.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Clean the air filter regularly.

Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.

Ventilate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Cartoon illustration of a smiling industrial machine with two arms and legs (no text or symbols)

MANUAL DEL PROPIETARIO

AIRE ACONDICIONADO

M122CD N012 M122CR N012 M122CB N012 M242CX U0 M242CX U1

M182CD N018 M182CR N018 M182CB N018 M362CX U0 M362CX U1

M242CD N024 M242CR N024 M242CB N024 M363CX U0 M363CX U1

M092HD N009 M072HR N007 M092HB N009 M483CX U0 M483CX U1

M122HD N012 M092HR N009 M122HB N012 M182HX U0 M182HX U1

M182HD N018 M122HR N012 M182HB N018 M242HX U0 M242HX U1

M242HD N024 M182HR N018 M242HB N024 M362HX U0 M362HX U1

M072HD N007 M242HR N024 M122HT N012 M363HX U0 M363HX U1

M092HD N0091 M365HX U0

M122HD N0121 M483HX U0

Chasis SY/S5/SE/S8

Simple line drawing of people relaxing at a table with sun and palm trees in the background (no text or symbols)

Illustration of a piano keyboard with a clock and a prohibition symbol (no text or labels)

Cartoon illustration of a smiling air conditioner unit with fan, connected to a warning symbol (no text or labels)

Illustration of a person reading a document with a cartoon character inside a device, no text or symbols present

Illustration of a child playing a piano with a speech bubble showing a calendar and an exclamation mark (no text or symbols on the piano itself)

Illustration of a cartoon musical instrument with a smiling face and raised index finger, accompanied by an exclamation mark (no text or symbols on the instrument itself)

Illustration of a person holding a large indoor air conditioner unit with a prohibition symbol (no text or labels)

Illustration of a person using a fire extinguisher with a 'no sign' symbol nearby (no text or symbols on the diagram itself)

Illustration of a person using a phone to call into a speech bubble, with a magnifying glass showing a surprised face emerging from the phone (no text or symbols present)

Illustration of a box-shaped device with a fan inside, emitting smoke and heat, and a prohibition symbol below (no text or labels)

Cartoon illustration of a distressed air conditioner unit with a warning symbol below (no text or symbols present)

■Funcionamiento

Cartoon illustration of a refrigerant air conditioner with steam and cooling fan, no text or symbols present

Illustration of a person using a phone to call into a computer with an exclamation mark symbol (no text or labels present)

Illustration of a person falling off from a damaged box with a 'no' symbol below (no text or symbols present)

Illustration of a woman cleaning a baby appliance with a thought bubble showing a screen (no text or symbols)

Illustration of a person standing next to a piano keyboard and a thought bubble showing a pointing screen (no text or symbols)

PRECAUCIÓN

■Instalación

Illustration of two air purifiers connected by a pipe with a warning symbol (no text or labels)

Illustration of a cartoon air conditioner unit with fan and warning symbol (no text or labels)

Illustration of a person reacting to a TV screen displaying a cartoon character (no text or symbols present)

Illustration of a worker pushing an air conditioner unit with a warning symbol (no text or labels)

■Funcionamiento

Illustration of a person reacting to a wall-mounted device with an exclamation mark (no text or symbols present)

Illustration showing a person hanging from a wall-mounted device with a thought bubble, next to a sleeping dog and a potted plant (no text or symbols)

Illustration of a fire extinguisher with smoke and a prohibition symbol (no text or labels)

Illustration of a stack of boxes with a fan and a prohibition symbol (no text or labels)

Illustration of a person holding a large object with a cartoon face on top, next to an exclamation mark (no text or symbols present)

Illustration of a person reacting to a large industrial machine with smokestacks and a warning symbol (no text present)

Technical line drawing of a rectangular electronic component with grid-like top surface (no text or symbols)

Isometric line drawing of a rectangular electronic component with a mesh top (no text or symbols)

PLASMA : Indicate PLASMA purifier operation.

Line drawing of a car air conditioner unit with a screwdriver inserted (no text or symbols)

Technical line drawing of a rectangular device with a diagonal line extending from it, and a small electronic device attached below (no text or symbols)

AVISO

Hand pressing a button with an icon (no text or symbols)

Illustration of a hand pointing upward with a ball floating above it (no text or symbols)

Automático

Illustration of a hand holding a cable with a pointer, no text or symbols present

Diagram of a solar panel installation with a piping and valve (no text or symbols)

Illustration of hands using a tool on a surface with a faucet (no text or symbols)

Line drawing of hands holding a mechanical device (no text or symbols)

Technical illustration of a wall-mounted air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Technical illustration of a car air conditioner unit with cooling fins and heat sinks (no text or symbols)

Two-step illustration showing hands holding a tool, with one hand holding a magnifying glass and the other holding a ring (no text or symbols)

Unidad exterior

Cartoon illustration of a smiling industrial machine with two legs and arms, no text or symbols present.

MANUAL DO PROPRIETÁRIO

AR CONDICIONADO

M122CD N012 M122CR N012 M122CB N012 M242CX U0 M242CX U1

M182CD N018 M182CR N018 M182CB N018 M362CX U0 M362CX U1

M242CD N024 M242CR N024 M242CB N024 M363CX U0 M363CX U1

M092HD N009 M072HR N007 M092HB N009 M483CX U0 M483CX U1

M122HD N012 M092HR N009 M122HB N012 M182HX U0 M182HX U1

M182HD N018 M122HR N012 M182HB N018 M242HX U0 M242HX U1

M242HD N024 M182HR N018 M242HB N024 M362HX U0 M362HX U1

M072HD N007 M242HR N024 M122HT N012 M363HX U0 M363HX U1

M092HD N0091 M365HX U0 M483HX U1

M122HD N0121 M483HX U0

SY/S5/SE/S8 Chassis

Simple line drawing of people enjoying a picnic with a table, sun, and palm trees (no text or symbols)

Illustration of a refrigerator with a stop sign and explosion effect (no text or symbols)

Illustration of a person using a smartphone to interact with another person holding a large 'no' symbol (no text or symbols present)

Cartoon illustration of a smiling air conditioner unit with fan blades, connected to a warning symbol (no text or labels)

Illustration of a worker inspecting an air conditioner unit with a warning symbol (no text or labels)

Illustration of a cartoon character holding a piano keyboard with a pointing finger (no text or symbols)

Illustration of a person using a refrigerant device with a prohibition symbol (no text or labels)

Illustration of a person using a power tool to press a large box, with a no-smoking symbol above (no text or symbols present)

Illustration of a person in thought bubble and holding phone, with a piano keyboard partially visible (no text or symbols)

Cartoon illustration of a distressed air conditioner unit with a warning symbol below (no text or symbols present)

Illustration of a box containing an air conditioner unit with smoke and airflow, no text or symbols present

■Funcionamento

Cartoon illustration of a distressed air conditioner with rain falling, no text or symbols present

Illustration of a person using a phone to call, with a warning symbol and magnifying glass (no text or symbols present)

Illustration of a person falling off a damaged ceiling with a prohibition symbol (no text or labels)

Illustration of a woman interacting with a piano keyboard, showing a smiling face and a thought bubble (no text or symbols)

ATENÇÃO

Instalação

Illustration of two air conditioners connected by a pipe with a warning symbol (no text or labels)

Illustration of a smiling air conditioner unit with a 90-degree angle indicator (no text or symbols on the device itself)

Illustration of a person reacting to a device with a cartoon face inside, no text or symbols present

Illustration of a worker pushing an air conditioner unit with a prohibition symbol (no text or labels)

■Funcionamento

Illustration of a person looking up at a wall-mounted device with an exclamation mark (no text or symbols present)

Illustration showing a person hanging from a car window, a sleeping dog, and a potted plant (no text or symbols)

Illustration of a refrigerator with a stack of boxes and a prohibition sign (no text or symbols on the main image)

Illustration of a multi-tiered air conditioner unit with a fan and a prohibition symbol (no text or labels)

Illustration of a person reacting to a large electronic device with a prohibition symbol above (no text or labels)

Illustration of a cigarette emitting smoke next to a no-smoking symbol and a battery pack (no text or labels)

Illustration of a person using a computer with a warning icon (no text or symbols)

Illustration of a person reacting to a wall-mounted device with a prohibition symbol (no text or labels)

Illustration of a person cleaning an air conditioner with a prohibition symbol (no text or labels)

Isometric line drawing of a rectangular electronic component with grid-like top surface (no text or symbols)

Tipo Art Cool Mirror

Isometric line drawing of a rectangular electronic device with a mesh top and side connectors (no text or symbols)

On/off automático

Modo Dormir

Economia de energia

Modo de descongelar

Método Operativo

Line drawing of a wall-mounted air conditioner unit with a cable inserted into the air gap (no text or symbols)

Technical line drawing of a rectangular device with a diagonal line extending from it, and a small mechanical component attached (no text or symbols)

NOTA

Hand pressing a button on an oval object with a small circle above (no text or symbols)

Illustration of a hand pointing upward with a spinning ball above it (no text or symbols)

Simple line drawing of a device interface with Wi-Fi, water drop, and battery symbols (no text or labels)

Automática

Delay off timer Delay on timer Delay off and on timer Delay on and off timer

Illustration of a solar panel being placed on a drain with a water tap, alongside a container labeled 'Detergent' filled with food (no text or symbols on main objects)

Illustration of two different mechanical or electrical components: a tool on a grid and a hand holding a tool, both without any text or symbols.

Deodorizer Filters

Retire os filtros desodorizantes de trás do filtro de ar e exponha-os directamente à luz solar durante 2 horas.

Line drawing of a hand holding a handheld device (no text or symbols)

Remoção dos Filtros

Technical illustration of a wall-mounted air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Technical illustration of a car air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Como utilizar o painel frontal

1. Fechar o painel frontal

Two-step illustration showing hands holding a tool, one with a magnified circular detail and arrow indicating rotation (no text or symbols)

Unidade Exterior

1. Visor Operação

1st Botões LIGAR/DESLIGAR

Cartoon illustration of a smiling industrial machine with two arms and legs, no text or symbols present.

LG

Life's Good
