Product Type	GPS Tablet
Brand	WayteQ
Model	XTab 7Q GPS
Display Size	7 inches
Dimensions (approx.)	190 x 120 x 10 mm
Weight (approx.)	300 g
Operating System	Android
GPS Navigation	Built-in GPS with preloaded maps
Connectivity	Wi-Fi, USB
Battery	Li-ion, 3000 mAh
Power Source	AC adapter 5V DC
Main Functions	GPS navigation, multimedia playback, web browsing, eBook reader
Care & Cleaning	Wipe with a soft dry cloth; avoid solvents
Safety Precautions	Do not expose to water or extreme temperatures
Spare Parts	Battery, charger, USB cable available
Reparability	Battery and screen replaceable by qualified technician

Frequently Asked Questions - XTab 7Q GPS WayteQ

How do I update the GPS maps on my WayteQ XTab 7Q GPS?

To update maps, connect the tablet to Wi-Fi and open the GPS navigation app. Look for a 'Map Update' option in the settings menu. Alternatively, download maps from the manufacturer's website and transfer via USB.

Can I use the tablet for phone calls?

The WayteQ XTab 7Q GPS does not have cellular capabilities, so it cannot make phone calls. It supports VoIP apps like Skype via Wi-Fi.

How do I increase battery life?

Reduce screen brightness, turn off GPS when not needed, close background apps, and disable Wi-Fi when not in use.

What file formats does the tablet support?

It supports common formats like MP4 for video, MP3 for audio, and JPEG for images. For e-books, it can read PDF and EPUB.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi and toggle it on. Select your network, enter the password, and tap Connect.

Why is my GPS not working?

Ensure you are outdoors with a clear view of the sky. Restart the GPS app and check if location services are enabled in Settings > Location.

Can I expand the storage?

Yes, the tablet supports microSD cards up to 32 GB. Insert the card into the slot located on the side.

How do I perform a factory reset?

Go to Settings > Backup & Reset > Factory Data Reset. Confirm to erase all data and restore default settings.

What is the screen resolution?

The 7-inch display has a resolution of 1024 x 600 pixels.

How do I clean the screen?

Turn off the device. Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol or abrasive cleaners.

USER MANUAL XTab 7Q GPS WayteQ

Important Safety Precautions ....3

Cleaning the Panel....3

Cleaning the Tablet....3

Features....4

Buttons Overview 4

Accessories....5

What's in the Box 5

Charging the Battery 5

Power on/off and Unlock the tablet....5

II - FUNCTIONNING OF THE TABLET....6

Navigation 6

Home Screen 6

Application Launcher Screen....6

Status Bar 7

Onscreen Keyboard 7

III - SETTINGS....8

Set Up Wi-Fi Connection....8

Set Date and Time....9

Set Up Email 10

Set Up Calendar....11

Create Shortcuts or Widgets on Home Screen....12

Change Wallpapers....12

Use folders....12

IV - CONNECTIONS ....13

Wi-Fi....13

PC Connection....13

V - APPLICATIONS....13

Camera 13

To take picture....13

To record video....13

Clock....14

Browser....15

Calculator....16

Downloads 16

Gallery....17

Music....18

Movie Player 19

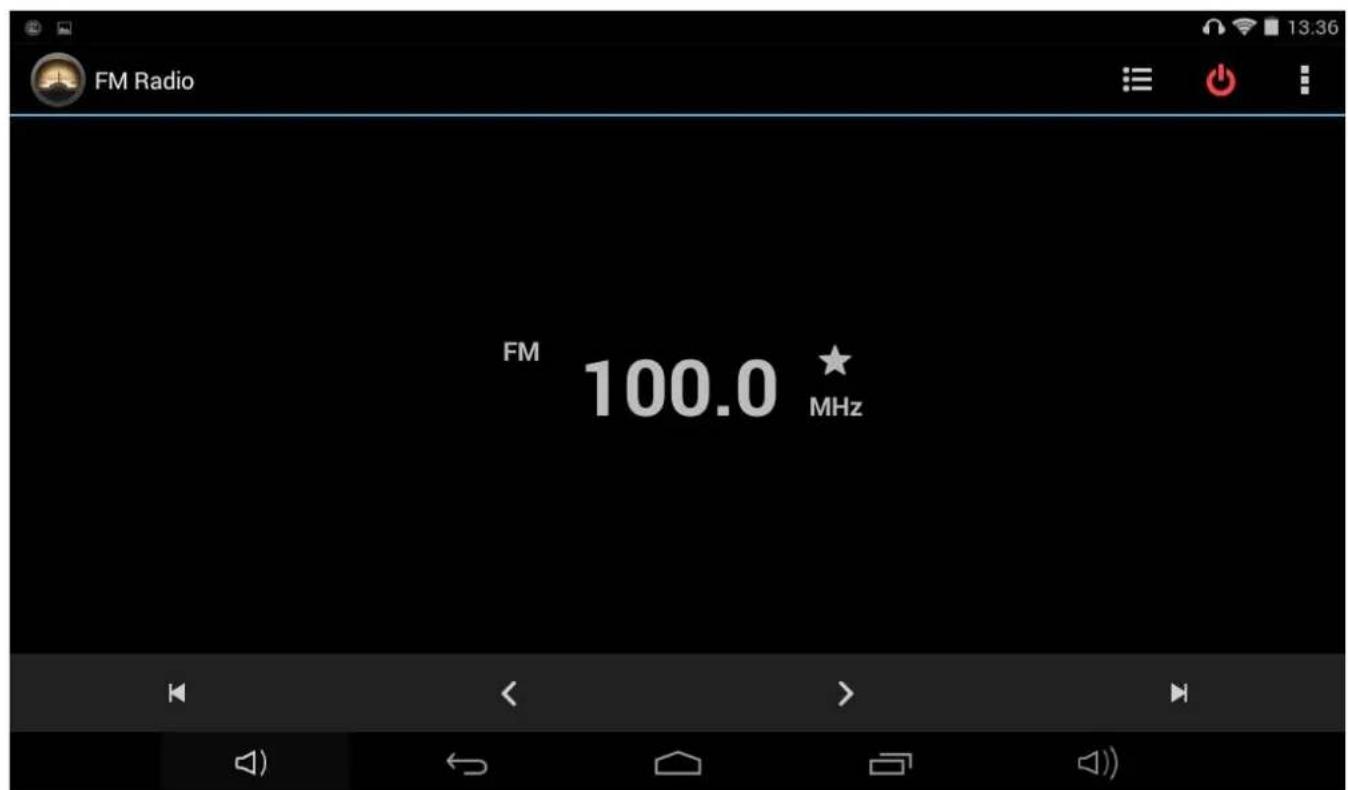

FM radio....20

VI - PRODUCT SPECIFICATION....21

INTRODUCTION

First of all, thank you very much for purchasing WayteQ product!

Please read this manual carefully before using this product.

This company will connue to provide new funcons for the development of the product, and there will be no separate change in the case of any change in the product's performance and funcons.

If the actual setup and the applicaon methods are not identical to those as set forth in this manual, please access to the latest product informaon of our web site.

I - GETTING STARTED

Important Safety Precautions

Always follow these basic safety precautions when using your tablet. This will reduce the risk of re, electric shock and injury.

Warning: To reduce the risk of re of shock hazard, do not expose this product to rain or water.

Warning: To prevent the risk of electric shock, do not remove the cover. There are no user-serviceable parts inside. Opening will void your warranty.

• Unplug the tablet before performing maintenance.
• Keep your tablet out of direct sunlight and heat sources.
• Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay parcular aenon to the point where the power cord is aached to the tablet.
  • Only use the AC adapter included with the tablet. Using any other power adapter will void your warranty.
  • Unplug the power cord from the outlet when the unit is not in charging condion.

Cleaning the Panel

Treat the screen gently. The screen is made of glass and can be scratched or broken.

To clean ngerprints or dust from the screen, it is recommended to use a so, non-abrasive cloth such as a camera lens cloth to clean the screen.

If you use a commercial Cleaning Kit, do not apply the cleaning liquid directly to the screen. Clean the screen with cleaning cloth moistened with the liquid.

Cleaning the Tablet

Clean the outer surface of the tablet (excluding the screen) with a so cloth dampened with water.

Features

The tablet includes these key features:

• Displays Alarm, Browser, Calculator, Calendar, Camera, Clock, Email, File Browser, Gallery, Music, Seng, Movie Player and etc
  • Displays digital photos, Play Music and Video
• Wi-Fi funcon to connect with your AP router for internet browsing
• GPS receiver
• Micro Secure Digital™ (micro SD) slot for external storage
• Capacive touch screen for all user operaons
  • 4 GB Internal Memory
• USB2.0 OTG for conneccon to the PC or USB ash drive

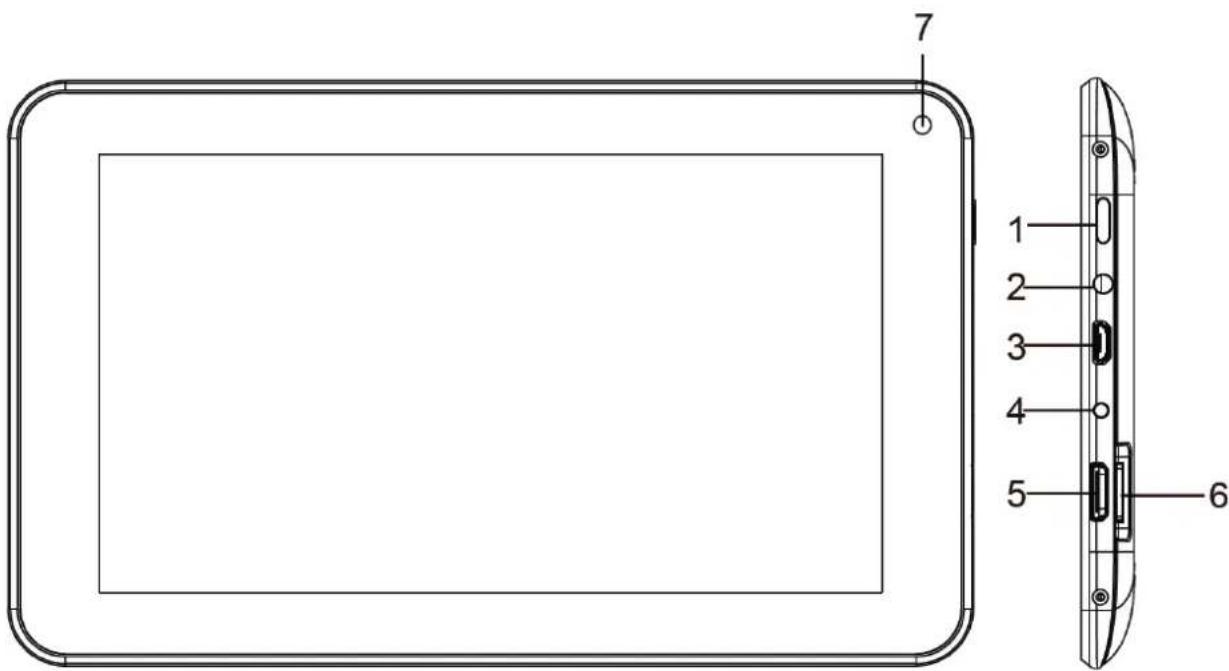

Buttons Overview

1. Power, 2. Earphone, 3. Micro USB, 4. DC charger, 5. HDMI, 6. Micro SD, 7. Front camera

Accessories

Line drawing of a small electrical adapter with power outlet, coiled cable, and terminal plug (no text or symbols)

Power Adapter

(depending on the regional requirement, the plug may look dierent)

Line drawing of two connected electrical probes with a coiled cable (no text or symbols)

USB Cable

What's in the Box

WayteQ xTAB 7Q Tablet PC

AC Power Adapter (5V/2A)

USB Cable, OTG adapter

Quick Start Guide

Charging the Battery

Plug the AC power adapter into tablet and into a wall outlet.

Icon will turn to icon while the baery is charging.

* It is strongly recommended you fully charge the device for about 4-6 hours before use. * When charging

baery, the baery indicator for a fully charged baery is a steady blue baery icon on the nocaon bar.

icon means the baery is sll being charged, even when 100% has been displayed for baery level on the Sengs

→ About tablet→ Status screen.

Power on/off and Unlock the tablet

The tablet is easy to set up. Just follow these steps:

1. To power: Press and hold Power buon for 2 second.
2. To unlock: Wait unl a screen with a lock icon shows up, gently tap the "Lock" icon and slide it toward the unlock icon.
3. To power o: Press and hold the Power buon for 2 seconds unl "Power o" window pops up on screen where you can choose OK opon to power o the device.

Note: The screen with the lock icon will me out in 10 seconds if you do not unlock it. In case it happens, the Power buon can be pressed briefly to make it show up again.

II - FUNCTIONNING OF THE TABLET

Navigation

Tablet has ve home screens by default. The rst me you turn on the tablet or aer having factory data reset, you will see a navigaon screen.

* To see all you applicaons, touch .

* You can put your favorite applicaons on Home screen.

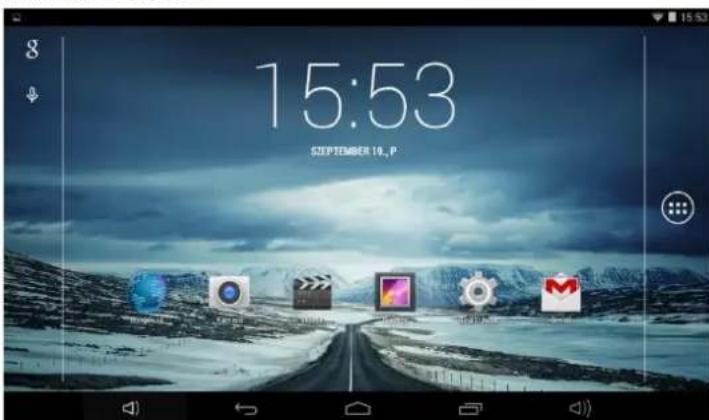

Home Screen

A typical Home screen with wallpaper, status bar, and few applicaons at the boom.

* The background wallpaper may be dierent from model to model

◆ g shortcut to Google search

◆ shortcut to applicaon Launcher screen.

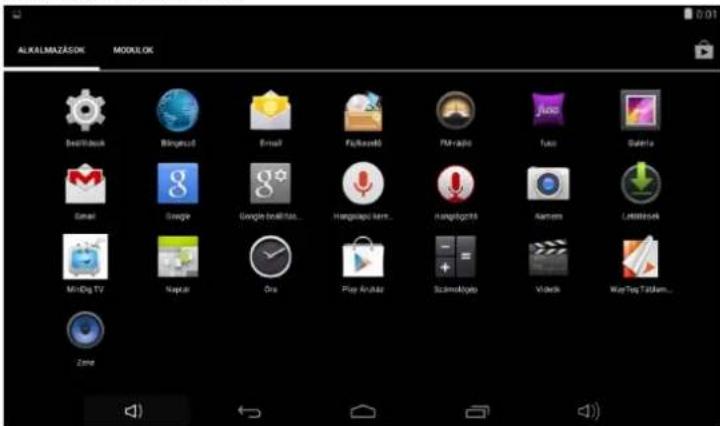

Application Launcher Screen

A typical applicaon Launcher screen is shown below. One icon represents one applicaon which can be run by tapping on the icon.

*The screen icon may be dierent from model to model

Status Bar

At the boom and top of the screen, the status bars mainly indicates Back icon, Home icon, Recent viewed applicaons icon, Current me, Wi-Fi status, 3G status, Bluetooth status and baery level, etc.

Icon		Acon
		On any funconal screen, tap this icon to go back one screen or exit applicaon.
		On any funconal screen, tap this icon to go to Home screen
		Shows a list of thumbnail images of applicaons you’ve work with recently. To open an applicaon, touch it. To remove a thumbnail from the list, swipe it le or right.
		Current me
		Wi-Fi conncon and signal strength
		Baery level. Will turn orange when baery is low and turn red when baery is very low.

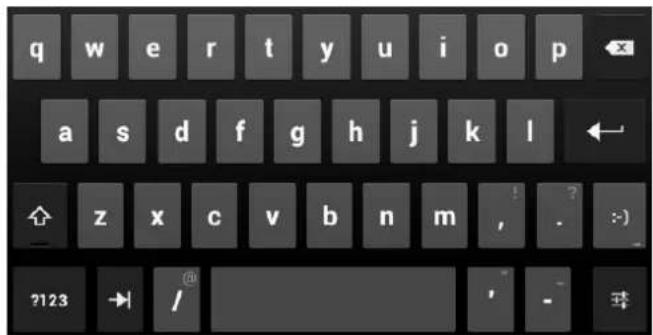

Onscreen Keyboard

The onscreen keyboard appears automatically anymore you tap on a text line for input. While entering text with the onscreen keyboard, each character will be entered into the posion pointed by a vercal cursor. You can change the cursor posion by tapping with your nger on the posion you want to enter the next character. To select dierent language keyboard, touch and hold icon A pop menu will show up to let you select the "Input Opons"

Input options

Input languages

Android keyboard settings

*Seng up an Internaonal keyboard: see "Install Third-Part Applicaon" secon.

III - SETTINGS

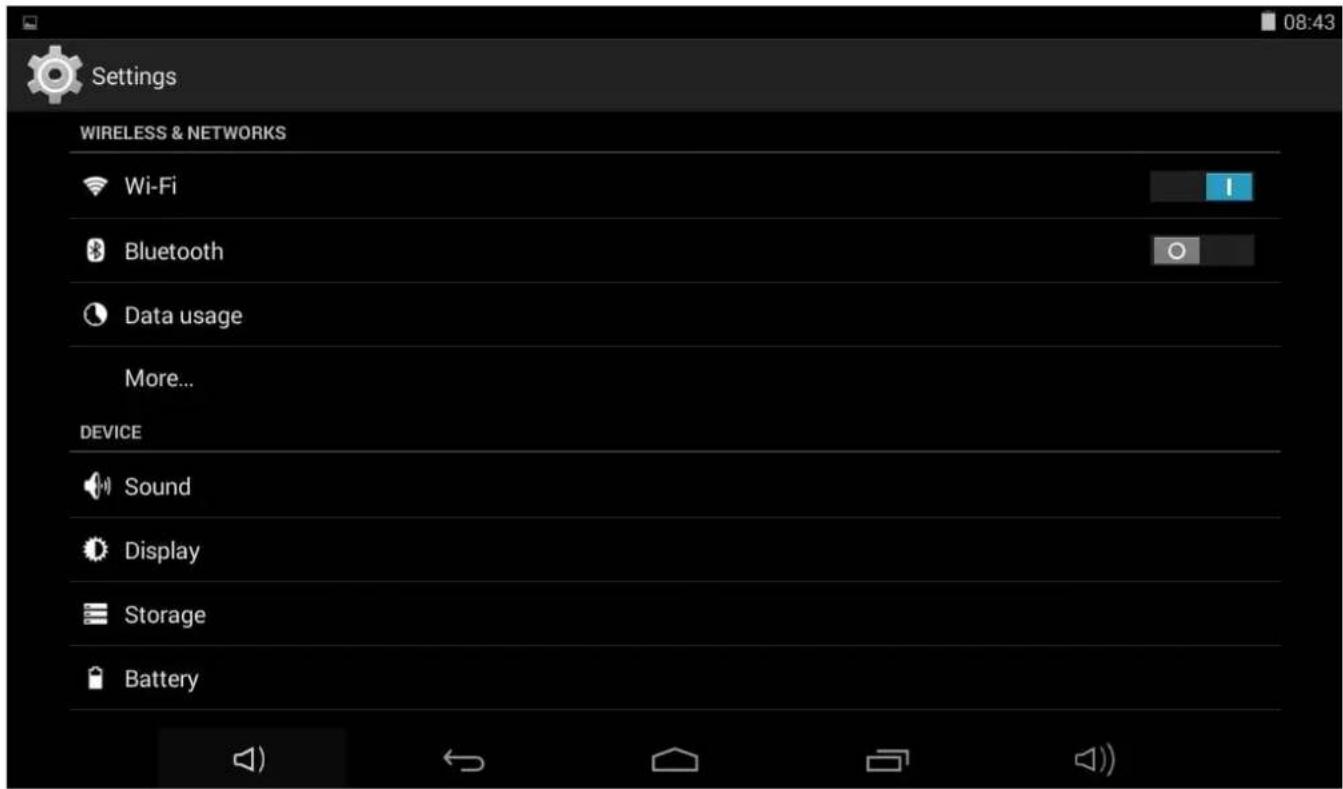

Set Up Wi-Fi Connection

Make Wi-Fi Connecon In Sengs → Wireless & networks → Wi-Fi, slide the Wi-Fi switch to the I posion.

Normally, the device will automatically scan the available Wi-Fi Access Point (AP). If this does not happen, select Scan (upper right corner) to scan for the available Wi-Fi APs. Then, tap on the desired AP to make the conncon. If it is a secured AP, system will prompt you for the password. Enter it by tapping on the password entry line, and use the onscreen keyboard to enter the password. Then, tap on the Connect to start conncng to that AP. When conncon is established, the Wi-Fi connected icon will show up on the status bar.

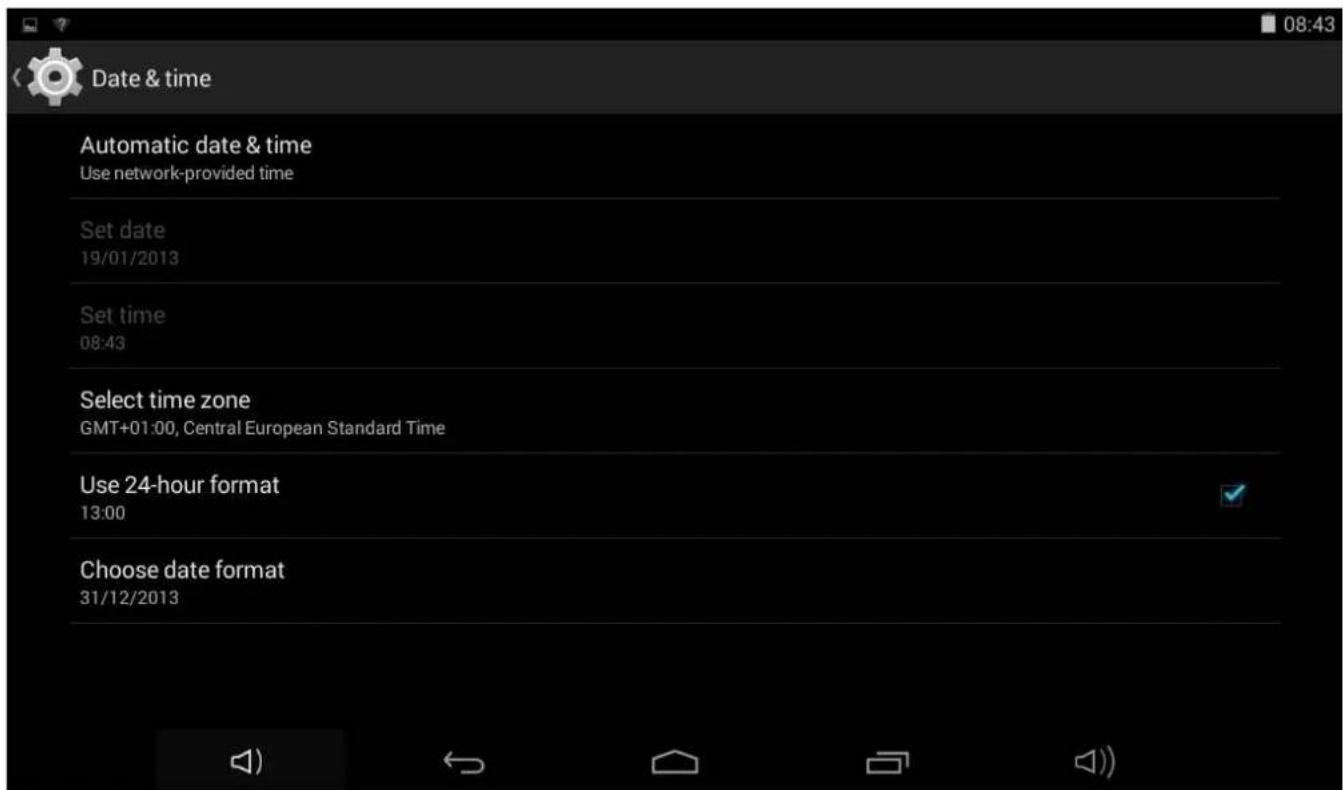

Set Date and Time

Use Sengs → Data & Time to open up the data/me seng screen as shown below. Select the correct me zone. If the Wi-Fi is connected to Internet, check on the Automac to have me set up automacally. If Wi-Fi is not connected to Internet, uncheck Automac date & me to temporarily set date and me. Then, check Automac again before leaving the screen. In the future, when the Wi-Fi is connected to internet, date and me will be automacally adjusted.

Set Up Email

You can congregate Email for most accounts in just a few steps. For many popular email services, tablet automacally enters most of the sengs for you.

1. Make sure the Wi-Fi is connected.
2. Open the Email applicaon and enter your Email address and password, then tap "Next"
3. Give a name to your account then tap "Next". Mail messages will be downloaded automatically.

Icon	Acon
	Tap to enter E-mail compose interface
	Tap to enter search interface of Inbox
	Refresh
	Tap to enter Account sengs. To remove your account record in tablet, tap Remove account

Set Up Calendar

Calendar makes you easy to stay on schedule. You can view your schedule in day/week/month/and agenda mode by touching icons at upper le corner. Swipe to scroll vercally or horizontally.

When using calendar for the rst me, there are some steps you shall follow:

1. Tap Calendar icon into Gmail entering interface, then enter your Gmail account and password and tap Next.
2. Change the Serve "gmail.com" for "m.google.com", then tap Next step.
3. You can tap on the specific date to start using your personal calendar now.

Icons across the top:

Icon		Acon
TODAY, MONDAYFebruary 13, 2012		Tap to see the viewing type: day/week/month/and agenda
	TODAY	Tap to view today's schedule
		Tap to show the creang events interface
		Tap to show more opons: Refresh/Search/Sengs

Create Shortcuts or Widgets on Home Screen

In order to access to frequently used applicaons / widgets more quickly, you can create a short cut to an applicaon / widget and place it on the Home screen. Therefore, you don't need to spend to look for it among the many applicaons / widgets on the Launcher screen.

Shortcuts

Press the applicaon icon in the Launcher screen and hold unl the icon is enlarged and background has been changed to Home screen. Then drag the enlarged icon to an empty space on Home screen and release the nger.

Widgets

Widget is a small applicaon. Aer being installed, it shows up in the main Widgets screen.

To add widgets: Touch and hold a widget, drag it to an empty space on Home screen and release your nger.

To remove shortcut / widget: Tap and hold any icon / widget on Home screen, then drag it into the Remove icon.

* If there is not enough room to drop it, the icon / widget won't get added to the Home screen.

Change Wallpapers

Tap any blank space on Home screen and hold unl a Choose wallpaper from menu pops out. Then, you can select wallpaper from your Gallery / Live wallpapers / Wallpapers.

Choose wallpaper from

Gallery

Live Wallpaper

Video Wallpaper

Wallpaper

Use folders

You can combine several applicaons' icon in a folder by dropping one icon over another on a Home screen. From any Home screen, you can:

Open a folder by a slight touch.

Rename a folder by touching its name.

Move icons around your Home screens : Touch, hold, and then slide.

IV - CONNECTIONS

Wi-Fi

This tablet uses the 802.11b/g/n wireless specicaon to transmit and receive data. For more informaon, refer to “Set up Wi-Fi Connecon” on page 8.

PC Connection

Connect your tablet to a PC via USB cable. By connecng tablet to PC, you can synchronies les or transfer data directly.

1. Plug one end of a USB cable to a tablet and plug the other end to a PC. Drag down the upper status bar at the le top corner. Choose USB connected. Tap Turn on USB storage to connect to PC.
2. For a beer use of your tablet, tap Turn o USB storage every me you unmount USB storage.

V - APPLICATIONS

Camera

To take picture

Tap on the shuer buon to take a picture.

To record video

Tap on the Recording buon to start video recording. To stop recording tap .

Tap to open the sengs.

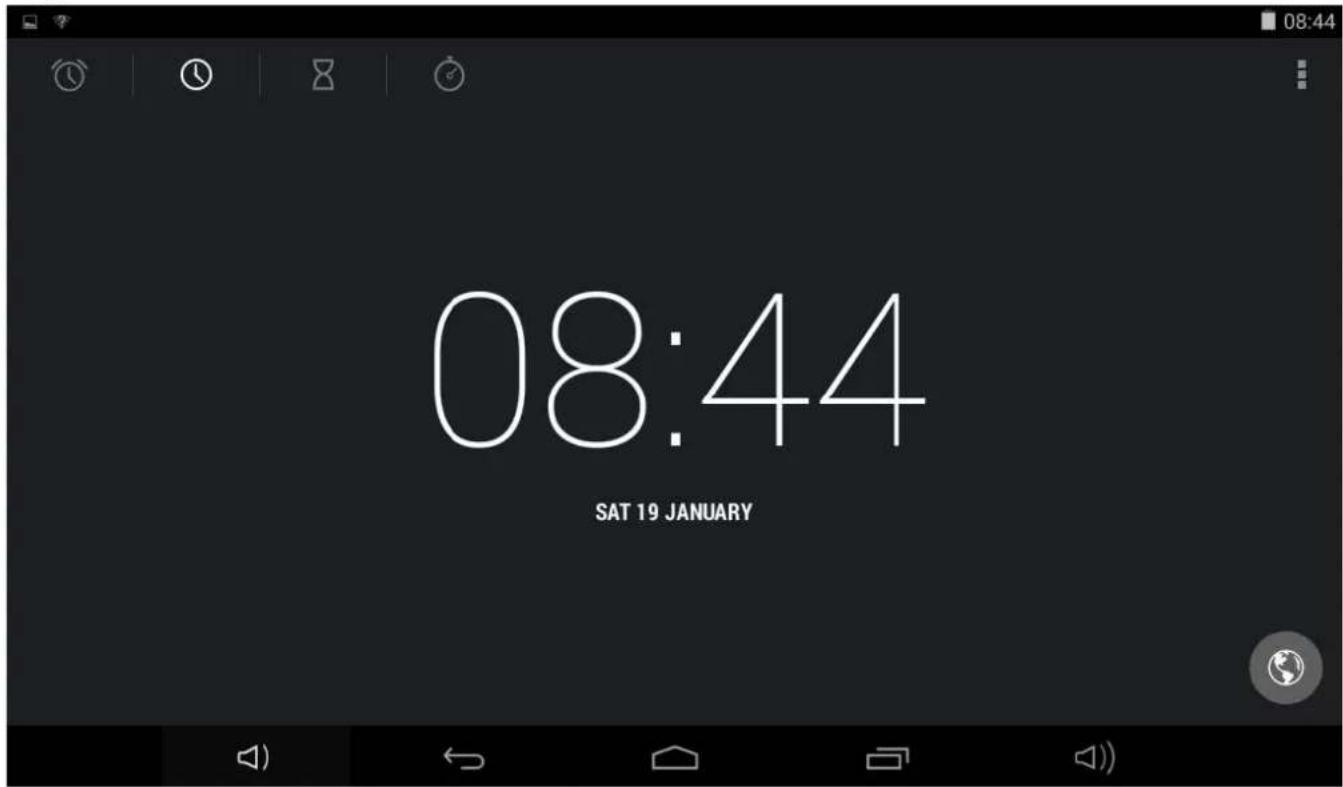

Clock

Aer tapping on clock icon in Launcher screen, the following screen will be shown. Tap on icon into alarm seng interface.

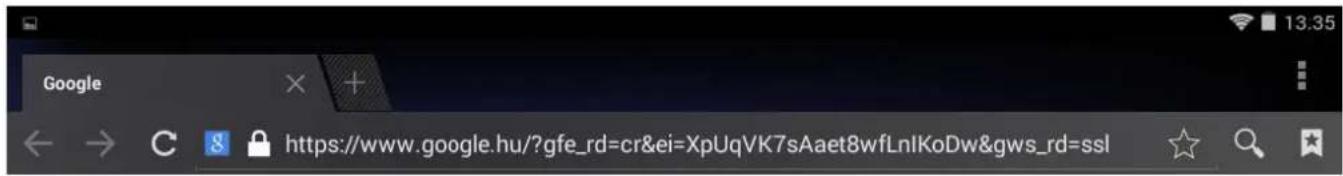

Browser

Browser is used for browsing the World Wide Web. With the web browser plug-ins, you could browse websites to watch videos, download contents, and listen to music etc.

Google Magyarors

1. Tap the address eld (in the tle bar) to bring up the onscreen keyboard, enter website address, then tap Go.
2. Similar website previously browsed or key work previous searched will appear beneath the address eld. You can tap them to go to the web site listed or search the key word.
3. Double tap on screen to zoom in and zoom out. Moving ngers across the screen will pan the screen up, down, le or right.

Tap Menu buon is the right-upper corner to display additional funcons at the boom of the screen.

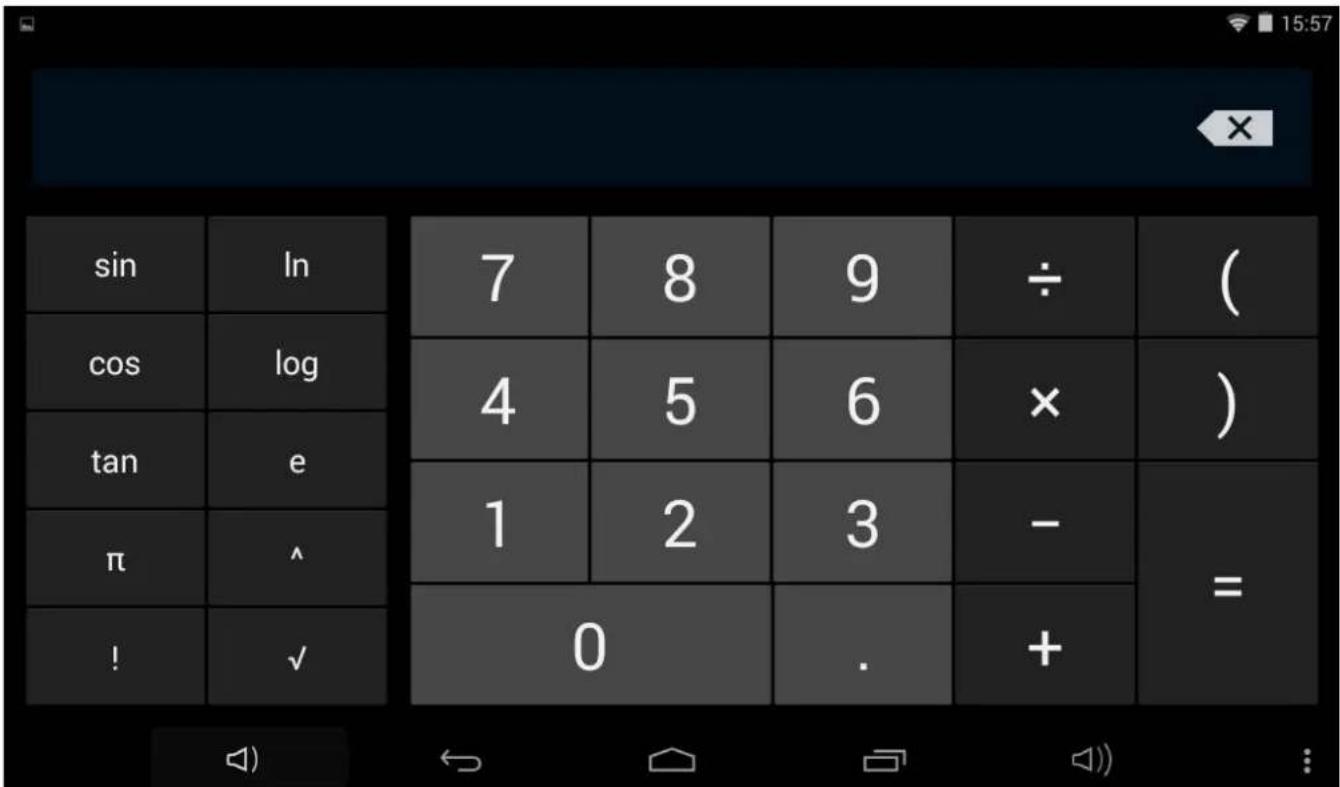

Calculator

To perform mathemacal calculaon directly on tablet by tap numbers and symbols.

Downloads

Files, applicaons and other items you download from Browser or Email will be stored in your micro SD card. Use the Downloads applicaon to view, reopen or delete what you've downloaded.

1. Touch an item in Downloads can reopen it.
2. Check items you want to share, and then tap icon to choose a sharing method from the list.
3. Check items you want to delete; then tap delete icon. The item will be deleted from your micro SD card.
4. In Downloads window → Tap Sort by size or Sort by date to switch back and forth.

Gallery

Tap on "Gallery" in Launcher screen to open the applicaon.

1. The rst screen shows all photos and subfolders as albums.
2. Tap on a picture or album into photo thumbnail mode. (Default view)

3. Tap a thumbnail into photo single view mode.

4. When in photo single view mode, tap anywhere on screen to show funcon bar on screen.

Icon	Acon
	Share photos by Google/Bluetooth/Email
	Go to more opons: Delete/Slideshow/Rotate le/ Rotate right/Crop photo/ Details/Set picture as

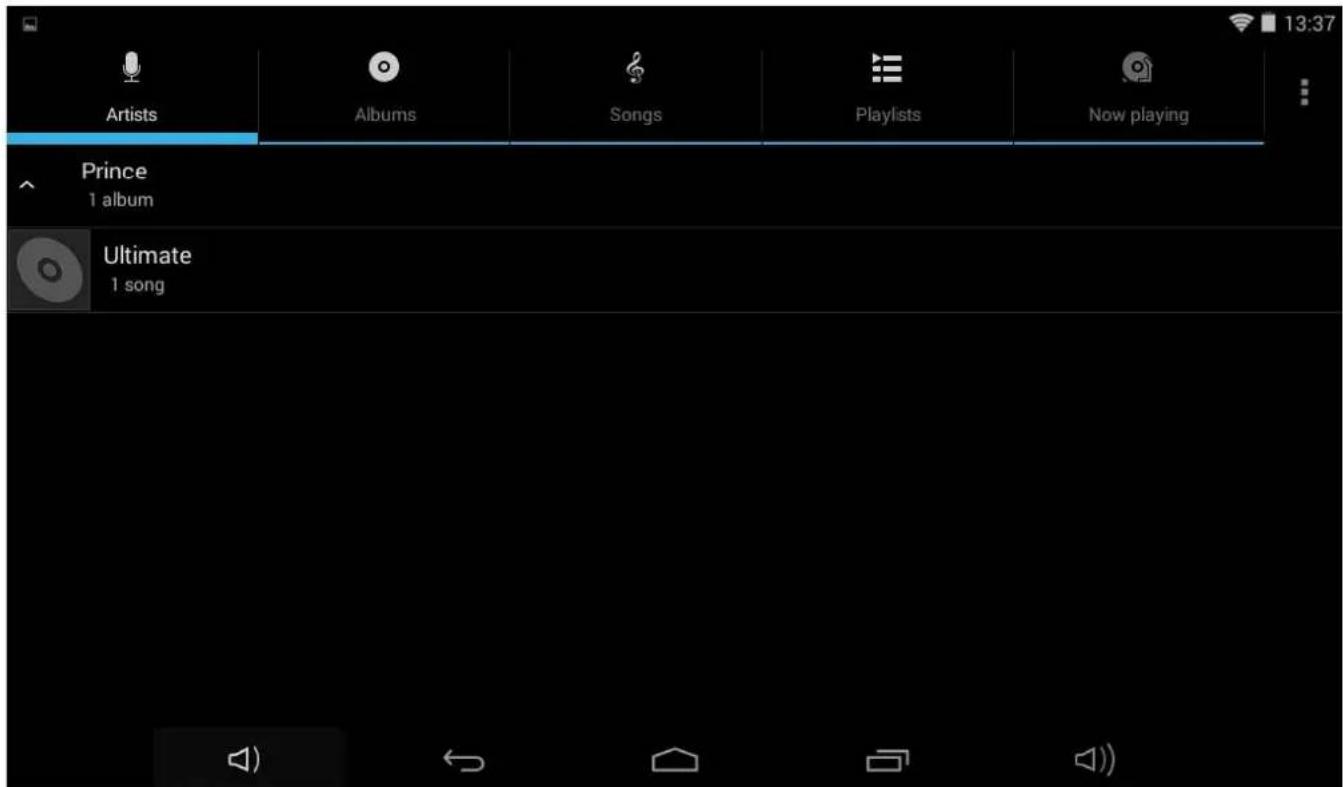

Music

Tap "Music" in the applicaon launcher screen to get to the song screen as below:

Select the Arsts/Albums/songs or playlists mode to play music. Use the onscreen icons to congregate how you want to play the songs.

Icon	Acon
	Show playing list
	Turn shue on/o funcon
	Repeang all songs, current song or O
	Previous song
	Pause/ Stop
	Next song

Note: Song will keep playing as background music while you leave the music playback screen. This funcon allows you to browse les, view photos and surf Internet while listening to music. To stop playing songs, tap on Pause on the music playing screen followed by the Back buon.

Tap in status bar to select other funcons to play the song.

Movie Player

1. Tap "Video" in the applicaon launcher screen.
2. Browse the video le to play from the list.
3. Tap video to start play.

To search in video, simply drag white bar below video. To display controls tap video, to hide controls again tap video again.

Icon	Acon
	Play / pause
	Select sound track
(stave)	More opons: Stop, Loop
(trave)	Full screen

FM radio

Tap „FM radió” icon in applicaon launcer screen. The screen below appears:

	Turn o
	Channel list. Tap channel to hear it. Tap and hold to add to favorites or delete from favorites or edit a favorite channel.
	Previous channel
	Next channel
	Previous frequency (0.1 MHz backward)
	Next frequency (0.1 MHz-et forward)
	Add to favorite channels
	More opons: Search, Speaker/Headphone (listen to radio through speaker or headphone), Record FM

Funcons for FM recording

	Start record
	Stop record. Give a name for the recording and save it
	Playback recording

Tap Back buon to exit FM recording.

VI - Product Specification

General
Panel Size/Type	7" IPS, 5 points capacitive touch panel
Aspect Rao	16:9
Resoluon	1024 x 600
CPU	MTK8127 Quad-core Cortex-A7 1,3 GHz
OS	Android 4.4
Storage
Internal memory	1 GB
NAND Flash	8 GB
External SD card	Micro SD up to 32GB
Connectvity
WIFI	802.11 b/g/n
Bluetooth	4.0
GPS	Built in
Camera	0.3 Mega pixel front
USB OTG	USB OTG 2.0 x 1
Stereo Speaker	Built-in
Microphone	Built-in
Earphone	3.5mm Stereo Jack
Sensor
Accelerometer	Yes
User Interface
Hardware Keys	Power
Virtual	Full Touch Screen /Virtual keyboard
Extras
FM radio	Built in
Dimension/Weight/Condion
Dimension	191 x 116 x 10 mm
Weight	280 g
Operaon Condion	0°C~40°C
Storage Condion	-20°C~55°C
Power
Baery	Li-Polymer Rechargeable 3,7V, 2400mAh
AC/DC Adapter	100Vac~240Vac,0.5A, 50Hz-60Hz, 5V/2A
