SONY XS-L1220 - Car Speaker
📄 2 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice SONY XS-L1220 - page 1
1 / 2
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Car Subwoofer
Brand Sony
Model XS-L1220
Rated Input Power 250 W
Impedance 4 ohms
Sensitivity 93 dB/W/m
Frequency Response 25 - 800 Hz
Weight (per speaker) Approx. 4.3 kg
Recommended Enclosure Type Sealed (closed) box
Supplied Accessories Parts for installation and connections
Installation Precautions Do not exceed power handling capacity; mount firmly on thick baffle board (at least 19 mm) to support weight; avoid damaging diaphragm with hands or tools.
Magnetic Field Caution Keep recorded tapes, watches, and credit cards with magnetic coding away from the speaker to prevent damage.
Speaker Size (Estimate) 12 inches (typical for this model)
Usage Subwoofer for car audio systems; requires external power amplifier and electronic crossover network
Documentation Free user manual available online in PDF format

Frequently Asked Questions - XS-L1220 SONY

What is the power handling capacity of the Sony XS-L1220?
The rated input power is 250 watts. Ensure your amplifier does not exceed this to avoid damage.
What is the impedance of this subwoofer?
The impedance is 4 ohms, which is standard for car audio subwoofers.
What type of enclosure is recommended for the XS-L1220?
A sealed (closed) type enclosure is recommended for optimal performance.
What is the sensitivity rating?
Sensitivity is 93 dB/W/m, meaning it produces 93 dB sound pressure level with 1 watt at 1 meter distance.
What is the frequency response range?
The frequency response is 25 Hz to 800 Hz, focusing on low-frequency reproduction.
How heavy is each speaker?
Each speaker weighs approximately 4.3 kg (about 9.5 lbs).
What precautions should I take during installation?
Avoid operating with power exceeding capacity, keep magnetic items away, mount securely on a thick board (at least 19 mm) to support the weight, and be careful not to damage the diaphragm.
What is the size of the Sony XS-L1220?
While exact dimensions are not provided, the model number suggests it is a 12-inch subwoofer, typical for this series.
Can I use this subwoofer directly with a car stereo?
No, it requires an external power amplifier and an electronic crossover network to separate low frequencies.
Where can I find the user manual?
The user manual is available for free download in PDF format from notice-facile.com for the Sony XS-L1220.

User questions about XS-L1220 SONY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Car Speaker in PDF format for free! Find your manual XS-L1220 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XS-L1220 by SONY.

USER MANUAL XS-L1220 SONY

Rated input power 250 watts

Impedance

4 ohms

93 dB/W/m

Frequency response

25 - 800 Hz

Mass

Approx. 4.3 kg per speaker

Supplied accessory

Parts for installation and connections

Design and specifications are subject to change without notice.

Specifications

Recommended Enclosure: Sealed type

Installation/Connections

Sony Corporation 2002 Printed in Thailand

Connections/Conexiones/線路連接graph TD A["Car audio\nSistema de audio de automóvil\n汽車音響"] --> B["Electronic crossover network\nRed electrónica de cruce\n電子交岔網絡"] B --> C["Power amplifier\nAmplificador de potencia\n功率放大器"] B --> D["Power amplifier\nAmplificador de potencia\n功率放大器"] C --> E["Subwoofer\nAltavoz potenciador de grav…

Installation/Instalación/安裝

Precautions

  • Be careful not to operate the speaker system with the power exceeding its handling capacity.
  • Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.
  • When installing the unit, be careful not to damage the diaphragm by hand or tools.
  • The subwoofer is heavy, so attach it firmly to a solid thick, baffle plate or metal board.
  • Make a woofer box, using wooden boards at least 19 mm-thick.

Precautions

Parts List

List of components

Parts List

① ②SONY XS-L1220 - Parts List - 1

05·35 · 8 ④SONY XS-L1220 - Parts List - 2

③SONY XS-L1220 - Parts List - 3

2SONY XS-L1220 - Parts List - 4

⑤ 2SONY XS-L1220 - Parts List - 5

1 Unit: mm Unidad: mm 單位：mm →SONY XS-L1220 - Parts List - 6

SONY XS-L1220 - Parts List - 7

2SONY XS-L1220 - Parts List - 8

→④ ⑤ Crimping plier (not supplied) Crimping plier (not supplied)

Speaker cable (not supplied) Crimping tool (not supplied) 壓接鉗（無附帶）

Speaker cord (not supplied) 揚聲器導線（無附帶） 3Technical line drawing of a speaker or speaker component with concentric layers and a handle (no text or symbols)

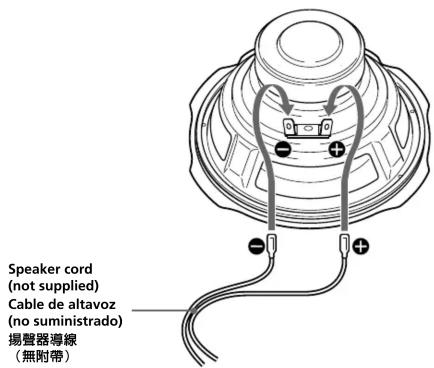

4Speaker cord (not supplied) Cable de altavoz (no suministrado) 揚聲器導線 (無附帶)

5

Technical line drawing of a speaker tower with base mount (no text or symbols)
