MED-2000 - Scale Steren - Free user manual and instructions

Product Type	Digital Scale
Brand	Steren
Model	MED-2000
Dimensions (approx.)	30 x 30 x 4 cm (11.8 x 11.8 x 1.6 in)
Weight (approx.)	1.5 kg (3.3 lbs)
Power Supply	2 x AAA batteries (1.5V) or 1 x CR2032 battery
Display	LCD screen with backlight
Weight Capacity	Up to 180 kg (396 lbs)
Graduation	0.1 kg (0.2 lbs)
Units	kg, lb, st
Auto-Off	After 10 seconds of inactivity
Tare Function	Yes
Low Battery Indicator	Yes
Overload Indicator	Yes
Material	Tempered glass platform, ABS plastic base
Cleaning	Wipe with a soft, damp cloth. Do not use abrasive cleaners.
Safety Precautions	Do not immerse in water. Place on a flat, hard surface. Avoid dropping.
Spare Parts / Repairability	Batteries are user-replaceable. No other user-serviceable parts.
General Information	Designed for domestic use. Suitable for weighing body weight or small objects.

Frequently Asked Questions - MED-2000 Steren

What type of batteries does the Steren MED-2000 scale use?

The scale typically uses 2 AAA batteries (1.5V) or a CR2032 coin cell depending on the model variant. Check the battery compartment for the exact type.

How do I switch between kg, lb, and st?

Press the unit button (usually labeled UNIT or MODE) on the back or side of the scale to cycle through kilograms, pounds, and stones.

Why does my scale show an error message (Err or OL)?

An Err or OL display indicates overload. The maximum weight capacity is 180 kg (396 lbs). Remove the excess weight immediately to avoid damage.

How do I clean the scale safely?

Clean the scale with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water. Dry thoroughly before use.

The display is dim or not working. What should I do?

First, check if the battery is installed correctly or needs replacement. If using batteries, ensure they have proper polarity. If still dim, the display may be faulty.

What is the tare function and how do I use it?

The tare function allows you to zero out the scale after placing a container on it. Place the container, then press the TARE or ZERO button to reset the weight to zero. Add the content without the container's weight.

How do I get the most accurate weight reading?

Place the scale on a hard, flat surface (not carpet). Stand still on the center of the platform. Weigh yourself at the same time each day for consistency.

Can I use the scale on carpet?

For best accuracy, place the scale on a hard, flat surface such as tile or hardwood floor. Carpet can cause inaccurate readings due to instability.

The scale turns off too quickly. Can I adjust the auto-off time?

No, the auto-off time is fixed at approximately 10 seconds of inactivity. This is to conserve battery life. Step off and on to wake it up.

Where can I find the user manual for the MED-2000?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by email.

USER MANUAL MED-2000 Steren

Pure technical diagram of a rectangular frame with four corner holes and a central orange arrow symbol (no text or labels)

2

Pure technical diagram of a rectangular frame with four corner holes and a central switch, no text or symbols present.

3

Pure technical diagram of a rectangular frame with four corner holes and a central orange indicator symbol (no text or labels)

Front view of a rectangular electronic device with four corner pins and a central indicator light icon (no text or symbols)

STEREN PRODUCTO EMPACADO S.A. DE C.V.

Autopista México-Querétaro. Km 26.5 Sin número, Nave Industrial 3-A, Col. Lomas de Boulevares, Tlalnepantla de Baz, Estado de México, C.P. 54020, RFC: SPE-941215-H43

Vertical gradient bar with alternating blue and teal shades (no text or symbols)

Bluetooth Smart Digital Scale

Instruction manual

INDEX

BEFORE USING 18

Batteries installation or replacement 18

How to properly use the scale 18

HOW TO USE 19

■With smartphone App 19

Installation and Registry 19

Measure weight and Body Mass Index 22

Data application management 23

■Using without Smartphone App 24

Measure weight 24

ADDITIONAL INFORMATION 25

■Body Mass Index (BMI) 25

■Body fat percentage 25

■Reference tables 26

Normal ranges of body fat and liquids 26

Body Mass and Bones 26

BMR rate, T.M.B (daily energy expenditure) 27

PARTS 28

SCREEN ICONS 28

IMPORTANT 29

CAUTIONS 29

SPECIFICATIONS 30

BEFORE USING

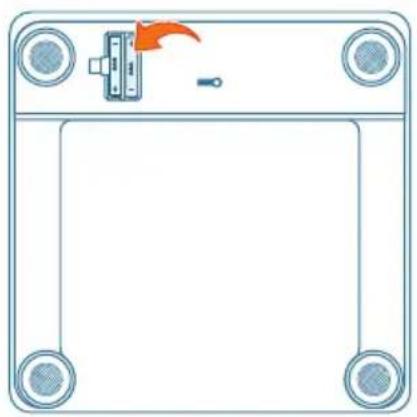

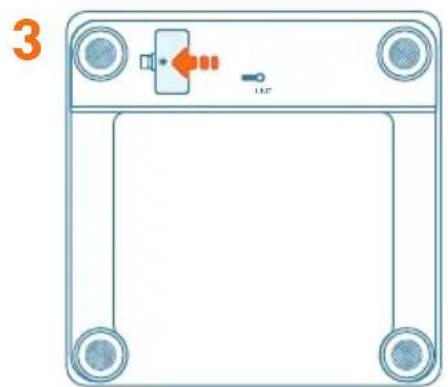

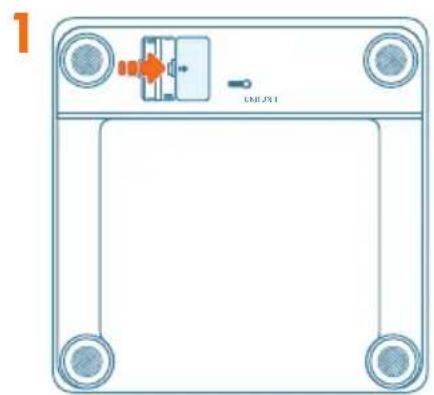

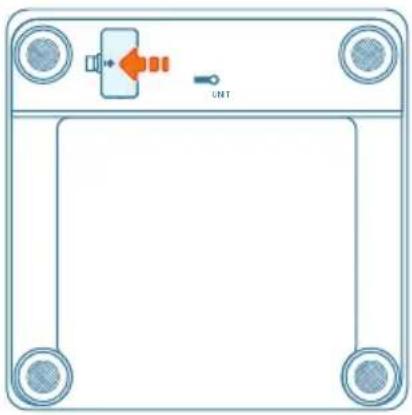

Batteries installation or replacement

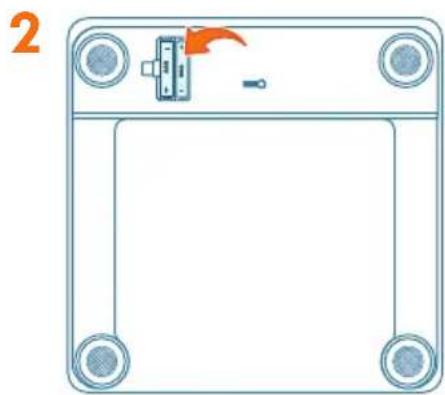

Remove the compartment cover and insert two AAA batteries. Make sure terminals (positive and negative) are positioned correctly.

Pure technical diagram of a rectangular frame with four corner holes and a central mechanical component (no text or symbols)

Pure diagram of a rectangular frame with four corner holes and a central connector (no text or symbols)

Pure technical diagram of a rectangular frame with four corner holes and a central switch symbol (no text or labels)

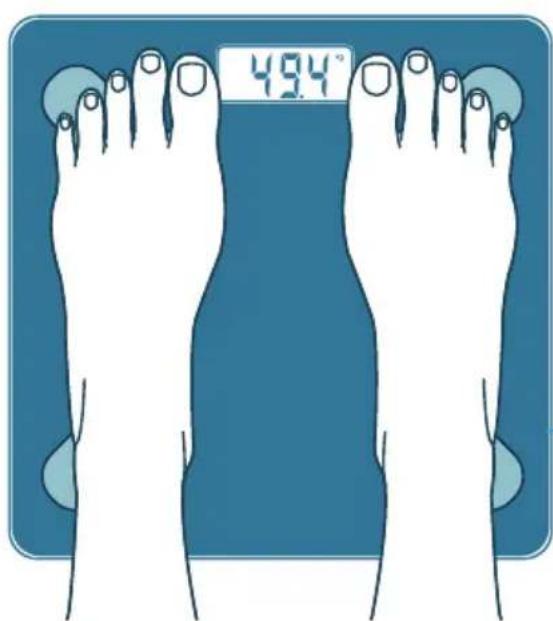

How to properly use the scale

To obtain a complete measurement of weight and body composition, stand on the scale with bare feet; these must be in contact with the metal plates (sensors).

HOW TO USE

■ With Smartphone App

Through an application, you can monitor your weight and body composition (fat, liquids, mass, bones and muscles) to keep track and consult the healthy indexes according to your height, sex and age.

It requires a mobile device with iOS or Android and Bluetooth technology

If you do not want to use this app, see the "Using without application" section of this manual

Installation and Registry

This application is not owned by Steren; the company is not responsible for its operation and updates

1 Activate Bluetooth on your mobile device.

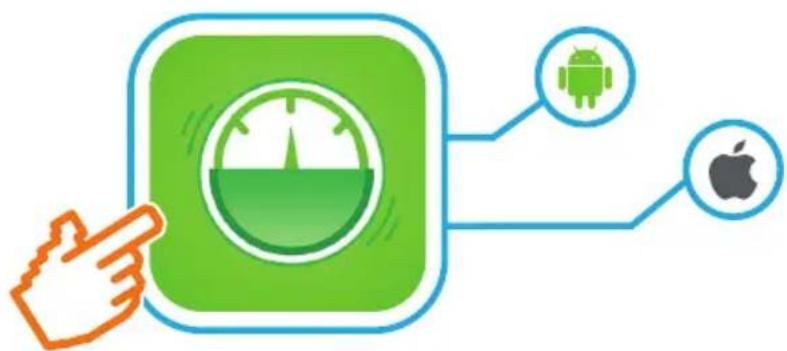

2 Install Leaone App from the app store of your device.


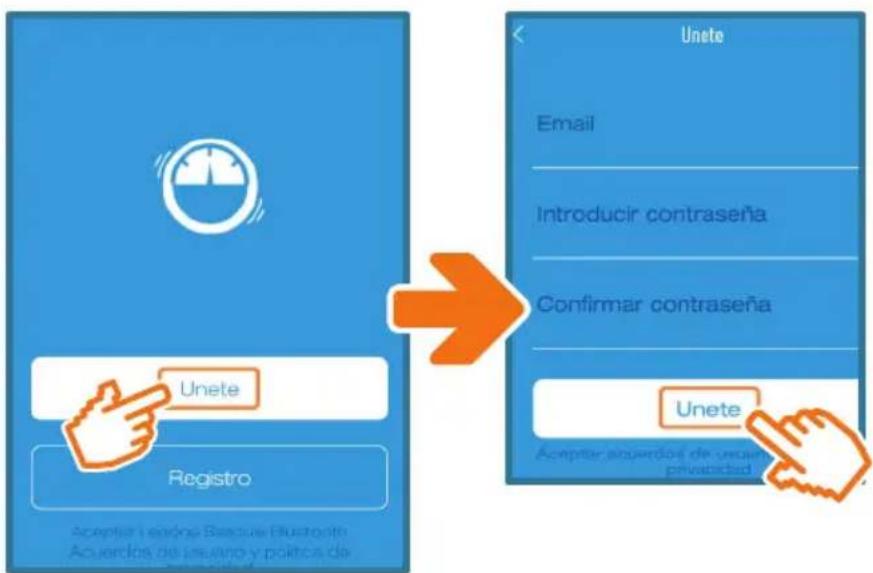

3 Enter the application. Press Únete. Then, enter an email and a password, then press Únete.

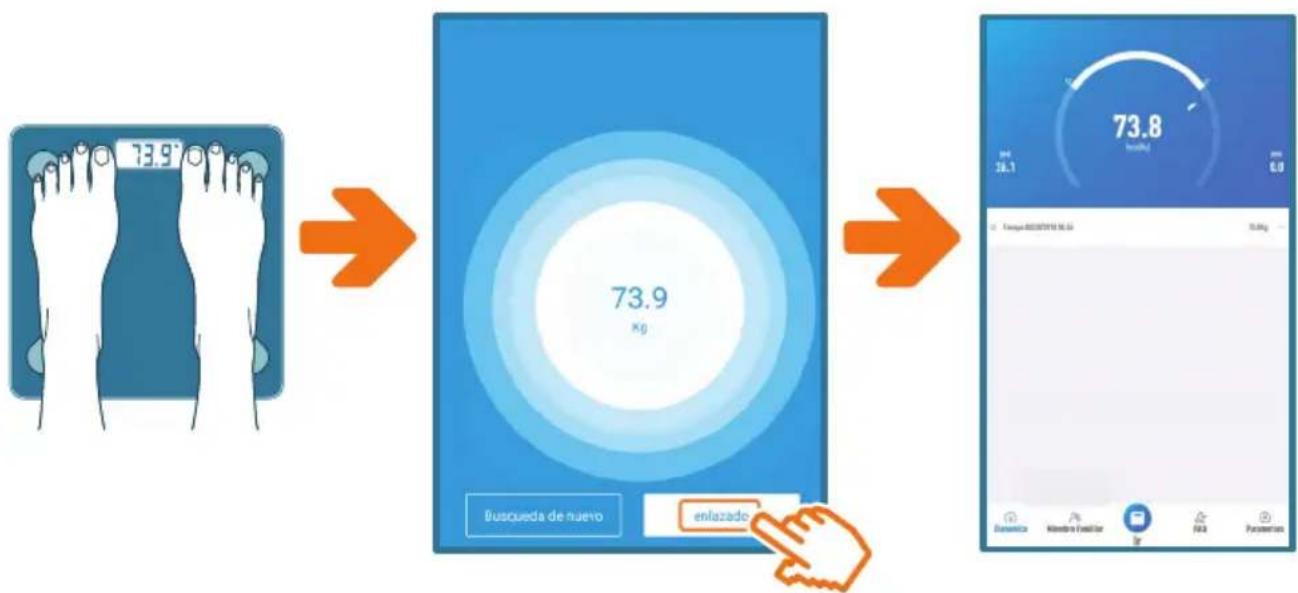

9 Stand on the scale to pair it with your device. If the pairing is successful, the reading of your weight (in kilograms) will appear on the screen. Press Enlazado to continue or wait for the screen to change automatically.


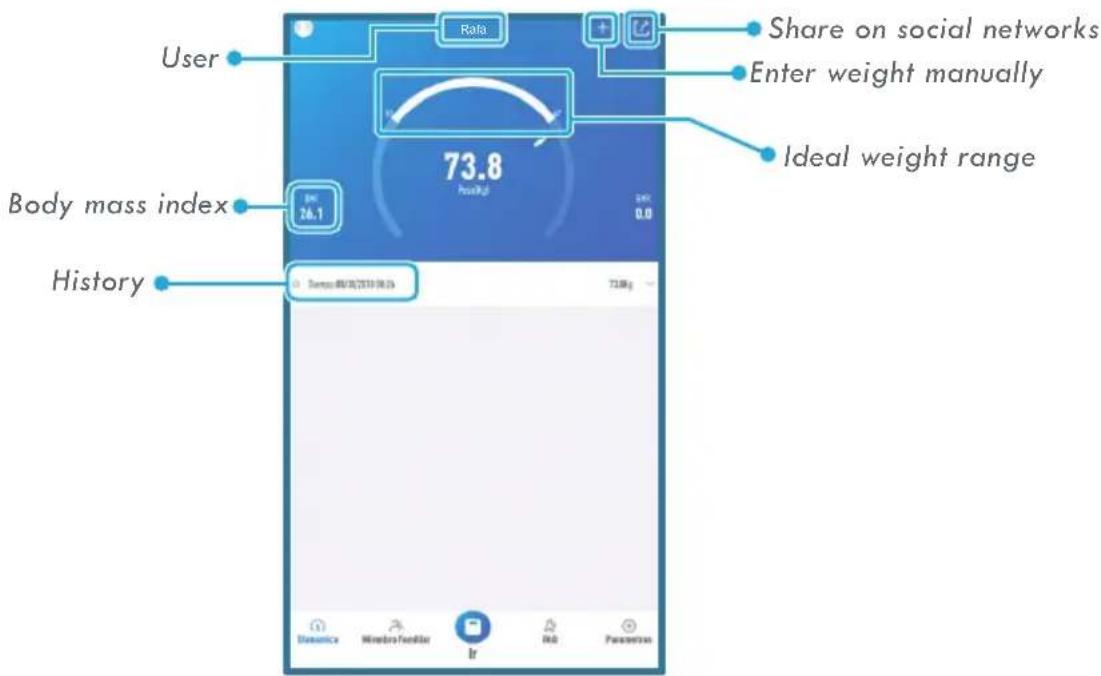

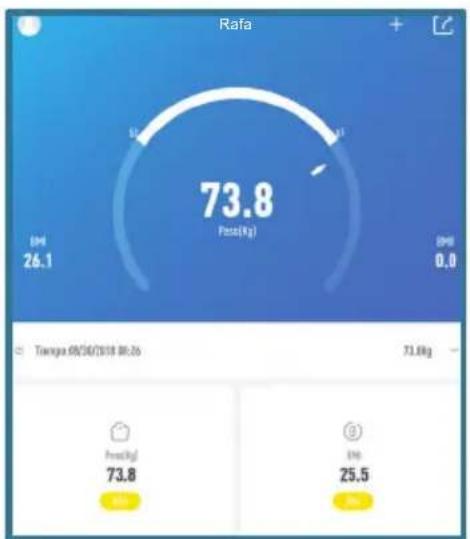

Measure weight and Body Mass Index

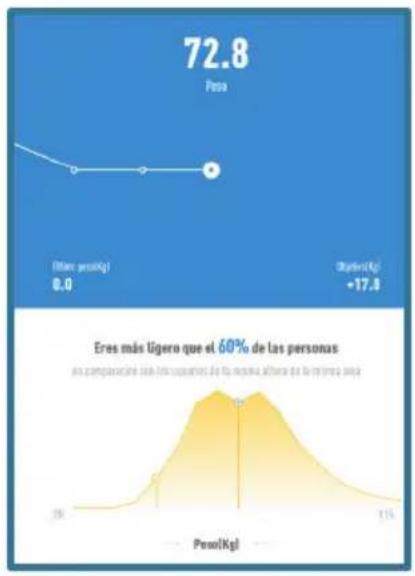

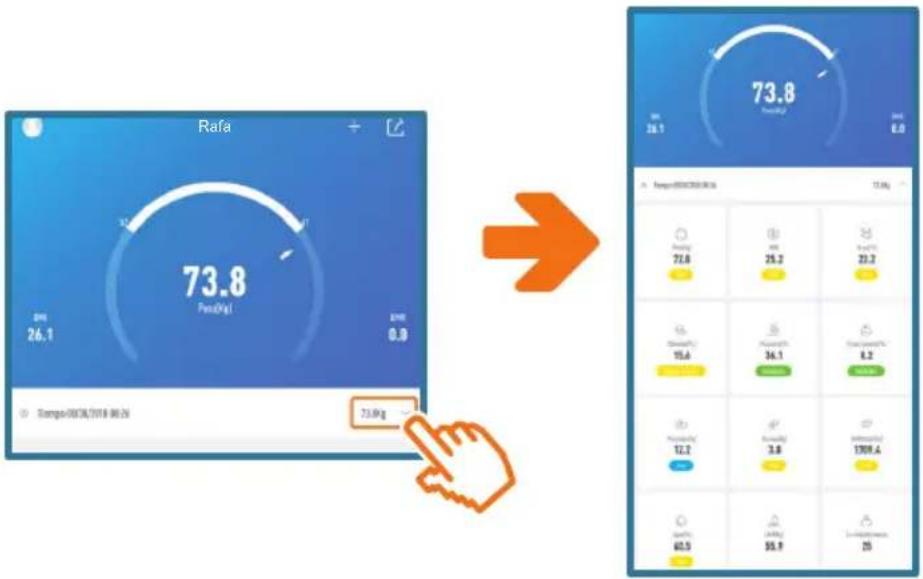

1 When having a registered measurement, click on this icon to display the complete information of the indicators.

2 Press on each indicator to view details.

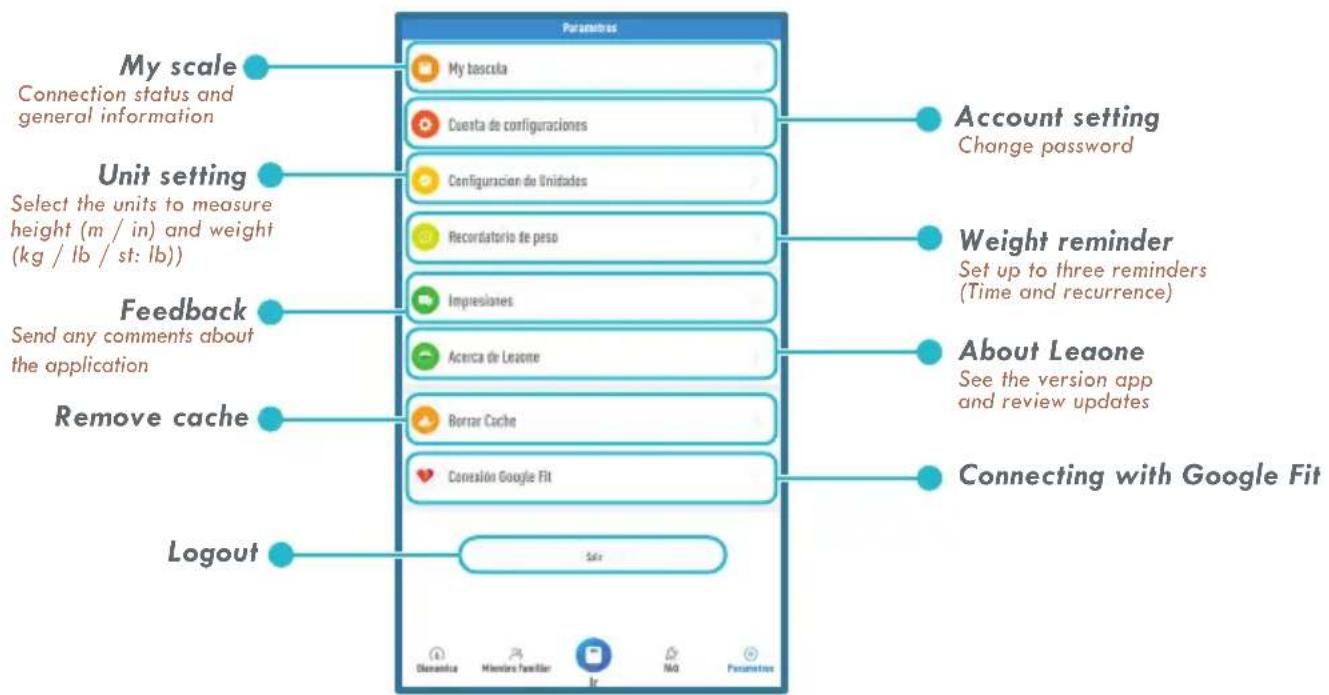

Data and application management

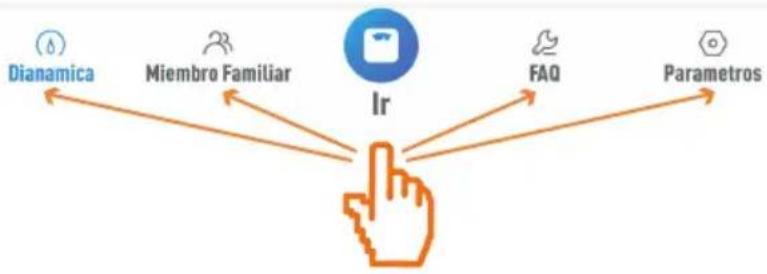

Main menu

Dynamic

Family member

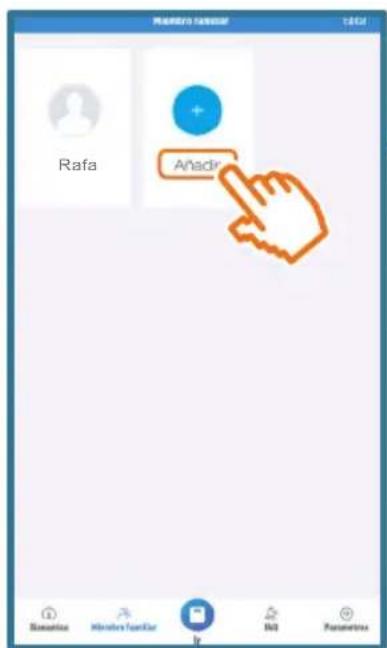

• Press Añadir and repeat the Registration procedure to add a member.
• Press the name of each user to edit the profile

■ Using without Smartphone App

Measure weight

Stand on the scale carefully and erectly. The screen will turn on automatically and show its weight, it will disappear after a few seconds.

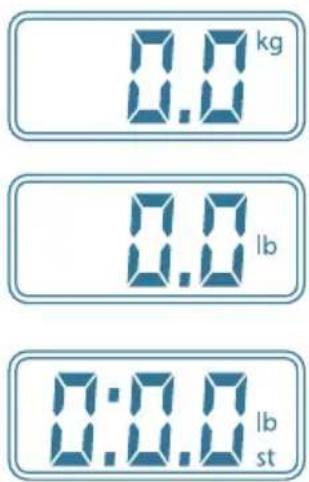

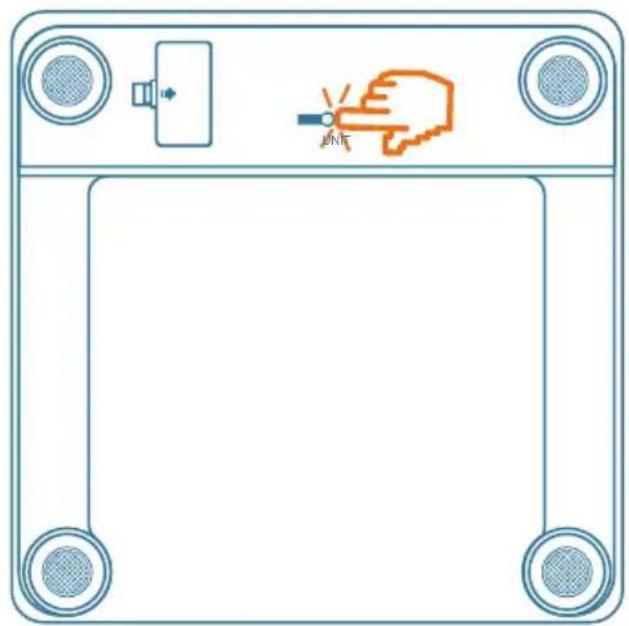

You can change the unit of measurement (Weight: kg, lb, st: lb) with the UNIT selector, located on the back of the scale.

Front view of a rectangular electronic device with four corner pins and a battery icon, no text or symbols present.

ADDITIONAL INFORMATION

Body Mass Index (BMI)

It is a simple indicator between weight and height that is frequently used to identify overweight and obesity in adults. It is calculated by dividing the weight of a person in kilos by the square of its size in meters (kg / m2).

$$ \mathrm{BMI} = \frac {\text { Weight (kg) }}{\text { Height } ^ {2} (\text { Mts. })} $$

Body fat percentage

Fat is essential as energy storage for functioning. Fat is essential as energy storage for daily biological functioning and to protect organs. The distribution of body fat is different in men and women, and is classified depending on the area of the body in which it is located:

- Visceral fat

It is located in the abdominal cavity and surrounds the internal organs

- Subcutaneous fat

It is under the skin

It is important to take into account factors such as age, height and gender to calculate the body fat percentage.

The body fat percentage, by Bioelectrical Impedance Method is determined from the electrical properties of the fluids and tissues. In addition, use this technique to know the percentage of other elements from body composition, such as liquids, muscles, bones, etc.

Normal ranges of body fat and liquids

Age	Female		Male
	Fat % Fat	%Liquids %	Liquids %
<=30	4.0-20.5	66.0-54.7	4.0-15.5	66.0-58.1
	20.6-25.0	54.6-51.6	15.6-20.0	58.0-55.0
	25.1-30.5	51.5-47.8	20.1-24.5	54.9-51.9
	30.6-80.0	47.7-13.8	24.6-80.0	51.8-13.8
>30	4.0-25.0	66.0-51.6	4.0-19.5	66.0-55.4
	25.1-30.0	51.5-48.1	19.6-24.0	55.3-52.3
	30.1-35.0	48.0-44.7	24.1-28.5	52.2-49.2
	35.1-80.0	44.6-13.8	28.6-80.0	49.1-13.8

Body mass and bones

Female Male
Moderate	>34% 40%>

Female
Body mass	-45 Kg	45-60 Kg	+ 60 Kg
Bone Ratio	51.5-47.8	20.1-24.5	54.9-51.9

Male
Body mass	-60 Kg	60-75 Kg	+ 75 Kg
Bone Ratio	>2.5 Kg	>2.9 Kg	3.2 Kg

BMR rate, T.M.B (daily energy expenditure)

Children
Age	Weight (Kg)	Height (cm)	T.M.B. (kcal/day)	Multiple - T.M.B.	Average ration (kcal )	Average ration (day)
0.0 a 0.5	6 60		320	-	108	650
0.5 a 1	9	71	500	-	98	850
1 a 3	13	71	740	-	102	1300
4 a 6	20	71	950	-	90	1800
7 a 10	28	71	1130	-	70	2000

Man
Age	Weight (Kg)	Height (cm)	T.M.B. (kcal/day)	Multiple - T.M.B.	Average ration (kcal)	Average ration (day)
11 a 14	45 157		1440	1,7	55	2500
15 a 18	66	176	1760	1,67	45	3000
19 a 24	72	177	1780	1,67	40	2900
25 a 50	79	176	1780	1,6	37	2900
51+	77	173	1530	1,5	30	2300

Woman
Age	Weight (Kg)	Height (cm)	T.M.B. (kcal/day)	Multiple - T.M.B.	Average ration (kcal )	Average ration (day)
11 a 14	46 157		1310	1,67	47	2200
15 a 18	55	163	1370	1,6	40	2200
19 a 24	58	164	1350	1,6	38	2200
25 a 50	63	163	1380	1,55	36	2200
51+	65	160	1280	1,5	30	1900

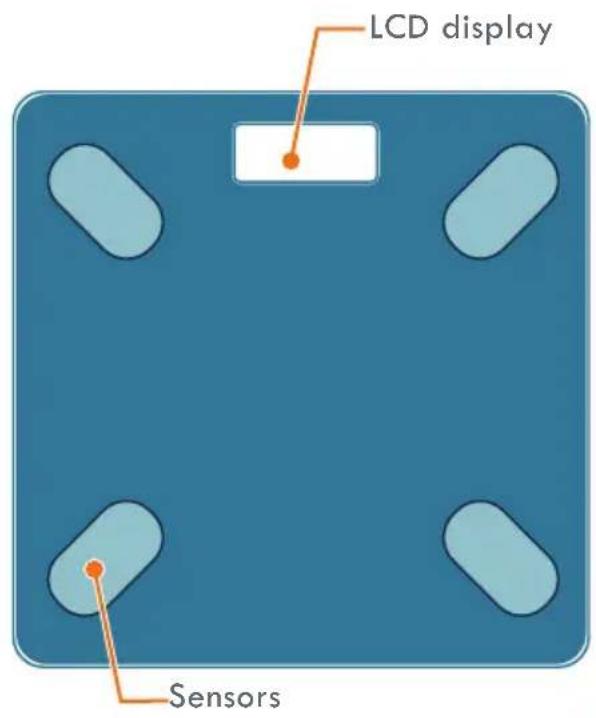

PARTS

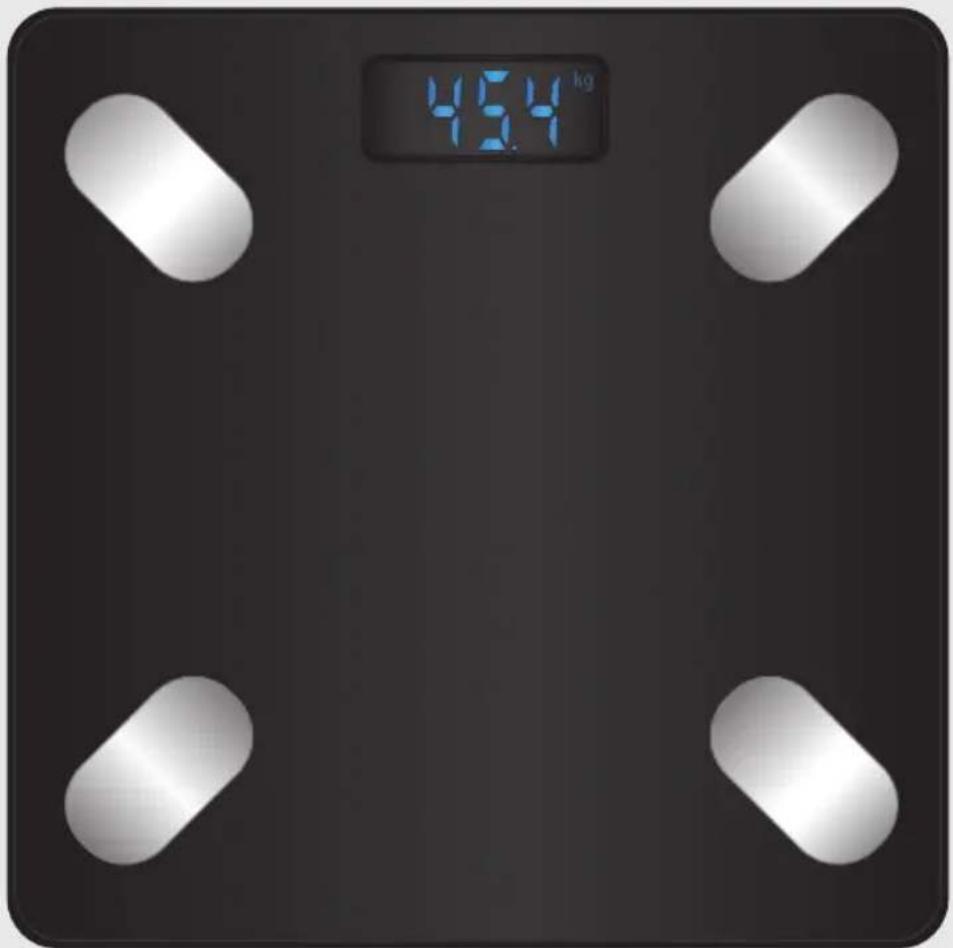

FRONTAL

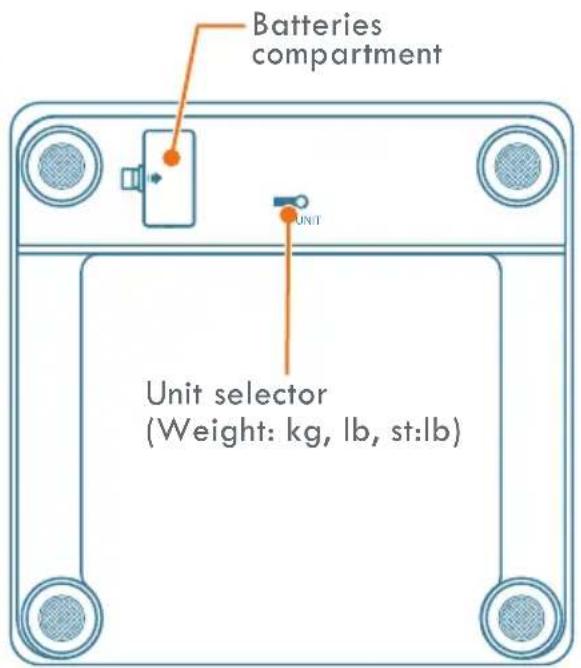

REAR

SCREEN ICONS

L0

Low battery

ERR

Overload error. The scale supports maximum 180 kg

IMPORTANT

The information shown in this manual serves only as a reference for the product. Due to updates there may be differences.

Please check our website www.steren.com for the most recent version of this manual.

CAUTIONS

• Do not use abrasive liquids to clean the scale.
  • Always use a soft and dry cloth to clean.
• Do not use or store in places where there dripping or splashing.
• Do not place the scale on wet or slippery places. Place it on solid surfaces and couples.
• Do not use if you have wet feet as it could fall down.
• Position yourself in the middle to ensure better stability.
• Do not expose the scale to extreme temperatures.
• If you don't use it for an extended period, remove the batteries.
• This product is for domestic use. The measurements should be used as reference
• This device is not intended for use by persons (including children) whose physical, sensory or mental abilities are different or reduced, or lack experience or knowledge.
  • Children should be supervised to ensure they do not use the device as a toy.

"The operation of this device is subject to the following two conditions: (1) it is possible that this device may not cause harmful interference and (2) this device must accept any interference, including interference that may cause its undesired operation"

SPECIFICATIONS

Input: 3 V --- (2 x AAA)

Capacity: 3 - 180 kg / 396 lb (Units: kg, lb, st)

Graduation: Division=100 g / 0.2 lb

The instructions and specifications are subject to change without notice

WARRANTY

STEREN

Product: Bluetooth smart digital scale

Part number: MED-2000

Brand: Steren

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year on the other parts from the date of purchase.

CONDITIONS

1. This warranty card with all the required information, invoice or purchase ticket, product box or package, and product, must be presented when warranty service is required.
2. If the product is in the warranty time, the company will repair it free of charge. The supplier will pay for transportation charges.
3. The repairing time will not exceed 30 natural days, from the day the claim was received.
4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

RETAILER INFORMATION

Name of the retailer

Address

Serial number

Product

ELECTRÓNICA STEREN S.A. DE C.V.

Biólogo Maximino Martínez No. 3408, San Salvador Xochimanca, Del. Azcapotzalco Ciudad de México 02870, RFC: EST850628-K51

STEREN PRODUCTO EMPACADO S.A. DE C.V.

Autopista México-Querétaro. Km 26.5 Sin número, Nave Industrial 3-A, Col. Lomas de Boulevares, Tlalnepantla de Baz, Estado de México, C.P. 54020, RFC: SPE-941215-H43

In case your product fails or have questions, please contact your nearest dealer. If you are in Mexico, please call to our Call Center.

Call Center

01 800 500 9000
