| Produkttyp | Gaming-Monitorständer mit USB 3.0 Media Hub und RGB-Lichteffekt |
| Marke | ICY BOX |
| Modell | IB-MSG304BL-T |
| Farbe | Matt schwarz |
| Material | Aluminium, Kunststoff, Stahl |
| Maximale Bildschirmgröße | 32" (81 cm) |
| Anzahl der Monitore | 2 |
| Maximale Tragfähigkeit pro Monitor | 8 kg |
| VESA-Kompatibilität | 75x75, 100x100 |
| Schwenkbereich (VESA) | +180° / -180° |
| Neigungsbereich (VESA) | +40° / -40° |
| Drehbereich (Pivot) | 360° |
| Basis-Drehbereich | ±180° |
| Armauszug | 480 mm |
| Armhöhe | 450 mm |
| Befestigungsmöglichkeiten | Klemmbasis oder Tischdurchführung |
| Tischplattenstärke (Klemmbasis) | 10 – 85 mm |
| Tischplattenstärke (Durchführung) | 10 – 80 mm |
| USB-Anschlüsse | 2x USB 3.0 (Host) + 1x USB 3.0 (Stromversorgung) |
| Audioanschlüsse | Mikrofon- und Kopfhöreranschluss |
| RGB-Beleuchtung | Ja, im Sockel integriert, Farbwechsel |
| Stromversorgung | Über USB 3.0 (Hostanschluss) |
| Abmessungen (B x H x T) | 455 x 630 x 130 mm |
| Nettogewicht | 5,800 kg |
| Lieferumfang | IB-MSG304BL-T, Inbusschlüssel, Schraubensatz, USB-Kabel, Anleitung |
| Reinigung | Mit einem weichen, trockenen Tuch abwischen |
| Sicherheit | Nur für den angegebenen Gewichtsbereich verwenden; Montage gemäß Anleitung |
| Ersatzteile | Nicht separat erhältlich |
| Reparatur | Nur durch qualifiziertes Fachpersonal |
Häufig gestellte Fragen - IB-MSG304BL-T Icy Box
Benutzerfragen zu IB-MSG304BL-T Icy Box
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Computergehäuse kostenlos im PDF-Format! Finden Sie Ihr Handbuch IB-MSG304BL-T - Icy Box und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. IB-MSG304BL-T von der Marke Icy Box.
BEDIENUNGSANLEITUNG IB-MSG304BL-T Icy Box

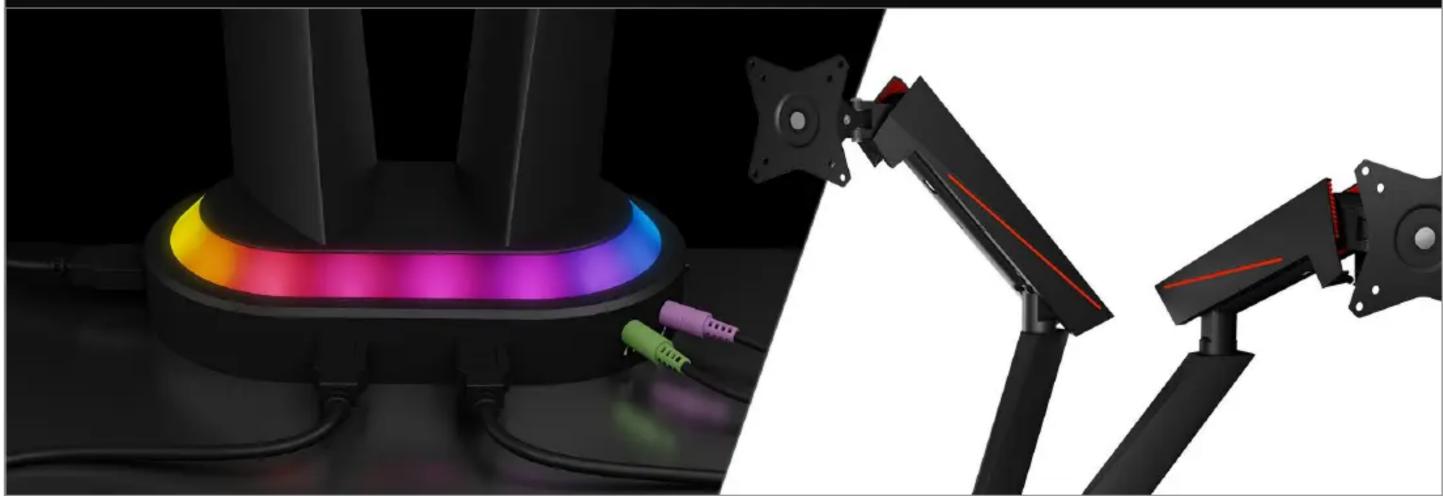

IB-MSG304BL-T
Gaming monitor stand with USB 3.0 media hub and RGB light effect
Key features
• For two monitors up to 32" (81 cm)
- The stylish light effect fits perfectly into any gaming environment
- Two easily accessible USB 3.0 ports and two multi-media ports
• Variable hight adjustment for an ergonomic sitting position
• Built-in spring tension gauge for perfect weight adjustment of the monitor
- Optional mounting with clamp base or table feed-through

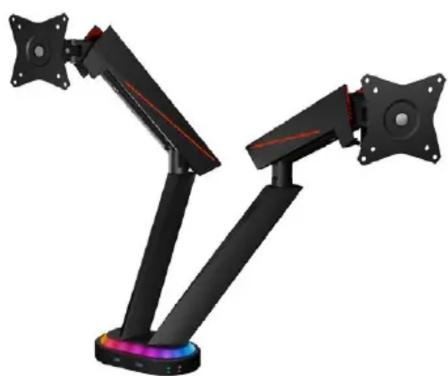

IB-MSG304BL-T, allen wrench, set of screws, USB cable, manual

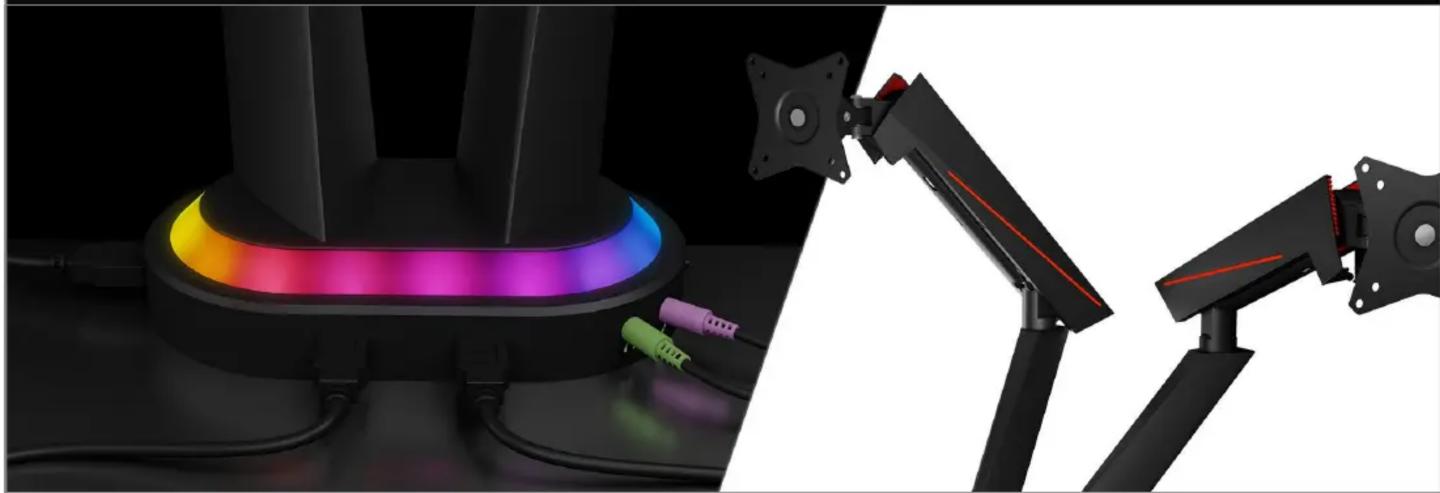

More than just a monitor stand
Create atmosphere in your room with this gaming monitor stand. With its trendy RGB light effect, it fits perfectly into any environment. It also adds two more USB 3.0 ports and a microphone and headphone jack to your end device. Thanks to the built-in spring tension gauge, the monitor can be perfectly adjusted to its weight.
Technical data
| Model | IB-MSG304BL-T |
| Article no. | 60871 |
| EAN code | 4250078172048 |
| Brand | ICY BOX |
| Colour | Matt black |
| Material | Aluminium, plastic, steel |
| Maximum size of monitor | 32" (81 cm) |
| Number of monitors | 2 |
| Max. weight of monitor | Up to 8 kg |
| Mounting | Table feed-through or clamp base |
| VESA® compatible | 75x75, 100x100 |
| Swivel (Hinge) - VESA® | +180° | -180° |
| Tilt (Hinge) - VESA® | +40° - -40° |
| Rotate (Pivot) - VESA® | 360° |
| Base - Rotate (Pivot) | + - 180° |
| Wall mount - Rotate (Pivot) | + - 180° |
| Tilt (arm) | + - 180° |
| Tilt | +40° - -40° |
| Swivel (Hinge) | +90° - -90° |
| Max arm extend | 480 mm |
| Max arm height | 450 mm |
| Table thickness | For clamp base: 10 – 85 mm |
For table feed-through: 10 - 80 mm
Gaming monitor stand with USB 3.0 media hub and RGB light effect
The IB-MSG304BL-T impresses with good workmanship, a modern and eye-catching design and its lighting in the base of the monitor stand, which creates a particularly pleasant ambience in your gaming room. The colours play through the palette of the rainbow.
This monitor stand adds two more USB 3.0 ports to your end device. A third USB 3.0 port provides the necessary power. You also have the option of connecting a microphone and headphones, extremely convenient for your gaming applications!
The monitor stand can be securely attached to the tabletop in two ways. If your desk has a cut-out, you can attach the monitor stand to table tops with a thickness of 10 to 80 mm by means of a table feed-through. For tabletops with a thickness of 10 to 85 mm, you can also mount it securely using a clamp base. The accessories are included in the scope of delivery.
Logistical data
Packing unit: 3 pcs./carton
Total weight: 24.84 kg/carton
Gross weight (with packing): 7.730 kg
Net weight: 5.800 kg
Dimension/carton: 655x471x433 mm
Dimension (with packing): 630x455x130 mm
Dimension of article: 455x630x130 mm
Country of origin: China
