Produkttyp	WLAN-fähige Sicherheitskamera
Modell	HC30WE5R2
Marke	Honeywell
Auflösung	5 Megapixel (2592 x 1944)
Objektiv	Motorzoom, manueller Fokus
Nachtsicht	IR-LEDs für bis zu 30 m
WDR	Wide Dynamic Range (WDR)
Schutzart	IP66 (wetterfest)

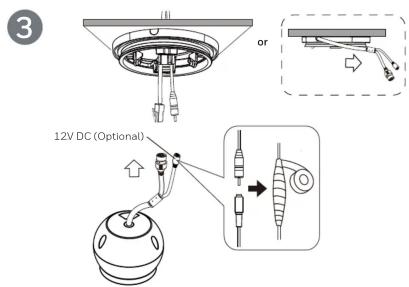

Stromversorgung	PoE (IEEE 802.3af) oder 12 V DC (optional)
Video-Komprimierung	H.265, H.264
Video-Streams	1.0
Abmessungen	Ca. 130 x 95 mm (Durchmesser x Höhe)
Gewicht	Ca. 700 g
Betriebstemperatur	-30 °C bis 60 °C
Montageoptionen	Wand-/Deckenmontage, Pole Mount (mit Zubehör)
Zubehör	HQA-BB2, HBS2-BB, HEJB, HQA-BB4 (Anschlussdosen)
Netzwerk	Ethernet 10/100 Base-T, RJ45
Browser-Kompatibilität	Internet Explorer 11+, Chrome 71+ (nur H.264)
Wartung	Keine Reinigungsmittel verwenden; nur trockenes Tuch
Sicherheitshinweise	Stromschlaggefahr; nur qualifiziertes Personal

Häufig gestellte Fragen - HC30WE5R2 HONEYWELL

Welche Auflösung hat die Kamera?

Die Kamera hat eine Auflösung von 5 Megapixeln (2592 x 1944), gestützt durch H.265- und H.264-Kodierung.

Hat die Kamera Nachtsicht?

Ja, die Kamera ist mit IR-LEDs ausgestattet, die eine Nachtsichtreichweite von bis zu 30 m ermöglichen.

Wie wird die Kamera mit Strom versorgt?

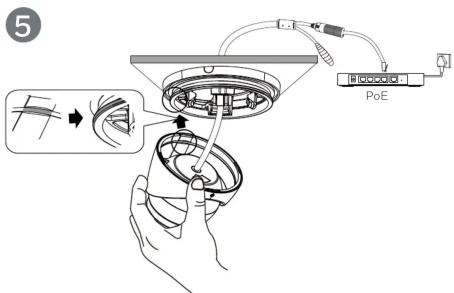

Die Stromversorgung erfolgt über PoE (Power over Ethernet, IEEE 802.3af) oder optional über ein 12 V DC-Netzteil.

Ist die Kamera wetterfest?

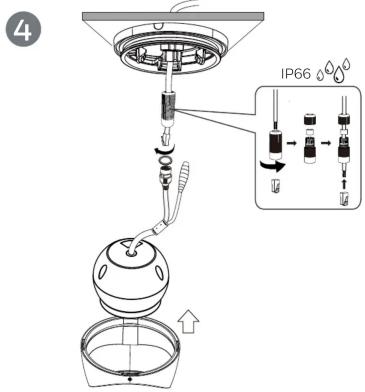

Ja, das Gehäuse entspricht der Schutzart IP66, was sie staubdicht und gegen starkes Strahlwasser geschützt macht.

Kann ich die Kamera im Freien montieren?

Ja, aufgrund der IP66-Zertifizierung und des Temperaturbereichs von -30 °C bis 60 °C ist sie für den Außeneinsatz geeignet.

Welche Montagemöglichkeiten gibt es?

Die Kamera kann an der Wand oder Decke montiert werden. Mit optionalem Zubehör (z.B. HQA-BB2, HBS2-BB) ist auch eine Mastmontage möglich.

Wie kann ich die Kamera fernsteuern?

Nach der Installation müssen Sie das Honeywell Config Tool auf einem PC installieren, die Kamera im Netzwerk finden und dann über einen Webbrowser auf die Benutzeroberfläche zugreifen.

Hat die Kamera einen Zoom?

Ja, die Kamera verfügt über einen motorisierten Zoom und einen manuellen Fokus, die über die Weboberfläche eingestellt werden können.

Welche Browser werden unterstützt?

Internet Explorer 11+ mit ActiveX-Plugin wird voll unterstützt. Chrome 71+ funktioniert für H.264-Video, jedoch nicht für H.265.

Gibt es eine Garantie?

Honeywell bietet in der Regel eine begrenzte Garantie. Bitte wenden Sie sich an den Kundendienst oder prüfen Sie die mitgelieferten Dokumente.

BEDIENUNGSANLEITUNG HC30WE5R2 HONEYWELL

Honeywell

THE POWER OF CONNECTED

30 Series

WDR 5 MP IR Ball Camera

HC30WE5R2

Quick Installation Guide

Logging On to the Camera

If logging on the camera remotely from a PC, install the Honeywell Config Tool from the software and documentation CD, find the camera on the network, and then open the web browser with the Honeywell Config Tool. The default user name is admin (case-sensitive) and the default password is 1234.

Note • Internet Explorer 11 (or later) with ActiveX plug-in is supported.
- Chrome 71 (or later) is supported for H.264 video. Chrome is not supported for H.265 video.
- IP address of the device is assigned automatically by DHCP server. If the DHCP server is not available, the device will acquire 192.168.1.108 as the default IP address.

Adjusting the Zoom and Focus Settings

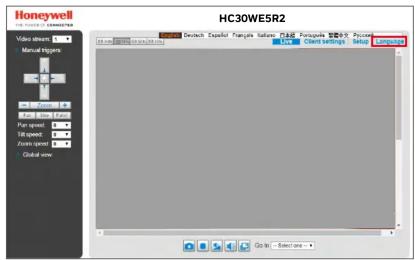

After you have logged on to the camera, go to Camera Setup → Properties → Focus to fine-tune the camera's zoom and focus settings.

Zoom	<<	<	>	>>
Focus	<<	<	>	>>

Support Brackets

HQA-BB2	Junction Box
HBS2-BB	Junction Box
HEJB	Junction Box
HQA-BB4	Junction Box
HQA-PM2 with HQA-BB2/HBS2-BB/HQA-BB4	Pole Mount

Cautions and Warnings

WARNING To ensure compliance with electrical safety standards, CSA Certified/UL Listed LPS or Class 2 power adapters are required. Power over Ethernet (PoE) shall be provided by listed Information Technology Equipment meeting the IEEE 802.3af PoE standard. The PoE is not intended to be connected to exposed (outside plant) networks.

Important Safeguards

• Read and keep these instructions.
• Please ensure that your installation area can safely support the weight of the camera.
• Do not aim the camera toward a bright light source for extended periods to prevent
  damage to the imager. Avoid operating the unit under or close to unstable light sources (may serve flickering), or close to fluorescent lamps or objects reflecting light.
• Do not touch the camera lens

- Do not drop the camera or subject it to physical shock.

- Do not use a strong or abrasive detergent when cleaning the camera.

- Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where the operating temperature is outside the recommended range of -22^ to 140^ (-30^ to 60^) .

- Avoid operating the unit close to sources of powerful electromagnetic radiation, such as radio or TV transmitters.

- If powered by a power adapter, the adapter should be properly grounded. Consult Honeywell for the recommended adapter or check it in Honeywell DOC.

Regulatory Statements

FCC Statement of Compliance

Information to the User: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Note Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer's Declaration of Conformance

The manufacturer declares that the equipment supplied with this guide is compliant with the European Parliament and Council Directive on the Restrictions of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EU), General Product Safety Directive (2001/95/EC), and the essential requirements of the EMC Directive (2014/30/EU), conforming to the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and EN 62368-1 for electrical equipment safety.

Waste Electrical and Electronic Equipment (WEEE)

Correct Disposal of this Product (applicable in the European Union and other European countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per applicable local laws, regulations, and procedures.

Honeywell

www.honeywell.com/security

[phone] (North America only)

Document 800-25044 - Rev A - 05/2019

© 2019 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes. For patent information, see www.honeywell.com/patent.
