Produkttyp	Sicherheitskamera
Marke	Honeywell
Modell	HC30WB2R1
Abmessungen (BxHxT)	ca. 6,5 x 12,0 x 6,5 cm
Gewicht	ca. 320 g
Stromversorgung	5V DC, 1A (Micro-USB)
Auflösung	1080p Full HD (1920 x 1080)
Nachtsicht	Infrarot-LEDs, Reichweite bis zu 10 m
Blickwinkel	130° diagonal
Bewegungserkennung	Ja, mit Push-Benachrichtigungen
Audio	Zweiwege-Audio mit eingebautem Mikrofon und Lautsprecher
Konnenktivität	Wi-Fi 802.11 b/g/n (2,4 GHz)
Speicher	MicroSD-Karte (bis zu 128 GB) und Cloud-Speicher
Wetterbeständigkeit	IP65 (staub- und strahlwassergeschützt)
Betriebstemperatur	-10 °C bis 45 °C
Montage	Wand- oder Deckenmontage mit enthaltenem Montageset
App	Honeywell Home App (iOS und Android)
Kompatible Smart-Home-Systeme	Amazon Alexa, Google Assistant
Reinigung	Mit einem trockenen oder leicht feuchten Tuch abwischen; keine aggressiven Reinigungsmittel
Sicherheit	Verschlüsselung der Datenübertragung (WPA2), Passwortschutz
Ersatzteile und Reparatur	Kundendienst von Honeywell; Ersatzteile auf Anfrage

Häufig gestellte Fragen - HC30WB2R1 HONEYWELL

Wie setze ich die Kamera auf die Werkseinstellungen zurück?

Wie verbinde ich die Kamera mit meinem WLAN?

Kann ich die Kamera im Freien verwenden?

Welche MicroSD-Karten werden unterstützt?

Wie kann ich die Bewegungsempfindlichkeit einstellen?

Funktioniert die Kamera mit Amazon Alexa?

Was bedeutet das blinkende rote Licht an der Kamera?

Kann ich mehrere Kameras in der App verwalten?

Wie kann ich aufgezeichnete Videos ansehen?

Benötige ich ein Abonnement für die Cloud-Speicherung?

BEDIENUNGSANLEITUNG HC30WB2R1 HONEYWELL

Honeywell

THE POWER OF CONNECTED

30 Series

WDR 2 MP/5 MP IR Bullet Camera HC30WB2R1 HC30WB5R1

Quick Installation Guide

1

4

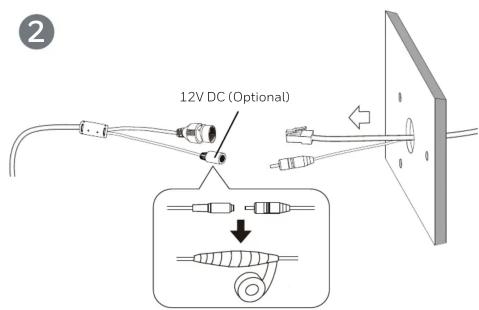

(Optional)

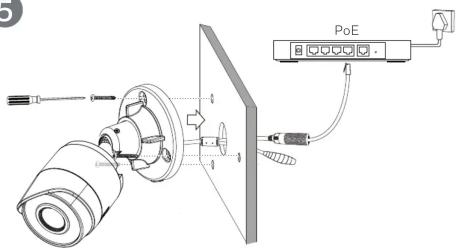

Technical diagram of a mechanical assembly with no visible text or symbols

5

6

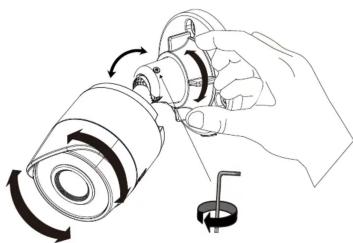

Illustration of a hand holding a cylindrical device with rotating components and a small inset showing a ring (no text or symbols)

Logging On to the Camera

If logging on the camera remotely from a PC, install the Honeywell Config Tool from the software and documentation CD, find the camera on the network, and then open the web browser with the Honeywell Config Tool. The default user name is admin (case-sensitive) and the default password is 1234.

Note

• Chrome 71 (or later) is supported for H.264 video. Chrome is not supported for H.265 video.
• IP address of the device is assigned automatically by DHCP server. If the DHCP server is not available, the device will acquire 192.168.1.108 as the default IP address.

Support Brackets

HBS2-BB	Junction Box
HQA-PM2 with HBS2-BB	Pale Mount

Cautions and Warnings

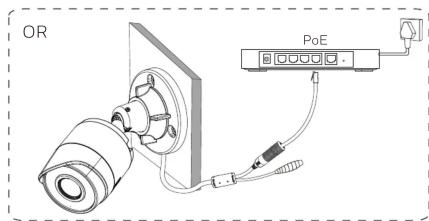

WARNING To ensure compliance with electrical safety standards, CSA Certified/UL Listed LPS or Class 2 power adapters are required. Power over Ethernet (PoE) shall be provided by listed Information Technology Equipment meeting the IEEE 802.3af PoE standard. The PoE is not intended to be connected to exposed (outside plant) networks.

Important Safeguards

• Read and keep these instructions.
• Please ensure that your installation area can safely support the weight of the camera.
• Do not aim the camera toward a bright light source for extended periods to prevent
  damage to the imager. Avoid operating the unit under or close to unstable light sources (may serve flickering), or close to fluorescent lamps or objects reflecting light.
  (may cause flickering), or close to fluorescent lamps of objects reflecting light. Do not touch the camera lens
  Do not touch the camera lens.
• Do not drop the camera or subject it to physical shock.
• Do not use a strong or abrasive detergent when cleaning the camera.
• Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where the operating temperature is outside the recommended range of -22^ to 140^ (-30^ to 60^) .
• Avoid operating the unit close to sources of powerful electromagnetic radiation, such as radio or TV transmitters.
• If powered by a power adapter, the adapter should be properly grounded. Consult Honeywell for the recommended adapter or check it in Honeywell DOC.

Regulatory Statements

FCC Statement of Compliance

Information to the User: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Note Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer's Declaration of Conformance

The manufacturer declares that the equipment supplied with this guide is compliant with the European Parliament and Council Directive on the Restrictions of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EU), General Product Safety Directive (2001/95/EC), and the essential requirements of the EMC Directive (2014/30/EU), conforming to the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and EN 62368-1 for electrical equipment safety.

Waste Electrical and Electronic Equipment (WEEE)

Correct Disposal of this Product (applicable in the European Union and other European countries with separate collection systems).

This product should be disposed of, at the end of its useful life, as per applicable local laws, regulations, and procedures.

Honeywell

www.honeywell.com/security

[phone] (North America only)

Document 800-25041 - Rev B - 05/2019

© 2019 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes. For patent information, see www.honeywell.com/patent.
