Produkttyp	Sicherheitskamera
Marke	Honeywell
Modell	HC30WB5R2
Auflösung	5 Megapixel
Bildsensor	WDR (Wide Dynamic Range)
Infrarot	Ja, für Nachtsicht
Schutzart	IP66 (wetterfest)
Stromversorgung	PoE (IEEE 802.3af) oder 12V DC (optional)
Betriebstemperatur	-30 °C bis 60 °C
Standard-IP-Adresse	192.168.1.108 (DHCP-fähig)
Standard-Zugangsdaten	Benutzername: admin, Passwort: 1234
Zoom und Fokus	Manuell einstellbar über Weboberfläche
Montage	Bullet-Kamera mit Halterungen
Speicher	MicroSD-Kartenslot
Reset-Taste	Ja
Abmessungen (ca.)	70 × 70 × 180 mm
Gewicht (ca.)	500 g
Kompatibilität	Honeywell Config Tool, Webbrowser (Chrome 71+ für H.264)
Hinweis	Netzteil muss CSA/UL-zertifiziert sein; PoE von gelisteter IT-Ausrüstung

Häufig gestellte Fragen - HC30WB5R2 HONEYWELL

Wie kann ich die Kamera auf die Werkseinstellungen zurücksetzen?

Wie greife ich auf die Kamera über den PC zu?

Kann ich die Kamera per PoE oder nur mit 12V DC betreiben?

Welche IP-Adresse hat die Kamera standardmäßig?

Wie stelle ich Zoom und Fokus ein?

Ist die Kamera für den Außeneinsatz geeignet?

Welche maximale Auflösung und Bildrate unterstützt die Kamera?

Wie weit reicht die IR-Nachtsicht?

Kann ich eine microSD-Karte verwenden?

Welche Browser werden für die Videoanzeige unterstützt?

BEDIENUNGSANLEITUNG HC30WB5R2 HONEYWELL

Honeywell

THE POWER OF CONNECTED

30 Series

WDR 5 MP IR Bullet Camera HC30WB5R2

Quick Installation Guide

1

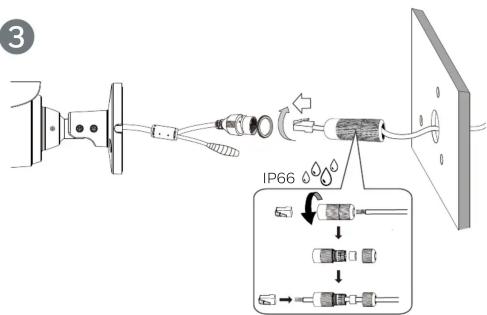

3

4

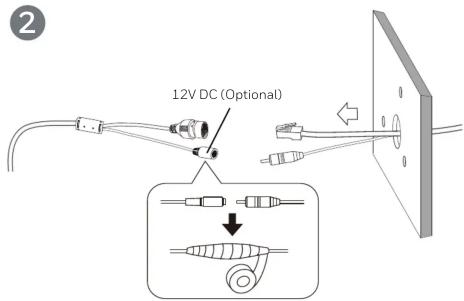

(Optional)

Technical line drawing of a mechanical assembly with no visible text or symbols

5

6

Mechanical assembly diagram showing rotational components and a central housing (no text or labels)

Logging On to the Camera

If logging on the camera remotely from a PC, install the Honeywell Config Tool from the software and documentation CD, find the camera on the network, and then open the web browser with the Honeywell Config Tool. The default user name is admin (case-sensitive) and the default password is 1234.

Note

• Chrome 71 (or later) is supported for H.264 video. Chrome is not supported for H.265 video.
• IP address of the device is assigned automatically by DHCP server. If the DHCP server is not available, the device will acquire 192.168.1.108 as the default IP address.

Adjusting the Zoom and Focus Settings

After you have logged on to the camera, go to Camera Setup → Properties → Focus to fine-tune the camera's zoom and focus settings.

Support Brackets

Cautions and Warnings

WARNING To ensure compliance with electrical safety standards, CSA Certified/UL Listed LPS or Class 2 power adapters are required. Power over Ethernet (PoE) shall be provided by listed Information Technology Equipment meeting the IEEE 802.3af PoE standard. The PoE is not intended to be connected to exposed (outside plant) networks.

Important Safeguards

• Read and keep these instructions.
• Please ensure that your installation area can safely support the weight of the camera.
• Do not aim the camera toward a bright light source for extended periods to prevent
  damage to the imager. Avoid operating the unit under or close to unstable light sources (may cause flickering), or close to fluorescent lamps or objects reflecting light.
  • Do not touch the camera lens

- Do not drop the camera or subject it to physical shock.

- Do not use a strong or abrasive detergent when cleaning the camera.

- Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments, where the operating temperature is outside the recommended range of -22^ to 140^ (-30^ to 60^) .

- Avoid operating the unit close to sources of powerful electromagnetic radiation, such as radio or TV transmitters.

- If powered by a power adapter, the adapter should be properly grounded. Consult Honeywell for the recommended adapter or check it in Honeywell DOC.

Regulatory Statements

FCC Statement of Compliance

Information to the User: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Note Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer's Declaration of Conformance

The manufacturer declares that the equipment supplied with this guide is compliant with the European Parliament and Council Directive on the Restrictions of the use of certain hazardous substances in electrical and electronic equipment (2011/65/EU), General Product Safety Directive (2001/95/EC), and the essential requirements of the EMC Directive (2014/30/EU), conforming to the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and EN 62368-1 for electrical equipment safety.

Waste Electrical and Electronic Equipment (WEEE)

Correct Disposal of this Product (applicable in the European Union and other European countries with separate collection systems).

This product should be disposed of, at the end of its useful life, as per applicable local laws, regulations, and procedures.

Honeywell

www.honeywell.com/security

[phone] (North America only)

Document 800-25042 - Rev A - 05/2019
