Produkttyp	2-Kanal-Fernschaltaktor
Modell	DY365 2CE
Marke	ABB
Abmessungen (H x B x T)	88 x 36 x 65 mm (2 DIN-Module)
Gewicht	ca. 100 g (Schätzung)
Versorgungsspannung	12/24 V AC/DC (-15%/+10%), 50/60 Hz
Relaisausgänge	2 x Schließer, 8 A / 250 V AC
Schnittstelle	I/O-Erweiterungsport für DY365-Schalter
Betriebstemperatur	0 °C bis +50 °C
Lagertemperatur	-25 °C bis +70 °C
Schutzart	IP20 (IP40 bei Einbau im Verteiler)
Verschmutzungsgrad	Normal (nach EN 60730-1)
Überspannungskategorie	III
Konformität	2014/35/EU (LVD), 2014/30/EU (EMCD)
Funktionen	Fernschalten von zwei Lasten, Konfiguration über SET-Taste
Anzeigen	Grüne LED (Betrieb), rote LEDs (Relaisstatus)
Wartung und Reinigung	Keine Wartung erforderlich; bei Bedarf mit trockenem Tuch reinigen
Sicherheitshinweise	Installation nur durch Fachpersonal; vor Arbeiten spannungsfrei schalten
Ersatzteile und Reparierbarkeit	Keine reparierbaren Teile im Inneren; Gerät bei Defekt ersetzen

Häufig gestellte Fragen - DY365 2CE ABB

Wie wird der DY365 2CE installiert?

Welche Spannungsversorgung benötigt der Aktor?

Wie konfiguriere ich die Kanäle des Aktors?

Wie lösche ich eine Kanalzuordnung?

Was bedeuten die LEDs am Gerät?

Kann der Aktor auch im Außenbereich verwendet werden?

Welche Lasten können mit den Relais geschaltet werden?

Was ist der I/O-Erweiterungsport?

Ist der Aktor mit anderen Schaltern kompatibel?

Was tun, wenn das Gerät nicht reagiert?

BEDIENUNGSANLEITUNG DY365 2CE ABB

DY365 2CE

Installation Manual

Dimensions (mm)

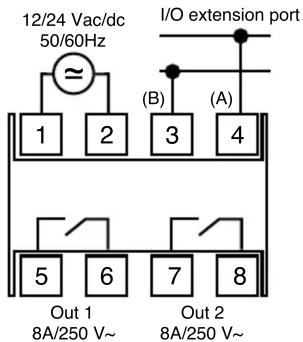

Connection diagram

Description

① Green LED for operating status signaling

② Red LED for relay status signaling

③ SET BUTTON for channels programming and resetting

User manual

DY365 2CE REMOTE ACTUATOR

Read all instructions carefully

• The DY365 2CE remote actuator is a two-relay electronic device that receives the command signals from the DY365 switch via I/O extension ports.
  It performs actions of 1B type and is intended to operate in a domestic and similar environment with overvoltage category III and normal pollution degree (EN 60730-1).

SAFETY WARNINGS

During product installation and operation it is necessary to observe the following instructions:

1) The device must be installed by a qualified person
2) Before accessing the terminals, make sure that the leads are not live
3) Do not power the device if any part of it is damaged
4) Connect the product following the diagrams described in this manual
5) In the electrical system upstream of the device must be installed a switch and a protection device against the overcurrents.
6) The product must be installed and activated in compliance with current electric systems standards.
7) After installation inaccessibility to the terminals without using dedicated tools must be guaranteed.

Code Model Description

2CSM221191R1000 DY365 2CE 2-channel remote actuator

TECHNICAL FEATURES

• Power supply: 12/24 V AC/DC (-15%/+10%) 50/60 Hz
• 2 relays normally open 8A / 250 V AC
- I/O extension port for connection to the DY365 switch
- Operating temperature: 0 ÷ +50^ C
• Storage temperature: -25 ÷ +70 °C
- Container: 2 DIN modules
- Protection degree: IP20 (IP40 when correctly installed in the electrical panel)

OPERATION

• When switched on, the red LEDs emit 2 flashes lasting half a second (switch-on sequence).
• Once the switch-on sequence is completed, the green LED is lit to indicate normal device operation and the red LEDs are turned on/off to indicate the corresponding status of the 2 channels (on = ON).

Channels configuration

• During normal operation, press and hold the SET button for at least 3 seconds to enter configuration mode. In this mode the green LED is off while the red LED corresponding to the relay to be configured flashes.
• To select the relay to be associated with the channel of DY365 switch, press the SET button until the red LED for the relay to be configured flashes.
• Once the channel is selected, the actuator remains in configuration mode for 60 seconds: activate the channel configuration on the DY365 switch. To activate the channel configuration, see the DY365 switch user manual.
• Once the relay configuration is complete, the actuator resumes normal operation
• To cancel the configuration of a channel, enter the configuration mode, select the channel with the SET button (relative red LED flashing), then press the SET button for at least three seconds until the green LED lights up again. Each new configuration cancels the previous configuration

REFERENCE STANDARDS

Compliance with Community Directives:

2014/35/EU (LVD)

2014/30/EU (EMCD)

is declared in reference to the harmonized Standards:

■ EN 60730-1

■ EN 301 489-1/3 and EN 300 220-3
