Produkttyp	Drahtlose IP-Kamera mit digitalem Schwenk/Neige/Zoom
Marke	Edimax
Modell	IC-1520DPg
Bildsensor	1,3-Megapixel-CMOS
Objektiv	Manueller Fokus, F=2,0, Weitwinkel (179°)
Blickwinkel	Horizontal 128°, Vertikal 99°
Videoauflösung	Motion-JPEG, 24-Bit-Farbe
Drahtlosstandard	IEEE 802.11b/g
Drahtlossicherheit	WEP, WPA-PSK
Netzwerkschnittstelle	1x 10/100 Mbps UTP
Erfassungsfunktionen	Bewegungserkennung, E-Mail-/FTP-Benachrichtigung, Snapshot
Digitaler Zoom	Ja, mit Schnell-Zoom-Funktion
Stromversorgung	DC 12V, 1A Netzteil
Abmessungen (BxHxT)	120 x 79 x 50 mm
Gewicht	ca. 250 g (ohne Netzteil)
LED-Anzeigen	Strom, LAN, WLAN
Betriebstemperatur	0 bis 45 °C
Luftfeuchtigkeit	10–90 % (nicht kondensierend)
Zertifizierungen	CE, FCC
Lieferumfang	Kamera, Netzteil, Antenne, Schnellinstallationsanleitung
Kompatible Betriebssysteme	Windows 98/ME/2000/XP/2003/Vista

Häufig gestellte Fragen - IC-1520DPg Edimax

Wie verbinde ich die IC-1520DPg mit meinem WLAN?

Kann ich die Kamera auch über das Internet fernsteuern?

Wie richte ich die Bewegungserkennung ein?

Was bedeutet 'Digital Pan/Tilt' und wie funktioniert es?

Kann ich mehrere Kameras gleichzeitig anzeigen?

Welche Videoformate werden aufgezeichnet?

Wie setze ich die Kamera auf die Werkseinstellungen zurück?

Kann ich die Kamera ohne Internet nutzen?

Welche Sicherheitsfunktionen bietet die Kamera?

Kann ich die Firmware aktualisieren?

BEDIENUNGSANLEITUNG IC-1520DPg Edimax

IC - 1520DPg

Collection of black and white geometric shapes including stars, circles, and squares (no text or symbols)

Full Vision Viewing and Digital Pan/Tilt Mode

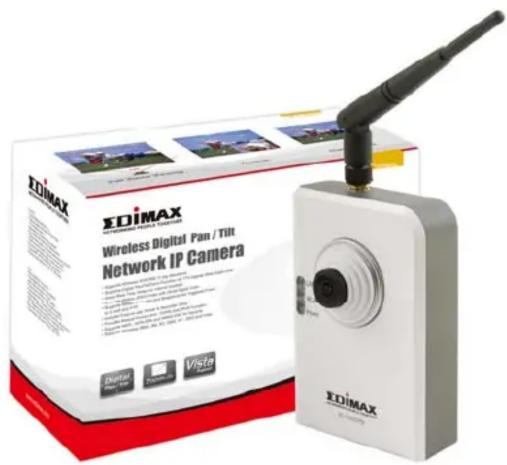

This is a compact 1.3 Megapixel Network Camera with digital pan-tilt-zoom that enhances viewing and monitoring. The IC-1520DPg uses 179 degrees Wide Angle Lens to view Horizontal:128/ Vertical:99 degrees of the actual vision. IC-1520DPg lets you move around using a smaller viewing windows. You can even define a preset path, and the camera will cruise along the path you defined.

Action photo of two soccer players competing for the ball during a match, with arrows indicating movement direction (no text or symbols)

Digital Pan / Tilt

Two American football players in mid-air during a game, one delivering a shot at the goal (no visible text or symbols)

Full Vision Viewing

Fast Center Zoom-in

When you see something that catch your attention, this allows you to zoom-in to see the details and you won't miss even a tinny thing. It also allows you to do recording at the same time.

Motion Detection and Snapshots the Triggered Event by E-mail and FTP

The IC-1520DPg is a powerful mobile surveillance system. When a motion is being detected, the IP camera is capable to capture the picture and send it to an Email or FTP server. This is very useful and convenient because the IP camera will guard the environment automatically for you, and you don't have to look at the monitor all the time

Supports DDNS & UPnP

IC-1520DPg can be viewed over a Local Area Network (LAN), Wide Area Network (WAN) or via the Internet. Also supports UPnP and DDNS. DDNS allows the camera to use an easier to remember naming format rather than an IP address. UPnP will allow users of Windows XP to access the camera with the click of a mouse without knowing IP address of the camera.

This equipment is intended to be used in all Europe and EFTA countries. Hereby Editmax Technology declares that this product is in conformity with the European RATTE Directive (1999/SEC). A declaration of conformity is available on www Editmax.com

Taiwan / Headquarters

Edimax Technology Co., LTD.

TEL: [phone]

FAX: [phone]

[e-mail]

Europe

Edimax Technology Europe B.V.

TEL: [phone]

FAX: [phone]

[e-mail]

U.K.

Edimax Technology (UK) Ltd.

TEL: [phone]

FAX: [phone]

[e-mail]

Poland

Edimax Technology Europe

B.V. SP. Z O.O.

Tel: [phone]

Fax: [phone]

[e-mail]

U.S.A.

Edimax Computer Company

TEL: [phone]

FAX: [phone]

[e-mail]

Latin America

TEL: [phone]

FAX: [phone]

[e-mail]

China

TEL: [phone]

FAX: [phone]

Russia

Edimax Technology Russia

Tel./Fax: [phone]

[e-mail]

Feature

- Camera / Image:

• Motion-JPEG Image Video with 24-bit Digital Color
• Provides Manual Focus Lens
• Provides 179 degrees Wide Angle Lens
• Supports Digital Pan-Tilt-Zoom function via Wide Angle Lens
• Recording Format - Video (AVI), Snapshot (JPEG)
• High Speed Hardware-Based Image Compression

- HTTP / Utility:

• Includes easy-to-use Viewer & Recorder utility
• Provide Admin utility, Camera Viewer & WEB browser Management
• View multiple cameras simultaneously - Up to 4 at a time
• Supports IEEE802.11b/g Wireless Standard
• Supports WEP and WPA-PSK for Wireless Security
• Supports four additional user accounts for viewing camera
• Manual / Schedule / Cycle Record, Video Playback, Forward, Pause and Stop
• Auto sending Snapshot by E-mail and FTP
• Supports Login Free and Snapshot by Schedule
• Supports Motion-Detection and Snapshots the Triggered Event by E-mail and FTP
• Supports Windows 98/ME/2000/XP/2003/Vista
• Firmware Upgradeable

Specification:

Model NO. IC-1520DPg
Interface 1 10/100M	Mbps UTP Port
Flash 2 MB Flash
RAM 16 MB SDF	AM
	1.3M Pixels CMOS SensorImage Sensor
	Manual Focus , F= 2.0Lens
FOV	Horizontal: 128 degreesVertical: 99 degrees
	< 98%Distortion
Button Reset
Transmit Power 18dBm	±2dBm
Antenna RP-SMA	Detachable 3dBi Antenna
Power DC12V , 1A	Power Adapter
LED Indicators Power	, LAN , WLAN
Dimension 120 x 79	x 50 mm
Humidity 10~90%	(Non-Condensing)
Temperature 0 ~ 45 °C
Certifications	CE, FCC
