BEDIENUNGSANLEITUNG SL-PJ24A PANASONIC

Operating Instructions

COMPACT disc DIGITAL AUDIO

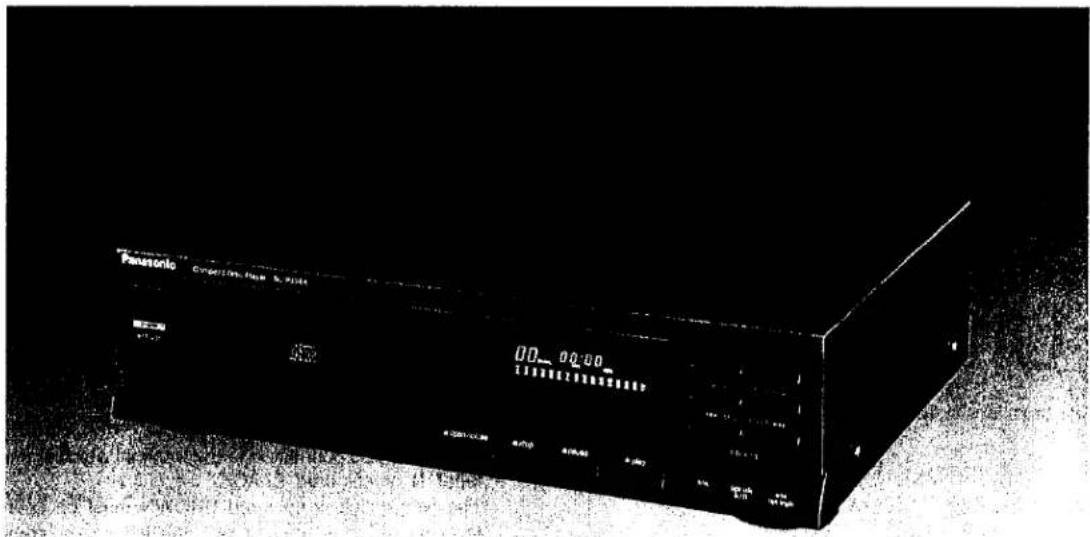

Compact Disc Player

SL-PJ24A

Panasonic CD-ROM, Full & Filter 00_00:00 DC-ROM 12.0V Power Power Power Power Power Power

Notes:

• Specifications differ according to the area code.
• The "EB" area code, for example, indicates United Kingdom specifications.
• The "EB" indication is shown on the packing case and serial number tag.

Panasonic

Before operating this unit, please read these instructions completely.

Dear Stereo Fan

I want to thank you for selecting this product and to welcome you to the growing family of satisfied Panasonic product owners around the world. We feel certain you will get maximum enjoyment

from this new addition to your home. Please read these operating instructions carefully, and be sure to keep them handy for convenient reference.

Contents

Accessories 2
For United Kingdom 2
Placement 3
Connections, 3
Location of Controls 4
Basic Operation 6
Program Play.... 8

Skip/Search Functions 10
Recording from Compact Discs 11
About Compact Discs 14
Maintenance 14
Technical Specifications 14
Suggestions for Safety 15
Troubleshooting Guide .... back cover

Accessories

(Refer to pages 3 and 5.)

- AC power supply cord .. 1

- Stereo connection

cable 1

●L-type cable 1

•Cabinet extender ..... 2

For United Kingdom

("EB" area code model only)

"EB" indication is shown on the name plate.

Important

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this unit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured

BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

This apparatus was produced to BS 800: 1983

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

(Inside of product)

Placement

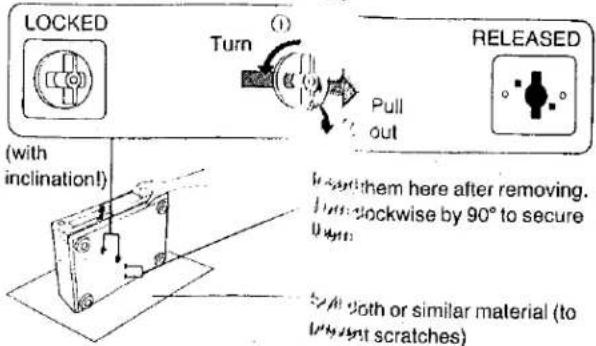

Before placement

Two transport security devices are required to prevent the optical pickup from damage during transmission. Be sure to release them before I_Bd :

LOCKED Turn ① Pull out RELEASED (with inclination) Is therem here after removing. Clockwise by 90° to secure dough All both or similar material (to in'gint scratches)

Note:

When transporting the unit, be sold to remove the compact disc from inside the unit. And replace a transport security device again following the reverse order until damage the optical pickup.

Notes of placement

■ Place on a flat, level surface so that the front-rear inclination does not exceed 5°.
■ Avoid places such as the following:
- Near any equipment or device that generates strong magnetism.
- On any heat-generating equipment or device, or in any place where the temperature is high (40°C or higher).
- Extremely cold places (5°C or below).
- Near a tuner or TV (It may cause noise in the broadcast, or disturbance of the TV picture.)
■ Do not place heavy objects, other than system components, on top of the unit.
■ When carrying or storing the unit, handle it with care so it is not subjected to any strong bumps.

Always remove the disc before storing the unit for any period of time.

■ To avoid problems due to vibration.
- Do not place a book or similar object under this unit.
- Do not route the connection cables (of this or other units) across the operation panel, across the top, or under the unit.

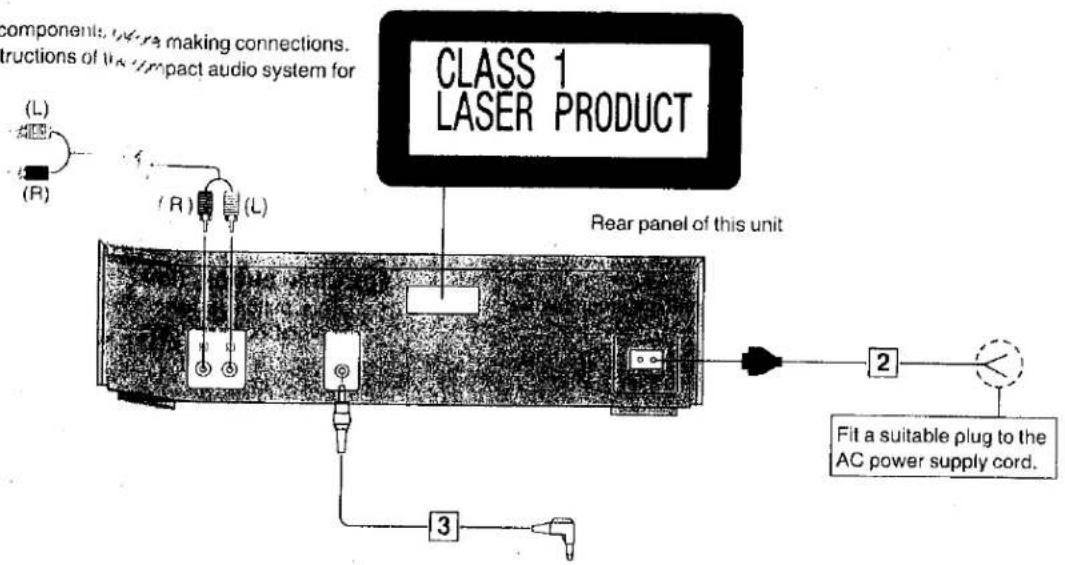

Connections

Notes:

• Turn power off on all components, 14.73 , making connections.
• See the operating instructions of the impact audio system for details.

To "CD" terminals of the compact audio system

CLASS 1 LASER PRODUCT Rear panel of this unit 2 3 L (L) (R) (b) R (R) (b) (L) Fit a suitable plug to the AC power supply cord.

To the "REMOTE" terminal of the compact audio system

1 Stereo connection cab(s included)
② AC power supply cord included)

Note:

The configuration of the AC output and AC power supply cord differs according to area.

3 L-type cable (included)

This cable can be used only with a Panasonic compact audio system having the appropriate "REMOTE" terminal.

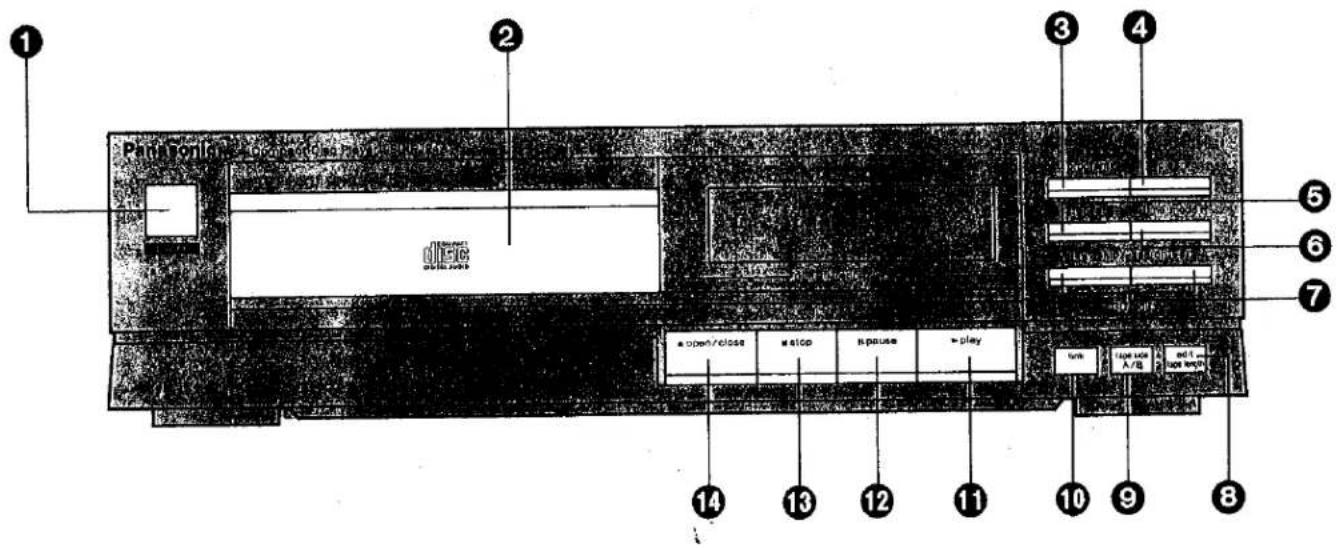

Location of Controls

1 2 3 4 5 6 7 Disc open/close stop pause play turn stop size A/B call - not length 8 10 9 11 12 13 14

Control section

① Power switch (power)
② Disc holder
Program button (program) Pressing this button initiates the programmed play mode. You can then enter specific tracks using the skip/search buttons.
4 Clear button (clear) This button can be used to clear tracks from the programmed sequence one at a time.
⑤ Repeat button (repeat)
6 Time mode select button (time mode) Use this button to select the desired time display mode.
⑦ Skip/search buttons ( |◀◀-skip/—search ▶▶)

8 Edit tape length button (edit/tape length) This button is used when recording from a compact disc. When the button is pressed and the tape's length is specified, the tracks to be recorded will be automatically selected.
9 Tape-side select button (tape side A/B) When recording compact discs to tape, this button can be used to check the number of tracks and amount of tape left over for side A or B.
10 Link button (link) This button is used when edit-recordings are made from several compact discs.
⑪ Play button (▶ play)
⑫ Pause button (II pause)
13 Stop button (■ stop) This button can be used to stop the disc play, as well as to cancel the various play modes.
⑭ Disc holder open/close button (▲ open/close)

18 17 16 15 t PRGM LINK EDIT A B 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 19 88 TRACK NO. MIN SEC 20 21 22 23 24

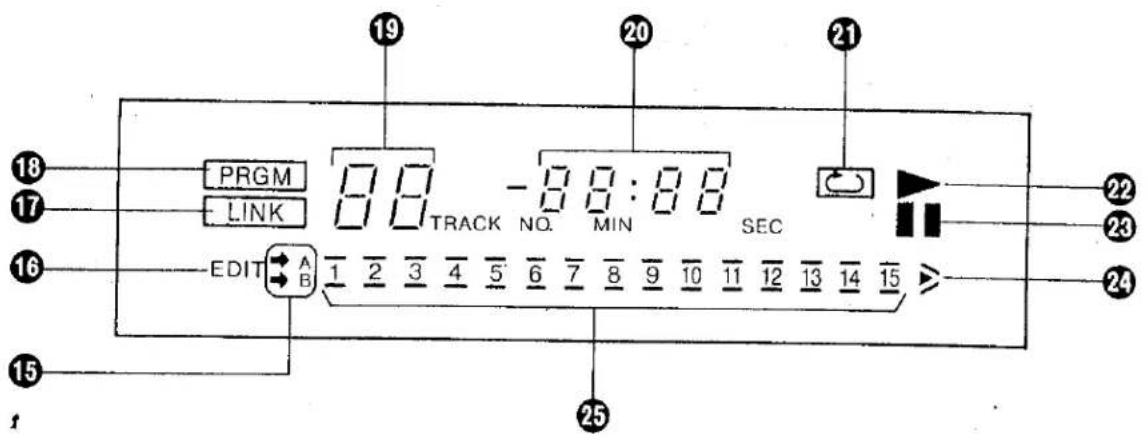

Indicators section

15 Tape side indicator (A/B)

Illuminates to show which cassette side, "A" or "B", has been selected with the tape-side select button.

16 Edit indicator (EDIT)

Illuminates when the edit tape length button is pressed and goes out when the stop button is pressed.

⑰ Link indicator (LINK)

18 Program indicator (PRGM)

19 Track number display (TRACK)

20 Time display (NO./MIN/SEC)

21 Repeat indicator (☐)

22 Play indicator (▶)

23 Pause Indicator ( Ⅱ )

24 "Over" mark (≥)

This indicator lights if the total number of tracks on the disc is 16 or more.

25 Music matrix (1\~15)

The numbers of the tracks on the disc are displayed up to a maximum of 15.

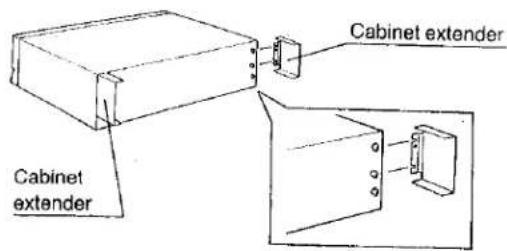

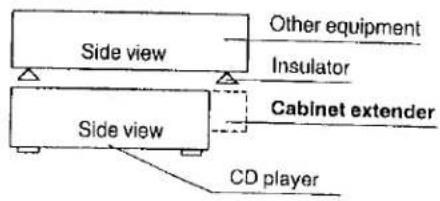

To use the cabinet extenders

If other audio equipment placed on this unit is too large (i.e., the back insulators do not rest on this unit), affix the cabinet extenders to the rear panel.

1. Loosen the four screws.

Rear panel Screws

1. Secure the cabinet extenders using the four screws.

Cabinet extender Cabinet extender

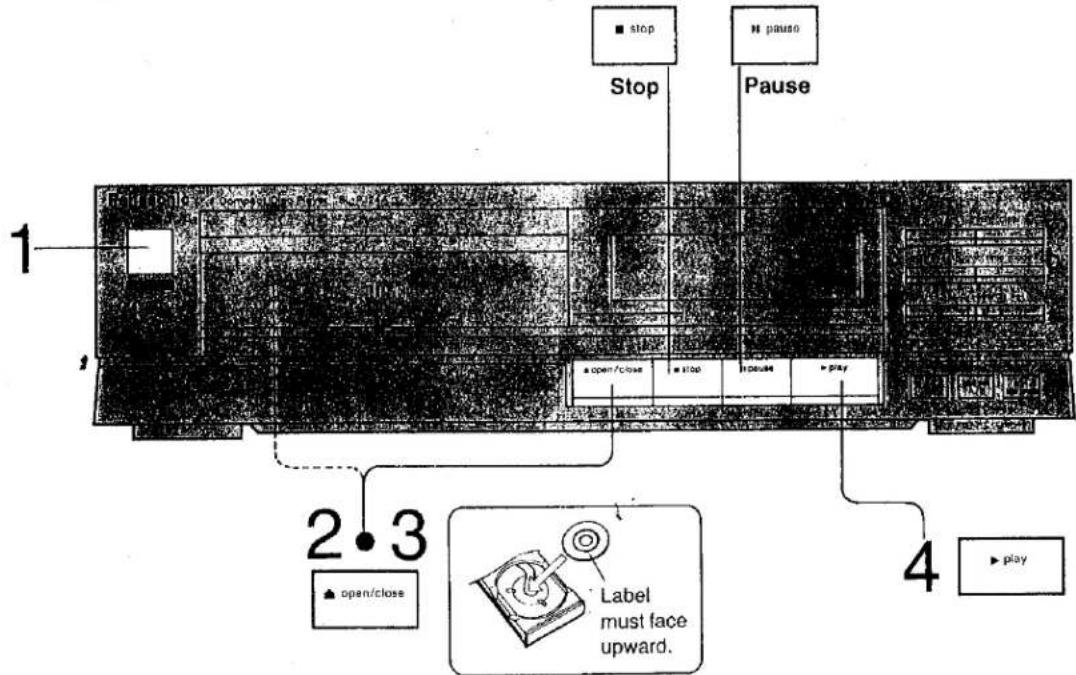

Basic Operation

have both of transport security devices been released? (Refer to page 3.)

stop Stop Pause 2 3 open/close Label must face upward. 4 play

Auto play

Playing an entire disc from the first track to the last.

Basic operations such as turning the power ON and OFF are the same for the other play modes as well.

1 Reduce the volume level (at the amplifier), and then switch ON the power.
? Press the open/close button to open the disc holder and insert a disc.
3 Press the open/close button again to close the disc holder.
The total number of tracks on the disc and the total playing time are displayed.

Total number of tracks Total playing time 7Track 48:58sec 17234567

4 Press the play button.

Disc play begins from the first track on the disc.
- If this button is pressed during play, play will begin from track

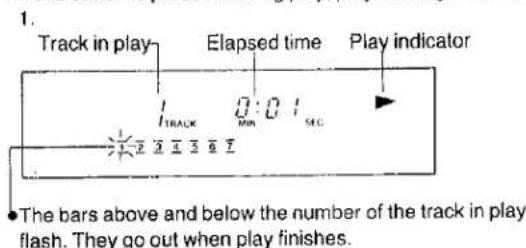

Track in play Elapsed time Play indicator 1. TRACK MIN 5.0 5.0 5.0 5.0 The bars above and below the number of the track in play flash. They go out when play finishes.

• The unit stops automatically when the last track on the disc finishes playing. (The display returns to the total number of tracks and total playing time indications.)
• Switch power OFF when finished.

•To stop disc play, press the stop button.

The unit switches to the stop mode and the total number of tracks and total playing time are displayed.

•To temporarily stop disc play, press the pause button.

Pause indicator 1Track 2:35 MIN SEC 1 2 3 4 5 6 7

- Press the play button to play again.

Notes:

• Attempting to change discs while the disc holder is in the process of opening can scratch or damage your discs.
• The total playing time displayed includes the silent sections between tracks. For this reason, it may differ by a few seconds from the playing time printed in the disc's liner notes.

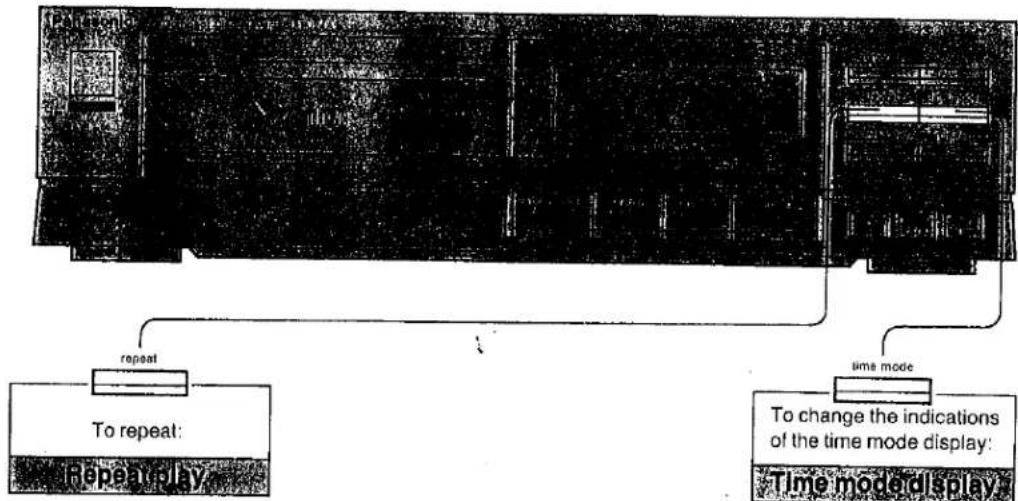

repeat To repeat: Repeat play time mode To change the indications of the time mode display: Time mode display

Repeat play

This function allows you to repeat the entire disc or the tracks in the programmed sequence.

Press the repeat button.

Repeat play indicator 7 49:58 Track Min sec 1 2 3 4 5 6 7

- Pressing the repeat button again cancels the repeat play.

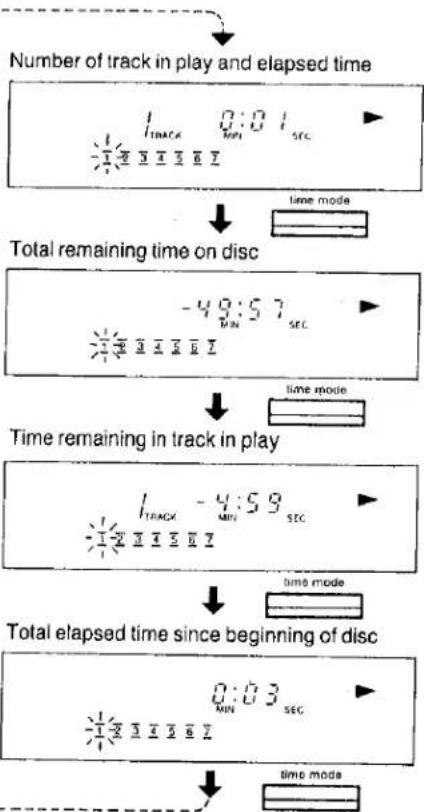

Time mode display

Each time the time mode select button is pressed during play or when the unit is in the pause mode switches the display among the following modes.


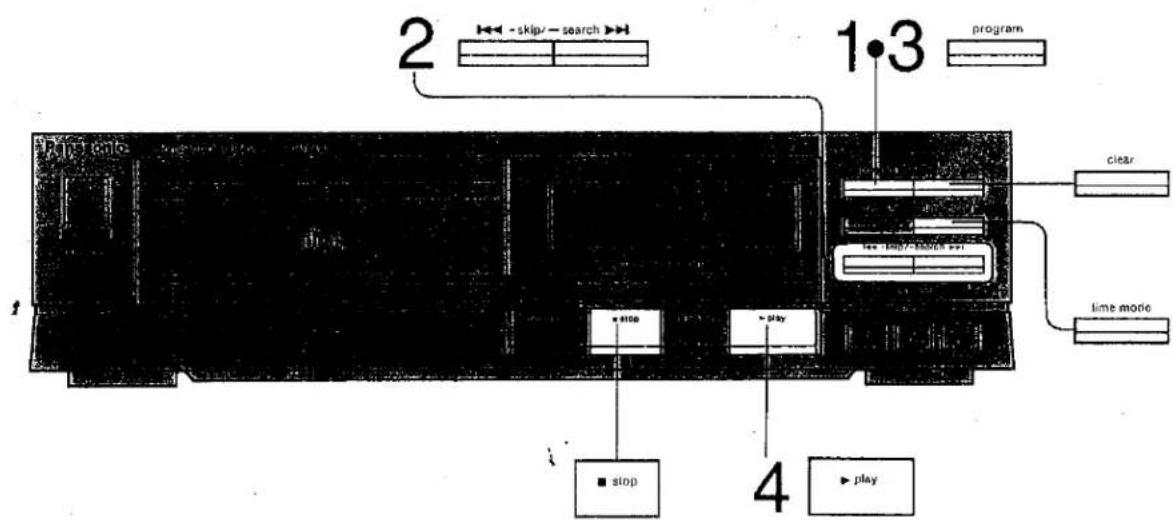

Program Play

function allows you to program up to 20 tracks on the disc in any order you choose.

2 -skip/ search 1-3 program clear time mode stop play 4

1 Press the program button.

Program indicator FROM TRACK NO 1 2 3 4 5 6 ?

2 Specify the desired tracks using skip/search button(s).

For example, to specify track 3:

Press ▶▶| button three times.

3 Press the program button.

Track number Programmed order PGM TRACK HD 1 2 3 4 5 6 7

The bars above and below the number 3 illuminate, indicating that track has been programmed.

Repeat steps 2 and 3 to add track numbers.

- When you press the time mode select button, total playing time for the programmed track(s) will be displayed.

Total playing time PRDM 15:00 MIN SEC 1 2 3 4 5 6 7

• If you continue adding track numbers, the programmed order counter counts up and the playing time for each new track is added to the total playing time. If the total playing time exceeds 99 minutes or the track number 21 (or higher) has been specified, the display reads "----".
• When the 21st program has been performed, “,-” (full) appears on the display, indicating that no more tracks can be added to the programmed sequence.
• Track numbers not actually on the disc can not be programmed.

4 Press the play button.

The programmed sequence is played beginning from the first track you entered.

- The unit stops automatically when all the programmed tracks have finished playing.

•To cancel program play, press the program button.

You can also cancel program play by pressing the stop button in the stop mode.

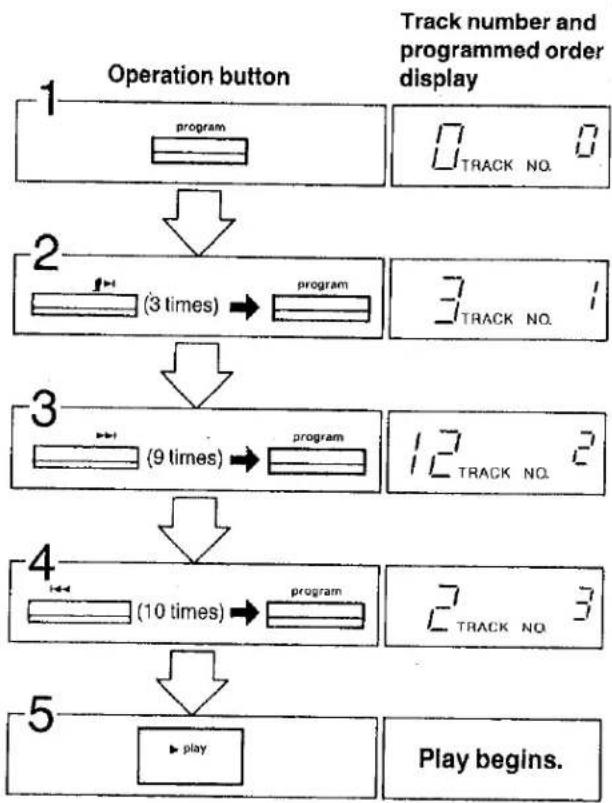

For example, to play tracks 3, 12 and 2 in that order:

■ To clear programmed tracks, press the clear button in the stop mode.

The last track in the play sequence is canceled each time you press the clear button.

■ To specify the same track number successively

Press ▶▶ or ◀◀ button to move to the other track than the desired one. Then press ▶▶ or ◀◀ button again to return to the desired track.

■ Special operations using programmed play

The following functions operate differently during programmed play than during normal play.

Total elapsed time display/ Total remaining time display	The total elapsed time and remaining time of the tracks in the programmed sequence only are displayed.
Skip play	Skipping is between the numbers in the programmed sequence.(Press 2 times)
Search play	Searching is only possible within the track currently in play.
Repeat play	The programmed sequence only is repeated.

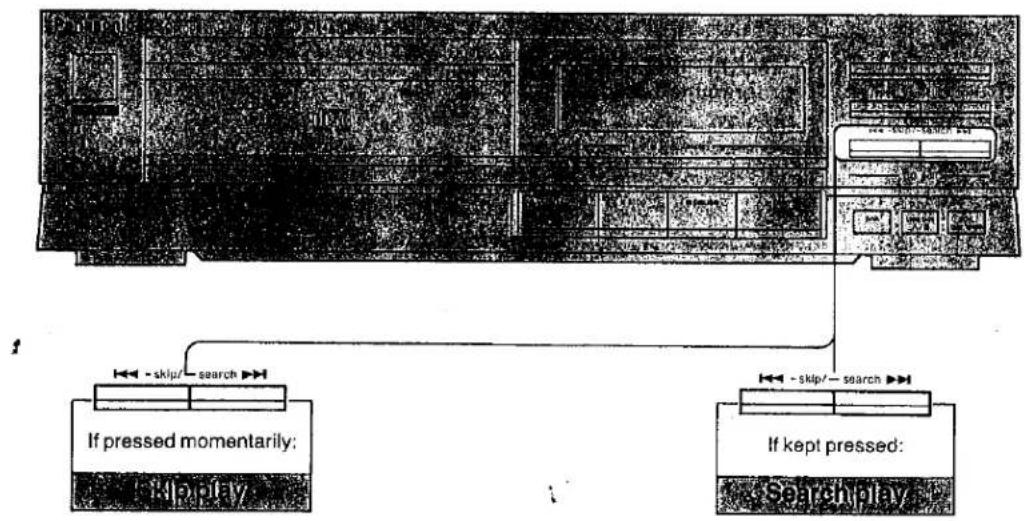

Skip/Search Functions

Skip play

This function allows you to skip to the beginnings of tracks preceding or following the track in play and begins play immediately. It is a good idea to keep an eye on the track number display when using this function.

- To skip forward, press ▶▶ button momentarily. The unit skips ahead one track each time the button is pressed.

For example, to skip from track 3 to track 5:

(press 2 times) 3 → 5

fo skip backward, press ◀◀ button momentarily.

The first time the button is pressed, the unit skips back to the beginning of the track in play. Then it skips back one track for each additional press.

For example, to skip from track 5 to track 3 during play:

(press 3 times) 3 ← 5

• You can skip tracks when the unit is in the stop mode. Play begins automatically from the selected track.
• You can also skip tracks when the unit is in the pause mode. The unit skips to the track selected and remains in the pause mode.

Search play

This function allows you to search rapidly forward or backward on the disc for specific sections.

- To search forward, keep pressing the ▶▶ button.

The unit begins searching in a forward direction.

•To search backward, keep pressing the ◀◀◀ button.

The unit begins searching in a reverse direction.

• Sound from the disc can be heard as the pickup moves. The output level at this time is decreased by 12 dB (¼) compared with the normal level.
• The search speed is slow when the button is pressed at first and becomes faster if you keep it pressed down. Release the button when you reach the desired point on the disc.
• You can also search when the unit is in the pause mode. When the skip/search button is released, the unit returns to the pause mode.

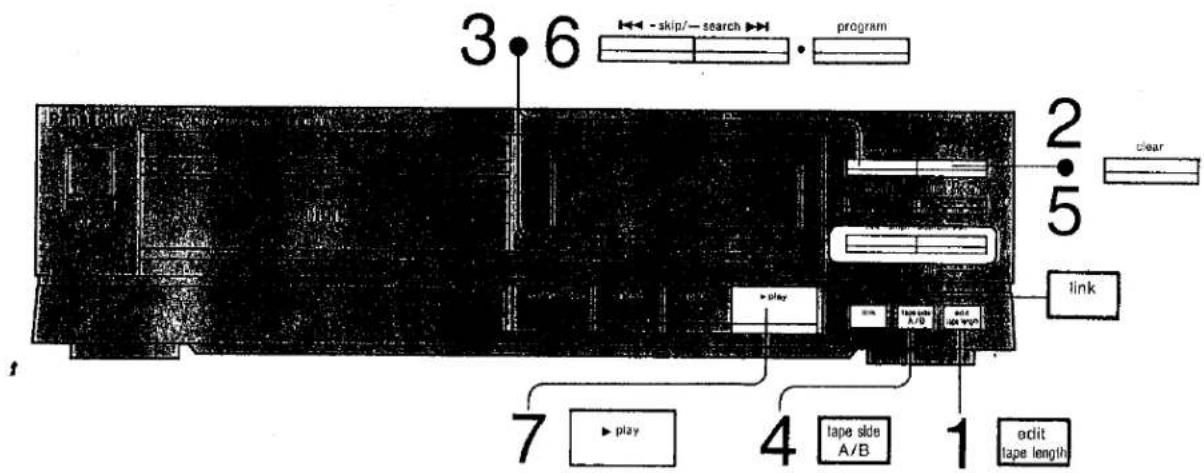

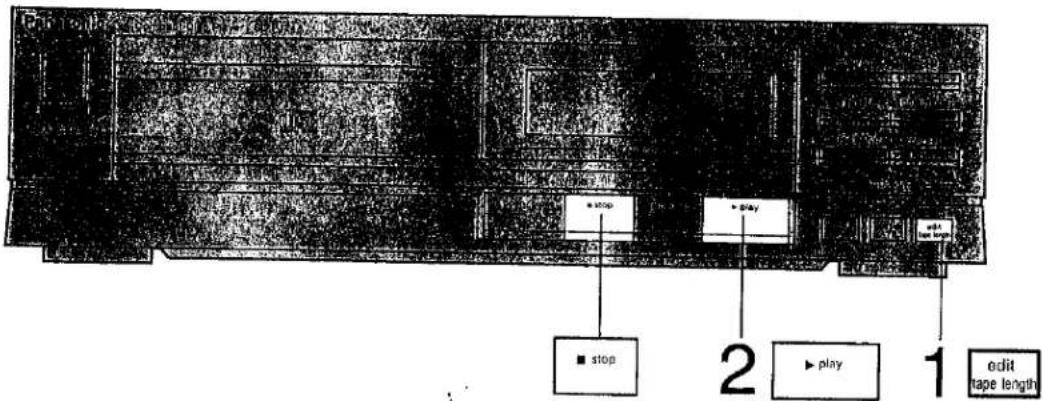

Recording from Compact Discs

If edit function of this unit is used when recording from compact discs to tape, the tracks can be recorded on the two sides (sides A and B) of the tape, considering the length of the tape used, so that there is no interruption of tracks at the end of one tape side.

stop + play edit tape length 2 play 1 edit tape length

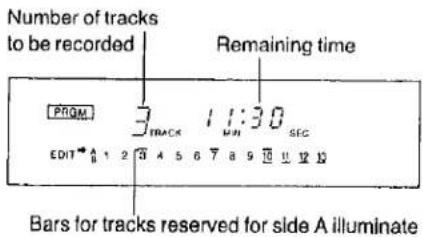

Automatic edit calculation

The unit automatically calculates how many tracks will fit on a given tape side and programs them for you automatically.

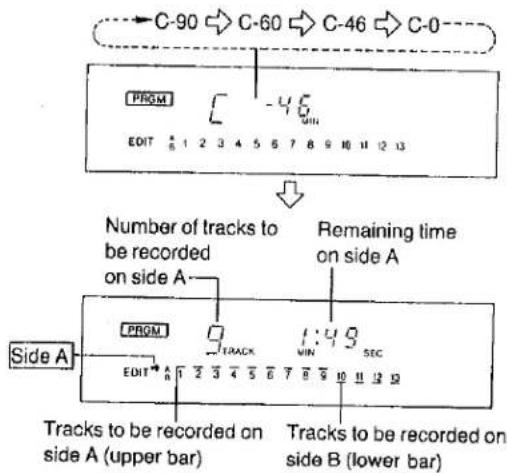

1 Press the edit tape length button to select the tape length.

Each time the button is pressed the tape length indicator changes as follows. Choose the length of the tape you will use.

C-90 C-60 C-46 C-0 PROM EDIT 1 2 3 4 5 6 7 8 9 10 11 12 13 Number of tracks to be recorded on side A Remaining time on side A Side A PROM EDIT 1 2 3 4 5 6 7 8 9 10 11 12 13 Tracks to be recorded on side A (upper bar) Tracks to be recorded on side B (lower bar)

2 Press the play button at the same time you begin recording on the tape deck.

• When the tracks programmed for tape side A have finished playing, the unit searches for the beginning of the first track to be recorded on side B and switches to the pause mode. Turn over the tape and start recording for side B.
• During recording, silent gaps of approximately 3 seconds are inserted between tracks automatically (auto space function).

Note:

According to the discs, the little sound of the beginning of the next track may be recorded onto the end of the track.

- To cancel the edit mode, press the stop button after recording is finished.

■ To select your desired recording time

Press the edit tape length button 4 times to select "C-0". Then keep pressing the skip/search button(s) to specify the tape's total recording time in minutes (1–99).

For example:

When the total recording time of the tape to be used is 52 minutes, keep pressing the skip/search button ▶▶ until the display shows "C - S2".

- If you go past the desired number, return the number using button.

Helpful Hint:

- When you want to record programmed tracks, first program tracks in memory using the program play procedure (see page 8). Then press the edit tape length button.

Recording from Compact Discs

(continued)

3.6 skip/- search program 2 5 clear link play 4 tape side A/B oclit tape length 1 7 0 4 7 0

manual edit calculation

This function allows you to add selections one by one to each tape side and check the time remaining after each entry in order to minimize wasted tape.

1 Press the edit tape length button to select the tape length.

The automatic editing functions and the tracks are programmed on the both tape side A and B. Then you can perform the clearing or adding to the programmed tracks as well as in the program play mode.

2 Press the clear button until "0" appears in the track number display.

PRGM 0Track 23:00 MIN SEC EDIT 1 2 3 4 5 6 7 8 9 10 11 12 13

Enter the desired track numbers for side A following the programming procedure.

(See page 8.)

For example, if you enter tracks 3, 10 and 7:

Number of tracks to be recorded Remaining time PFGM 3TRACK 1:30 SEC EDIT 1 2 3 4 5 6 7 8 9 10 11 12 13 Bars for tracks reserved for side A illuminate

• If the remaining tape is not sufficient to hold the last track programmed, a negative number will be displayed. In this case, press the clear button to cancel the last track in the sequence from memory and enter a track which better matches the remaining time.
• 3-second silent gaps which are automatically inserted between tracks are included in the remaining time.

4 Press the tape-side select button to switch to tape side B.

5 Press the clear button until "0" appears in the track number display.

PAGM 0 TRACK 23:00 MIN SEC EDIT A 1 2 3 4 5 6 7 8 9 10 11 12 13 Side B

6 Enter the desired track numbers for side B following the programming procedure.
7 Press the play button at the same time you begin recording on the tape deck.

Recording begins with side A.

Notes:

●The maximum allowable playing time for editing is 99 minutes.
●More than 20 programs cannot be edited.

Link function

This function allows you to record tracks from multiple discs, keeping the total playing time for all discs in memory.

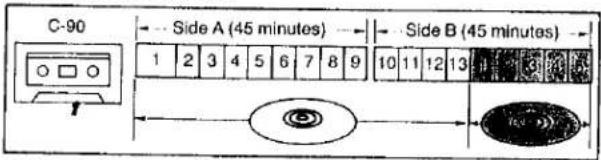

For example, to record a disc of 60 minutes in total on 90 minutes tape and to record another disc in the space remaining on the tape.

C-90 Side A (45 minutes) Side B (45 minutes) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

1 Press the edit tape length button once. ("C -90")
2 Press the disc link button.
3 Press the play button at the same time you begin recording on the tape deck.

• After the recording on side A is completed, the unit skips to the beginning of the first track for side B and switches to the pause mode. Turn over the tape and start recording for side B.
  ●After the recording of the first disc is completed, the tape running on the tape deck will continue.

Be sure to stop the tape running.

4 After recording is completed, replace the disc with another.

The disc link function works and the display shows the number of tracks to be recorded on the remaining time (30 minutes).

Number of tracks that can be recorded in the space remaining on side B

PRGM LINK 5 TRACK MIN 1:49 SEC EDIT A 1 2 3 4 5 6 7 8 9 10 11 12 13

5 Press the play button at the same time you begin recording on the tape deck.

Note:

- The "0" may appear on the track display when the open/close button is pressed and compact discs are exchanged. This means that continued "linking" is not possible because there is no track (on the compact disc) that will fit into the remaining available time for recording at the end of the tape.

If this happens, press the stop button to end the edit-recording.

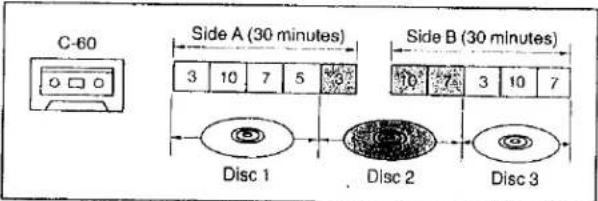

For example, to record programmed tracks from 3 discs on 60 minutes tape.

C-60 Side A (30 minutes) 3 10 7 5 Side B (30 minutes) 10 7 3 10 7 Disc 1 Disc 2 Disc 3

Editing for disc 1

1 Press the edit tape length button twice.("C -60")
2 Cancel the displayed tracks on both sides.

① (to reset the track number display to "0")
② [Lapn side A/B] (to switch to side B)
③ (to reset the track number display to "0")
④ tape side A/B (to switch back to side A)

3 Program the tracks following the programming procedure explained on page 8.

(Enter tracks 3, 10, 7 and 5.)

4 Press the disc link button.

Recording (Remember to stop recording on the tape deck at the same time all the programmed tracks have been played.) for disc 1

Editing for disc 2

1 Replace disc 1 with disc 2.
2 Cancel the displayed tracks on both sides. (Follow the steps ①\~④ of 2 for disc 1.)
3 Program the tracks.

(Enter track 3. → tape side A/B → Enter tracks 10 and 7.)

Recording (Switch the tape to side B and restart recording after all the programmed tracks for side A have been played.)

Editing for disc 3

1 Replace disc 2 with disc 3.
2 Cancel the displayed tracks on side B. (Press the clear button repeatedly until all the tracks are canceled.)
3 Program the tracks. (Enter tracks 3, 10 and 7.)

Recording for disc 3

About Compact Discs

be can be caused if the disc is dirty, scratched, warped, etc. Please note the following points.

Compact Disc identification...

Use compact discs bearing this mark.

Storage hints

■ Be sure to use the special case.

Avoid storing discs in following places:

• Near heating equipment and places where the temperature is high.
• Places where there is high humidity or excessive dust.
• Places exposed to direct heat from heating equipment, etc.

especially careful not to leave discs near the front or rear windows in a vehicle, or inside the dashboard.

Handling cautions

■ On the label of compact discs

• Do not write with a ballpoint pen, etc. on the label.
• Do not attach any type of paper, label, etc.

Handling notes

Take care not to scratch the disc surface by a fingernail etc. when handling the disc.

■ Removal of the disc from the case

① Holding the top at both sides,
② Gently press the sides of the top to open.
③ Press the center holder.
④ Lift by the edges (Don't touch the recorded surface.)

Center holder

■ How to hold the disc

Hold the disc at its edges. (Don't touch the surface, because fingerprints will remain.)

Label

■ When storing to the case

① Insert with label facing up.
② Press downward at the center.

Maintenance

■ If discs are dirty...

Clean with a soft, damp cloth, and wipe till dry.

Always from the center outward.

Noise can be caused by scratches.

■ If condensed moisture is on the disc surface...

If condensed moisture forms on the disc surface (such as when it is brought from a cold place to a warm place), wipe the moisture away by using a soft, dry cloth.

■ Don't use the following...

• Anti-static cleaners, etc. such as used on ordinary phonograph records.
• Benzine, paint thinner, or any other solvents.
  ●Never dry by using a hair dryer, etc.

Maintenance

To clean this unit, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth, dipped into a soap-and-water solution or a weak detergent solution. Wring the cloth well before wiping the unit. Wipe once again with a soft, dry cloth. Never use alcohol, paint thinner, benzine, nor a chemically treated cloth to clean this unit. Such chemicals may damage the finish of your unit.

Technical Specifications

Audio

No. of channels

Frequency response

Output voltage

Dynamic range

S/N ratio

Total harmonic distortion

Harmonic distortion

Wow and flutter

DA converter

Output impedance

Load impedance

2 (left and right, stereo)

2-20,000 Hz ± 0.5 dB

2 V (al 0 dB)

96 dB

96 dB

0.005% (1 kHz, 0 dB)

0.003% (1 kHz, 0 dB)

Below measurable limit

2 DAC,18-bit

Approx. 600Ω

More than 10 kΩ

Pickup

Wavelength

780 nm

■ General

Power supply

Power consumption

Dimensions (W×H×D)

Weight

AC 50/60 Hz, 240 V

13 W

360×96×280 mm

3.4 kg

Specifications subject to change without notice.

Weight and dimensions shown are approximate.

Suggestions for Safety

■ Use a standard AC wall outlet

1. Use from an AC power source of high voltage, such as for an air conditioner, is very dangerous.

There is the possibility that a fire might be caused by making such a connection.

1. A DC power source cannot be used.

Be sure to check the power source carefully, especially on a ship or other place where DC is used.

■ Grasp the plug when disconnecting the power supply cord

1. Wet hands are dangerous.

A dangerous electric shock may result if the plug is touched by wet hands.

1. Never place heavy items on top of the power supply cord, and never force it to bend sharply.

■ Place the unit where it will be well ventilated

Place this unit at least 10 cm (4") away from wall surfaces, etc.

■ Avoid places such as the following:

In direct sunlight or in other places where the temperature is high.

In places where there is excessive vibration or humidity.

Such conditions might damage the cabinet and/or other component parts and thereby shorten the unit's service life.

■ Be sure to place the unit on a flat, level surface

If the surface is inclined, a malfunction may result.

■ Never attempt to repair or reconstruct this unit

A serious electric shock might occur if this unit is repaired, disassembled or reconstructed by unauthorized persons, or if the internal parts are accidentally touched.

■ Take particular care if children are present

Never permit children to put anything, especially metal, inside this unit. A serious electric shock or malfunction could occur if articles such as coins, needles, screwdrivers, etc. are inserted through the ventilation holes, etc. of this unit.

■ If water is spilled on the unit

Be extremely careful if water is spilled on the unit, because a fire or serious electric shock might occur. Immediately disconnect the power cord plug, and consult with your dealer.

■ Avoid spray-type insecticides

Insecticides might cause cracks or "cloudiness" in the cabinet and plastic parts of this unit. The gas used in such sprays might, moreover, be ignited suddenly.

■ Never use alcohol or paint thinner

These and similar chemicals should never be used, because they might cause flaking or cloudiness of the cabinet finish.

■ Disconnect the power supply cord if the unit will not be used for a long time

If the unit is left for a long time with the power ON, this will not only shorten its useful operation life, but may also cause other troubles.

■ If trouble occurs

If, during operation, the sound is interrupted or indicators no longer illuminate, or if abnormal odor or smoke is detected, immediately disconnect the power cord plug, and contact your dealer or an Authorized Service Center.

Troubleshooting Guide

.ore requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of authorized service centers (enclosed with this unit) to locate a convenient service center, or consult your Panasonic dealer for instructions.

Problem	Probable cause(s)	Suggested remedy
The disc holder does not open smoothly when the open/close button is pressed.	The transport security devices are locked.	●Release them.
The disc is inserted but the total number of tracks and total playing time are not displayed.	The disc is upside down.	●Check to be sure the label is facing upward.
	The disc is dirty.	●Wipe with a soft cloth.
	The disc is scratched.	●Replace with a new disc.
	The disc is warped.
	The disc is not within specified standards.	●Exchange the disc for another one.
	Moisture has condensed in the unit.	●Switch ON the unit and wait about one hour before using the unit.
	Disc of the 8-cm size and 12-cm size are in the tray together.	●Take out a disc of one size or the other.
A certain MUSIC PASSAGE can't be played correctly.	The disc is dirty.	●Wipe with a soft cloth.
	The disc is scratched.	●Replace with a new disc.
There is noise from the tuner or disturbance on the TV screen.	Caused by high-frequency signals of this unit.	●Use this unit farther away from the tuner or TV.●If the tuner's or TV's antenna is the indoor type, use an outdoor antenna.

About moisture

Moisture may form on the lens in the following cases...

• Immediately after a heater has been turned on.
  ■In a steamy or very humid room
• When the unit is suddenly moved from a cold environment to a warm one.

If moisture forms inside this unit, it may not operate properly. To correct this problem, turn on the power and wait about one hour for the moisture to evaporate.
