BEDIENUNGSANLEITUNG AR-002 Ares

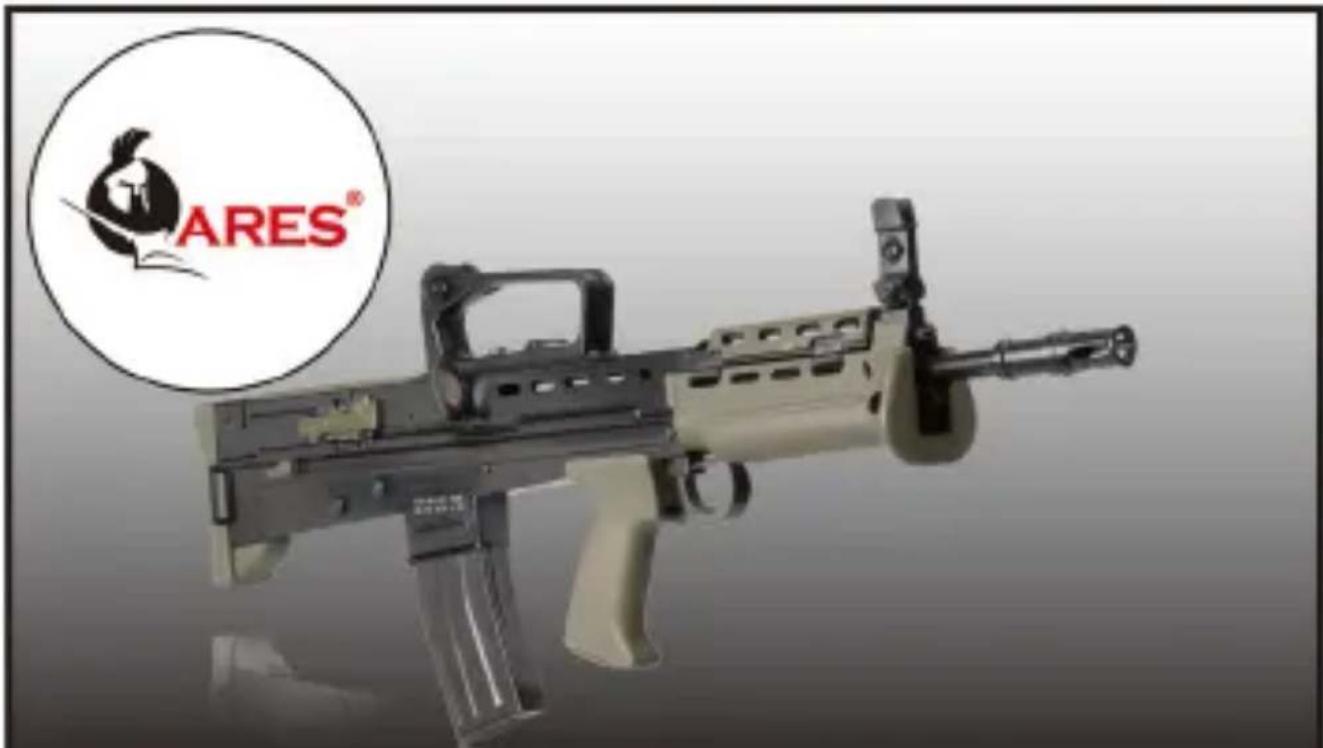

ARES AR-002

Ares AR-002 - ARES AR-002 - 1

natural_image Rifle with mounted scope and magazine, displayed against a plain background (no visible text or symbols on the firearm itself)

Automatic Electric Airsoft Gun Instruction Manual • Always read through this manual before operation

SAFETY

• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
- Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
• Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
• Misuse or careless use may cause serious injury.
• Do not look into the gun muzzle.
- Do not ever point the airsoft gun at anything you do not intend to shoot.
- You and other with you should always wear shooting glasses to protect your eyes.
- If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
- Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
- Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
• Use 6 mm plastic BBs only.
• Always put the airsoft gun in a case or bag when you carrying it.
• Always store this airsoft gun in a secure location and at the places out of reach by children.
- Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
- Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
• We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft gun.

Ares AR-002 - SAFETY - 1

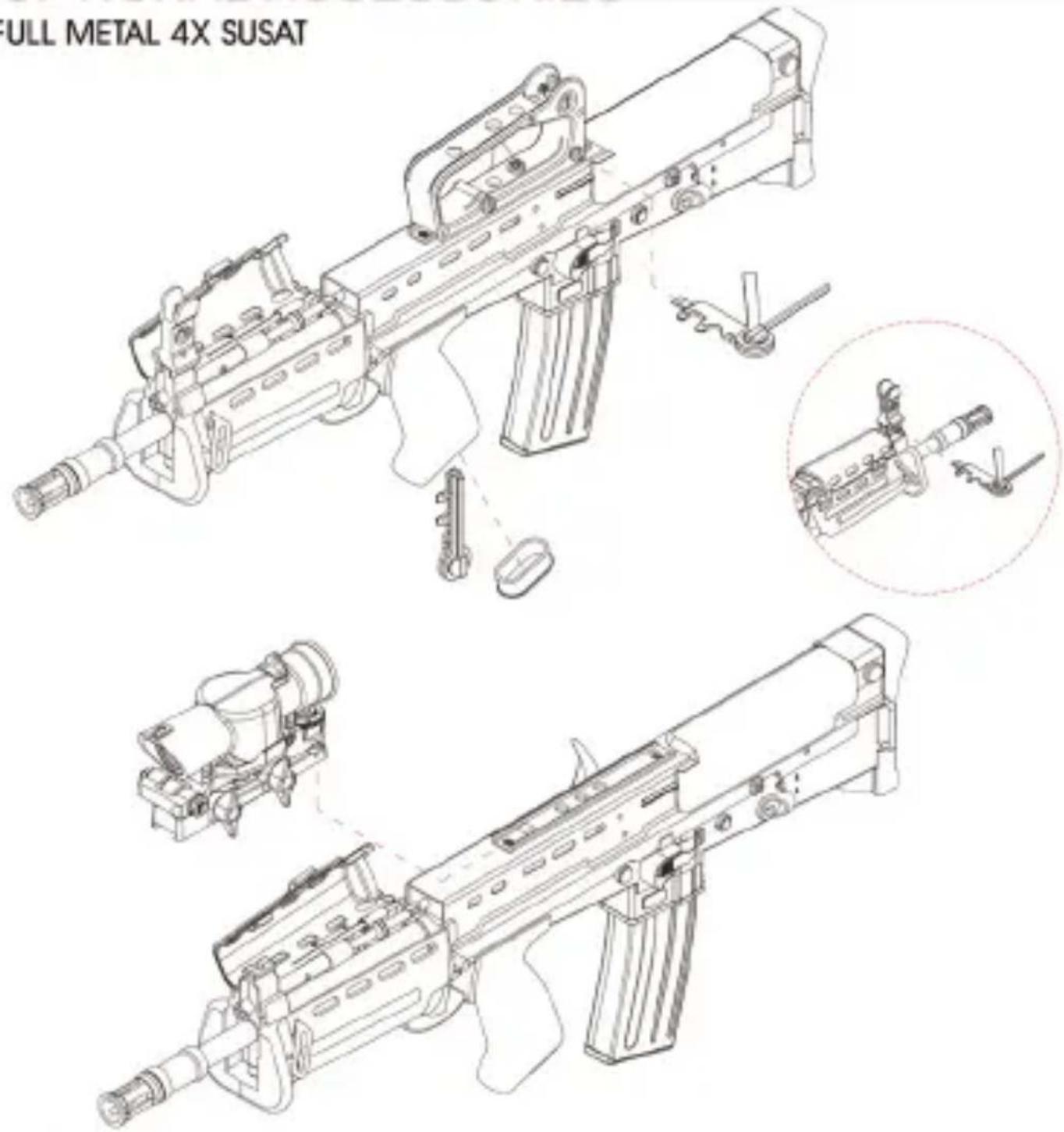

OPTIONAL ACCESSORIES

Ares AR-002 - OPTIONAL ACCESSORIES - 1

text_image FULL METAL 4X SUSAT

Susat adjustment:
Ares AR-002 - OPTIONAL ACCESSORIES - 2

natural_image Technical line drawing of a mechanical device with no visible text or symbols

Loose the nut

Ares AR-002 - OPTIONAL ACCESSORIES - 3

natural_image Technical line drawing of a mechanical device with no visible text or symbols

Adjust left or right

Ares AR-002 - OPTIONAL ACCESSORIES - 4

natural_image Technical line drawing of a mechanical device with cylindrical components and mounting brackets (no text or symbols)

Adjust up or down

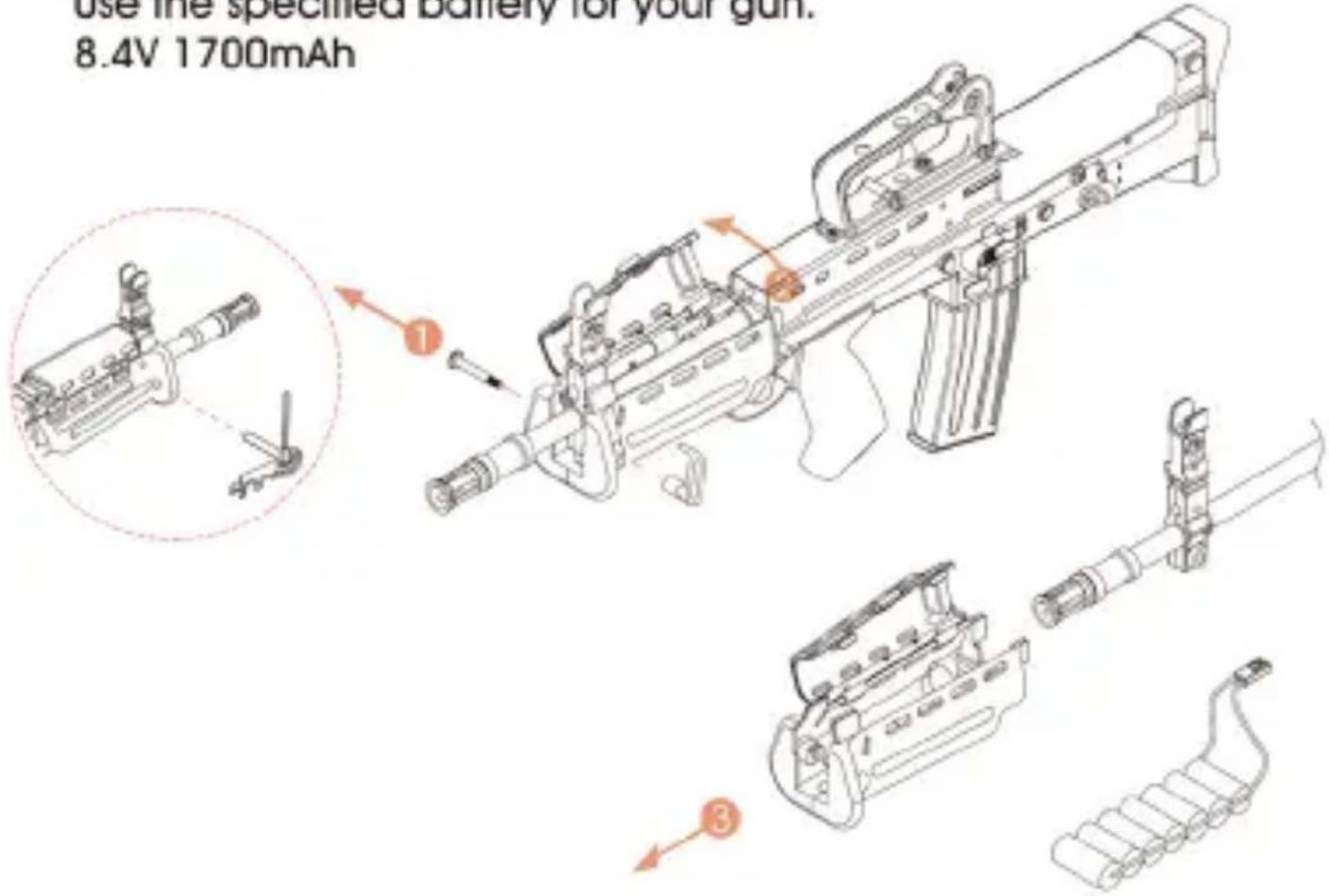

INSERT THE BATTERY

Use the specified battery for your gun.

8.4V 1700mAh

Ares AR-002 - INSERT THE BATTERY - 1

text_image use the specified battery for your gun. 8.4V 1700mAh

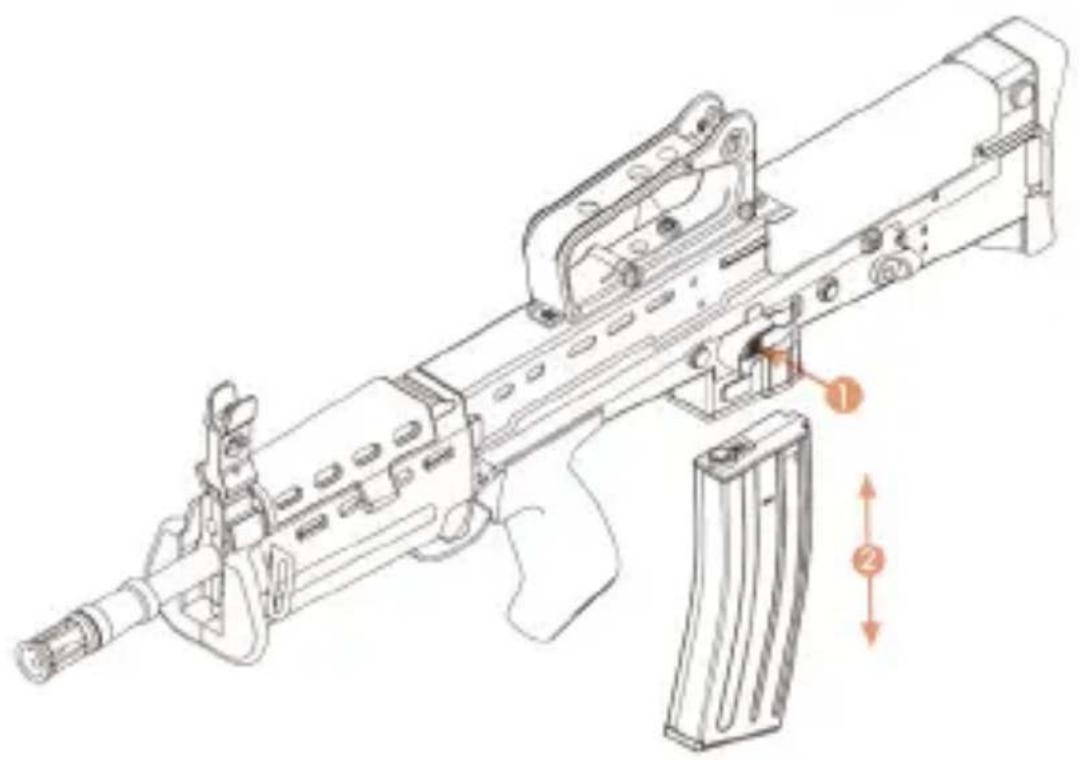

SETTING THE MAGAZINE

Ares AR-002 - INSERT THE BATTERY - 2

text_image Technical line drawing of a rifle with labeled parts and dimension annotations

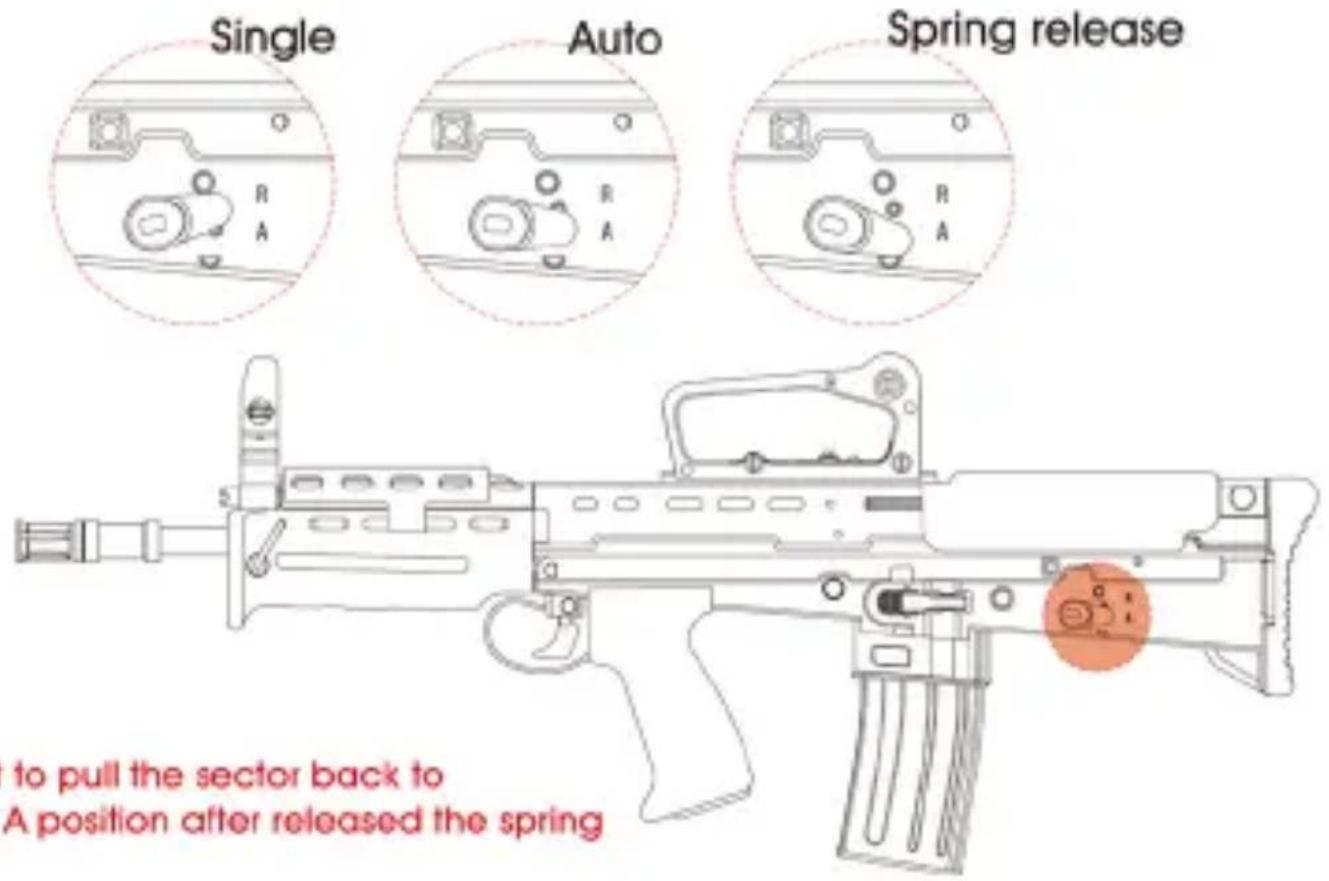

FIRING MODE

Ares AR-002 - FIRING MODE - 1

text_image Single Auto Spring release to pull the sector back to A position after released the spring

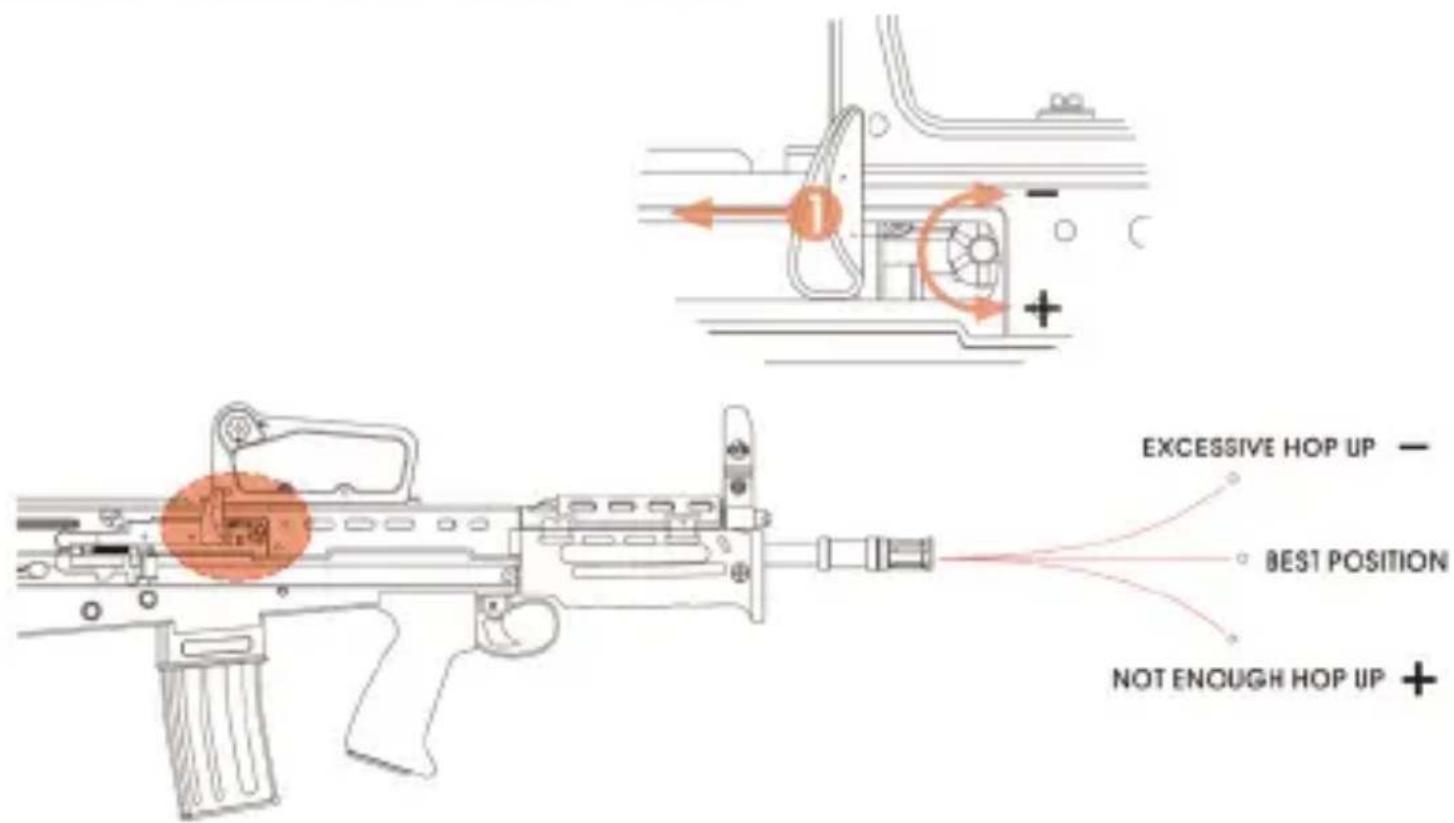

HOP-UP ADJUSTMENT

Ares AR-002 - HOP-UP ADJUSTMENT - 1

text_image EXCESSIVE HOP UP — BEST POSITION NOT ENOUGH HOP UP +

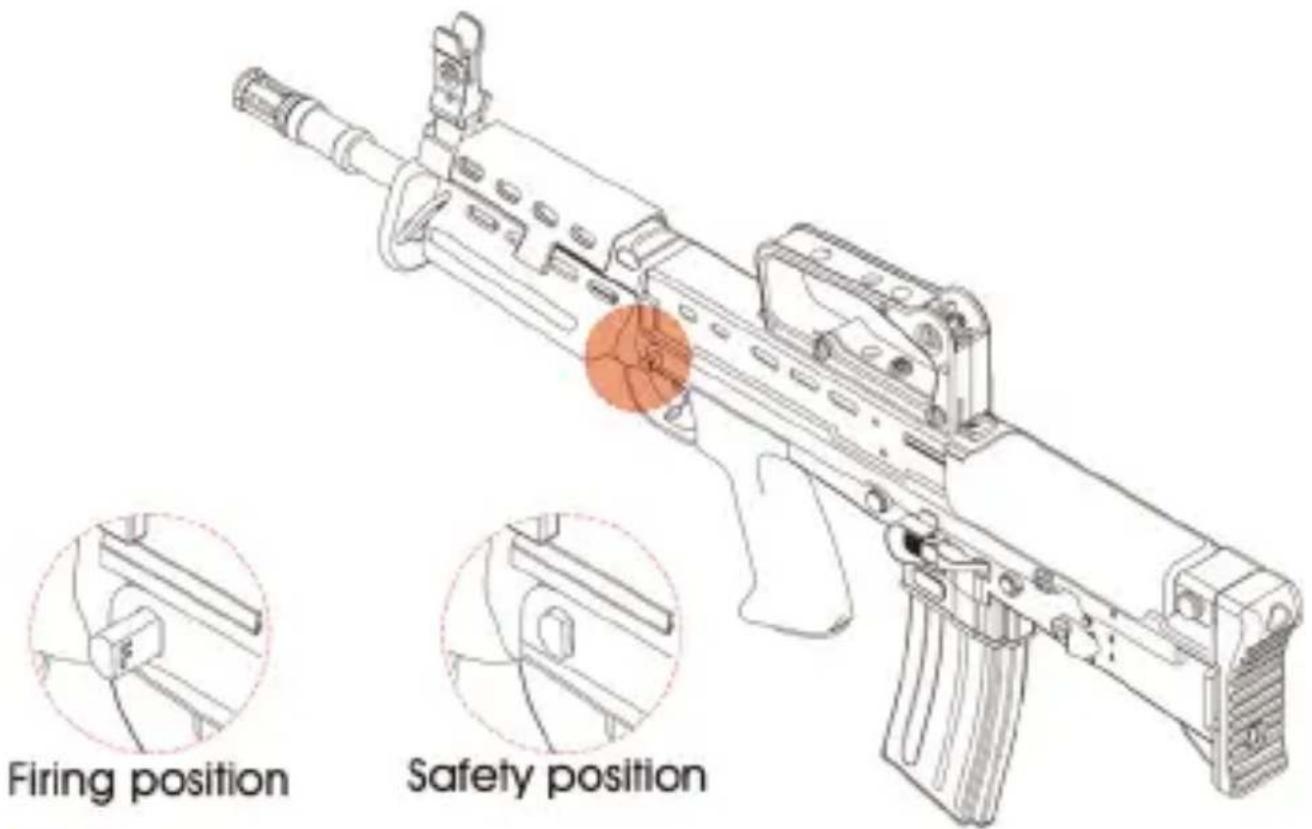

SAFETY

Ares AR-002 - SAFETY - 1

text_image Firing position Safety position

Ares AR-002 - SAFETY - 2

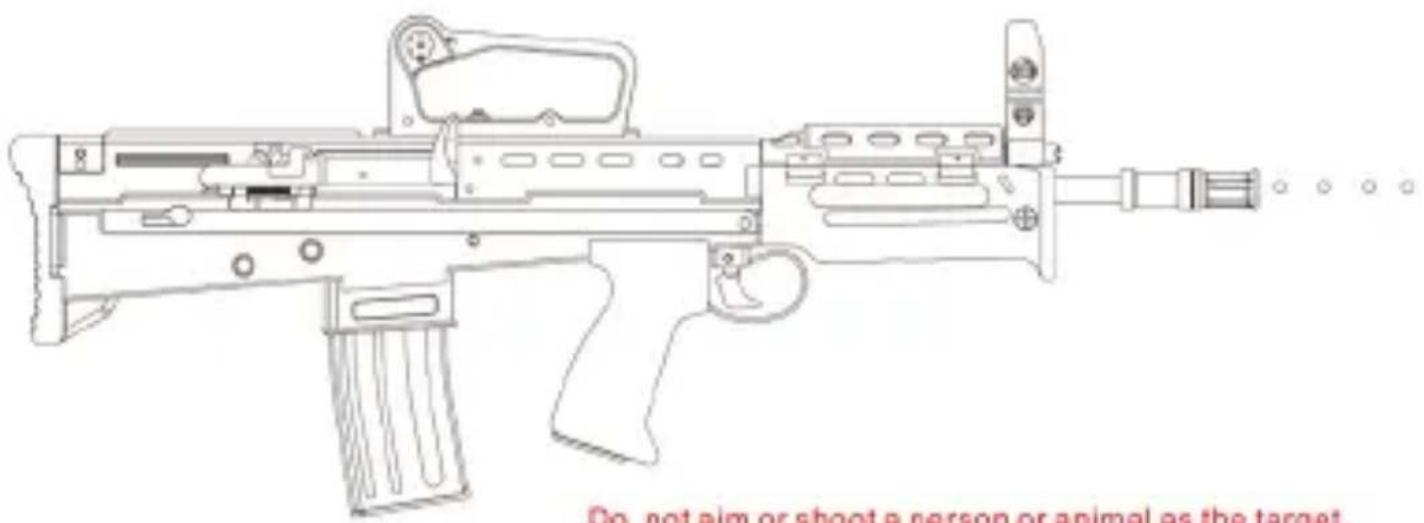

WARNING

Ares AR-002 - WARNING - 1

text_image Do not aim or shoot a person or animal as the target.

.Do not aim or shoot a person or animal as the target.

.Avoid pulling the trigger carelessly.

.Always put the gun in a case or bag when you carrying it.

.Always set the switch lever to the safety position.

.Do not look into the gun muzzle.

.Always wear eye protective gear.

.Store the airsoft gun at the places out of reach by children.

.Do not disassemble or modify the airsoft gun.

AR-002

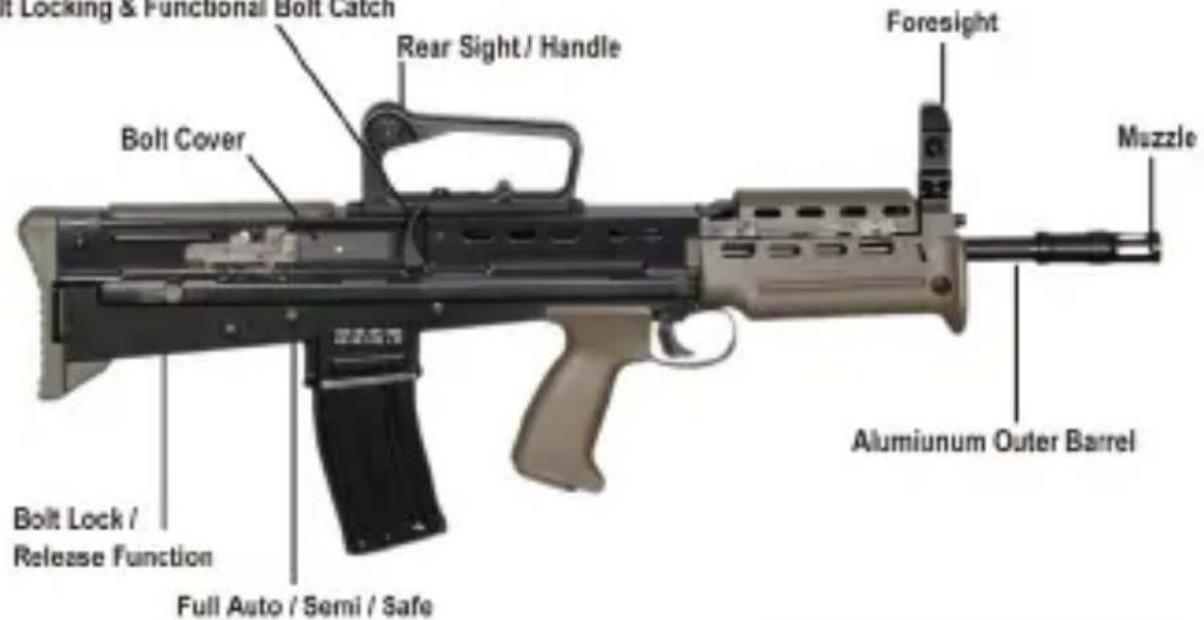

Bolt Locking & Functional Bolt Catch
Ares AR-002 - WARNING - 2

text_image Bolt Locking & Functional Bolt Catch Rear Sight / Handle Bolt Cover Foresight Muzzle Aluminum Outer Barrel Bolt Lock / Release Function Full Auto / Semi / Safe

FEATURES

• All New Molding
• Steel Stamping Process
- Metal Gearbox
• Bolt Lock / Release Function
• Easy Power Upgrade

BATTERY:

MAGAZINE CAPACITY:

MODE:

MATERIAL:

MOTOR:

HOP-UP:

LENGTH:

WEIGHT:

VELOCITY:

8.4V 1500mAh Mini (2/3A) Nunchuck

130rds (6mm BB)

Full Auto / Semi / Safe

Nylon Fiber + Steel

High Torque Flat Motor

Adjustable

710mm

4100g

150-180FPS

Ares AR-002 - FEATURES - 1

text_image Manufact ARES®

Manufacturer & Brand Owner : Forever Good (Hong Kong) Ltd.

Ares AR-002 - FEATURES - 2

Ares AR-002 - FEATURES - 3

Ares AR-002 - FEATURES - 4

Worldwide:

Ares Website: http://www.aresairsoft.com

General Enquiries: ares@aresairsoft.com

North America: ZShot

Exclusive Distributor · http://www.ZShot.com

Dealer Inquires: Sales@ZShot.com Technical Support: Support@ZShot.com
