BEDIENUNGSANLEITUNG AR-013 Ares

ARES AR-013

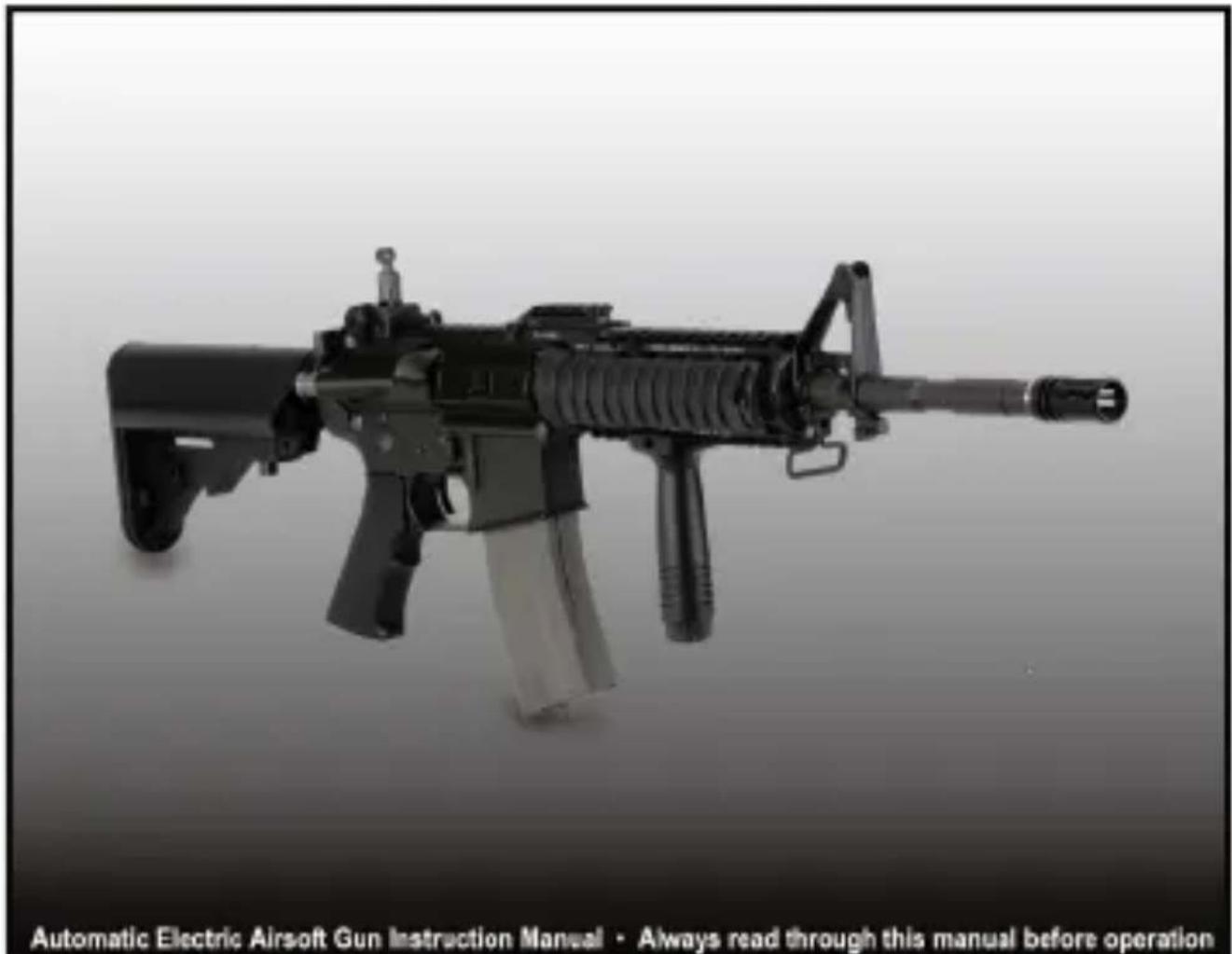

Automatic Electric Airsoft Gun Instruction Manual · Always read through this manual before operation

ARES®

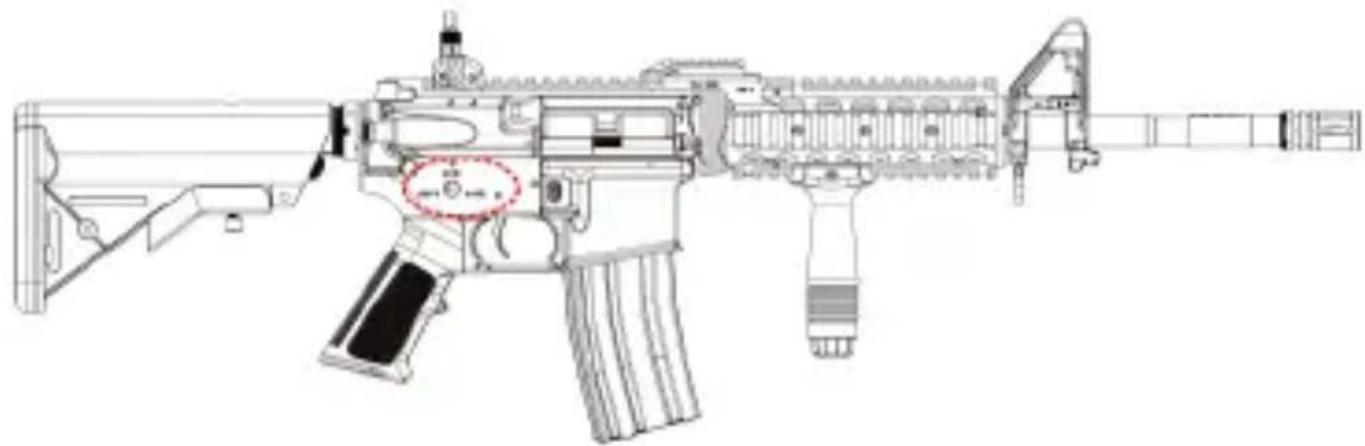

FIRING MODE

SAFETY

SEMI SAFE

SINGLE

SEMI SAFE AUTO

AUTO

SEWI SAFE AUTO

Technical line drawing of a multi-stage rifle with no visible text or symbols

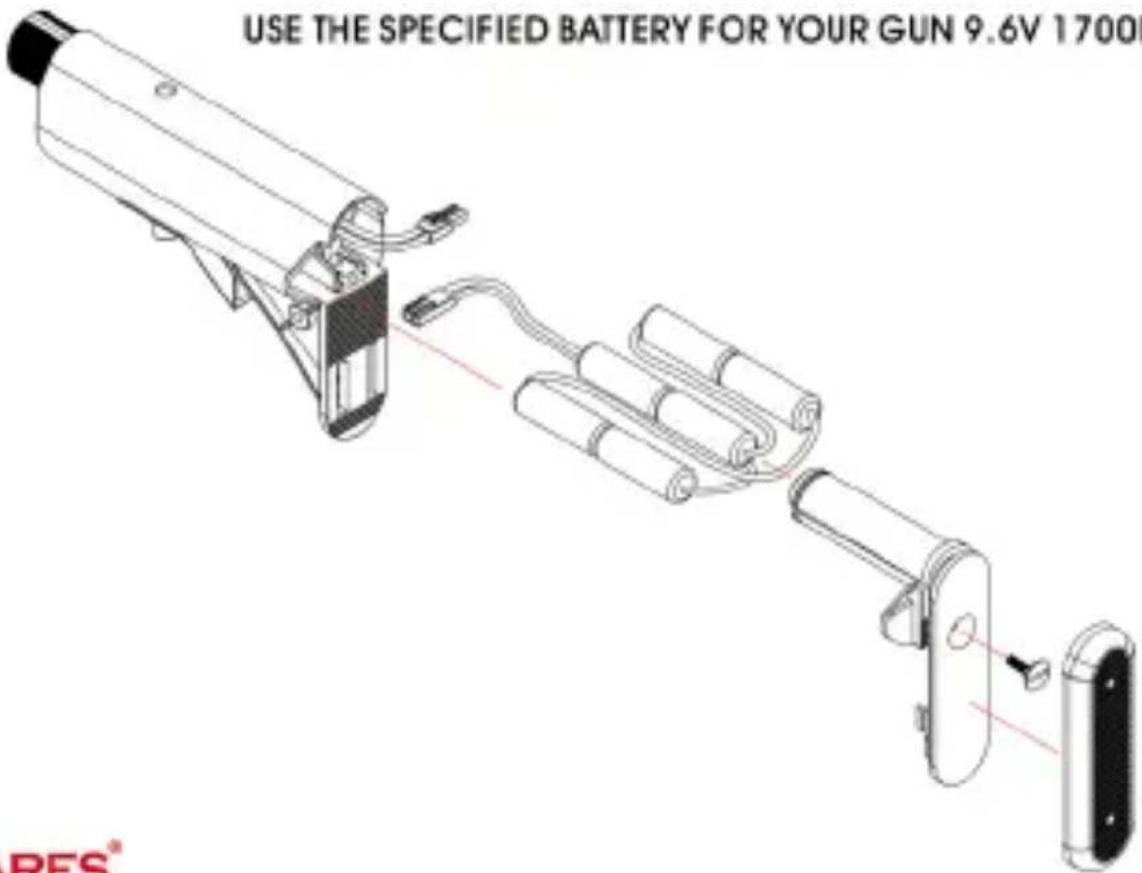

BATTERY INSTALLATION

USE THE SPECIFIED BATTERY FOR YOUR GUN 9.6V 1700MAH

USE THE SPECIFIED BATTERY FOR YOUR GUN 9.6V 1700V BES®

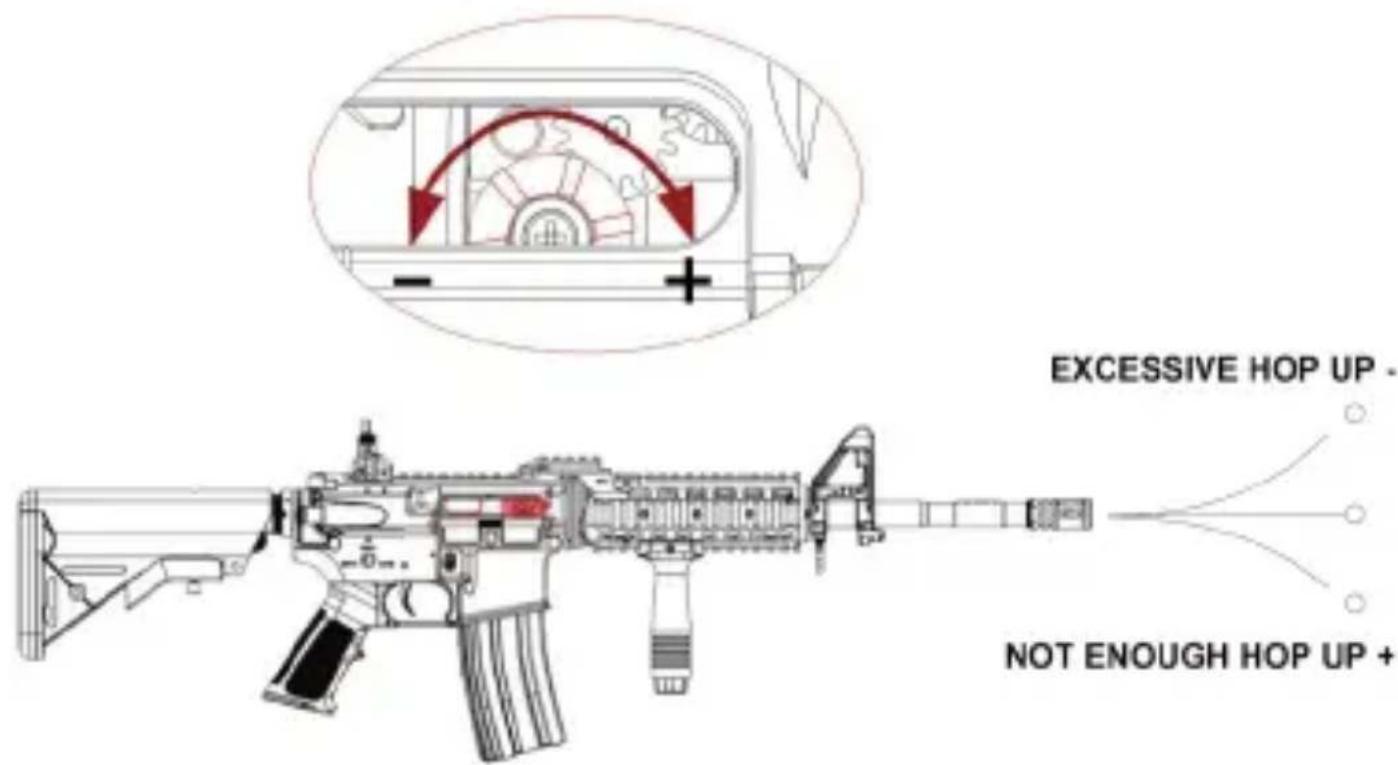

HOP-UP ADJUSTMENT

EXCESSIVE HOP UP - NOT ENOUGH HOP UP +

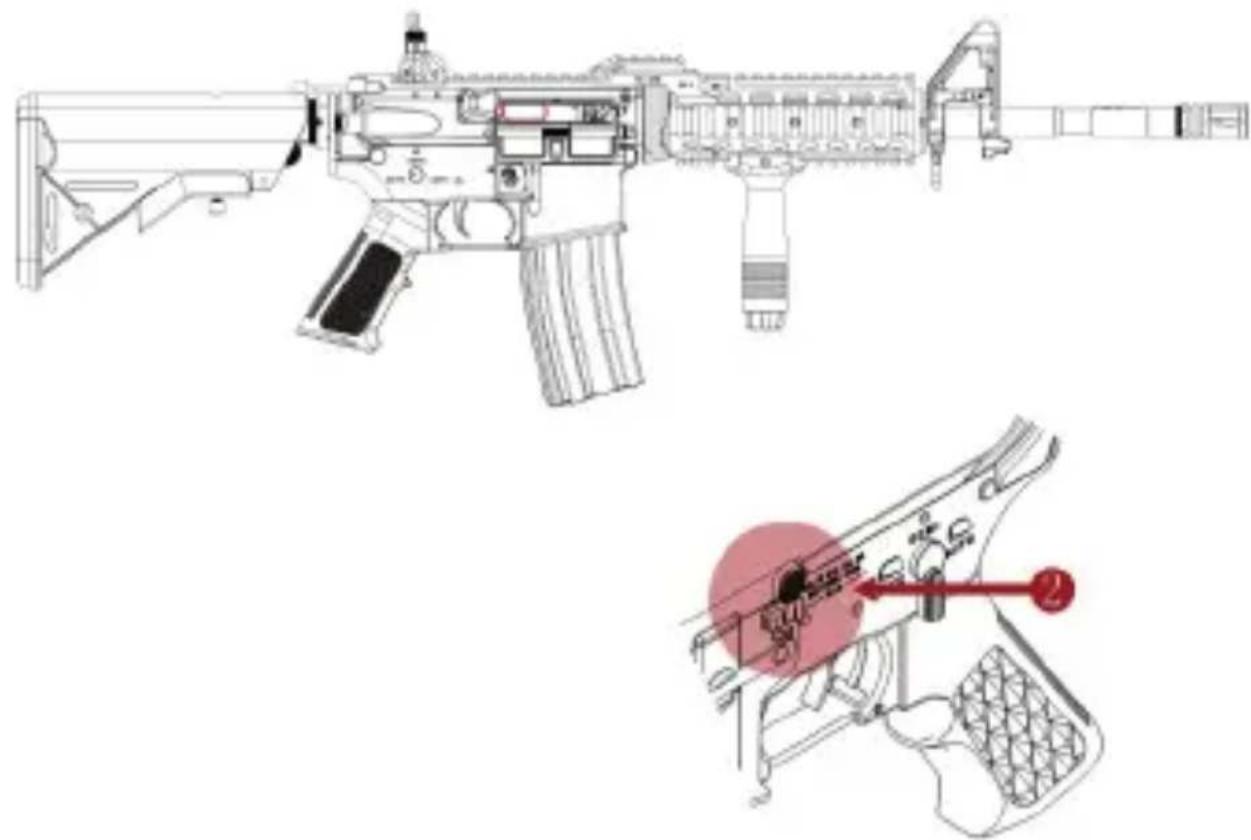

BOLT LOCK & RELEASE

Technical line drawing of a firearm with internal components and external assembly (no text or labels)

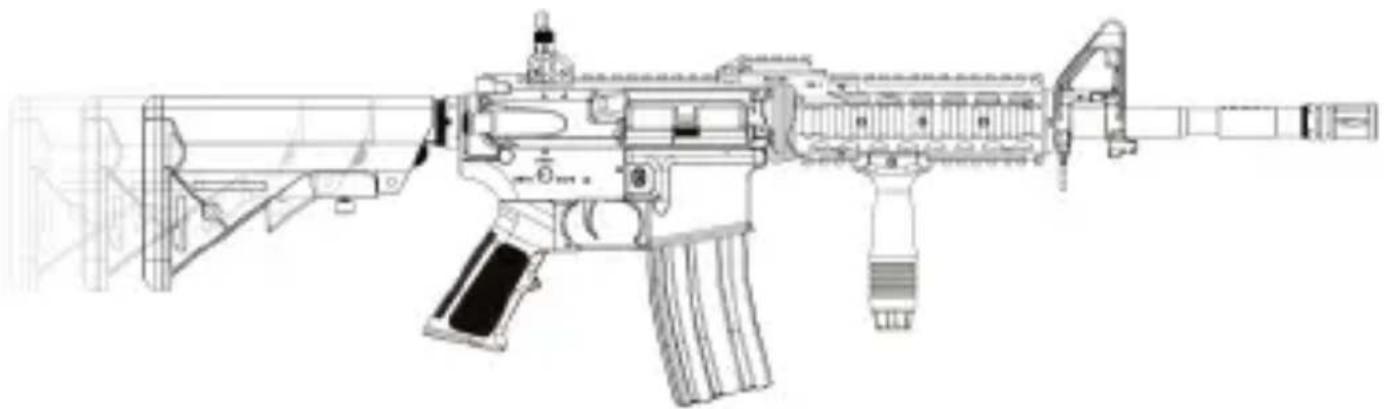

ADJUSTING STOCK

Technical line drawing of a multi-stage rifle with visible internal components and external assembly (no text or labels)

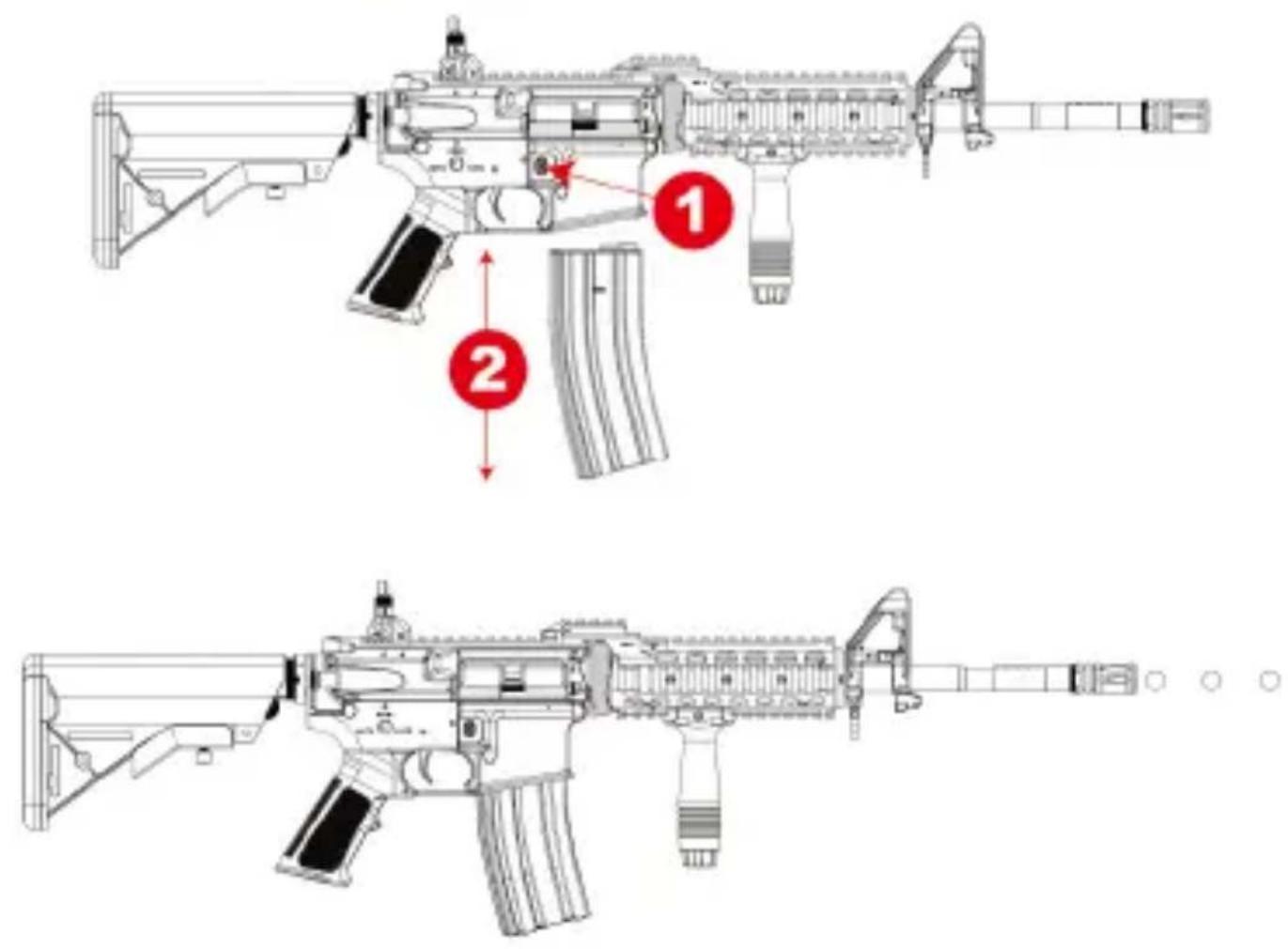

SETTING MAGAZINE

Technical diagram of a rifle with labeled parts and two views showing different configurations.

AR-013
Bolt Locking & Functional Bolt Catch

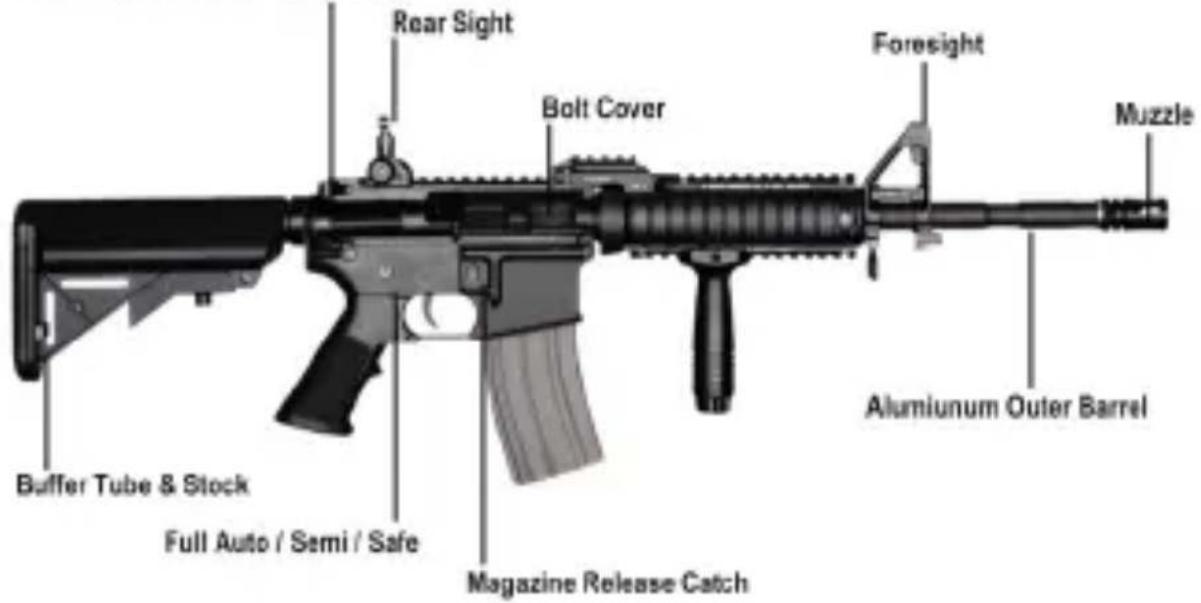

Rear Sight Bolt Cover Foresight Muzzle Buffer Tube & Stock Full Auto / Semi / Safe Magazine Release Catch Aluminum Outer Barrel

FEATURES

• Metal Gear Box
• Easy Power Step Up System
  • Bolt Locking & Functional Bolt Catch
  • CNC Realistic Marking
  • Aluminum Housing, Outer Barrel & Flash Hider
• Decenty Lower Receiver can fit Real Steel or Copy Buffer Tube & Stock

BATTERY:	9.6V 1500mAh Mini (2/3A) Nunchuck(Crane Stock)
MAGAZINE CAPACITY:	130rds (6mm BB)
MODE:	Full Auto / Semi / Safe
MATERIAL:	Nylon Fiber + ALAlloy
MOTOR:	High Torque Flat Motor
HOP-UP:	Adjustable
LENGTH:	803-893mm (In 5 Steps)
WEIGHT:	3250g
VELOCITY:	350-380FPS

SAFETY

• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
• Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
  • Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
• Misuse or careless use may cause serious injury.
  • Do not look into the gun muzzle.
• Do not ever point the airsoft gun at anything you do not intend to shoot.
• You and other with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
• Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
• Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
  • Use 6 mm plastic BBs only.
  • Always put the airsoft gun in a case or bag when you carrying it.
  • Always store this airsoft gun in a secure location and at the places out of reach by children
  • Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
  • Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
  • We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft gun.

Manufact ARES®

Manufacturer & Brand Owner : Forever Good (Hong Kong) Ltd.

Worldwide:

Ares Website: http://www.aresairsoft.com

General Enquiries: [e-mail]

North America: ZShot

Exclusive Distributor - http://www.ZShot.com

Dealer Inquires: [e-mail] Technical Support: [e-mail]
