BEDIENUNGSANLEITUNG MSR-004 Ares

ARES MSR-004

ARES® Airsoft Gun Instruction Manual • Always read through this manual before operation

SAFETY

• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
• Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
• Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
• Misuse or careless use may cause serious injury.
• Do not look into the gun muzzle.
- Do not ever point the airsoft gun at anything you do not intend to shoot.
- You and other with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
- Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
- Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
• Use 6 mm plastic BBs only.
• Always put the airsoft gun in a case or bag when you carrying it.
• Always store this airsoft gun in a secure location and at the places out of reach by children
- Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
- Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
• We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft-gun.

Technical diagram of a rifle with labeled parts and safety warnings, including scope, trigger, and display panels.

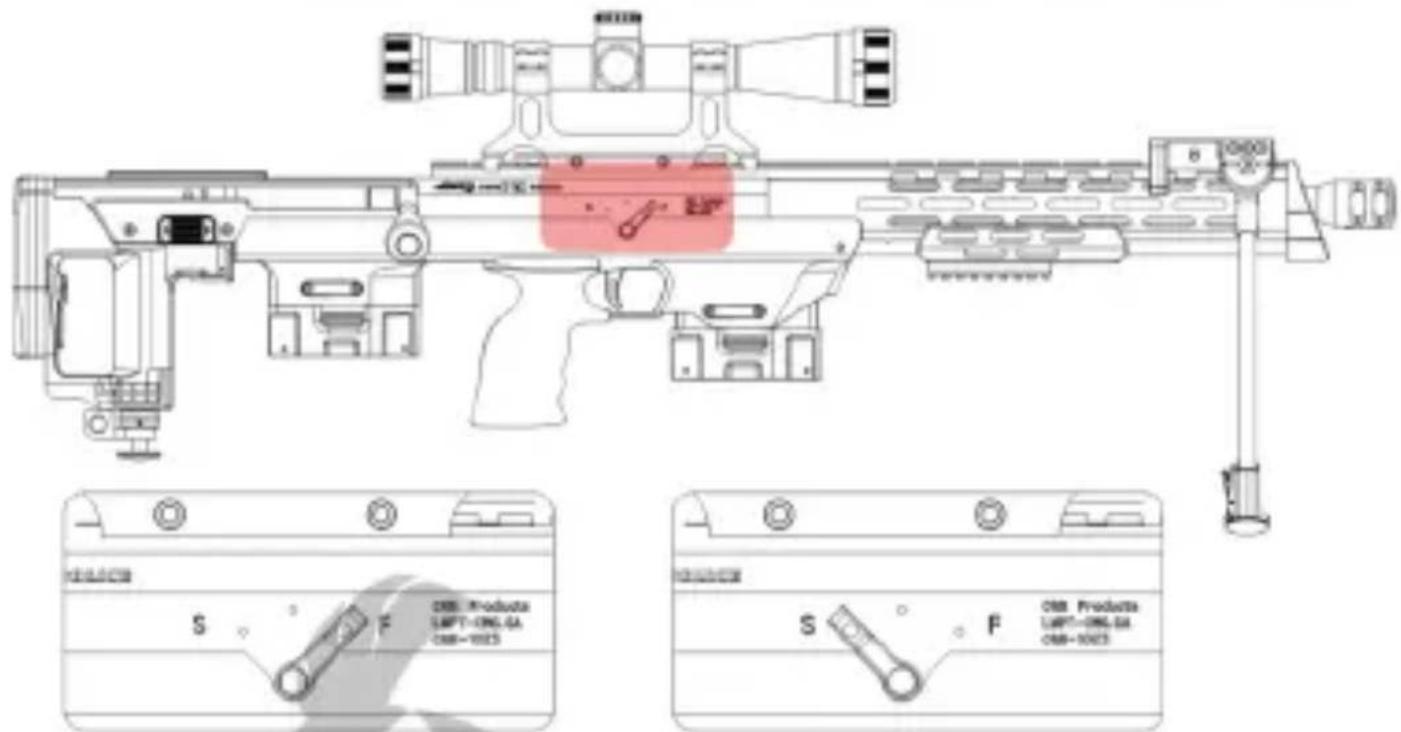

FIRING POSITION

OMB Products LIMIT-001.58 OMB-10023

SAFETY POSITION

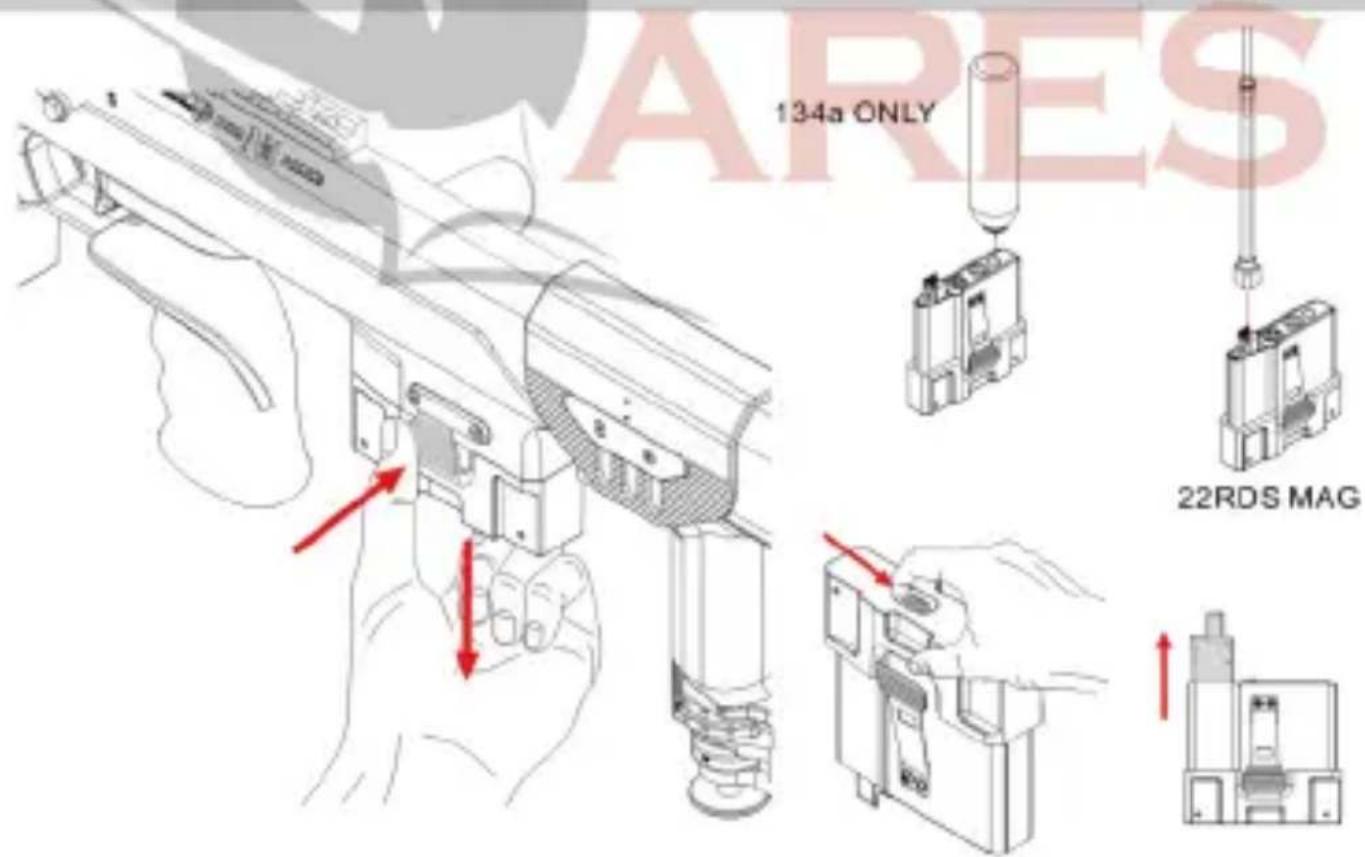

SETTING THE MAGAZINE

ARES 134a ONLY 22RDS MAG

REMOVABLE MAG. STRIP

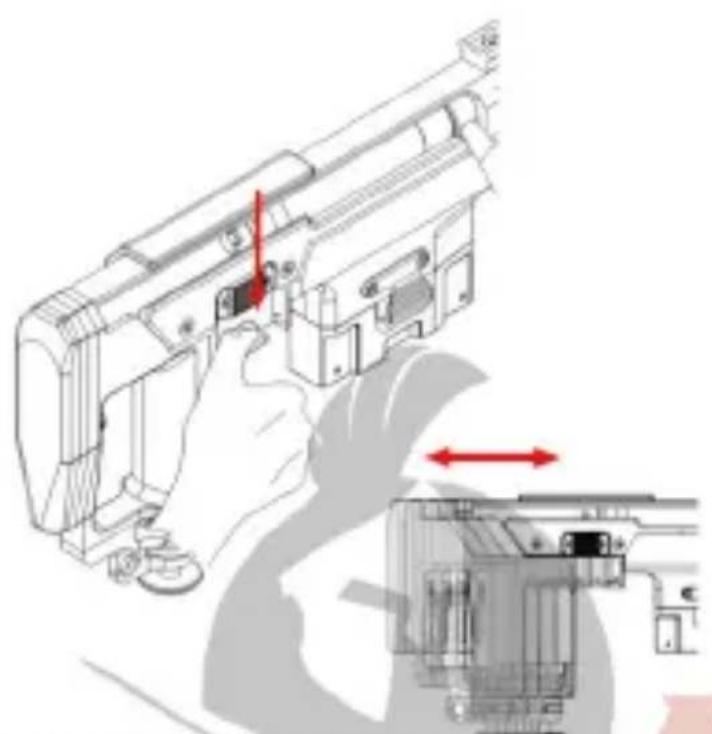

BUTT STOCK EXTEND

Technical illustration of a handgun mechanism with red arrows indicating force application (no text or symbols present)

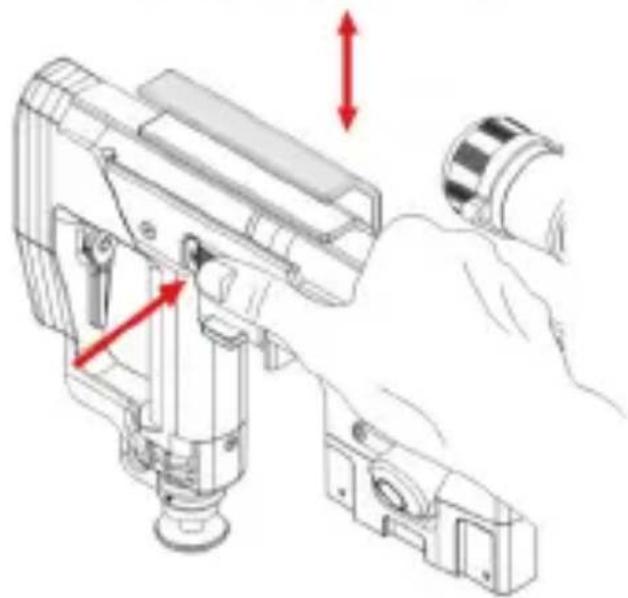

CHEEK PAD ADJUSTMENT

Technical illustration of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

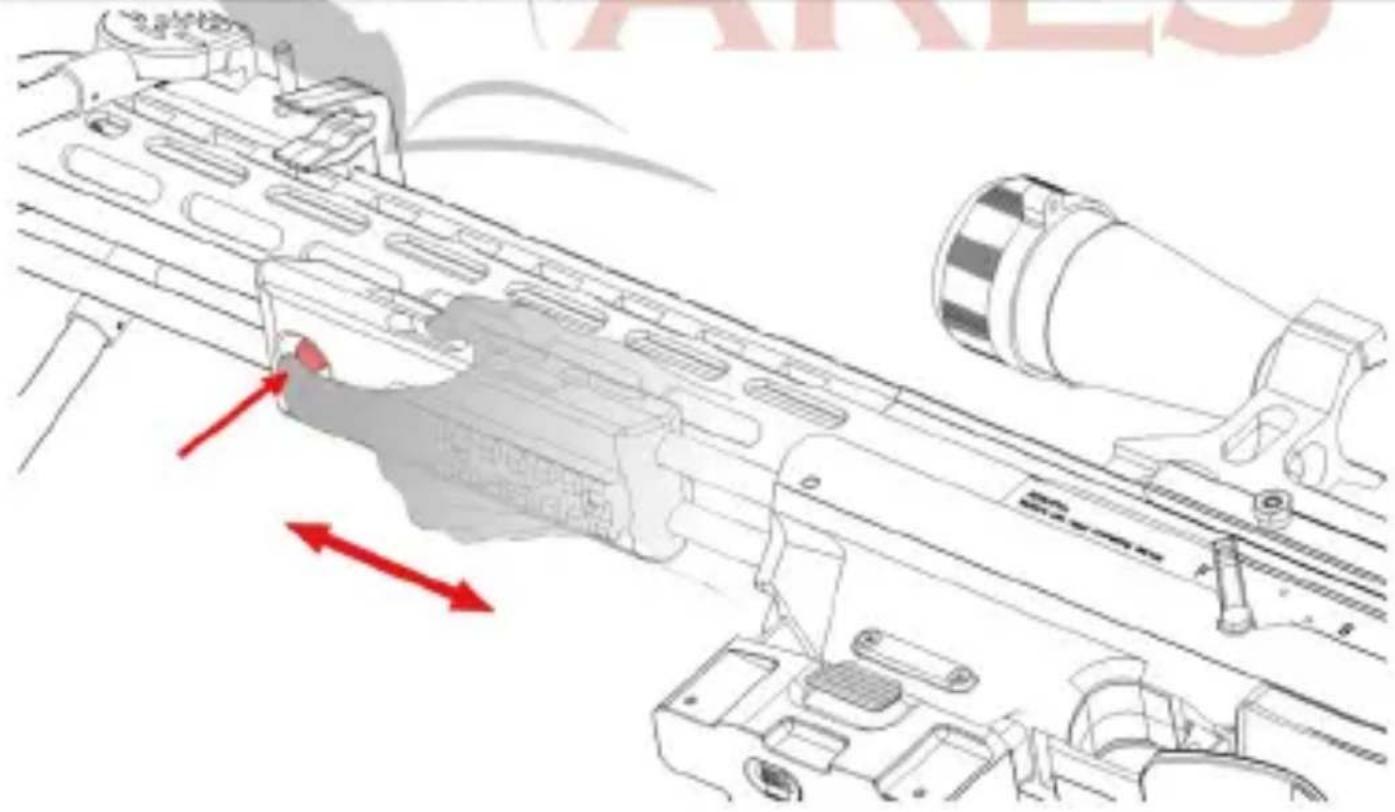

ADJUSTABLE FORE-END

A#ES

ARES

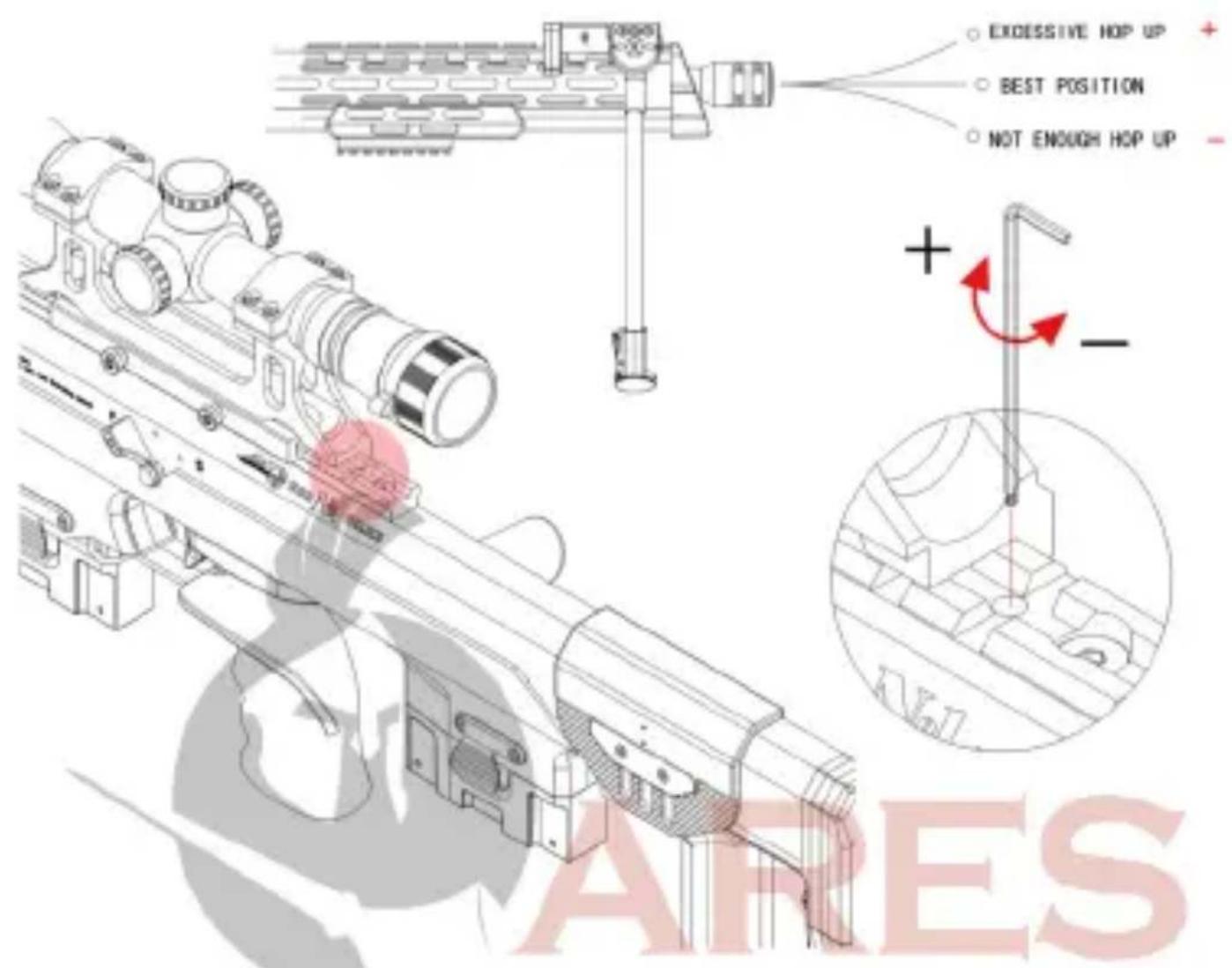

HOP-UP ADJUSTMENT

EXCESSIVE HOP UP + BEST POSITION NOT ENOUGH HOP UP - + -

ERGONOMICS OF THE BUTT STOCK

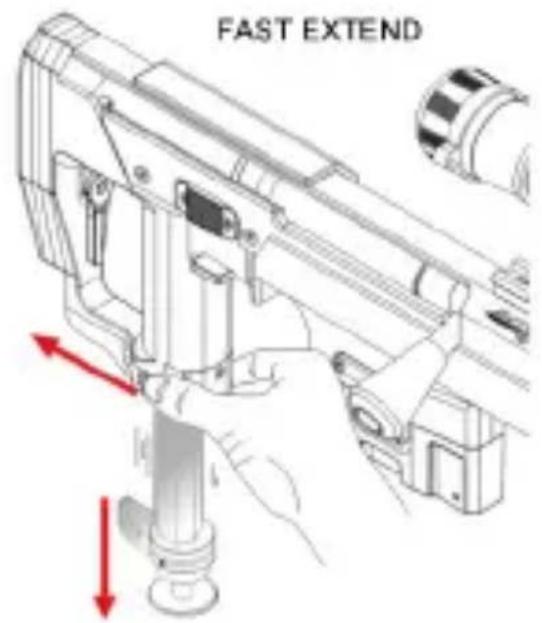

FAST EXTEND

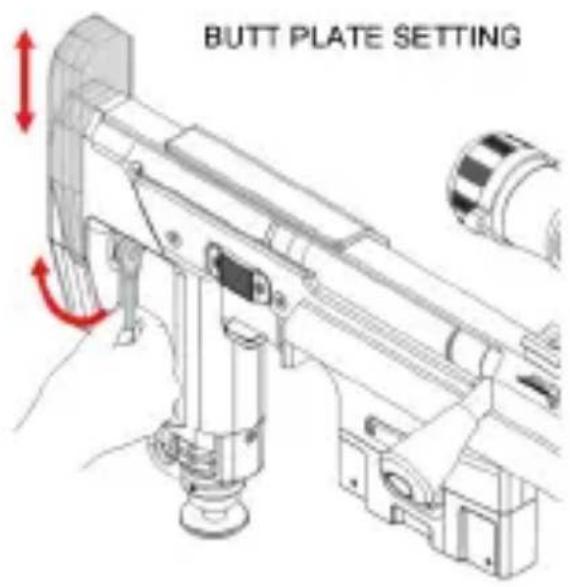

BUTT PLATE SETTING

ERGONOMICS OF THE BUTT STOCK

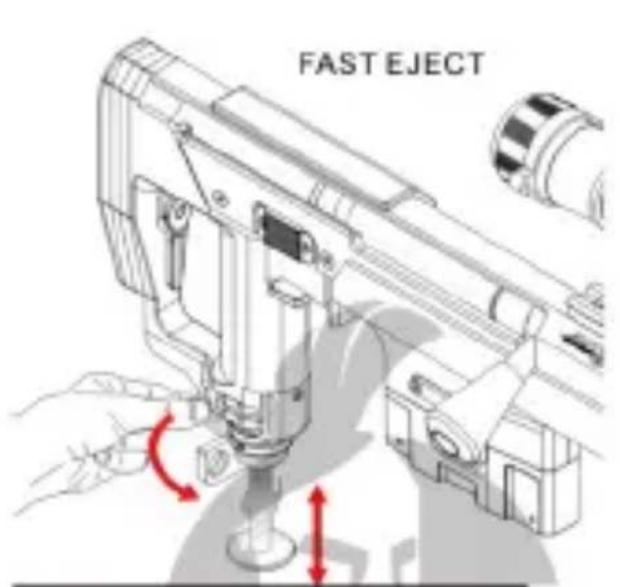

FAST EJECT

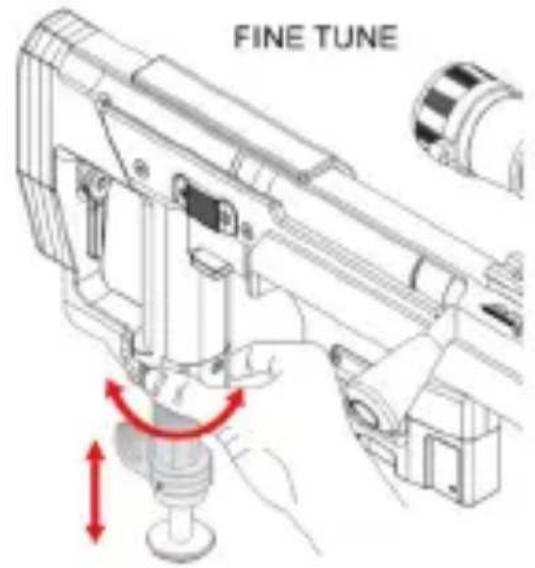

FINE TUNE

DATA OF MSR-004 GAS GUN
MSR-004

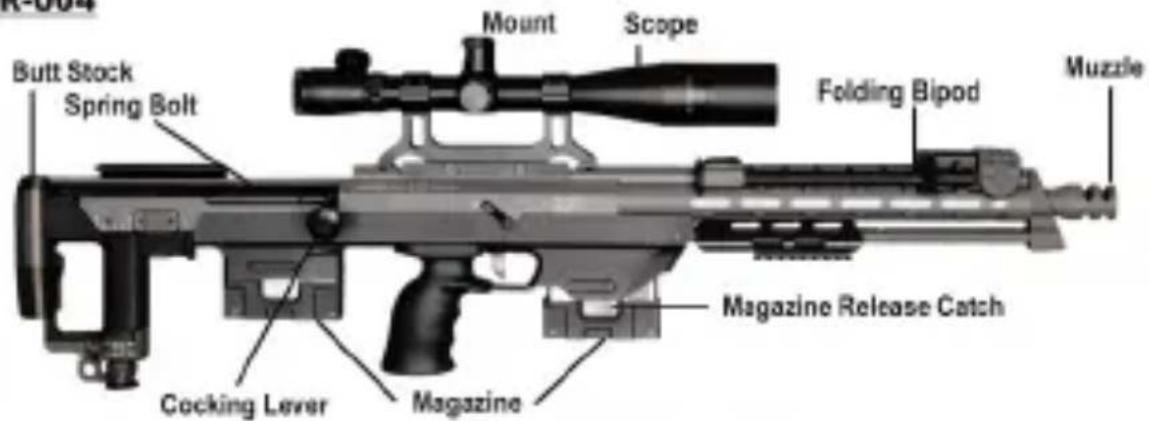

Butt Stock Spring Bolt Mount Scope Folding Bipod Muzzle Magazine Release Catch Cocking Lever Magazine

FEATURES

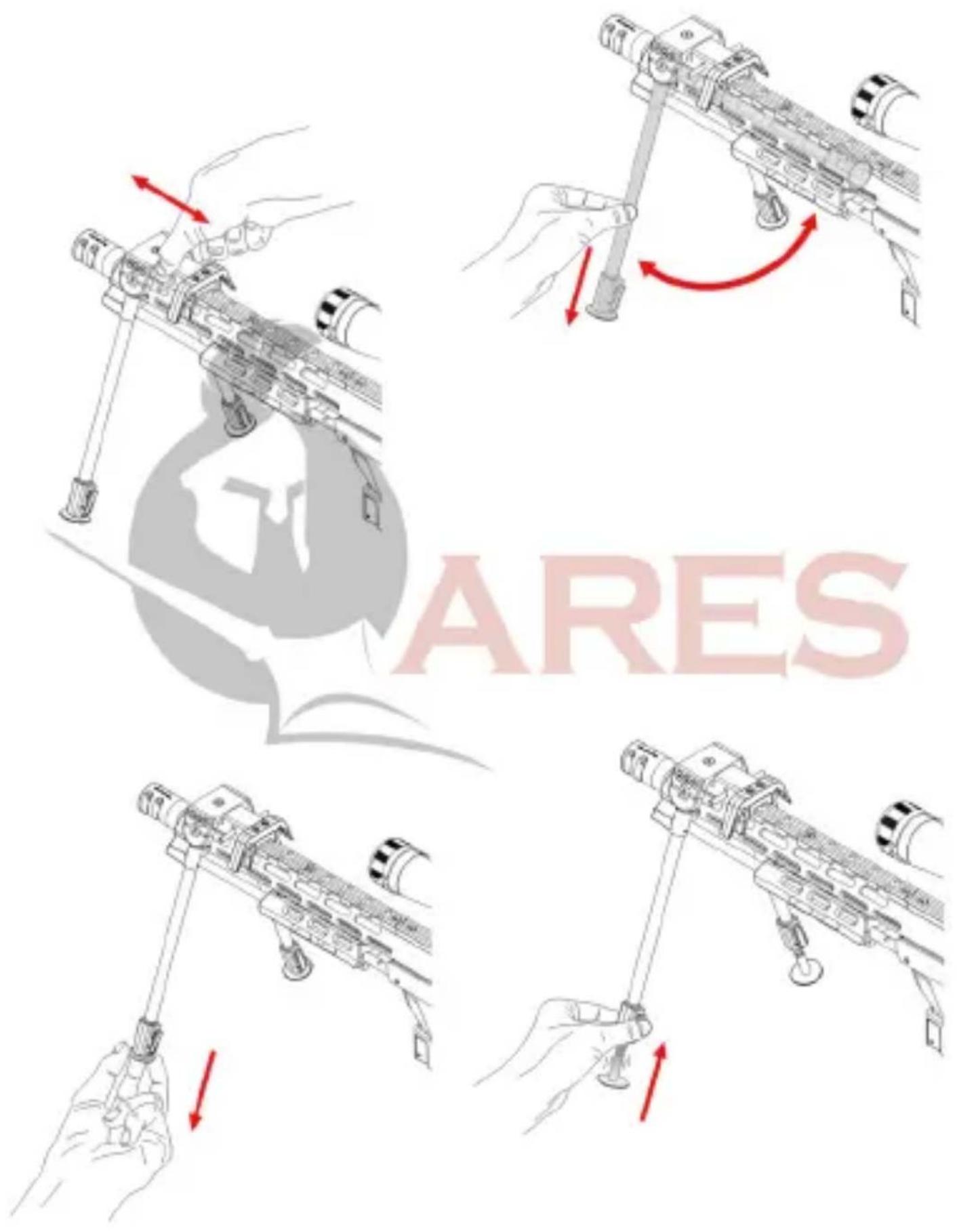

• Folding Bipod
• Adjustable Fore-end
• Ergonomics Of The Butt Stock
+ Adjustable Cheek Piece
• Easy Upgrade Power
• Lincenced Marking

GAS POWER:

MAGAZINE CAPACITY:

MODE:

MATERIAL:

HOP-UP:

LENGTH:

WEIGHT:

VELOCITY:

134a Standard (Optional CO2 Magazine)

23rds (8mm BB)

Bolt Action Single

Nylon Fiber + Al.Alloy

Match Grade Adjustable

960-1005mm

6400g

350-3B0FP

Manufact ARES®

Manufacturer & Brand Owner : Forever Good (Hong Kong) Ltd.
