BEDIENUNGSANLEITUNG AR-033 Ares

ARES AR-033

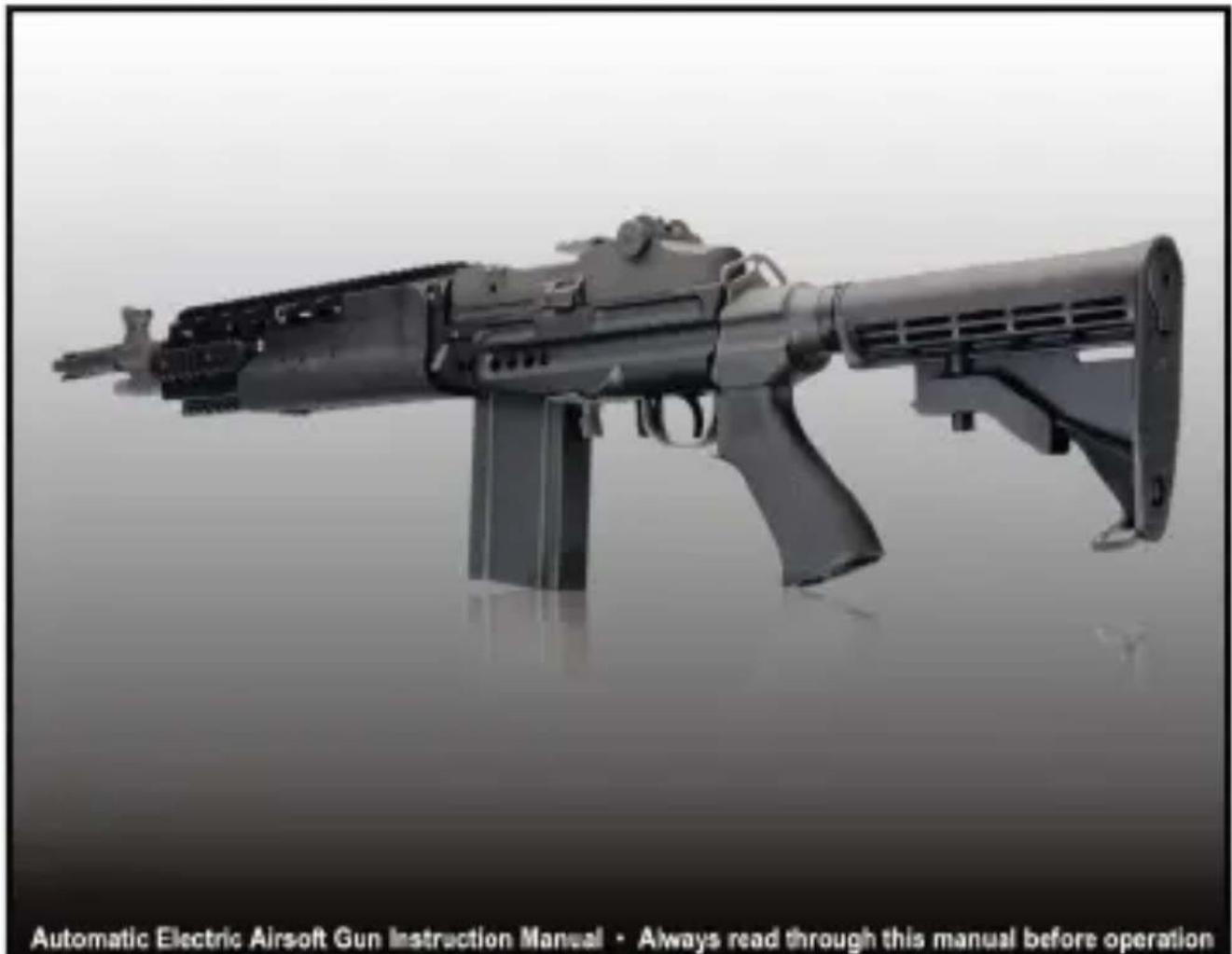

Automatic Electric Airsoft Gun Instruction Manual • Always read through this manual before operation

ARES®

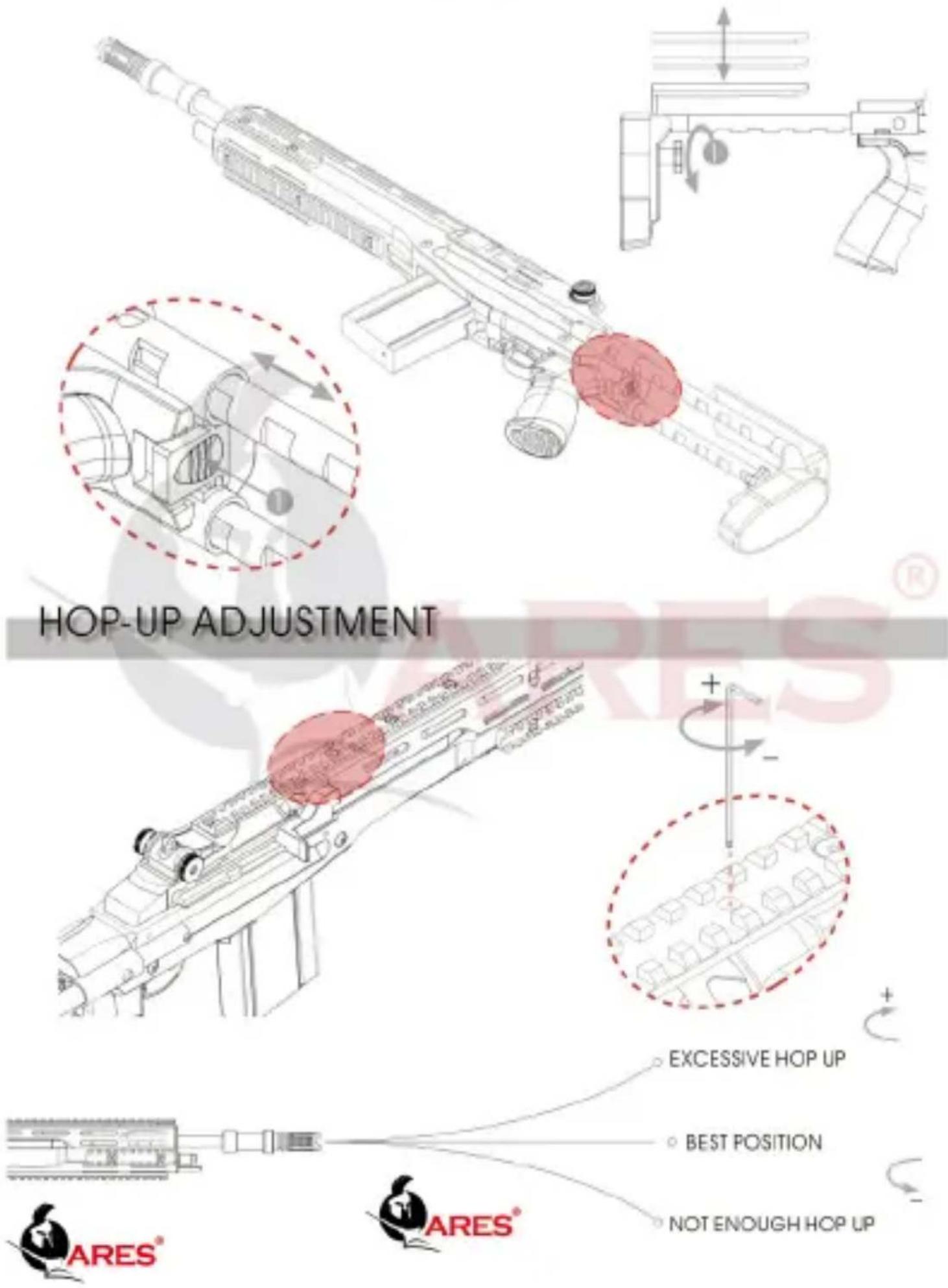

BUD STOCK ADJUSTMENT

Technical diagram of a firearm assembly with labeled parts and a watermark 'ARES'

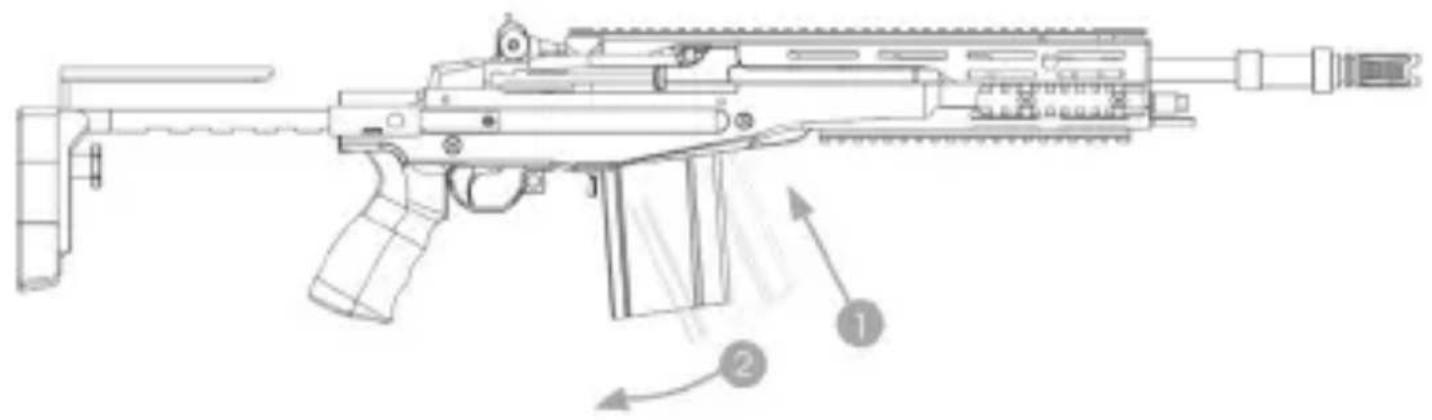

MAGAZING LOADING

Technical line drawing of a firearm with numbered annotations indicating parts of the body and movement.

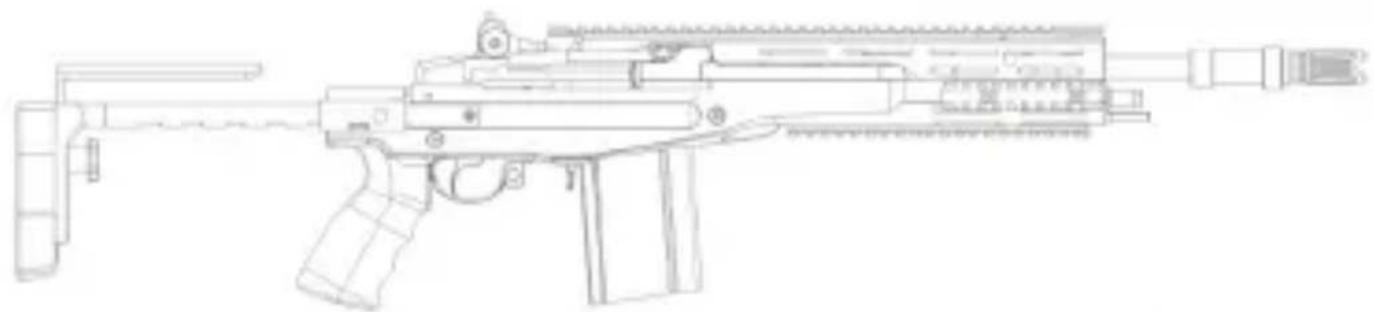

FIRING MODE

Line drawing of a firearm with trigger and barrel (no text or symbols)

EIRE

SAFTY

SPRING RELEASE

Technical diagram of a mechanical device with labeled parts and a magnified inset showing internal components.

AR-033

Rear Sight Top Rail Side Rail Flash Hider Front Sight Aluminum Outer Barrel Magazine Release Catch Solid Butt Stock Full Auto / Semi / Safe

FEATURES

• 6061 Aluminum Alloy CNC Body
- Adjustable Cheek Piece Butt Stock
- Easy Battery Installation
- Metal Gear Box
• Realistic CNC Marking
- Aluminum Outer Barrel
- Flash Hider

BATTERY:

MAGAZINE CAPACITY:

MODE:

MATERIAL:

MOTOR:

HOP-UP:

LENGTH:

WEIGHT:

VELOCITY:

9.6V 1500mAh Mini (2/3A) Nunchuck

180rds (6mm BB)

Full Auto / Semi / Safe

Nylon Fiber + Al.Alloy

High Torque Flat Motor

Adjustable

885 - 973mm (In 5 Steps)

4690g

350-380FPS

SAFETY

• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
• Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
  • Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
  • Misuse or careless use may cause serious injury.
  • Do not look into the gun muzzle.
• Do not ever point the airsoft gun at anything you do not intend to shoot.
• You and other with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
• Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
• Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
  • Use 6 mm plastic BBs only.
  • Always put the airsoft gun in a case or bag when you carrying it.
  • Always store this airsoft gun in a secure location and at the places out of reach by children
  • Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
  • Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
  • We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft gun.
