BEDIENUNGSANLEITUNG AR-004 Ares
ARES AR-004
• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
• Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
• Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
• Misuse or careless use may cause serious injury.
• Do not look into the gun muzzle.
- Do not ever point the airsoft gun at anything you do not intend to shoot.
- You and other with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
- Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
- Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
• Use 6 mm plastic BBs only.
• Always put the airsoft gun in a case or bag when you carrying it.
• Always store this airsoft gun in a secure location and at the places out of reach by children.
- Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
- Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
• We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft gun.

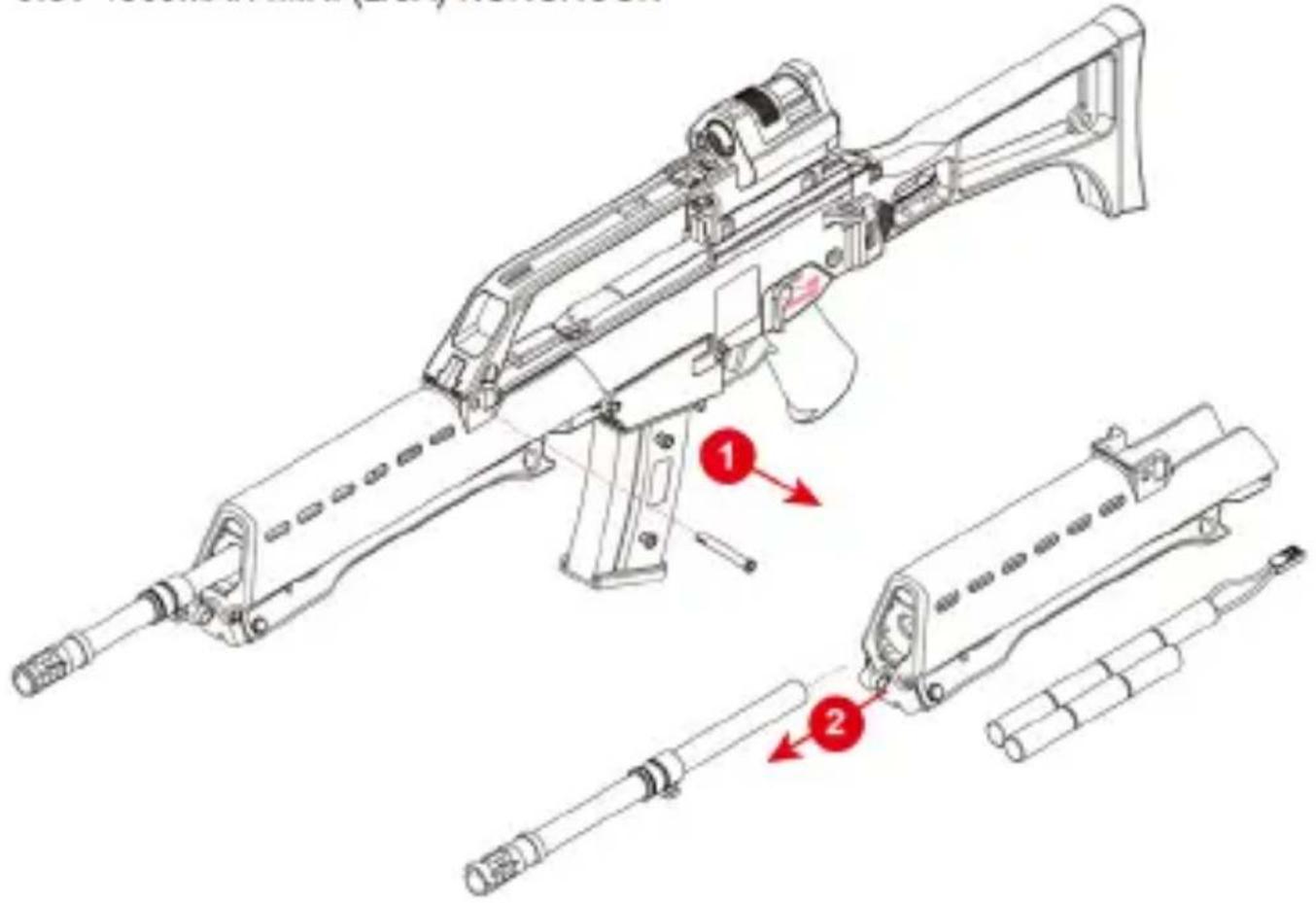

INSERT BATTERY
USE THE SPECIFIED BATTERY FOR YOUR GUN.
9.6V 1500MAH MINI (2/3A) NUNCHUCK


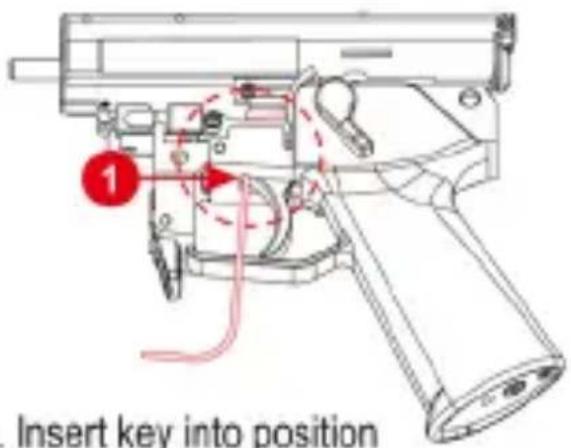

1 Insert key into position-
Insert key into position
-

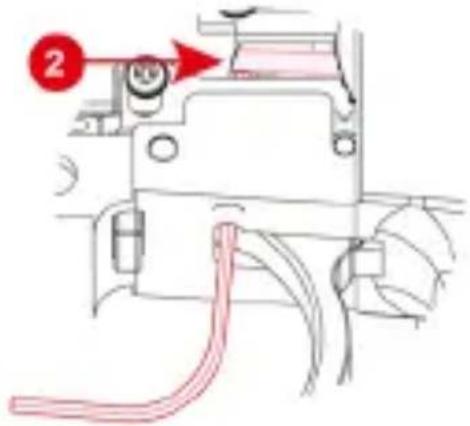

Push to release catch


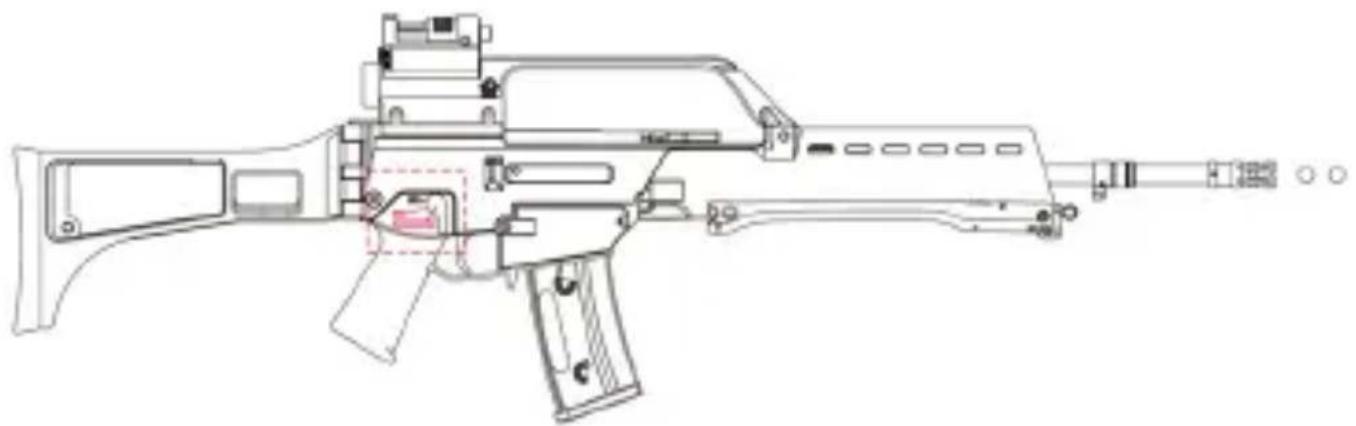

2FIRING MODE / SAFETY


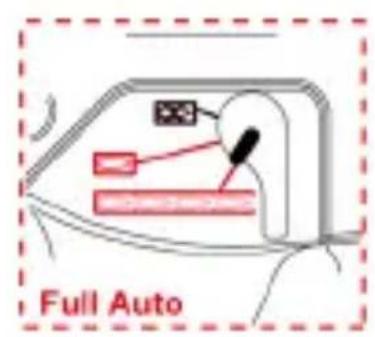

Full Auto


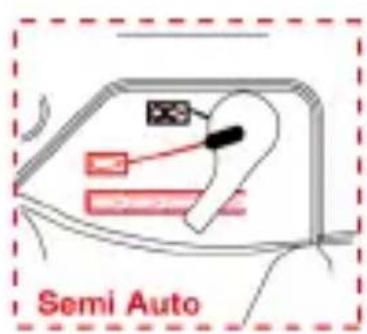

Semi Auto


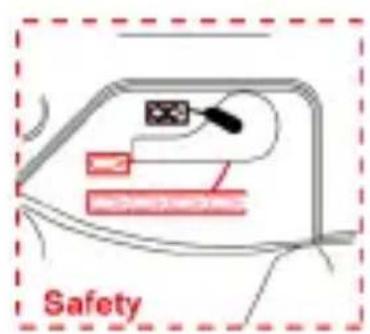

Safety


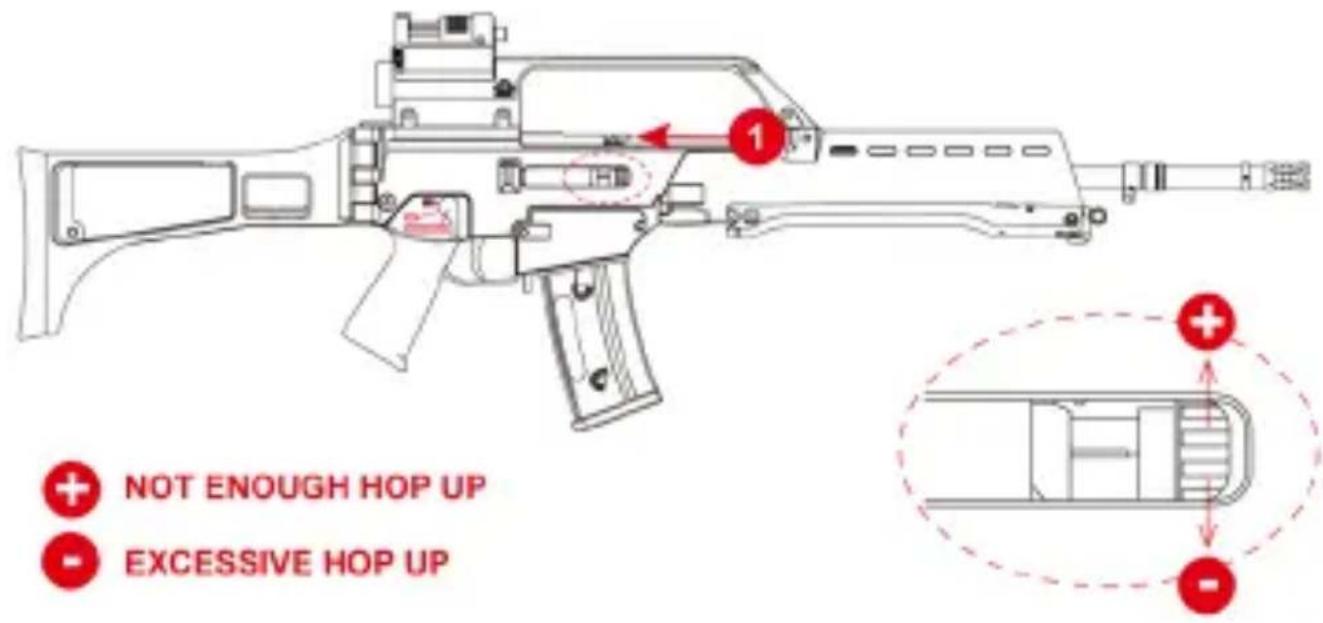

Technical line drawing of a rifle with internal components and no visible text or symbolsHOP UP ADJUSTMENT
THE ACCURACY OF AN AIRSOFT GUN CAN BE GREATLY INCREASED BY ADJUSTING THE HOP-UP, SO YOU HAVE GREATER CONTROL OVER WHERE YOUR PELLETS END UP.
NOT ENOUGH HOP UP

EXCESSIVE HOP UP
BOLT LOCK & RELEASE


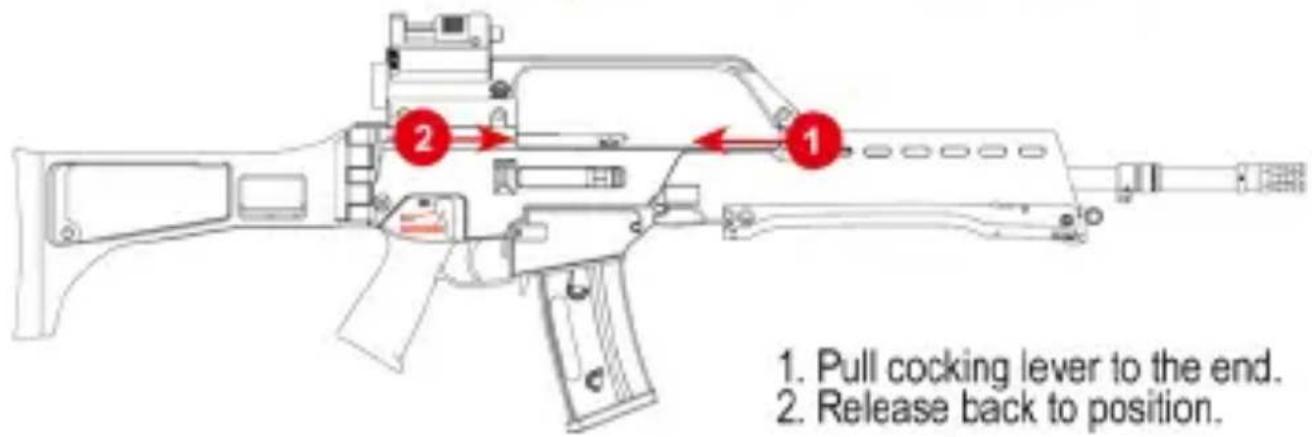

1. Pull cocking lever to the end. 2. Release back to position.SETTING MAGAZINE


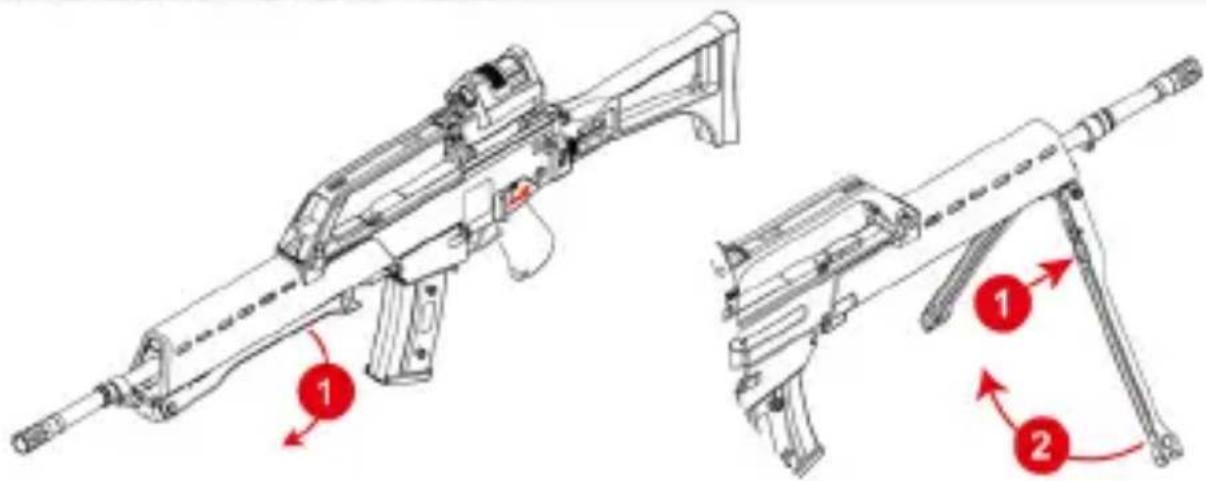

Magazine release leverFOLDING BIPOD


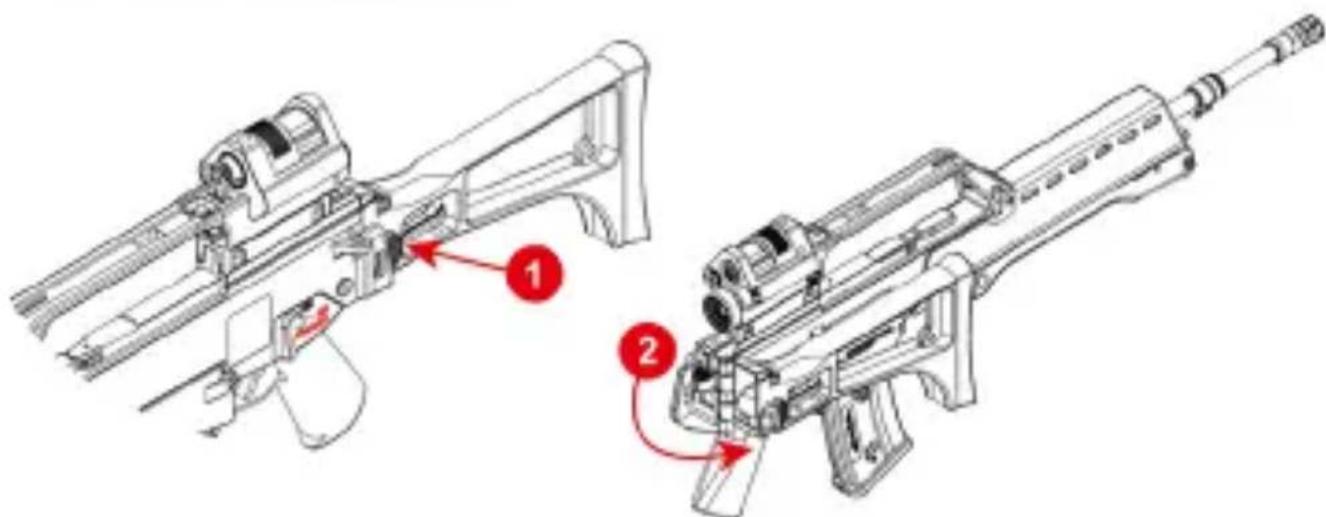

Technical diagram of a rifle with labeled parts and directional arrows indicating movement or assembly.FOLDING STOCK


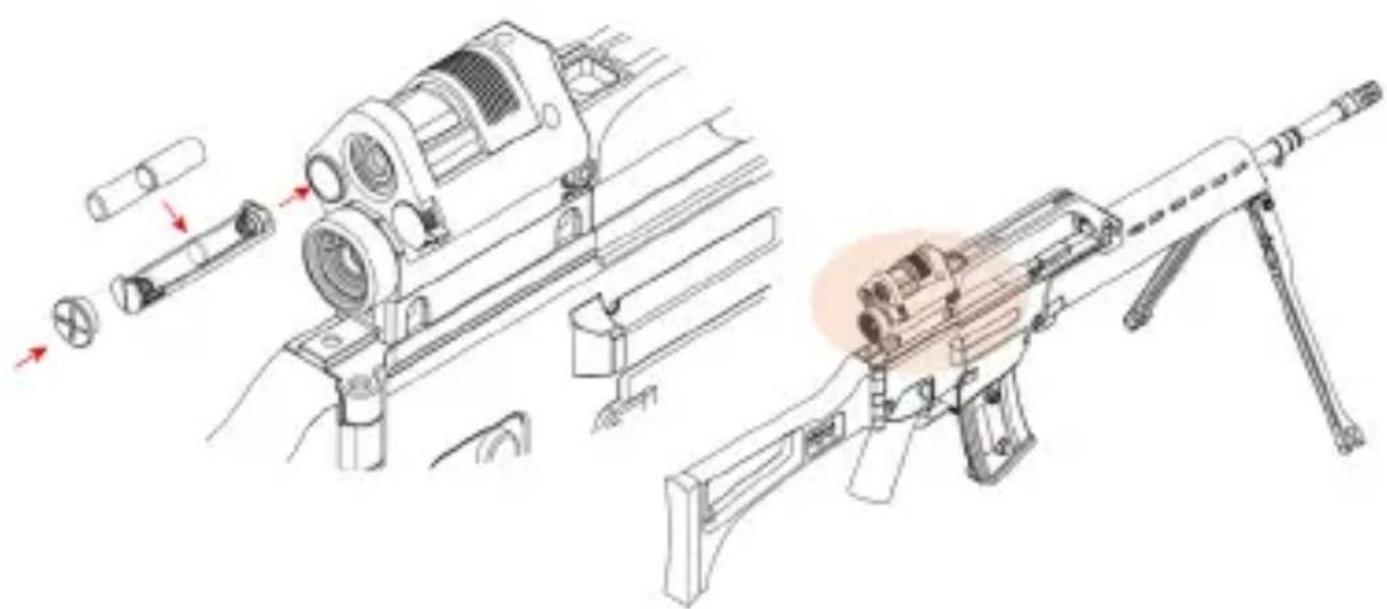

Technical diagram showing two sniper rifles with numbered annotations indicating assembly stepsINSERT SCOPE BATTERY


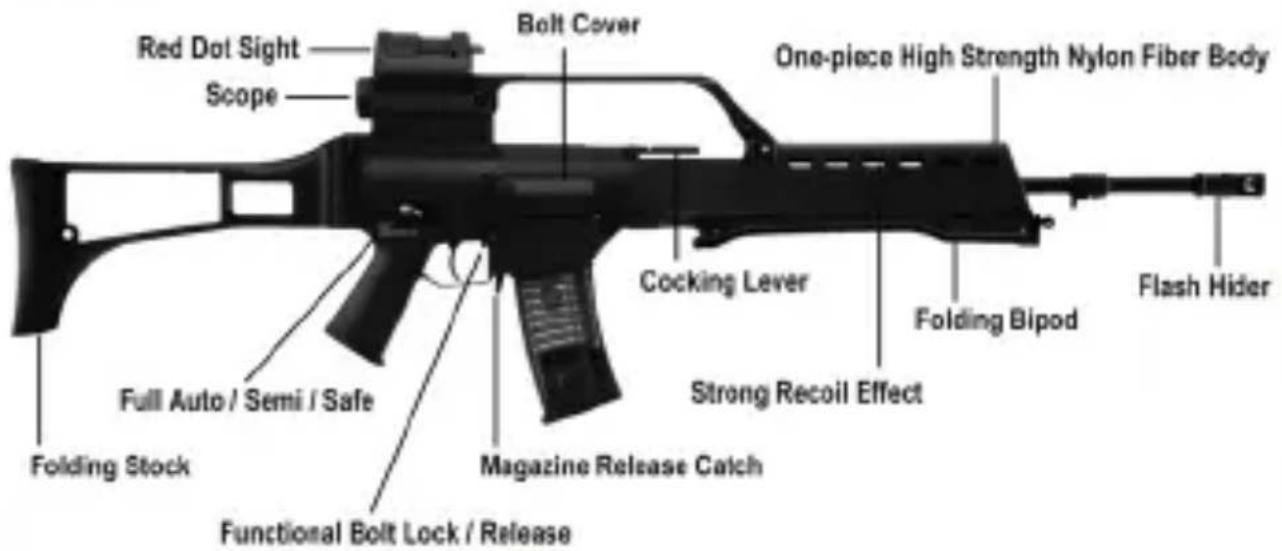

Red Dot Sight Scope Bolt Cover One-piece High Strength Nylon Fiber Body Cocking Lever Folding Bipod Flash Hider Full Auto / Semi / Safe Strong Recoil Effect Magazine Release Catch Functional Bolt Lock / ReleaseFEATURES
• Realistic Gas Block and Piston
• Strong Recoil Effect
- Easily Deactivate with a Single Screw
• Easy Power Upgrade
• Realistic Disassemble Process
• Realistic Folding Stock
• Realistic Flash Hider
• Easy Battery Replacement
• Realistic Barrel Lock
• One-piece Aluminium Outer Barrel
• Functional Bolt Lock / Release
• One-piece High Strength Nylon Fiber Body
| BATTERY: | 8.4V 1500mAh (2/3A) Nunchuck |
| MAGAZINE CAPACITY: | 45rds (6mm BB) |
| MODE: | Full Auto / Semi / Safe |
| MATERIAL: | Nylon Fiber + Zinc Alloy |
| MOTOR: | High Torque Flat Motor |
| HOP-UP: | Adjustable |
| LENGTH: | 765 / 1000mm |
| WEIGHT: | 3600g |
| VELOCITY: | 300-340FP |

