BEDIENUNGSANLEITUNG SR-002 Ares

ARES SR-002

Automatic Electric Airsoft Gun Instruction Manual • Always read through this manual before operation

ARES®

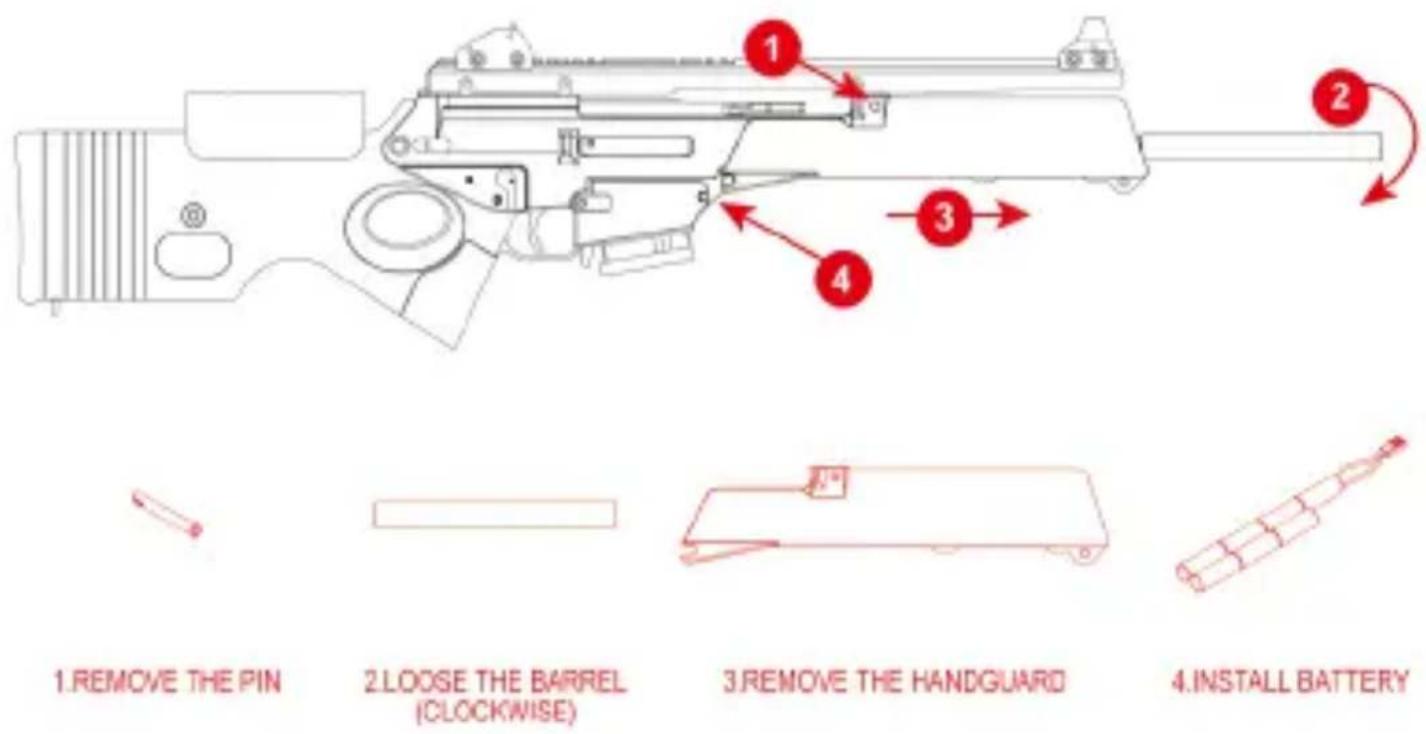

BATTERY INSTALLATION

USE THE SPECIFIED BATTERY FOR YOUR GUN.

8.4V 1700MAH

1. REMOVE THE PIN
2.LOOSE THE BARREL (CLOCKWISE)
3. REMOVE THE HANDGUARD
4. INSTALL BATTERY

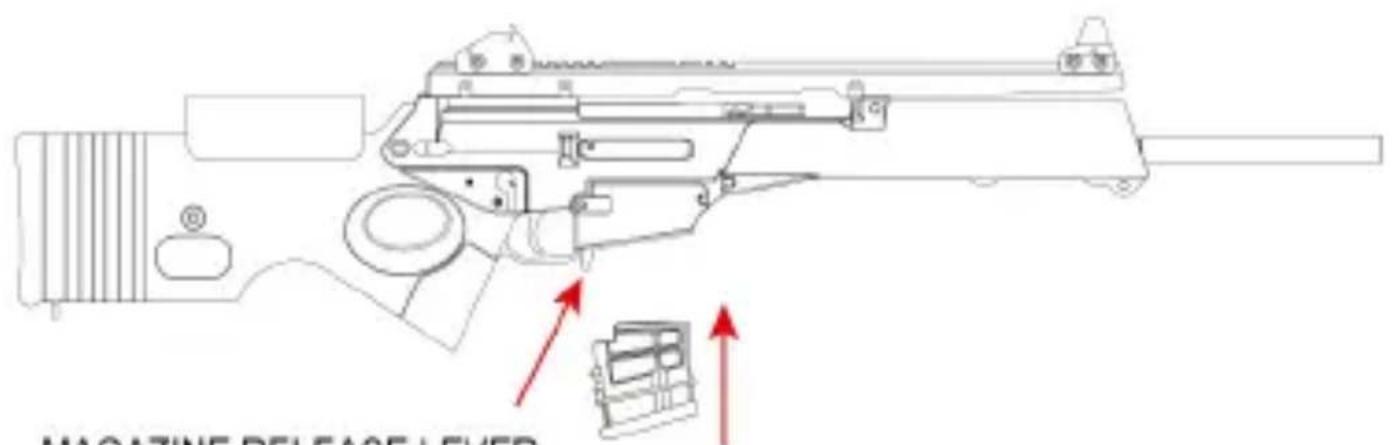

SETTING MAGAZINE

MAGAZINE RELEASE LEVER

MAGAZINE RELEASE LEVER

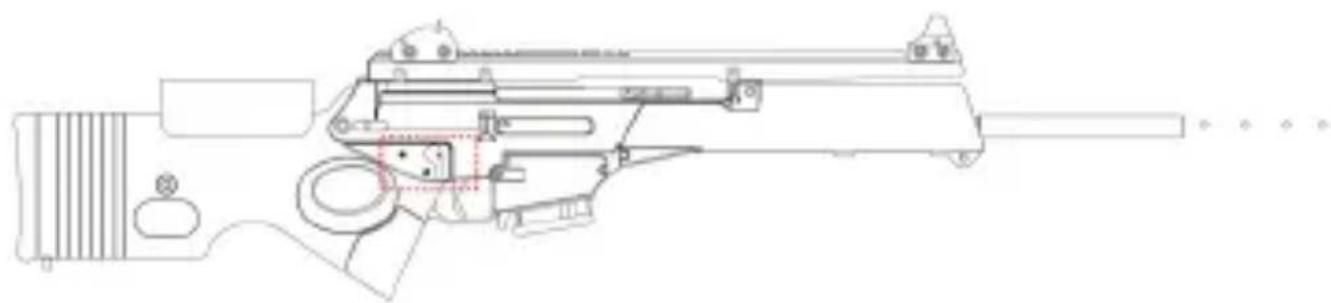

FIRING MODE / SAFETY

Technical line drawing of a firearm assembly (no text or labels)

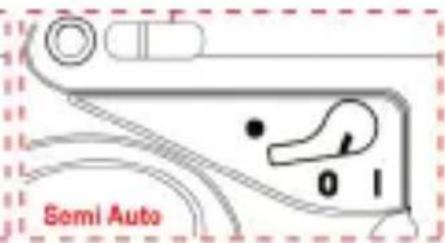

Full Auto 0 1

Semi Auto

Safety

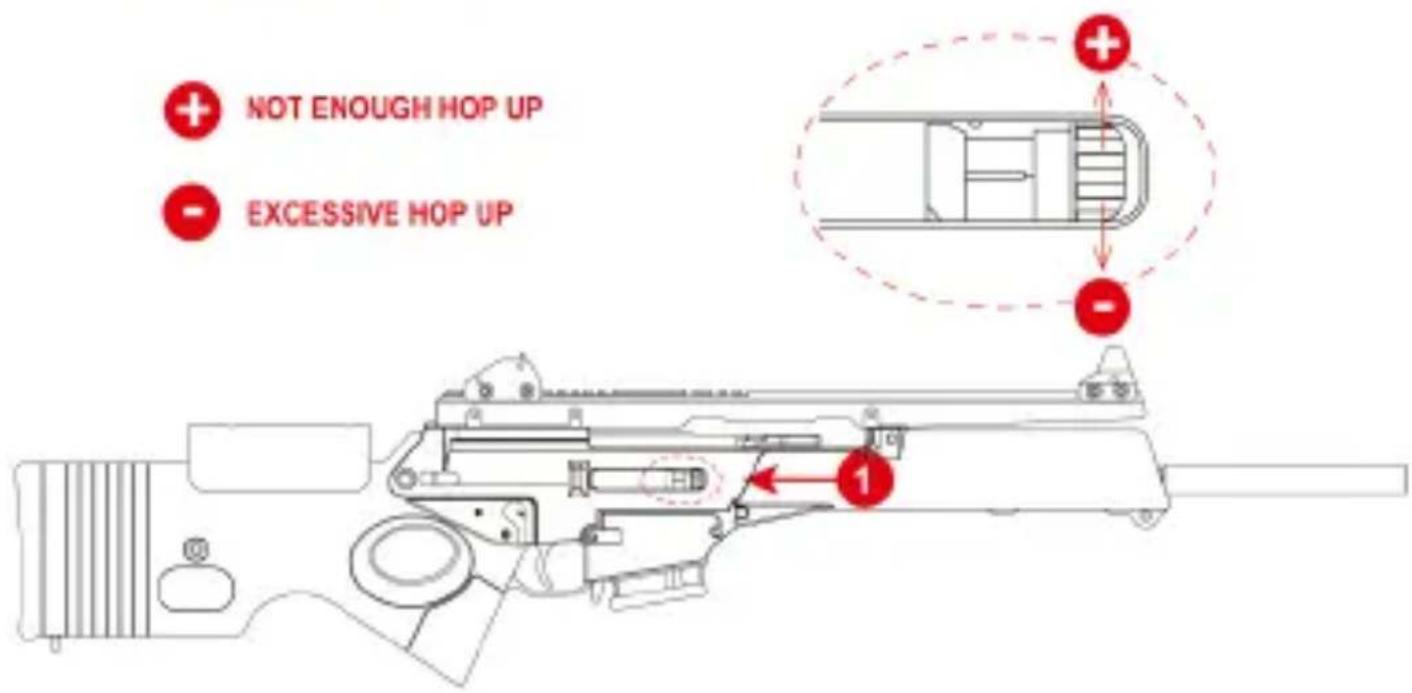

HOP UP ADJUSTMENT

THE ACCURACY OF AN AIRSOFT GUN CAN BE GREATLY INCREASED BY ADJUSTING THE HOP-UP, SO YOU HAVE GREATER CONTROL OVER WHERE YOUR PELLETS END UP.

NOT ENOUGH HOP UP EXCESSIVE HOP UP

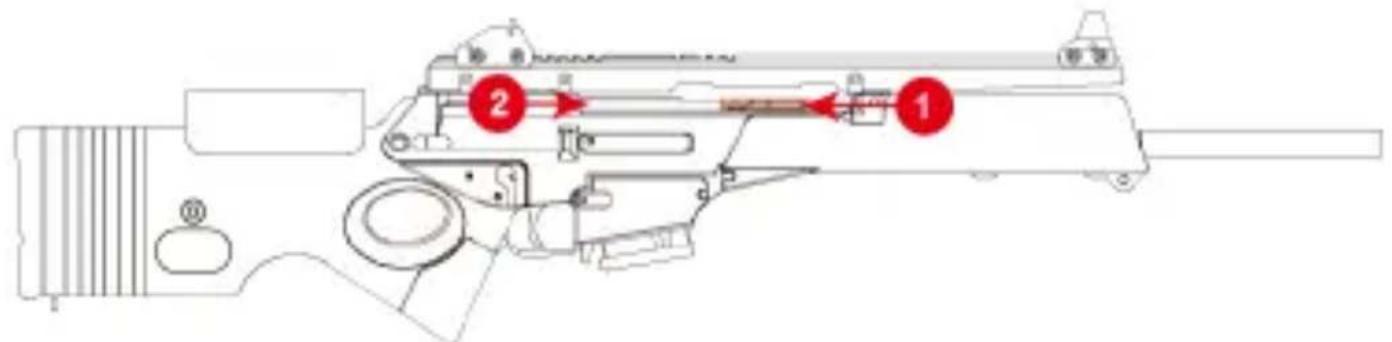

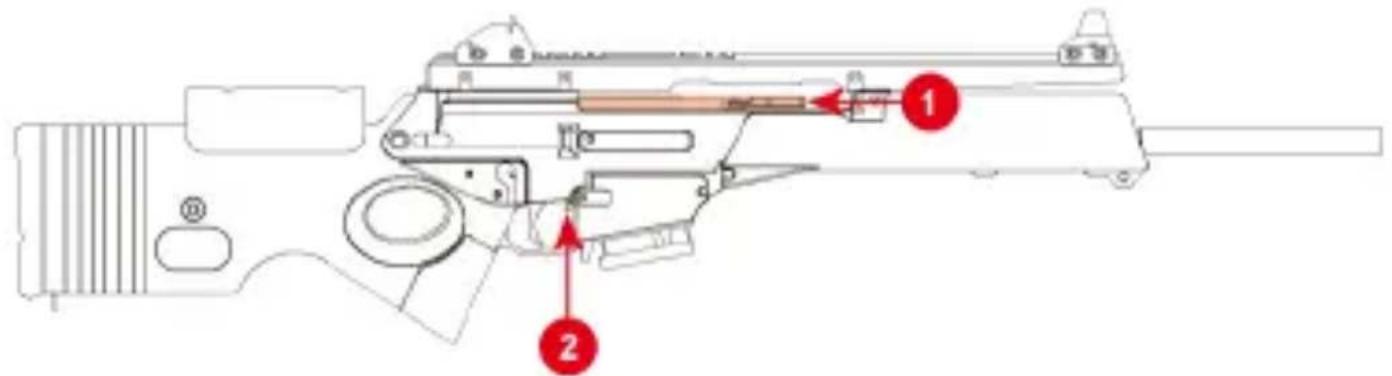

BOLT LOCK & RELEASE

1. PULL COCKING LEVER TO POSITION.
2. PUSH TO LOCK BOLT.

Technical diagram of a firearm with numbered parts and labeled arrows indicating assembly or positioning.

1. PULL COCKING LEVER TO THE END.
2. RELEASE BACK TO POSITION.

Technical diagram of a firearm with numbered parts and labeled arrows indicating assembly or positioning.

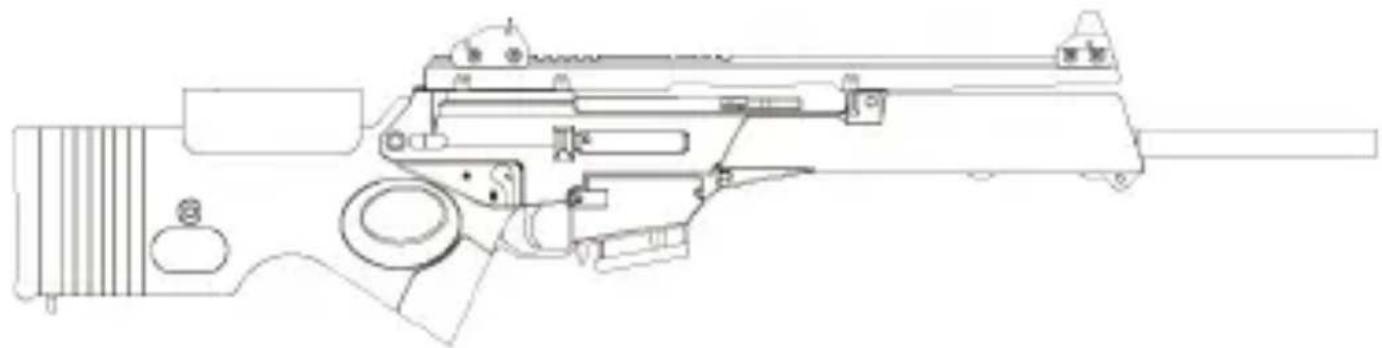

WARNING

Technical line drawing of a firearm with internal components and no visible text or symbols

Do not aim or shoot a person or animal as the target.

Avoid pulling the trigger carelessly.

Always put the gun in a case or bag when you carrying it.

Always set the switch lever to the safety position.

Do not look into the gun muzzle.

Always wear eye protective gear.

Store the airsoft gun at the places out of reach by children.

Do not disassemble or modify the airsoft gun.

SR-002

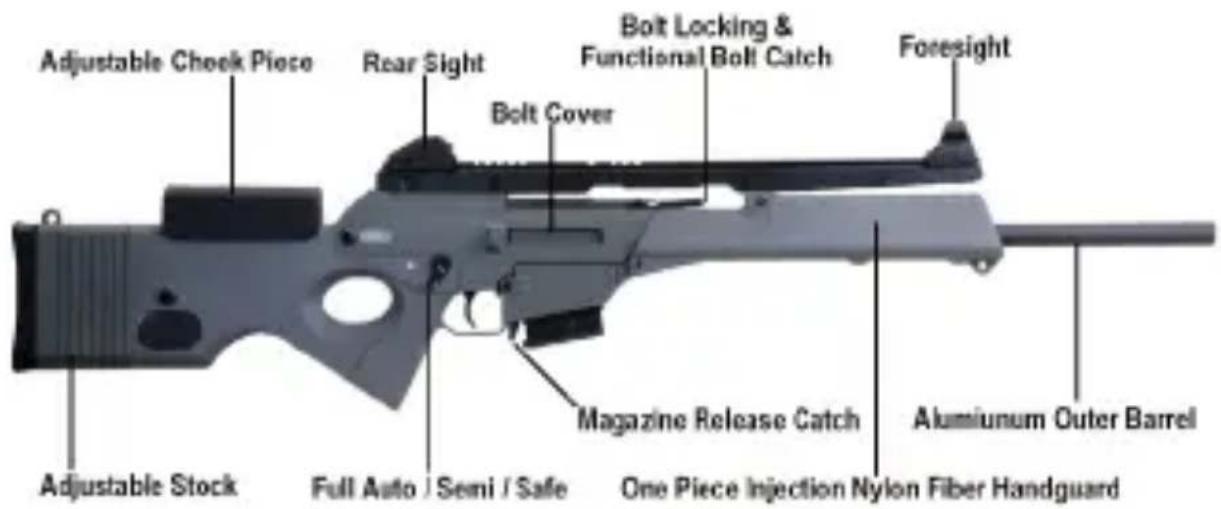

Adjustable Cheek Piece Rear Sight Bolt Cover Bolt Locking & Functional Bolt Catch Foresight Magazine Release Catch Aluminum Outer Barrel Adjustable Stock Full Auto / Semi / Safe One Piece Injection Nylon Fiber Handguard

FEATURES

• Metal Gear Box
• Easy Power Step Up System
  • Bolt Locking & Functional Bolt Catch
  • Aluminum Outer Barrel

BATTERY:

MAGAZINE CAPACITY:

MODE:

MATERIAL:

MOTOR:

HOP-UP:

LENGTH:

WEIGHT:

VELOCITY:

8.4V 1700mAh

20rds (6mm 80)

Full Auto / Semi / Safe

Nylon Fiber + Zinc Alloy

High Torque Flat Motor

Adjustable

980 / 1030mm (In 6 Steps)

3600g

350-380FPS

SAFETY

• DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in way may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
• Always check to see if the airsoft gun is "ON SAFE" and unloaded when getting it from another person or from storage.
  • Always keep the airsoft gun "ON SAFE" until you are ready to shoot in a SAFE DIRECTION.
  • Misuse or careless use may cause serious injury.
  • Do not look into the gun muzzle.
• Do not ever point the airsoft gun at anything you do not intend to shoot.
• You and other with you should always wear shooting glasses to protect your eyes.
• If your reading or prescription glasses are not safety glasses, make sure you wear shooting glasses over your regular glasses.
• Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the airsoft gun.
• Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or ricochet and hit someone or something you had not intended to hit. If the plastic BBs should happen to hit a hard surface, do not reuse those plastic BBs because they could cause possible damage to your airsoft gun.
  • Use 6 mm plastic BBs only.
  • Always put the airsoft gun in a case or bag when you carrying it.
  • Always store this airsoft gun in a secure location and at the places out of reach by children
  • Alway treat the airsoft gun as though it is loaded and with the same respect you would a firearm.
  • Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be unsafe and will void your warranty.
  • We are not responsible for any malfunction, accidents, injuries or repair cost resulting from misuse, or by disassembly and modification of the airsoft gun.

Manufact ARES®

Manufacturer & Brand Owner : Forever Good (Hong Kong) Ltd.

Worldwide:

Ares Website: http://www.aresairsoft.com

General Enquiries: [e-mail]

North America: ZShot

Exclusive Distributor - http://www.ZShot.com

Dealer Inquires: [e-mail] Technical Support: [e-mail]
