Produkttyp	Projektionsleinwand
Marke	Optoma
Modell	DS-3100PMG
Bilddiagonale	254 cm (100 Zoll)
Bildformat	16:9
Leinwandmaterial	Mattweiß (Gain 1.0)
Rahmen	Aluminiumrahmen
Aufstellungsart	Stativ oder Wandmontage
Gewicht	ca. 8 kg
Abmessungen (aufgerollt)	ca. 220 x 10 x 10 cm
Sichtfläche	ca. 221 x 124 cm
Fernbedienung	nicht enthalten
Stromversorgung	nicht erforderlich
Anwendungsbereich	Heimkino, Präsentationen
Reinigung	mit weichem, trockenem Tuch
Lagerung	trocken, staubfrei
Mitgeliefertes Zubehör	Tragetasche, Montagematerial
Herstellergarantie	2 Jahre
Kompatibilität	alle Projektoren
Besonderheiten	Flache Faltenbildung, schnell aufbaubar

Häufig gestellte Fragen - DS-3100PMG OPTOMA

Wie reinige ich die Leinwand?

Verwenden Sie ein weiches, trockenes Tuch. Vermeiden Sie scharfe Reinigungsmittel, da diese die Oberfläche beschädigen können.

Wie wird die Leinwand aufgebaut?

Die Leinwand wird aus der Tragetasche genommen und der Rahmen wird ausgeklappt. Bei Stativmodellen die Beine ausziehen und die Leinwand auf die gewünschte Höhe einstellen.

Kann die Leinwand im Freien verwendet werden?

Ja, bei windstillem Wetter. Achten Sie darauf, dass die Leinwand nicht nass wird, da dies zu Schäden führen kann.

Welche Bilddiagonale hat die Leinwand?

Die Bilddiagonale beträgt 254 cm (100 Zoll) im Format 16:9.

Ist die Leinwand für 4K-Projektionen geeignet?

Ja, das matte Material eignet sich für Full HD und 4K-Inhalte.

Wie schwer ist die Leinwand?

Das Gewicht beträgt ca. 8 kg, was einen einfachen Transport ermöglicht.

Kann ich die Leinwand waschen?

Nein, die Leinwand sollte nicht gewaschen werden. Nur trocken reinigen.

Wird eine Fernbedienung mitgeliefert?

Nein, die Leinwand ist manuell bedienbar und benötigt keine Fernbedienung.

Wie lagere ich die Leinwand am besten?

Lagern Sie die Leinwand trocken und staubfrei in der mitgelieferten Tragetasche.

Was tun bei Falten in der Leinwand?

Kleine Falten verschwinden oft von selbst nach kurzer Nutzung. Bei hartnäckigen Falten kann man die Leinwand leicht spannen oder mit einem Fön auf niedriger Stufe vorsichtig erwärmen.

BEDIENUNGSANLEITUNG DS-3100PMG OPTOMA

Optoma

Optoma Asia Corporation

5F., No 108, Minchiuan Rd., Xindian City, Taipei 231

Tel: [phone] Fax: [phone]

Fax: [phone] www.optoma.com.tw

Optoma USA

715 Sycamore Drive

Milpitas, CA 95035 USA Tel: [phone]

Tel: [phone] Fax: [phone]

www.optomausa.com

Optoma Europe Ltd.

42 Caxton Way

The Watford Business Park

Watford Hertfordshire WD18 8QZ UK

Tel: [phone] Fax: [phone]

Fax: [phone] www.ontoma.co.uk

www.optoma.co.uk

Optoma

Simple line drawing of a blank rectangular frame with a roller behind it (no text or symbols)

Installation Guide for

Optoma Manual Pull-Down with Speed Control Mechanism

• Easy to operate and reflects vivid and colourful images.
  ■ Applicable for education venues, meeting rooms, control rooms, boardrooms, training facilities and home theatres.
• Specially suited for specific use projectors.

Evaliable Spec

Model #	Dia.Size	Format	Model #	Dia.Size	Format
DS-3072PMG+	72"	4:3	DS-9084PMG+	84"	16:9
DS-3084PMG+	84"	4:3	DS-9092PMG+	92"	16:9
DS-3100PMG+	100"	4:3	DS-9106PMG+	106"	16:9
DS-3120PMG+	120"	4:3	DS-9120PMG+	120"	16:9

Product Safety

To ensure your safety, please read "Product Manual and Warnings"

■ The ceiling or wall used for fixture installation must be secure to prevent the screens from falling.
Please read the following as any damage to the screen surface will affect the quality of the picture:

1. Avoid contact or touching the screen surface as it may cause scratches or tears.

2. Do not write or draw on the surface

3. Clean the screen with a soft cloth and lukewarm water. Do not use any detergent or cleaning products.

■ Roll up the screen after every use.
■ Ensure that the screen is level when installing; do not pull on the sides or fold the screen.
■ To prevent unnecessary damage, the operating and maintenance of the screen should be done by adults.

Product Features

■ Trendy and Elegant

The metal casing is compact and elegant. The white cover is coated with PVC technology that enhances the feel and esthetics.

■ Resolution

The matte white material provide different brightness and viewing ranges, flexible to suit every setting. The matte white allows a wider view range and soft colors.

■ Speed Control

Some manual screens have locking systems that secure screens into place but do not have speed-reducing mechanisms. Screens may retract too fast and damage both the screen and casing. It may cause rips in the screen or the bottom bar to detach. In more serious cases, the whole screen may fall series are equipped to control both the speed and self-lock, which prevents any damage to screen and casing.

■ Location

It is suited for various venues such as education facilities, home theaters, boardrooms, or other entertainment sites.

Instructions

Pull down to the desired height; pause for 3 seconds, and the screen will self-lock.

1. Use rope to pull down bottom rod until with in hand reach distance.
2. Continue to pull down with hand to desired height, and then hold for 3 seconds.
3. To retract screen, pull down lightly to release locking system, let go and the screen will return to casing.

Warnings

	Ignoring the safety warnings may lead to injuries and/or damagingthe product.	[XOK3]	Fixtures should be installed in a secure place to avoid accidents or the screen falling.
[A647]	Please contact your local dealer for repairs or maintenance. Please contact our company if you have any further questions. Avoid taking apart the fixtures yourself. Loose parts may cause the screen to fall.		[TOSS]Roll up the screen after every use. Leaving it hanging for a long period of time may cause the fabric to loosen.

Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer. Product specifications are subject to change.

Ceiling Mount

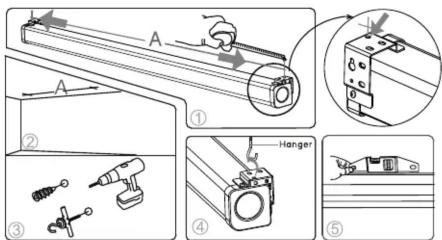

Using a tape measure find out the distance between the two keyholes on the casing (figure 1). According to the measurement, use the drill to drill identical holes of the appropriate size on the ceiling and ensure that it is level (figure 2 & 3). Screw in the hook screws (not provided), and lift the screen into the hook screws to hang (figure 4). To ensure that the screen is level, use a level to check (figure 5).

Wall/Ceiling Mounting Installation

Description

Accessories

■ 5x40mm Screws and Anchors (2)

■ 5x60mm Screw ( 4 )

■ Installation Manual

Installation

1. This projection screen should be installed at the best possible viewing position for the audience. Take out all the parts from the packaging and follow the accessories guideline to ensure you have all the parts. The parts needed will vary depending on which installation you choose to use. For installation on a wood wall or ceiling, use 5 x 40 anchors and screws.

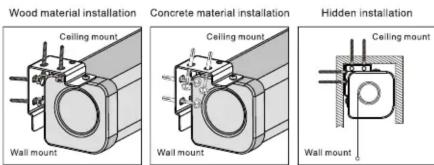

2. There are two way for wall brackets to fix on the housing. As you can see on the figure 1, which is our normal fixed way(namely factory set). While the other fixed way is to interchange the left and right wall brackets, and then fix onto the housing(namely functional installation way, as figure 2).

Factory-set installation way

Functional installation way

Installation one (Factory-set installation way)

Wall Mount

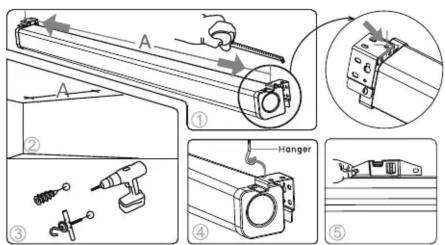

Using a tape measure, measure the distance between the two keyholes on the casing (figure 1). According to the measurement, use the drill to drill identical holes of the appropriate size on the wall (use a smaller drill bit than the actual screws) and ensure that it is level (figure 2 & 3). Screw in the appropriate screws, either 5 × 40 by itself for wood walls or with anchors for drywalls, leaving enough space at the end to hang the casing (figure 4). To ensure that the screen is level, use a level to check (figure 5).

Ceiling Mount

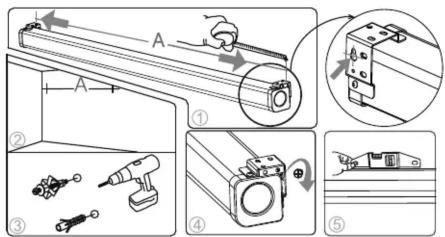

Using a tape measure find out the distance between the two keyholes on the casing (figure 1). According to the measurement, use the drill to drill identical holes of the appropriate size on the ceiling and ensure that it is level (figure 2 & 3). Screw in the hook screws (not provided), and lift the screen into the hook screws to hang (figure 4). To ensure that the screen is level, use a level to check (figure 5).

Installation two (Functional installation way)

For Functional installation way, we can not only use wall mounting, ceiling mounting to fix the housing, but also can just nail the housing onto the wall and ceiling via wall brackets using spare screws. Please make sure that, using this installation way, you have to take off the factory-set wall brackets and then interchange left & right brackets before mounting.

Wall Mount

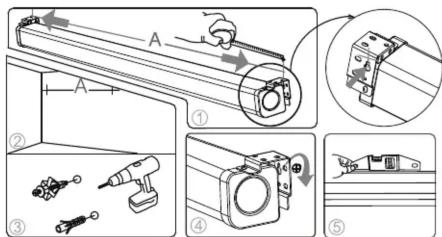

Using a tape measure, measure the distance between the two keyholes on the casing (figure 1). According to the measurement, use the drill to drill identical holes of the appropriate size on the wall (use a smaller drill bit than the actual screws) and ensure that it is level (figure 2 & 3). Screw in the appropriate screws, either 5 × 40 by it self for wood walls or with anchors for drywalls, leaving enough space at the end to hang the casing (figure 4). To ensure that the screen is level, use a level to check (figure 5).
