BRUGSANVISNING AF092MAERA HAIER
Console
AF092MAERA

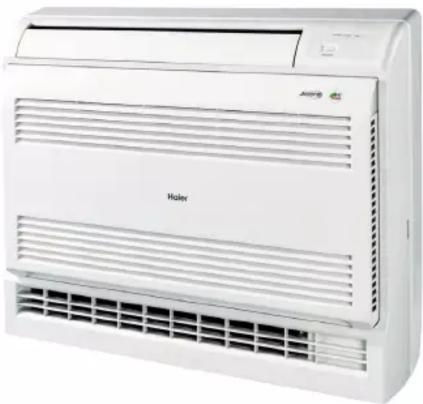

- Top and bottom air supplying.
- Compact size for small spaces
• High efficiency filter for better air quality - Quiet operation, improving indoor comfort
PERFORMANCE
| Indoor unit name: | Console | Rated heating capacity(kW): | 3.2 |
| Indoor unit model: | AF092MAERA | Heating input power(kW): | 0.1 |
| Type: | Console | Rated cooling conditions: | Indoor(°C DB/WB):27/19 Ambient(°C DB/WB):35/24 |
| Rated cooling capacity(kW): | 2.8 | Rated heating conditions: | Indoor(°C DB/WB):20/14.5 Ambient(°C DB/WB):7/6 |
| Sensible capacity(kW): | 1.9 | Rated piping length (m): | |
| Cooling input power(kW): | 0.1 | Rated height separation(m): |
INDOOR UNIT DETAILS
| Power supply(V/Hz/Ph): | 220-230/50/60/1 | Airflow rate (H/M/L)(m3/h): | 460/370/280 |
| Power supply connections: | L,N, Ground | Moisture removal(m3/h): | |
| Min. circuit Amps MCA (A): | 0.28 | Gas pipe connection(mm): | Φ12.7 |
| Max. fuse Amps MFA (A): | 0.88 | Liquid pipe connection(mm): | Φ6.35 |
| Dimensions(H×W×D)(mm): | 640×720×255 | Condensate connection(mm): | Φ16.5 |
| Panel(H×W×D)(mm): | / | Sound pressure(H/M/L)(dBA): | 43/39/36 |
| Net weight(kg): | 18 | Sound power level(H/M/L)(dBA): | 56/53/49 |
| Panel weight(kg): | / | Ext. static pressure (Rated/Max)(Pa): | 0/0 |

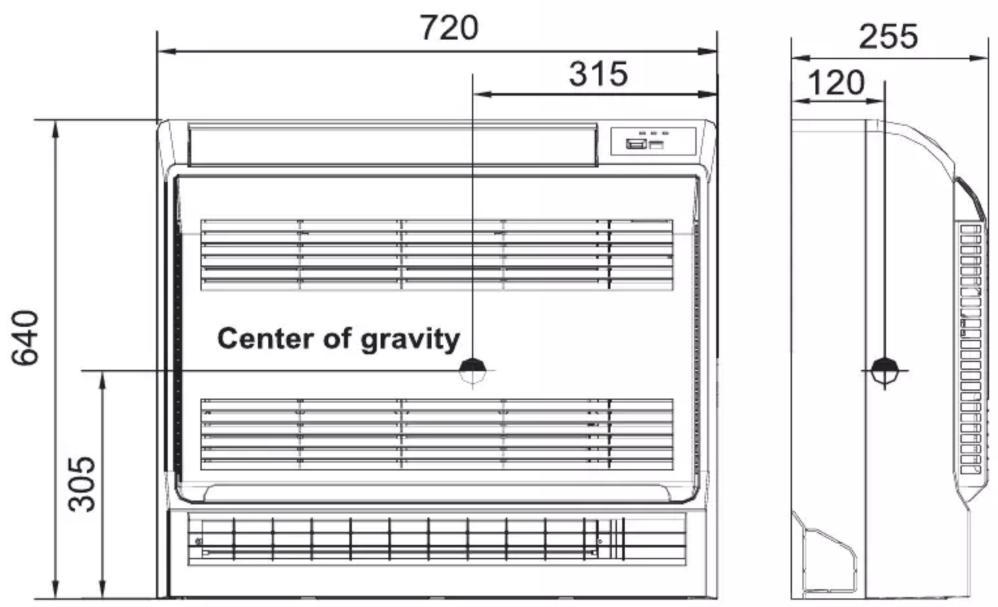

DIMENSIONAL DRAWING
