SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL

HSU11V-TMS3BN-INV

HSU11V-TMB3BN-INV

HSU11V-TMG3BN-INV

HSU11V-TMR3BN-INV

HSU17VP-TQS3BN-INV

HSU17VP-TQP3BN-INV

HSU17VP-TQI3BN-INV

HSU12V-TMS3BN-INV

HSU13K-PZB3BN-INV

HSU13E-TXG4BN-INV

HSU13K-PYFR4BN-INV

HSU13E-TXGSBN-INV

HSU13K-PYFR5BN-INV

HSU13K-PYFC5BN-INV

HSU13K-PYFG5BN-INV

HSU13E-TXW5BN-INV

HSU13E-TXSSBN-INV

HSU13K-PYSG5BN-INV

HSU13K-PYSC4BN-INV

HSU13K-PYFR3BN-INV

HSU13C-TQB3BN-INV

HSU13C-TQBS3BN-INV

HSU13C-TQS3BN-INV

HSU13C-TTB3BN-INV

HSU13K-PYSG3BN-INV

HSU13K-PYSS3BN-INV

HSU13Z-PZFDB3BN-INV

HSU14E-TXW5BN-INV

HSU14E-TXSSBN-INV

HSU14K-PYFG58BN-INV

HSU14K-PYFR58BN-INV

HSU14E-TXG58BN-INV

HSU14C-TQG38BN-INV

HSU14K-PYFC58BN-INV

HSU14K-PYSG58BN-INV

HSU14K-PYFN58BN-INV

HSU14K-PYFR58BN-INV

HSU15V-TMS38BN-INV

HSU17V-TMS38BN-INV

HSU17VP-TQN38BN-INV

HSU17VP-TQA38BN-INV

HSU17VP-TQB38BN-INV

HSU17VP-TQG38BN-INV

HSU17VP-TQR38BN-INV

HSU30V-TBS38BN-INV

HSU35V-TBS38BN-INV

HSU40V-TBS38BN-INV

HSU50K-PYFW38BN-INV

HSU50K-TQS38BN-INV

HSU50KP-PYFFN38BN-INV

HSU50KP-PYFN38BN-INV

HSU50CP-TQR38BN-INV

HSU50CP-TQS38BN-INV

HSU50CP-TQP38BN-INV

HSU50CP-TQA38BN-INV

HSU50CP-TQ38BN-INV

HSU50CP-TQN38BN-INV

HSU50C-TQB3BN-INV

HSU18C-TQB3BN-INV

HSU18C-TQB3BN-INV

HSU18V-TQB3BN-INV

HSU18V-TQB3BN-INV

HSU18K-PYFC3BN-INV

HSU18R-NTB3BN-INV

HSU18K-PYFR4BN-INV

HSU18K-PYFR4BN-INV

HSU18R-NTR3BN-INV

HSU18K-PYSS3BN-INV

HSU18K-PYFC4BN-INV

HSU18K-PYFC4BN-INV

HSU18K-PYSG4BN-INV

HSU18K-PYSG4BN-INV

HSU18K-PYG5CBN-INV

HSU18K-PYG5CBN-INV

HSU18K-PYFC5BN-INV

HSU18Z-PZFDB3N-INV

HSU18EP-TXSBSN-INV

HSU18EP-TXSBSN-INV

HSU18EP-TXSBSN-INV

HSU18EP-TXRSBN-INV

HSU18EP-TXRSBN-INV

HSU18KP-PYFS5BB-INV

HSU18KP-PYFS5BB-INV

HSU18KP-PYRSRBN-INV

HSU18KP-PYCS5BB-INV

HSU18KP-PYCS5BB-INV

HSU18KP-PYFFRBN-INV

HSU18KP-PYFFC5BN-INV

HSU18KP-PYFFRBN-INV

HSU52VP-TXWSBN-INV

HSU52V-TBS3BN-INV

HSU52V-TBS4BN-INV

HSU52V-TBS4BN-INV

HSU52VP-TXGSBN-INV

HSU52VP-TXGSBN-INV

HSU52VP-TXRSBN-INV

HSU52VP-TXRSBN-INV

HSU19E-TXG4BN-INV

HSU19C-TQ-G3BN-INV

HSU19K-PYFR4BN-INV

HSU19E-TX5BN-INV

HSU19E-TX5BN-INV

HSU19E-TX53BN-INV

HSU19K-PYFR5BN-INV

HSU19K-PYFC5BN-INV

HSU19E-TX5BN-INV

HSU19K-PYFC5BN-INV

HSU19SH-DP-FGB8N-INV

HSU19K-PYCS5BN-INV

HSU19G-MZFWSBN-INV

HSU19KB-PYPS5BN-INV

HSU19KB-PG5GBN-INV

HSU19K-PYGS3BN-INV

HSU19K-PYSS3BN-INV

HSU19K-PYSC4BN-INV

HSU19SH-DP-FGB6N-INV

HSU19K-PZFBSBN-INV

HSU19SH-DP-FGB7N-INV

HSU19SH-DP-FGB3N-INV

HSU19K-PYGS5BN-INV

HSU19SH-DP-FGB5N-INV

HSU19K-PZF5SN-INV

HSU19K-PZFPS5BN-INV

HSU19K-PZFDSBN-INV

HSU19K-PZFCS5BN-INV

HSU19K-PZFCS5BN-INV

HSU19G-MZFMSBN-INV

HSU19G-MZFS5BN-INV

HSU19G-MZFDSBN-INV

HSU19G-MZFDSBN-INV

HSU19G-MZFMSBN-INV

HSU19K-PYFR3BN-INV

HSU20SH-DP-FGB6N-INV

HSU20SH-DP-FGB6N-INV

HSU24K-PYFR3BN-INV

HSU24K-PYFN3BN-INV

HSU24K-PYFS3BN-INV

HSU24K-PYFS3BN-INV

HSU24K-PYFG3BN-INV

HSU24E-TXS3BN-INV

HSU24E-TX3GBN-INV

HSU24E-TXW3BN-INV

HSU24E-TXR3BN-INV

HSU24E-TXR5BN-INV

HSU24E-TXS3BN-INV

HSU13K-PYAIR3BN-INV

HSU13K-PYAIR4BN-INV

HSU14K-PYAIR5BN-INV

HSU50KP-PAIW3BN-INV

HSU18K-PYAIR3BN-INV

HSU18K-PYAIR4BN-INV

HSU18KP-PAI5BN-INV

HSU19K-PYAIR4BN-INV

HSU19K-PYAIR4BN-INV

HSU19U-PYAIC5BN-INV

HSU19K-PYAIN5BN-INV

HSU19K-PYAIR5BN-INV

HSU19K-PZAIB5BN-INV

HSU19K-PZAIM5BN-INV

HSU19K-PZAIS5BN-INV

HSU19K-PZAIP5BN-INV

HSU19K-PZAIS5BN-INV

HSU19K-PZAIA5BN-INV

HSU19K-PZAIC5BN-INV

HSU19G-MZAIM5BN-INV

HSU19G-MZAIS5BN-INV

HSU19G-MZAIP5BN-INV

HSU19G-MZAID5BN-INV

HSU19G-MZIAIA5BN-INV

HSU19G-MZICA5BN-INV

HSU19G-MZIAWSBNN-INV

HSU20SD-PAIG5BN-INV

HSU20SD-PAIG5BN-INV

HSU24K-PYAIR3BN-INV

Parts and Functions

■ Indoor Unit

Outdoor Unit

① OUTLET ② INLET ③ CONNECTING PIPING AND ELECTRICAL WIRING ④ DRAIN HOSE
Actual inlet grille may vary from the one shown in the manual according to the product purchased
- Please read this operation manual before using the air conditioner. Keep this operation manual for future reference.

0011533504

Operation

Emergency operation and test operation

Emergency Operation:

- Use this operation only when the remote controller is defective or lost, and with function of emergency running, air conditioner can run automatically for a while.

- When the emergency operation switch is pressed, the "Pi" sound is heard once, which means the start of this operation. - When power switch is turning on for the first time and

- when power switch is turning on for the first time and emergency operation starts, the unit will run automatically in the following modes:

Room temperature	Designated temperature	Timer mode	Fan speed	Operation mode
Above 23°C	26°C	No	AUTO	COOL

- It is impossible to change the settings of temp. and fan speed,It is also not possible to operate in timer or dry mode.

Test operation:

Test operation switch is the same as emergency switch.

- Use this switch in the test operation when the room

temperature is below 16°C, do not use it in the normal operation.

- Continue to press the test operation

switch for more than 5 seconds. After

you hear the "Pi" sound twice, release

your finger from the switch: the cooling

operation starts with the air flow speed "Hi"

• Under this operation mode, the fan motor of indoor

unit will run in high speed.

Air Flow Direction Adjustment

1. Status display of air flow Vertical flap

Pos.1 → √→√→√→√→√→√→

2.Left and right air flow adjustment

(This function is unavailable on some models.)

For each press of SWING ◊

button, remote controller

displays as follows

remote controller

Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6

Note: In some model: The remote has the button SWING, But the AC doesn't have the left and right air flow auto adjustment function in this condition, change the direction of vertical blades manually.

Cautions:

- When adjusting the flap by hand, turn off the unit.

- When humidity is high, condensate water might occur

at air outlet if all vertical louvers are adjusted to left or right.

- It is advisable not to keep horizontal flap at downward

position for a long time in COOL or DRY mode

otherwise, condensate water might occur.

Note:

When restart after remote turning off, the remote controller will automatically memorize the previous set swing position.

Sleep Operation

Before going to bed, you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep.

Operation Mode

1. In COOL,DRY mode

1 hours after SLEEP mode starts, temp. will become 1^irc C

higher than temp.setting.After another 1 hours,temp.rises

by 1°C further. The unit will run for further 6 hours then stops

Temp. is higher than temp. setting so that room temperature won't be too low for your sleep.

1. In FAN mode: It has no SLEEP function

2. Set the wind speed change when sleeping

If the wind speed is high or middle before setting for the sleep, set for lowing the wind speed after sleeping. If it is low wind, no change.

Note

When TIMER function is set, the sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on.

■ Turbo /Quiet Operation

When you need fast cool or fast

dehumidification,you can choose

the Turob function; when you sleep,

read, you can choose Quiet function

button, you can switch the "Turbo" and

"Quiet" function easily. Every press, the remote controller will

switch as below → ↗TURBO→ ↘QUIET→ cancel —

When running in Turbo, the fan speed is the highest, when running in Quiet, the fan speed is super slow

Operation

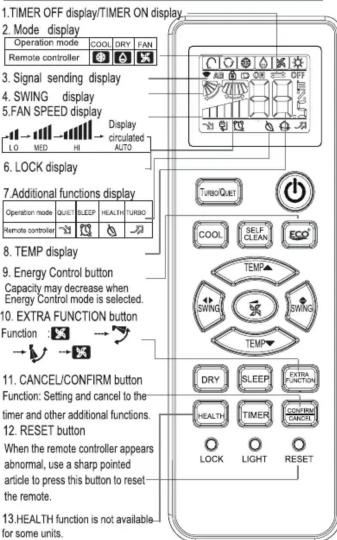

■ Remote controlle
