BRUGSANVISNING Club 605CSQ JBL

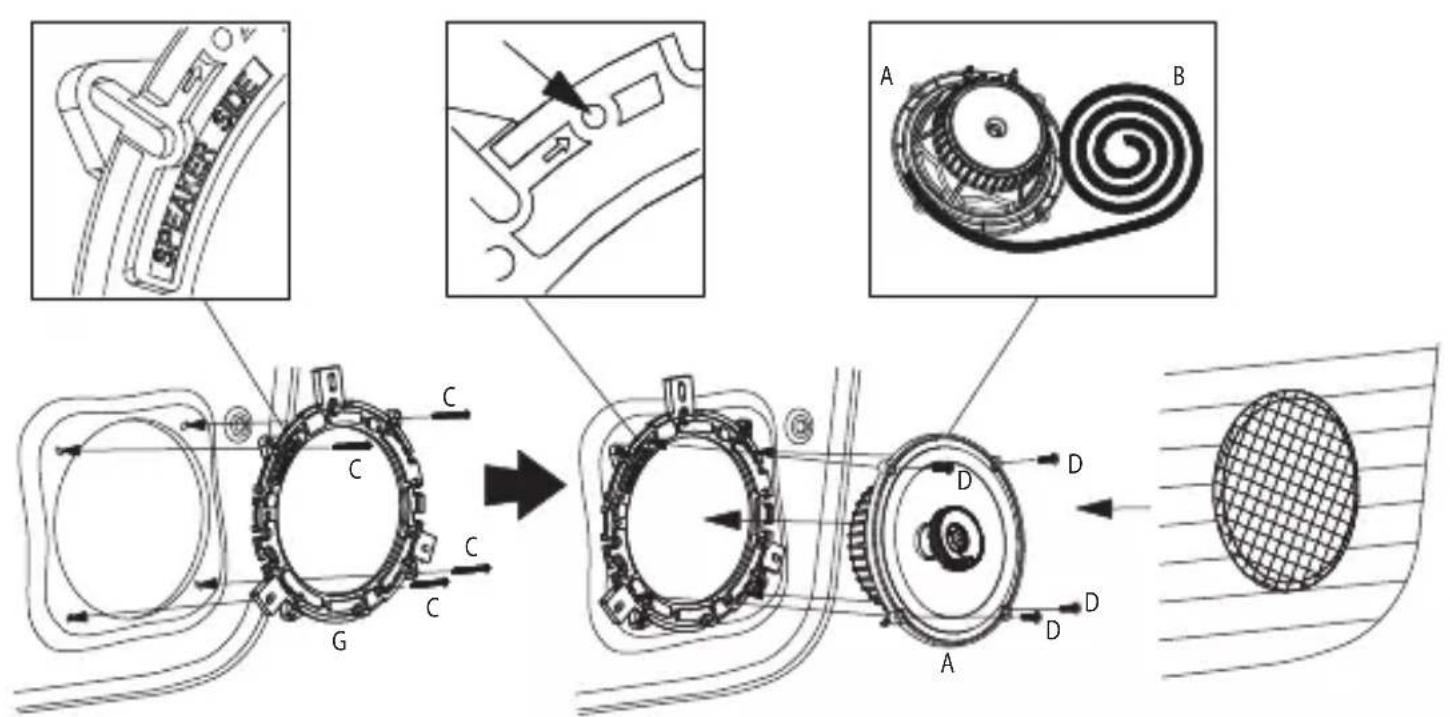

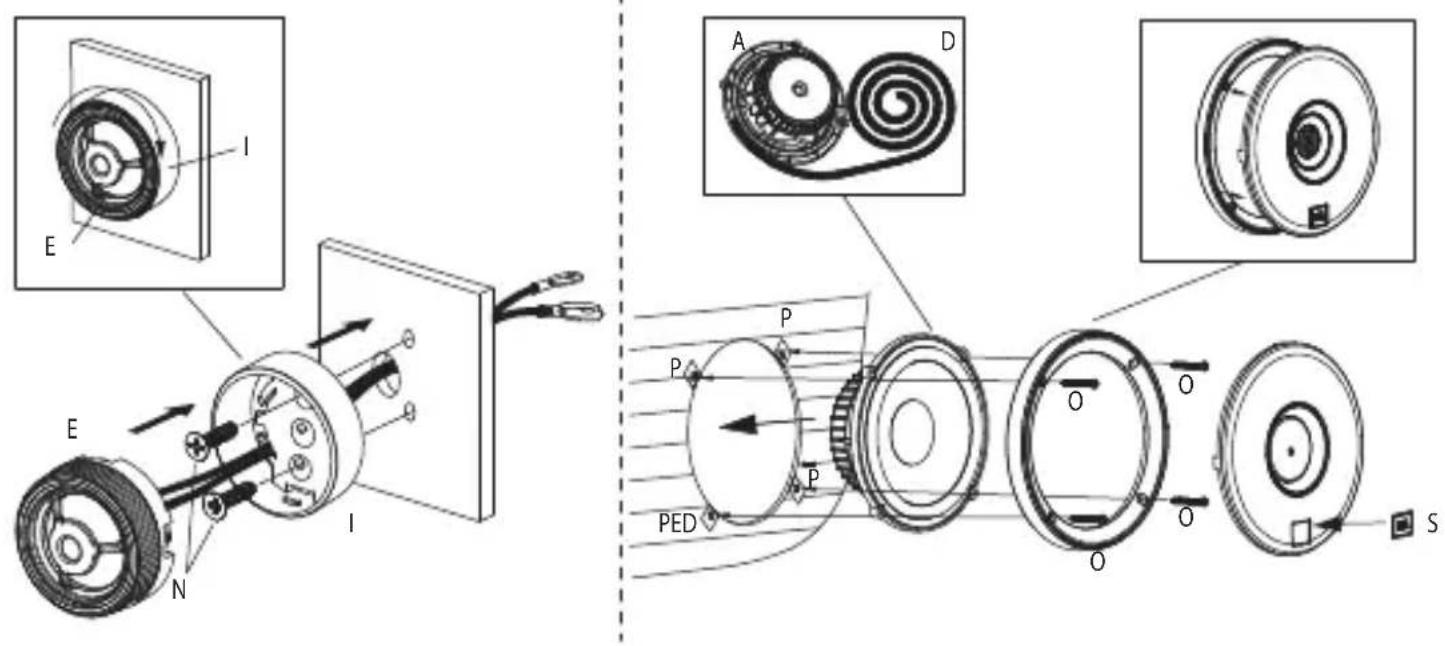

INSTALLATION MANUAL

CLUB 605CSQ CLUB 625SQ

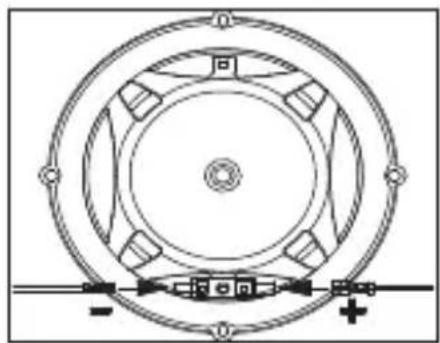

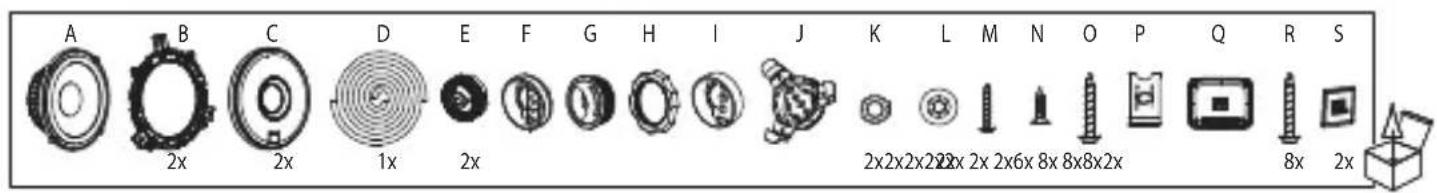

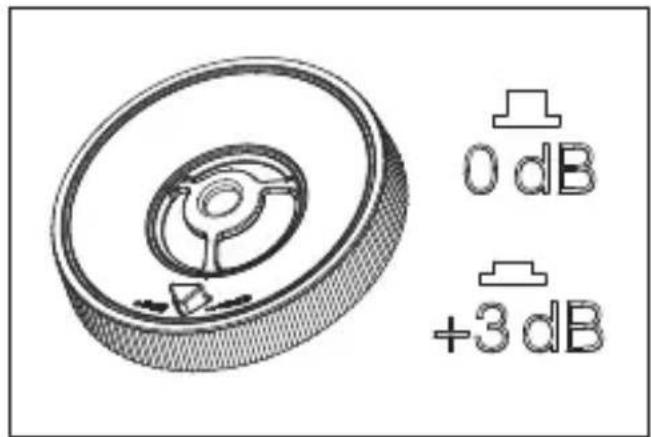

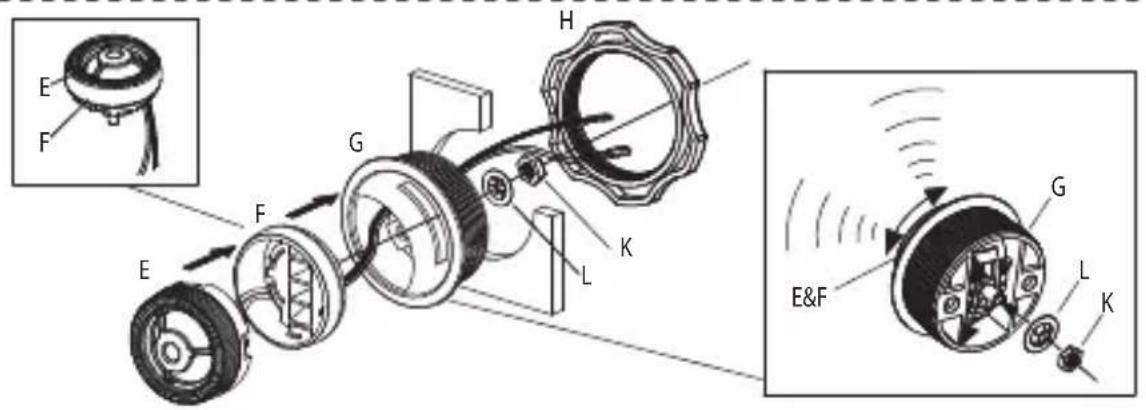

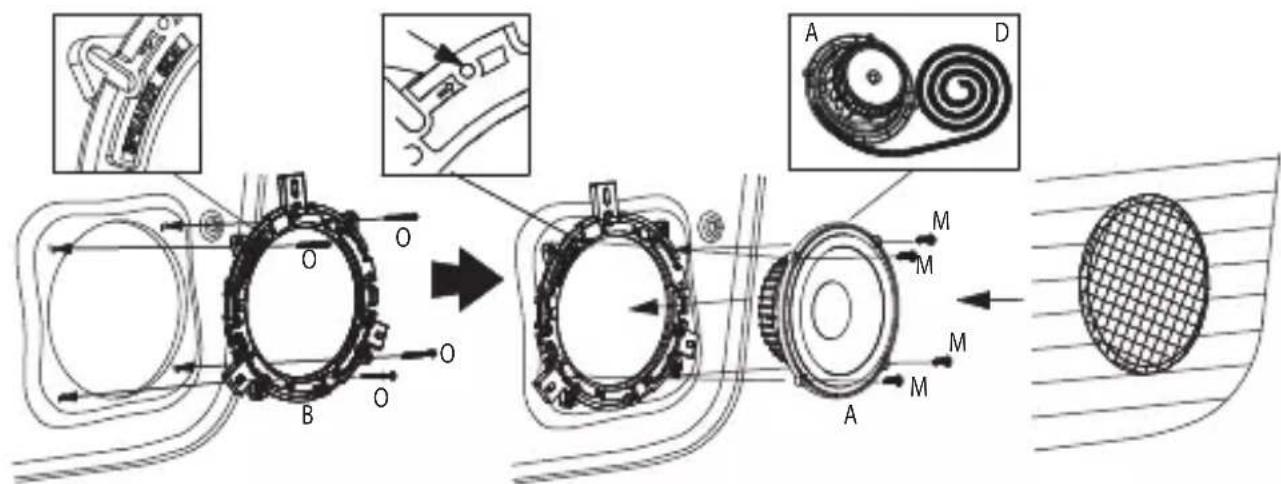

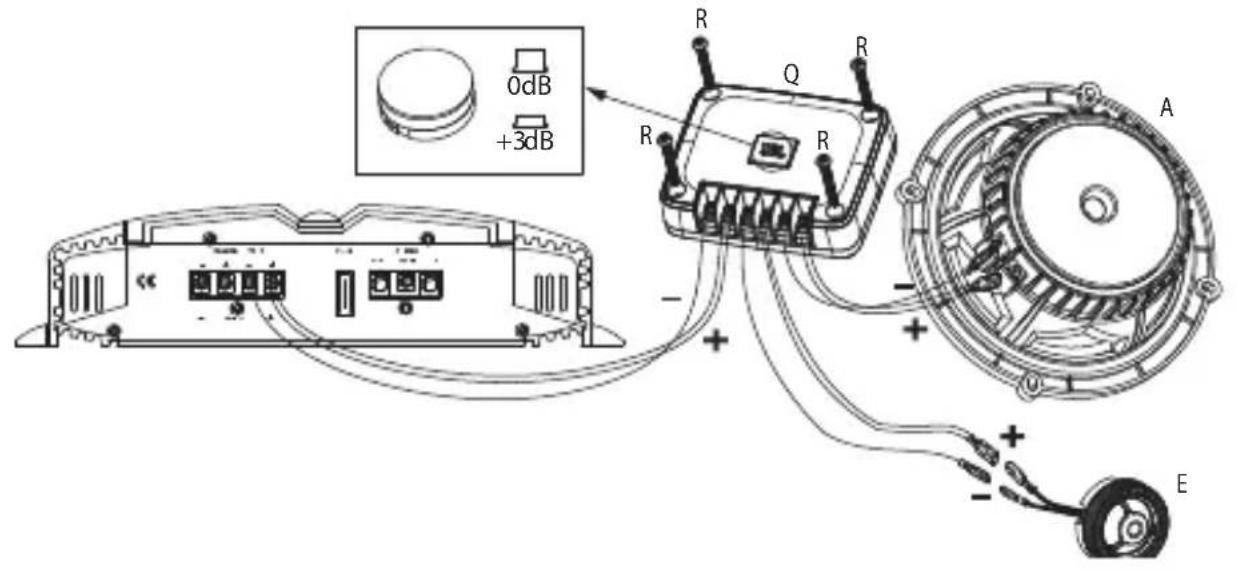

CLUB 605CSQ

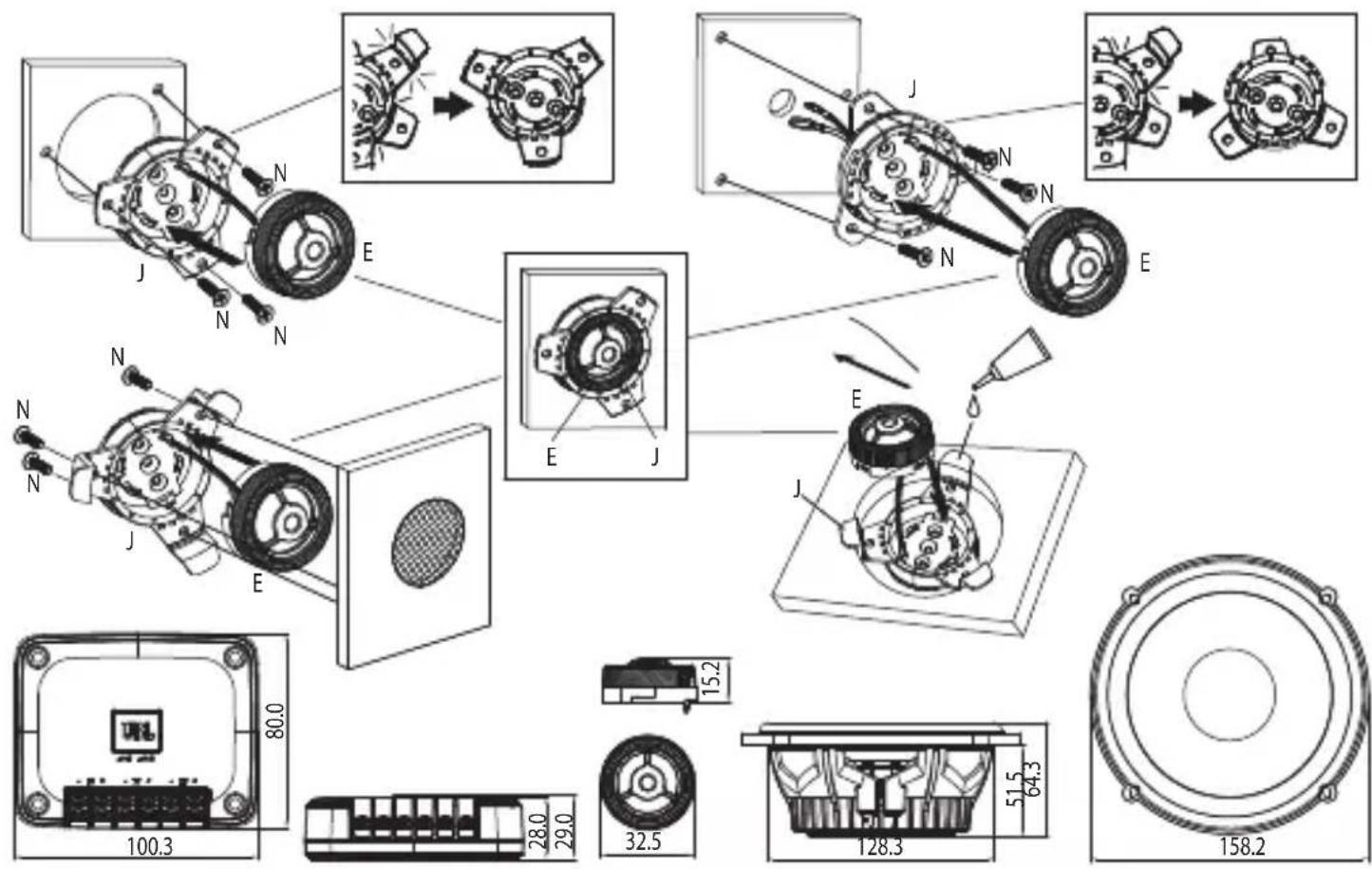

Technical diagram of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Specification

• Type: 6-1/2" (160mm) 2-way Component Speaker System, Engineered For Ultimate Sound Quality.
  • Power Handling: 95W RMS, 285W peak
  • Sensitivity (@ 2.83V): 93dB
  • Frequency Response: 48Hz – 21kHz
  • Nominal Impedance: 3.0 ohms

Thiele-Small Parameters

• BL (Tm): 3.776
• DCR (ohms): 2.09
• Mms (g): 13.238
• Sd (cm2): 132.73
• Cms (μm/N): 0.536
• Vas (I): 13.3648
• Fs (Hz): 59.7
• Qes: 0.728
  • Qms: 8.315
• Qts: 0.670
  • Crossover Point: 5 kHz

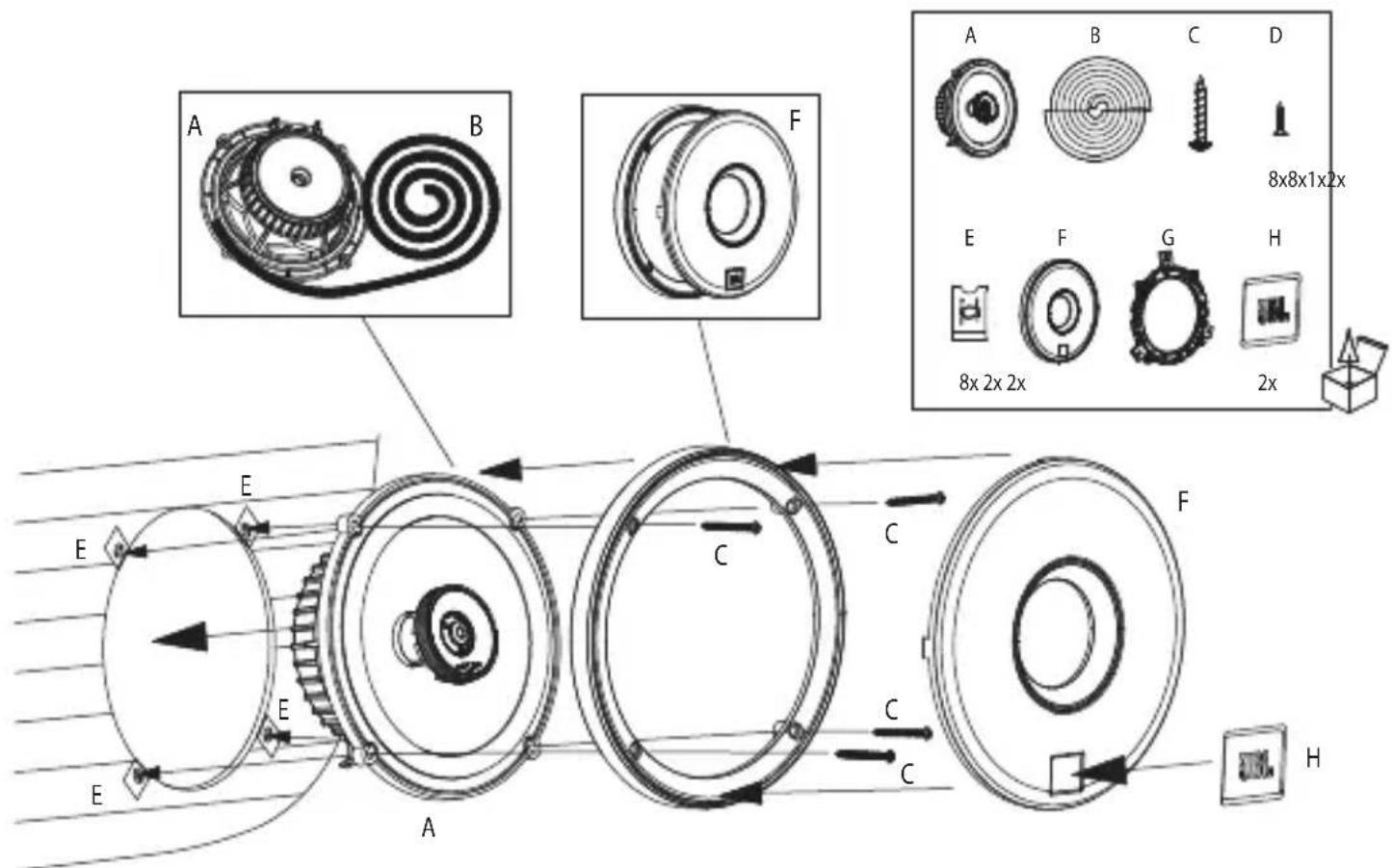

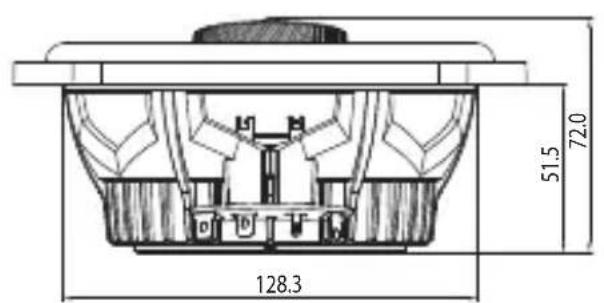

CLUB 625SQ

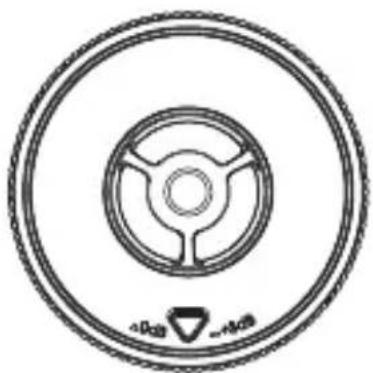

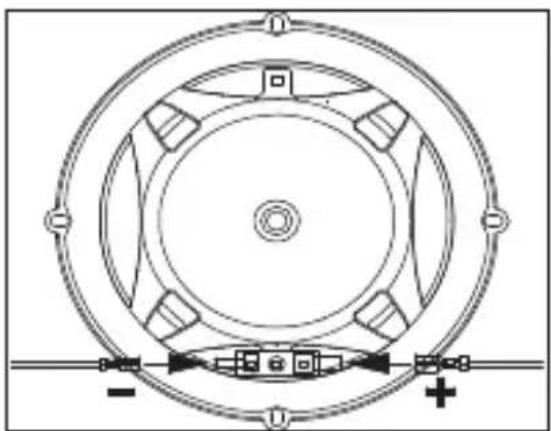

Circular diagram with a central hub and three segments, no text or symbols present

Technical diagram of a circular mechanical component with symmetrical slots and mounting points (no text or symbols)

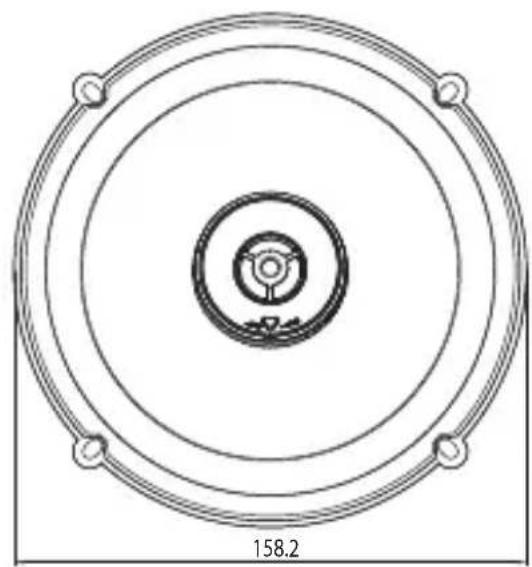

Symmetrical concentric circular diagram with central hole and four corner points, labeled 158.2 at bottom (no text or symbols within the diagram itself)

Specification

• Type: 6-1/2" (160mm) 2-way Car Speaker, Engineered For Ultimate Sound Quality.
  • Power Handling: 75W RMS, 225W peak
• Sensitivity (@ 2.83V): 93dB
  • Frequency Response: 48Hz – 21kHz
  • Nominal Impedance: 3.0 ohms

Thiele-Small Parameters

• BL (Tm): 3.748
• DCR (ohms): 2.12
• Mms (g): 12.273
• Sd (cm2): 132.73
• Cms (μm/N): 0.530
• Vas (l): 13.2162
• Fs (Hz): 62.4
• Qes: 0.724
  • Qms: 9.037
• Qts: 0.671
  • Crossover Point: 5 kHz
