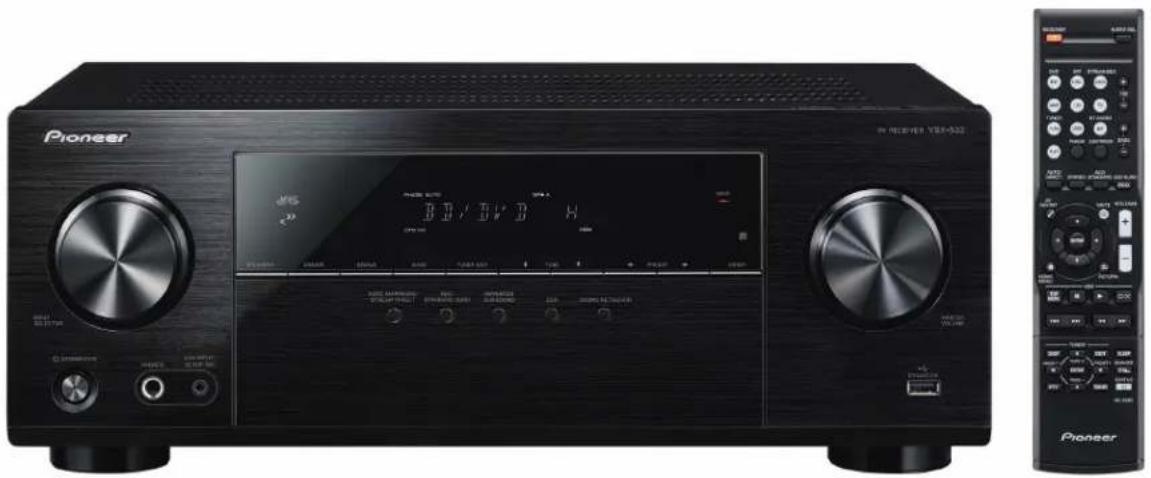

The VSX-532 is an ideal center piece for creating your own home theater system, featuring 4 HDMI inputs and Ultra HD (4K/60p/4:4:4) and HDR (High Dynamic Range)* pass-through with HDCP 2.2. Enjoy audio streaming from compatible devices with the built-in Bluetooth® Wireless Technology. Pioneer's signature MCACC and Phase Control technologies provide synchronized sound for a realistic and dynamic performance.

* Supports HDR 10 signal pass-through

Amplification

Channels: 5
Amplification Type: Direct Energy
150 W/ch (6 ohms, 1 kHz, THD 10%, 1ch Driven)
80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)

Audio Features

Dolby TrueHD/Dolby Digital Plus/Dolby Pro Logic II
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS Neo:6
DTS-Express/DTS 96/24
DSD Disc (SACD) Playback via HDMI (2.8 MHz)
Digital Core Engine with Texas Instruments Aureus™ DSP
192 kHz/24-bit DAC
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning

- Phase Control

• Automatic Crossover Detection

Pioneer Sound Enhancements

• Advanced Sound Retriever (2ch)
• Auto Level Control (2ch)
- Midnight
- Loudness

Front Terminals

USB 1 In for USB Drive
MCACC Setup MIC In
Audio 1 In (Mini Stereo Jack)
Phones 1 Out

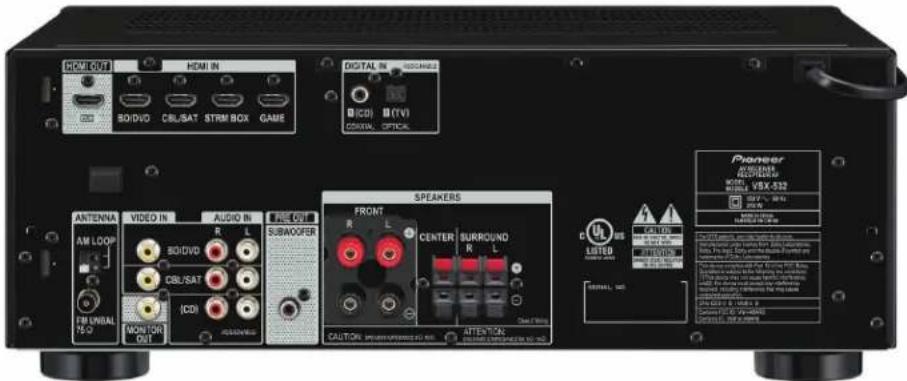

Rear Terminals

HDMI 4 In
HDMI 1 Out
AV (Composite) 2 In
Audio 1 In (Assignable)
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Monitor Composite 1 Out
Subwoofer 1 Pre Out
Speaker 5 ch Out (FRONT, CENTER, SURROUND)
FM/AM Antenna

Specifications

Power Requirements: AC 120 V, 60 Hz
Power Consumption/Standby: 210 W/0.35 W
Product Dimensions (W x H x D): 17-1/8 x 6-5/8 x 12-5/8 inches (435 x 168 x 320.5 mm)
Product Weight: 17.6 lbs. (8 kg)
CartonDimensions (W X H X D): 20-1/2 x 16-7/8 x 9-3/4 inches (522 x 430 x 247mm)
Carton Weight: 20.5 lbs (9.3kg)
Country of Origin: China
UPC: 889951000914

What's in the box

Main unit
Setup microphone
Remote control
AAA size batteries x2
AM loop antenna
FM wire antenna
Quick start guide
Safety Brochure

See More Detail with 4K/60p Pass-through

The feature lets you take advantage of the highest-quality video source, by passing through 4K/60p /4:4:4 signals for viewing on a compatible display. The VSX-532 supports HDCP 2.2, so by connecting to a compatible device, you can enjoy premium content such as 4K videos with digital copy protection.

4K/60p/4:4:4 4K/60p/4:2:0
* For illustration purpose only

Next Generation Video Standard Ready

The VSX-532 is ready to pass through the next generation video standard HDR (High Dynamic Range), which was adopted by Ultra HD Blu-ray™. HDR is a technology that drastically expands the brightness peak, providing a higher contrast between light and dark images, which creates even more life-like pictures.

HDR Dynamic Range Expansion Image

No HDR

With HDR
* For illustration purpose only

MCACC Auto Room Tuning

Create the optimum acoustic environment with Pioneer's MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.

Synchronized Sound with Phase Control

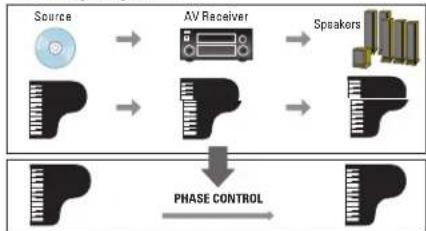

When amplifying multi-channel audio signals, receivers use a Low Pass Filter (LPF) to process low-frequency signals for subwoofer output. This causes phase shift of the low-frequency signals compared to the main channel signals, and the delayed bass makes the sound lack synchronization. Pioneer's Phase Control technology effectively eliminates phase lag and reproduces clearer mid- and high-range sound. You can feel the bass vibrating the air and deeper voices in films, and the groove of the performer in music content.

The "Phase Control" Compensates for the Delay of Low-Frequency Sound

Master Quality with Dolby TrueHD/DTS-HD Master Audio

The VSX-532 supports Dolby TrueHD and DTS-HD Master Audio surround soundtracks, letting you experience the world of true high-

DOLBY AUDIO

definition entertainment from Blu-ray Discs. The lossless codecs are bit-for-bit identical to the studio master.

Enjoy Quality Sound from Compressed Audio

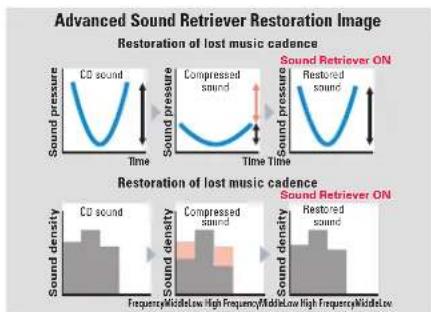

The Advanced Sound Retriever restores the output of compressed audio such as WMA, AAC, and MP3, to the level of CD sound. The technology creates new signals to restore the minor details left out during the compression process.
    DP2["Frequency Low High Frequency Mid-Low High Frequency Mid-Low"]

Built-in Bluetooth® Wireless Technology With the built-in Bluetooth®

Wireless Technology (ver. 3.0), you can easily stream songs from compatible devices. The VSX-532 features A2DP profile, with support for SBC and AAC codecs.

Front USB Input

The front panel USB input terminal allows straightforward connection to a USB memory stick. This plug and play connectivity enables you to easily play music files.

USB

Integrated Technologies

DOLBY AUDIO™

dts-HD®

Bluetooth® HDMI®

МСАСС

•PIONEER, MCACC, Phase Control, Advanced Sound Retriever, and the logos are registered trademarks of Pioneer Corporation, and are used under license. •The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. •Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. •For DIS patents, see http://patents.dts.com, Manufacture under license from DIS, Inc. DIS, DIS-HD, the Symbol, & DIS or DIS-HD and the Symbol together are registered trademarks of DTS, Inc. & DTS Neo6 is a trademark of DTS, Inc. in the United States and/or other countries. @ DTS, Inc. All Rights Reserved. •The Bluetooth ^3 word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. •“Xv.Color” is a trademark of Sony Corporation. •Blu-ray Disc™, Blu-ray™, Ultra HD Blu-ray™ and the logos are trademarks of the Blu-ray Disc Association.
