BRUGSANVISNING ADBE-10248 ADIDAS
SPORTS OLYMPIC BENCH
ADBE - 10248
www.adidashardware.com
| N Parts | Noo. Description Q Pre-assembly | ty. | ||
| 1 | FM-AD7200DXS-01 1 | Main Frame | No | |
| 2 | FM-AD7200DXS-02 1 | Seat Frame | No | |
| 3 | FM-AD7200DXS-03 1 | Backrest Tube | No | |
| 4 | FM-AD7200DXS-04 1 | Backrest Adjustable Plate | No | |
| 5 | FM-AD7200DXS-05 1 | Seat Adjustable Plate | No | |
| 6 | FM-AD7200DXS-06 2 | Base Tube | No | |
| 7 | FM-AD7200DXS-07 2 | Stand Tube | No | |
| 8 | FM-AD7200DXS-08 1 | Right Barbell Holder | No | |
| 9 | FM-AD7200DXS-09 1 | Left Barbell Holder | No | |
| 10 | FM-AD7200DXS-10 1 | Left Safety Bar | No | |
| 11 | FM-AD7200DXS-11 1 | Right Safety Bar | No | |
| 12 | FM-AD7200DXS-12 2 | Support Plate | No | |
| 13 | FM-AD7200DXS-13 1 | Connect Tube | No | |
| 14 | FM-AD7200DXS-14 1 | Seat | No | |
| 15 | FM-AD7200DXS-15 1 | Backrest | No | |
| 16 | FM-AD7200DXS-16 4 | ☐50mm End Cap | Yes | |
| 17 | FM-AD7200DXS-17 2 | ☐60mm End Cap | Yes | |
| 18 | FM-AD7200DXS-18 2 | Rubber Bump | Yes | |
| 19 | FM-AD7200DXS-19 2 | Pull Pin | No | |
| 20 | FM-AD7200DXS-20 4 | Oil Bushing | No | |

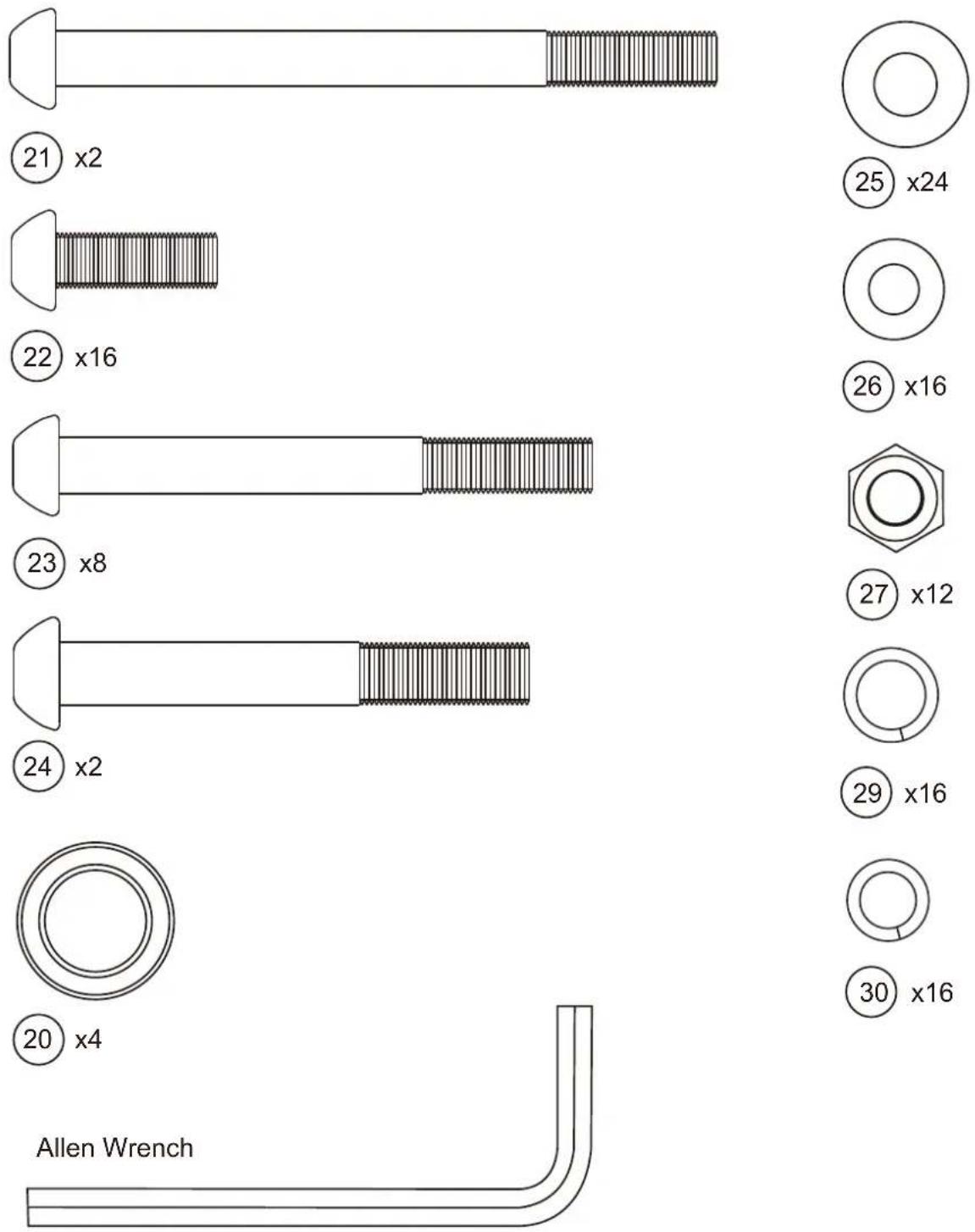

| 21 | FM-AD7200DXS-21 2 | M10x100mm Allen Bolt | No | |
| 22 | FM-AD7200DXS-22 16 | M8x25mm Allen Bolt | No | |
| 23 | FM-AD7200DXS-23 8 | M10x85mm Allen Bolt | No | |
| 24 | FM-AD7200DXS-24 2 | M10x75mm Allen Bolt | No | |
| 25 | FM-AD7200DXS-25 24 | M10 Washer | No | |
| 26 | FM-AD7200DXS-26 16 | M8 Washer | No | |
| 27 | FM-AD7200DXS-27 12 | M10 Nylon Nut | No | |
| 28 | FM-AD7200DXS-28 | Support Plate 1 | No | |
| 29 | FM-AD7200DXS-29 16 | M10 Spring Washer | No | |
| 30 | FM-AD7200DXS-30 | M8 Spring Washer 16 | No | |
| Allen Wrench 1 | No | |||
