BRUGSANVISNING ADBE-10437 ADIDAS

adidas

ESSENTIAL FLAT BENCH ADBE - 10437

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 1

natural_image Line drawing of a simple bench with two metal supports and a flat top (no text or symbols)

No.3x1 No.2x2

No.4x3 No.11x4 No.1x1

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 4

⑤ M10x25mm x6

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 5

⑧ M10 x6

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 6

⑫ M10 x6

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 7

natural_image Simple line drawing of a bolt with a flanged end and threaded shaft (no text or symbols)

⑥ M8x70mm x3

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 8

⑦ M6x15mm x6

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 9

⑨ M8 x3

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 10

⑬ M8 x3

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 11

⑭ M6 x6

⑤ ⑧ ⑫ ×6 M10×25mm ×6 M10 ×6 M10

01 05 12 08 05 12 08 08 12 05 11 02 11 05 12 08 12 05 11 02 11 05 12 08 12 05 11 05 12 08 12 05 11 02 11

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 14

natural_image Technical line drawing of a mechanical support bracket with two mounting feet (no text or symbols)

⑥ ×3 M8×70mm ⑦ ×6 M6×15mm ⑨ ×3 M8 ⑬ ×3 M8 ⑭ ×6 M6

03 04 14 07 04 14 07 14 01 07 07 09 13 06 06 09 13 06 09 13 06 07 14

ADIDAS ADBE-10437 - ESSENTIAL FLAT BENCH ADBE - 10437 - 17

natural_image 3D rendering of a simple bench with adjustable legs and feet (no text or symbols)

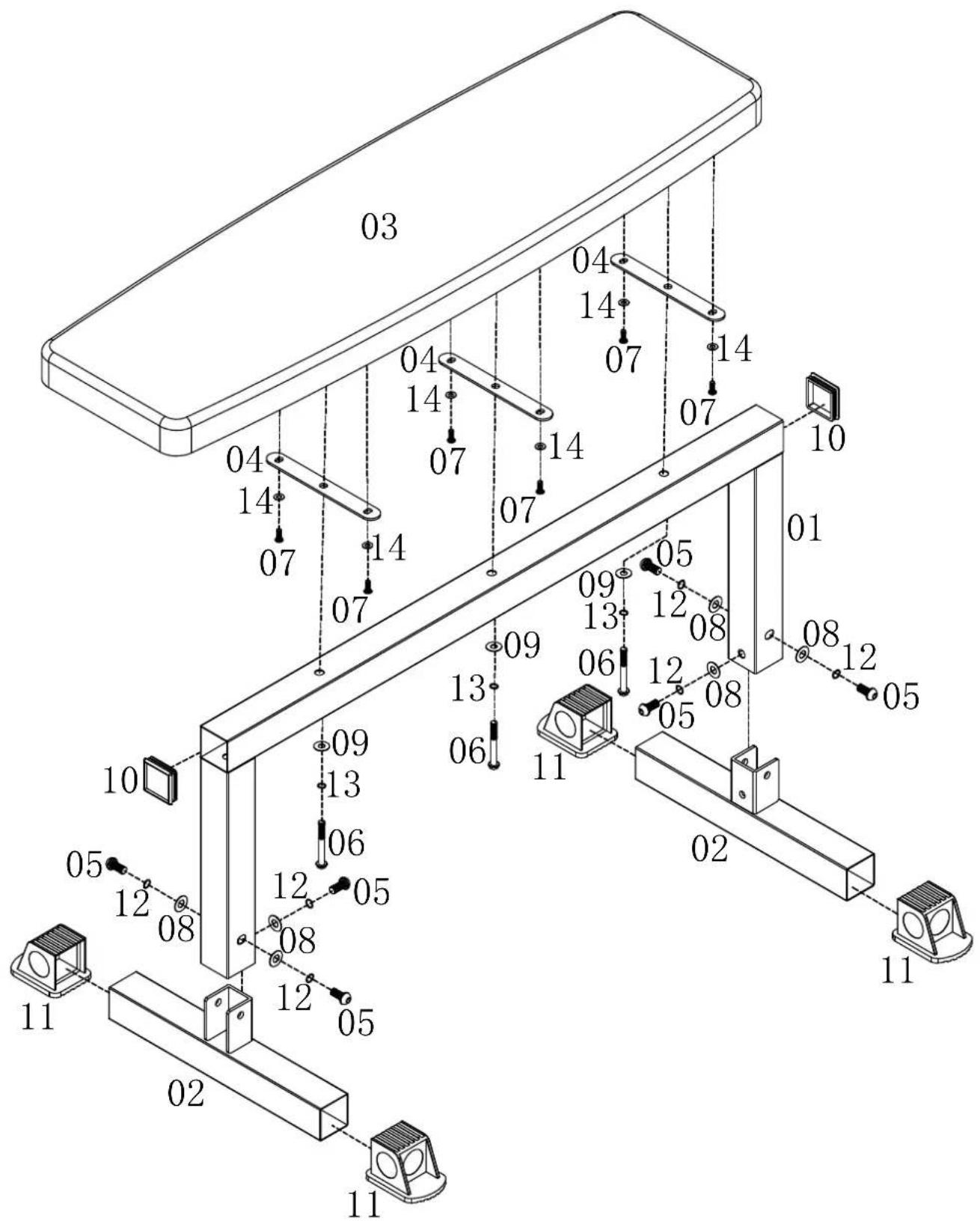

03 04 14 07 14 07 07 04 14 07 14 07 10 01 09 13 08 12 08 12 05 13 06 12 05 11 02 11 05 12 08 12 08 12 05 13 06 11 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05 12 08 12 05

N PartsNoo. Description Qty.
1PFMAD703N-01 1Main Frame
2PFMAD703N-02 2Horizontal Beam
3PFMAD703N-03 1Backrest
4PFMAD703N-04 3Backer Plate
5PFM404-18 6M10 x 25mm Bolt
6PFMH1005-32 3M8 x 70mm Bolt
7PFM2240-23 6M6 x 15mm Bolt
8PRK1-06 6M10 Washer
9PFM2006-27 3M8 Washer
10PRK3-05 250mm Square Inner Cap
11PFM4004-25 450mm Square Rubber End Cap
12FMAD613-06 6M10 Spring washer
13FMAD613-07 3M8 Spring washer
14PFMS80-22 6M6 Washer
Allen Wrench1
