用户手册 V350 TG ARGB Air THERMALTAKE
thermaltake
© 2022 Thermaltake Technology Co., Ltd. All Rights Reserved. 2022.02
All other registered trademarks belong to their respective companies. www.thermaltake.com
FCC Tested To Comly WITH FCC Standards FOR HOME OR OFFICE US
thermaltake
V350 TG ARGB Air
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
Manual do Utilizador
安裝說明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คุมอาการไซ
TT Premium
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://htpremium.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
- Quick and responsive user support
● Receive help and advice with new builds - Keep up to date with new product releases
- Share your thoughts and builds with the community
- Enter monthly contests and giveaways
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/Thermaltakelnc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
CONTENTS
Chapter 1. Product Introduction
1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03
Chapter 2. Installation Guide
2.0 Remove Components 06
2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08
2.3 3.5" & 2.5" HDD Installation 09
2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 Remove Filter 15
2.9 ARGB Control Instruction 16
V350 TG ARGB Air
Specification
Accessory
V350 TG ARGB Air
| Case Type | Mid Tower |
| Dimension (H*W*D) 475 x 220 x 461 mm (16.7 x 6.7 x 18.1 inch) | |
| Side Panel | Tempered Glass x 1 |
| Material | SPCC |
| Cooling System | Front (intake):120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3Rear (exhaust):120 x 120 x 25 mm Turbo fan (1200rpm, 22 dBA) x 1 |
| Drive Bays | 2 x 3.5", 5 x 2.5"or 7 x 2.5" |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboards | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm2 x 140mm, 1 x 140mmTop: 1 x 120 mm, 1 x 140 mmRight (M/B Side): 2 x 120 mm, 1 x 120 mmRear: 1 x 120 mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRight (M/B Side): 1 x 240mm, (vertical-installed GPU recommended),1 x 120 mmRear: 1 x 120mm |
| Clearance | CPU cooler height limitation: 160 mmVGA length limitation: 360 mm (With radiator)390 mm (Without radiator)PSU length limitation: 160 mm (With HDD Cage)220mm(Without HDD Cage) |
| Figure Use For | Part Name | Q'ty | |
| Rubber ∅10 x 4 mm | 2 | For PSU | |
| Screw #6-32 x 6 mm | 4 | For PSU | |
| Screw M3 x 5 mm | 40 | For Motherboard / 2.5" HDD / SSD | |
| Stand-off #6-32 x 6.5 mm | 3 | Spares | |
| Net setter | 1 | For Motherboard Stand-off | |
| Buzzer | 1 | Motherboard Alarm | |
| Screw #6-32 x 6 mm | 10 | For 3.5" HDD / VGA bracket | |
| Screw ∅5 x 10 mm 4 | For Case Fan | ||
| Cable Ties | 10 | Cable Management | |
| VGA Bracket | 1 | For VGA | |
| Thumb Screw #6-32 x 5 mm | 3 | For VGA |
For ARGB Version Only
| Figure | Parts Name | Q'ty | Used for |
| MB Signal Bridge Cable(ASUS/MSI/ASROCK/GIGABYTE) | 1 | LED Signal Sync |
V350 TG ARGB Air V350argiARGBdANotice

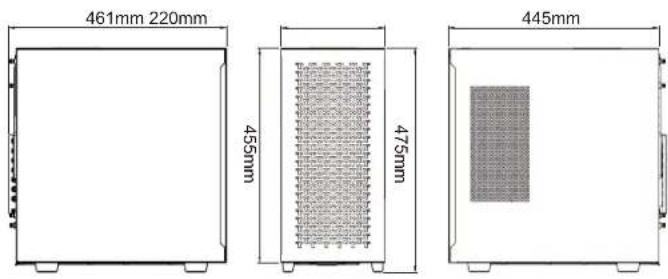

Chassis dimension


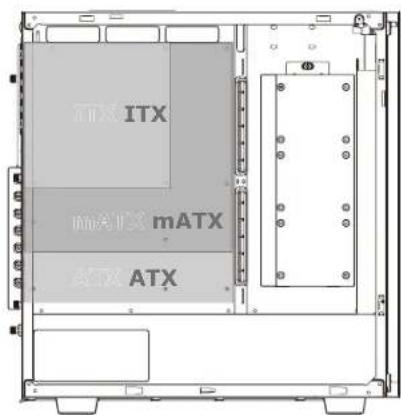

461mm 220mm 455mm 475mm 445mmMotherboard Compatibility: ITX / mATX / ATX
(Up to 244mm wide)


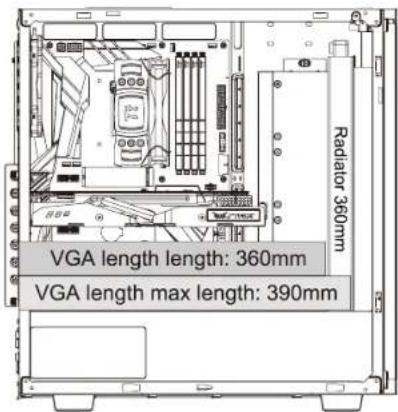

VGA length length: 360mm VGA length max length: 390mm Radiator 360mmV350 TG ARGB Air V350 TG ARGB Air

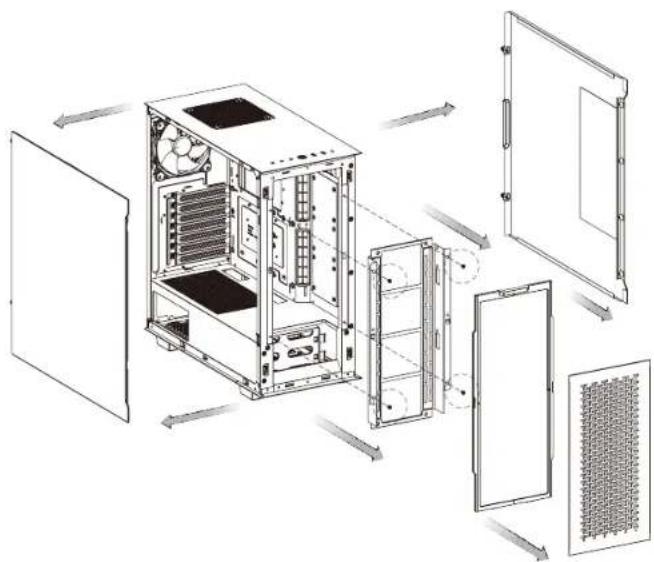

Remove Components

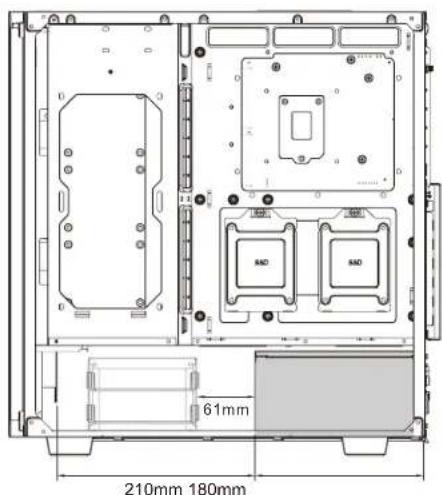

PSU max length: 180mm


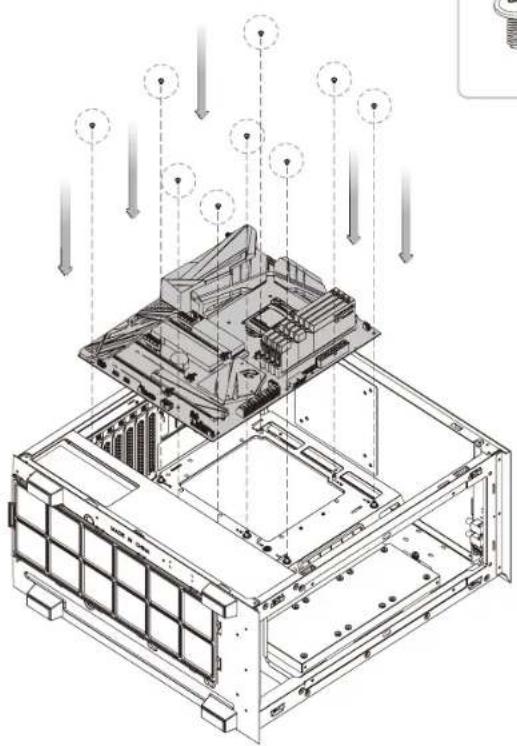

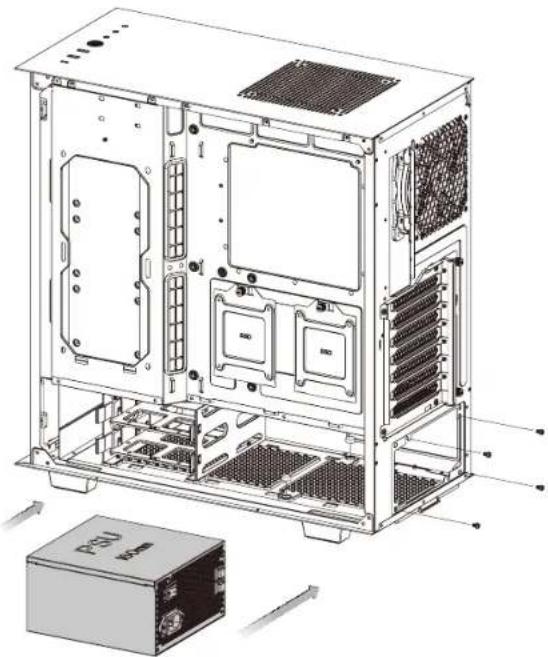

Exploded view diagram of a server rack system showing internal components and airflow direction (no text or labels)V350 TG ARGB Air V350V7Cr ARGBPl4 Unit Installation Motherboard Installation
V350 TG ARGB Air V3505TCHARGBInstallation

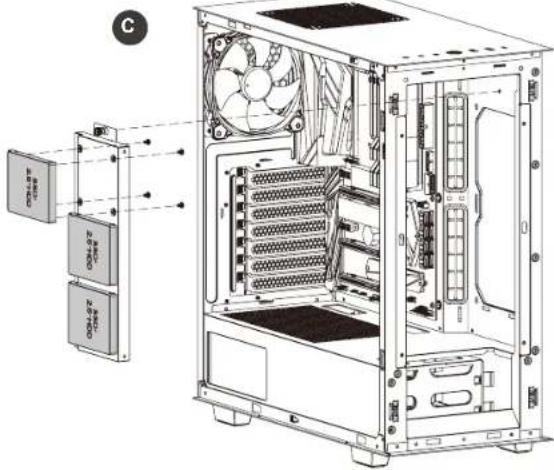

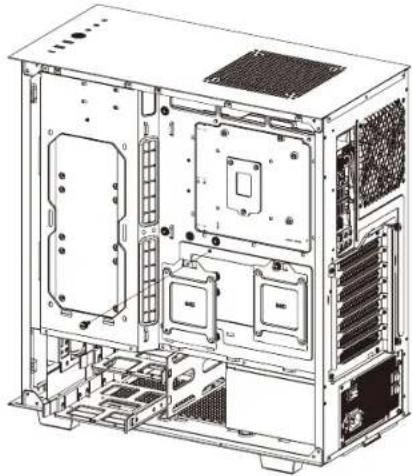

2.5" HDD Installation


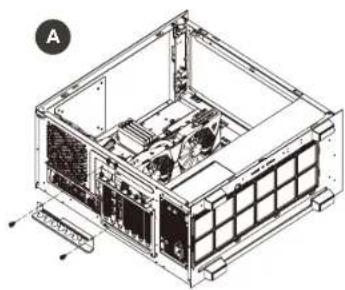

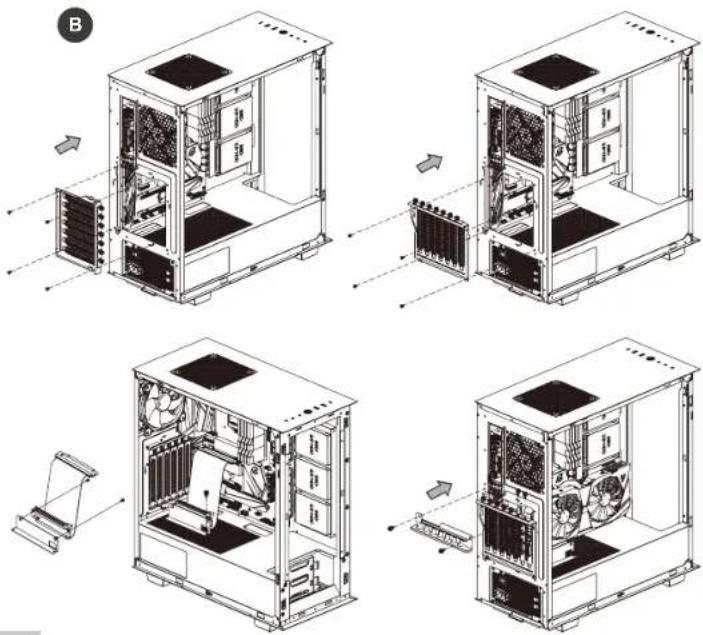

Air Cooling Installation
V350 TG ARGB Air V350CTGARGCABiling Installation I/O Connection


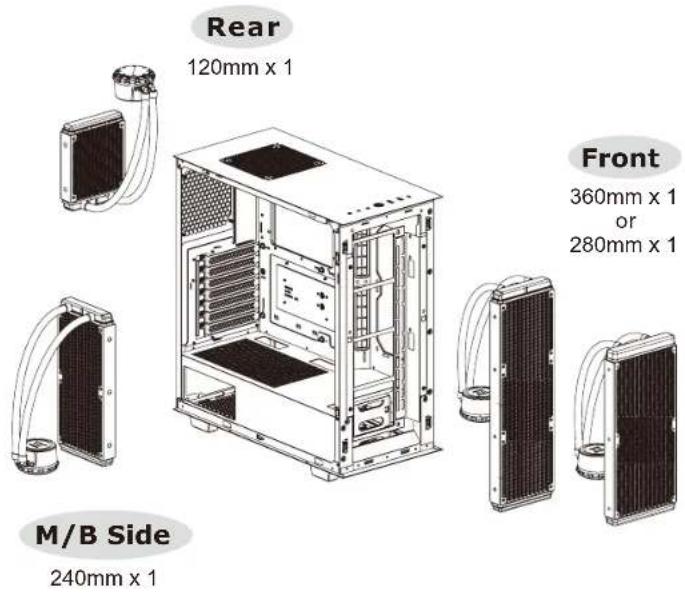

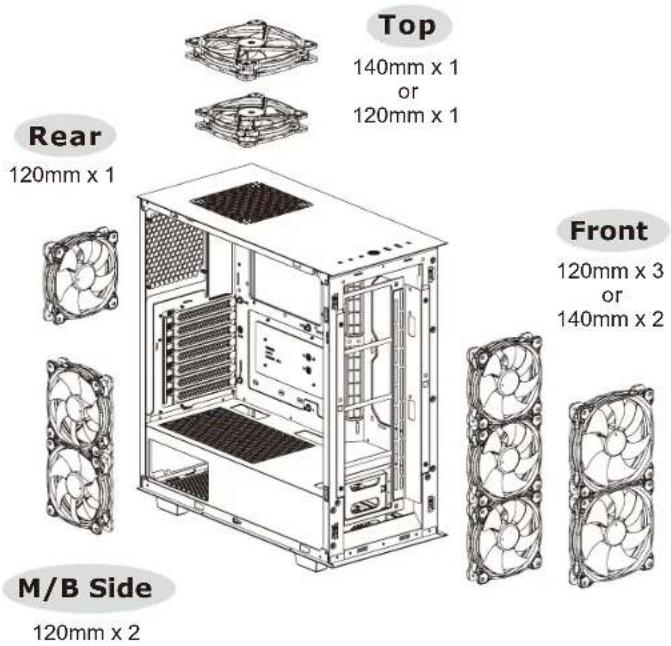

Rear 120mm x 1 Front 360mm x 1 or 280mm x 1 M/B Side 240mm x 1


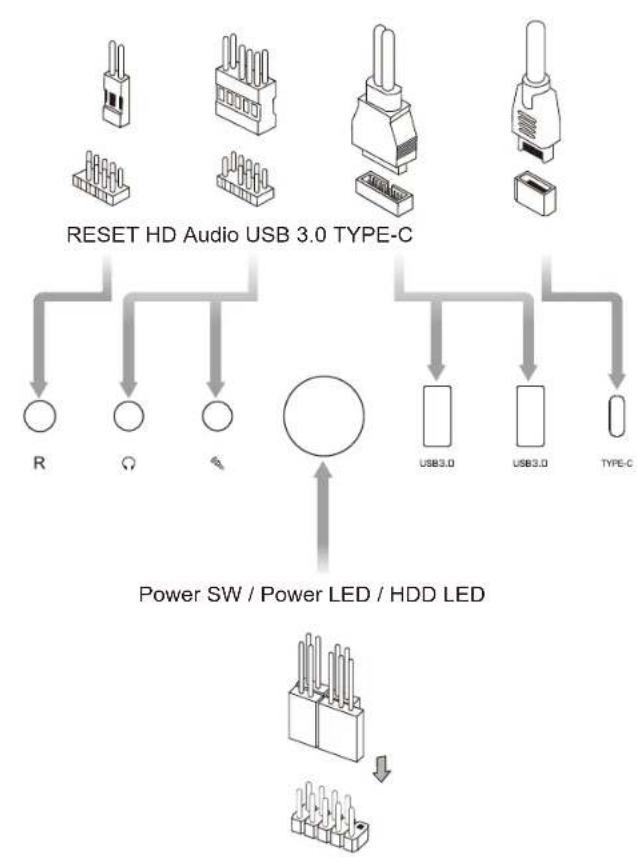

A["RESET HD Audio USB 3.0 TYPE-C"] --> B["R"]
A --> C["Ω"]
A --> D["φ"]
A --> E["Power SW / Power LED / HDD LED"]
E --> F["USB3.0"]
E --> G["USB3.0"]
E --> H["TYPE-C"]

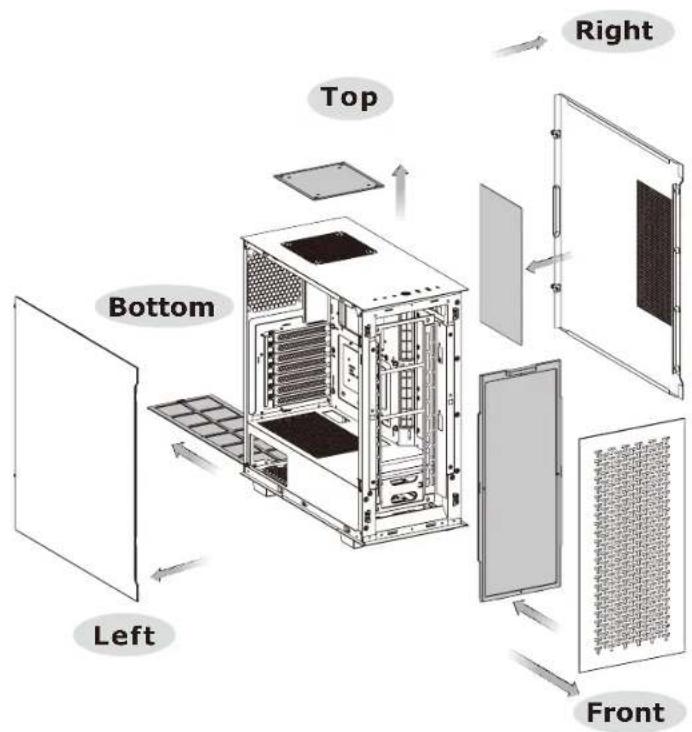

V350 TG ARGB Air V350mGveIGBeiARGB Control Instruction


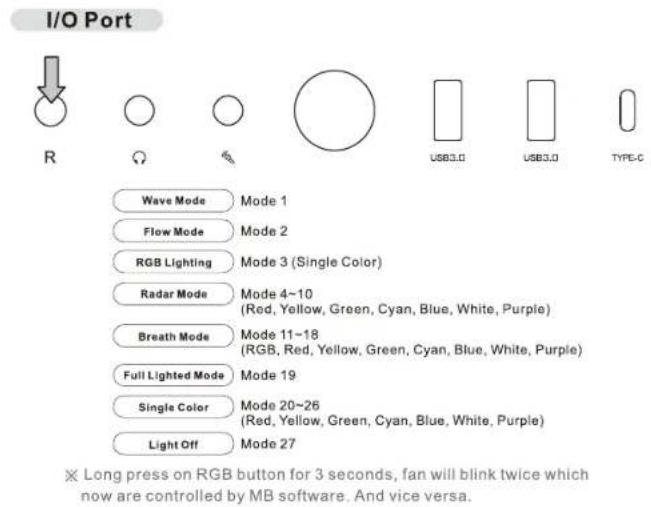

I/O Port R Wave Mode Mode 1 Flow Mode Mode 2 RGB Lighting Mode 3 (Single Color) Radar Mode Mode 4~10 (Red, Yellow, Green, Cyan, Blue, White, Purple) Breath Mode Mode 11~18 (RGB, Red, Yellow, Green, Cyan, Blue, White, Purple) Full Lighted Mode Mode 19 Single Color Mode 20~26 (Red, Yellow, Green, Cyan, Blue, White, Purple) Light Off Mode 27 × Long press on RGB button for 3 seconds, fan will blink twice which now are controlled by MB software. And vice versa.How to connect MB


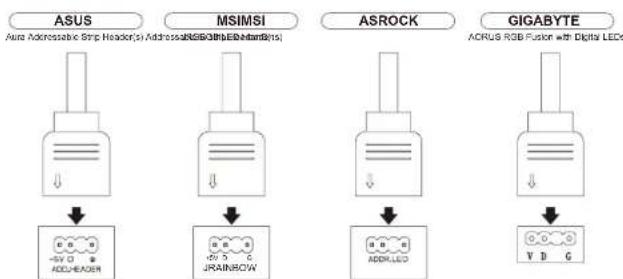

B --> E["ACRUS RGB Fusion with Digital LEDs"]
