| 产品类型 | 电脑机箱 |
| 型号 | Divider 170 TG ARGB |
| 品牌 | Thermaltake（曜越） |
| 机箱类型 | Micro 机箱 |
| 尺寸 (H×W×D) | 426 × 210 × 408.5 mm |
| 侧板 | 钢化玻璃侧板 ×1 |
| 材质 | SPCC 钢材 |
| 前置风扇 | 120mm ARGB PWM 风扇 ×2 (1500 RPM, 27.2 dBA) |
| 驱动位 | 2×3.5" / 2×2.5" 或 4×2.5" |
| 扩展槽 | 4 个 |
| 主板支持 | Mini ITX / Micro ATX |
| I/O 接口 | USB 3.0 ×2, USB 2.0 ×1, HD 音频 ×1 |
| 电源支持 | 标准 PS2 电源（选配） |
| CPU 散热器限高 | 160 mm |
| 显卡限长 | 350 mm（无冷排）/ 300 mm（带冷排） |
| 电源限长 | 200 mm（带硬盘笼） |
| 水冷支持 | 前置 240/280 mm，顶部 240/140 mm，后置 120 mm |
| ARGB 控制 | 支持主板同步（ASUS/MSI/ASRock/GIGABYTE） |
常见问题 - Divider 170 TG THERMALTAKE
用户关于以下问题的提问 Divider 170 TG THERMALTAKE
0 问题 关于此设备。回答您知道的问题或提出自己的问题。
提出关于此设备的新问题
下载您的设备说明 电脑机箱 免费PDF格式！查找您的手册 Divider 170 TG - THERMALTAKE 并重新掌握您的电子设备。本页发布了使用您的设备所需的所有文档。 Divider 170 TG 品牌 THERMALTAKE.
用户手册 Divider 170 TG THERMALTAKE
thermaltake
© 2022 Thermaltake Technology Co., Ltd. All Rights Reserved. 2022.05
All other registered trademarks belong to their respective companies. www.thermaltake.com
thermaltake
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
Manual do Utilizador
安裝說明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คุณิอาการไซ
TT Premium
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design. Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://tlpremium.com
Tt LCS-Liquid Cooling Support Certification
TI LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The TI LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
- Quick and responsive user support
- Receive help and advice with new builds
- Keep up to date with new product releases
- Share your thoughts and builds with the community
- Enter monthly contests and giveaways
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
CONTENTS
Chapter 1. Product Introduction
1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03
Chapter 2. Installation Guide
2.0 Remove Components 06
2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08

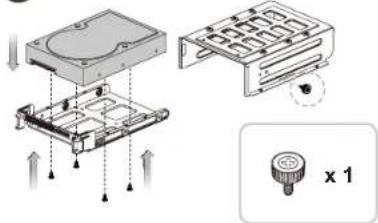

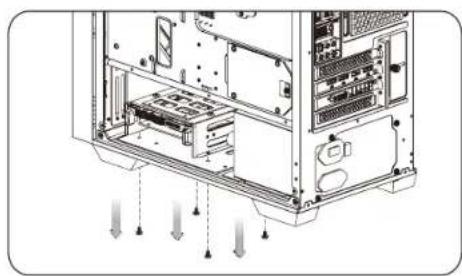

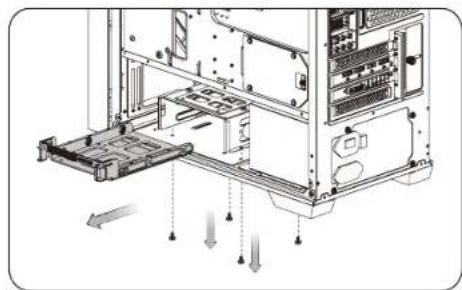

2.3 3.5" & 2.5" HDD Installation 09

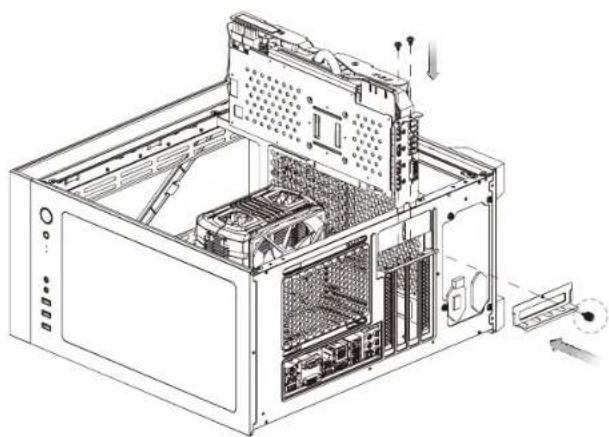

2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 Remove Filters 15
2.9 ARGB Control Instruction 16
3.0 PWM ARGB Control Board Connection 17
Divider 170 TG ARGB DividicatlonTG ARGB
Accessory
| Case Type | Micro Case | ||
| Dimension (H*W*D) | 426 x 210 x 408.5 mm (16.8 x 8.3 x 16.1 inch) | ||
| Side Panel | Tempered Glass x 1 | ||
| Material | SPCC | ||
| Cooling System | Front (intake):120 x 120 x 25 mm ARGB PWM fan (1500 rpm, 27.2 dBA) x 2 | ||
| Drive Bays | 2 x 3.5", 2 x 2.5" or 4 x 2.5" | ||
| Expansion Slots | 4 | ||
| Motherboards | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX) | ||
| I/O Port | USB 3.0 x 2, HD Audio x 1USB 2.0 x 1, | ||
| PSU | Standard PS2 PSU (optional) | ||
| Fan Support | Front | 3 x 120 mm, 2 x 120 mm,1 x 120 mm | 2 x 140 mm, 1 x 140 mm |
| Top | 2 x 120 mm, 1 x 120 mm 2 x 140 mm, 1 x 140 mm | ||
| Rear | 1 x 120 mm | ||
| Radiator Support | Front | 1 x 240 mm, 1 x 120 mm | 1 x 280 mm, 1 x 140 mm |
| Top | 1 x 240 mm, 1 x 120 mm | 1 x 140 mm | |
| Rear | 1 x 120 mm | ||
| Clearances | CPU cooler heightlimitation | 160 mm | |
| VGA length limitation | 300 mm (With radiator)350 mm (Without)radiator | ||
| PSU length limitation | 200 mm (With HDD Cage) | ||
| Figure Use For | Part Name | Q'ty | |
| Screw #8-32 x 6 mm | 11 | Power Supply / VGA Card | |
| Net setter | 1 | Motherboard Stand-off installation | |
| Stand-off #6-32 x 6.5 mm | 3 | Motherboard | |
| Screw M3 x 5 mm | 30 | Motherboard / 2.5" HDD / SSD | |
| Stand #6-32 x 5 mm | 12 | 3.5" HDD | |
| Stand #6-32 x 10 mm | 2 | 3.5" HDD Cage | |
| Stand #6-32 x 28 mm | 13 | Front Fan / Power Cover Fan | |
| Buzzer | 1 | Motherboard Alarm | |
| PCI Leaf PCI Plate | 2 | ||
| Cable Ties | 10 | Cable Management |
For ARGB Version Only
| Figure | Parts Name | Q'ty | Used for |
| MB Signal Bridge Cable(ASUS/MSI/ASROCK/GIGABYTE) | 1 | LED Signal Sync |
Divider 170 TG ARGB Dividing 20d GARGB

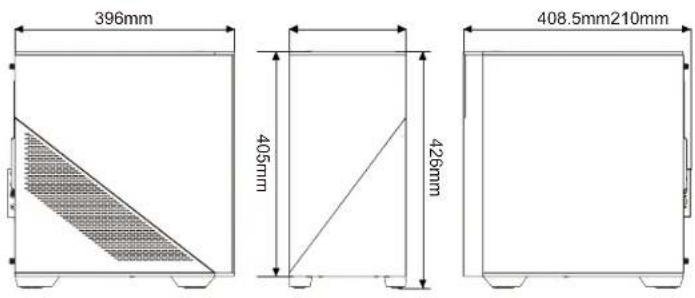

Chassis dimension


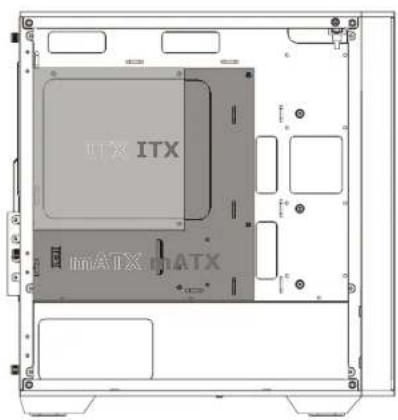

396mm 405mm 426mm 408.5mm210mmMotherboard Compatibility: ITX / mATX
(Up to 244mm wide)


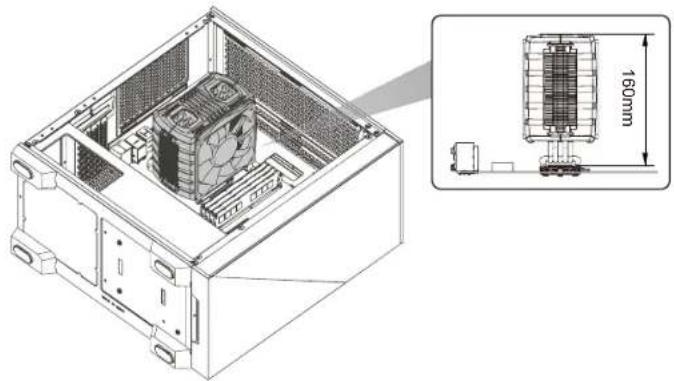

ITX ITX mATX mATXCPU cooler max height: 160mm


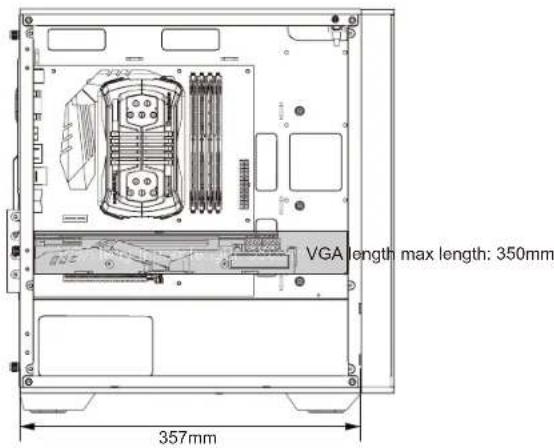

Technical line drawing of a computer case with an inset showing internal components (no text or symbols)VGA length max length: 350mm


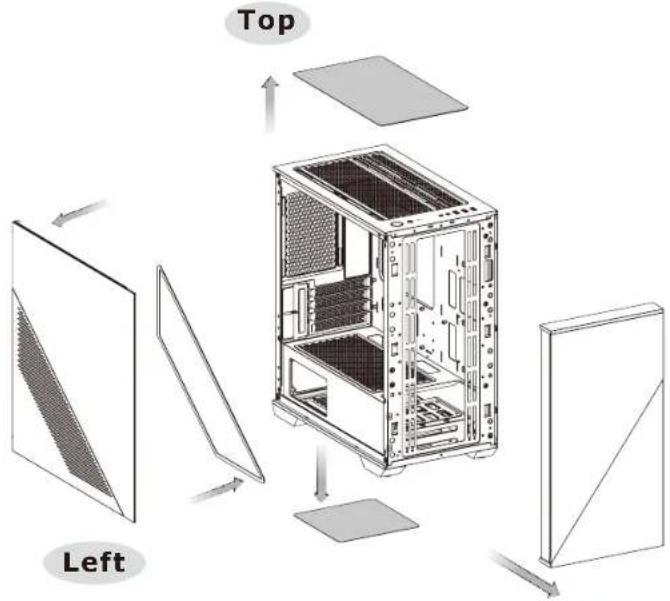

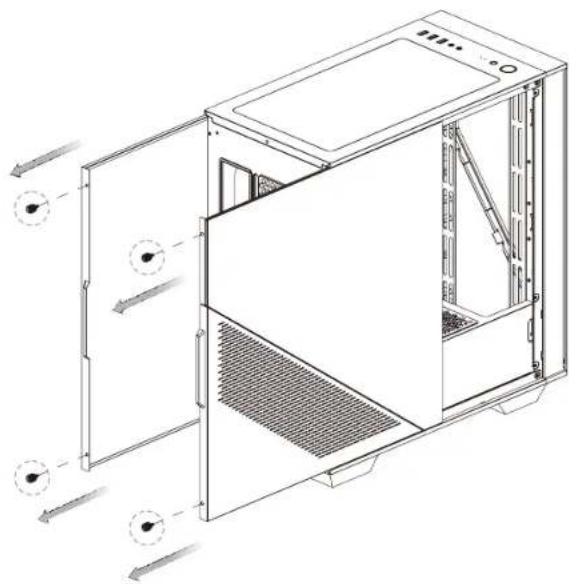

Remove Components

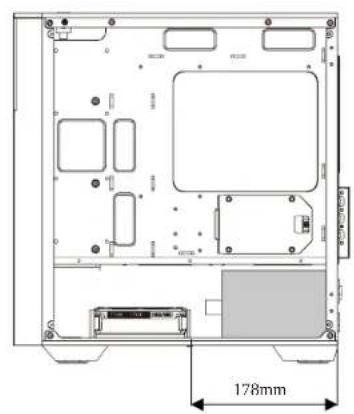

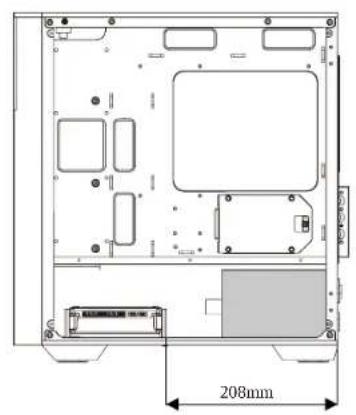

PSU max length: 200mm


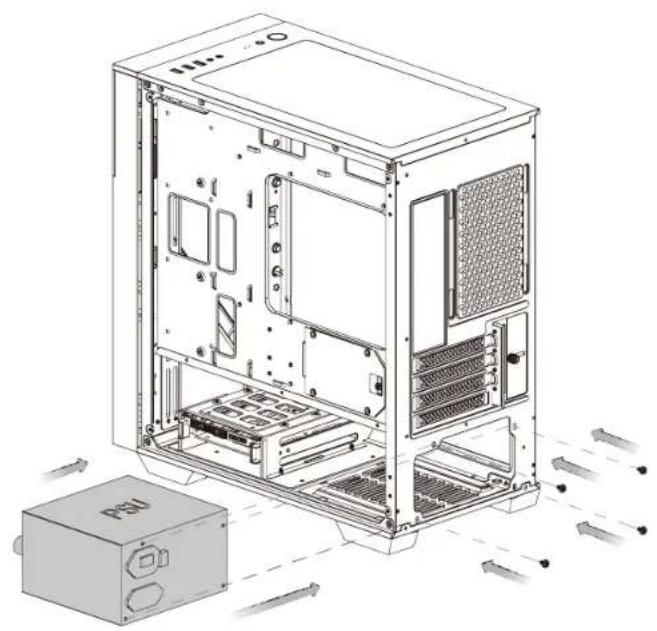

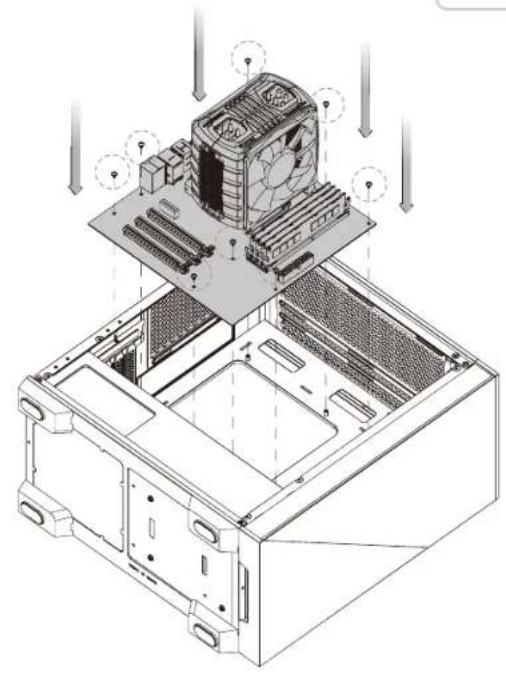

Technical line drawing of a server rack unit with ventilation ducts and doorways (no text or symbols)Divider 170 TG ARGB Divider Supply GUAR Installation Motherboard Installation
DividedD70n5GARGB


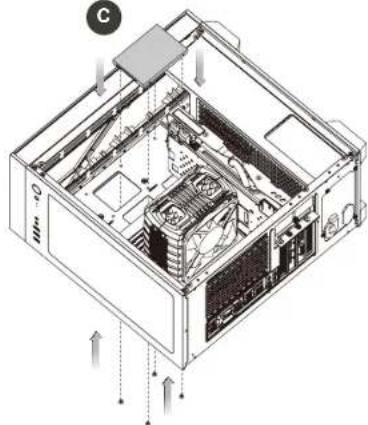

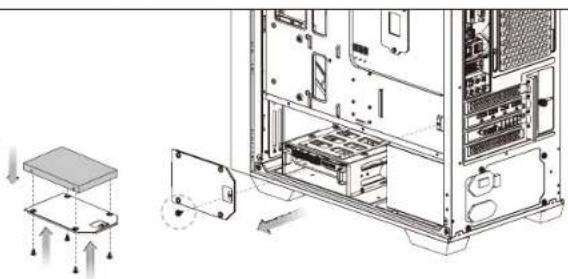

Technical diagram showing mechanical assembly with labeled components and a 1x1 ratio indicator2.5" HDD Installation
A
B


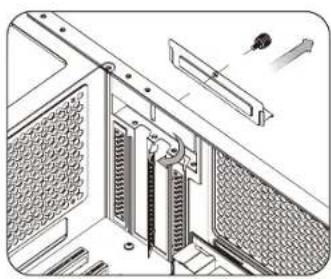

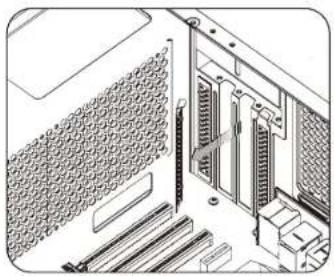

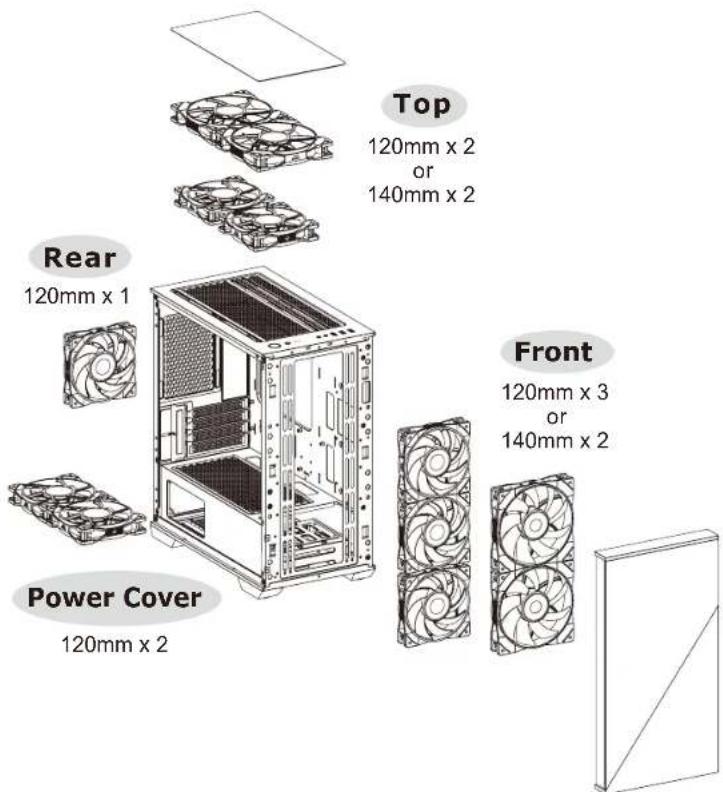

Air Cooling Installation


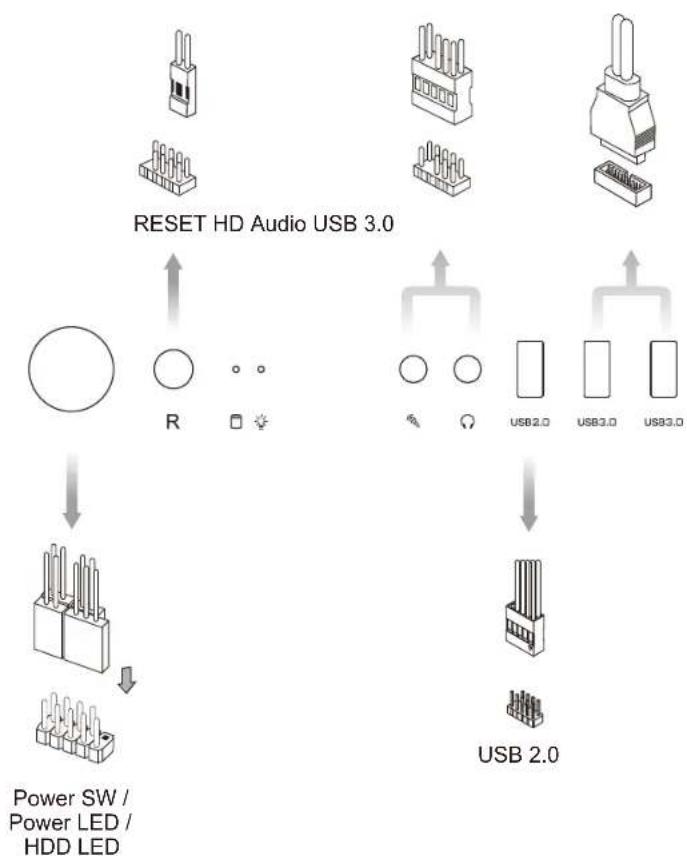

Divider 170 TG ARGB DIQLequiz CooARGInstallation I/O Connection


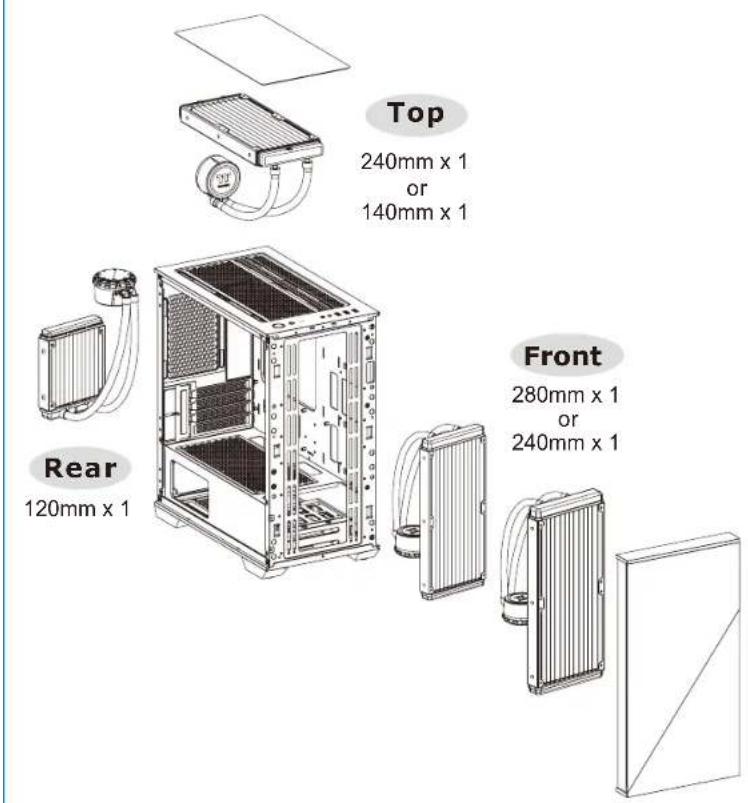

Top 240mm x 1 or 140mm x 1 Rear 120mm x 1 Front 280mm x 1 or 240mm x 1
Divider 170 TG ARGB Dividere H106G ARGB Control Instruction


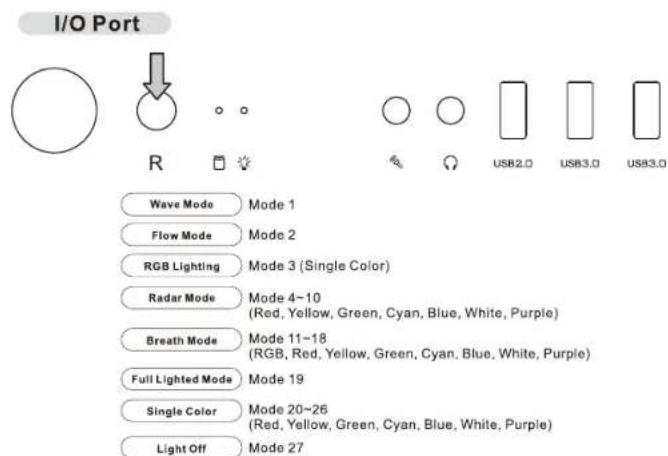

I/O Port Wave Mode Mode 1 Flow Mode Mode 2 RGB Lighting Mode 3 (Single Color) Radar Mode Mode 4-10 (Red, Yellow, Green, Cyan, Blue, White, Purple) Breath Mode Mode 11-18 (RGB, Red, Yellow, Green, Cyan, Blue, White, Purple) Full Lighted Mode Mode 19 Single Color Mode 20-26 (Red, Yellow, Green, Cyan, Blue, White, Purple) Light Off Mode 27※ Long press on RGB button for 3 seconds, fan will blink twice which now are controlled by MB software. And vice versa.
How to connect MB


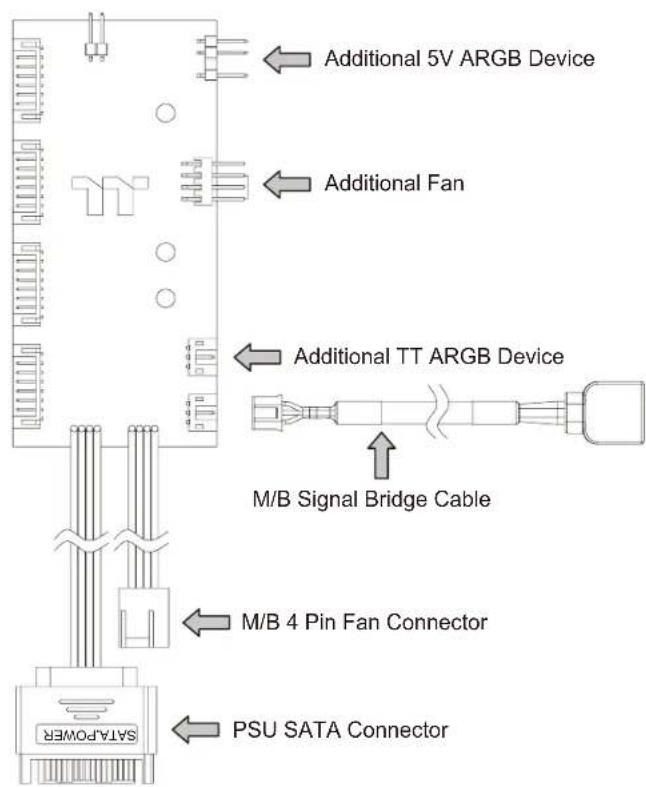

Additional 5V ARGB Device Additional Fan Additional TT ARGB Device M/B Signal Bridge Cable M/B 4 Pin Fan Connector PSU SATA ConnectorNote:
Divider 170 TG ARGB
Note:
