H570 TG ARGB - 电脑机箱 THERMALTAKE - 免费用户手册

产品类型	中塔式机箱
品牌	Thermaltake（曜越）
型号	H570 TG ARGB
外形尺寸	440 x 210 x 477 mm
重量	约 7.2 kg
主板兼容	ATX / Micro-ATX / Mini-ITX
电源支持	标准 ATX 电源（最长 160mm）
显卡限长	360 mm
CPU散热器限高	160 mm
硬盘位	2 x 3.5" + 2 x 2.5"
风扇位	前：3 x 120mm / 2 x 140mm，后：1 x 120mm，顶：2 x 120/140mm
预装风扇	前：3 x 120mm ARGB 风扇
水冷支持	前：360mm / 280mm，顶：240mm / 280mm，后：120mm
侧板	左侧钢化玻璃侧板
I/O接口	USB 3.0 x 2 + USB 2.0 x 2 + HD Audio
RGB控制	支持华硕、技嘉、微星、华擎 ARGB 同步
清洁保养	定期用干布擦拭玻璃侧板，清理防尘网
安全注意	避免碰撞玻璃侧板，防止电源短路
配件包	包含螺丝、扎带等安装配件

常见问题 - H570 TG ARGB THERMALTAKE

H570 TG ARGB 支持哪些主板尺寸？

支持标准 ATX、Micro-ATX 和 Mini-ITX 主板。

机箱预装几个风扇？是RGB的吗？

预装 3 个 120mm ARGB 风扇，位于前面板，支持主板同步。

显卡最长支持多少毫米？

显卡限长 360mm，可兼容大部分高端显卡。

CPU散热器限高是多少？

CPU 散热器限高 160mm，可安装大多数塔式风冷散热器。

如何安装水冷散热器？

前部可安装 360mm/280mm 水冷，顶部可安装 240mm/280mm，后部可安装 120mm。

电源长度有限制吗？

建议使用标准 ATX 电源，长度不超过 160mm（含线材）。

侧板是钢化玻璃吗？如何清洁？

左侧板为钢化玻璃，清洁时使用柔软干布，避免使用化学清洁剂。

前面板防尘网如何拆卸？

前面板可拆卸，防尘网位于面板内侧，轻轻拉出即可清洗。

机箱支持哪些RGB同步技术？

支持华硕 AURA SYNC、技嘉 RGB Fusion、微星 Mystic Light 和华擎 Polychrome。

硬盘位有几个？如何安装？

提供 2 个 3.5 英寸和 2 个 2.5 英寸硬盘位，采用免工具托架设计。

用户手册 H570 TG ARGB THERMALTAKE

thermaltake

© 2022 Thermaltake Technology Co., Ltd. All Rights Reserved. 2022.05

All other registered trademarks belong to their respective companies. www.thermaltake.com

thermaltake

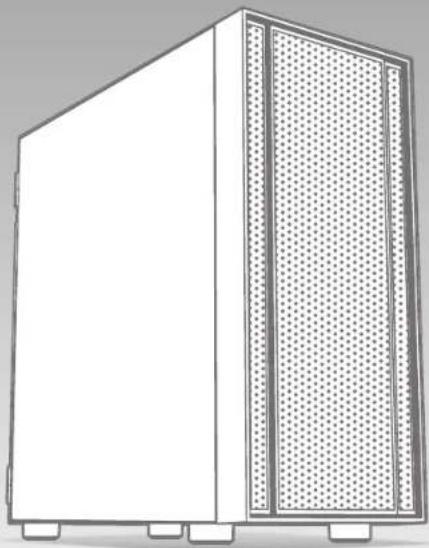

Line drawing of a server tower with perforated panel (no text or symbols)

Mid Tower

H570 TG ARGB

User's Manual

Benutzerhandbuch

Mode d'emploi

Manual del usuario

Manuale dell'utente

Manual do Utilizador

安裝說明書

用戶手冊ユーザーズマニュアル

Руководство пользователя

kullanıcı elkitabı

(EEE Yönetmeliğine Uygundur)

คุณิอาการไซ

TT Premium

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design. Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://tlpremium.com

Tt LCS-Liquid Cooling Support Certification

TI LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The TI LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits

Dear Valued Customer,

Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

• Quick and responsive user support
• Receive help and advice with new builds
• Keep up to date with new product releases
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/ThermaltakeInc

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

CONTENTS

Chapter 1. Product Introduction

1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03

Chapter 2. Installation Guide

2.0 Remove Components 06

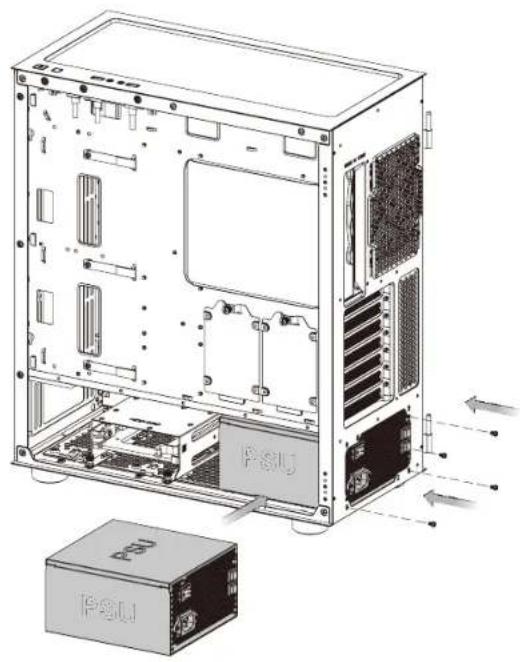

2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08
2.3 HDD Installation 09

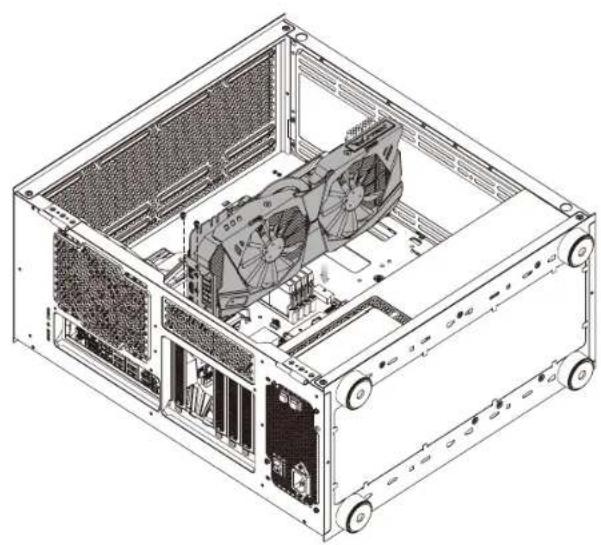

2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 ARGB Control Instruction 14
2.9 Remove Filters 15

H570 TG ARGB H570 specification

Accessory

Model	H570 TG ARGB
Case Type	Mid Tower
Dimension (H*W*D) 487 x 216 x 463.6 mm (19.2 x 8.5 x 18.3 inch)
Side Panel	Tempered Glass x 1
Material	SPCC
Cooling System	Front (Intake):120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 3
Drive Bays	2 x 3.5", 2 x 2.5" or 4 x 2.5"
Expansion Slots	?
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13"(E-ATX)
I/O Port	USB 3.0 x 2, HD Audio x 1. LED Button x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm3 x 140 mm, 2 x 140 mm, 1 x 140 mm2 x 200 mm, 1 x 200 mmTop: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm2 x 140 mm, 1 x 140 mmRear: 1 x 120 mm
Radiator Support	Front: 1 x 360 mm, 1 x 240 mm, 1 x 120 mm1 x 280 mm, 1 x 140 mmTop: 1 x 380 mm, 1 x 240 mm, 1 x 120 mm1 x 280 mm, 1 x 140 mmRear: 1 x 120 mm
Clearance	CPU cooler height limitation: 160 mmVGA length limitation: 375 mmPSU length limitation: 180mm

Figure Parts Name Q'ty Used for
	Stand-off #6-32 x 6.5mm	2	Motherboard
	Screw #6-32 x 6mm	4	Power
	Screw M3 x 5mm	24	SSD / 2.5" HDD / Motherboard
	Screw #6-32 x 10mm	4	3.5" HDD
	Screw M3 x 10mm	4 SSD / 2.5" HDD
	HDD / SSD Rubber	4	3.5" HDD / 2.5" HDD
	Net Setter	1	Motherboard Stand-off
	Screw Ø5 x 10mm	4	Case Fan
	Spacer Support 6.5mm	1	E-ATX Motherboard
	Cable Tie	5	Cable Management
	Buzzer	1	Motherboard Alarm

For ARGB Lite Version Only

Figure	Parts Name	Q'ty	Used For
	Fan Splitter	1	Case Fan

H570 TG ARGB H570VacARGnd Notice

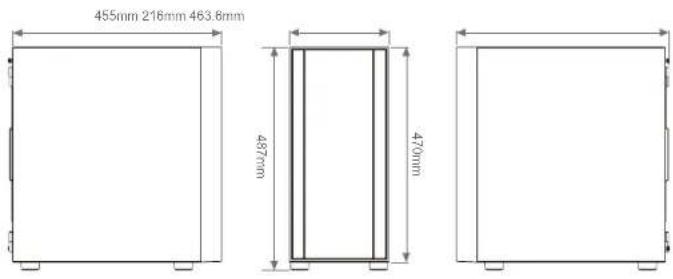

Chassis dimension

455mm 216mm 463.8mm 487mm 470mm

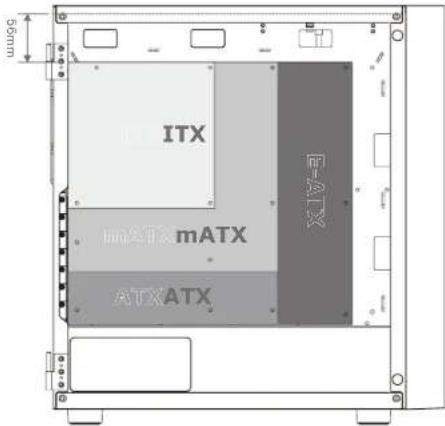

Motherboard Compatibility: ITX / mATX / ATX / E-ATX (Up to 330.2mm wide)
* The clearance between M/B to top panel: 56mm

56mm ITX mATX mATX ATXATX F-4X

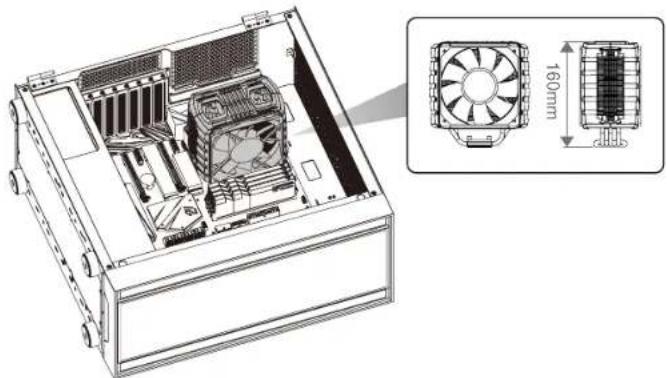

CPU cooler max height: 160mm

Technical line drawing of a computer tower case with internal fan and drive components, showing an inset magnified view of the fan's top view (scale 160mm)

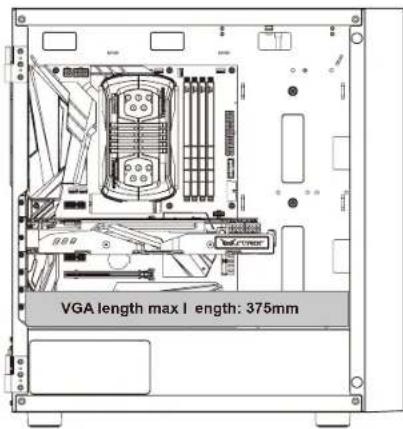

VGA length max length: 375mm

VGA length max I length: 375mm

H570 TG ARGB H570 TG ARGB

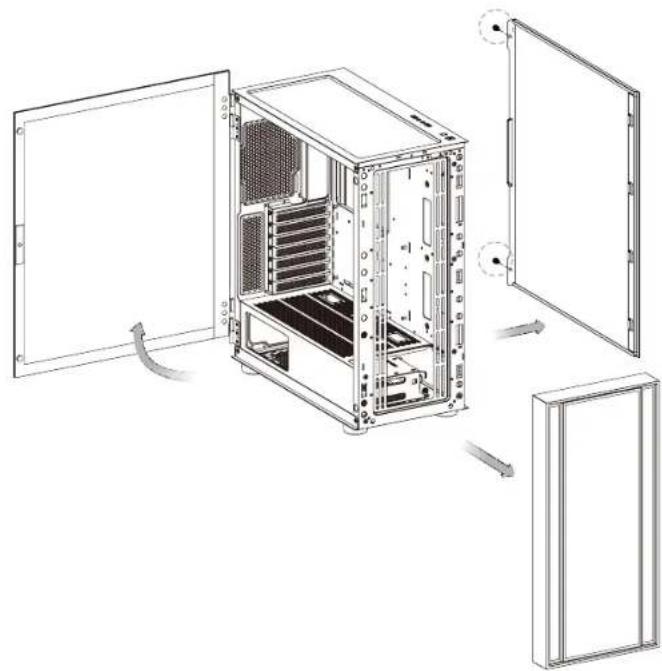

Remove Components

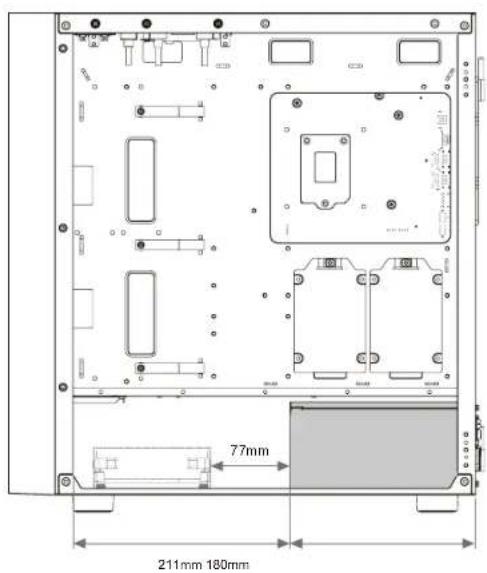

PSU max length: 180mm

77mm 211mm 180mm

Technical line drawing of an internal server rack with open doors and internal components, showing no text or symbols

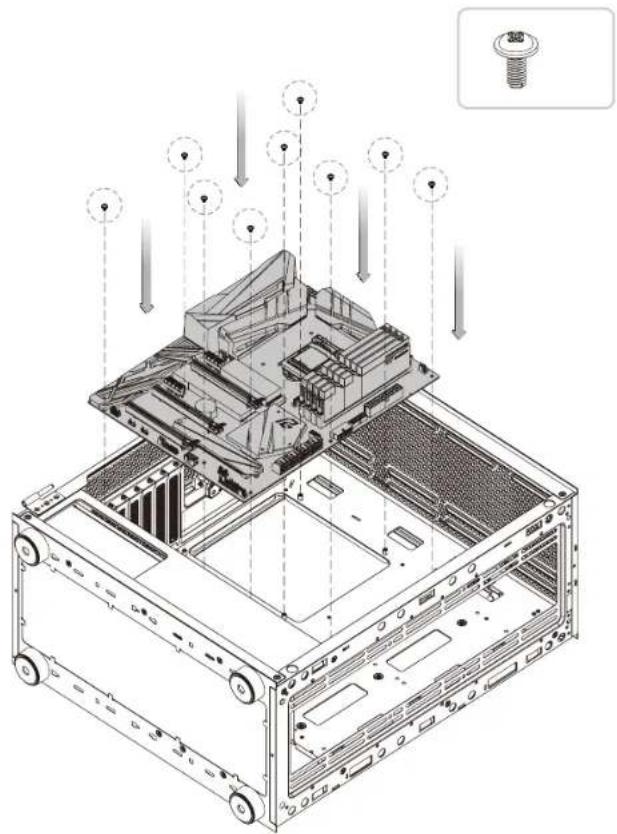

H570 TG ARGB H570STG ARCBlation Motherboard Installation

Technical diagram of a computer tower case with internal components and external housing (no text or labels)

Technical diagram of a computer motherboard with labeled components and a magnified inset showing a screw assembly.

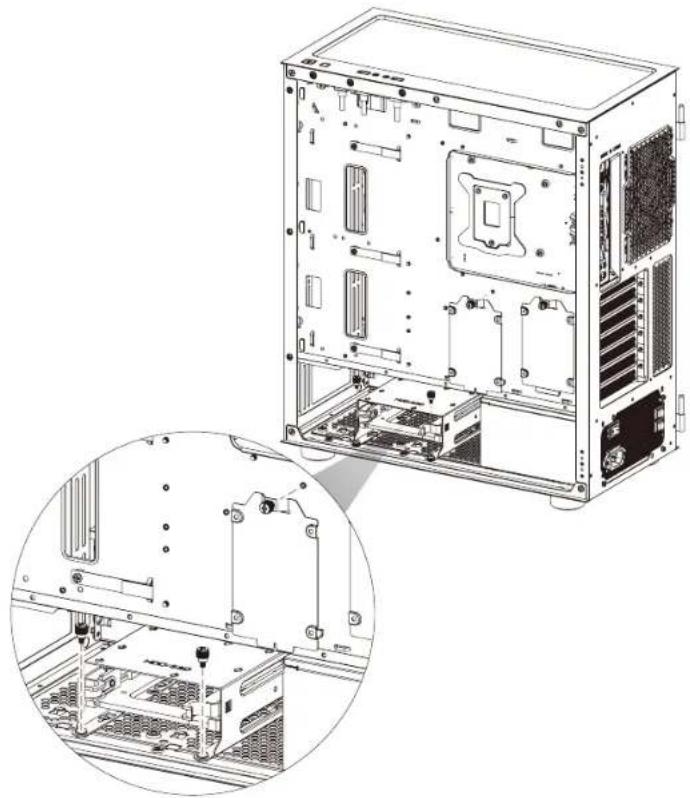

H570 TG ARGB H57 HDD Installation

Technical line drawing of a desktop computer tower case with internal components and mounting hardware (no text or labels)

3.5" HDD

A
Screw #6-32 x 10mm + HDD Rubber

B
Toolless HDD Tray

SSD / 2.5" HDD

A
Screw M3 x 10mm + HDD Rubber

B
Screw M3 x 5mm

C
Screw M3 x 5mm

H570 TG ARGB H570CTGCARGEInstallation

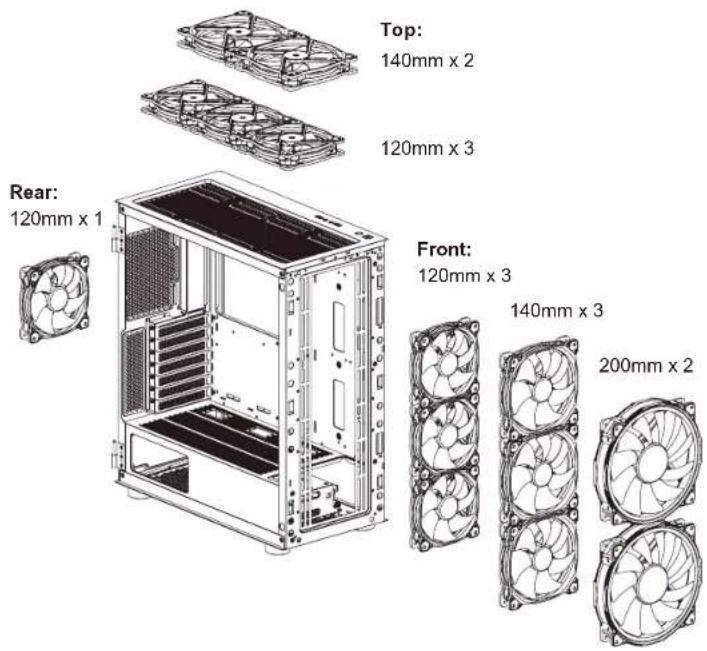

Air Cooling Installation

Isometric line drawing of a computer tower case with visible fan and drive components (no text or labels)

Top: 140mm x 2 120mm x 3 Rear: 120mm x 1 Front: 120mm x 3 140mm x 3 200mm x 2

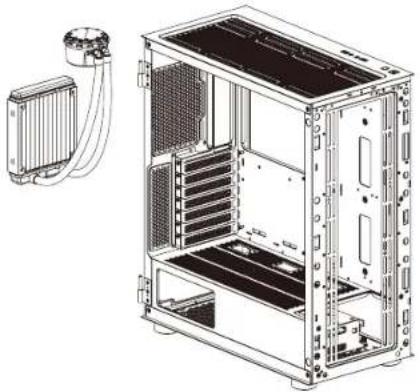

H570 TG ARGB H570 I2G LargB Cooling Installation

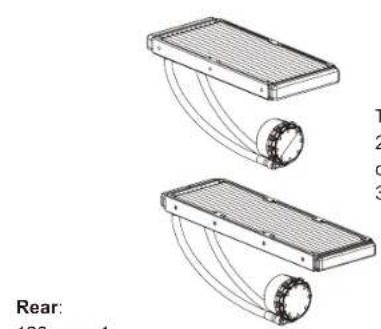

Technical illustration of two heat exchangers with cooling tubes and a central circular component, labeled 'Rear: 100mm x 4' (no text or symbols on diagram)

Top:
280mm x 1
or
360mm x 1

Technical line drawing of a server rack unit with internal heat sinks and connected cable (no text or symbols)

Front:
360mm × 1
or

280mm × 1

I/O Connection

I/O Port

Power SW / Power LED

HD Audio

ARGB Control Instruction – How to connect MB

ASUS/ASRock/BIOSTAR
MSIMSI
GIGABYTE
JRGB-strip Header(S)Aura AddrA@b#S R@BHeader(s)ith

H570 TG ARGB

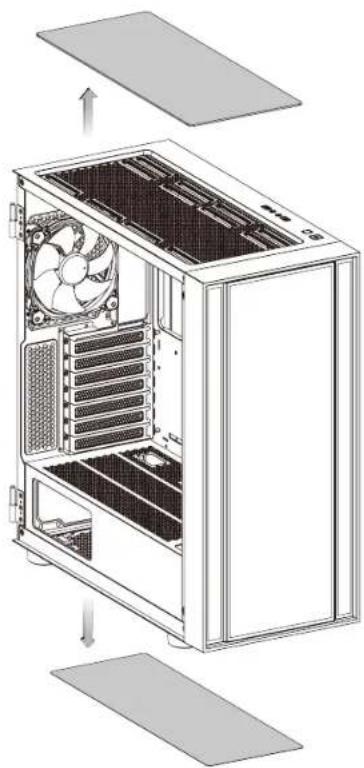

Remove Filters

Technical illustration of a desktop computer case with visible internal components and ventilation slots (no text or labels)
