用户手册 Divider 500 TG ARGB THERMALTAKE

thermaltake

© 2021 Thermaltake Technology Co., Ltd. All Rights Reserved. 2021.04

All other registered trademarks belong to their respective companies. www.thermaltake.com

Teded To Comply

HE OR OFFICE USE

RoHS

COMPLIANT

thermaltake

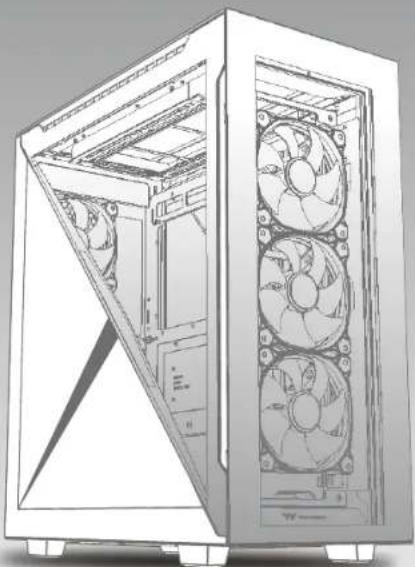

Technical line drawing of a computer tower case with three fans and internal components (no text or symbols)

Picture is for reference only

Divider 500 TG ARGB

User's Manual

Benutzerhandbuch

Mode d'emploi

Manual del usuario

Manuale dell'utente

Manual do Utilizador

安裝說明書

用戶手冊ユーザーズマニュアル

Руководство пользователя

kullanıcı elkitabı

(EEE Yönetmeliğine Uygundur)

คุมอาการไซ

TT Premium

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://htpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits

Dear Valued Customer,

Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

• Quick and responsive user support
  ● Receive help and advice with new builds
• Keep up to date with new product releases
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/ThermaltakeInc

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

CONTENTS

Chapter 1. Product Introduction

1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03

Chapter 2. Installation Guide

2.0 Remove Components 06
2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08
2.3 3.5" & 2.5" HDD Installation 09
2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 Remove Filter 15
2.9 ARGB Control Instruction 16

Divider 500 TG ARGB Divider Specific ARGB

Accessory

Model	Divider 500 TG ARGB Divider 500 TG ARGB Snow
Case Type	Mid Tower
Dimension (H x W x D) 530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch)
Side Panel	Tempered Glass x 4, Steel Side Panel x 2
Color	Black White
Material	SPCC
Cooling System	Front (Intake):120 x 120 x 25 mm ARGB fan(1000rpm, 27.2 dBA) x 3Rear (exhaust):120 x 120 x 25 mm fan(1000rpm, 16 dBA) x 1
Drive Bays	2 x 3.5", 5 x 2.5"or 7 x 2.5"
Expansion Slots	7 (Rotatable Patented Design)
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 8.6" (Micro ATX), 12" x 8.6" (ATX)
I/O Port	USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm3 x 140 mm, 2 x 140 mm, 1 x 140 mmTop: 2 x 120 mm, 1 x 120 mm2 x 140 mm, 1 x 140 mmRight (M/B Side): 2 x 120 mm, 1 x 120 mmRear: 1 x 120 mm
Radiator Support	Front: 1 x 350mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmTop: 1 x 250 mm, 1 x 140 mm1 x 240 mm, 1 x 120 mmRight (M/B Side): 1 x 240mm, 1 x 120 mmRear: 1 x 120mm
Clearance	CPU cooler height limitation: 150 mmVGA length limitation: 360 mm (With radiator)390 mm (Without radiator)PSU length limitation: 180 mm (With HDD Cage)220mm(Without HDD Cage)

Figure Use For	Part Name	Q'ty
	Screw #6-32 x 6 mm	4	For PSU
	Screw M3 x 5 mm	40	For Motherboard / 2.5" HDD / SSD
	Screw M3 x 8.5 mm	10	For 2.5" HDD / SSD
	Stand-off #6-32 x 6.5 mm	3	Backup
	Net setler	1	For Motherboard Stand-off
	Buzzer	1	Motherboard Alarm
	Screw #6-32 x 6 mm	10	For 3.5" HDD
	Screw ∅5 x 10 mm 4		For Case Fan
	Cable Ties	10	Cable Management
	VGA Bracket	1	Backup
	Thumb Screw #6-32 x 5 mm	3	Backup
	Velcro Cable ties	3	Cable Management
	MB Signal Bridge Cable (ASUSMSIASROCK/CIGABYTE)	1	LED Signal Sync

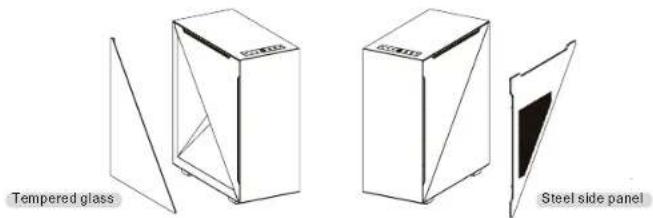

Tempered glass Steel side panel

One extra left side tempered glass and one extra right side panel are included for more assembly options.

Divider 500 TG ARGB Divider Warning ARGB Notice

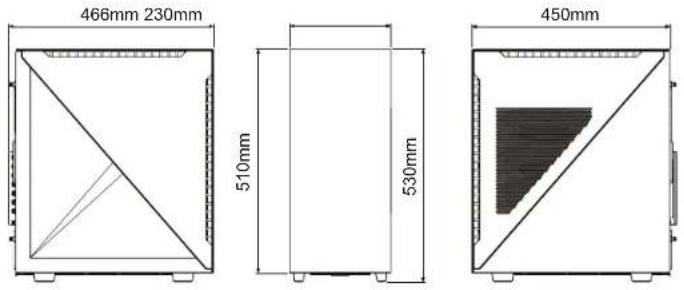

Chassis dimension

466mm 230mm 510mm 530mm 450mm

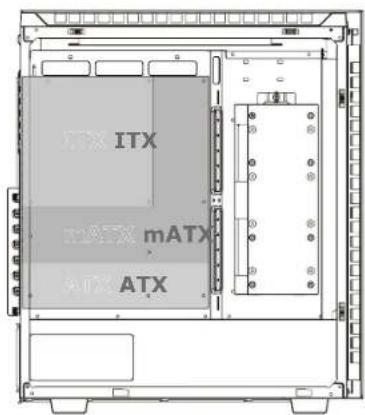

Motherboard Compatibility: ITX / mATX / ATX

(Up to 244mm wide)

ITX mATX mATX ATX

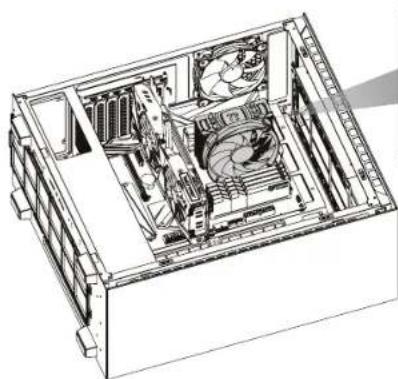

CPU cooler max height: 150mm

Technical line drawing of a computer tower internal structure showing fan, drive, and ventilation (no text or labels)

Technical line drawing of a cooling fan with 150mm height dimension (no text or symbols)

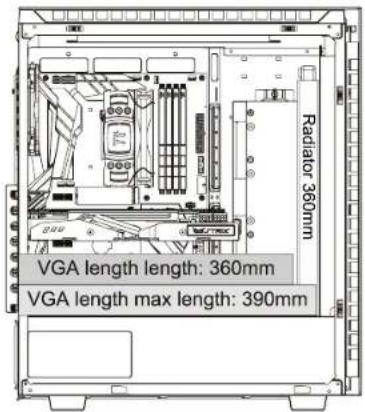

VGA length max length: 390mm

Radiator 360mm VGA length length: 360mm VGA length max length: 390mm

Divider 500 TG ARGB Divider 500 TG ARGB

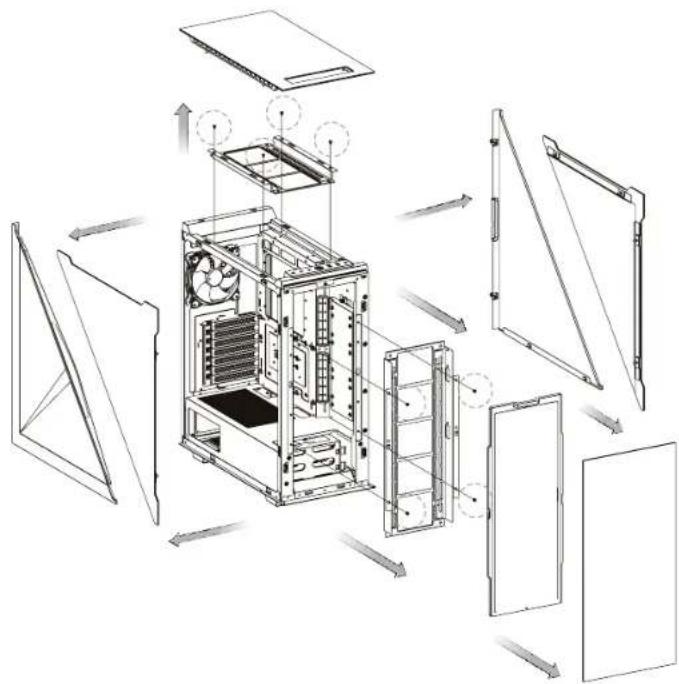

Remove Components

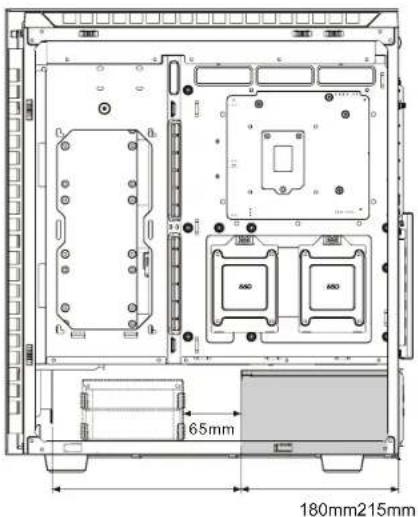

PSU max length: 180mm

65mm 180mm215mm

Exploded view diagram of a computer tower internal structure showing fan, ventilation, and door mechanism (no text or labels)

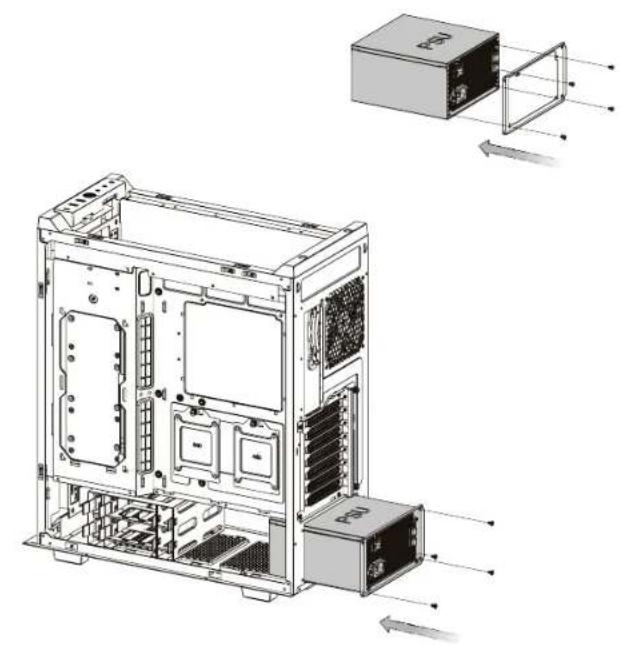

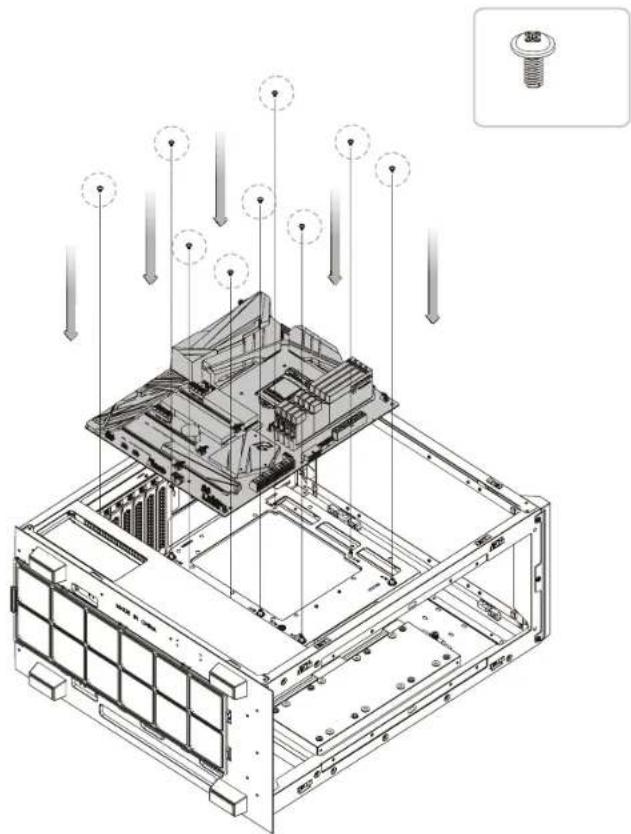

Divider 500 TG ARGB Divider Poster GUARGB Unit Installation Motherboard Installation

Technical line drawing of a computer tower case with internal components and external housing (no text or labels)

Technical line drawing of an internal server rack with mounting holes and a 3D inset showing a bolt (no text or symbols present)

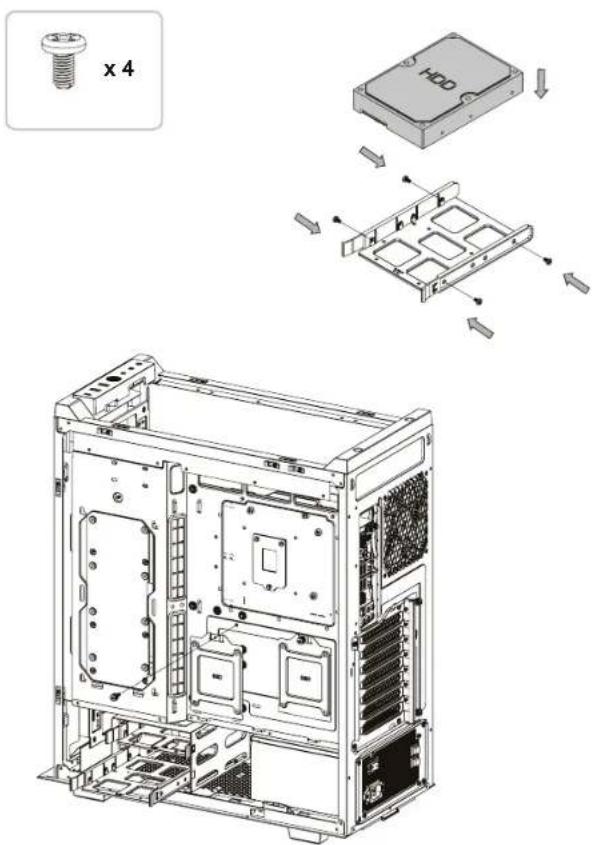

Divider 500 TG ARGB Divider 500 TGD Installation

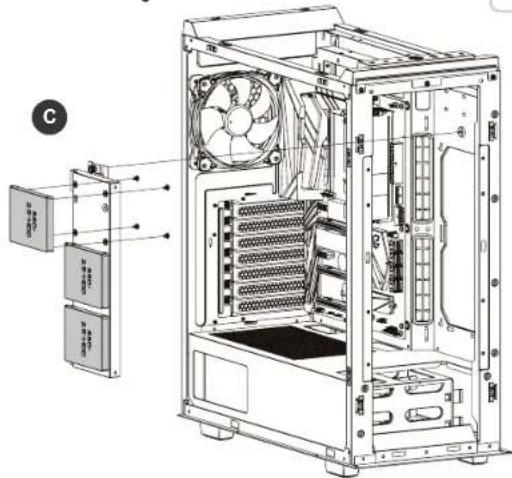

2.5" HDD Installation

A

500 2.5-1000

B

Technical diagram of a desktop computer tower with labeled components and directional arrows indicating assembly or movement.

D

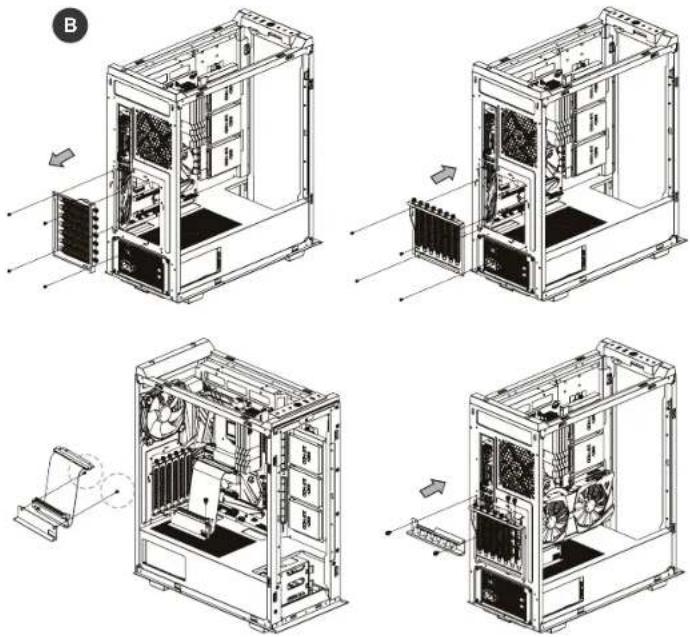

Divider 500 TG ARGB Divide 500 Card ARGB Installation

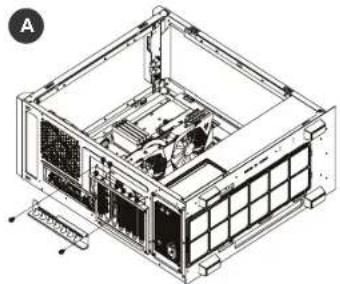

Air Cooling Installation

Isometric technical drawing of a computer chassis with internal components and mounting holes (no text or labels)

Rear
120mm x 1

Top
140mm x 2
120mm x 2

or
Front
120mm x 3
or
140mm×3
M/B Side
120mm × 2

Technical line drawing of a desktop computer chassis showing internal components and ventilation slots (no text or labels)

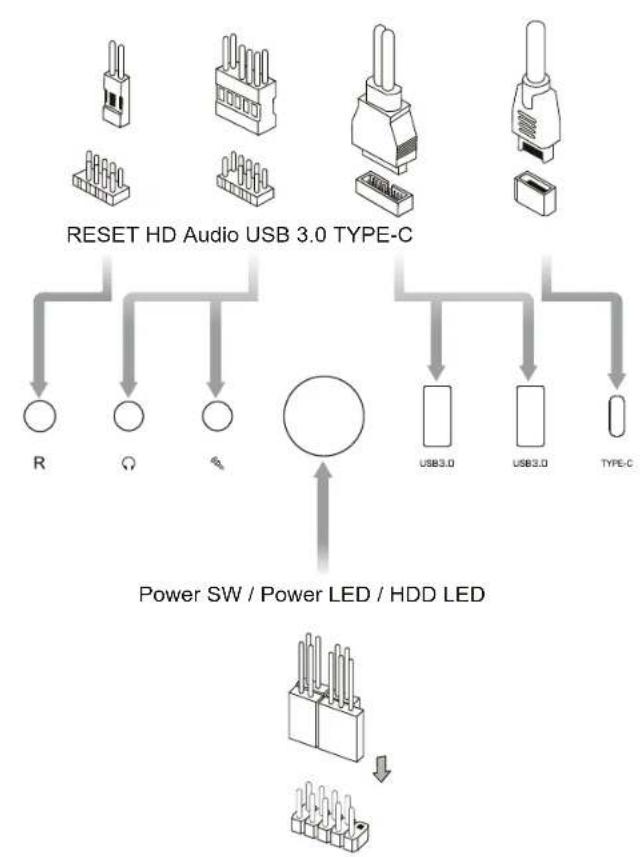

Divider 500 TG ARGB Divider 500 in ARGB Cooling Installation I/O Connection

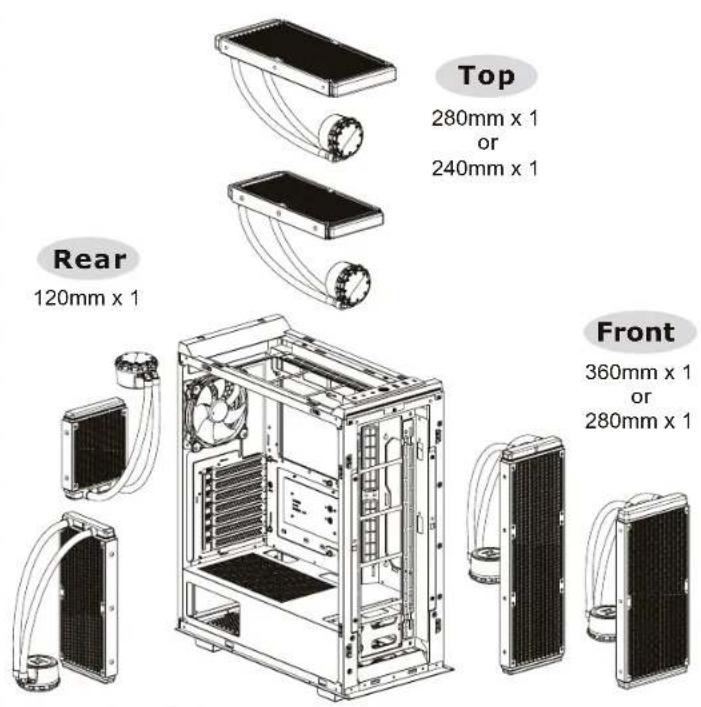

Top 280mm x 1 or 240mm x 1 Rear 120mm x 1 Front 360mm x 1 or 280mm x 1

M/B Side
240mm x 1

Divider 500 TG ARGB Divide2600 Vc ARGars ARGB Control Instruction

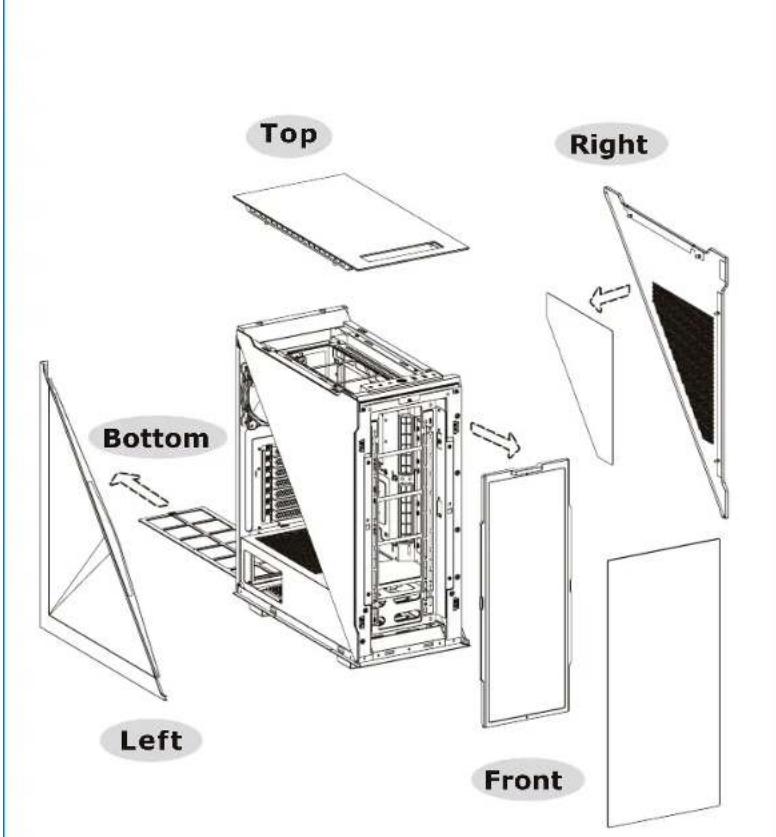

Top Right Bottom Left Front

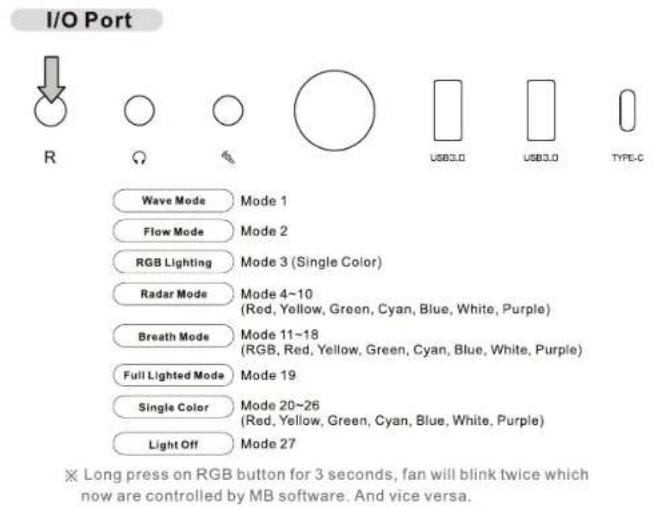

I/O Port R Wave Mode Mode 1 Flow Mode Mode 2 RGB Lighting Mode 3 (Single Color) Radar Mode Mode 4~10 (Red, Yellow, Green, Cyan, Blue, White, Purple) Breath Mode Mode 11~18 (RGB, Red, Yellow, Green, Cyan, Blue, White, Purple) Full Lighted Mode Mode 19 Single Color Mode 20~26 (Red, Yellow, Green, Cyan, Blue, White, Purple) Light Off Mode 27 × Long press on RGB button for 3 seconds, fan will blink twice which now are controlled by MB software. And vice versa.

How to connect MB

