| 产品类型 | 中塔式电脑机箱 |
| 型号 | Divider 500 TG Air |
| 尺寸（高 x 宽 x 深） | 约 500mm x 230mm x 480mm |
| 重量 | 约 8.5 kg |
| 材质 | 钢质框架，钢化玻璃侧板，前面板冲孔网 |
| 主板支持 | Mini-ITX, Micro-ATX, ATX |
| 电源类型 | 下置式ATX电源（最大长度220mm） |
| 扩展槽位 | 7个PCIe插槽 |
| 存储支持 | 2个3.5英寸硬盘位，2个2.5英寸硬盘位 |
| 风扇安装 | 前面板最多3个140mm/120mm风扇，顶部2个140mm/120mm风扇，后部1个120mm风扇 |
| 水冷支持 | 前面板最大360mm水冷排，顶部最大280mm水冷排 |
| 显卡最大长度 | 420mm（拆除硬盘架） |
| CPU散热器最大高度 | 175mm |
| 前置接口 | 2个USB 3.0，1个USB Type-C，音频麦克风二合一 |
| 主要功能 | 模块化内部布局，可拆卸硬盘架；钢化玻璃侧板展示内部；前面板高通风冲孔网设计；支持显卡竖装 |
| 清洁与维护 | 使用柔软干布定期清洁表面；前面板防尘网可拆卸水洗 |
| 安全须知 | 确保机箱放置在平稳表面；避免液体进入；拆装时注意边缘锋利处 |
| 备件与可维修性 | 标准螺丝包；防尘网可购买替换；外壳钣金件需联系售后 |
| 保修信息 | 制造商提供2年有限保修 |
| 包装内容 | 机箱主体，附件包（螺丝、扎带、说明书） |
常见问题 - Divider 500 TG Air THERMALTAKE
用户关于以下问题的提问 Divider 500 TG Air THERMALTAKE
0 问题 关于此设备。回答您知道的问题或提出自己的问题。
提出关于此设备的新问题
下载您的设备说明 电脑机箱 免费PDF格式！查找您的手册 Divider 500 TG Air - THERMALTAKE 并重新掌握您的电子设备。本页发布了使用您的设备所需的所有文档。 Divider 500 TG Air 品牌 THERMALTAKE.
用户手册 Divider 500 TG Air THERMALTAKE
thermaltake
© 2021 Thermaltake Technology Co., Ltd. All Rights Reserved. 2021.06
All other registered trademarks belong to their respective companies. www.thermaltake.com
Teded To Comply
HE OR OFFICE USE
RoHS
COMPLIANT
thermaltake


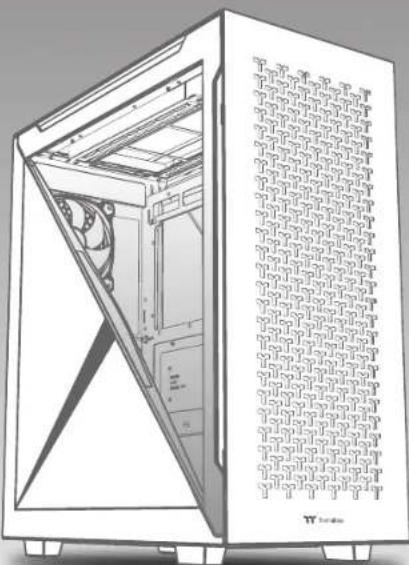

Technical line drawing of a computer tower case with internal components and ventilation slots (no text or symbols)Picture is for reference only
Divider 500 TG Air
User's Manual
Benutzerhandbuch
Mode d'emploi
Manual del usuario
Manuale dell'utente
Manual do Utilizador
安裝說明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullanıcı elkitabı
(EEE Yönetmeliğine Uygundur)
คุมีอาการไซ
TT Premium
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://itpremium.com
Tt LCS-Liquid Cooling Support Certification
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Join Tt Community To Receive Benefits
Dear Valued Customer,
Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.
Benefits of being a member:
- Quick and responsive user support
● Receive help and advice with new builds - Keep up to date with new product releases
- Share your thoughts and builds with the community
● Enter monthly contests and giveaways
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
CONTENTS
Chapter 1. Product Introduction
1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03
Chapter 2. Installation Guide
2.0 Remove Components 06
2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08
2.3 3.5" & 2.5" HDD Installation 09
2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 Remove Filters 15
Divider 500 TG Air
Specification
Accessory
Divider 500 TG Air
| Model | Divider 500 TG Air Divider 500 TG Air Snow |
| Case Type | Mid Tower |
| Dimension (H*W*D) 530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch) | |
| Side Panel | 3mm Tempered Glass x 2 |
| Color | Black White |
| Material | SFCC |
| Cooling System | Front (Intake):120 x 120 x 25 mm tan(1000rpm, 16 dBA) x 1Rear (exhaust):120 x 120 x 25 mm tan(1000rpm, 16 dBA) x 1 |
| Drive Bays | 2 x 3.5", 5 x 2.5"or 7 x 2.5" |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboards | 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm3 x 140mm, 2 x 140mm, 1 x 140mmTop: 2 x 120mm, 1 x 120mm2 x 140mm, 1 x 140mmRight (M/B Side): 2 x 120mm, 1 x 120mmRear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmTop: 1 x 280mm, 1 x 140mm1 x 240mm, 1 x 120mmRight (M/B Side): 1 x 240mm, 1 x 120mmRear: 1 x 120mm |
| Clearance | CPU cooler max height: 155mm (with one TG and one steel side panel)170mm (with two TG)VGA max length: 360mm (with radiator)390mm (without radiator)PSU max length: 100mm (with HDD Cage)220mm (without HDD Cage) |
| Figure Use For | Part Name | Qty | |
| Screw #6-32 x 6 mm | 4 | For PSU | |
| Screw M3 x 5 mm | 40 | For Motherboard / 2.5" HDD / SSD | |
| Screw M3 x 8.5 mm | 10 | For 2.5" HDD / SSD | |
| Stand-off #6-32 x 6.5 mm | 3 | Backup | |
| Net seller | 1 | For Motherboard Stand-off | |
| Buzzer | 1 | Motherboard Alarm | |
| Screw #6-32 x 6 mm | 10 | For 3.5" HDD | |
| Screw ∅5 x 10 mm 4 | For Case Fan | ||
| Cable Ties | 10 | Cable Management | |
| VGA Bracket | 1 | Backup | |
| Thumb Screw #6-32 x 5 mm | 3 | Backup | |
| Velcro Cable ties | 3 | Cable Management |


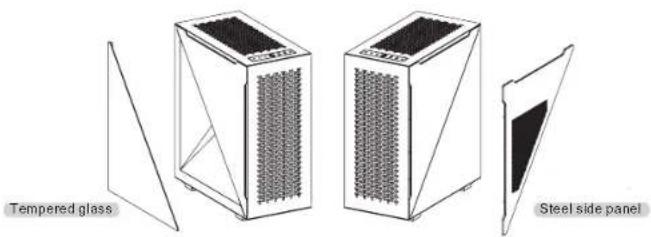

Tempered glass Steel side panelOne extra left side tempered glass and one extra right side panel are included for more assembly options.
Divider 500 TG Air Divider Wailing And Notice

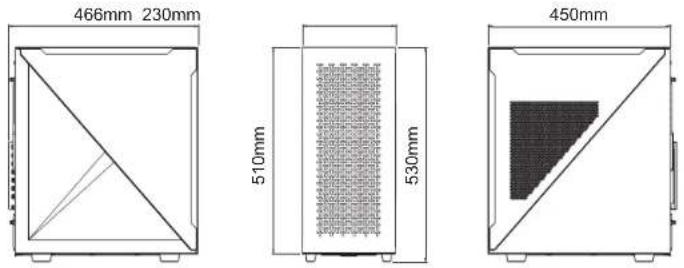

Chassis dimension

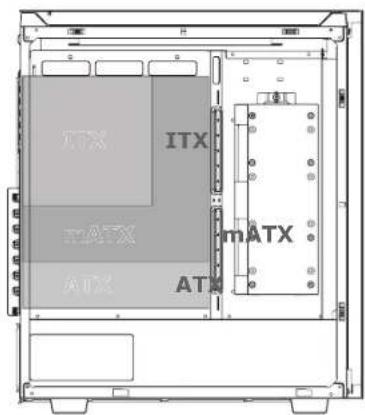

Motherboard Compatibility: ITX / mATX / ATX
(Up to 244mm wide)


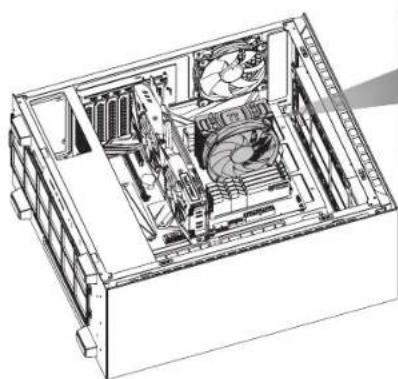

ITX mATX ATXCPU cooler max height: 150mm


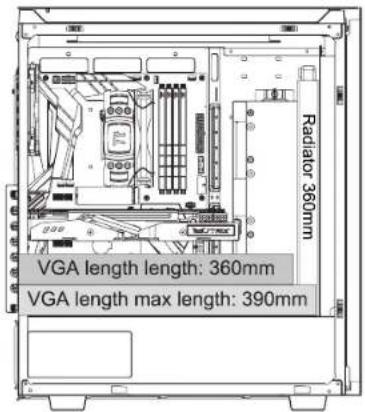

VGA length length: 360mm VGA length max length: 390mm Radiator 360mmDivider 500 TG Air Divider 500 TG Air

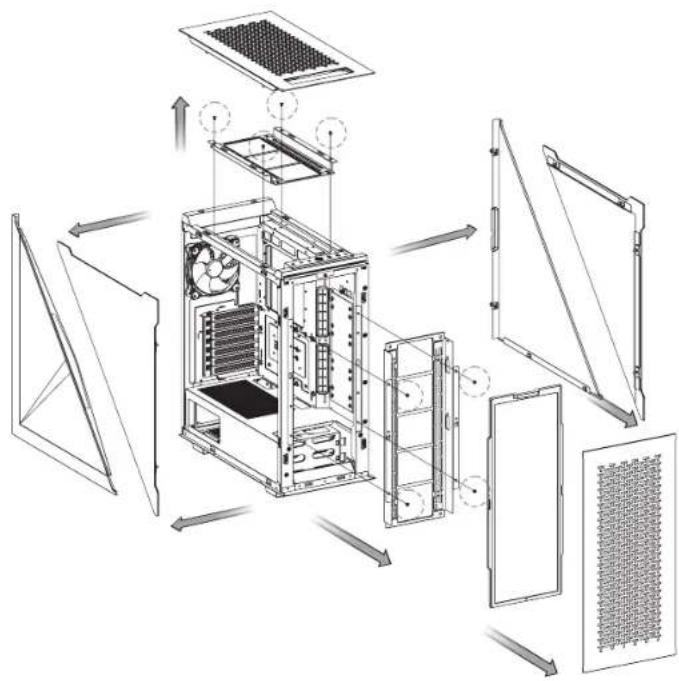

Remove Components

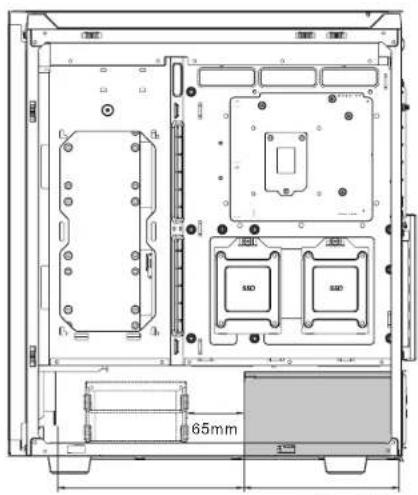

PSU max length: 180mm


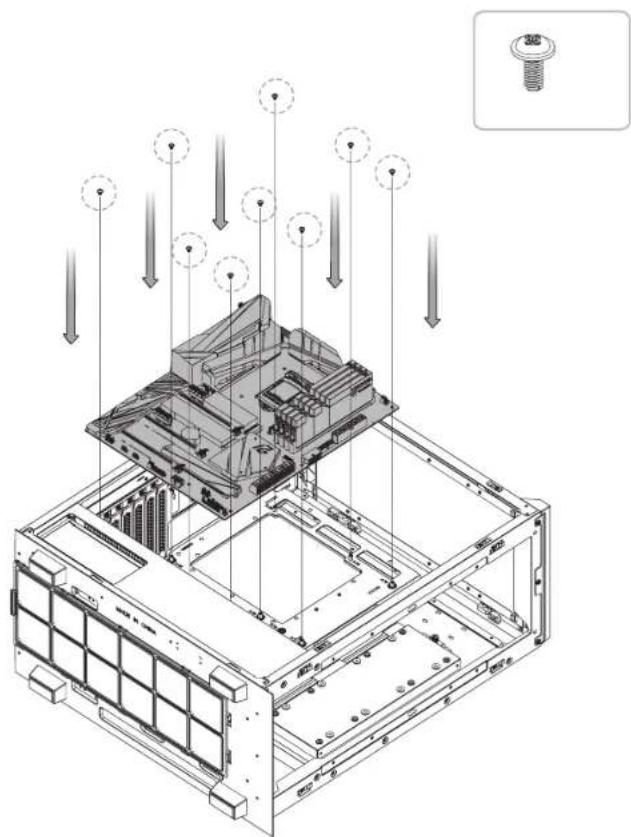

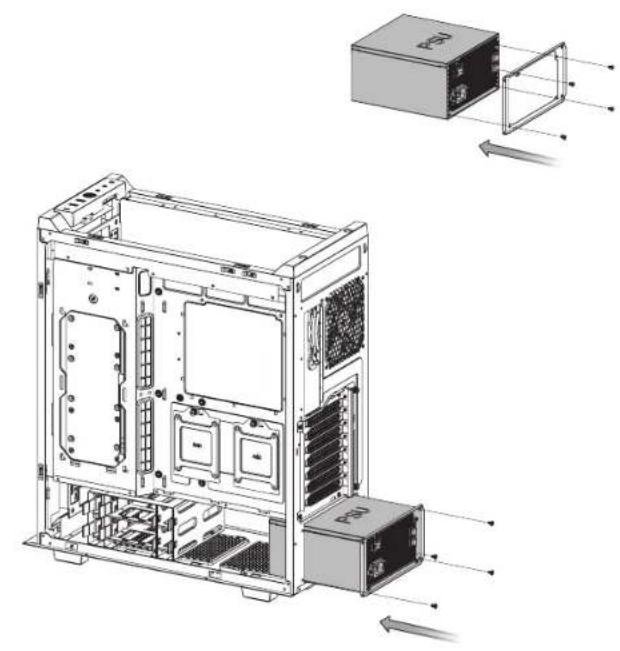

Exploded view diagram of a server rack system showing internal components and airflow direction (no text or labels)Divider 500 TG Air Divider 500rTg Apply Unit Installation Motherboard Installation


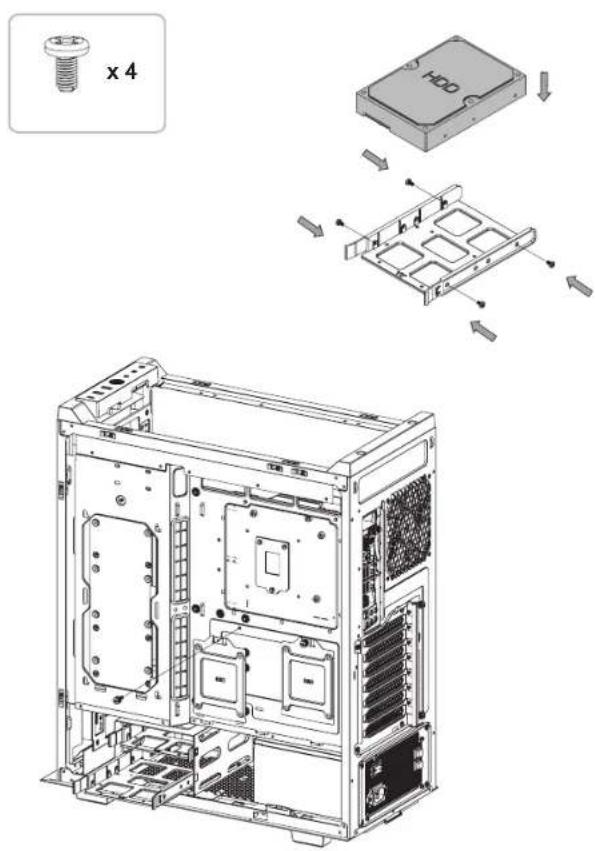

Technical line drawing of an internal server rack with mounting holes and a bolt, showing no text or symbols.Divider 500 TG Air Divider 500 TGA Installation

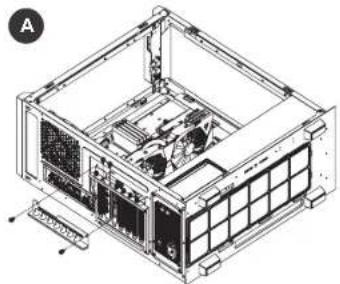

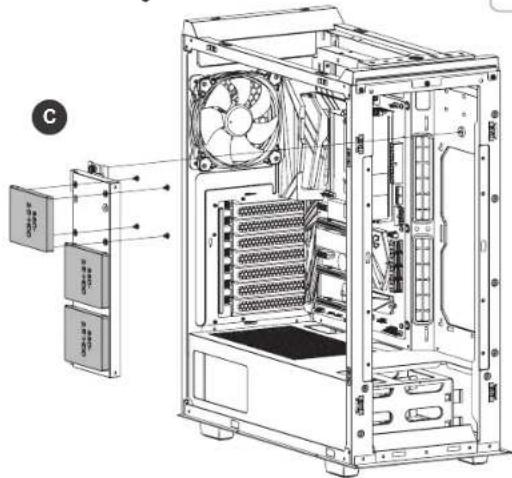

2.5" HDD Installation
A


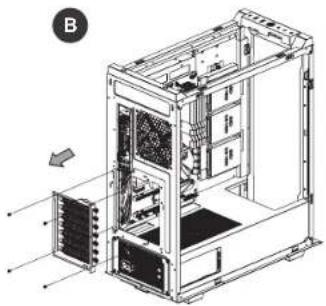

Isometric technical diagram of a multi-layered electronic component with mounting holes and a top cover (no text or symbols)B


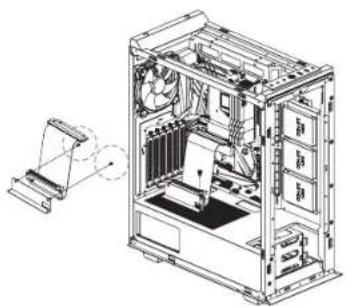

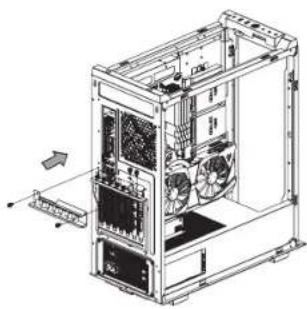

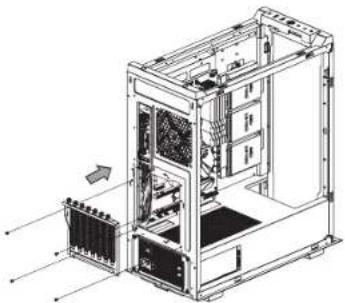

Divider 500 TG Air Divider 500 Card Installation

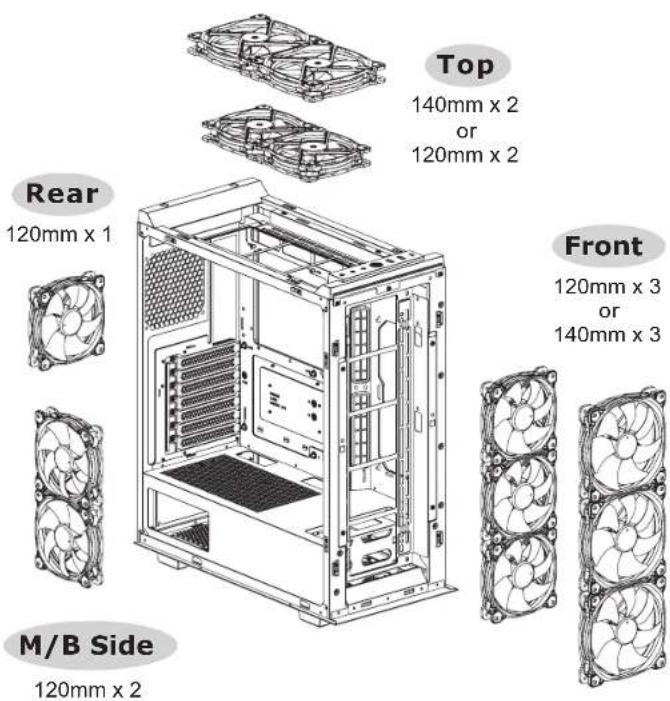

Air Cooling Installation
Divider 500 TG Air Divider 500 TG Air Cooling Installation I/O Connection


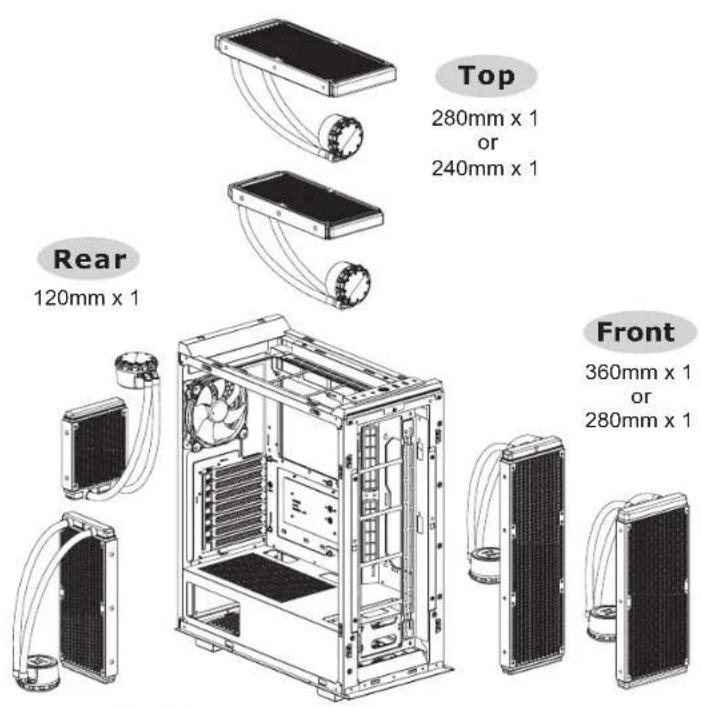

Top 280mm x 1 or 240mm x 1 Rear 120mm x 1 Front 360mm x 1 or 280mm x 1M/B Side
240mm × 1
Divider 500 TG Air Divider2500VG Airters

