用户手册 Divider 300 TG THERMALTAKE

thermaltake

© 2021 Thermaltake Technology Co., Ltd. All Rights Reserved. 2020.11

All other registered trademarks belong to their respective companies. www.thermaltake.com

Teded To Comply

HE OR OFFICE USE

RoHS

COMPLIANT

thermaltake

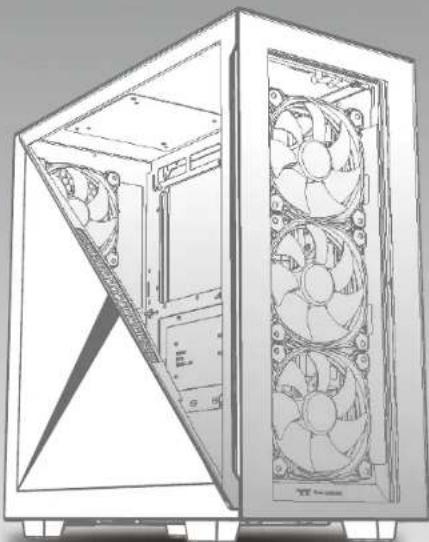

Technical line drawing of a computer tower case with visible fan blades and internal components (no text or symbols)

Picture is for reference only

Divider 300 TG

Divider 300 TG ARGB

User's Manual

Benutzerhandbuch

Mode d'emploi

Manual del usuario

Manuale dell'utente

Manual do Utilizador

安裝說明書

用戶手冊ユーザーズマニュアル

Руководство пользователя

kullanıcı elkitabı

(EEE Yönetmeliğine Uygundur)

คุมอาการใช

TT Premium

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed "TT Premium" with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake's desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. http://htpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Join Tt Community To Receive Benefits

Dear Valued Customer,

Thank you for choosing Thermaltake. As a new user we value your thoughts and opinions and your feedback is important to us. We at Thermaltake would like to use this opportunity to invite you to join our Community Forums. Register today to start enjoying the full benefits of our community.

Benefits of being a member:

• Quick and responsive user support
  ● Receive help and advice with new builds
• Keep up to date with new product releases
• Share your thoughts and builds with the community
• Enter monthly contests and giveaways

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/Thermaltakelnc

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

CONTENTS

Chapter 1. Product Introduction

1.0 Specification 01
1.1 Accessory 02
1.2 Warning and Notice 03

Chapter 2. Installation Guide

2.0 Remove Components 06
2.1 Power Supply Unit (PSU) Installation 07
2.2 Motherboard Installation 08
2.3 3.5" & 2.5" HDD Installation 09
2.4 PCI Card Installation 11
2.5 Air Cooling Installation 12
2.6 AIO Liquid Cooling Installation 13
2.7 I/O Connection 14
2.8 Remove Filter 15
2.9 ARGB Control Instruction 16

Divider 300 TG Dividepe300cGion

Accessory

Model	Divider 300 TG Divider 300 TG ARGB
Case Type	Mid Tower
Dimension (H*W*D) 475 x 220 x 461 mm (18.7 x 8.7 x 10.1 inch)
Side Panel	Tempered Glass x 2
Material	SPCC
Cooling System	Rear (exhaust):120 x 120 x 25 mm Turbo fan(1000rpm, 16 dBA) x 1	Front (intake):120 x 120 x 25 mm ARGB fan(1000rpm, 27.2 dBA) x 3Rear (exhaust):120 x 120 x 25 mm Turbo fan(1000rpm, 16 dBA) x 1
Drive Bays	2 x 3.5", 5 x 2.5'or 7 x 2.5"
Expansion Slots	7 (Rotatable Patented Design)
Motherboards	6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
I/O Port	USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm2 x 140mm, 1 x 140mmTop: 1 x 120 mm, 1 x 140 mmRight (M/B Side): 2 x 120 mm, 1 x 120 mmRear: 1 x 120 mm
Radiator Support	Front: 1 x 360mm, 1 x 240mm, 1 x 120mm1 x 280mm, 1 x 140mmRight (M/B Side): 1 x 240mm, 1 x 120 mmRear: 1 x 120mm
Clearance	CPU cooler height limitation: 145 mmVGA length limitation: 360 mm (With radiator)390 mm (Without radiator)PSU length limitation: 180 mm (With HDD Cage)220mm(Without HDD Cage)

Figure Use For	Part Name	Q'ty
	Rubber ∅10 x 4 mm	2	For PSU
	Screw #6-32 x 6 mm	4	For PSU
	Screw M3 x 5 mm	40	For Motherboard / 2.5" HDD / SSD
	Stand-off #6-32 x 6.5 mm	3	Spares
	Net setter	1	For Motherboard Stand-off
	Buzzer	1	Motherboard Alarm
	Screw #6-32 x 6 mm	10	For 3.5" HDD / VGA bracket
	Screw ∅5 x 10 mm 4		For Case Fan
	Cable Ties	10	Cable Management
	VGA Bracket	1	For VGA
	Thumb Screw #6-32 x 5 mm	3	For VGA

For ARGB Version Only

Figure	Parts Name	Q'ty	Used for
	MB Signal Bridge Cable (ASUS/MSI/ASROCK/GIGABYTE)	1	LED Signal Sync

Divider 300 TG DividWarning and Notice

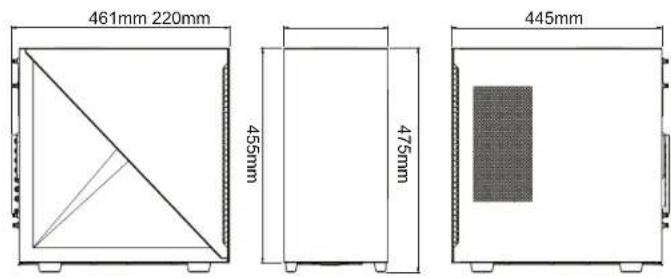

Chassis dimension

461mm 220mm 455mm 475mm 445mm

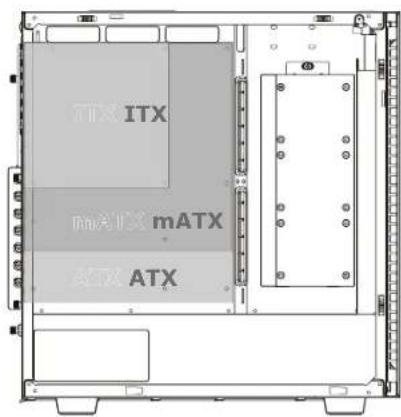

Motherboard Compatibility: ITX / mATX / ATX

(Up to 244mm wide)

ITX mATX mATX ATX

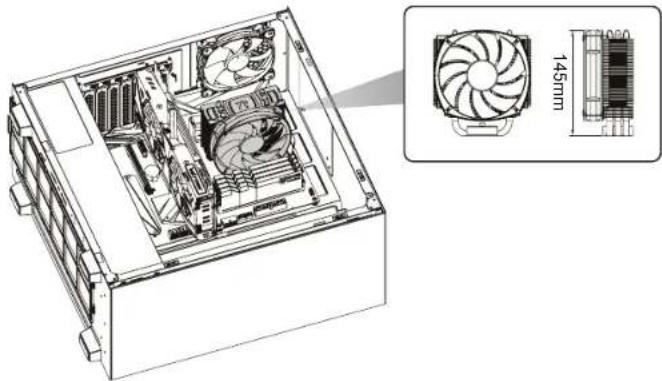

CPU cooler max height: 145mm

Technical line drawing of a computer tower internal unit with fan and heatsink (no text or symbols)

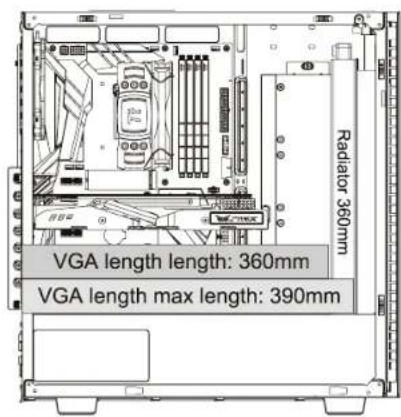

VGA length max length: 390mm

VGA length length: 360mm VGA length max length: 390mm Radiator 360mm

Divider 300 TG Divider 300 TG

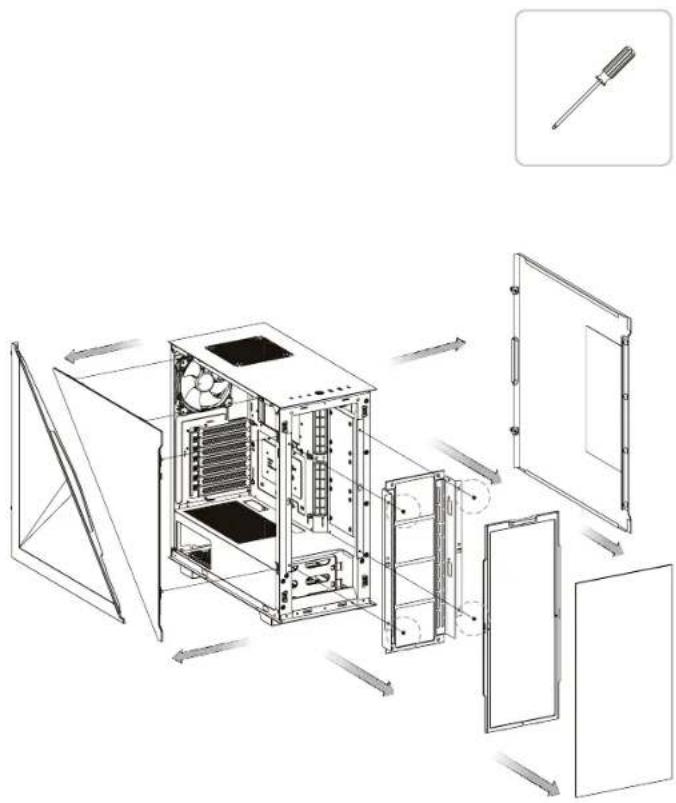

Remove Components

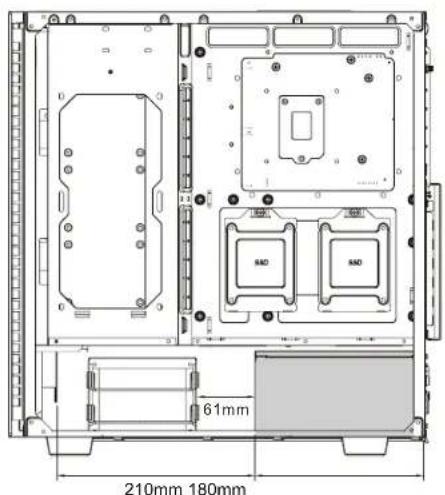

PSU max length: 180mm

210mm 180mm 61mm

Exploded view diagram of a computer tower internal structure showing fan, ventilation, and door components (no text or labels)

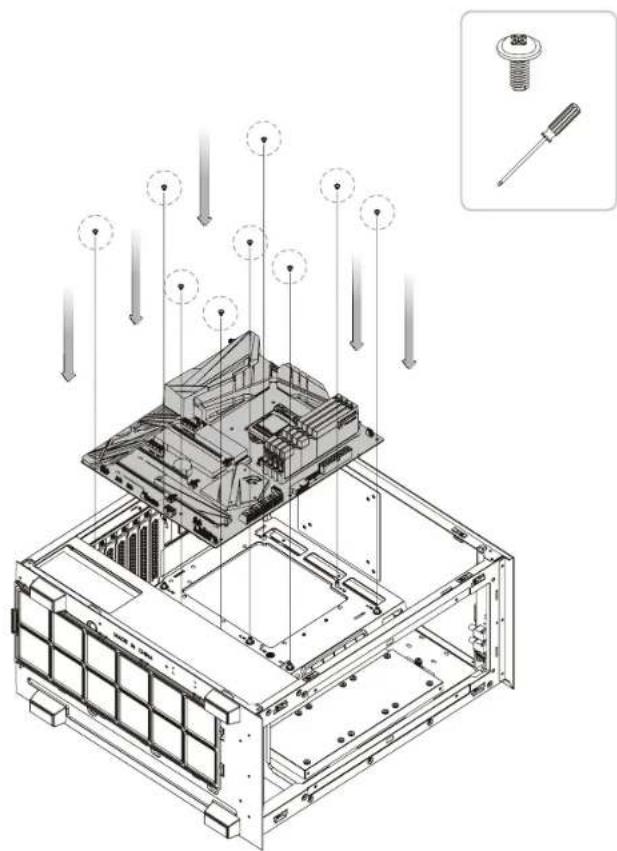

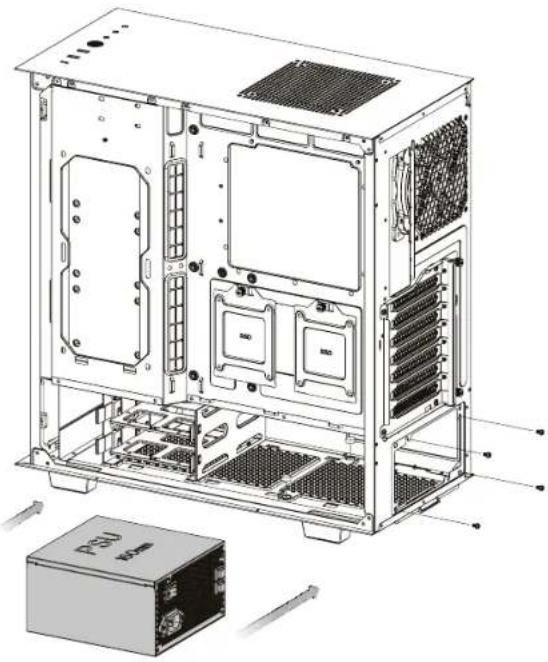

Divider 300 TG Dividev3.0 Supply Unit Installation Motherboard Installation

Technical line drawing of a computer tower case with internal components and an external chassis (no text or symbols)

Exploded view diagram of a computer motherboard with screwdriver and screw head assembly (no text or labels)

Divider 300 TG Divide.5300DLGInstallation

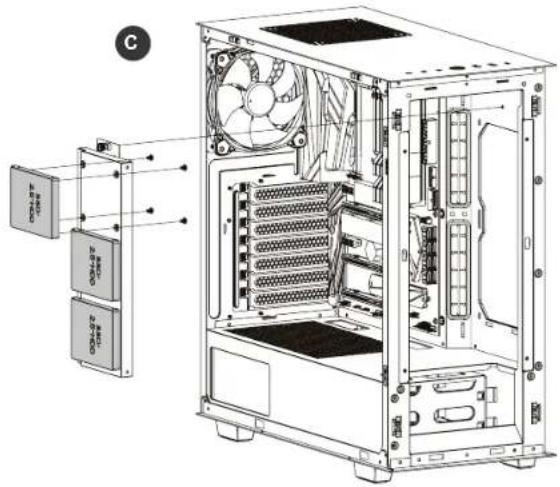

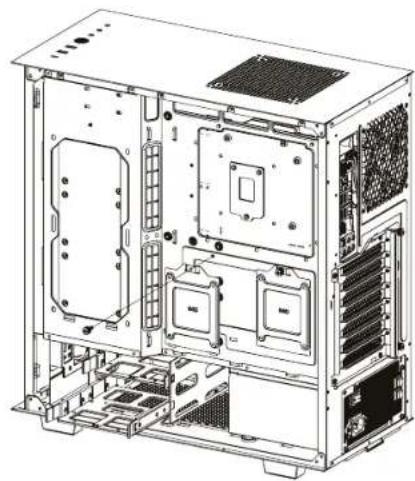

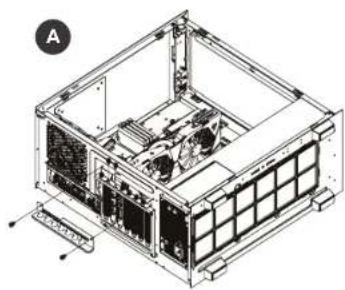

2.5" HDD Installation

Technical diagram showing a 3D HDD device with internal components and directional arrows indicating assembly or processing (no text or symbols present)

Technical line drawing of a computer tower internal unit with visible internal compartments and drive bays (no text or labels)

A

Isometric diagram of a mechanical or electronic component with labeled parts and mounting points (no readable text or symbols)

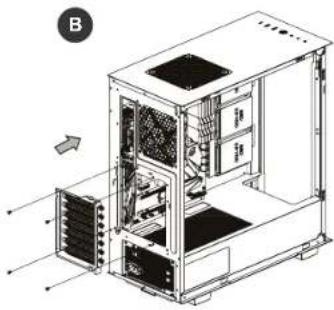

B

Technical diagram of a desktop computer tower showing internal components and ventilation system with labeled ports and connectors

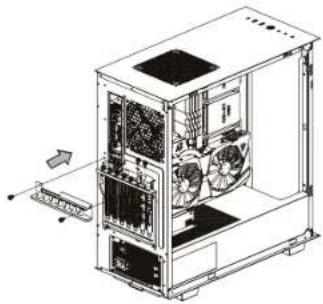

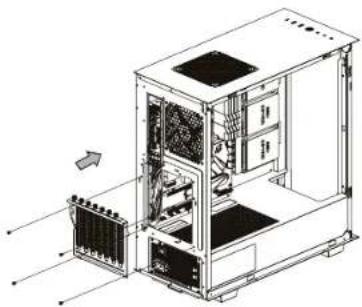

Divider 300 TG Divid PCI Card Installation

Technical line drawing of an internal electronic device casing with visible internal components and mounting brackets (no text or labels)

Isometric line drawing of a computer tower case with internal components and ventilation ducts (no text or labels)

Technical line drawing of a server rack unit with internal components and ventilation ducts (no text or labels)

Technical line drawing of a computer tower case with internal components and a separate 3D assembly detail (no text or labels)

Technical line drawing of a computer tower internal unit with visible fan and drive bays (no text or labels)

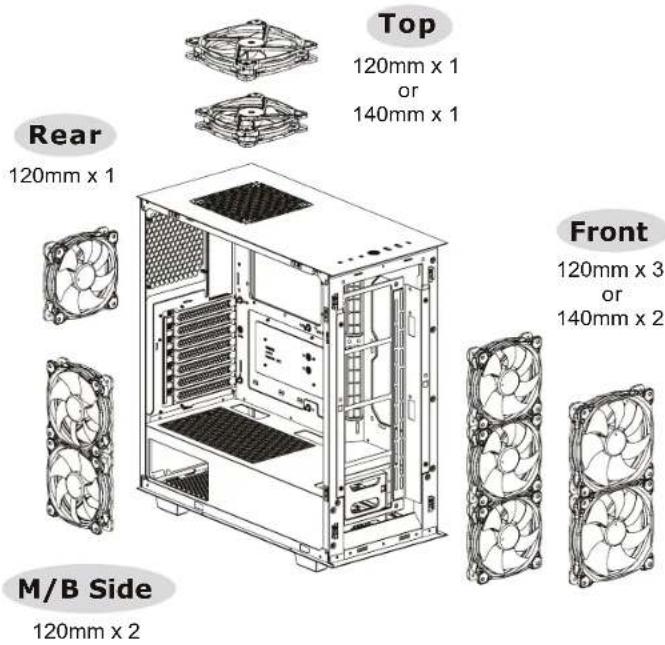

Air Cooling Installation

Two types of screwdrivers: a threaded screw and a standard screwdriver, both shown without any text or symbols.

Top 120mm x 1 or 140mm x 1 Rear 120mm x 1 Front 120mm x 3 or 140mm x 2 M/B Side 120mm x 2

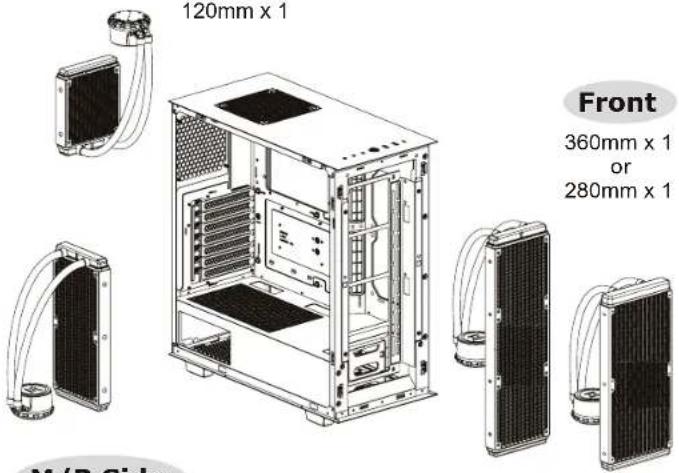

Divider 300 TG DividerTG00qngl Cooling Installation I/O Connection

Rear

120mm x 1

120mm x 1 Front 360mm x 1 or 280mm x 1 M/R Side

M/B Side

240mm x 1

360mm × 1

or

280mm x 1

Two identical heat exchanger units with cooling fins and heat sinks, shown side by side (no text or symbols visible)

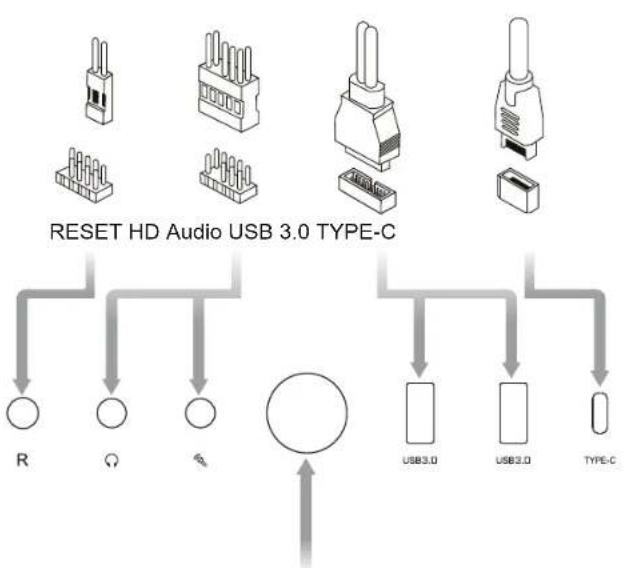


Power SW / Power LED / HDD LED

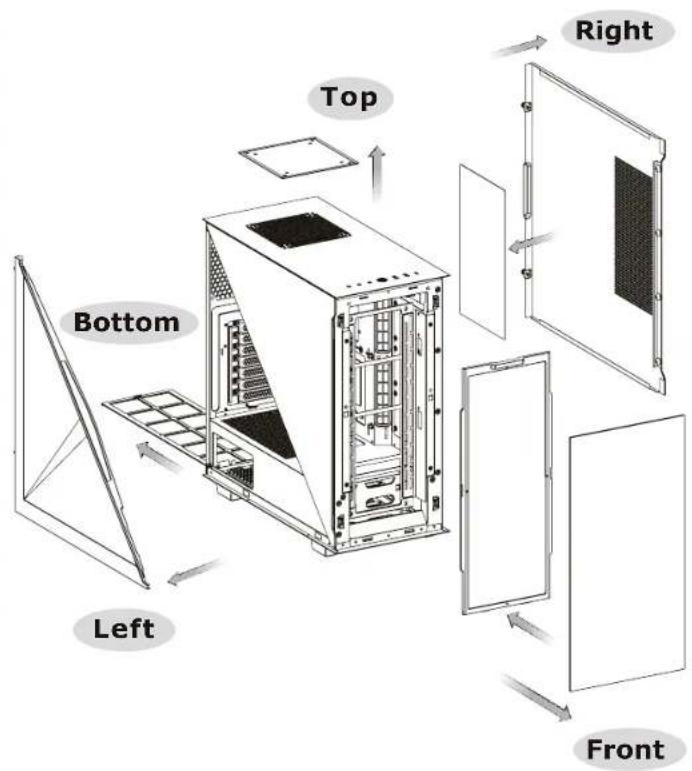

Divider 300 TG Divider300eGilter

Bottom Left Top Right Front

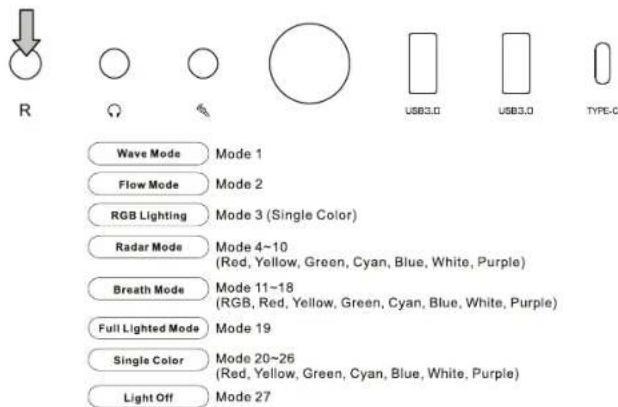

ARGB Control Instruction

I/O Port

R Wave Mode Flow Mode RGB Lighting Radar Mode Breath Mode Full Lighted Mode Single Color Light Off Mode 1 Mode 2 Mode 3 (Single Color) Mode 4~10 (Red, Yellow, Green, Cyan, Blue, White, Purple) Mode 11~18 (RGB, Red, Yellow, Green, Cyan, Blue, White, Purple) Mode 19 Mode 20~26 (Red, Yellow, Green, Cyan, Blue, White, Purple) Mode 27

※ Long press on RGB button for 3 seconds, fan will blink twice which now are controlled by MB software. And vice versa.

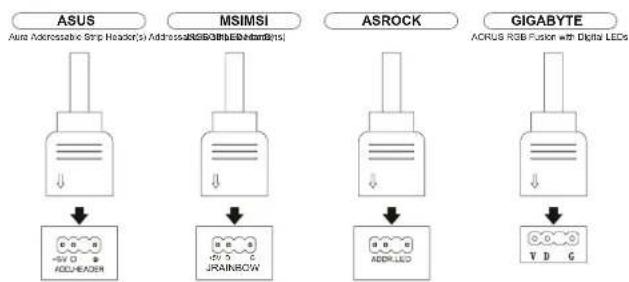

How to connect MB

