Panasonic

onic.Panasonic.Panasonic Panasonic

Colour Television

TX---28CK1F/B

TX---21CK1F/B

Operating Instructions

TQB8E3199---eng

English

Please read these instructions before operating your set and retain them for future reference.

(this is an unapproved issue --- for information only)

WELCOME

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from television set. Technically your set is more advanced than the previous models, however the "Quick Start—Up Guide" will help you operate your set easily. Later you may read this Manual and use it for further reference.

TABLE OF CONTENTS

-Warnings and Precautions 2.

• Quick Start 3
  • Main Controls 4
• Main Menu Flow Chart 5

• On-Screen Menu Indications 5

• Main menu 6
  • Sound menu 7

• Setup menu 8
• Tuning menu 9
• Tuning – Automatic Tuning Process (ATP) ..... 10
• Tuning – Manual Tuning 11
• Swap – Programme swapping .... 12
• On-Screen Display Language 12

- Special Functions

Q-Link 13
Data Copying In VCR - Q-Link 14
- AV selection – AV Mode 14
• VCR Controls 15
- Teletext Function 16
- Autosort 17

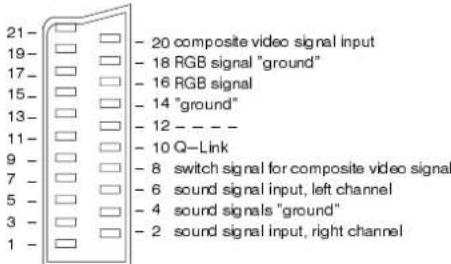

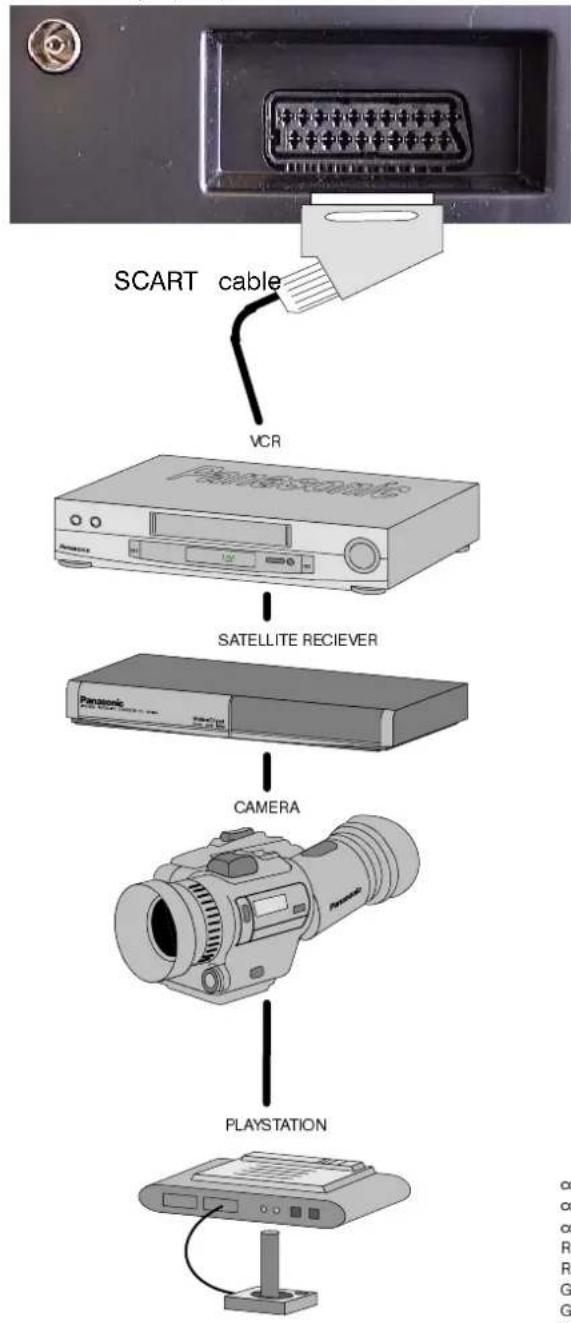

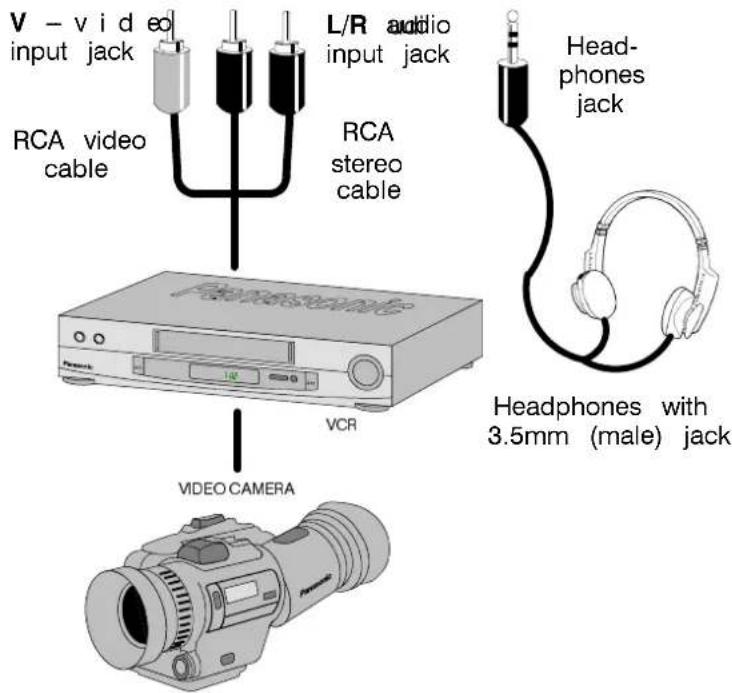

• External audio/video connections ..... 18
- Troubleshooting 19
- User Information 20
- Specifications 20

WARNINGS AND PRECAUTIONS

This television set is designed to be connected to an A© 220---240 V, 50 Hz power source.
To avoid damage that may result in an electric shock or fire do not expose the unit to rain or excessive moisture.
○WARNING: HIGH VOLTAGE!!!

Do not remove the rear cover as live parts and high---vo components are accessible. No components need any technical maintenance by the user.

The power switch does not totally disconnect the set from the power source. If you are not going to use the unit for an extended period, unplug the power plug from the socket.

CLEANING THE UNIT AND SCREEN

Unplug the power plug from the socket. To clean the uni the screen use a soft cloth slightly soaked in a soap sol Do not use solutions containing benzene or other petroleum products. The unit may generate static electricity, so be careful when touching the screen.

Do not expose the unit to direct sunlight or other sources of direct heat.
Adequate ventilation is essential to prevent failure of electrical components; we recommend that a gap of at least 5 cm is left around the unit even when it is placed inside a cabinet or between shelves.

OWASTE DISPOSAL

The used packaging and batteries should be disposed of in special containers intended for this purpose.

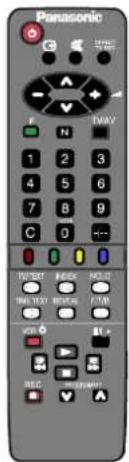

Check you have all the components shown here:

Panasonic F N 1 2 3 4 5 6 7 8 9 C 0 TOUT HOLD HOLD HOLD TEXT HOLD TEXT HOLD HOLD HOLD HOLD TEXT HOLD TEXT HOLD TEXT HOLD TEXT HOLD TEXT HOLD TEXT

Panasonic Ultra Power
Panasonic Ultra Power

remote control unit batteries 2 x R 6 ( U M 3 )

EUR511310 remote control unit

operation manual

Panasonic TOMI Thi-8001/1996 Thi-8001/1996 GTLB Cyclohex 奥 Nokia Sotter

Te l e v is ion guarantee

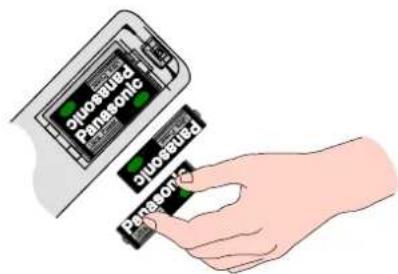

Remote control unit batteries

Olivasiatic Panasonic Olivasiatic Panasonic

• Insert the batteries ensuring correct polarity.
• Do not use old and new batteries at the same time. Used batteries should be removed at once.
• Do not mix battery types. not use Ni---Cd batteries.

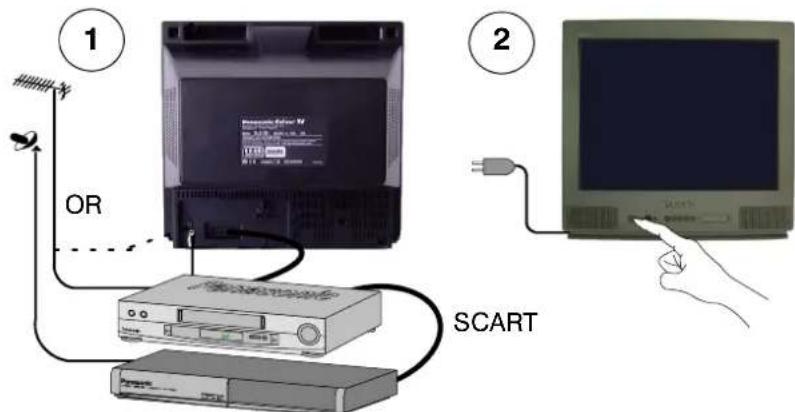

How To Start Up Quickly

1 OR SCART 2

Connect the aerial and the additional devices. Switch on the unit and the connected devices.

3

Select your language.

Press TV/AV button.

Select your country.

Press TV/AV button.

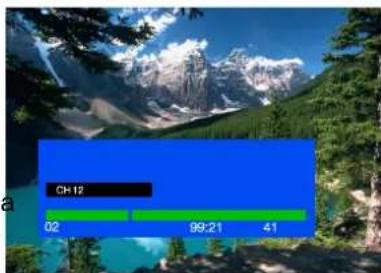

Automatic tuning will turn on, your transmitting stations will be found, saved in memory, and organised.

Press button "F" if you want to stop; press button "N" if you want to cancel the ATP sequence.

If the AV connector is connected to compatible VCR the programmed data will be transmitted to the VCR via Q-Link. See page 13.

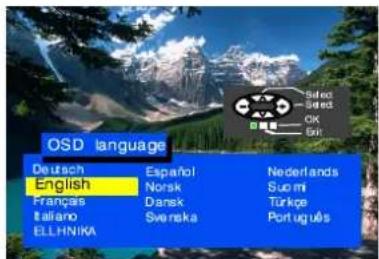

OSD language Deutsch English Français Italiano ELLHNIKA Español Norsk Dansk Svenska Nederlands Suò mi Türkçe Portugues

Land Deutschland France Italia Nederlands España EU. Start: ATP

CH 12 02 99:21 41

4

Channel selection
Volume adjustment

• If the VCR has failed to receive the data transmitted from the television unit you will probably have to find a way to transmit the data from the VCR menu.
• If Q-Link does not work properly, check if the SCART cable is connected to AV1 connector on the unit and has all the 21 pins, and if the VCR is compatible with Q-Link, NEXTVIEWLINK and similar techniques.
• You will find Information regarding Q-Link and connection on pages 13 and 18. Should you need more detailed information, contact your dealer.

If you install a new Q-Link compatible VCR, you may switch it on. The transmitted tuning data will match the data in the unit. If you use a new NEXTVIEWLINK-compatible VCR, the data will have to be transmitted manually. See details in the VCR operating manual.

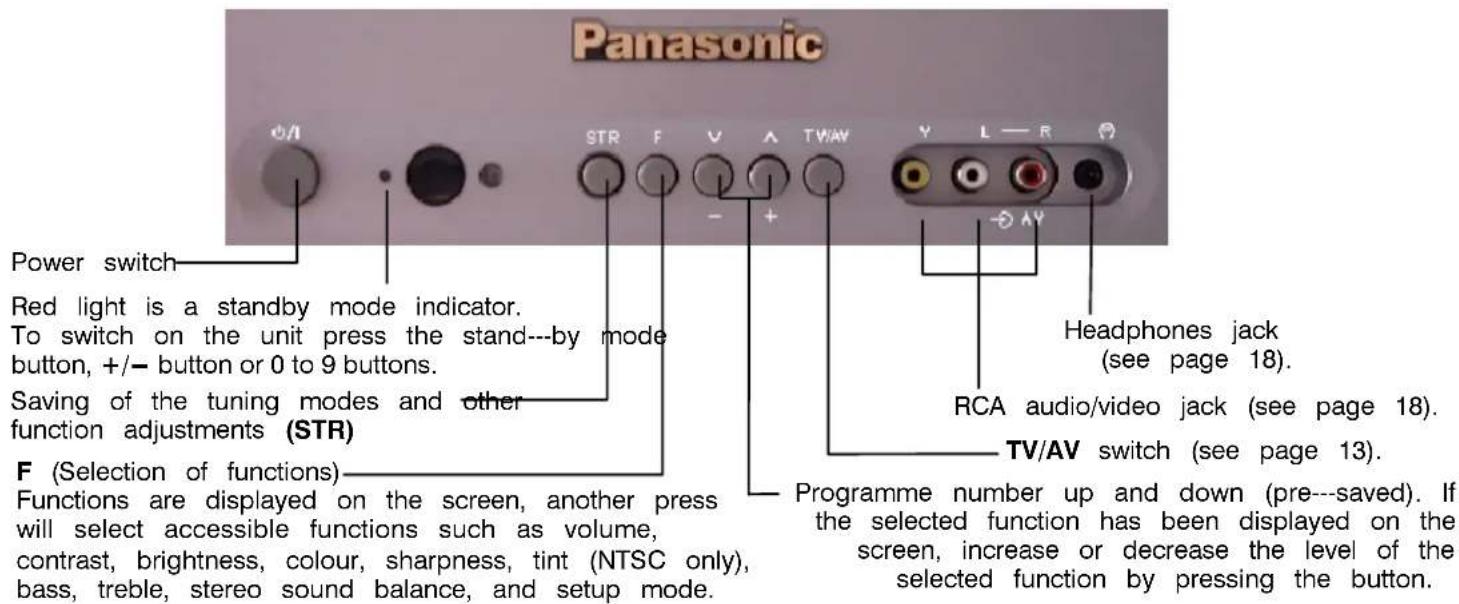

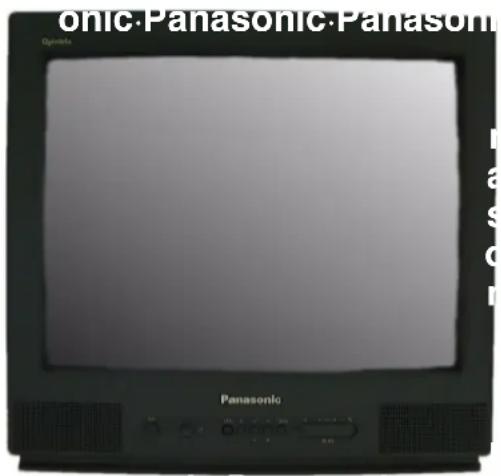

Front Panel

Panasonic Power switch Red light is a standby mode indicator. To switch on the unit press the stand---by mode button, +/- button or 0 to 9 buttons. Saving of the tuning modes and other function adjustments (STR) F (Selection of functions) Functions are displayed on the screen, another press will select accessible functions such as volume, contrast, brightness, colour, sharpness, tint (NTSC only), bass, treble, stereo sound balance, and setup mode. STR F V A TWAV Y L — R - + - - AV Headphones jack (see page 18). RCA audio/video jack (see page 18). TV/AV switch (see page 13). Programme number up and down (pre---saved). If the selected function has been displayed on the screen, increase or decrease the level of the selected function by pressing the button.

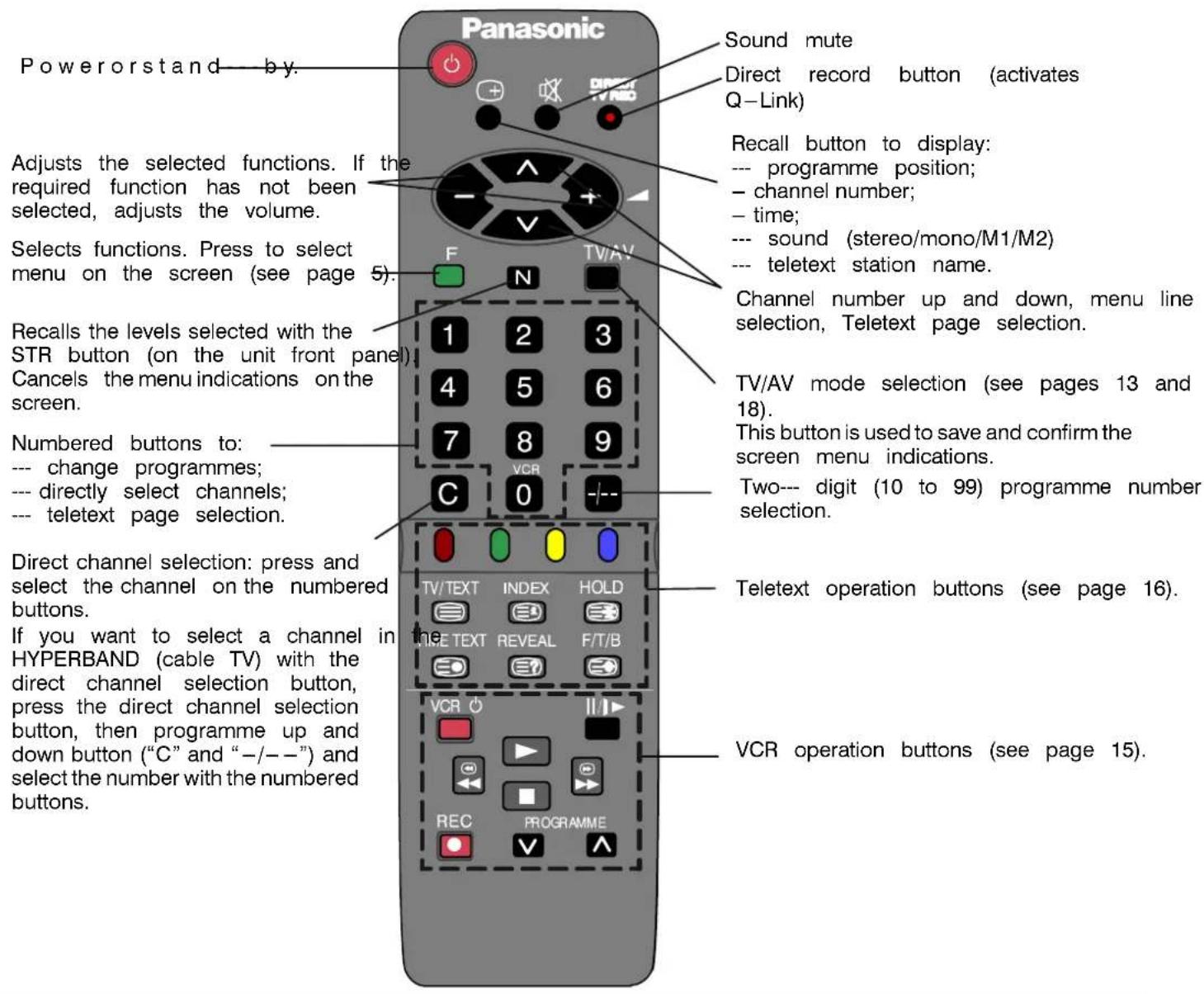

Remote Control Unit

Powerorstand by. Panasonic Sound mute Direct record button (activates Q-Link) Adjusts the selected functions. If the required function has not been selected, adjusts the volume. Selects functions. Press to select menu on the screen (see page 5). Recalls the levels selected with the STR button (on the unit front panel). Cancels the menu indications on the screen. Numbered buttons to: --- change programmes; --- directly select channels; --- teletext page selection. Direct channel selection: press and select the channel on the numbered buttons. If you want to select a channel in HYPERBAND (cable TV) with the direct channel selection button, press the direct channel selection button, then programme up and down button ("C" and "--") and select the number with the numbered buttons. TV/AV mode selection (see pages 13 and 18). This button is used to save and confirm the screen menu indications. Two--- digit (10 to 99) programme number selection. Teletext operation buttons (see page 16). VCR operation buttons (see page 15).

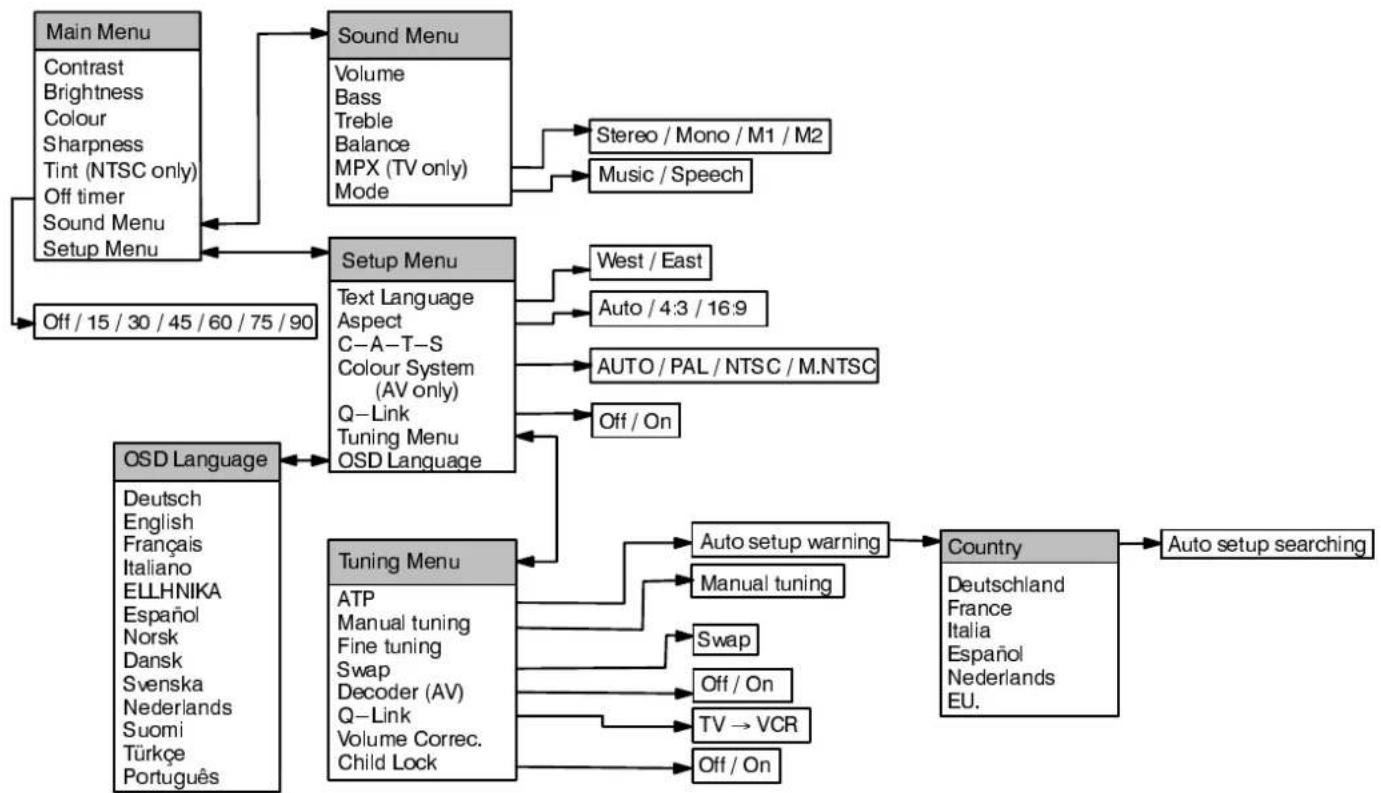


ON—SCREEN MENUINDICATIONS

Your televisions set equip equipped with compare comprehensive system autosystemed for being each feel coming of and a selection of pa

Press button“F”R to eate enter the meenu.

Buttons to be tested mtoven over sacross the mneuanahd steleseptarparameters.

F Menu headline Main Menu Selected line Contrast Brightness Colour Sharpness Tint (NTSC only) Off timer Sound Menu Setup Menu Instructions Parameter indidation Press button "N" to leave the menu. Menu line Off

Some parameters such as Contrast, Brightness, Colour and Sharpness may be increased or decreased at your wish.

Selected lines allow to select certain functions such as Off Timer.

Other selected lines such as Setup menu allow you to go to another menu.

By pressing button "F" you either enter the on-screen indications menu or go back to another menu.

By pressing button "N" you close either the on-screen menu or the selected parameter.

Button "TV/AV" is normally used to confirm the selection.

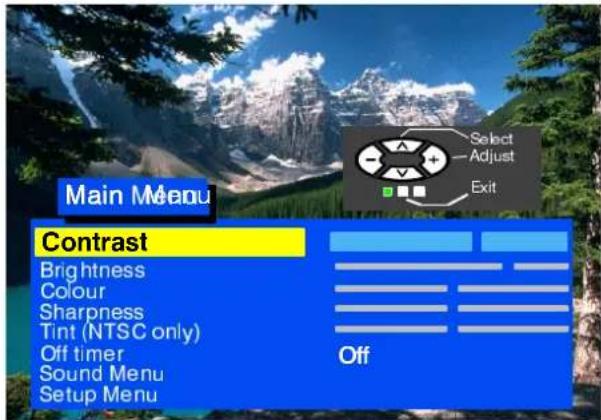

This section shows among others how to adjust the picture quality.

Press button "F"

Select the required parameter

Increase or decrease the level.

Press button "N" to leave the menu.

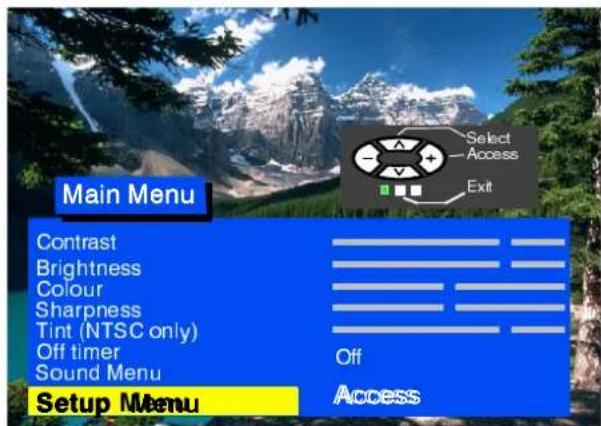

Main Menu Select Adjust Exit Contrast Brightness Colour Sharpness Tint (NTSC only) Off timer Sound Menu Setup Menu Off

Contrast

Brightness

Colour

Sharpness

The level of contrast, brightness, colour and sharpness may be adjusted so as to meet the requirements of your sight. You may go back to the level set by the manufacturer at any time by pressing button "N".

Tint

The line "Tint" will appear as a menu line only when a NTSC signal is connected to the unit via the AV input thus allowing the tints to be adjusted.

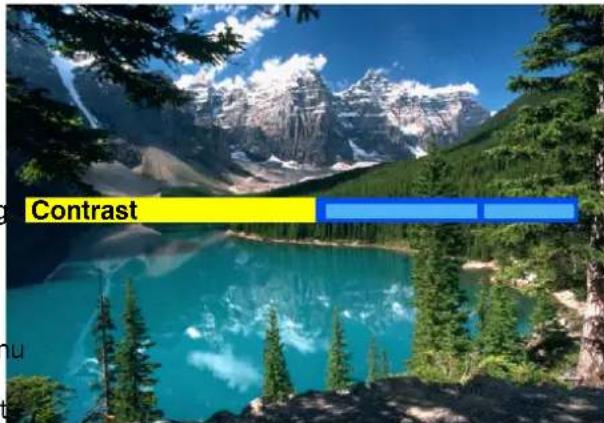

Contrast

Off timer

Switches off your television at the time you set from 0 to 90 minutes with 15-minute intervals.

Sound meenu

The Sound menu allows you to adjust the sound as yosh.wish.

Setup menu

The Setupmenup provides access to various advanced features and also to the Tuning menu.

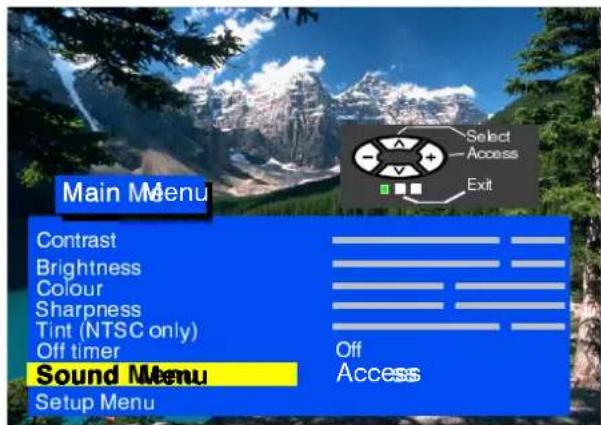

This section shows how to adjust the sound as you wish.

Press button "F".

Select Sound menu

Enter Sound menu

Select the required parameter

Adjust the level and confirm the selection

Main Menu Contrast Brightness Colour Sharpness Tint (NTSC only) Off timer Sound Menu Setup Menu Select Access Exit Off Access

Leave the menu by pressing button "N"

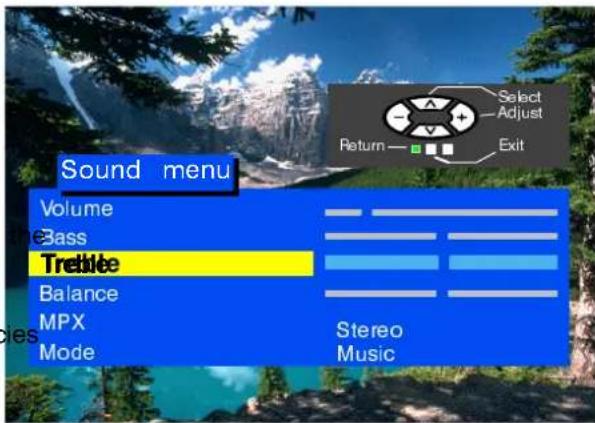

Sound menu Volume Bass Treble Balance MPX Mode Stereo Music Select Adjust Return Exit

Volume

Parameter Volume adjusts the level of input sound

Bass

Parameter Bass adjusts lower frequencies to enhance or diminish them.

Trebl e

Parameter Treble adjusts higher frequencies to enhance or diminish them.

Balance

Balance adjusts the sound level between the left and right speakers. The sound may be adjusted to the viewers satisfaction.

MPX

MPX is set in position "Stereo" (in case of stereo transmission) thus ensuring the best sound reproduction. However if transmission deteriorates you are recommended to switch over to "Mono". Mono (M1) and (M2) may also be selected if a bilingual transmission is broadcast by the station. The signal is adjusted automatically.

Mode

The sound quality may be changed by selecting the Music or Speech modes.

This section gives access to other functions and the setup menu.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select the required parameter.

Adjust the parameter.

F ∧ ∨ - + ∧ ∨ - +

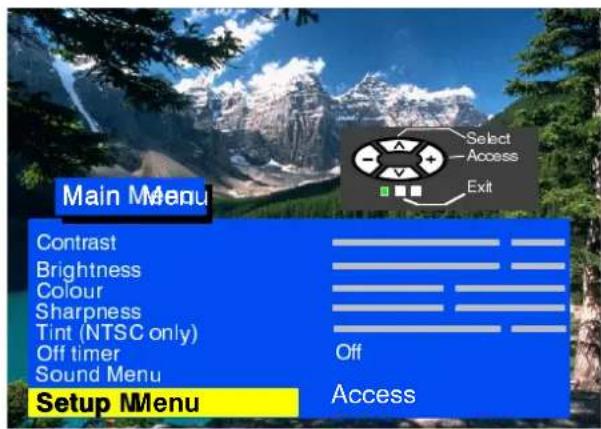

Main Menu Contrast Brightness Colour Sharpness Tint (NTSC only) Off timer Sound Menu Setup Menu Select Access Exit Off Access

Leave the menu by pressing button "N".

Text Language

Switches between western and eastern character set in Teletext.

The Aspect function will allow you to view wide--screen programs with the correct side dimensions (16:9).

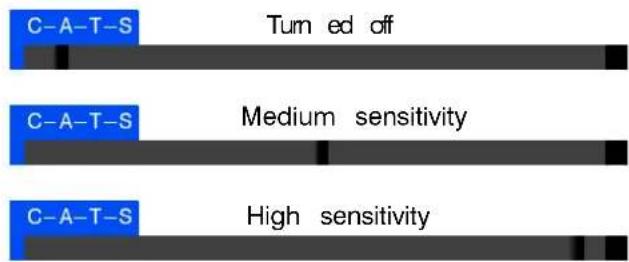

Contrast AutomaticTuTruningSystem

Automatically adjusts the ordomant to match any changes in the room fighting.

To get the best results first set contrast at maximum and then select any of the threesipositions:

C-A-T-S Tum ed off C-A-T-S Medium sensitivity C-A-T-S High sensitivity

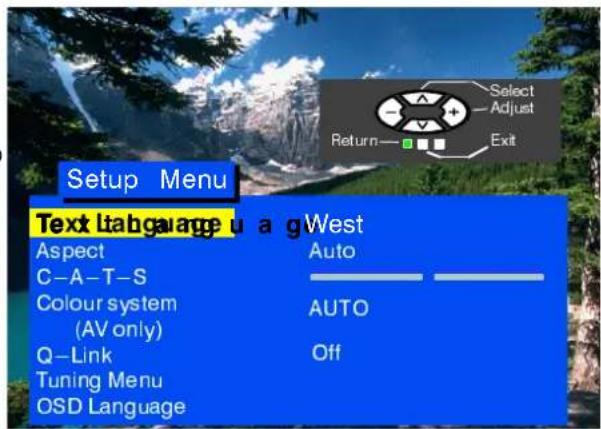

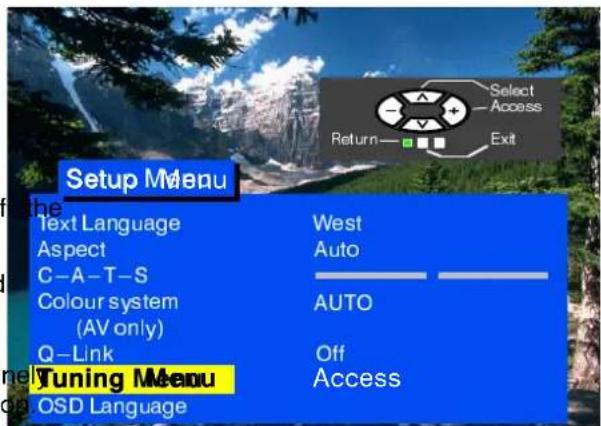

Setup Menu Text Language u a g West Aspect Auto C-A-T-S Colour system AUTO (AV only) Q-Link Off Tuning Menu OSD Language

Colour system

Selects the colour decoding system for the programme.

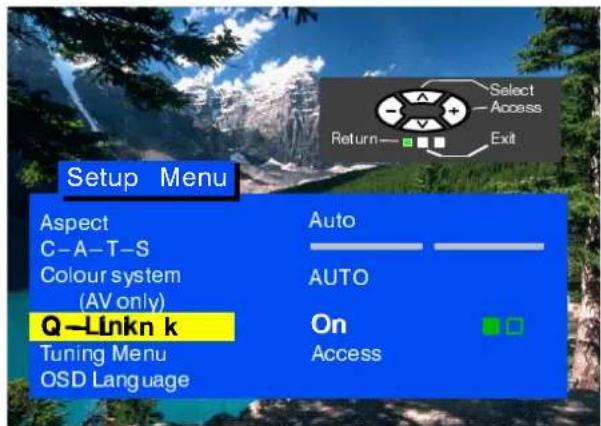

Q - Li nk

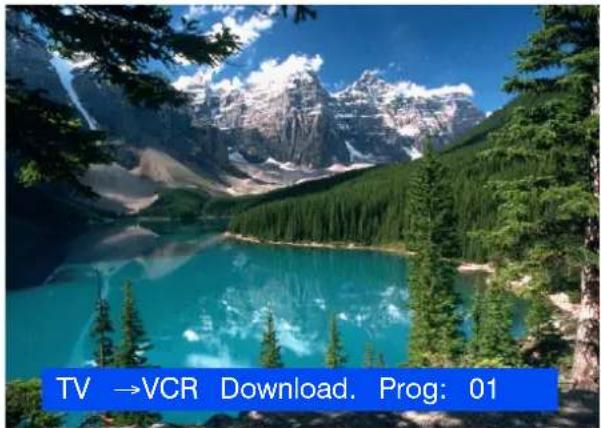

Allows data to be transmitted from your television to a compatible VCR. See page 13.

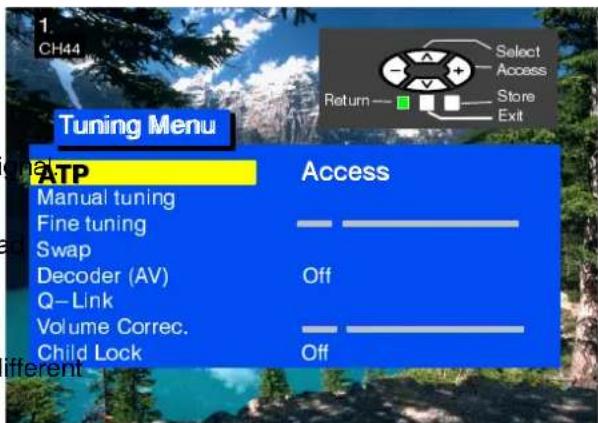

Tuning Menu

Provides access to many functions including the ATP function, fine tuning and volume tuning. See page 9

OSD Language

Allows selection of the language to be used in all the menus. See page 12.

This section provides access to the manual and automatic tuning menu.

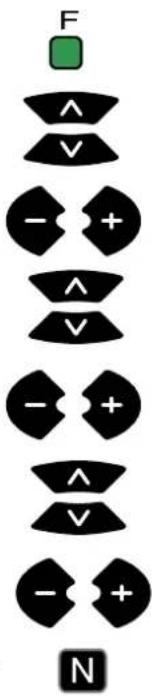

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Tuning menu.

Enter Tuning menu.

Enter the required parameter.

Adjust the level.

Leave the menu pressing by button "N".

F ^ V - + + ^ V - + + ^ V - + + N

Main Menu Contrast Brightness Colour Sharpness Tint (NTSC only) Off timer Sound Menu Setup Menu Select Access Exit Off Access

Setup Menu Text Language Aspect C-A-T-S Colour system (AV only) Q-Link Tuning Menu OSD Language West Auto AUTO Off Access

ATP

Provides the automatic pre---tuning of television. See page 10.

Manual tuning

Allows manual tuning of the selected channels. See page 11.

Fine tuning

The broadcasting stations may be fine tuned to with the Fine tuning function

Swap

Swaps the programmes as you prefer. See page 12.

Decoder (AV)

To be used when the decoder is connected via AV. Select "On" if the decoder is to process the coded siSelect "Off" when finished.

Q---Link function is used to download the data to a compatible VCR. See page 14.

Volume correction

Allows the volume to be set for different broadcasting stations with different sound levels.

Child Lock

Locks the programme position against undesirable intrusion.

1. CH44 Tuning Menu ATP Manual tuning Fine tuning Swap Decoder (AV) Q-Link Volume Correct. Child Lock Access — Off — — Select Access Store Exit

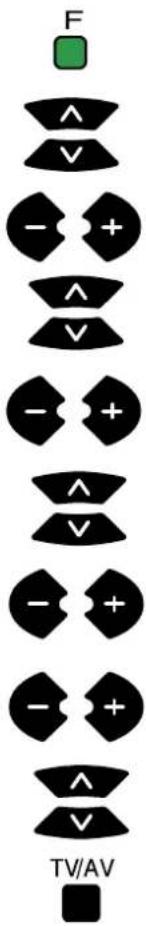

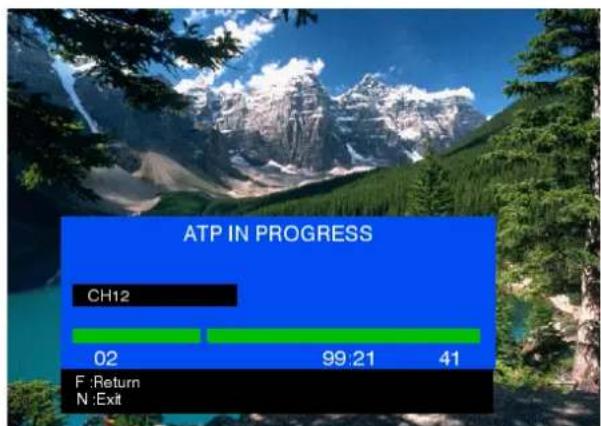

TUNING --- AUTOMATIC TUNING PROCESS (ATP)

Automatic tuning will allow you to tune your television automatically to the local broadcasti. It is a convenient function when you move your TV set to another location.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Tuning menu.

Enter Tuning menu.

Select ATP.

Select Access.

Press to start.

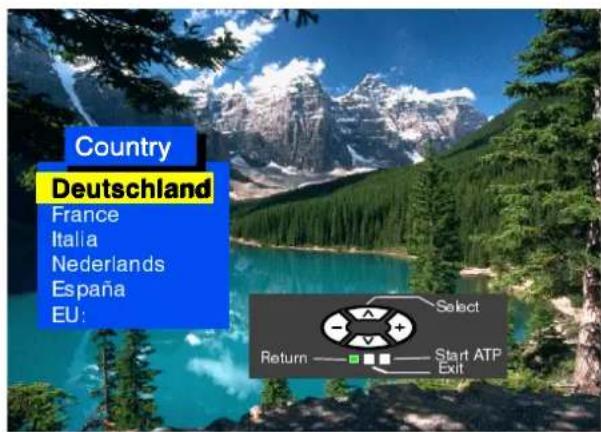

Select your country.

Press to start the automatic tuning process (ATP).

The television will find, tune in to and sort the local broadcasting stations. If a compatible VCR is connected via the AV jack, the programmed data will be transmitted via the Q-Link to the VCR (see page 14).

As soon as this operation is completed programme position 1 will be displayed on the screen.

Press button "F" to interrupt and "N" to finish the ATP sequence.

F ^ V - + + ^ V - + + ^ V - + + - + + ^ V TV/AV

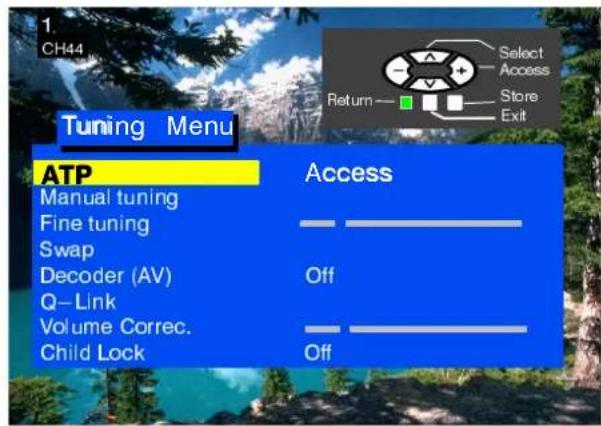

1 CH44 Tuning Menu ATP Access Manual tuning Fine tuning Swap Decoder (AV) Off Q-Link Volume Correc. Child Lock Off

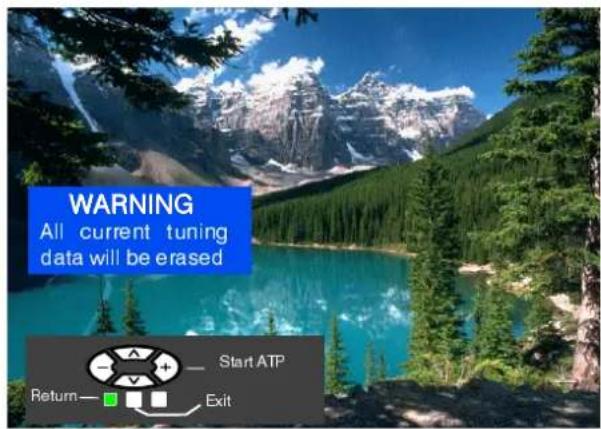

WARNING All current tuning data will be erased Start ATP Return— [ ] [ ] [ ] Exit

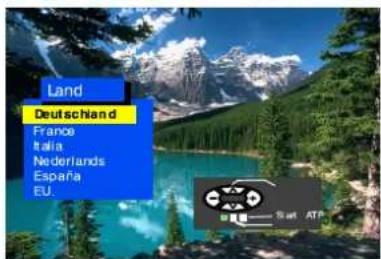

Country Deutschland France Italia Nederlands España EU: Select Return —— Start ATP Exit

TUNING --- MANUAL TUNING

The programme positions may be tuned manually either with the on---screen menu or with on the front panel.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Tuning menu.

Enter Tuning menu.

Select Manual tuning.

Enter Manual tuning.

Select the programme position you need.

Start tuning.

When the required programme is found TV/AV STR save it by pressing either button TV/AV STR (on the front panel).

Leave the menu by pressing button "N".

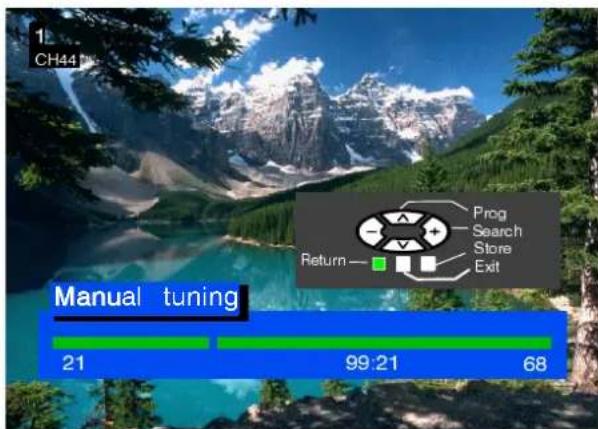

Manual tuning (front panel)

Keep pressing button "F" until "Manual tuning" is displayed.

By pressing buttons "+" or "-" enter "Manual tuning".

By pressing button "TV/AV" move between "TV System", "Prog" or "Search".

By pressing buttons "+" or "-" change the programme position to start the search or change the TV system.

When the required station is found press button "STR" to save the changes.

To tune in to other programmes, repeat the above procedure or finish the tuning by pressing button "F".

1. CH44 Select Access Return Store Exit Tuning Menu ATP Manual tuningg Access Fine tuning Swap Decoder (AV) Q-Link Volume Correc. Child Lock Off Off

1. CH44 Manual tuning 21 99:21 68 Return Prog Search Store Exit

Notes:

If you know the channel numbers of your broadcasting stations you may use direct channel selection by using button "C" on the remote control unit to save the channels quickly:

--- enter Manual menu;

- pre-set the programme number;

- pressbutton "C";

--- set the channel number with the numbered buttons;

--- save with button TV/AV;

- leave the menu by pressing button "N".

If you want to use direct channel selection in the "Hyperband" (cable TV), press the direct channel selection button and programme position button ("C" and "--") one after the other and set the number with the numbered buttons. "CH--" will first appear in the left top corner of the screen, and then "H:--". For saving see above.

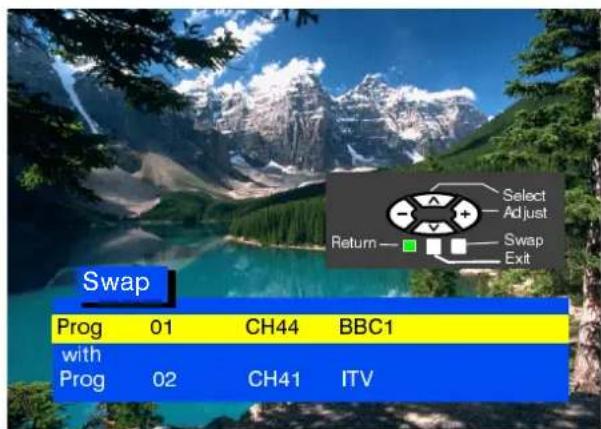

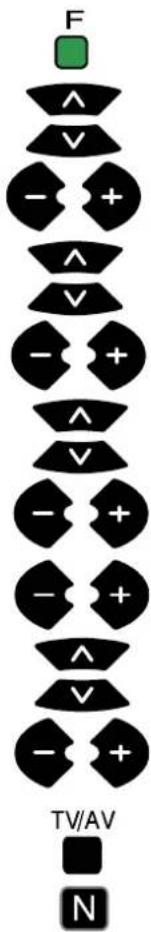

SWAP

The Swap option allows you to swap between two programme positions.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Tuning menu.

Enter Tuning menu.

Select Swap.

Enter Swap.

Select first programme position.

Select second programme position.

Confirm with button "TV/AV".

Leave menu by pressing button "N".

F V - + V - + V - + V - + V - + V - + TV/AV N

Swap Prog 01 CH44 BBC1 with Prog 02 CH41 ITV Select Adjust Return Swap Exit

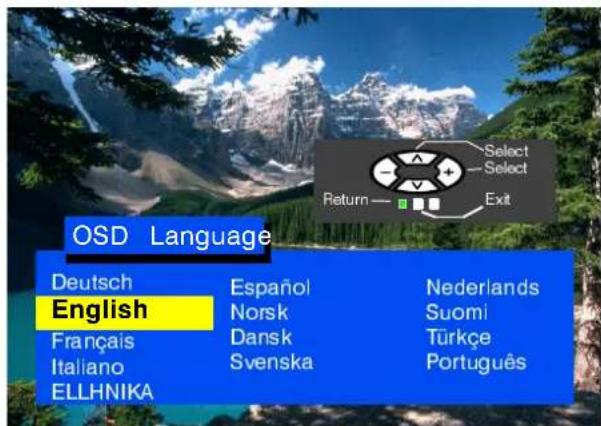

OSD LANGUAGE

When first setting your television, the OSD the OSD language to match your country sele want to use another language you may select the language from the language menu.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select OSD language.

Enter OSD language.

Select the language.

Save and leave the menu by pressing button "N".

F ^ V - + ^ V - + ^ V N

OSD Language Deutsch English Français Italiano ELLHNIKA Español Norsk Dansk Svenska Nederlands Suomi Türkçe Português

Q-LINK

The Q---Link function transmits the data from the television to the VCR.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Q - Link.

Make sure Q - Link is On.

Leave the menu by pressing button "N".

F ^ V - + ^ V - + N

Setup Menu Aspect C-A-T-S Colour system (AV only) Q-Linkn k Tuning Menu OSD Language Auto AUTO On Access Select Access Exit

The VCR must be connected with a (full) SCART cable to the AV1 jack and the appropriate jack on the VCR. See the VCR Operation Manual for more detailed information. The Q-Link, NEXTVIEWLINK and other techniques allow the television to transmit to a compatible VCR the indication of the current programme irrespective of what programme is set on the VCR which greatly facilitates the programme recording process.

Recording the currently viewed programme

Press "Direct TV Record" on the remote control unit

DIRECT TV RECORD

If the VCR is turned off, it will turn on after the Direct TV Record button is pressed.

The VCR information will appear then screen indicating whether or not the programme can be recorded

VCR records set programme

VCR records tuner signal

The VCR records its tuner signal. You may switch off the television and the VCR will record in an ordinary way

VCR records TV signal

The VCR records the sign that from television is a national neither change programmes nor switch off the television; if you do so switch the VCR will automatically stop the recording and turn off.

Not recording. Tape protected from recording

The protection tab was removed from the back side of the video cas: Examples of other indications:

Not recording. No tape.

Not recording. Playing back.

Recording from external source.

Not recording. Already in recording mode

Not recording. Tape may be damaged.

Not recording. No source signal.

Setup Indications Transmission

To ensure adequate recording the television and the VCR must have identical setup information --- see page

- Each time the ATP function is used, the setup data are transmitted to the VCR.

Automatic Power-On/Power-Off Function

Panasonic Q-Link VCRs provide you with the following functions:

- If you insert the tape in the VCR and press the Play button the television will automatically turn on selecting the AV2 input, so you may view the recording.

- If you turn off the television when the VCR is in the Stop mode, Fast Forward Mode or Rewind Mode, the VCR will automatically turn off.

Turning Off Q-Link Function

If you do not want to use the Q---Link function enter Setup Menu and set Q---Link to Off.

Important Note:

Not all VCRs support this type of the data transmission system. Some VCRs may support certain functions, others support no functions at all. For more details see the VCR Operation Manual.

If the Q-Link function is not operable first make sure the SCART cable is fully functional. See your dealer for details.

Q-LINK

By selecting the Q-Link function the TV setup data may be downloaded from the television to the VCR memory.

Press button "F".

Select Setup menu.

Enter Setup menu.

Select Tuning menu.

Enter Tuning menu.

Select Q - Link.

Activate Q - Link.

F ^ V - + ^ V - + ^ V - +

TV →VCR Download. Prog: 01

AV SELECTION --- AV MODE

To select the AV mode press button "TV/AV". If another receiver is connected to the AV connectors (VCR, satellite receiver, camera, etc. see page 18) and if it is in operation, its signal will be displayed and AV will appear in the top left corner of the TV screen regardless of the selected programme position. (TV tuner is ignored).
This television may automatically switch over to the AV mode if the connected device sends a switch signal to the SCART cable connector. The picture received will remain the same when the TV programme is changed.
You may switch back to the television by pressing button "TV/AV" or by disconnecting the AV device.
Two AV devices may not be connected to the television simultaneously, as their signals would overlap.
In the AV mode the Setup menu is extended to include Colour System.
If an NTSC signal is connected via the AV input the television will automatically detect the signal and switch over to the NTSC standard. The Main Menu OSD indications will be enhanced in the AV mode as another selection is added: Tint, which may be adjusted with buttons “+” and “−”.

VCR CONTROLS

The remote control unit may perform certain functions of the advanced Panasonic VCRs. So have different functions so, to ensure compatibility, follow the instructions in the VCR operat manual or consult your dealer.

Panasonic TV/TEXT INDEX HOLD TIME TEXT REVEAL F/T/B VCR REC PROGRAMME	VCR	Standby Mode By pressing this button you will switch on the VCR putting it in standby mode. Another press will switch the VCR off.
	Play Press this button to start playing the VCR cassette.
	Stop Press this button to stop playing.
	Fast Forward/Cue By pressing this button the tape will move fast forward. In the Play mode you may view the picture at double speed.
	Rewind/Review By pressing this button the tape will rewind. In the Play mode you may view the picture in the backward direction at double speed.
	Pause/Still Press this button in the Play mode to stop the pict Press again to continue viewing.
	Programme Number Up And Down By pressing these buttons the programme number will be increased or decreased by one position.
	REC	Record Press this button to start recording.
	DIRECT TV REC	Direct TV Record Press this button to start recording directly from the television. See page 13.

TELETEXT FUNCTION

• Teletext functions may vary depending on the broadcasting companies and are only available if the selected channel is transmitting Teletext.
• If button "F" is pressed in the Teletext mode the blue contrast scale will appear; press buttons "+" and "-" to change the settings.
• When in Teletext mode, the volume may still be adjusted by pressing buttons “+” or “−”.

What is FLOF (FASTEXT)?

In the FASTEXT mode four differently coloured subjects are shown at the bottom of the screen matching the buttons on your remote control unit. To access more information about one of these subjects, press the app into coloured button. This function allows quick access to information on the subject shown.

TV/TEXT	TV/Teletext ModePress button TV/TEXT. The Teletext title page will be displayed on the screen. Press again to return to
INDEX	IndexPress this button to return to the main index page. Depending on the status you may have to press to return to the main index page.
HOLD	HoldPress to hold the current page. Press again to cancel the hold.
	Time/Text
TIME TEXT	When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require.
1 2 34 5 67 8 90	Press the TIME TEXT button; **** will be displayed at the top left of the screen. Enter the desired sub-page number. To select sub-page 5, enter 0, 0, 0 and 5. The TV is now searching for the correct sub page.You can continue watching the TV programme by pressing the TV/TEXT button. If you switch back to Teletext and if the entered page is already available, the sub page will be displayed until a new page or programn is entered.
TV/TEXT	To clear the sub page perform one of the following:○Press the INDEX button.○Select a new page number.○Change the programme position.
REVEAL	RevealPress to reveal hidden words, e.g. crossword or quiz-page answers, can also display VPS/PDC codes.
F/T/B	Full/Top/BottomTeletext information viewing on the screen.	Press to expand the top half of the page.Press again to expand the bottom half.Press again to return to normal (full) size.
		Page SelectionPages can be selected in two ways:a) press the Up/Down buttons to increase or decrease the page number by one;b) enter the page number using 0 --- 9 on the remote control unit.
	0
	Red/Green/Yellow/Blue ButtonsIn the FASTEXT modes, these correspond to the differently coloured subjects.
[SZGS]	NormalisationPress button “N” to return to the TV mode.

AUTOSORT

The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions. First the TV stations are stored in the increasing order of programme positions:

• all the TV stations with names located according to the bellow table, then:
• TV stations with names which are not listed in the table, in the increasing order of programme positions, then:
  ● TV stations where the TV receiver has not identified the name, in the increasing order of programme positions.

ORDER		FRANCE SPAIN
1	TF1 TVE
2	FR2 TV3
3	FR3
4	LA5

For other European countries the programme positions are sorted and stored in the order of tuning.

ReaaraAVASCARC ART 21 - pin connector and front RCA connect

Audio/video (AAV) nipoputare aresiglesignedortoecton VCR, as VCR, a satellite receiver and other compatible audio/video equipment.

Rear input/output of AV1 SCART connector

Front AV panel

V L — R AV

V - v i deo input jack L/R audio input jack RCA video cable RCA stereo cable Head- phones jack VCR Headphones with 3.5mm (male) jack VIDEO CAMERA

■SCART connector information

21-pinSCART-AV1

connector "ground"

composite video signal output

composite signal "ground"

R signal input

R signal "ground"

G signal input

G signal "ground"

B signal input

B signal "ground"

sound signal output, left channel

sound signal output, right channel

21- 19- 17- 15- 13- 11- 9- 7- 5- 3- 1 - 20 composite video signal input - 18 RGB signal "ground" - 16 RGB signal - 14 "ground" - 12 - - - - 10 Q-Link - 8 switch signal for composite video signal - 6 sound signal input, left channel - 4 sound signals "ground" - 2 sound signal input, right channel

AV1 inputs in which finding GBGBd(gee/green/blue)

Notes

The equipment and cables shown above are not supplied with the television.

Do not connect computers with TTL (5V) output to this television.

When the headphones are connected, the speakers will be automatically disconnected.

Do not connect AV inputs on the front and rear panels simultaneously as the sound and video signals will overlap.

Symptoms		Check
Picture Sound
Snowy picture	Noisy sound	Aerial location, direction or connection
Multiple images	Normal sound	Aerial location, direction or connection
Interference	Noisy sound	--- electrical appliances--- cars/motorcycles--- fluorescent lights
Normal picture	No sound	Volume levelcheck whether the mute function has been activated on Remote Control and volume is selected correctly in Tuning Menu
No picture	Noisy sound	Check:--- If AV mode is activated--- if plugged into AC outlet--- if switched on--- picture/volume settings--- if in standby mode
No colour	Normal sound	Colour control
Scrambled	Normal or weak sound	Retune channels
Coloured patches	Normal sound	Magnetic interference (e.g. loudspeaker --- remove)TV set moved while On --- turn TV set off for 30 min.
Normal picture	Noisy sound	Receiving conditions are bad (e.g. atmospheric conditions)Switch MPX (Sound menu) to Mono and wait for better conditions

■Service

Before requesting service look through the Troubleshooting obtain service get in touch with your dealer and tell them television model type and serial number (to be found on panel).

■TV games/Home computers

Frequent use of the games console or computer may cause "shadows" on the screen. This can be avoided if you meet following requirements:

○Reduce brightness and contrast to minimum;

Do not use your television continuously with the game Last viewed programme console and computer

Remember that this type of screen damage is not an operation defect and is not covered by the Panasonic warranty.

■Last settings saved

Some functions allow the last settings to save, i.e. the following settings will be activated when you turn on the television ago

the rear Programme positions Tint

Q - Link C - A - T - S

Volume correction (+AV) Contrast

Volume

Sound type: music/speech

Bass

Treble

Standby mode

Country

Sharpness

Brightness

Colour

L/R balance

Status

OSD language

■ Automatic switch-off (Sleep Function)

If the television remains switched on when the station ends transmission, the television will automatically be put in standby mode after 30 minutes. This function does not operate in the mode.

SPECIFICATIONS

Model		TX-28CK1F/B	TX-21CK1F/B
Power source		220 - 240 V, 50Hz AC power source
Power consumption		66W	60W
Power used in Standlmode		0,9W	1W
Screen diagonal		66 cm Quintrix	51 cm
Sound (music)		2 x 5W RMS (2 x 10W MPO), impedance 8Ω
Dimensions	H	580 mm	476 mm
	W	646 mm	512 mm
	D	471 mm	470 mm
Weight (kg)		33 kg	20,6 kg
TV systems/zones		PAL B/G, PAL H, PAL-60VHF E2 - E12 VHF H1 - H2 (ITALY)VHF A - H (ITALY) UHF E21 - E69CATV (S01 ~S0) CATV S1 ~S1(S101 ~M)0CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)M.NTSC playback from VCR NTSC 4.43 MHzNTSC playback (via AV input) from VCR NTSC
Number of programme positions		99 + VCR
Aerial input -- rear		UHF / VHF
Headphones output - front		3.5 mm, impedance 8Ω
AV connector - rear		AV1 - 21-pin connector - AV input/output, RGB input, Q-Link
AV connector - front		Front AV - RCA stereo sound signal input, 1 x RCA video signal input

The specifications may be subject to change without notice. Weight and dimensions are approximate.
