MANUAL DE UTILIZARE GS30VX30 SIEMENS

Line drawing of a refrigerator with open doors showing internal compartments (no text or symbols)

GS..V..

enInstructionforUse

en Index

Informationconcerningdisposal3......	Freezingfreshfood ......	9
Safetyandwarninginformation3......	Freezing food ......	10
Connectingthe appliance5......	Super freezing ......	10
Gettingtoknowyourappliance5......	Featuresofthefreezercompartment ...	11
Fascia6.... ......	Defrosting frozen produce ......	11
Observeroomtemperature6......	Switchingoffthe appliance ......	12
Switchingonthe appliance ......	7 Defrostingandcleaningthefreezer compartment ......	12
Selectingthe temperature	7......	Tips for saving energy ......	13
Warning signal ......	7 Operatingnoises ......	13
Usablecapacity ......	8 Eliminatingminorfaultsyourself	14......
Freezer compartment ......	9 Customer service ......	15
Freezingandstoringfrozenfood	9......

Informationconcerning disposal

Disposalofpackaging

The packaging protects your appliance from damage during transit. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposalofyourold oppliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances:

1. Pull out the mains plug.
2. Cut off the power cord and discard with themainsplug.

Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly.

Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Safetyandwarning information

BeforeyouswitchON the appliance

Please read the operating and installation instructions carefully.

They contain important information on how to install, use and maintain the appliance.

Keep all documentation for subsequent use or for the next owner.

Technicalsafety

- This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

Ifdamagehasoccurred

• Keep naked flames and/or ignition sources away from the appliance.
  – Thoroughly ventilate the room for several minutes.
• Switch off the appliance and pull out the mains plug or switch off the fuse.
• Notify customer service.

The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which aretoosmall.

The room must be at least 1 m ^3 per8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

en

- Only customer service may change the power cord and carry out any other repairs. Improper installations and repairs may put the user at considerable risk.

Importantinformationwhen usingtheappliance

• Never use electrical appliances inside the appliance (e.g. heaters, electric ice makers, etc.). Risk of explosion!
• Never use a steam cleaner to defrost or clean the appliance. The steam may penetrate electrical parts and cause a short-circuit.

Riskofelectricshock!

• Do not use pointed or sharp-edged implements to remove frost or layers of ice.
  You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.
• Do not store products which contain flammable propellants (e. g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand or support yourself on the base, drawers or doors, etc.
• Before defrosting or cleaning the appliance, switch off the appliance, pull out the mains plug or switch off the fuse.

Pull on the mains plug, not on the power cord.

• Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.

• Never cover or block the ventilation openings for the appliance.

• People who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions.

• Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode!
• Never put frozen food straight from the freezer compartment into your mouth. Riskoflow-temperatureburns!
• Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Riskoflow-temperatureburns!

Childreninthehousehold

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
• If the appliance features a lock, keep the key out of the reach of children.

Generalrequirements

The appliance is suitable

•forfreezingfood,
- formakingice.

The appliance is designed for domestic use.

The appliance has been interference-suppressed in compliance with EU Directive 2004/108/EC.

The refrigerant circuit has been tested for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335/2/24).

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter Cleaning).

The socket should be freely accessible. Connect the appliance only to 220–240 V/50 Hz alternating current via a correctly installed earthed socket. The socket must be fused with a 10 A to 16A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply. The rating plate is situated in the bottom left-hand side of the appliance. The power cord may be replaced by a technician only.

Warning

Never connect the appliance to electronic energy saver plugs or to power inverters which convert the direct current to 230 V alternating current (e.g. solar equipment, power supplies on ships).

Gettingtoknowyour appliance

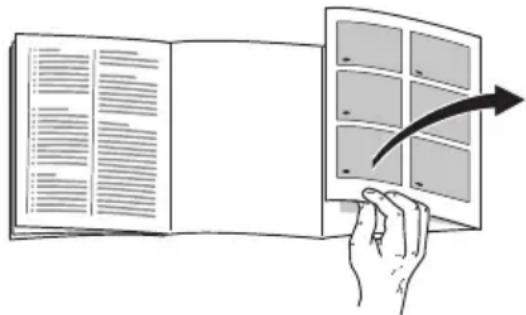

Please fold out the illustrated last page. These operating instructions refer to several models.

The illustrations may differ.

* notallmodels

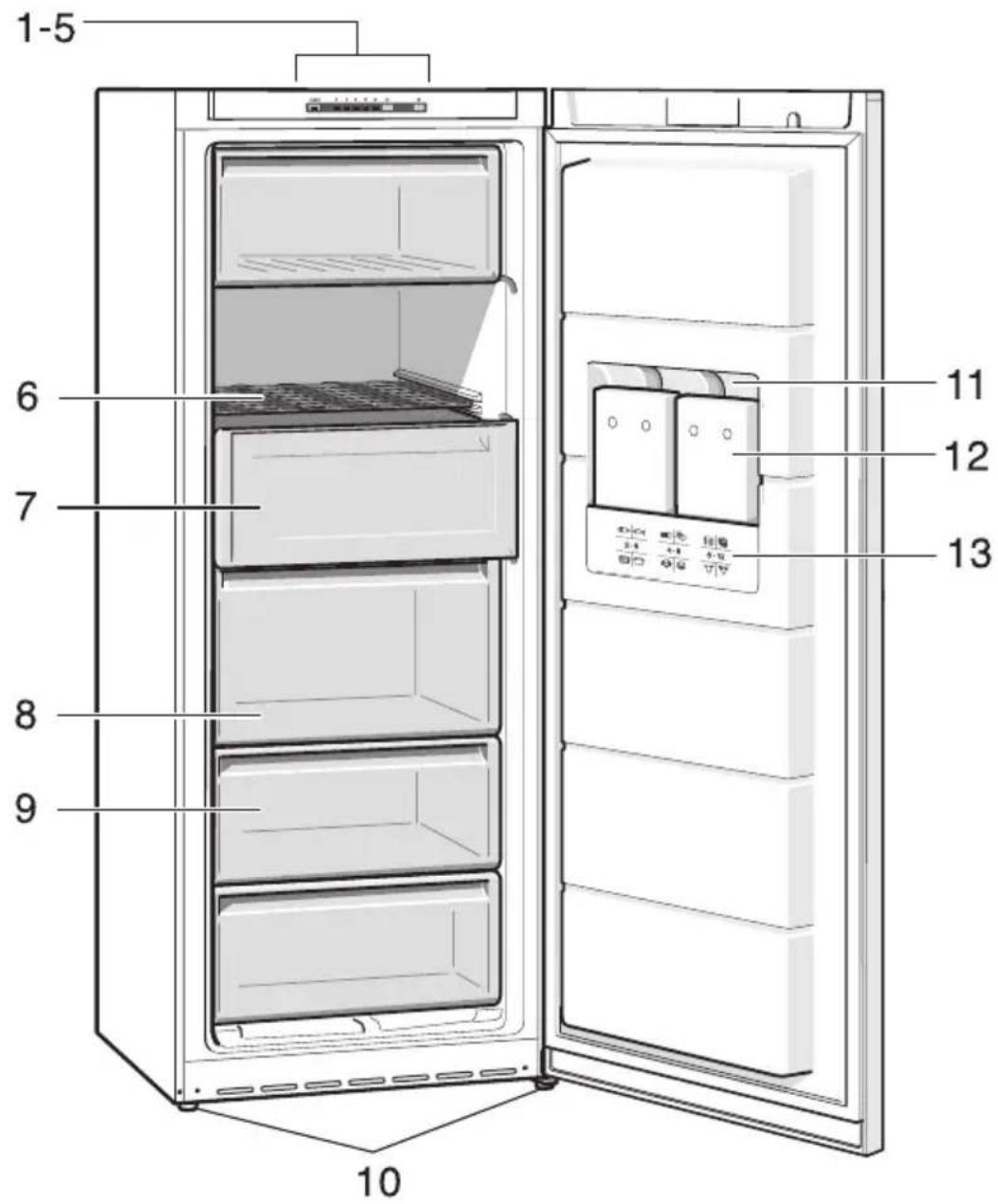

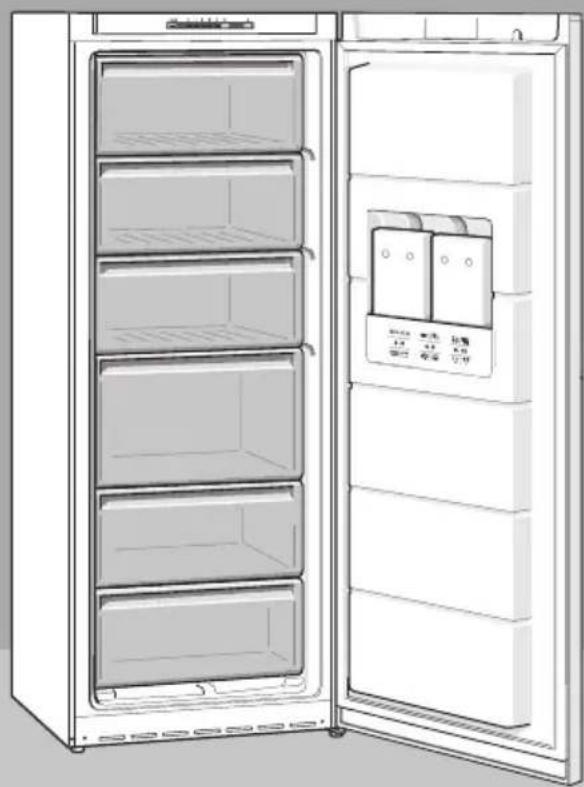

Fig. 1

1-5Fascia

6Freezershelf

7Freezercompartmentflap *

8Largefreezerdrawer

9Freezerdrawer

10Height-adjustablefeet

11 Doorcompartmentforiceblocks

12Iceblock *

13Frozen-foodcalendar

Fascia

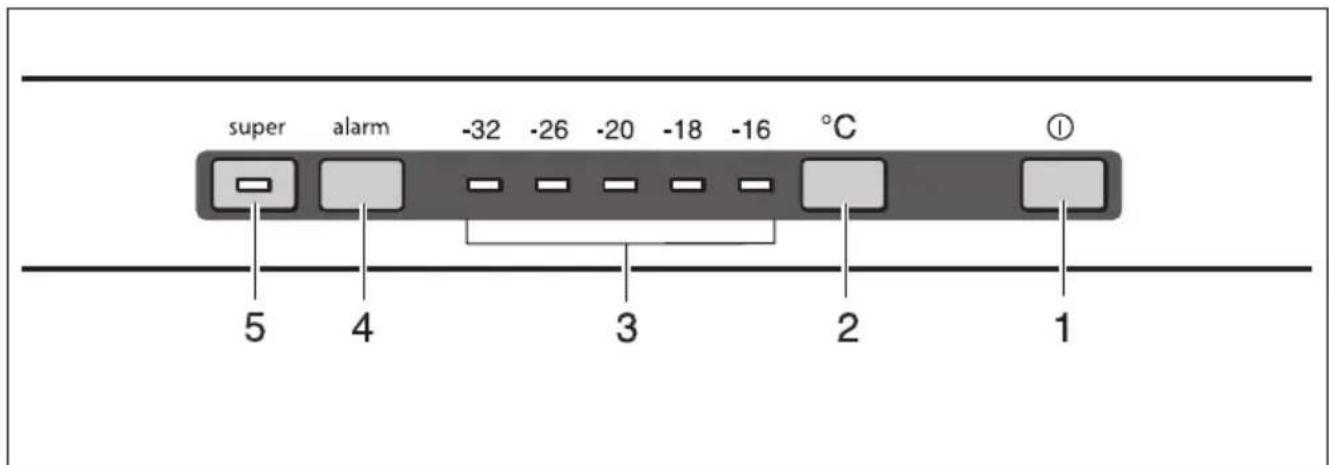

Fig. 2

1On/Offbutton

Switches the whole appliance on and off.

2Temperatureselectionbutton

The button sets the temperature in the freezer compartment.

3Temperaturedisplay

The numbers correspond to the set freezer compartment temperatures in ^ C.

4"alarm"button

Used to switch off the warning signal (see chapter entitled “Warning signal”.)

5Superbutton

Switches super freezing on and off.

Observeroom temperature

The climatic class can be found on the rating plate. It states the room temperature within which the appliance canbeoperated.

The rating plate is situated in the bottom left-hand side of the appliance.

Climaticclass	Permittedambient temperature
SN+10 °Cto32 °C
N+16 °Cto32 °C
ST+16 °Cto38 °C
T+16 °Cto43 °C

Ventilation

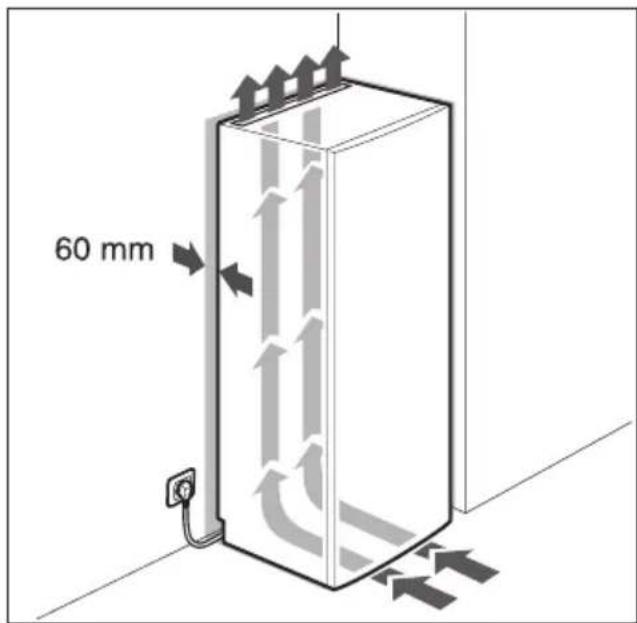

Fig. 3

The air at the back of the appliance will heat up. This warm air must be allowed to freely escape, otherwise the refrigerating machine must perform more. This raises electricity consumption. Hence, the air-inlet and outlet apertures should never be covered or blocked off!

Switchingon the appliance

Fig. 2

Switch on the appliance with On/Off button 1. Warning signal is emitted.

Press temperature alarm button 4 to switch off the warning signal.

The temperature display lamp3flashes until the set temperature has been reached.

Operatingtips

• The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal.
• If you cannot open the freezer compartment door immediately after closing it, wait 2–3 minutes until the partial vacuum has equalised.
• The refrigeration system may cause several areas of the freezer shelves to frost quickly. This does not affect function or power consumption. The appliance does not require defrosting until the entire surface of the freezer shelf is covered with more than 5 mmoffrostorice.

Selecting the temperature

Fig. 2

The freezer compartment temperature can be adjusted from -16^ to -32^ C.

Keep pressing temperature setting button 2 until the required setting is lit on the temperature display.

Werec ommend a setting of -18^ in the freezer compartment.

Warningsignal

Temperaturewarning

The temperature warning signal switches on if the freezer compartment is too warm.

Alarm button	Temperature display	Explanation
illuminatesflashes	Temperature warning:
flashesflashes	Thawwarning:
flashesilluminates	Thawwarning:

Thawwarning

If taste, odour and appearance have not changed, the food can be boiled or fried and then refrozen.

No longer store the frozen produce for the max.stora geperiod.

Temperaturewarning

The warning signal may switch on without any risk to the frozen food:

• When the appliance is switched on.
• When large quantities of fresh food are placed in the appliance.
• If the freezer compartment door is open toolong.

Switchingoffthewarningsignal

Fig. 2

If the alarm button 4 is pressed, the warning signal switches off and the display is reset to standby.

Usablecapacity

Information on the usable capacity can be found inside your appliance on the rating plate.

Fullyutilisingthefreezer volume

The maximum amount of food can be placed in the freezer by removing several fittings. The food can be stacked directly on the freezer shelves.

Note

To comply with the values indicated on the rating plate, the fittings at the very top and bottom should remain in the appliance.

Removingthefittings:

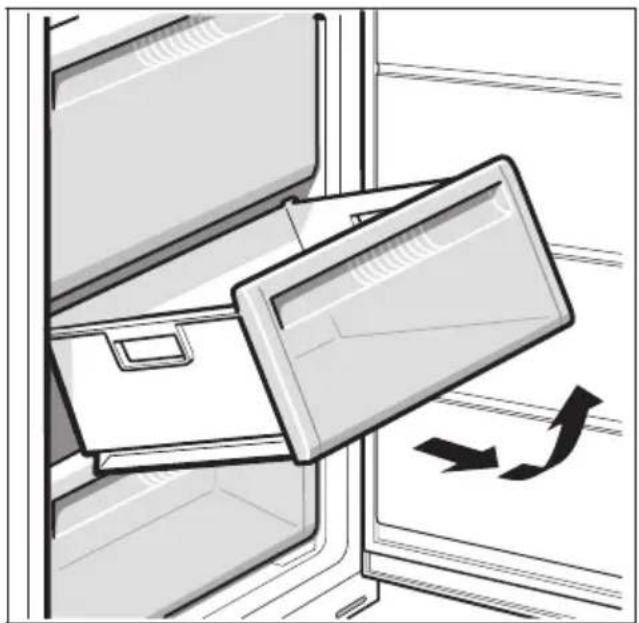

• Pull out the freezer drawer all the way, lift at the front and remove. Fig. 4

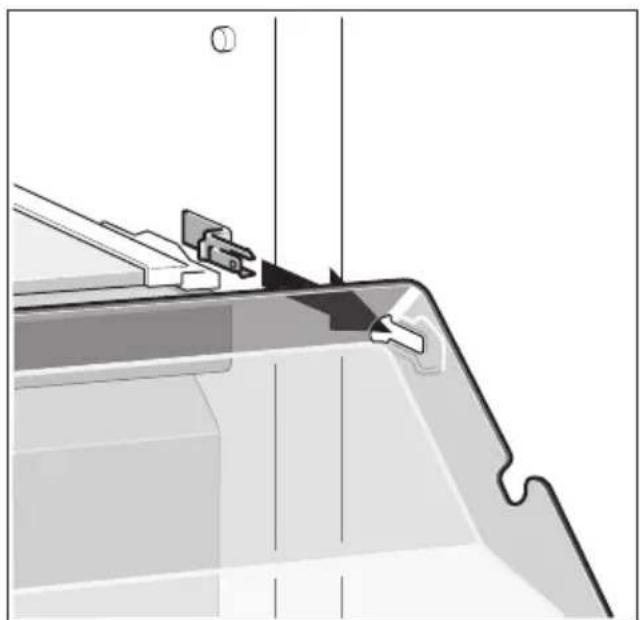

• Open freezer compartment flap, hold one of the bearing pins and remove flap. Fig. 5

Freezercompartment

Usethefreezer compartment

• Forstoringfrozenfood
• Making ice cubes
• Forfreezingfood

Ensure that the freezer-compartment door is always closed! If the door is open, the frozen food will thaw. The freezer compartment will become covered in a thick layer of ice. Also: energy will be wasted due to high power consumption!

Freezingandstoring frozenfood

Buyingfrozenfood

The packaging must not be damaged.

Note the sell-by date.

The temperature in the supermarket freezer should be -18^ or lower.

Transport the frozen food in an insulating bag, where possible and put it quickly into the freezer compartment.

Storingfrozenfood

To ensure good air circulation in the appliance, insert the freezer drawers all the way.

Preferably freeze large quantities of food in the top compartments, where food freezes particularly quickly and therefore also gently.

Freezingfreshfood

Freezingfoodyourself

If you are freezing food yourself, use only fresh, undamaged food.

The following foods a resuitable for freezing:

Meat and sausage products, poultry and game, fish, vegetables, herbs, fruit, cakes and pastries, pizza, ready meals, leftovers, egg yolk and egg-white.

The following foods are not suitable for freezing:

Eggs in shells, soured cream and mayonnaise, green salads, radishes and onions.

Blanchingvegetablesandfruit

To retain colour, flavour, aroma and vitamin C, vegetables and fruits should be blanched prior to freezing. Blanching is the brief immersion of vegetables and fruit in boiling water. Literature on freezing and blanching is available in bookshops.

Freezingfood

Freeze fresh, undamaged food only.

Keep food which is to be frozen away from food which is already frozen.

To prevent food from losing its flavour or drying out, place in airtight containers.

Max.freezercapacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate.

Howtowrapfoodcorrectly:

1. Place the food in the wrapping.
2. Pressoutair.
3. Seal the wrapping.
4. Label the wrapping with the contents and date.

The following products are suitable for wrapping food:

Plastic film, polyethylene blown film, aluminium foil and freezer tins. These products can be purchased from yourdealer.

The following products are not suitable for wrapping food:

Wrapping paper, greaseproof paper, cellophane, refuse bags and used shoppingbags.

The following products are suitable for sealing the wrapped food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape or similar. Bags and polyethylene blown film can be sealed with a film sealer.

Shelflifeoffrozenfood

Depends on the type of food. At a temperature setting of -18^ :

• Fish, sausage, ready meals and cakes and pastries: upto6months
• Cheese, poultry and meat: up to8months
  • Vegetables and fruit: upto12months

Superfreezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on super freezing several hours beforehand. As a rule, 4–6 hours is adequate.

If max. freezing capacity is to be utilised, 24 hours are required. Smaller quantities of food (up to 2 kg) can be frozen without superfreezing.

Switchingonandoff

Fig. 2

Press super freezing button 5.

If the super freezing has been switched on thebuttonislit.

Super freezing switches off automatically after 2 12 days.

Featuresofthefreezer compartment

(notallmodels)

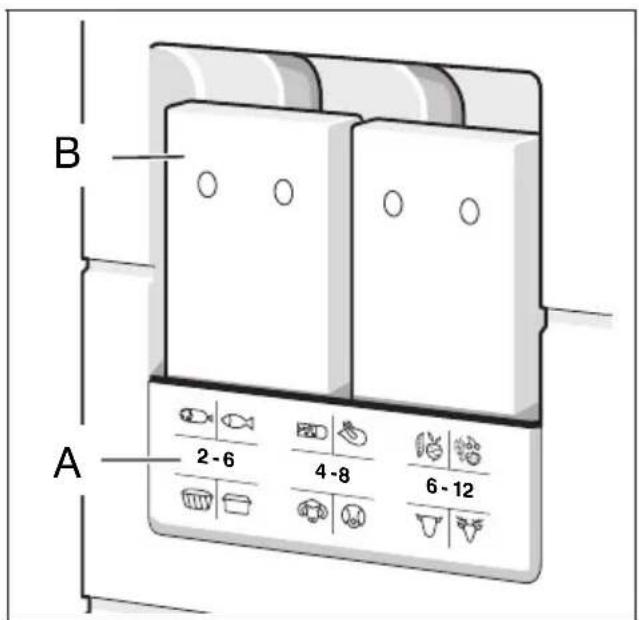

Freezercalendar

Fig. 6/A

The figures next to the symbols indicate the permitted storage period in months of the produce. If frozen produce is purchased, comply with the manufacturer's date or sell-by date.

Iceblock

Fig. 6/B

If a power failure or malfunction occurs, the ice blocks can be used to slow down the thawing process. The longest storage time is obtained by placing the ice block directly on the food in the top compartment.

To save space, the ice block can be stored in the door compartment.

The ice blocks can also be used to cool food temporarily, e.g. in a cold bag.

Makingicecubes

Fig.7

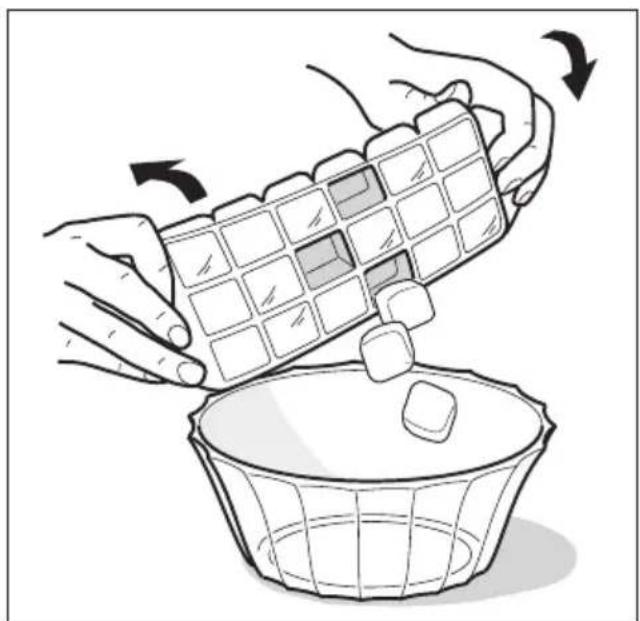

Fill the ice cube tray 34 full of water and place in the freezer compartment. If the ice-cube tray is stuck to the freezer compartment, dislodge with a blunt implement only (spoon handle).

To loosen the ice cubes, hold the tray briefly under running water or twist the trayslightly.

Defrostingfrozen produce

Depending on the type of food and intended use, frozen produce can be defrosted:

• At room temperature,
• In a refrigerator,
• In an electric oven, with/without fan assistedhot-air,
• In a microwave

Note

Do NOT refreeze food which is beginning to defrost or which has already defrosted. Only food which is subsequently prepared (cooked or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

Switchingoff the appliance

Press On/Off button. Fig. 2/1

Temperature display goes out, refrigerating unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.
2. Pull out the mains plug or switch off the fuse.
3. Clean the appliance.
4. Leave the appliance door open.

Defrosting and cleaningthefreezer compartment

Attention!

Do not use abrasive, chloride or acidic cleaning agents or solvents.

Do not use scouring or abrasive sponges. The metallic surfaces in the appliance could corrode.

Never clean shelves and containers in the dishwasher. The parts may warp!

Proceedasfollows:

• Before cleaning: Switch off the appliance.
• Pull out the mains plug or switch off the fuse!
• Place the freezer drawers containing the food in a cool location. Place the ice block (if enclosed) on the food.

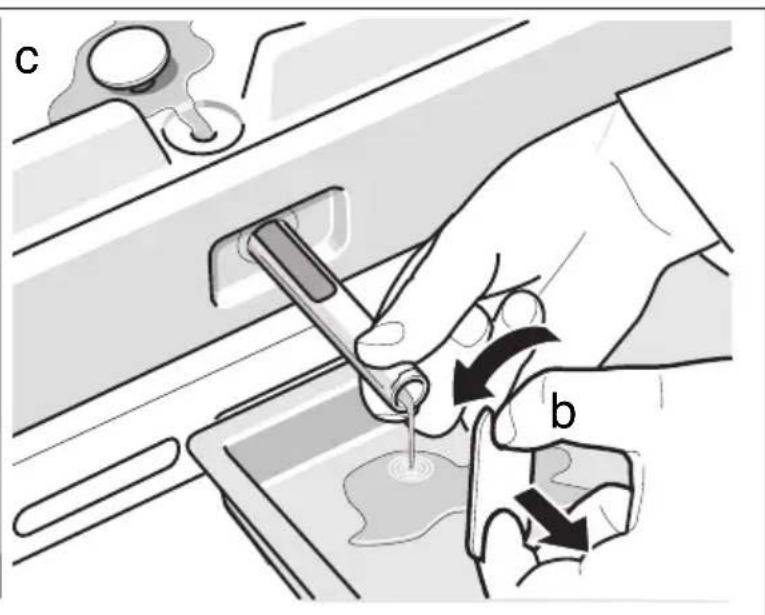

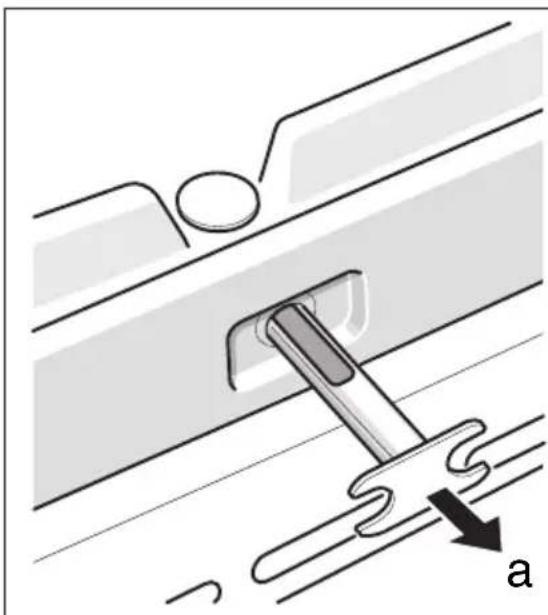

• Pull out the drainage pipe and remove the cover. To collect the water, place a flat tray under the drainage pipe. Then pull the rubber stopper out of the appliance. Fig. 9
• To accelerate the defrosting process, place two pans of hot water on a base intheappliance.
• When the freezer compartment has defrosted, pour the water out of the freezer drawer. Wipe any remaining water off the bottom of the freezer compartment with a sponge.
• Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
  • After defrosting the freezer compartment, re-insert the rubber stopper and drainage pipe.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
• After cleaning reconnect and switch on the appliance.

Tipsforsavingenergy

• Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker, etc.). Otherwise, use an insulating plate.
• Allow warm food and drinks to cool down outside the appliance.
• When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will then cool the food in the refrigerator compartment.
• Open the appliance door as briefly as possible.
• Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.
• Observe required distance of 60 mm to the backwall. The heated air can then escape without obstruction.

Operatingnoises

Normalnoises

Humming – refrigerating unit is running.

Bubbling, gurgling or whirring noises—refrigerant is flowing through the tubing.

Clicking – motor is switching on or off.

Preventingnoises

Theapplianceisnotlevel

Please align the appliance with a spirit level. Use the height-adjustable feet or place something under the feet.

The appliance is not free-standing

Please move the appliance away from adjacent units or appliances.

Drawersorstorageareaswobble or stick

Please check the removable parts and, if required, reinsert them.

Bottlesorreceptaclesaretouching eachother

Please move bottles or receptacles away from each other.

Eliminatingminorfaultsyourself

Beforeyoucallcustomerservice:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice, even if the appliance is still under guarantee!

Fault	PossiblecauseRemedialaction
Temperature differsgreatlyfrom thesetvalue.		Insomecasesitisadequatetoswitchoffthe appliancefor5 minutes.Ifthetemperatureistoohighwaita few hours andcheckwhetherthetemperaturehas approachedthesetvalue.Ifthetemperatureistoolowcheck the temperatureagainthenextday.
Displaysdonot illuminate.	Powerfailure!•Thefusehastripped.•Themainsplughasnotbeen insertedproperly.	Checkwhetherthepowerison,thefusemust beswitchedon.
Display, Fig. 2/3, flashes,acoustic warningsignal sounds.	Fault–thefreezercompartment istoowarm!•Freezercompartmentdooris open.•Theventilationopeningsare blocked.•Toomuchfoodwasplacedin thefreezercompartmentat once.Frozenfoodmaybeatriskof thawing!	Toswitchoffthewarningsignal,pressthe Alarmbutton.Closethedoor.Ensurethatthereisadequateventilation.Donotexceedmax.freezingcapacity.Iftaste,odourandappearancehavenot changed,thefoodcanbeboiledorfriedand thenrefrozen.Nolongerstorethefrozenproduceforthe max.storageperiod.

Customerservice

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number(FD).

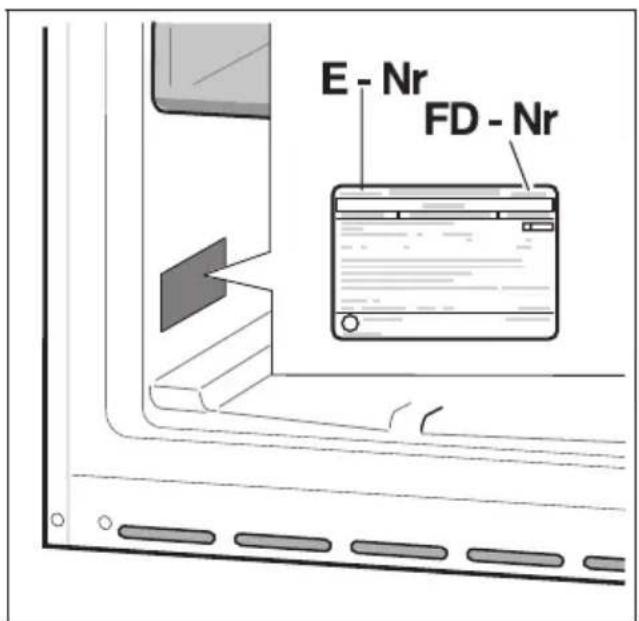

This information can be found on the product label. Fig. 8

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

1

2

3

Illustration of a refrigerator with an open door and directional arrows indicating flow or movement (no text or symbols)

4

Technical diagram of a mechanical assembly with no visible text or symbols

5

6

Illustration of hands placing a grid-based object into a bowl with an arrow indicating rotation (no text or symbols)

7

8

Mechanical assembly diagram showing a tool inserted into a component with motion arrows indicating direction (no text or symbols)

9

Siemens-Electrogeräte GmbH Carl-Wery-Str. 34, 81739 München

©Siemens-ElectrogeräteGmbH.

www.siemens-homeappliances.com 9000 541 996 (9204)
