Type d'appareil	Chaîne hi-fi
Fonctions principales	Radio stéréo, lecteur cassette, lecteur MP3/CD/CD-R/USB/SD
Lecteur CD	Oui
Lecteur cassette	Oui
Lecteur USB	Oui
Lecteur carte SD	Oui
Radio	FM/AM
Alimentation	Non précisé
Puissance de sortie	Non précisé
Haut-parleurs	Stéréo, 2 unités
Affichage	Écran digital
Fonction d'enregistrement	Oui, enregistrement sur cassette
Compatibilité MP3	Oui
Type de produit laser	Classe 1
Précautions de sécurité	Protection contre l'humidité et les éclaboussures
Dimensions	Non précisé
Poids	Non précisé

FOIRE AUX QUESTIONS - XRM 15 MPMAN

Comment réinitialiser le MPMAN XRM 15 ?

Pour réinitialiser le MPMAN XRM 15, maintenez enfoncé le bouton d'alimentation pendant environ 10 secondes jusqu'à ce que l'appareil redémarre.

Mon MPMAN XRM 15 ne s'allume pas, que faire ?

Vérifiez que l'appareil est chargé. Branchez-le à une source d'alimentation et attendez quelques minutes avant d'essayer de l'allumer à nouveau.

Comment augmenter le volume sur le MPMAN XRM 15 ?

Utilisez les boutons de volume situés sur le côté de l'appareil pour augmenter ou diminuer le volume.

Puis-je connecter le MPMAN XRM 15 à des écouteurs Bluetooth ?

Oui, le MPMAN XRM 15 prend en charge Bluetooth. Activez le Bluetooth dans les paramètres et appairez vos écouteurs.

Comment transférer des fichiers vers le MPMAN XRM 15 ?

Connectez le MPMAN XRM 15 à votre ordinateur via un câble USB. Ensuite, copiez et collez les fichiers dans le dossier approprié sur l'appareil.

L'écran de mon MPMAN XRM 15 est gelé, que faire ?

Essayez de forcer le redémarrage de l'appareil en maintenant le bouton d'alimentation enfoncé pendant 10 secondes.

Comment accéder aux paramètres de l'appareil ?

Pour accéder aux paramètres, faites glisser vers le bas depuis le haut de l'écran et appuyez sur l'icône des paramètres.

Comment mettre à jour le logiciel de mon MPMAN XRM 15 ?

Accédez aux paramètres, puis à 'À propos de l'appareil', et sélectionnez 'Vérifier les mises à jour'. Suivez les instructions pour installer la mise à jour.

Mon MPMAN XRM 15 ne se connecte pas au Wi-Fi, que faire ?

Assurez-vous que le Wi-Fi est activé dans les paramètres et que vous êtes à portée du routeur. Essayez de redémarrer l'appareil et le routeur.

Comment supprimer une application sur le MPMAN XRM 15 ?

Allez dans 'Paramètres', puis dans 'Applications'. Choisissez l'application que vous souhaitez supprimer et appuyez sur 'Désinstaller'.

Comment vérifier l'espace de stockage disponible sur le MPMAN XRM 15 ?

Allez dans 'Paramètres', puis dans 'Stockage' pour voir l'espace disponible et utilisé sur votre appareil.

MODE D'EMPLOI XRM 15 MPMAN

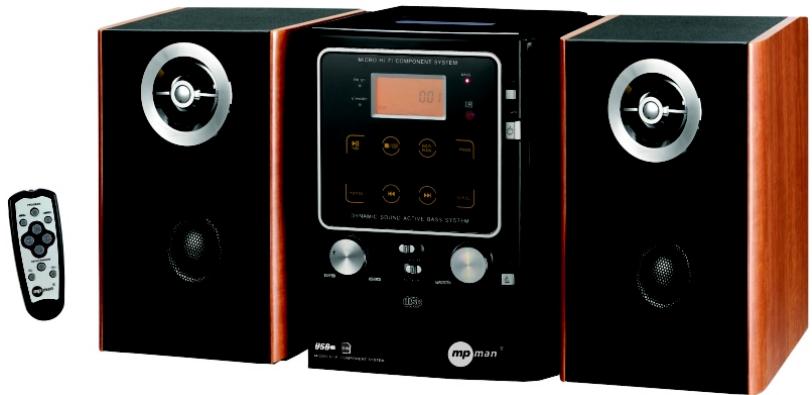

INSTRUCTION MANUAL

Three black MPAN audio synthesizer units with a digital display and control knobs, connected to a remote (no visible text or symbols on main devices)

XRM-15

STEREO RADIO CASSETTE RECORDER

WITH MP3/CD/CD-R/USB/SD PLAYER

Know these

safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

For Customer Use

Enter below the Serial No. which is located On the bottom of the cabinet. Retain this Information for future reference.

Mode No.

Serial No.

This “bolt of lightning” indicates uninsulated material within your unit

which may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read

the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADEOF PLUG TO WIDE SLOT, AND FULLY INSERT.

Ventilation warning:

The normal ventilation of the product shall not be impeded for intended use.

Dripping warning:

The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the product.

CLASS 1 LASER PRODUCT

PREPARATION FOR USE

Unpacking and Setup

* Carefully remove the unit from the display carton and remove all packing material from the unit itself.
* Remove any descriptive labels that may be found on either the front or top cabinet of the unit. Do not remove any labels located on either the back or button cabinet of the unit.

Power Sources

Using AC Power

Connect the AC power into Standard household wall outlet. For dual voltage version.

Make sure that the AC VOLTAGE SELECTOR is switched to your local voltage.

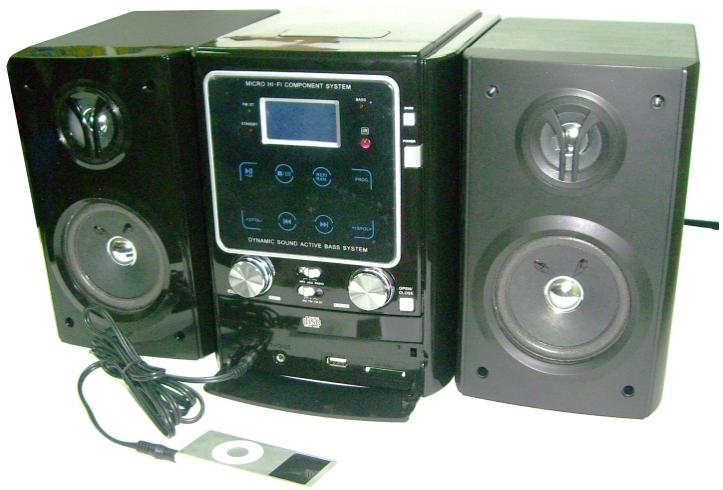

AUX IN CONNECTIONS WAYS

1

Three black audio/video audio equipment units with visible control panels and speaker speakers (no readable text or symbols)

2

Diagram of a device front panel with numbered labels pointing to various control buttons and indicators.

Technical diagram of an electronic device rear panel with numbered components for identification

1. LCD DISPLAY
2. FM STEREO INDICATOR
3. STANDBY STEREO INDICATOR
4. PLAY/PAUSE/USB BUTTON (▶II)
5. STOP/SD BUTTON
6. -10/FOL-BUTTON
7. BACK BUTTON (◀)
8. VOLUME CONTROL
9. BAND SWITCH
10. PHONES JACK
11. AUX IN JACK
12. BASS INDICATOR
13. BASS BUTTON
14. REMOTE SENSOR
15. POWER BUTTON

16. PROGRAM BUTTON

17. REPEAT/RANDOM BUTTON

18. +10/FOL+BUTTON
19. NEXT BUTTON (▶)
20. FUNCTION SWITCH
21. TUNING CONTROL
22. OPEN/CLOSE BUTTON
23. CD DOOR
24. USB JACK
25. SD/MMC CARD JACK
26. LEFT/RIGHT SPEAKER BOX
27. FM ANTENNA
28. EXT SPEAKER
29. AC MAINS

3

PROGRAM -10/FOL- +10/FOL+ USB STOP/SD REPEAT/RAN DOM VOL- VOL+ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

1. Program button
2. -10/FOL-button
3. +10/FOL+ button
4. Play/pause(▶II)/usb
5. Back (◀◀) / search (◀◀)
6. Next (▶▶) / search (▶▶)
7. Stop/sd button
8. Repeat/Random button
9. volume - button
10. volume +button

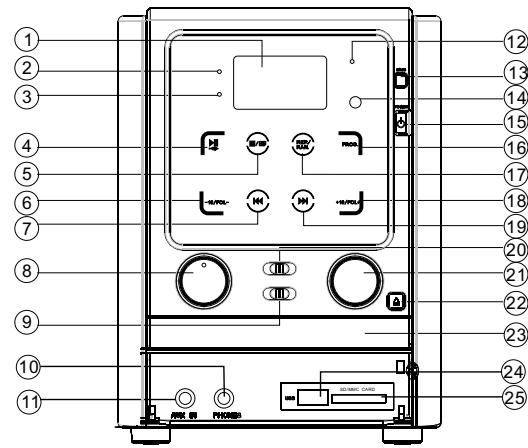

Top and front panels (See 1)

1. LCD DISPLAY

• show the AM/FM dial frequency
• show the number of tracks

2. FM STEREO INDICATOR

- show the FM stereo indicator

3. STANDBY

4. PLAY/PAUSE/USB BUTTON

• start or pause MP3/CD/USB/SD/MMC play
• Press and Hold more than 1.5 sec change CD/USB media.

5. STOP/SD BUTTON

- stop CD/MP3/USB/SD/MMC playback; erase a CD program.

Press and Hold more than 1.5 sec Chang USB1.1/MMC (SD) media (only USB)

6. -10/FOL-button

7. SEARCH BACK

BACK track selection

- Press and Hold more than 1.5 sec BACK Search intra track

8. VOLUME

- adjust volume level.

9. BAND SELECTOR (AM · FM · FM ST.)

- select AM/FM/FM ST. Waveband

10. STEREO HEADPHONE JACK

- 3.5 mm stereo headphone jack.

11. AUX JACK

-Push FUNC button, select MP3/AUX Station.

play Mp3、DISCMAN、WALKMAN AUX INSERT When no disc.

12. BASS INDICATOR

13. BASS BUTTON

14. REMOTE SENSOR

15. POWER BUTTON

-Press POWER button on

16. PROGRAM

-program and review programmed track numbers.

17. REPEAT/RANDOM BUTTON

- repeata track/CD/MP3/USB/SD/MMC/program

Random button

- play CD/MP3 tracks in random orde

18. +10/FOL+button

19. SEARCH NEXT

NEXT track selection

- Press and Hold more than 1.5 sec Forward Search intra track

20. FUNCTION SELECT

- select source of sound MP3/AUX or RADIO.

21. TUNING CONTROL

- select AM/FM/FM ST. Stations

22. CD DOOR OPEN BUTTON

- press here to open/close the CD door.

23. CD DOOR

24. USB JACK

To listen to your USB flash memory stick with Mp3 music files.

25. SD/MMC CARD JACK

- To listen to your SD/MMC Card with Mp3 music files.

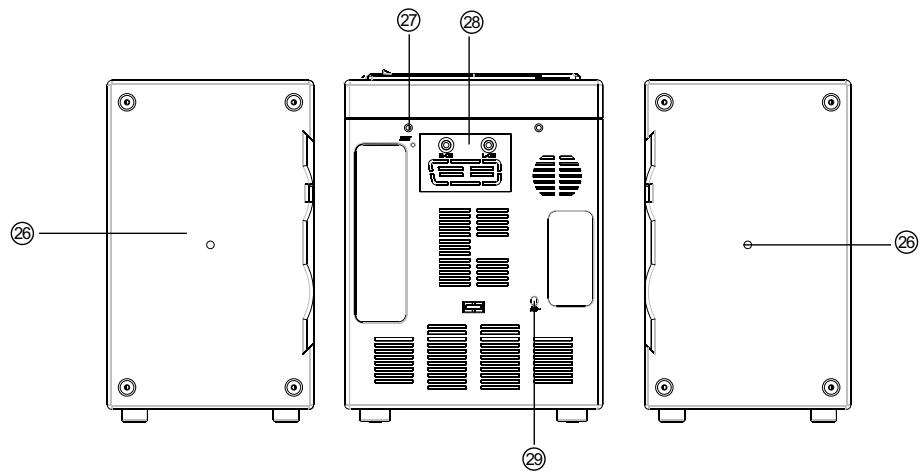

26. LEFT&RIGHT SPEAKER BOXES

27. FM ANTENNA

- to improve FM reception

28. SPEAKER WIRE CONNECTOR (L/R)

29. AC MAINS

- inlet for power cord

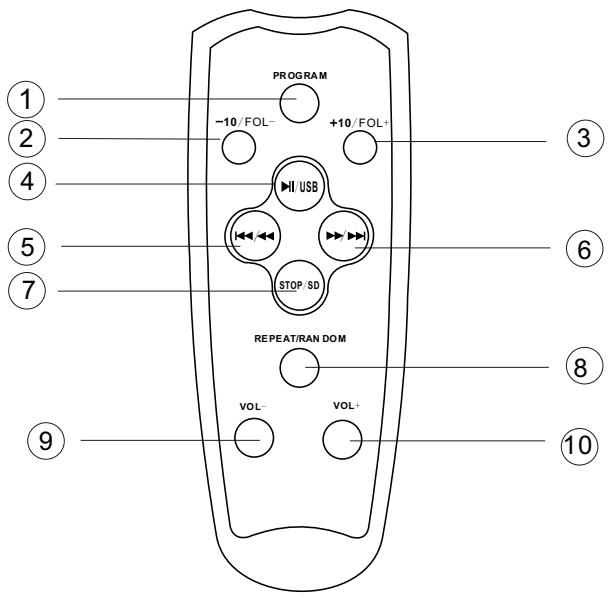

REMOTE CONTROL HANDSET (See 3)

①～⑩

The remote control buttons function is the same as the button of CD/MP3/USB/SD section Select the CD/MP3 tracks by (+10) / (-10) button.

Power Supply

Using AC Power

1. Check if the power voltage, as shown on the type plate located on the bottom of the set, corresponds to your local AC power supply. If it does not, consult your dealer or service centre.
2. Connect the power cord to the AC MAINS inlet and the wall outlet. The power supply is now connected and ready for use.
3. To switch off completely, unplug the power cord from the wall outlet.
4. Unplug the power cord from the wall outlet to protect your set during heavy thunderstorms.

BASIC FUNCTION

RADIO

General operation

1. To select your sound source adjust the source selector to MP3/AUX/RADIO.
2. Adjust the sound with the VOLUME.
3. To switch off the set, adjust the source selector to off position.

RADIO

Radio reception

1. Slide the FUNCTION selector to RADIO.
2. Slide the BAND selector to a desired setting -FM STEREO, FM, AM.
3. Rotate the TUNING control to find the desired stations.
   NOTE: If the BAND selector is set to the FM stereo station, the FM stereo LED indicator will light.
4. When you have finished listening, slide the FUNCTION selector to the other position to shut the power off.

- For FM, pull out the telescopic antenna. Incline and turn the antenna. Reduce its length if the signal is too strong (very close to a transmitter).

- For AM, the set is provided with a built-in antenna so the telescopic antenna is not antenna by turning the needed. Direct the whole set.

CD/MP3 PLAYER

CD/MP3 Player

Playing a CD/MP3

This CD-player can play Audio Discs, MP3 CD-R. CD-RW. Do not try to play CD-ROM, CDi, VCD, DVD or computer CD.

1. Adjust the source selector to CD.
2. To open the CD door, press CD OPEN button.

3. Insert a MP3/CD or CD-R、CD-RW with the printed side facing up and press CD Door gently to close.

4. Press ▶ on the set to start playback.

5. To pause playback press ▶II. To resume, press ▶II again.

6. To stop CD playback, press STOP ■. Note: CD/MP3 play will also stop when:

– you open the CD compartment;
– you select RADIO sound source;
– the CD/MP3 has reached to the end.

Selecting a different track

During playback you can use ◀◀ or ▶▶ to select a particular track.

• If you have selected a track number in the stop or pause position, press ▶ to start playback.
• Press ▶ once briefly for the next track, or press repeatedly until the desired track number appears in the display.
• Press ◀ once briefly to return to the beginning of a current track.
• Press ◀ more than once briefly for a previous track.

Finding a passage within a track

1. Press and hold down ◀◀ or ▶▶.
   • The CD is played at high speed.

2. When you recognize the passage you want release ◀◀ or ▶▶.

→Normal playback resumes.

1. Press and hold the +10/FOL+ or -10/FOL- button to the select folder.
   -You can use ◀◀ or ▶▶ to select a particular track.
2. The LCD display the current song folder after 5 second, the LCD don't show the folder if there is not folder.

Different play modes: Repeat/Random repeat – plays the current track continuously. repeat all – plays the entire CD continuously.

1>playing tracks in Repeat mode after press Repeat/Random button one time, the displaying will be show:

2>playing tracks in Repeat mode after press Repeat/Random button 2nd time, the displaying will be show:

3>playing tracks in Repeat mode after press Repeat/Random button 3rd time, the displaying will be show:

4>release tracks in playing mode after press Repeat/Random button 4th time, Repeat indicator goes off and go to Random mode, the displaying will be show:

5>release tracks in playing mode after press Repeat/Random button 5th time, Random indicator goes off, the displaying will be show:

Different play modes: BASS

BASS-Advancing the bass function directly 1>press BASS button one time to work; and the BASS function will be erased pressing BASS buttons in double time

Different play modes: Program

program- using remote control, program function can be operated when the unit is stop potion

1>> when the unit is playing CD DISC:

A>press “program” knob of remote control one time in stop potion, the displaying will be show:

B>Using ◀◀ or ▶▶ to select your favorite track No. then press “program” again to confirm, and then the displaying of unit will show:

C>Repeat the above operation to program the next favorite track unit complete, you can press or to select your favorite track

D>Press PLAY button to play the programmed tracks, the displaying of unit will show:

E>press STOP button one time to stop the program play, press STOP button one more time to Erasing a program!

notice: the former Programmed tracks can not be deposited by unit automatically; the max program function for CD is 99 tracks

2>> when the unit is playing Mp3 DISC:

A>press "program" knob of remote control one time in stop potion, the

displaying will be show:

B>Using ◀◀ or ▶▶ to select your favorite track No. then press “program” again to confirm, and then the displaying of unit will show:

C>Repeat the above operation to program the next favorite track unit complete, you can press ◀◀ or ▶◀ to select your favorite track

D>Press PLAY button to play the programmed tracks, the displaying of unit will show:

E>press STOP button to stop the program play, press STOP button one more time to Erasing a program!

notice: the former Programmed tracks can not be deposited by unit automatically; the max program function for MP3 is 99 tracks

Playing a USB/SD

-Press and hold the [PALY] key more than 1.5 seconds at CD mode, system will change to USB mode. Then "----" will be display. At this moment, system is going to read the USB. Then the LCD display will show that information of the USB. Then press play button to start playing.

-Press and hold the [STOP] key more than 1.5 seconds at CD mode or USB mode, system will change to SD/MMC mode. Then "---" will be displayed. At this moment, system is going to read the SD/MMC. Then the LCD display will show that information of the SD/MMC. Then press play button to start playing.

- If a device is successfully read, then the correspond device is ready to play a file.

- If a device fails to be read, then "NO" will be appear on the Display to indicate that there is no device.

*Notice : If no device is attached or the player fails to read the device when user switch over USB to MMC(SD) with pressing [PLAY] key or [STOP] key, then "NO" is display and the system moves into the STOP mode.

-When the unit has not a disc, inserting the USB/SD card will read the usb/sd card automatically, it read the USB first while having a USB.

-The unit don't support the HDD all and the portion USB with Mp3 player.

MAINTENANCE & SAFETY

Precautions & General Maintenance

• Place the set on a hard and flat surface so that the system does not tilt.
• Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 6 inches between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
• To clean the set, use a soft dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Black and white illustration of three plastic bottles crossed out by a diagonal line (no text or symbols)

CD player and CD handling

• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
• Always close the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.

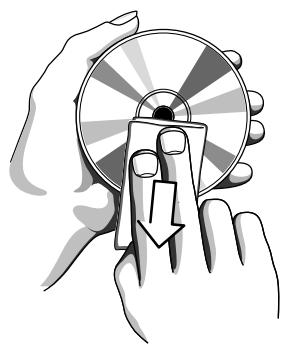

• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

Illustration of hands holding a circular disc with a downward arrow, no text or symbols present

TROUBLESHOOTING

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

Do not open the set as there is a risk of electric shock.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

- Problem

- Solution

No sound /power

– Volume not adjusted
- Adjust the VOLUME
– power cord not securely connected
- Connect the AC power cord properly

Display does not function properly / No reaction to operation of any of the controls

– Electrostatic discharge
- Switch off and unplug the set. Reconnect after a few seconds

no disc indication

• No CD/MP3 inserted
• Insert a CD,MP3, CD-R.
  – CD badly scratched or dirty
• Replace/ clean CD, see Maintenance
• CD-R、CD-RW is blank or the disc is not finalized
• Use a finalized CD-R、CD-RW

The CD/MP3 skips tracks

• CD/MP3 damaged or dirty
• Replace or clean CD/MP3
  – Program is active
• Quit Program mode(s)

Note

In case of malfunction due to electrostatic discharge just reset the product (reconnect of power source may be required) to resume normal operation.

CD/MP3/USB/SD playback does not work

• CD/MP3/USB/SD badly scratched/dirty
• Replace/clean CD/MP3/USB/SD (see maintenance)
  – Laser lens steamed up
• Wait until lens has adjusted to room temperature

Environmental information

We have done our best to reduce the packaging and make it easy to separate into 3 materials: cardboard, paper pulp and expandable polyethylene.

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging, dead batteries and old equipment..

TECHNICAL SPECIFICATIONS

GENERAL

Power Requirement 230V\~50HZ

Power consumption ......AC 15 Watts

Dimensions....Approx.469 mm(L)x 218 mm(W) x 229 mm(H)

Operation temperature....+5 ℃ - +35℃

RECEIVER SECTION

Receiving Bands......AM/FM

Tuning Range......AM:522-1620KHZ

FM:87.5-108MHZ

COMPACT DISC SECTION

Optical Pickup....3-Beam Laser

Frequency Response....100Hz - 16KHz

AUDIO SECTION

Power output ......Maximum 3 Watt x 2

Headphone Impedance 4 \~ 32 Ohms

ACCESSORIES

Instruction Booklet....1

Remote control....1

For more information please visit our website www.mpmaneurope.com
