THETA M15 - Caméra 360° RICOH - Notice d'utilisation et mode d'emploi gratuit

Type de caméra	Caméra 360° sphérique compacte
Objectifs	2 objectifs fisheye (un par face)
Résolution photo 360°	6,4 mégapixels
Format photo	JPEG (Exif 2.3, DCF 2.0)
Résolution vidéo 360°	Full HD 1 920 x 1 080 px à 15 i/s
Format vidéo	MOV (MPEG-4 AVC/H.264)
Durée maximale clip vidéo	5 minutes par enregistrement
Plage ISO photo	100 - 1 600
Plage ISO vidéo	100 - 400
Vitesse d'obturation photo	1/8 000 s - 1/7,5 s
Distance de mise au point	Environ 10 cm à l'infini
Mémoire interne	4 Go (environ 1 200 photos ou 40 min de vidéo)
Autonomie batterie	Environ 200 photos par charge
Connectivité	Wi-Fi, Micro USB 2.0
Application mobile	RICOH THETA (iOS et Android)
Dimensions	42 x 129 x 22,8 mm
Poids	95 g

FOIRE AUX QUESTIONS - THETA M15 RICOH

Comment la RICOH THETA m15 capture-t-elle des images à 360° ?

La THETA m15 est équipée de deux objectifs fisheye positionnés dos à dos, chacun couvrant 180°. Les deux prises de vue sont automatiquement assemblées en une image sphérique complète directement dans l'appareil. Aucun logiciel de couture externe n'est nécessaire.

Quelle est la résolution photo et vidéo de la THETA m15 ?

La caméra produit des photos à 6,4 mégapixels au total (3,2 Mpx par objectif). Les vidéos sont enregistrées en Full HD (1 920 x 1 080 px) à 15 images par seconde.

Quelle est l'autonomie de la batterie ?

La batterie intégrée permet de prendre environ 200 photos par charge. Pour la vidéo, l'autonomie totale est d'environ 40 minutes. La recharge s'effectue via le câble Micro USB fourni.

Peut-on ajouter une carte mémoire à la THETA m15 ?

Non. La THETA m15 ne dispose pas de slot pour carte mémoire. Elle embarque 4 Go de mémoire interne, ce qui permet de stocker environ 1 200 photos ou 40 minutes de vidéo.

Comment transférer les photos vers un smartphone ou un ordinateur ?

Vous avez deux options :

• Via Wi-Fi avec l'application RICOH THETA (iOS et Android) pour un transfert sans fil.
• Via câble Micro USB pour copier directement les fichiers sur un ordinateur.

Comment connecter la THETA m15 à mon smartphone ?

Maintenez le bouton de connexion sans fil appuyé sur la caméra pour activer le Wi-Fi. Installez l'application RICOH THETA sur votre smartphone, connectez-vous au réseau Wi-Fi émis par la caméra, puis ouvrez l'application pour piloter la caméra et récupérer vos fichiers.

Quelle est la durée maximale d'un clip vidéo ?

La durée maximale par enregistrement est de 5 minutes. Les fichiers vidéo sont sauvegardés au format MOV (codec MPEG-4 AVC/H.264).

Comment visionner une photo 360° prise avec la THETA m15 ?

Ouvrez la photo dans l'application RICOH THETA sur votre smartphone pour une navigation interactive à 360°. Vous pouvez aussi importer vos fichiers sur des plateformes compatibles comme Facebook ou YouTube 360 pour les partager en vue sphérique.

Quels modes de prise de vue sont disponibles ?

Pour les photos, trois modes sont proposés : automatique, priorité vitesse (jusqu'à 1/8 000 s) et priorité ISO (de 100 à 1 600). Pour la vidéo, seul le mode automatique est disponible.

La mise au point est-elle automatique sur la THETA m15 ?

Oui, la mise au point est entièrement automatique. La distance minimale de netteté est d'environ 10 cm depuis l'objectif, avec une plage allant jusqu'à l'infini.

Que faire si le voyant Wi-Fi reste rouge et ne passe pas au bleu ?

Vérifiez que la batterie est suffisamment chargée. Éteignez puis rallumez la caméra, puis réactivez le Wi-Fi. Si le problème persiste, connectez la caméra via USB et mettez à jour le firmware depuis l'application RICOH THETA.

Comment réinitialiser la THETA m15 en cas de blocage ?

Appuyez simultanément sur le bouton d'alimentation et le déclencheur pendant environ 8 secondes pour effectuer une réinitialisation matérielle. Les paramètres reviennent à zéro mais vos photos et vidéos restent conservées en mémoire interne.

MODE D'EMPLOI THETA M15 RICOH

Getting started with RICOH THETA

Easy to Follow Instruction

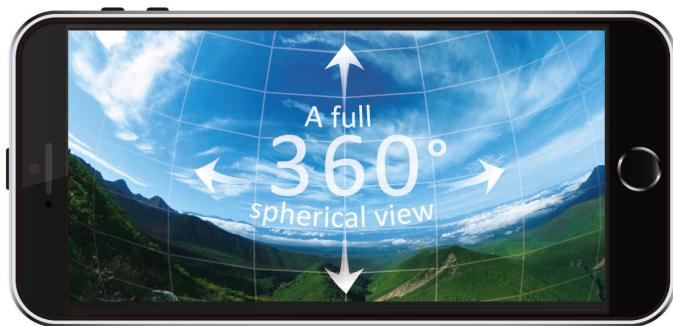

View captured images on a smartphone to enjoy the full 360^ experience in all directions.

*To enjoy images taken by RICOH THETA with smartphone, dedicated application is needed

Download the dedicated app!

360^ horizontally

360^ vertically

Expanding

Reducing

What can you do with RICOH THETA?

Shoot Record an entire scene with a single shot.

By using the application, RICOH THETA also enables shooting using remote control or manually.

RICOH THETA technology

Two super-wide-angle lenses

(fish-eye lenses)

+

Real-time image processing technology

( x - 2x) t - xy^2 = ( x - 2x) f^ t

Generating 360^ images

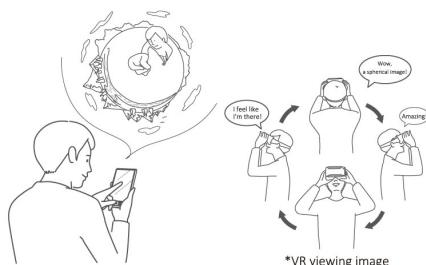

View By using the application, view a 360^ picture or video.

Watch your favorite parts from a

360^ picture or video simply by

swiping and pinching. With VR headset,

the image on the display moves in

step with you.

Basic application

RICOH THETA S

For RICOH THETA S/SC

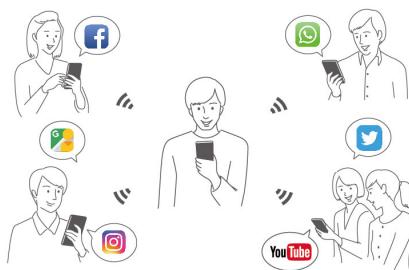

Enjoy Edit in various fun ways and share worldwide.

You can use various SNS and email services to easily share 360^ images with your friends, and using the editing app lets you enjoy the content in even more ways.

Special editing app

THETA+

For 360^ pictures

THETA+ Video

For 360^ videos

Taking Still Images

1. Turn the power on.

*The default setting for self-timer shooting is 5 seconds. The setting can be changed between 2 seconds, 5 seconds and 10 seconds using the app.

*THETA S unit requires an update for this feature.

1. Hold it still and press the shutter button.

Just one shot is enough. No need to think about the camera position.

*Recorded images are stored in the camera's built-in memory.

Explore Creative Shooting Positions!

Shoot from above your head when you don't want to stand out in the picture.

*All of the app screenshots featured in this booklet are from the iOS.

Shooting Remotely

1. Tap the of the basic app and move to remote shooting display.

*A connection setup is necessary when connecting RICOH THETA to a smartphone for the first time. For connection methods, refer to the "Quick Start Guide" included with the product.

*Turn the smartphone's Wi-Fi mode on.

1. Tap to release the shutter.

*Wi-Fi can be connected up to approx. 10 meters away.

The LIVE view function of the basic application for RICOH THETA S allows a photo to be taken by simulating on a smartphone. (In still picture mode)

*Turn the smartphone's Wi-Fi mode on.

[You can change the shooting mode to make various adjustments including brightness and color hues]

Auto shooting

Shutter Priority

ISO Priority

Manual

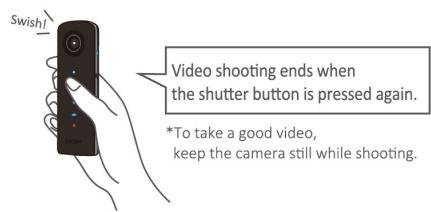

Shooting Videos

1. Press the shooting mode button and select the video mode.

1. Press the shutter button to start video shooting.

Fix the THETA in place when shooting!

Fixing the THETA in place when shooting will allow for natural viewing, even with a VR headset.

Taking a picture by remote control

1. Tap the of the basic app and move to remote shooting display.

1. Tap to start recording, and tap again to stop.

*Wi-Fi can be connected up to approx. 10 meters away.

*Turn the smartphone's Wi-Fi mode on.

Take natural photos!

Using a tripod and remote shooting allows you to take more appealing photos.

You can use a selfie-stick to take natural photos from your own perspective.

View them now!

Transferring to a Smartphone

1. Launch the basic app, select [Cam images] and tap the images you want to transfer.

Select at the

bottom left of the

start-up screen.

Tap on the images

you want to transfer.

*Turn the smartphone's Wi-Fi mode on.

Viewing on a Smartphone

1. Select [Device images] and tap on the image you want to view.

Once the transfer

is complete, select

and tap on the

image you want to view

Look! A 360^ picture!

*Pictures can also be viewed on a PC.

*Once an image has been transferred it is saved.

Still Images Enjoy 360^ experiences!

Check out a

sample here

Check out a

sample here

Viewing in VR

1. Select the image you want to view in the basic app, and tap at the bottom right of the image. Choose single lens or twin lens.

*VR view (single lens)

*VR view (twin lens)

*VR viewing may be unavailable on some Android devices.

1. Enjoy virtual experiences with a VR headset

Viewing in single lens mode

You can enjoy

images with

just your

smartphone!

Viewing in twin lens mode

Place your smartphone in

a VR headset to enjoy

the image.

*Commercially available VR headsets can be used.

• Consult the instruction manual for each product for information on recommended ages.

Videos Enjoy 360^ experiences!

Check out a

sample here

Check out a

sample here

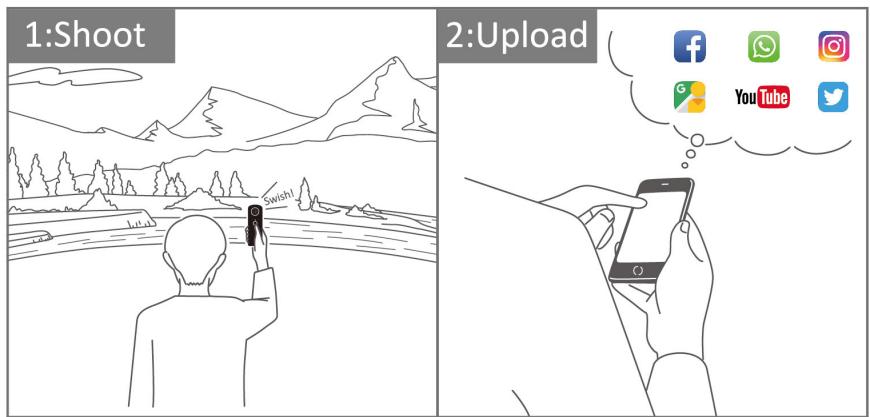

Enjoy pictures and videos by sharing

You can easily post to SNS sites such as Twitter and Facebook from the basic app or editing app.

3:Share with Everyone

Using SNS

360^ images taken with RICOH THETA can be enjoyed on supported SNS sites.

• Compatible SNS (examples):

f Posting to Facebook

Spherical still images and videos can be posted as-is to Facebook, allowing your friends to view your content in 360^

Posting to Twitter

You can upload content to the Ricoh cloud space

(theta360.com) and place a link in a Twitter post. The linked page can be viewed in 360^ .

Posting to Instagram

Using the THETA+ and
THETA+ Video editing apps,
you can share your proud
creations with friends. Posting
creative THETA images to
Instagram is a popular style!

YouTube Posting to YouTube

YouTube supports 360^ video. With the YouTube app you can easily share virtual reality experiences in VR view (twin lens).

Posting to Google Street View

Using the Street View app, you can do everything from shooting THETA images with remote control to uploading 360^ images.

*These are images of submitted pictures.

Sharing without Posting to SNS

If you upload images to the Ricoh cloud s (theta360.com) without posting to an SN, you can share the image only with those you send the URL to.

Check the uploaded image.
Send the URL

Editing Still Images

Special image editing application THETA+,to further enjoy spherical photos. You can edit spherical photos in various ways. You can also save them on your smartphone and share them with your friends.

THETA+ For 360° pictures

Color adjustment (filters)

-Stamp

Cut out images (cropping) Text

• Switch view (view)

-Text

Sharing

• Produce time-lapse videos

As of October 2016

Timelapse editing

This is the mode for producing 360^ timelaps.

Multiple still images shot at intervals can be connected in this mode.

Edit Image: Two editing modes are available

360 Degrees image >

This is the mode for editing 360^ . The images can be viewed and shared in the basic app.

Cropped Image

This mode is to create a cropped image that is able to post to several SNS or send e-mail with.

*Operations may vary depending on the OS.

Create a unique view of the world

Little Planet

• Mirror Ball

• Flat

• Straight

Create a picture that only RICOH THETA can offer by choosing a view from four options.

Freely crop 360^ images

Square

*Convenient for posting on Instagram

Use five types of crop to create the shot you like.

Change images

Ten filters are available to change the color tones. You can also have fun decorating with stamps and texts.

Editing Videos

Use the special video editing application THETA+ Video

For editing videos and enjoying them in multiple ways

You can edit and share 360^ videos and time-lapse videos created with THETA+

THETA+ Video

Color adjustment (filters)
- Cut out moving images (cropping)
- Switch view (view)
- Cut the length (trimming)

BGM
Sharing
Double-speed editing

Two editing modes are available for selection

360 360 Degree Video

This mode is to create a 360^ movie. This movie can be browsed in RICOH THETA application.

Cropped Video

This mode is to create a cropped movie that is able to post to several SNS or send e-mail with. This movie is made from image that you see on your smart phone.

Edit videos by trimming their length

You can cut videos down to the desired length.

Create a one-of-a-kind scene

• Little Planet

• Flat

Mirror Ball

• Straight

Choose from four views to produce a video that only RICOH THETA can offer.

Change images

Choose from 10 filters to change the color tones of 360^ videos.

BGM

You can add background music to your videos, and even remove the sound from your video altogether.

Explore Various Shooting Scenarios

Wedding Ceremonies

Time with Family and Friends

We recommend shooting still images or video even on regular days when nothing much is happening.

Even when it's not a particularly special day, you can record precious moments. As time passes, you will look back on moments when a child was still a baby, a grandparent was energetic or your own younger self and recreate those unassuming daily moments in the vivid detail of a 360^ virtual experience.

Learn More

Go to the Official RICOH THETA accounts

This official account is loaded with information about various 360^ works and ways of enjoying RICOH THETA. Follow the account to enjoy RICOH THETA even more.

The RICOH THETA Facebook page offers extensive information including usage tips and stories behind the development of the RICOH THETA.

RICOH THETA

News related to RICOH THETA is distributed.

RICOH THETA official

Filled with RICOH THETA's creative works.

theta360official

Loaded with 360^ videos shot using RICOH THETA.

RICOH THETA

RICOH THETA Official Website – theta360.com

The official site helps you get even more out of your THETA with the latest information on THETA and related apps, a sample gallery that allows you to rotate images, and the cloud space, which allow you to post and share the 360^ spherical images you have taken.

RICOH THETA S

High-end Model

For capturing a 360^ world with amazing beauty

The RICOH THETA S achieves high quality combined with excellent performance. Record a 360^ spherical world with exceptional clarity and quality just the way you want, in still images or extended-length movies (up to 25 minutes).

High Resolution

· 1 / 2.3^12M CMOS sensor × 2 (Output pixel count equivalent to 14M
-F2.0 lens

Full HD video Capture*1

• 30 fps -25 minutes continuous shooting

360^ Live View Shooting *2

Long exposure (Maximum 60 seconds) *2

Quick start-up in around 1.5 seconds

8 GB Memory

Self-timer

HD Live Streaming #3

HDMI Port (Type-D)

RICOH THETA SC

Standard-class Model

Enjoy 360^ shooting with high performance and ease of use

360^ for everyone.

RICOH THETA SC offers viewers a new experience of a 360^ spherical world as if they are actually there.

It keeps the high image quality, but better convenience.

High Resolution

• 1 / 2.3^ 12M CMOS sensor × 2 (Output pixel count equivalent to 14M)
  -F2.0 lens

Full HD video Capture*1

• 30 fps -5 minutes continuous shooting

360^ Live View Shooting \*2

Long exposure (Maximum 60 seconds) *2

Quick start-up in around 1.5 seconds

8 GB Memory

Self-timer

Lightweight at around 102g

Four Colors

1 Data is recorded in full HD (1920 × 1080) resolution, but the resolution of spherical videos when viewed differs depending on the type of display or display magnification.
2 When THETA S basic app is used *3 Dual fish-eye output, when connected by USB

PC application

PC app for converting, viewing and sharing spherical images shot

Basic app*: Viewing, SNS posting, converting videos, writing with slant top/bottom correction

• Adobe AIR* must be installed for use

Live streaming app: converting live streaming videos

Wi-Fi is a registered trademark of the Wi-Fi Alliance. Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. Mac, iPhone, App Store are trademarks of Apple Inc. iOS is a trademark of Cisco in the US and is used under license. Adobe and AIR are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. Facebook and "FF" logo are the registered trademarks of Facebook, Inc. Twitter and Twitter logo are the registered trademarks of Twitter, Inc. Tumblr and Tumblr logo are the registered trademarks of Tumblr, Inc. Instagram and Instagram logo are the registered trademarks of Instagram, Inc. Google Play, Nexus, YouTube, Google, Google Map, Google+ and Google Street View are the registered trademarks of Google Inc.

RICOH

imagine. change.

RICOH COMPANY, LTD.

RICOH IMAGING COMPANY, LTD.
