HydroGlance 360 ARGB LCD - Système de refroidissement de matériel informatique KRUX - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Refroidissement liquide AIO 360 mm
Marque	KRUX
Modèle	HydroGlance 360 ARGB LCD
Compatibilité socket Intel	LGA 17XX / 115X / 1200 / 2011
Compatibilité socket AMD	AM4 / AM5
Dimensions du radiateur	397 x 120 x 27 mm
Matériau du radiateur	Aluminium
Dimensions de la pompe	78 x 78 x 58 mm
Type de pompe	Pompe céramique à haut débit
Vitesse de la pompe	2600 ± 10% RPM
Nombre de ventilateurs	3
Dimensions des ventilateurs	120 x 120 x 25 mm
Vitesse des ventilateurs	600 - 1800 RPM
Débit d'air max	66,17 CFM
Pression statique max	2,12 mmH2O
Niveau sonore	≤ 32 dBA
Éclairage	ARGB 5V (adressable)
Écran LCD	Oui, affichage personnalisable
Connectivité	USB 2.0 (pour écran), PWM 4 broches, ARGB 3 broches
Tension d'alimentation	12V DC (ventilateurs/pompe), 5V DC (ARGB)
Poids net	Environ 1,6 kg
Garantie	2 ans

FOIRE AUX QUESTIONS - HydroGlance 360 ARGB LCD KRUX

Comment installer le KRUX HydroGlance 360 ARGB LCD ?

Suivez les étapes du manuel : fixez le backplate, appliquez la pâte thermique, montez la pompe, installez le radiateur et les ventilateurs, puis branchez les connecteurs PWM et ARGB. Assurez-vous de retirer le film protecteur de la plaque de cuivre.

Sur quels sockets ce refroidissement est-il compatible ?

Il est compatible avec Intel LGA 17XX, 115X, 1200, 2011 et AMD AM4, AM5.

Puis-je utiliser un câble RGB 12V sur ce produit ?

Non, ce produit utilise du 5V ARGB. Brancher sur une prise 12V RGB endommagera définitivement le système.

Comment contrôler l'écran LCD ?

L'écran LCD se pilote via un câble USB 2.0 interne. Le logiciel dédié (à télécharger sur le site KRUX) permet d'afficher des images, animations ou températures.

Quelle est la durée de vie de la pompe ?

La pompe céramique est conçue pour une longue durée, généralement supérieure à 50 000 heures.

Dois-je remplacer le liquide de refroidissement ?

Non, le circuit est scellé et ne nécessite pas de maintenance. Le liquide est conçu pour durer toute la vie du produit.

Comment nettoyer le radiateur ?

Dépoussiérez le radiateur avec un chiffon doux ou de l'air comprimé. Évitez l'eau et les produits chimiques.

Que faire si le bruit de la pompe est anormal ?

Vérifiez que la pompe est bien alimentée et qu'aucune bulle d'air n'est présente. Inclinez doucement le boîtier pour évacuer les bulles. Si le bruit persiste, contactez le support KRUX.

Quels logiciels sont compatibles avec l'ARGB ?

L'ARGB 5V est compatible avec les contrôleurs de carte mère supportant le standard adressable (ex: ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion).

La garantie couvre-t-elle les dommages mécaniques ?

Non, la garantie ne couvre pas les dommages mécaniques, fuites dues à une mauvaise installation, ni l'utilisation d'une alimentation 12V sur les broches ARGB.

MODE D'EMPLOI HydroGlance 360 ARGB LCD KRUX

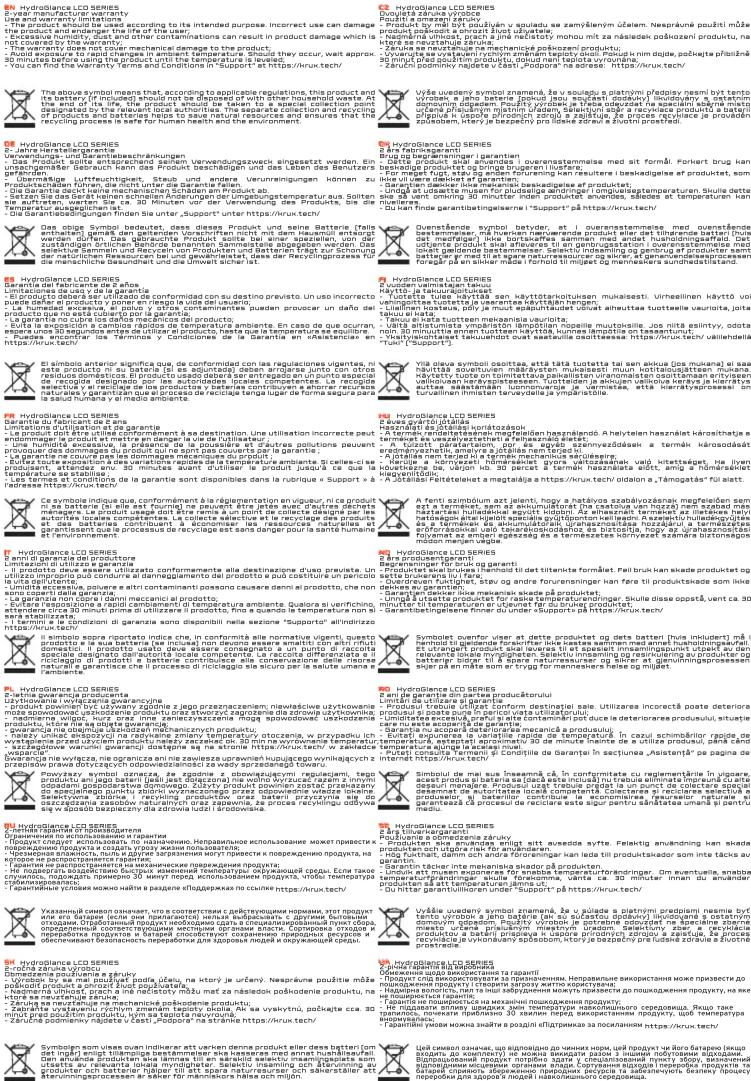

Hydroglance LCD SERIES Use and warranty limitations The above symbol means that, according to its intended purpose, incorrect use can damage you with any other hand. According to this request, please refer to: (1) The warranty does not cover mechanical damage to the product. (2) The warranty does not cover mechanical damage to the product. (3) The warranty does not cover mechanical damage to the product. (4) The warranty does not cover mechanical damage to the product. (5) The warranty does not cover mechanical damage to the product. (6) The warranty does not cover mechanical damage to the product. (7) The warranty does not cover mechanical damage to the product. (8) The warranty does not cover mechanical damage to the product. (9) The warranty does not cover mechanical damage to the product. (10) The warranty does not cover mechanical damage to the product. (11) The warranty does not cover mechanical damage to the product. (12) The warranty does not cover mechanical damage to the product. (13) The warranty does not cover mechanical damage to the product. (14) The warranty does not cover mechanical damage to the product. (15) The warranty does not cover mechanical damage to the product. (16) The warranty does not cover mechanical damage to the product. (17) The warranty does not cover mechanical damage to the product. (18) The warranty does not cover mechanical damage to the product. (19) The warranty does not cover mechanical damage to the product. (20) The warranty does not cover mechanical damage to the product. (21) The warranty does not cover mechanical damage to the product. (22) The warranty does not cover mechanical damage to the product. (23) The warranty does not cover mechanical damage to the product. (24) The warranty does not cover mechanical damage to the product. (25) The warranty does not cover mechanical damage to the product. (26) The warranty does not cover mechanical damage to the product. (27) The warranty does not cover mechanical damage to the product. (28) The warranty does not cover mechanical damage to the product. (29) The warranty does not cover mechanical damage to the product. (30) The warranty does not cover mechanical damage to the product. (31) The warranty does not cover mechanical damage to the product. (32) The warranty does not cover mechanical damage to the product. (33) The warranty does not cover mechanical damage to the product. (34) The warranty does not cover mechanical damage to the product. (35) The warranty does not cover mechanical damage to the product. (36) The warranty does not cover mechanical damage to the product. (37) The warranty does not cover mechanical damage to the product. (38) The warranty does not cover mechanical damage to the product. (39) The warranty does not cover mechanical damage to the product. (40) The warranty does not cover mechanical damage to the product. (41) The warranty does not cover mechanical damage to the product. (42) The warranty does not cover mechanical damage to the product. (43) The warranty does not cover mechanical damage to the product. (44) The warranty does not cover mechanical damage to the product. (45) The warranty does not cover mechanical damage to the product. (46) The warranty does not cover mechanical damage to the product. (47) The warranty does not cover mechanical damage to the product. (48) The warranty does not cover mechanical damage to the product. (49) The warranty does not cover mechanical damage to the product. (50) The warranty does not cover mechanical damage to the product. (51) The warranty does not cover mechanical damage to the product. (52) The warranty does not cover mechanical damage to the product. (53) The warranty does not cover mechanical damage to the product. (54) The warranty does not cover mechanical damage to the product. (55) The warranty does not cover mechanical damage to the product. (56) The warranty does not cover mechanical damage to the product. (57) The warranty does not cover mechanical damage to the product. (58) The warranty does not cover mechanical damage to the product. (59) The warranty does not cover mechanical damage to the product. (60) The warranty does not cover mechanical damage to the product. (61) The warranty does not cover mechanical damage to the product. (62) The warranty does not cover mechanical damage to the product. (63) The warranty does not cover mechanical damage to the product. (64) The warranty does not cover mechanical damage to the product. (65) The warranty does not cover mechanical damage to the product. (66) The warranty does not cover mechanical damage to the product. (67) The warranty does not cover mechanical damage to the product. (68) The warranty does not cover mechanical damage to the product. (69) The warranty does not cover mechanical damage to the product. (70) The warranty does not cover mechanical damage to the product. (71) The warranty does not cover mechanical damage to the product. (72) The warranty does not cover mechanical damage to the product. (73) The warranty does not cover mechanical damage to the product. (74) The warranty does not cover mechanical damage to the product. (75) The warranty does not cover mechanical damage to the product. (76) The warranty does not cover mechanical damage to the product. (77) The warranty does not cover mechanical damage to the product. (78) The warranty does not cover mechanical damage to the product. (79) The warranty does not cover mechanical damage to the product. (80) The warranty does not cover mechanical damage to the product. (81) The warranty does not cover mechanical damage to the product. (82) The warranty does not cover mechanical damage to the product. (83) The warranty does not cover mechanical damage to the product. (84) The warranty does not cover mechanical damage to the product. (85) The warranty does not cover mechanical damage to the product. (86) The warranty does not cover mechanical damage to the product. (87) The warranty does not cover mechanical damage to the product. (88) The warranty does not cover mechanical damage to the product. (89) The warranty does not cover mechanical damage to the product. (90) The warranty does not cover mechanical damage to the product. (91) The warranty does not cover mechanical damage to the product. (92) The warranty does not cover mechanical damage to the product. (93) The warranty does not cover mechanical damage to the product. (94) The warranty does not cover mechanical damage to the product. (95) The warranty does not cover mechanical damage to the product. (96) The warranty does not cover mechanical damage to the product. (97) The warranty does not cover mechanical damage to the product. (98) The warranty does not cover mechanical damage to the product. (99) The warranty does not cover mechanical damage to the product. (100) The warranty does not cover mechanical damage to the product. 101) The warranty does not cover mechanical damage to the product. 102) The warranty does not cover mechanical damage to the product. 103) The warranty does not cover mechanical damage to the product. 104) The warranty does not cover mechanical damage to the product. 105) The warranty does not cover mechanical damage to the product. 106) The warranty does not cover mechanical damage to the product. 107) The warranty does not cover mechanical damage to the product. 108) The warranty does not cover mechanical damage to the product. 109) The warranty does not cover mechanical damage to the product. 110) The warranty does not cover mechanical damage to the product. 111) The warranty does not cover mechanical damage to the product. 112) The warranty does not cover mechanical damage to the product. 113) The warranty does not cover mechanical damage to the product. 114) The warranty does not cover mechanical damage to the product. 115) The warranty does not cover mechanical damage to the product. 116) The warranty does not cover mechanical damage to the product. 117) The warranty does not cover mechanical damage to the product. 118) The warranty does not cover mechanical damage to the product. 119) The warranty does not cover mechanical damage to the product. 120) The warranty does not cover mechanical damage to the product. 121) The warranty does not cover mechanical damage to the product. 122) The warranty does not cover mechanical damage to the product. 123) The warranty does not cover mechanical damage to the product. 124) The warranty does not cover mechanical damage to the product. 125) The warranty does not cover mechanical damage to the product. 126) The warranty does not cover mechanical damage to the product. 127) The warranty does not cover mechanical damage to the product. 128) The warranty does not cover mechanical damage to the product. 129) The warranty does not cover mechanical damage to the product. 130) The warranty does not cover mechanical damage to the product. 131) The warranty does not cover mechanical damage to the product. 132) The warranty does not cover mechanical damage to the product. 133) The warranty does not cover mechanical damage to the product. 134) The warranty does not cover mechanical damage to the product. 135) The warranty does not cover mechanical damage to the product. 136) The warranty does not cover mechanical damage to the product. 137) The warranty does not cover mechanical damage to the product. 138) The warranty does not cover mechanical damage to the product. 139) The warranty does not cover mechanical damage to the product. 140) The warranty does not cover mechanical damage to the product. 141) The warranty does not cover mechanical damage to the product. 142) The warranty does not cover mechanical damage to the product. 143) The warranty does not cover mechanical damage to the product. 144) The warranty does not cover mechanical damage to the product. 145) The warranty does not cover mechanical damage to the product. 146) The warranty does not cover mechanical damage to the product. 147) The warranty does not cover mechanical damage to the product. 148) The warranty does not cover mechanical damage to the product. 149) The warranty does not cover mechanical damage to the product. 150) The warranty does not cover mechanical damage to the product. 151) The warranty does not cover mechanical damage to the product. 152) The warranty does not cover mechanical damage to the product. 153) The warranty does not cover mechanical damage to the product. 154) The warranty does not cover mechanical damage to the product. 155) The warranty does not cover mechanical damage to the product. 156) The warranty does not cover mechanical damage to the product. 157) The warranty does not cover mechanical damage to the product. 158) The warranty does not cover mechanical damage to the product. 159) The warranty does not cover mechanical damage to the product. 160) The warranty does not cover mechanical damage to the product. 161) The warranty does not cover mechanical damage to the product. 162) The warranty does not cover mechanical damage to the product. 163) The warranty does not cover mechanical damage to the product. 164) The warranty does not cover mechanical damage to the product. 165) The warranty does not cover mechanical damage to the product. 166) The warranty does not cover mechanical damage to the product. 167) The warranty does not cover mechanical damage to the product. 168) The warranty does not cover mechanical damage to the product. 169) The warranty does not cover mechanical damage to the product. 170) The warranty does not cover mechanical damage to the product. 171) The warranty does not cover mechanical damage to the product. 172) The warranty does not cover mechanical damage to the product. 173) The warranty does not cover mechanical damage to the product. 174) The warranty does not cover mechanical damage to the product. 175) The warranty does not cover mechanical damage to the product. 176) The warranty does not cover mechanical damage to the product. 177) The warranty does not cover mechanical damage to the product. 178) The warranty does not cover mechanical damage to the product. 179) The warranty does not cover mechanical damage to the product. 180) The warranty does not cover mechanical damage to the product. 181) The warranty dose is 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Hydroglance LCD SERIES Use and warranty limitations are applicable in order by certain products or equipment. For example, we have used a systematic design for products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units or equipment that may be used in order by certain units, but only uses a systematic design for products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used, but only uses a systematic design for products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment which is also used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be used in order by certain products or equipment that may be using an electronic device on display.

KRUX HYDROGLANCE LCD SERIES

KRXE003/KRXE004/KRXE005

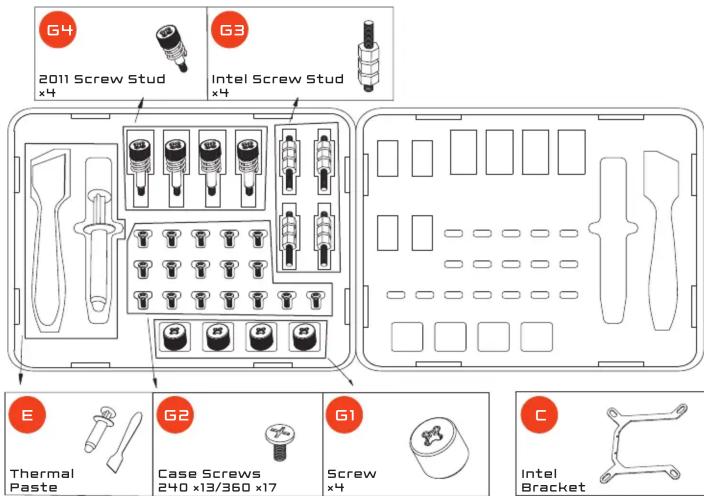

G4 2011 Screw Stud x4 G3 Intel Screw Stud x4 E Thermal Paste G2 Case Screws 240 x13/360 x17 G1 Screw x4 C Intel Bracket

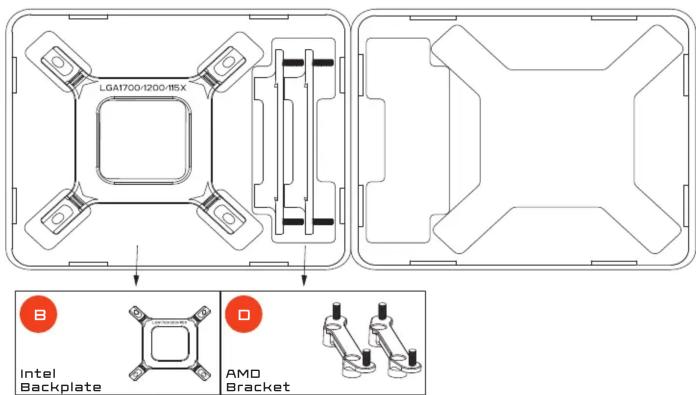

LGA1700-1200-115X Intel Backplate AMD Bracket

WWW.KRUX.TECH

Bending Turn-off Tool Installation E

COMPATIBILITY / KOMPATYBILNOŚĆ:
INTEL LGA17XX/115X/1200/2011
AMD AM4/AM5

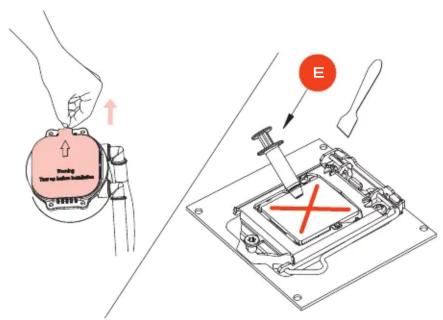

WARNING:
REMOVE THE PROTECTION FILM /
APPLYING THERMAL PASTE
UWAGA:
USUÑ FOLIE OCHRONNA /
NAKŁADANIE PASTY TERMOPRZEWOODOWEJ

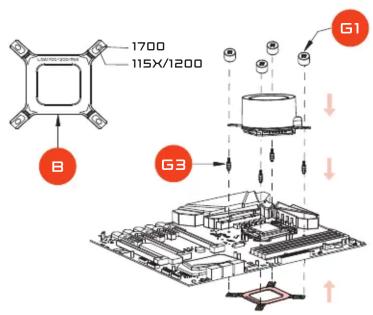

INTEL LGA17XX/115X/1200

1700 115X/1200 G1 B G3

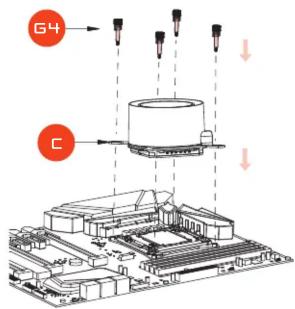

INTEL LGA2011

G4 C

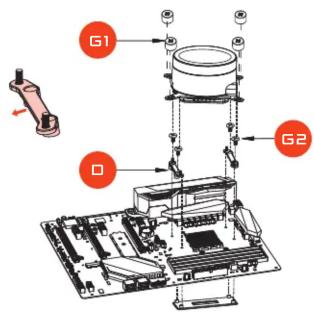

AMD

Mechanical assembly diagram showing a bracket mounted on a plate with mounting holes and a separate view of a bracket with red arrows indicating direction (no text or symbols present)

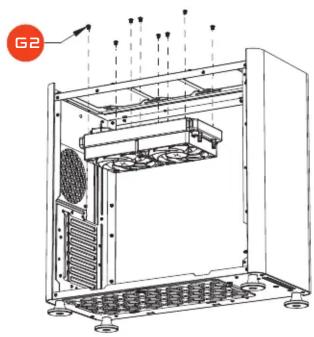

G1 D G2

G2

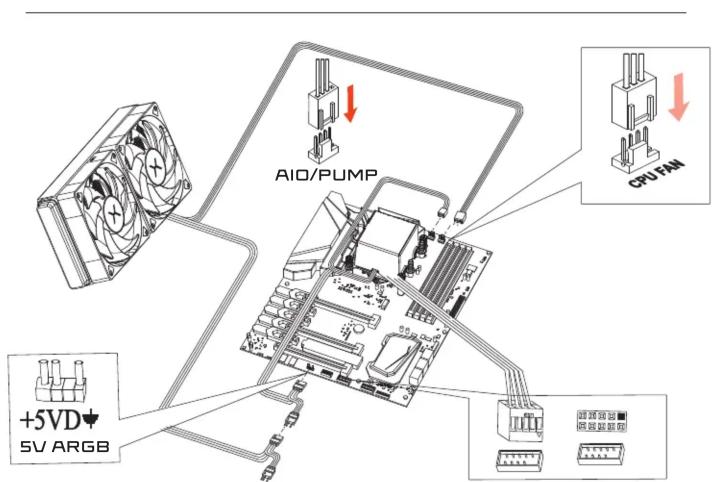

AIO/PUMP CPU/FAM +5VD 5V ARGB

WARNING:
SVDC ADDRESSABLE RGB PRODUCTS WILL BE
COMPLETELY DAMAGED WHEN USED IN 12VDC RGB PLUG.
UWAGA:
PODŁACZANIE URZADZEŃ ARGB [5V] DO ZŁĄCZA RGB
[12V] GROZI USZKODZENIEM.
