Type de produit	Nettoyeur à vapeur professionnel
Marque	Vulcan
Modèle	C24EA5 PLUS
Tension d'alimentation	208/240 V ou 480 V (selon configuration)
Puissance	8,5 kW à 15,75 kW (selon version)
Nombre de compartiments	3 ou 5 (selon version)
Générateur de vapeur	Avec résistance chauffante et sonde de niveau
Réservoir d'eau	Intégré avec système de remplissage rapide/lent
Matériau du boîtier	Acier inoxydable
Panneau de commande	Interrupteur marche/arrêt, voyant lumineux, minuterie (selon version)
Sécurité	Sonde de limite haute, interrupteur de porte, soupape de sécurité
Entretien	Vidange manuelle, détartrage recommandé
Pièces détachées disponibles	Oui (joints, résistances, vannes, sondes)
Utilisation	Nettoyage vapeur haute température pour surfaces et équipements
Dimensions (approx.)	Environ 60 x 70 x 90 cm (selon configuration)
Poids (approx.)	Environ 50-80 kg (selon version)

FOIRE AUX QUESTIONS - C24EA5 PLUS Vulcan

Comment mettre en marche le nettoyeur à vapeur C24EA5 PLUS ?

Assurez-vous que l'appareil est branché sur une prise adaptée (208/240 V ou 480 V). Ouvrez le robinet d'arrivée d'eau et remplissez le réservoir. Appuyez sur l'interrupteur marche/arrêt ; le voyant lumineux s'allume. Attendez que la vapeur soit prête (environ 10 minutes).

Quelle est la puissance maximale de ce modèle ?

La puissance varie selon la configuration : de 8,5 kW (pour les versions de base) jusqu'à 15,75 kW pour les versions Pro. Vérifiez l'étiquette sur l'appareil pour la puissance exacte.

Comment détartrer l'appareil ?

Utilisez un produit détartrant adapté pour générateurs de vapeur. Remplissez le réservoir avec la solution, faites chauffer, puis vidangez complètement. Rincez à l'eau claire plusieurs fois. Suivez les instructions de la notice.

Que faire si la vapeur ne sort pas ?

Vérifiez que l'alimentation en eau est ouverte, que le réservoir n'est pas vide, et que la vanne de vidange est fermée. Si le problème persiste, vérifiez les fusibles et contactez un technicien.

Puis-je utiliser de l'eau du robinet ?

Il est recommandé d'utiliser de l'eau déminéralisée ou distillée pour éviter l'accumulation de calcaire, qui peut endommager le générateur de vapeur à long terme.

Comment nettoyer les surfaces après utilisation ?

Laissez l'appareil refroidir complètement. Essuyez l'extérieur avec un chiffon humide. Pour l'intérieur, utilisez une brosse douce et de l'eau savonneuse. Rincez et séchez.

Quels sont les voyants lumineux sur le panneau ?

Le voyant vert indique que l'appareil est sous tension. Sur les versions Pro, un voyant supplémentaire peut indiquer la production de vapeur. Consultez la notice pour les détails.

Comment vidanger le générateur ?

Placez un récipient sous le tuyau de vidange. Ouvrez la vanne de vidange (manuelle) et laissez l'eau s'écouler. Fermez la vanne après vidange.

Où trouver des pièces de rechange ?

Les pièces détachées sont disponibles auprès des revendeurs agréés Vulcan ou sur le site www.vulcanequipment.com. Référez-vous à la liste de pièces dans la notice.

Cet appareil est-il adapté à un usage domestique ?

Le C24EA5 PLUS est un nettoyeur à vapeur professionnel de grande puissance. Pour un usage domestique, un modèle plus compact serait recommandé.

MODE D'EMPLOI C24EA5 PLUS Vulcan

REPLACEMENT PARTS

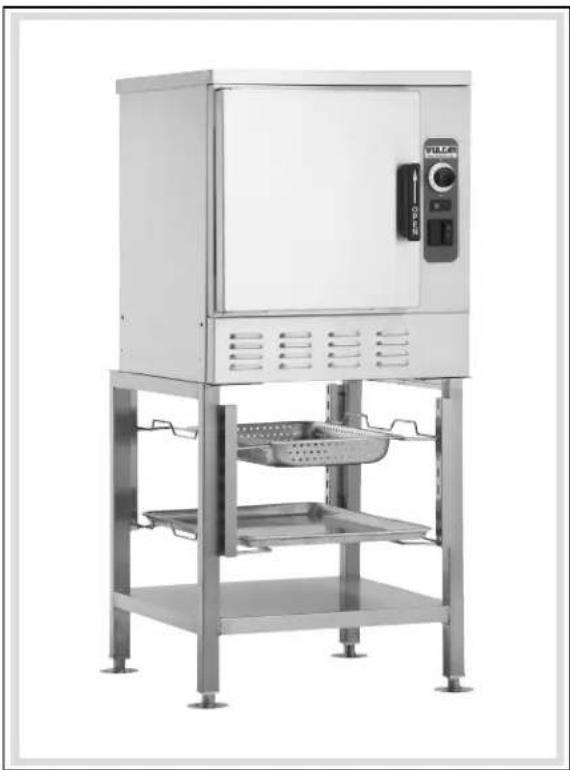

C24EA SERIES STEAMER

3-PAN BASIC

ML-136043 208/240 V. 8.5kW

ML-136045 480 V. 8.5kW

3-PAN PRO

ML-136037 208/240 V. 9.25kW

ML-136044 480 V. 9.25kW

3-PAN LWE

ML-152030

ML-152059 208/240 V. Sonic Safe

ML-152062 480 V. Sonic Safe

3-PAN PLUS

ML-152049 208/240 V.

ML-152050 480 V.

ML-152057 208/240 V. Sonic Safe

ML-152060 480 V. Sonic Safe

3-PAN POWERSTREAM

ML-152058 208/240 V. Sonic Safe

ML-152061 480 V. Sonic Safe

5-PAN BASIC

ML-136046 208/240 V. 15kW

ML-136048 480 V. 15kW

5-PAN PRO

ML-136038 208/240 V. 15.75kW

ML-136047 480 V. 15.75kW

5-PAN LWE

ML-152031

ML-152065 208/240 V. Sonic Safe

ML-152068 480 V. Sonic Safe

5-PAN PLUS

ML-152051 208/240 V.

ML-152052 480 V.

ML-152063 208/240 V. Sonic Safe

ML-152066 480 V. Sonic Safe

5-PAN POWERSTREAM

ML-152064 208/240 V. Sonic Safe

ML-152067 480 V. Sonic Safe

Exterior view of a stainless steel laboratory oven with control panel and side-mounted dish (no visible text or symbols)

For additional information on Vulcan or to locate an authorized parts and service provider in your area, visit our website at www.vulcanequipment.com

Table of Contents

5 CONTROLS

7 ELECTRICAL COMPONENTS

9 ELECTRICAL COMPONENTS (SONIC SAFE)

11 LINE CONTROLS (LWE)

13 CABINET

15 DOOR

17 COMPARTMENT

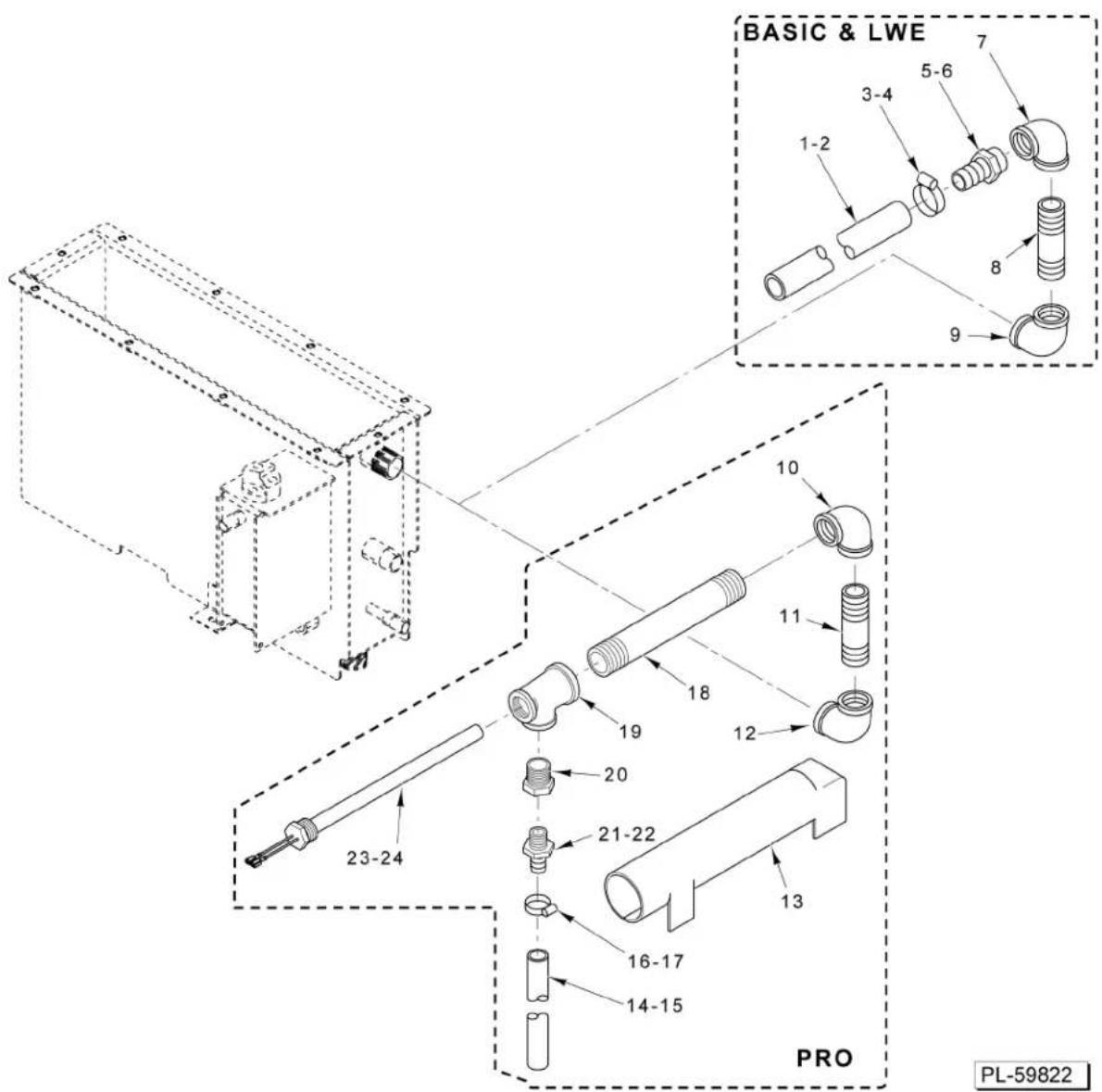

19 GENERATOR MANIFOLD (3-PAN)

21 GENERATOR MANIFOLD (5-PAN)

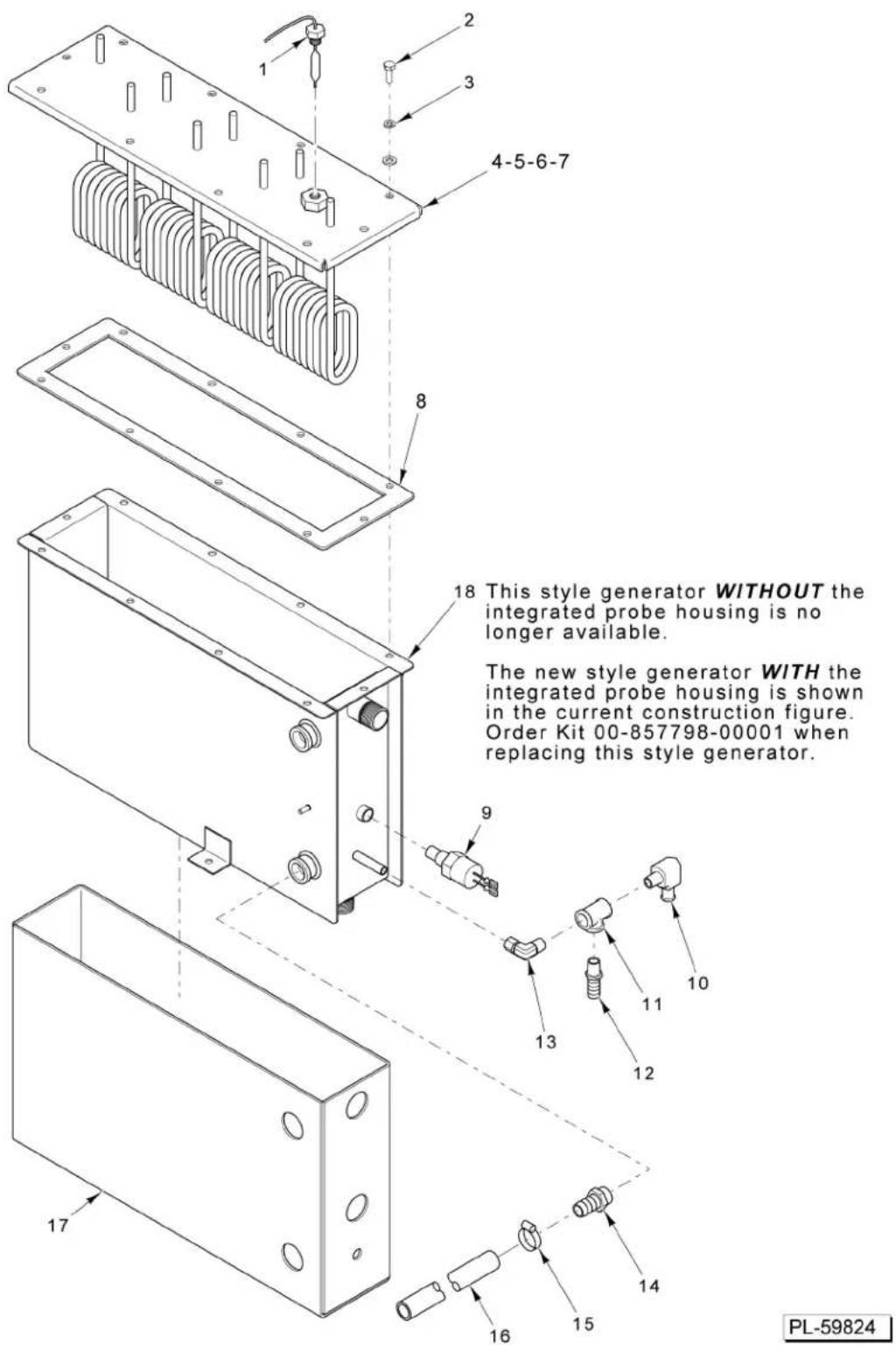

23 GENERATOR ASSEMBLY (BEFORE S/N 463003747)

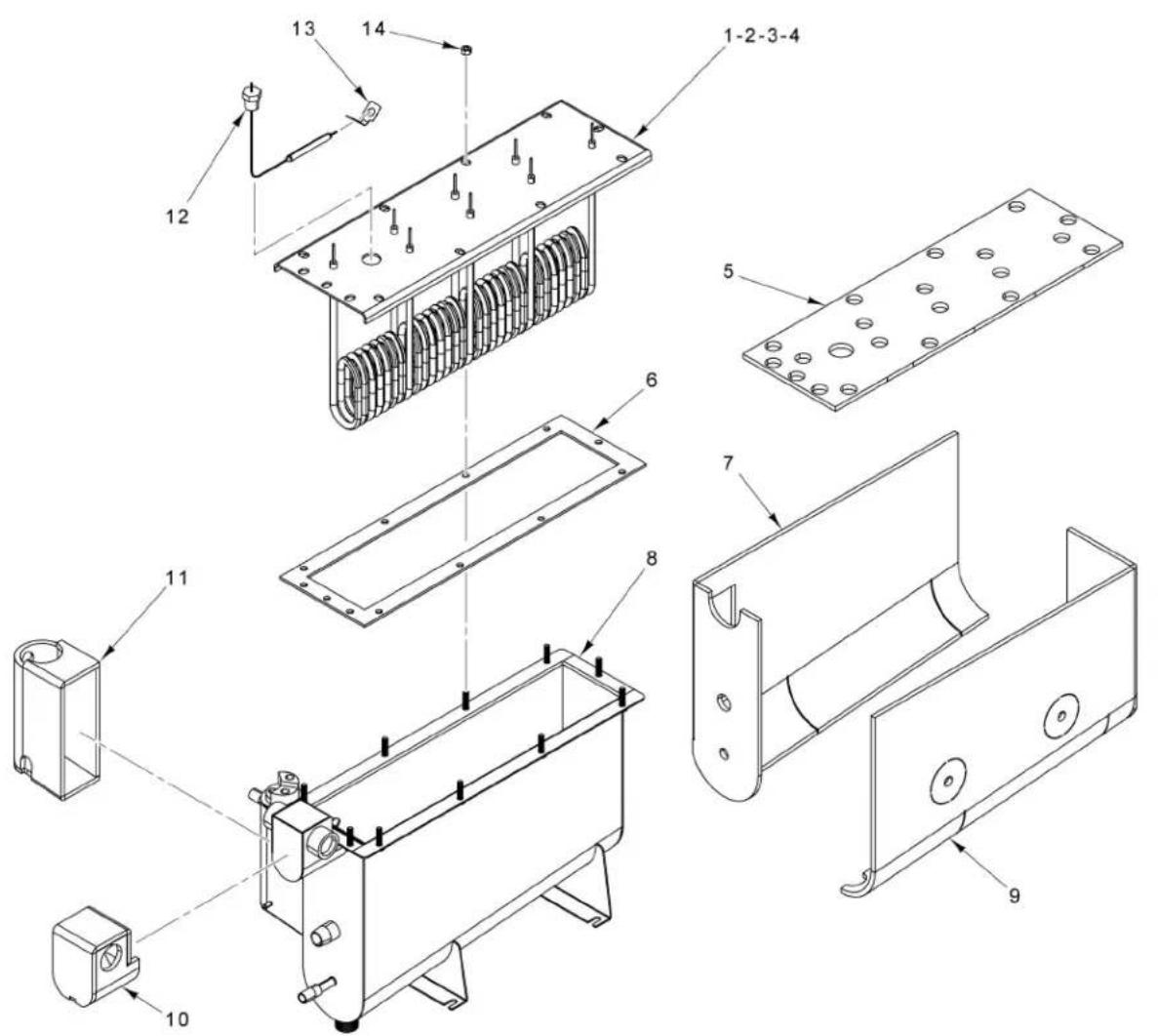

25 GENERATOR ASSEMBLY (S/N 463003747 THRU S/N 463023094)

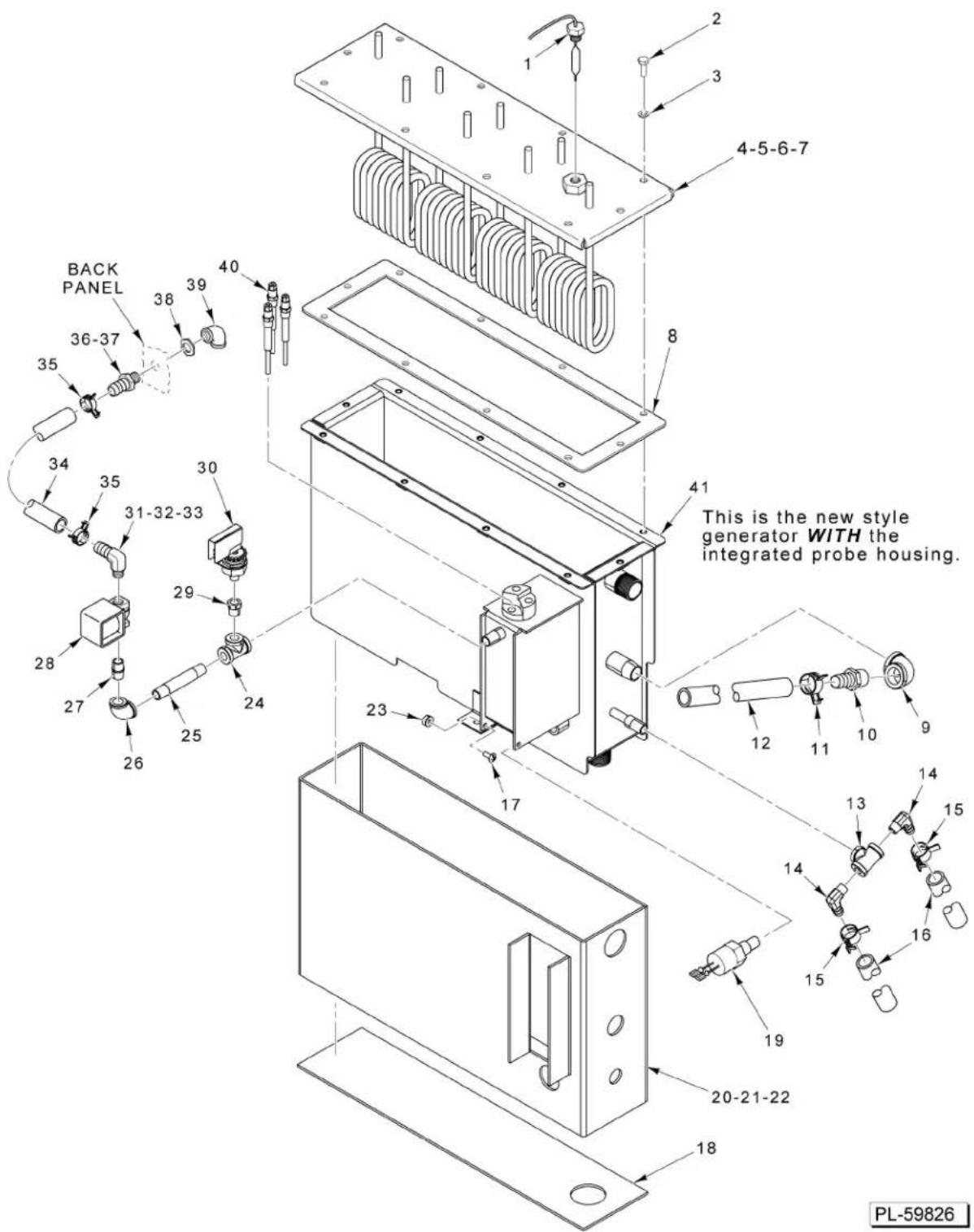

27 GENERATOR ASSEMBLY (STARTING S/N 463023094)

29 WATER LEVEL PROBE (BEFORE S/N 463003747)

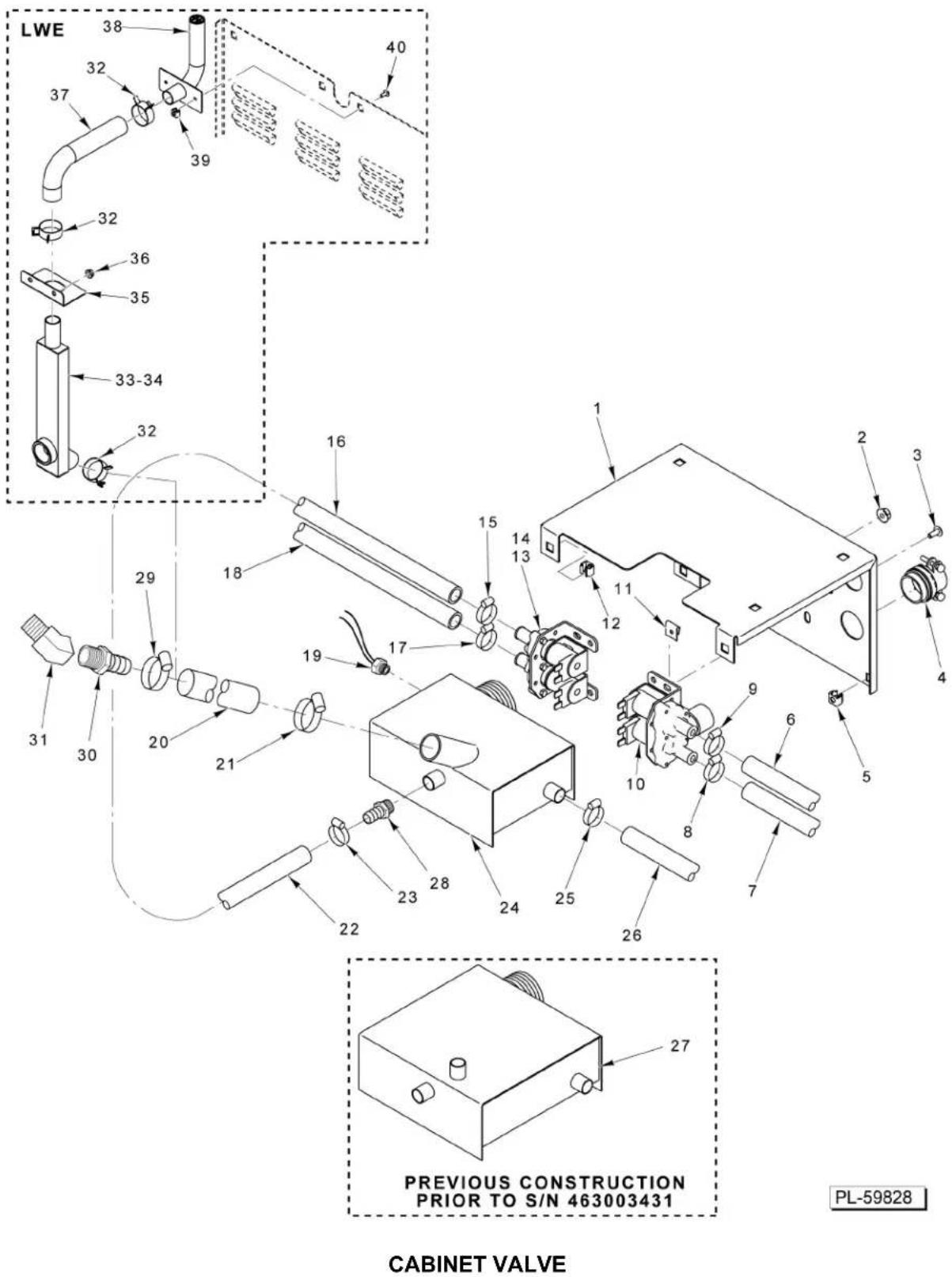

31 CABINET VALVE

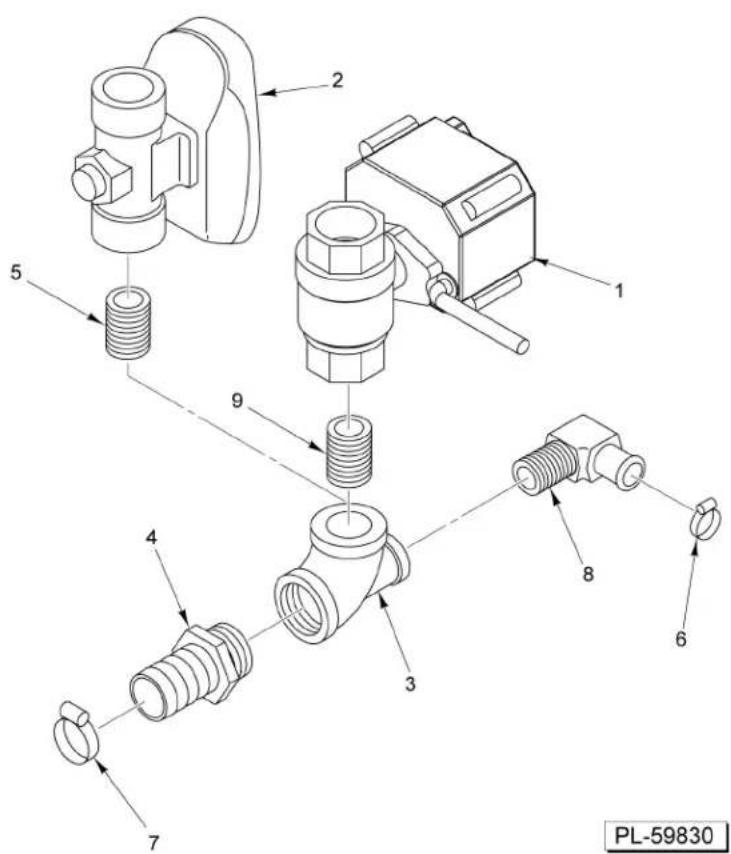

33 GENERATOR DRAIN - BASIC

35 GENERATOR DRAIN - PRO

37 COMPARTMENT VACUUM BREAKER

16 00-856744-00001 Harness - Wiring (Basic) 17 00-856745-00001 Harness - Wiring (Pro) PARTS NOT ILLUSTRATED VULCAN 13 11-12 14 15 7-8-9-10 5 6 4 2-3 PL-58193

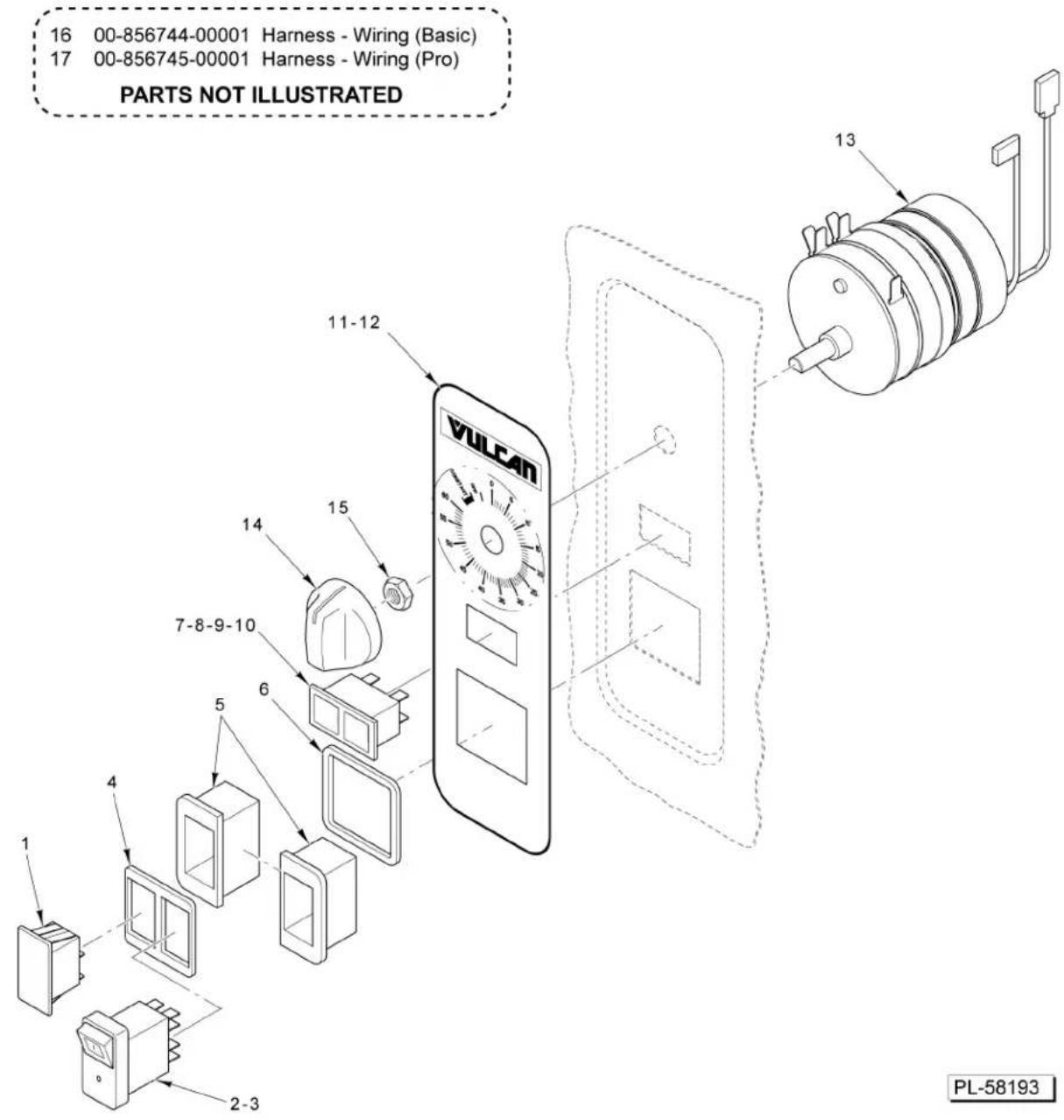

CONTROLS

CONTROLS

ILLUS. PART NO. NAME OF PART AMT. PL-58193

1 00-856680-00001 Plug - Blank Assy....1
2 00-855677-00001 Switch - On/Off (Lighted) (Pro & LWE)....1
3 00-856754-00001 Power Light (Basic) (Not Shown)....1
4 00-855795-00001 Gasket - Switch....1
5 00-855794-00001 Bezel - Switch....2
6 00-855796-00001 Gasket - Bezel....1
7 00-856679-00001 Light - Indicating Assy. (Pro)....1
8 00-913102-00264 Light - Indicating (125 VAC) (LWE)....1
9 00-856680-00001 Plug - Blank Assy. (Basic) (Not Shown)....1
10 00-856680-00001 Plug - Blank Assy....1
11 00-856771-00001 Overlay - Control (Vulcan) (Basic)....1
12 00-856771-00002 Overlay - Control (Vulcan) (Pro)....1
13 00-913102-0176A Kit - Timer (Incls Shaft Seal & Knob) (Incls. Items 14 & 15)....1
14 00-856773-00001 Knob - Timer....1
15 00-854693-00001 Shaft - Rotary Seal....1
16 00-856744-00001 Harness - Wiring (Basic)....1
17 00-856745-00001 Harness - Wiring (Pro)....1

Technical diagram of an electrical contactor assembly with numbered components and labeled parts

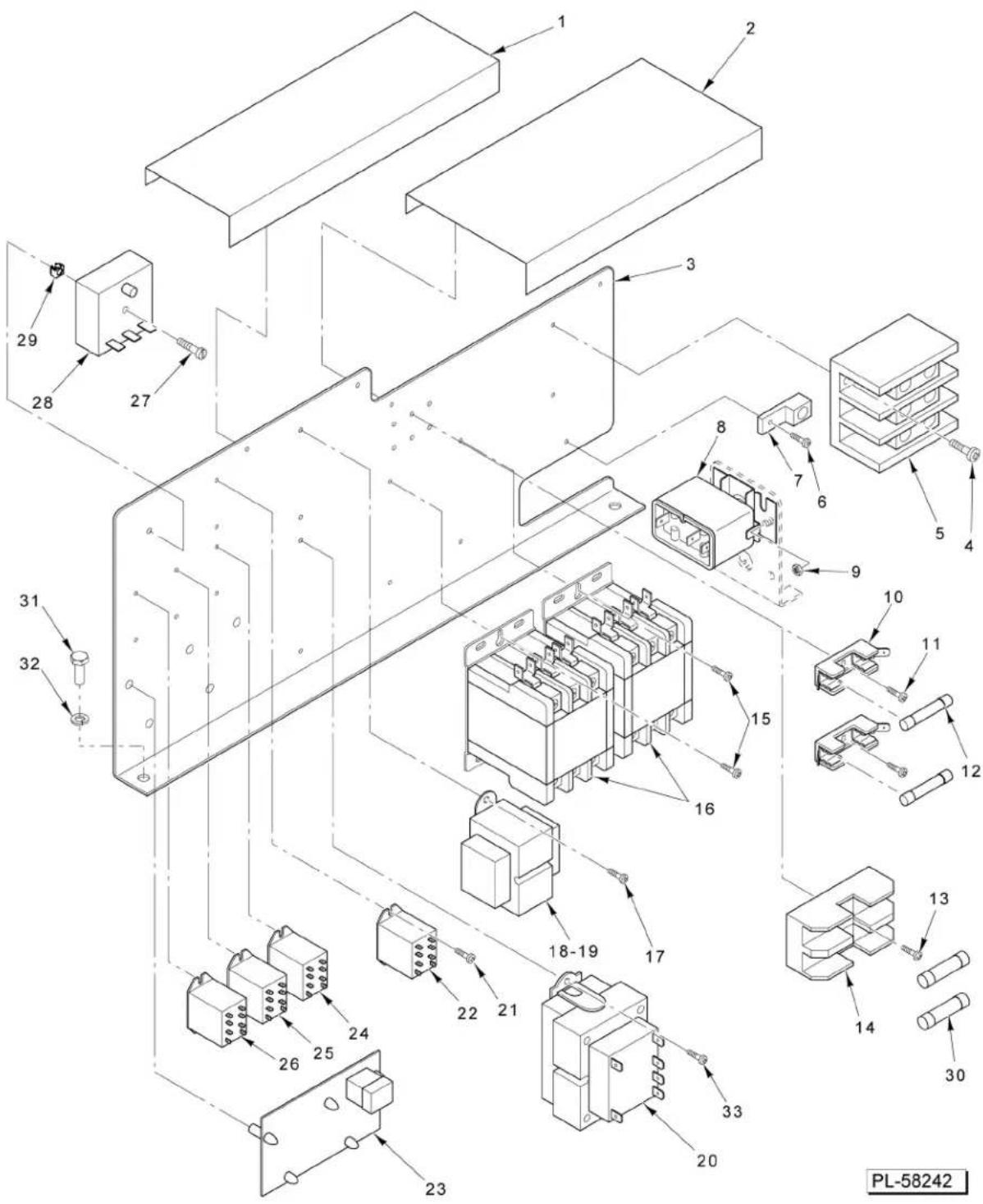

ELECTRICAL COMPONENTS

ELECTRICAL COMPONENTS

ILLUS. PART NO. NAME OF PART AMT. PL-58242

1	00-856762-00001	Shield - Mylar (9-1/2 In.)	1
2	00-856762-00002	Shield - Mylar (9 In.)	1
3	00-856618-00001	Plate - Mounting	1
4	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	2
5	00-410472-00008	Block - Terminal (3-Pole)	1
6	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	1
7	FE-023-88	Lug - Ground	1
8	00-913102-00404	Kit - High Limit Probe (Includes Clip)	1
9	NS-011-18	Nut 10-24 Hex (SST)	1
10	00-856677-00001	Block - Fuse (208/240 V.)	2
11	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	2
12	FE-024-94	Fuse (250 V., 4 Amp.)	2
13	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	2
14	00-855028-00001	Block - Fuse (480 V.)	1
15	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	4
16	00-881654	Contactor (40 Amp, 3 Pole)	2
17	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	2
18	00-421758-000G1	Transformer (120 V.) (24 V. Output) (Pro)	1
19	00-411500-00012	Transformer (120 VAC, 24 V., 40 VA) (LWE)	1
20	00-294500-00033	Transformer (60 VA, 50/60 Hz.)	1
21	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	AR
22	00-856699-00001	Switch - Relay (Pro)	1
23	00-844069-00001	Control - Low Water	1
24	00-856699-00001	Switch - Relay (K3)	1
25	00-856699-00001	Switch - Relay (K2)	1
26	00-856699-00001	Switch - Relay (K1)	1
27	SC-021-96	Mach. Screw 10-24 x 1-1/4 Slotted Rd. Hd. (SST)	1
28	00-855661-00001	Relay - Time Delay	1
29	NS-049-01	Panel Nut 10-24	1
30	00-423986-00001	Fuse (KTK-R-3) (480 V.)	2
31	SC-041-01	Cap Screw 1/4-20 x 3/4 Hex Hd. (SST)	2
32	WL-006-17	Lockwasher 1/4 Helical (SST)	2
33	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B	2

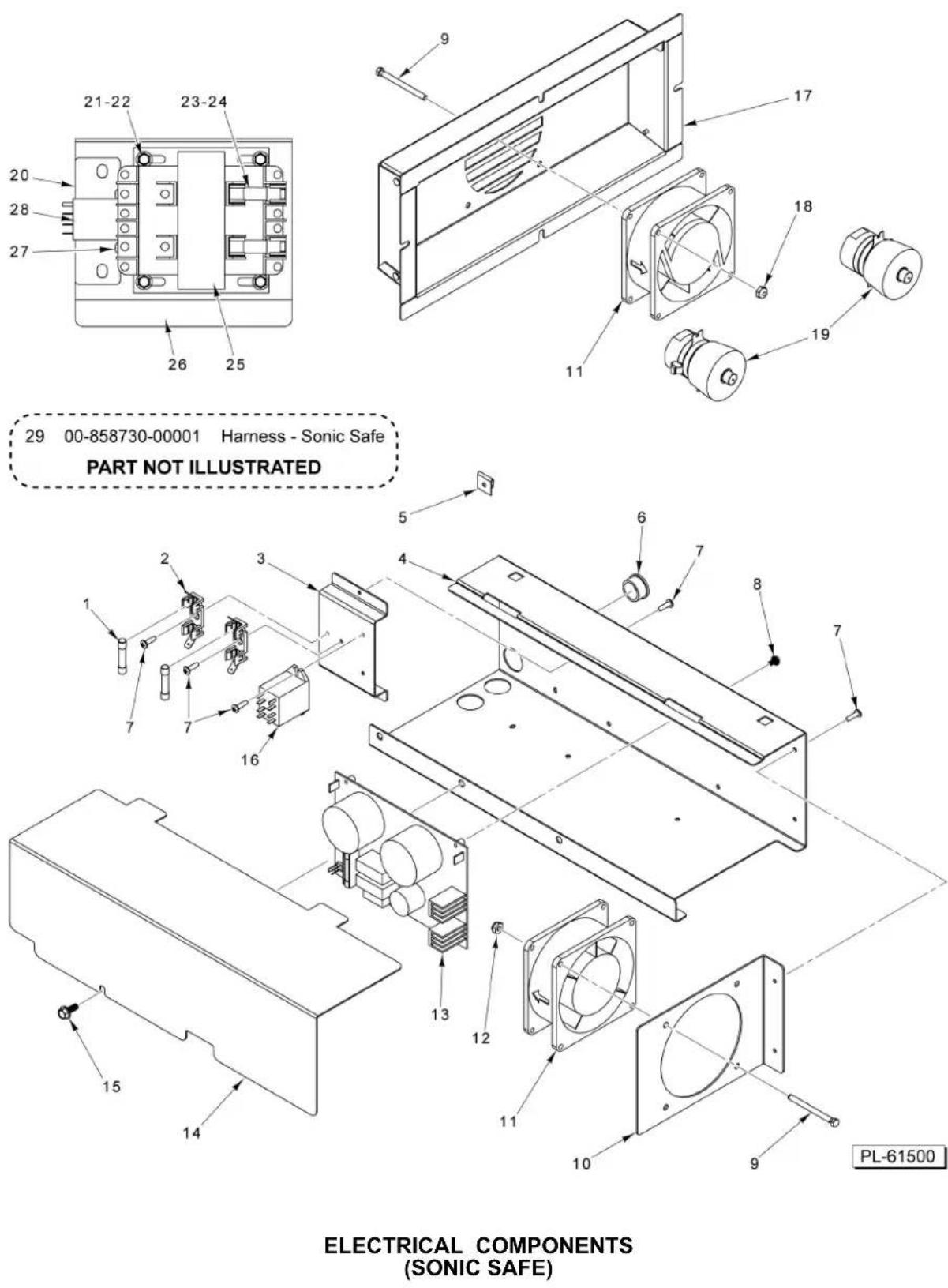

ELECTRICAL COMPONENTS (SONIC SAFE)

ILLUS. PART NO. NAME OF PART AMT. PL-61500

1	FE-024-83	Fuse......2
2	00-856677-00001	Block - Fuse (20 Amp., 300 V.)......2
3	00-858576-00007	Bracket......1
4	00-858576-00003	Control Box......1
5	00-854766-00001	Nut - Speed 3 Type......3
6	FE-016-32	Bushing - Snap (Electrical)......1
7	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B......AR
8	SC-132-84	Screw - Hex Serrated 6/32 x 1/4......4
9	SC-132-80	Screw - Cap, Hex, 8-32 X 2......4
10	00-858576-00004	Fan - Mounting Bracket......1
11	00-858733-00001	Fan - Cooling......1
12	NS-047-98	Lock Nut 8-32 Hex......4
13	00-858576-00005	Circuit Board......1
14	00-858576-00006	Cover - Control Box......1
15	SC-132-38	Screw - Hex Serrated 10/24 x 1/2......1
16	00-416535-00007	Relay - Heating (200-240 V.)......1
17	00-858591-00001	Cover - Fan, Rear Panel......1
18	NS-047-98	Lock Nut 8-32 Hex......4
19	00-858459-00002	Transducer, Ultrasonic......2
20	00-858749-00003	Bracket - Relay (480V)......1
21	NS-038-13	Lock Nut 10-24 Hex......4
22	SC-132-38	Screw - Hex Serrated 10/24 x 1/2......4
23	00-858745-00001	Holder - Fuse......4
24	FE-026-97	Fuse (1.5 Amp.) (480 V.)......2
25	00-858740-00001	Transformer (480 V.) (50 VA)......1
26	00-858749-00002	Bracket - Transformer (480V)......1
27	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B (480V)......2
28	00-856699-00001	Switch - Relay (480V)......1
29	00-858730-00001	Harness - Wire (480V)......1

12 00-858056-00001 Harness - Contactor Wiring (Delta) 13 00-858056-00002 Harness - Contactor Wiring (WYE) PARTS NOT ILLUSTRATED 9 8 1 2 7 1 10 3 11 4 3 5 6

PL-60661

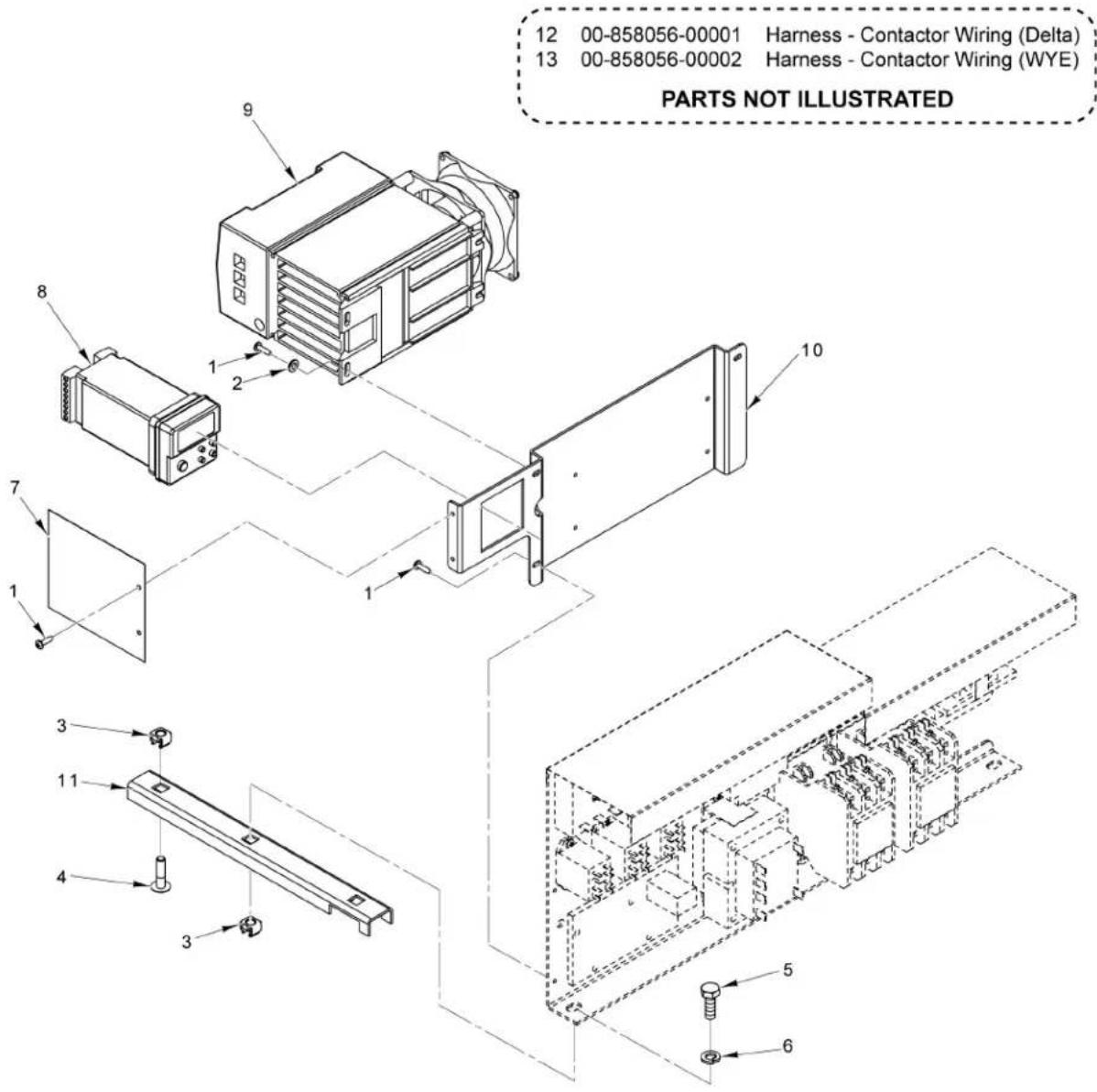

LINE CONTROLS (LWE)

LINE CONTROLS (LWE)

ILLUS. PART NO. NAME OF PART AMT. PL-60661

1	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B......AR
2	WS-002-15	Washer......4
3	NS-049-03	Panel Nut 1/4-20......2
4	SC-115-70	Mach. Screw 1/4-20 x 1 Slotted Truss Hd. (SST)......1
5	SC-041-01	Cap Screw 1/4-20 x 3/4 Hex Hd. (SST)......1
6	WL-006-17	Lockwasher 1/4 Helical (SST)......1
7	00-858055-00001	Shield - Mylar (4 In.)......1
8	00-858053-00001	Controller - PM (EZ-ZONE)......1
9	00-858052-00001	Contactor......1
10	00-858079-00001	Bracket - Control Mounting......1
11	00-857713-00001	Frame Rail - Front......1
12	00-858056-00001	Harness - Wiring (Delta)......1
13	00-858056-00002	Harness - Wiring (WYE)......1

Exploded view diagram of a computer rack with numbered components and labeled parts

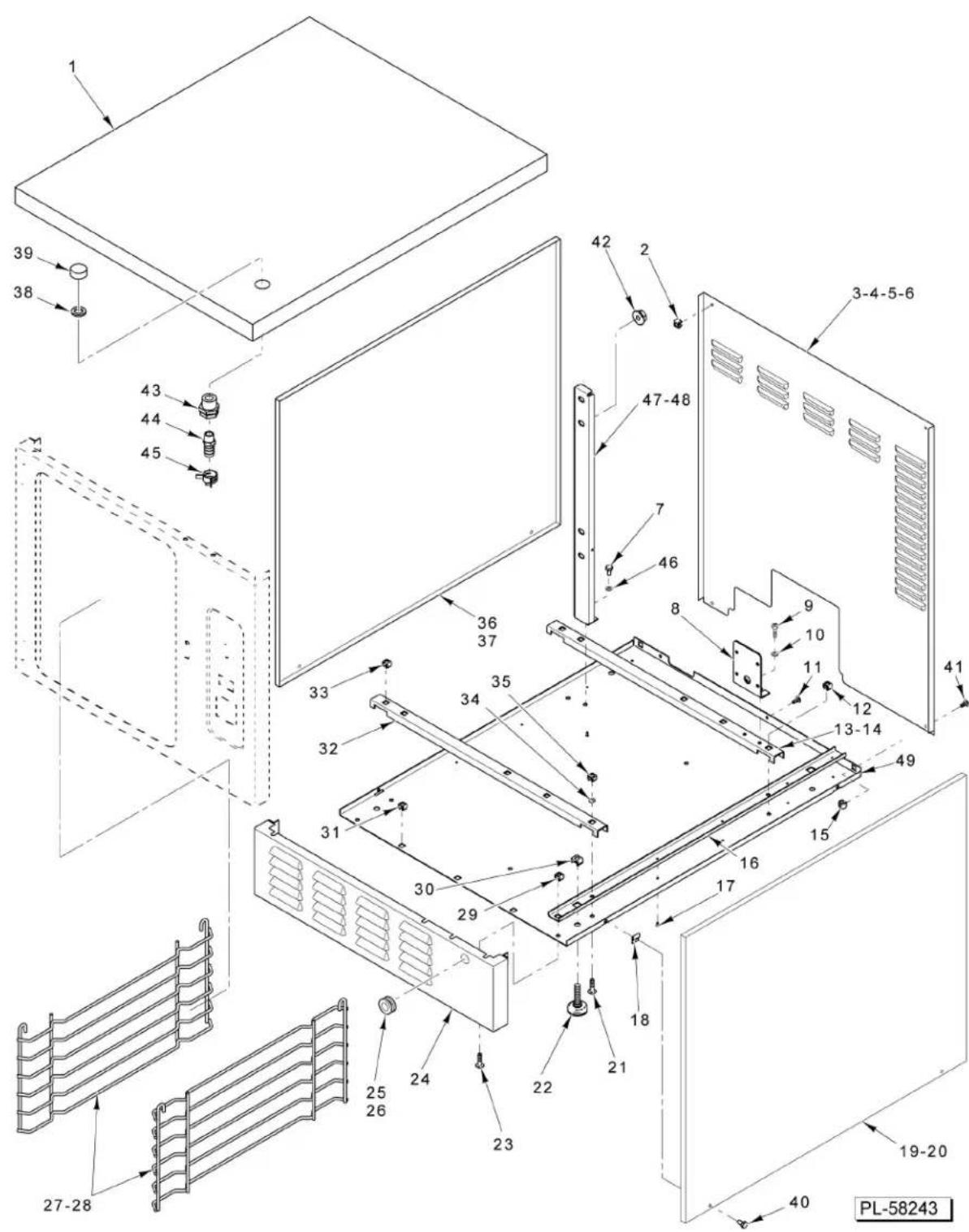

CABINET

CABINET

ILLUS. PART NO. NAME OF PART AMT. PL-58243

1	00-855547-00002	Panel - Top......	1
2	NS-049-01	Panel Nut 10-24......	2
3	00-856733-00001	Back Panel - Cabinet (3-Pan) (Basic & Pro)......	1
4	00-856733-00002	Back Panel - Cabinet (5-Pan) (Basic & Pro)......	1
5	00-858132-00001	Back Panel - Cabinet (3-Pan) (LWE)......	1
6	00-858131-00001	Back Panel - Cabinet (5-Pan) (LWE)......	1
7	SC-041-50	Cap Screw 1/4-20 x 1/2 Hex Hd. (SST)......	2
8	00-857020-00001	Bracket - High Limit Mounting......	1
9	SD-019-29	Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B......	2
10	WS-002-45	Washer......	2
11	SC-066-06	Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST)......	AR
12	NS-049-03	Panel Nut 1/4-20......	1
13	00-856740-00001	Cross Channel - Base (Cabinet) (Basic & Pro)......	1
14	00-857566-00001	Cross Channel - Base (Cabinet) (LWE)......	1
15	NS-049-01	Panel Nut 10-24......	2
16	00-856739-00001	Channel - Cabinet Base......	2
17	RS-030-08	Rivet - Dome 1/8 In......	8
18	00-854766-00001	Nut - Speed 3 Type......	4
19	00-856731-00001	Side Panel - Cabinet (3-Pan)......	1
20	00-856731-00002	Side Panel - Cabinet (5-Pan)......	1
21	SC-115-70	Mach. Screw 1/4-20 x 1 Slotted Truss Hd. (SST)......	4
22	00-856760-00001	Leg - Leveling (Counter Top)......	4
23	SC-120-12	Mach. Screw 1/4-20 x 5/8 Phil. Truss Hd......	2
24	00-855314-00001	Apron - Cabinet......	1
25	FE-025-79	Bushing - Snap (Electric) (Basic)......	1
26	PB-004-38	Plug - Button (3/4) (Pro & LWE)......	1
27	00-855355-00001	Rack - Wire (3-Pan)......	2
28	00-855355-00002	Rack - Wire (5-Pan)......	2
29	NS-049-03	Panel Nut 1/4-20......	1
30	NS-049-02	Panel Nut 3/8-16......	2
31	NS-049-01	Panel Nut 10-24......	5
32	00-856740-00001	Cross Channel - Base (Cabinet) (Pro & Basic Only)......	1
33	NS-049-03	Panel Nut 1/4-20......	4
34	WL-006-17	Lockwasher 1/4 Helical (SST)......	5
35	NS-049-02	Panel Nut 3/8-16......	1
36	00-856731-00001	Side Panel - Cabinet (3-Pan)......	1
37	00-856731-00002	Side Panel - Cabinet (5-Pan)......	1
38	00-856769-00001	O-Ring 1/8 In. Thk......	1
39	FP-090-60	Fitting - Hose (Round Hose Cap 3/4 NH Thread) (Brass) (Delime)......	AR
40	SC-093-27	Mach. Screw 10-24 x 7/8 Phil. Truss Hd. (SST)......	4
41	SC-066-06	Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST)......	2
42	NS-038-04	Lock Nut 1/4-20......	4
43	FP-090-37	Fitting - Hose - Anchor Coupling 3/8 NPT (Brass)......	1
44	FP-090-63	Fitting - Hose 5/8 ID Hose to 3/8 MPT (Brass)......	1
45	00-557845	Clamp - Hose (24mm)......	1
46	WL-006-17	Lockwasher 1/4 Helical (SST)......	2
47	00-856747-00001	Support Channel - Cabinet (3-Pan)......	1
48	00-856747-00002	Support Channel - Cabinet (5-Pan)......	1
49	00-856726-00001	Panel - Cabinet Base......	5

Technical diagram of a device with numbered components, likely an electronic or mechanical assembly, showing exploded and assembled views.

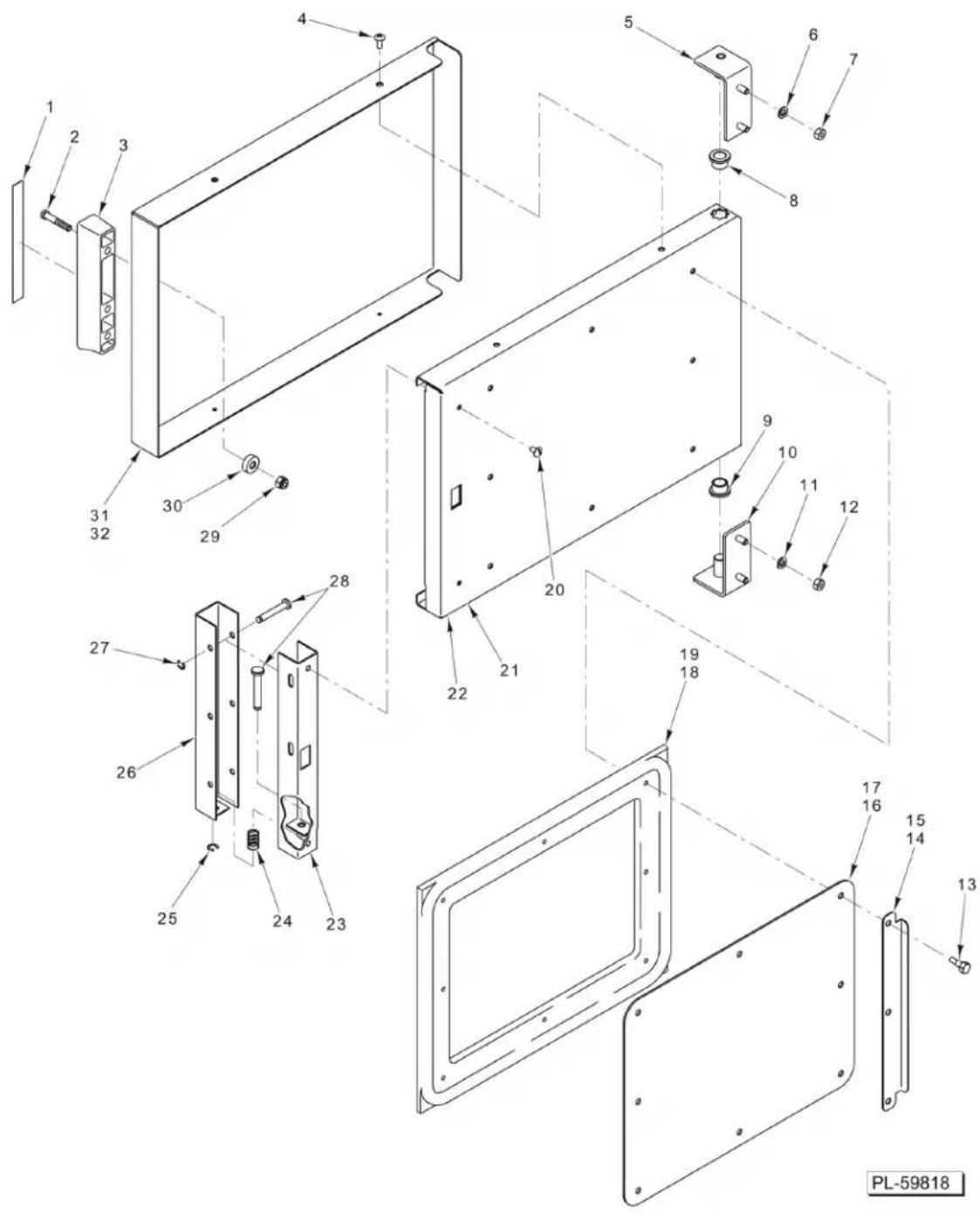

DOOR

DOOR

ILLUS. PART NO. NAME OF PART AMT. PL-59818

1	00-855288-00001	Face Plate - Door Handle......1
2	SC-120-70	Cap Screw 1/4-20 x 1-5/8 Hex Socket Hd......2
3	00-855287-00001	Handle - Door......1
4	SC-066-20	Mach. Screw 10-32 x 1/2 Phil. Truss Hd. (SST)......4
5	00-855521-00001	Hinge Assy. - Door (Top)......1
6	WL-006-17	Lockwasher 1/4 Helical (SST)......2
7	NS-046-38	Nut 1/4-20 Hex (SST)......2
8	00-817643	Bearing - Flanged......1
9	00-817643	Bearing - Flanged......1
10	00-855521-00002	Hinge Assy. - Door (Bottom)......1
11	WL-006-17	Lockwasher 1/4 Helical (SST)......2
12	NS-046-38	Nut 1/4-20 Hex (SST)......2
13	00-857791-00001	Bolt - Rack Hanger......3
14	00-855714-00001	Gasket - Door Guard (3-Pan)......1
15	00-855714-00002	Gasket - Door Guard (5-Pan)......1
16	00-855285-00001	Gasket Retainer - Door (3-Pan)......1
17	00-855285-00002	Gasket Retainer - Door (5-Pan)......1
18	00-857085-00001	Kit - Door Gasket (3 Pan)......1
19	00-857085-00002	Kit - Door Gasket (5 Pan)......1
20	SC-053-05	Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)......2
21	00-855582-00001	Bracket Weldment - Door (3-Pan)......1
22	00-855582-00002	Bracket Weldment - Door (5-Pan)......1
23	00-855584-00001	Door Latch - Bracket......1
24	00-855298-00001	Latch Spring - Door......1
25	RR-006-22	Retaining Ring 1/4 In. (SST)......1
26	00-855585-00001	Latch Actuator - Door......1
27	RR-006-22	Retaining Ring 1/4 In. (SST)......3
28	00-855590- 00002	Pin - Clevis 1.525 In. Lg......4
29	NS-048-63	Lock Nut 1/4-20 Hex (SST)......2
30	00-855290-00001	Bearing - Door Handle......2
31	00-855582-00001	Bracket Weldment - Door (3-Pan)......1
32	00-855582-00002	Bracket Weldment - Door (5-Pan)......1

27 00-557760 Shim (SST) 28 00-557761 Shim (SST) PARTS NOT ILLUSTRATED 1-2 3 4 5-6 24 22 7 8 9 15 14 13 12 11 10 16-17 18 20 19 PL-59819

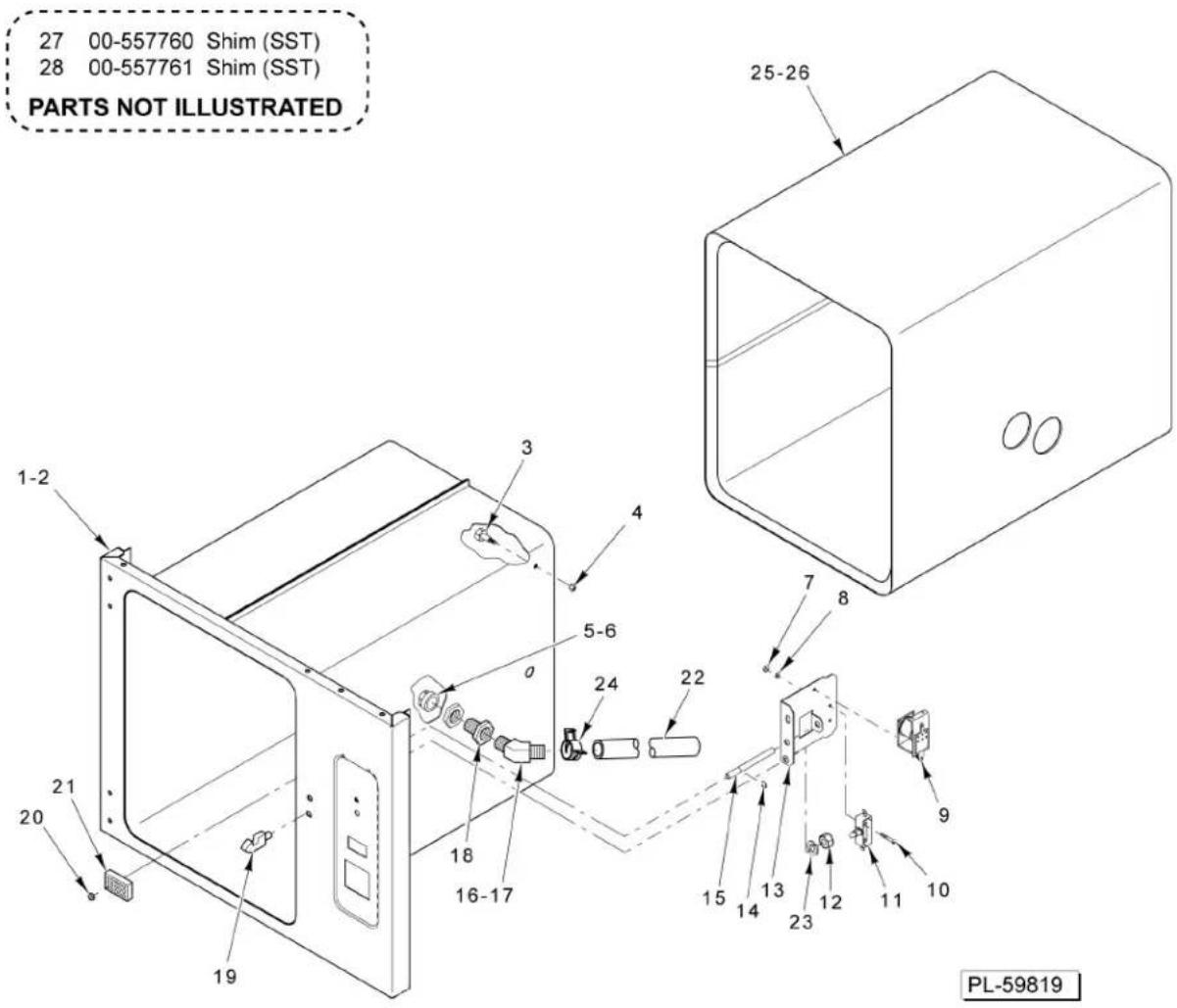

COMPARTMENT

COMPARTMENT

ILLUS. PART NO. NAME OF PART AMT. PL-59819

1 00-857646-00004 Compartment - Service Kit (3-Pan)....1
2 00-857649-00004 Compartment - Service Kit (5-Pan)....1
3 00-857791-00001 Bolt - Rack Hanger....4
4 NS-049-09 Nut Assy. 10-32 (SST)....4
5 00-856753-00001 Steam Port - Compartment (5-Pan)....1
6 00-856742-00001 Steam Port - Compartment (3-Pan)....1
7 NS-011-07 Nut 6-32 Hex (SST)....2
8 WL-014-03 Lockwasher #6 External (SST)....2
9 00-411499-00004 Buzzer (115 V.)....1
10 SC-021-12 Mach. Screw 6-32 x 1 Slotted Rd. Hd. (SST)....1
11 00-842049 Switch - Door....1
12 NS-015-13 Nut 3/8-16 Hex (SST)....1
13 00-855308-00001 Actuator Bracket - Door....1
14 RR-011-26 Ring - Retaining....2
15 00-855307-00001 Actuator Rod - Door....1
16 FP-090-18 Elbow Pipe 5/8 x 45 Deg. (Brass) (Used with Blue Hose)....1
17 FP-091-09 Fitting - Hose 3/4 Hose to 1/2 MPT (Brass) (Used with White Hose)....1
18 00-855394-00001 Adapter - Cabinet Steam Port....1
19 00-855586-00001 Bullet - Door....1
20 NS-011-18 Nut 10-24 Hex (SST)....1
21 00-855753-00001 Cover - Drain....1
22 00-913135-00042 White Steam Line Hose (42 in long)....1
23 WL-006-27 Lockwasher 3/8 Helical (SST)....1
24 00-557846 Clamp - Hose (29mm)....1
25 00-855779-00001 Compartment - Insulation (3-Pan)....1
26 00-855779-00002 Compartment - Insulation (5-Pan)....1
27 00-557760 Shim (0.005 Thk.) (SST)......AR
28 00-557761 Shim (0.010 Thk.) (SST)......AR

LWE 25 26 27 28 24 BASIC 1-2 3-4 5-6 7 8 9 10 11 12 13-14 15-16 15-16 19 20-21 17 18 22-23 PRO PL-59820

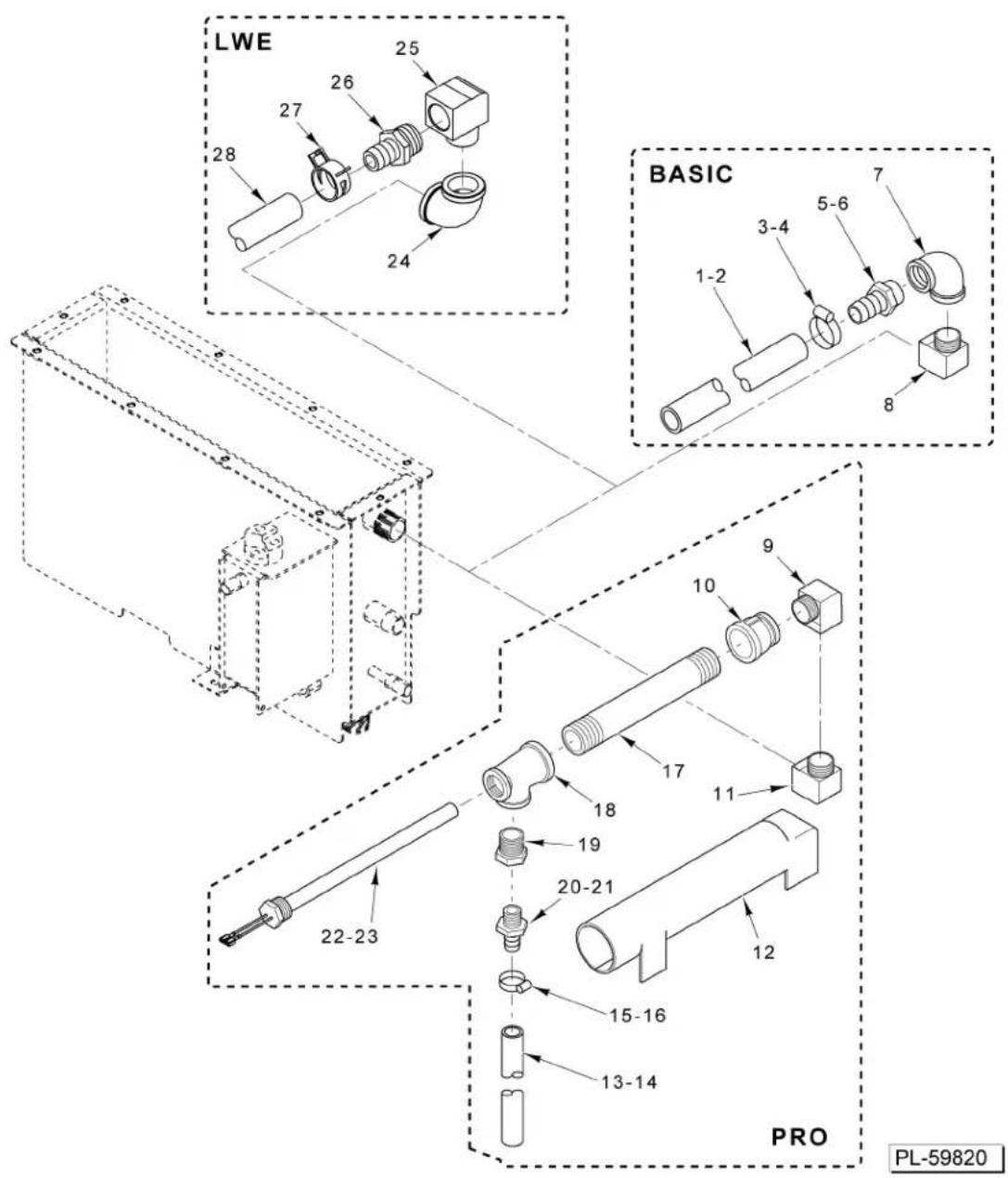

GENERATOR MANIFOLD (3-PAN)

GENERATOR MANIFOLD (3-PAN)

ILLUS. PART NO. NAME OF PART AMT. PL-59820

1	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Basic)......1
2	00-913135-00042	White Steam Line Hose (42 in long) (Basic)......1
3	00-557718	Clamp - Hose #10 (For Blue Hose) (Basic)......1
4	00-557846	Clamp - Hose (29mm) (For White Hose) (Basic)......1
5	FP-090-31	Fitting - Hose 5/8 Hose to 3/4 MPT (Brass) (For Blue Hose) (Basic)......1
6	FP-091-08	Fitting - Pipe 3/4 Hose to 3/4 MPT (Brass) (For White Hose) (Basic)......1
7	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (Basic)......1
8	FP-090-70	Elbow 3/4 Pipe 90 Deg. (Brass) (Basic)......1
9	FP-090-70	Elbow 3/4 Pipe 90 Deg. (Brass) (Pro)......1
10	FP-083-99	Coupling - Reducing 1 to 3/4 (Brass) (Pro)......1
11	FP-090-70	Elbow 3/4 Pipe 90 Deg. (Brass) (Pro)......1
12	00-856774-00001	Insulation - Super Heater (Pro)......1
13	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Pro)......1
14	00-913135-00042	White Steam Line Hose (42 in long) (Pro)......1
15	00-557718	Clamp - Hose #10 (For Blue Hose) (Pro)......1
16	00-557846	Clamp - Hose (29mm) (For White Hose) (Pro)......1
17	FP-090-49	Pipe 1 x 8 (Brass) (Pro)......1
18	FP-019-40	Tee - Pipe 1 x 3/4 x 3/4 (Brass) (Pro)......AR
19	FP-027-22	Bushing - Pipe 3/4 to 1/2 (Brass) (For White Hose) (Pro)......1
20	FP-090-31	Fitting - Hose 5/8 Hose to 3/4 MPT (Brass) (For Blue Hose) (Pro)......1
21	FP-091-09	Fitting - Hose 3/4 Hose to 1/2 MPT (Brass) (For White Hose) (Pro)......1
22	00-856709-00001	Heater - Super Heater (208/240 V.) (Pro)......1
23	00-856709-00002	Heater - Super Heater (480 V.) (Pro)......1
24	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (LWE)......1
25	FP-090-70	Elbow 3/4 Pipe 90 Deg. (Brass) (LWE)......1
26	FP-091-08	Fitting - Pipe 3/4 Hose to 3/4 MPT (Brass) (LWE)......1
27	00-557846	Clamp - Hose (29mm) (LWE)......1
28	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (LWE)......1

BASIC & LWE 1-2 3-4 5-6 7 8 9 10 11 12 13 14-15 16-17 18 19 20 21-22 23-24 PRO PL-59822

GENERATOR MANIFOLD (5-PAN)

GENERATOR MANIFOLD (5-PAN)

ILLUS. PART NO. NAME OF PART AMT. PL-59822

1	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Basic)......1
2	00-913135-00042	White Steam Line Hose (42 in long) (Basic & LWE)......1
3	00-557718	Clamp - Hose #10 (For Blue Hose) (Basic)......1
4	00-557846	Clamp - Hose (29mm) (For White Hose) (Basic & LWE)......1
5	FP-090-31	Fitting - Hose 5/8 Hose to 3/4 MPT (Brass) (For Blue Hose) (Basic)......1
6	FP-091-08	Fitting - Pipe 3/4 Hose to 3/4 MPT (Brass) (For White Hose) (Basic & LWE)......1
7	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (Basic & LWE)......1
8	FP-041-66	Pipe 3/4 x 3 TBE (Brass) (Basic & LWE)......1
9	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (Basic & LWE)......1
10	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (Pro)......1
11	FP-041-66	Pipe 3/4 x 3 TBE (Brass) (Pro)......1
12	FP-015-23	Elbow 3/4 x 90 Deg. (Brass) (Pro)......1
13	00-856774-00001	Insulation - Super Heater (Pro)......1
14	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue) (Pro)......1
15	00-913135-00042	White Steam Line Hose (42 in long) (Pro)......1
16	00-557718	Clamp - Hose #10 (For Blue Hose) (Pro)......1
17	00-557846	Clamp - Hose (29mm) (For White Hose) (Pro)......1
18	FP-090-49	Pipe 1 x 8 (Brass) (Pro)......1
19	FP-019-40	Tee - Pipe 1 x 3/4 x 3/4 (Brass) (Pro)......AR
20	FP-027-22	Bushing - Pipe 3/4 to 1/2 (Brass) (For White Hose) (Pro)......1
21	FP-090-31	Fitting - Hose 5/8 Hose to 3/4 MPT (Brass) (For Blue Hose) (Pro)......1
22	FP-091-09	Fitting - Hose 3/4 Hose to 1/2 MPT (Brass) (For White Hose) (Pro)......1
23	00-856709-00001	Heater - Super Heater (208/240 V.) (Pro)......1
24	00-856709-00002	Heater - Super Heater (480 V.) (Pro)......1

4-5-6-7 This style generator WITHOUT the integrated probe housing is no longer available. The new style generator WITH the integrated probe housing is shown in the current construction figure. Order Kit 00-857798-00001 when replacing this style generator.

GENERATOR ASSEMBLY
(BEFORE S/N 463003747)

GENERATOR ASSEMBLY

(BEFORE S/N 463003747)

ILLUS. PART NO. NAME OF PART AMT. PL-59824

1	00-913102-00404	Kit - High Limit Probe (Includes Clip)....	1
2	SC-041-01	Cap Screw 1/4-20 x 3/4 Hex Hd. (SST)....	10
3	WL-006-17	Lockwasher 1/4 Helical (SST)....	10
4	00-858460-00001	Element - Heating (208/240 V., 15 kW)....	1
5	00-858460-00002	Element - Heating (208/240 V., 8.5 kW)....	1
6	00-858460-00003	Element - Heating (277 V., 15 kW)....	1
7	00-858460-00004	Element - Heating (277 V., 8.5 kW)....	1
8	00-858473-00001	Gasket - Generator....	1
9	00-856768-00001	Probe - Hold Temperature....	1
10	FP-090-91	Fitting - Hose 1/2 Hose to 1/4 NPT (Brass)....	1
11	FP-019-08	Tee - Pipe 1/4 x 1/4 x 1/4 (Brass)....	1
12	FP-090-59	Fitting - Hose 1/2 ID x 1/4 NPT (Brass)....	1
13	FP-012-11	Fitting - Tube 3/8 TBG x 1/4 MPT (Brass)....	1
14	FP-087-39	Fitting - Hose 5/8 Hose to 1/2 NPT (Brass)....	1
15	00-534177	Clamp - Hose #12....	1
16	00-557477	Hose 1 ID x 1.133 OD (0.93 Ft.) (Green)....	1
17	00-856757-00001	Insulation - Generator....	1
18	00-857798-00001	Kit - Replacement EA Generator....	1

4-5-6-7 BACK PANEL 36-37 35 39 40 30 31-32-33 29 28 27 26 25 24 23 17 8 41 This is the new style generator WITH the integrated probe housing. 12 11 10 9 13 14 15 16 15 19 20-21-22 18 PL-59826

GENERATOR ASSEMBLY (S/N 463003747 THRU S/N 463023094)

GENERATOR ASSEMBLY

(S/N 463003747 THRU S/N 463023094)

ILLUS. PART NO. NAME OF PART AMT.
PL-59826

1	00-913102-00404	Kit - High Limit Probe (Includes Clip)....	1
2	SC-041-50	Cap Screw 1/4-20 x 1/2 Hex Hd. (SST)....	10
3	WL-006-17	Lockwasher 1/4 Helical (SST)....	10
4	00-858460-00001	Element - Heating (208/240 V., 15 kW)....	1
5	00-858460-00002	Element - Heating (208/240 V., 8.5 kW)....	1
6	00-858460-00003	Element - Heating (277 V., 15 kW)....	1
7	00-858460-00004	Element - Heating (277 V., 8.5 kW)....	1
8	00-858473-00001	Gasket - Generator....	1
9	FP-015-16	Elbow - Pipe 1/2 x 90 Deg. (Brass)....	1
10	FP-087-39	Fitting - Hose 5/8 Hose to 1/2 NPT (Brass)....	1
11	00-557845	Clamp - Hose (24mm)....	2
12	00-557475	Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue)....	1
13	FP-019-08	Tee - Pipe (Brass)....	1
14	FP-090-91	Fitting - Hose 1/2 Hose to 1/4 NPT (Brass)....	2
15	00-557844	Clamp - Hose (19mm)....	4
16	00-557681	Hose - Condensate Box Line (14 In.)....	2
17	SC-066-06	Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST)....	1
18	00-857755-00001	Insulation - Generator (Bottom)....	1
19	00-856768-00001	Probe - Hold Temperature....	1
20	00-856757-00001	Insulation - Generator (Pro & Basic)....	1
21	00-857757-00001	Insulation - Generator (LWE)....	AR
22	00-557598	Tape - Aluminum Foil (Use with Insulation)....	AR
23	NS-044-09	Nut Assy. 10-24 Hex KEPS....	1
24	FP-019-08	Tee - Pipe (Brass)....	1
25	FP-075-70	Pipe 1/4 x 3 TBE (Brass)....	1
26	FP-015-05	Elbow - Pipe 1/4 x 90 Deg. (Brass)....	1
27	FP-040-08	Pipe 1/4 x 7/8 TBE (Brass)....	1
28	00-857021-00001	Valve - Solenoid 1/4 NPT (9/32 Orifice)....	1
29	FP-027-02	Bushing - Pipe 1/4 to 1/8....	1
30	00-854471	Switch - Pressure (5 PSI)....	1
31	FP-090-91	Fitting - Hose 1/2 Hose to 1/4 NPT (Brass) (3-Pan)....	1
32	FP-090-59	Fitting - Hose 1/2 ID x 1/4 NPT (Brass) (5-Pan) (Not Shown)....	1
33	FP-090-91	Fitting - Hose 1/2 Hose to 1/4 NPT (Brass) (LWE)....	1
34	00-557474	Hose 1/2 ID x 0.830 OD (3 Ft.)....	1
35	00-557970	Clamp - Hose (20mm)....	2
36	FP-090-59	Fitting - Hose 1/2 ID x 1/4 NPT (Brass) (Pro, Basic, & LWE 5-Pan)....	1
37	FP-090-91	Fitting - Hose 1/2 Hose to 1/4 NPT (Brass) (LWE 3-Pan)....	1
38	FP-030-14	Lock Nut - Pipe 1/4 NPSL (Brass)....	1
39	FP-078-85	Elbow - Pipe 1/4 x 90 Deg. (LWE)....	1
40	00-857046-00002	Probe - Water Level....	3
41 00-857798-00001 Kit - Replacement EA Generator (Incls. Items 9, 10, 11, 13, 14, 15, 17, 18, 20 thru 30, & 40)....

Technical diagram of an electrical enclosure with numbered parts for identification and assembly reference.

PL-61513
GENERATOR ASSEMBLY (STARTING S/N 463023094)

GENERATOR ASSEMBLY

(STARTING S/N 463023094)

ILLUS. PART NO. NAME OF PART AMT. PL-61513

1	00-858460-00001	Element - Heating (208/240 V., 15 kW)....	1
2	00-858460-00002	Element - Heating (208/240 V., 8.5 kW)....	1
3	00-858460-00003	Element - Heating (277 V., 15 kW)....	1
4	00-858460-00004	Element - Heating (277 V., 8.5 kW)....	1
5	00-858483-00001	Insulation - Generator (Top)....	1
6	00-858473-00001	Gasket - Generator....	1
7	00-858391-00001	Insulation....	1
8	00-858202-00002	Generator....	1
9	00-858391-00002	Insulation....	1
10	00-858391-00004	Insulation....	1
11	00-858391-00003	Insulation....	1
12	00-913102-00404	Kit - High Limit Probe (Includes Clip)....	1
13	00-858017-00001	Bracket - Mounting (Bulb)....	1
14	NS-014-01	Nut 1/4-20 Hex (Brass)....	AR

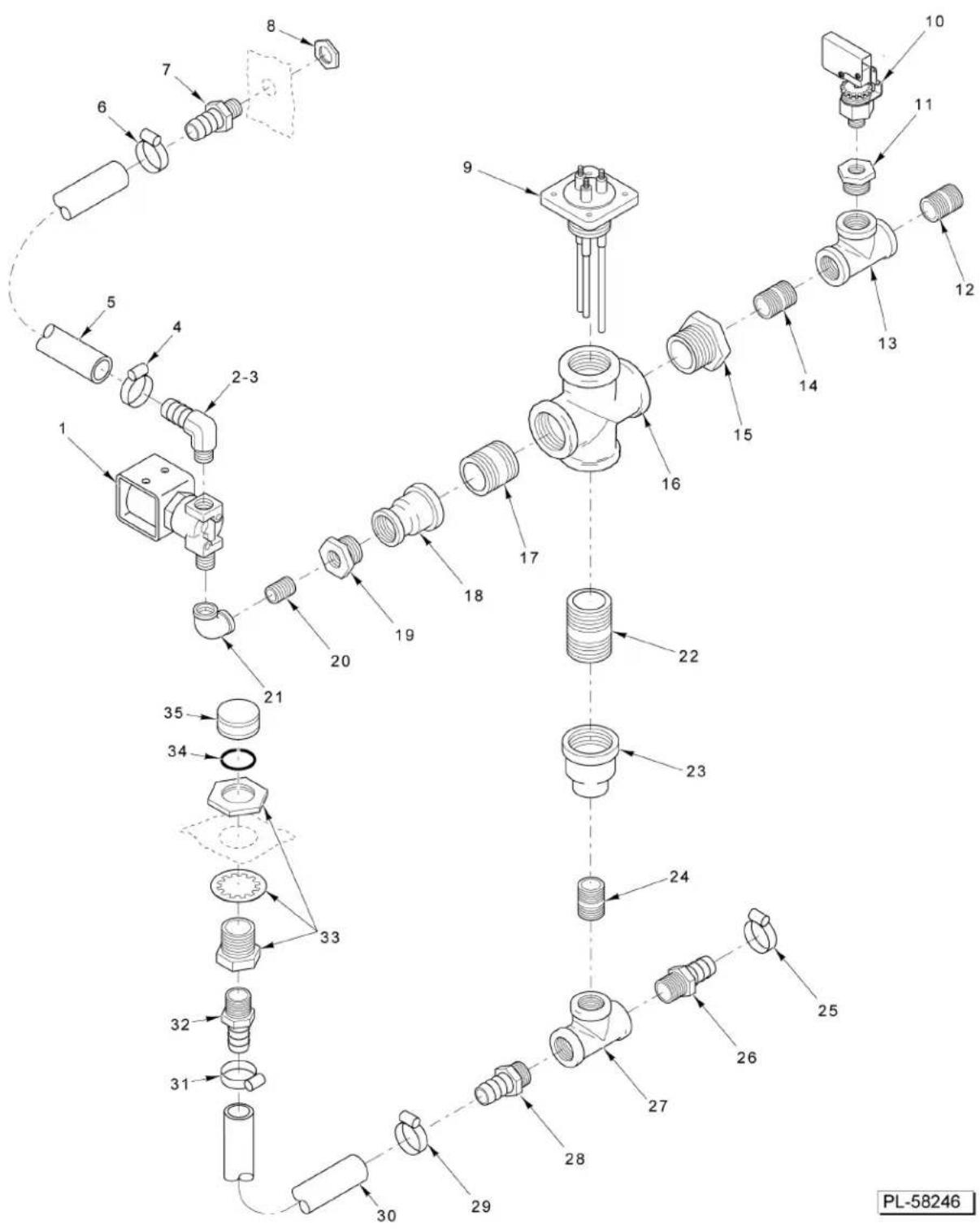

Exploded view diagram of a mechanical assembly with numbered components and part numbers, labeled PL-58246

WATER LEVEL PROBE
(BEFORE S/N 463003747)

WATER LEVEL PROBE

(BEFORE S/N 463003747)

ILLUS. PART NO. NAME OF PART AMT.

PL-58246

1 00-857021-00001 Valve - Solenoid 1/4 NPT (9/32 Orifice)....1
2 FP-090-91 Fitting - Hose 1/2 Hose to 1/4 NPT (Brass) (3-Pan)....1
3 FP-090-59 Fitting - Hose 1/2 ID x 1/4 NPT (Brass) (5-Pan)....1
4 00-557718 Clamp - Hose #10....1
5 00-557474 Hose 1/2 ID x 0.830 OD (3 Ft.)....1
6 00-557718 Clamp - Hose #10....1
7 FP-090-59 Fitting - Hose 1/2 ID x 1/4 NPT (Brass)....1
8 FP-030-14 Lock Nut - Pipe 1/4 NPSL (Brass)....1
9 00-850736-00003 Probe - Level Control....1
10 00-857022-00001 Switch - Pressure....1
11 FP-027-06 Bushing - Pipe 1/2 To 1/8 (Brass)....1
12 FP-035-91 Pipe 1/2 x 1-1/8 TBE....1
13 FP-019-25 Tee 1/2 x 1/2 x 1/2....1
14 FP-035-91 Pipe 1/2 x 1-1/8 TBE....1
15 FP-026-24 Bushing - Pipe 1 to 1/2....1
16 FP-088-56 Cross - Pipe Std. 1 x 1 x 1 x 1 Std....1
17 FP-036-17 Pipe 1 x 1-1/2 TBE....1
18 FP-024-14 Coupling - Reducing 1 to 3/4....1
19 FP-026-65 Bushing - Pipe 3/4 to 1/4....1
20 FP-035-38 Pipe 1/4 x 7/8 TBE....1
21 FP-078-85 Elbow - Pipe 1/4 x 90 Deg....1
22 FP-059-32 Pipe 1 x 2-1/2 TBE....1
23 FP-024-42 Coupling - Reducing 1 to 1/2....1
24 FP-035-94 Pipe 1/2 x 1-1/2 TBE....1
25 00-557718 Clamp - Hose #10....1
26 FP-087-39 Fitting - Hose 5/8 Hose to 1/2 NPT (Brass)....1
27 FP-019-25 Tee 1/2 x 1/2 x 1/2....1
28 FP-087-39 Fitting - Hose 5/8 Hose to 1/2 NPT (Brass)....1
29 00-557718 Clamp - Hose #10....1
30 00-557475 Hose 5/8 ID x 0.955 OD (1.66 Ft.) (Blue)....1
31 00-557718 Clamp - Hose #10....1
32 FP-090-63 Fitting - Hose 5/8 ID Hose to 3/8 MPT (Brass)....1
33 FP-090-37 Fitting - Hose - Anchor Coupling 3/8 NPT (Brass)....1
34 00-856769-00001 O-Ring 1/8 In. Thk....1
35 FP-090-60 Fitting - Hose (Round Hose Cap 3/4 NH Thread) (Brass)....1

LWE 38 32 37 39 32 36 35 33-34 32 16 18 15 14 13 11 12 0 29 19 17 20 21 23 28 24 25 26 22 27 PREVIOUS CONSTRUCTION PRIOR TO S/N 463003431 PL-59828 CABINET VALVE

CABINET VALVE
ILLUS. PART NO. NAME OF PART AMT. PL-59828

1	00-856737-00001	Bracket - Valve Cabinet......1
2	NS-038-04	Lock Nut 1/4-20......2
3	SC-066-06	Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST)......4
4	FE-026-41	Connector - Conduit......1
5	NS-049-01	Panel Nut 10-24......2
6	00-557681	Hose - Condensate Box Line (14 In.)......1
7	00-557681	Hose - Condensate Box Line (14 In.)......1
8	00-557844	Clamp - Hose (19mm)......1
9	00-557844	Clamp - Hose (19mm)......1
10	00-856720-00003	Valve - Dual Water (0.25 GPM / 3.8 GPM) Generator Fast & Slow Fill......1
11	NS-048-97	Panel Nut 10-24......4
12	NS-049-03	Panel Nut 1/4-20......5
13	00-856720-00006	Valve - Dual Water 4.8 - 1.35 GPM (5-Pan)......1
14	00-856720-00006	Valve - Dual Water 4.8 - 1.35 GPM (3-Pan)......1
15	00-557844	Clamp - Hose (19mm)......1
16	00-557681	Hose - Condensate Box Line (14 In.)......1
17	00-557844	Clamp - Hose (19mm)......1
18	00-557681	Hose - Compartment Condensate Line (30 In.)......1
19	00-855607-00001	Thermostat - Condensate......1
20	00-557478	Hose - Generator Drain Line (7 In.)......1
21	00-558071	Clamp......1
22	00-557681	Hose - Condensate Box Line (14 In.)......1
23	00-557844	Clamp - Hose (19mm)......1
24	00-857709-00001	Box - Condensate Weldment (Current Construction)......1
25	00-557846	Clamp - Hose (29mm)......1
26	00-557477	Hose (4 Ft.)......1
27	00-856734-00001	Box - Condensate Weldment (Previous Construction)......1
28	FP-090-59	Fitting - Hose 1/2 ID x 1/4 NPT (Brass)......1
29	00-558071	Clamp (Pro & Basic)......1
30	FP-091-18	Pipe 1 x 1-1/8 TOE (SST) (Pro & Basic)......1
31	FP-013-25	Elbow 1 x 45 Deg. (Pro & Basic)......1
32	00-558071	Clamp (LWE)......3
33	00-858078-00001	Tube - Weldment (LWE)......1
34	00-857610-00001	Probe - Sensor......1
35	00-858054-00001	Plate - Sensor Tube Mount (LWE)......1
36	NS-038-04	Lock Nut 1/4-20 (LWE)......2
37	00-858072-00001	Hose - Vent (Formed) (LWE)......1
38	00-857586-00001	Vent (LWE)......1
39	NS-049-01	Panel Nut 10-24 (LWE)......1
40	SC-066-06	Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST) (LWE)......1
41	00-858449-00001	Well Nut 1/4-20 In......1

* Not Shown

Exploded view diagram of a mechanical assembly with numbered parts, likely for assembly or manufacturing purposes.

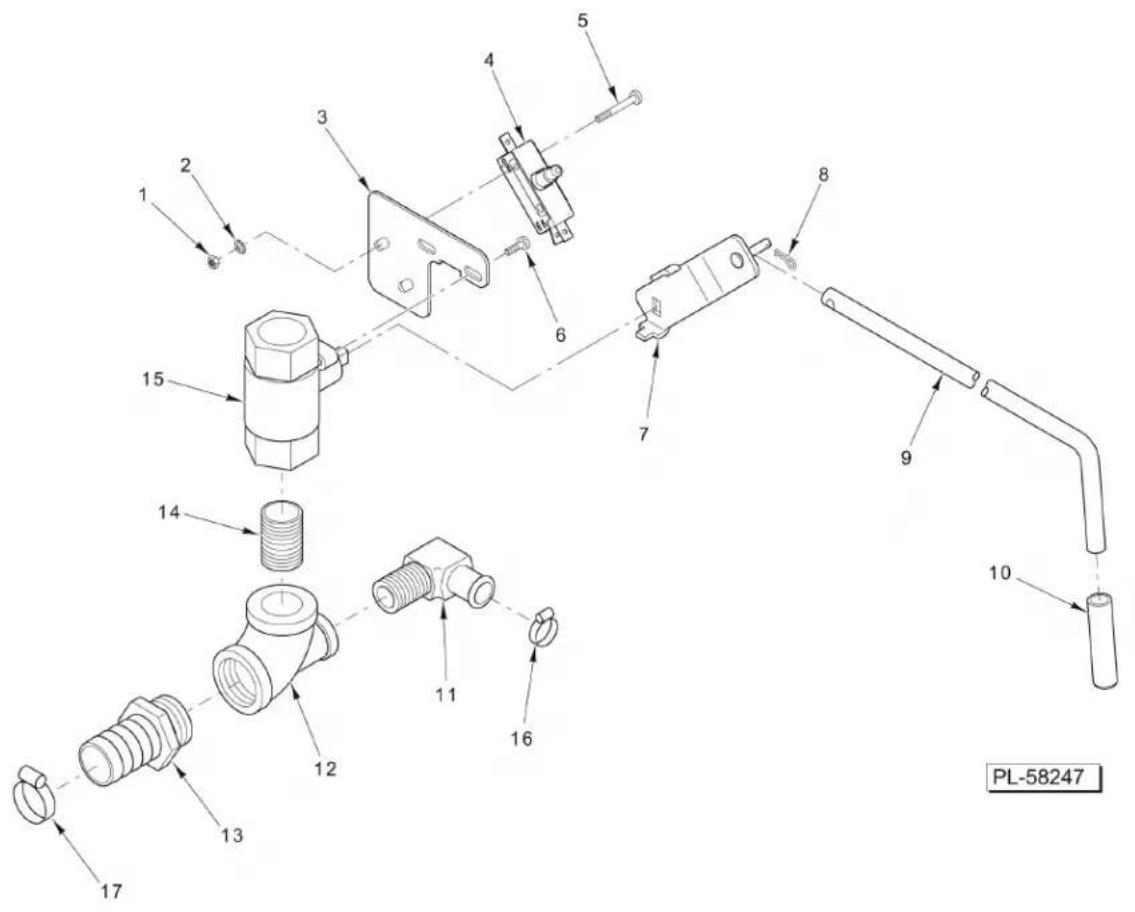

GENERATOR DRAIN - BASIC

GENERATOR DRAIN - BASIC

ILLUS. PART NO. NAME OF PART AMT. PL-58247

1	NS-011-07	Nut 6-32 Hex (SST)....	2
2	WL-014-03	Lockwasher #6 External (SST)....	2
3	00-856779-00001	Bracket - Actuator (Generator)....	1
4	00-842049	Switch (Drain Lever)....	1
5	SC-021-12	Mach. Screw 6-32 x 1 Slotted Rd. Hd. (SST)....	2
6	SC-066-05	Mach. Screw 10-24 x 3/8 Phil. Truss Hd. (SST)....	2
7	00-858525-00001	Lever - Generator Drain....	1
8	00-855729-00001	Pin - Cotter....	1
9	00-856729-00001	Handle - Drain....	1
10	00-856736-00001	Cap - Handle....	1
11	FP-090-56	Fitting - Hose....	1
12	FP-085-65	Tee - Pipe 3/4 x 3/4 x 3/4....	1
13	FP-090-51	Fitting - Hose....	1
14	FP-036-92	Pipe 3/4 x 1-3/8 TBE (Black)....	1
15	FP-090-57	Valve 3/4 In. Ball (Bronze) (Basic)....	1
16	00-557970	Clamp - Hose (20mm)....	1
17	00-557847	Clamp - Hose....	1

PL-59830

GENERATOR DRAIN - PRO

GENERATOR DRAIN - PRO

ILLUS. PART NO. NAME OF PART AMT. PL-59830

1 00-858461-00001 Valve - Drain (Current Construction)....1
2 00-856718-00001 Drain Valve - Generator (Previous Construction)....1
3 FP-085-65 Tee - Pipe 3/4 x 3/4 x 3/4....1
4 FP-090-51 Fitting - Hose....1
5 FP-036-92 Pipe 3/4 x 1-3/8 TBE (Black) (Previous Construction)....1
6 00-557970 Clamp - Hose (20mm)....1
7 00-557847 Clamp - Hose....1
8 FP-090-56 Fitting - Hose....1
9 FP-041-54 Pipe 3/4 x 2 (Brass) (Current Construction)....1

Diagram of a mechanical component with a textured circular feature and directional arrow, no text or symbols present.

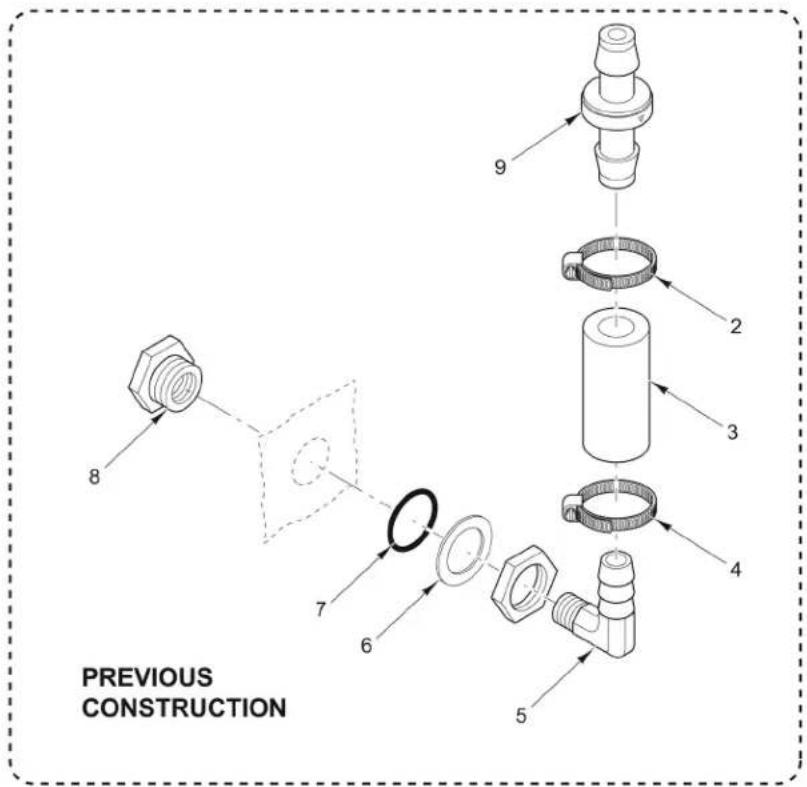

PREVIOUS CONSTRUCTION

PL-58249

COMPARTMENT VACUUM BREAKER

COMPARTMENT VACUUM BREAKER

ILLUS. PART NO. NAME OF PART AMT. PL-58249

1 00-857625-00001 Valve - Check (Current Construction)....1
2 00-557718 Clamp - Hose #10....1
3 00-557473 Tube Line - Compartment Vacuum....1
4 00-557718 Clamp - Hose #10....2
5 FP-090-71 Fitting - Hose 3/8 Hose by 1/8 NPT (Brass)....1
6 WS-010-26 Washer (SST) 1
7 00-856769-00001 O-Ring 1/8 In. Thk....1
8 FP-090-36 Coupling - Anchor 1/8 (Brass)....1
9 00-856755-00001 Valve - Check (Previous Construction)....1
