MS-FR6021 - Haut-parleur Fusion - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Haut-parleur marin
Marque	Fusion
Modèle	MS-FR6021
Catégorie	Haut-parleur
Type de haut-parleur	2 voies, large bande (2-way full range)
Puissance maximale	200 W
Efficacité (1W/1m)	90 dB
Réponse en fréquence	70 Hz - 22 kHz
Impédance	4 ohms
Profondeur de montage minimale	71,5 mm (2-13/16 po)
Résistance à l'eau	IP65
Matériau du tweeter	Dôme en titane
Options de grilles	Blanc glacier et noir minuit incluses
Garantie	3 ans limitée mondiale
Accessoires inclus	2 paires de grilles, fils étamés, vis inox, joints, manuel, carte de garantie, gabarit de montage
Entretien	Nettoyer les grilles avec un chiffon humide d'eau douce pour enlever le sel

FOIRE AUX QUESTIONS - MS-FR6021 Fusion

Comment installer correctement l'enceinte MS-FR6021 ?

Avant l'installation, vérifiez que la zone de montage est plate et dégagée. Utilisez le gabarit fourni pour marquer le diamètre de découpe. Percez ensuite les quatre trous pour les vis. Connectez les fils en respectant la polarité (borne positive à positive, négative à négative). Fixez l'enceinte avec les vis en inox fournies sans trop serrer, puis vissez la grille. Consultez le manuel pour plus de détails.

Quelle est la polarité correcte des connexions ?

La polarité doit être respectée : le fil positif de la source (généralement marqué en rouge) doit être connecté à la borne positive de l'enceinte, et le fil négatif à la borne négative. Une inversion de polarité entraîne une dégradation du son, notamment un manque de basses.

Les enceintes sont-elles résistantes à l'eau ?

Oui, les enceintes MS-FR6021 sont conformes à la norme IP65, ce qui signifie qu'elles sont protégées contre les projections d'eau. Elles sont conçues pour un usage marin, mais il est recommandé de ne pas les immerger.

Puis-je changer la couleur de la grille ?

Oui, le modèle MS-FR6021 est livré avec deux jeux de grilles : blanc glacier (monté d'usine) et noir minuit. Vous pouvez les changer en tournant la grille pour la déverrouiller. Des grilles chromées optionnelles (MS-FR6021GS) sont également disponibles chez Fusion.

Quelle est la durée de la garantie ?

Les enceintes MS-FR6021 bénéficient d'une garantie limitée mondiale de 3 ans offerte par Fusion. Pour l'activer, enregistrez votre produit sur le site www.fusionelectronics.com.

Comment nettoyer les grilles ?

Pour préserver la finition, nettoyez les grilles avec un chiffon humide imbibé d'eau douce après chaque exposition à l'eau salée. Évitez les produits chimiques agressifs qui pourraient endommager la finition chromée.

Que faire si le son est faible dans les graves ?

Vérifiez d'abord la polarité des connexions. Assurez-vous que les enceintes sont solidement fixées à la surface de montage. Vérifiez les réglages de graves sur la source audio. Si le problème persiste, vérifiez que le volume de l'enceinte arrière est suffisant (voir recommandations d'enceinte dans le manuel).

Que faire si aucun son ne sort ?

Vérifiez toutes les connexions depuis la source (autoradio, amplificateur) jusqu'aux bornes des enceintes. Assurez-vous que la source est allumée et que le volume est suffisant. Si rien ne fonctionne, testez avec une autre source pour isoler le problème.

Ces enceintes sont-elles compatibles avec n'importe quel amplificateur ?

Les MS-FR6021 ont une impédance de 4 ohms et une puissance maximale de 200 W. Elles sont compatibles avec la plupart des amplificateurs marins conçus pour 4 ohms. Veillez à ne pas dépasser la puissance maximale pour éviter d'endommager les haut-parleurs.

Quelle est la profondeur de montage minimale ?

La profondeur de montage minimale requise est de 71,5 mm (2-13/16 pouces). Avant l'installation, assurez-vous qu'il y a suffisamment d'espace derrière la surface de montage pour loger l'enceinte sans obstruction.

MODE D'EMPLOI MS-FR6021 Fusion

FUSION

USER / INSTALLATION MANUAL

MS-FR4021, MS-FR6021, MS-FR7021

2-WAY FULL RANGE

MARINE SPEAKERS

FUSION

TRUE MARINE

FUSION'S STAMP OF QUALITY AND ASSURANCE

TRUE MARINE PRODUCTS ARE DESIGNED AND ENGINEERED AT FUSION'S INDUSTRIAL DESIGN HEADQUARTERS IN AUCKLAND, NEW ZEALAND SPECIFICALLY FOR THE MARINE ENVIRONMENT.

'True Marine' products are subjected to rigorous environmental testing under harsh marine conditions to surpass industry guidelines for marine electronics.

Any product that bears the 'True Marine' stamp of assurance has been designed for simplicity of use and combines the most advanced marine technologies to deliver an industry leading entertainment experience. All 'True Marine' products are supported by FUSION's 3 Year Worldwide Limited Consumer Warranty. You can be assured FUSION stands by its products and takes pride in delivering 'True Marine' quality products for your vessel.

Version 9.0

CONTENTS

LIST OF CONTENTS 4

PRODUCT SPECIFICATIONS 4

LINE DRAWINGS AND DIMENSIONS 5

INSTALLATIONGUIDE 8

OPTIMUM ENCLOSURE RECOMMENDATIONS 10

TROUBLESHOOTING 10

SPEAKER GRILLE OPTIONS 11

REGISTER YOUR PRODUCT ONLINE

For your own peace of mind, register your product purchase online at www.fusionelectronics.com

We'll keep you up to date with any news related to your product or new accessories to help you get the most from your product.

RECORD YOUR PRODUCT DETAILS HERE:

SERIAL NUMBER DATE OF PURCHASE

AFFIX RECEIPT HERE

This FUSION Full Range Marine Speakers are carefully designed and manufactured specifically for marine use. All FUSION Full Range Marine Speakers feature a unique high tech bass/mid cone, a fluid cooled titanium dome tweeter, engineered to minimise magnetic interference, and are constructed to comply with IP65 water resistance standards.

These speakers have been thoroughly tested to ensure consistent and reliable performance is achieved in the challenging marine environment. If you have any questions about the installation and/or operation of this product, contact your nearest Authorised FUSION Dealer for further assistance.

LIST OF CONTENTS

• 1 x Pair Speakers
  1 x Pair Standard Ice White Grilles
• 1 x Pair Midnight Black Grilles (MS-FR6021, MS-FR7021 only)
• 2 x Fully Tinned Speaker Wires
• 8 x Stainless Steel Mounting Screws
• 2 x Mounting Gaskets
• Manual
  Warranty Card
• Mounting Template

PRODUCT SPECIFICATIONS

	MS-FR4021 MS-FR602	M8SFRBQ21	MS-FR7021
Tweeter Type	Titanium Dome Titanium	TiDome Teflon Dome	Titanium Dome
Max Power (watts)	120 200 260	200	260
Efficiency (1W/1M)	87db 90db 91db	90db	91db
Frequency Response	90 - 22kHz 70 - 22kHz	670-222Hz	60 - 22kHz
Min. Mounting Depth Allowing Clearance (mm/in)	54mm (2-1/8") 71.5mm	12-58/1m6 (12-783/m6"13-1/	188mm (3-1/16")
Impedance	4 ohms 4 ohms 4 ohms	4 ohms	4 ohms

CAUTION: For speaker mounting restrictions, please refer to manufacturers recommendations for any related navigational equipment.

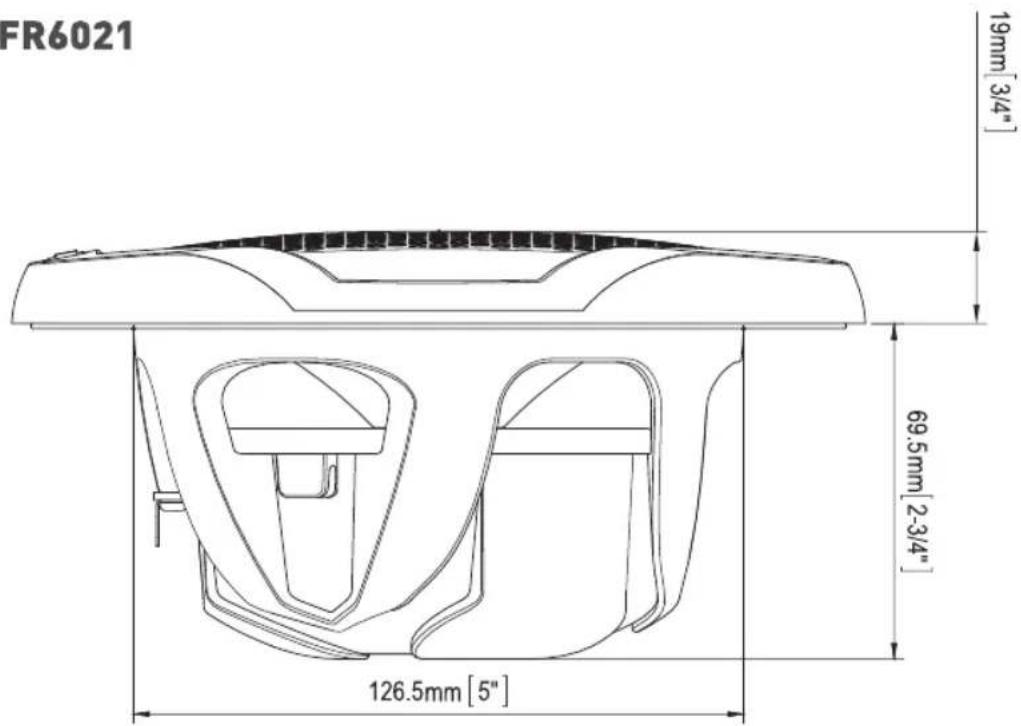

LINE DRAWINGS AND DIMENSIONS

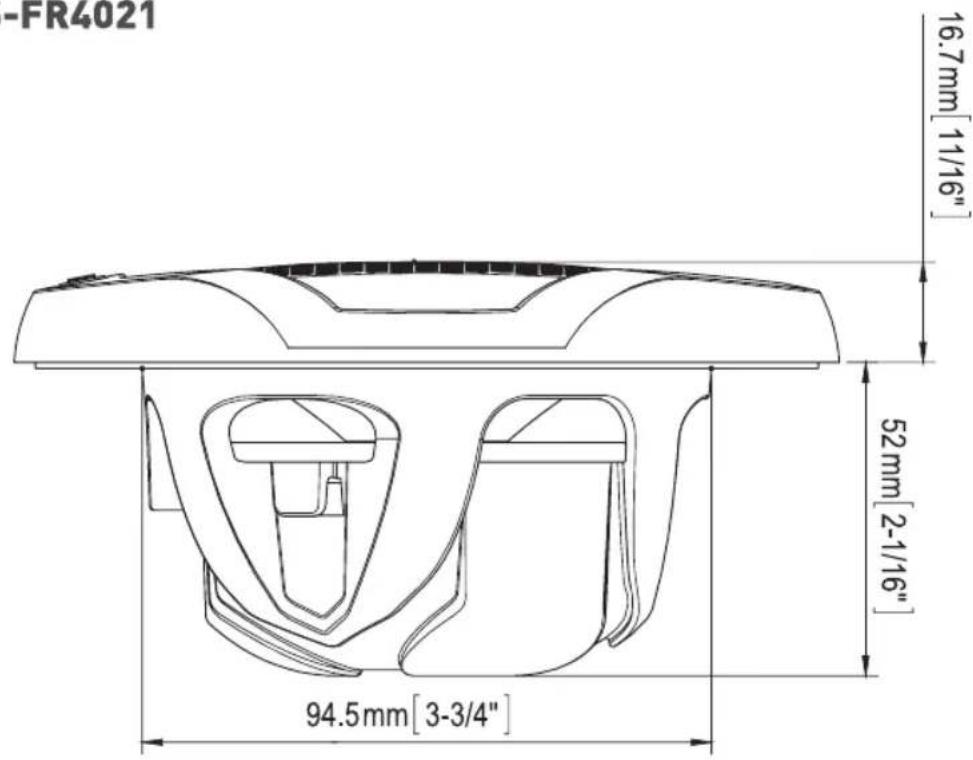

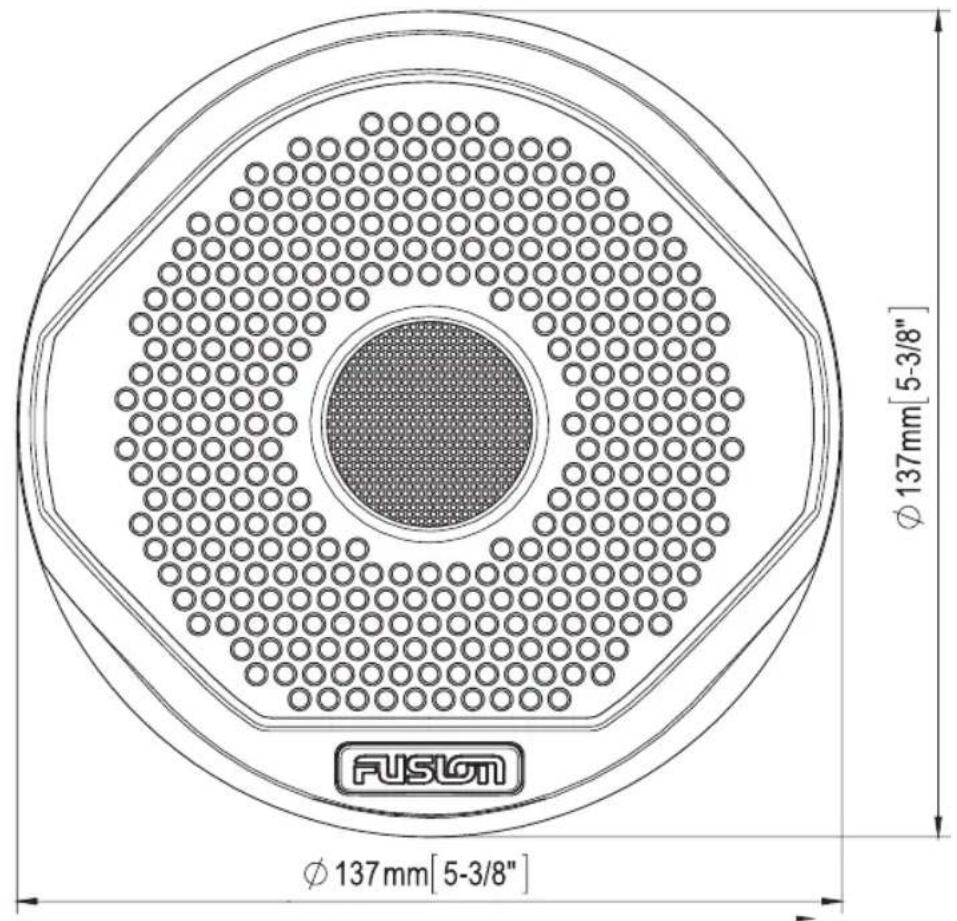

MS-FR4021

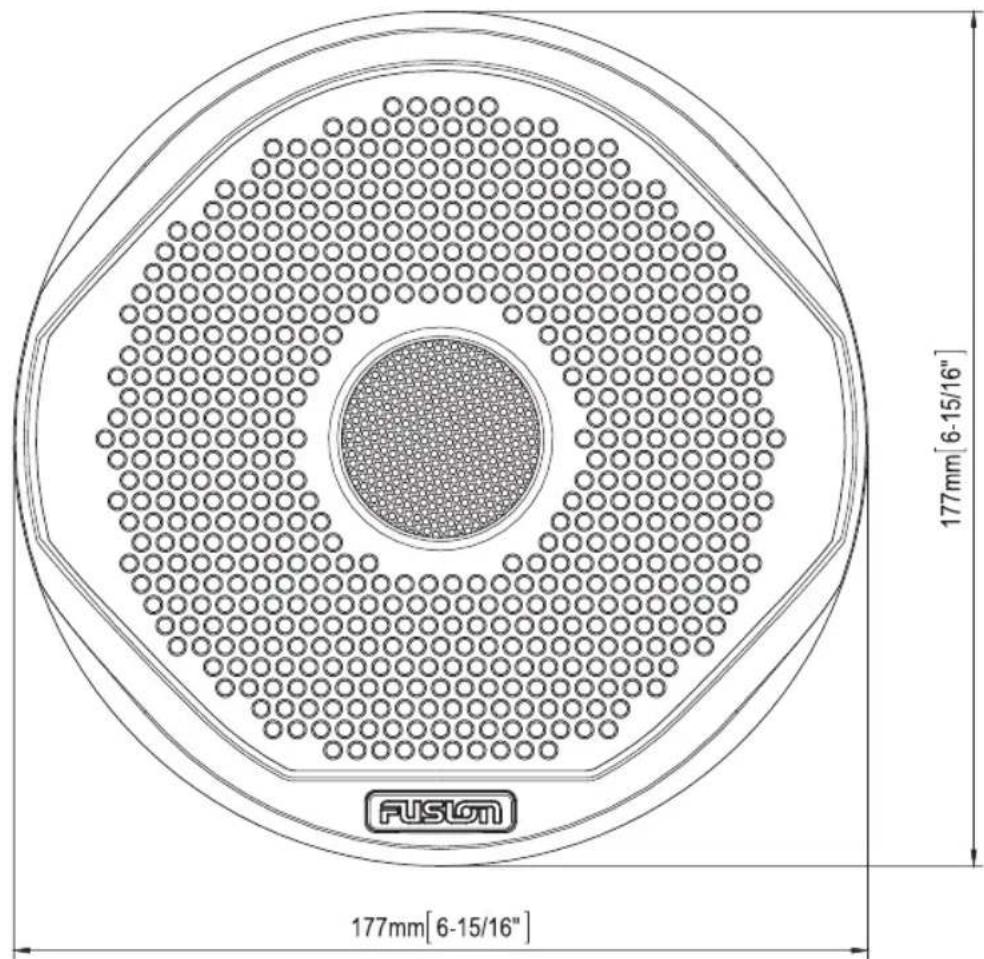

MS-FR6021

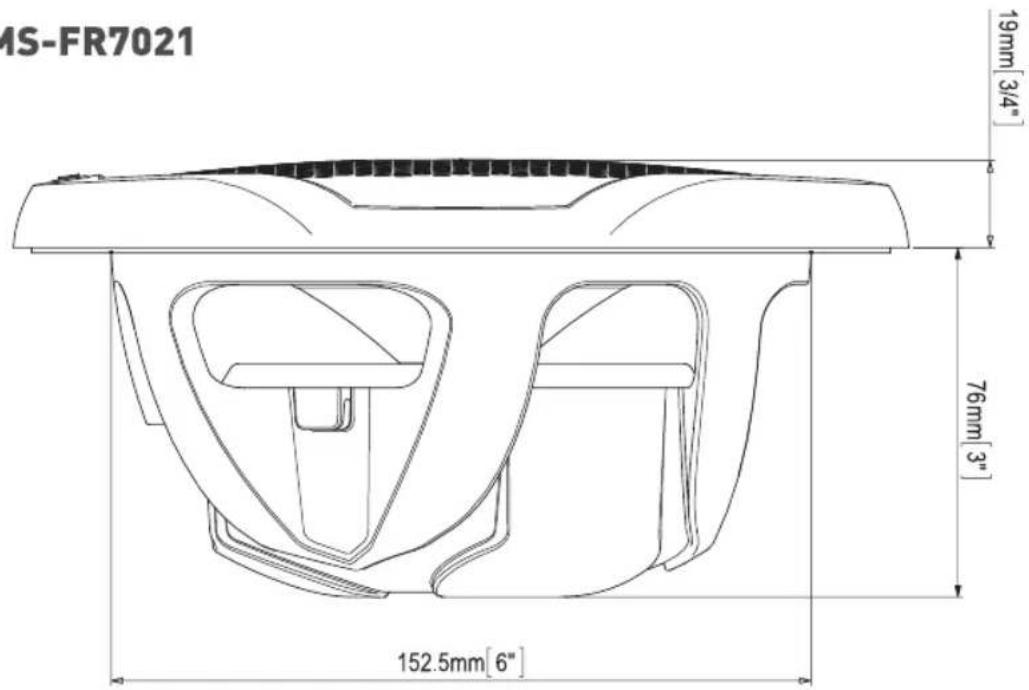

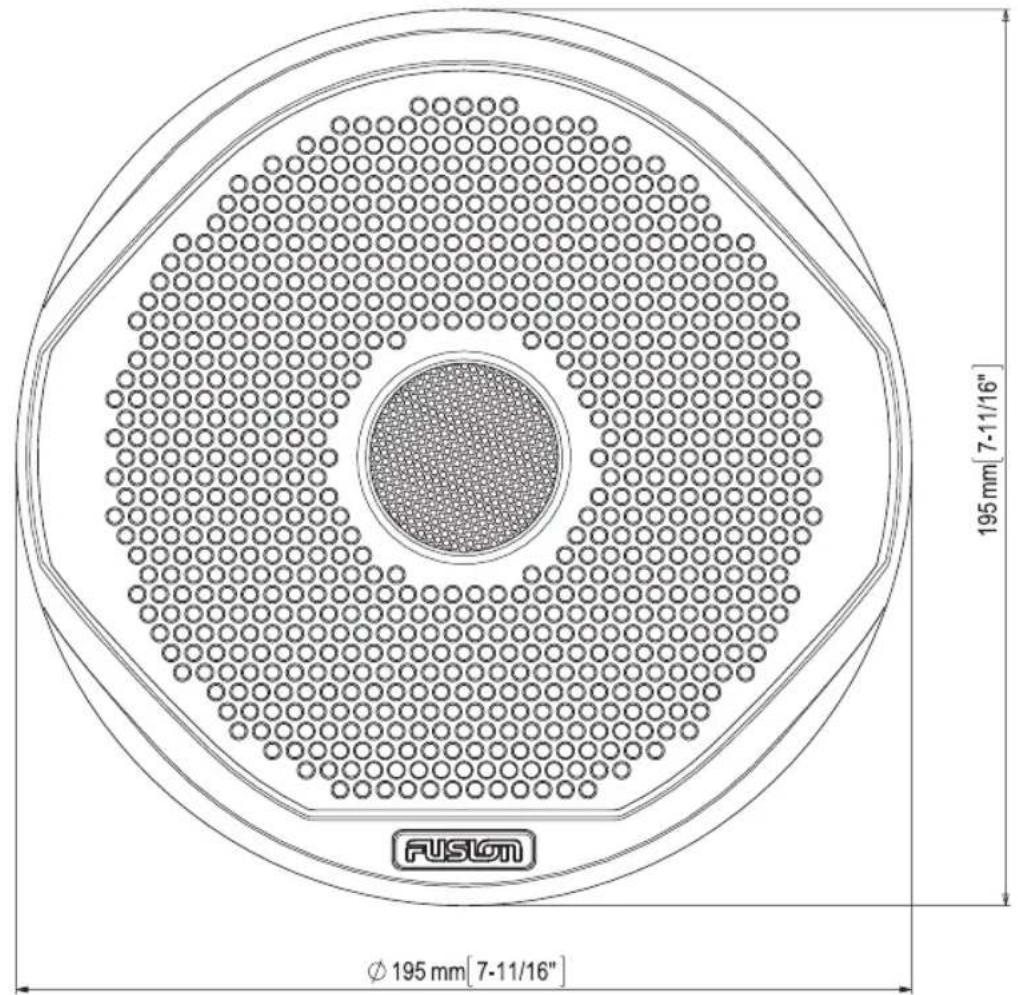

MS-FR7021

LINE DRAWINGS AND DIMENSIONS

1. Check clearance around the mounting area before installation, ensuring the area is free from obstruction, and there is adequate depth for the speaker.
2. Check that the area chosen for mounting the speaker is flat. If the area is curved, it may not be possible to fit the speaker without "twisting" the frame.
3. If the installation area is only slightly curved, use the extra thick closed cell foam gasket provided.

4. Using the supplied mounting template, mark the correct diameter on the mounting surface.

5. Use a suitable cutting tool to remove the marked surface, and drill four holes for the screws to pass through.

NOTE: Confirm you are happy with badge position relative to mounting holes

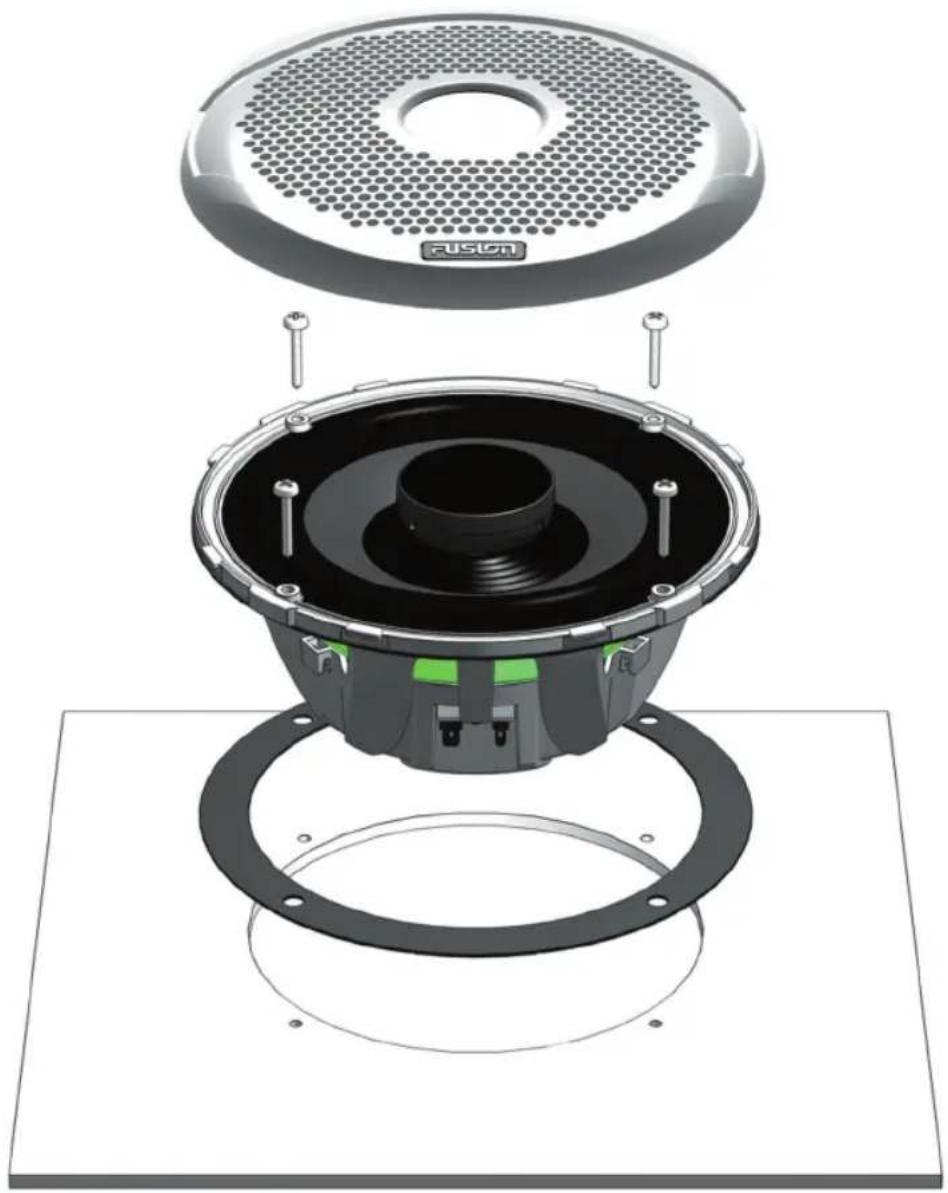

1. Connect the wires before mounting the speaker. Be sure to observe the correct polarity.
2. With the grille removed, mount the speaker using the four stainless steel screws. DO NOT over tighten the screws, especially if the mounting area is not flat.
3. Twist the grille into position.

INSTALLATION TIPS

Any speaker will only perform to its best capabilities, when correctly placed in the listening area. FUSION Engineers recognise that unlike a home or motor vehicle installation, there are an extremely wide range of marine environments where speakers may be placed. FUSION Full Range Marine Speakers are optimised to perform in the widest possible range of mounting locations, but a little thought and care with placement will always be rewarded with better sound.

• High frequencies are directional. Placing the speakers low down in the boat will lose some of this information. (To improve dispersion of the high frequencies, the grille on your FUSION Full Range Speaker has a uniquely designed "phase correction" feature in the centre, for best performance with the grille on.)
• Speakers should be placed to simulate a "sound stage", by being placed where you are able to hear both speakers in a stereo situation.
• Bass is dependant on the area behind the speaker. Too small an area will restrict bass, too large will compromise bass performance.
• Placing a speaker such that it is very close to an open area (where sound from the back of the loudspeaker has a very short path to compete with sound from the front of the loudspeaker) produces the least bass.
  If possible, try and make the area behind a speaker an enclosure.

Where the speaker is directly exposed to the outside environment, it is best if this is a sealed enclosure. (Especially if the loudspeaker is exposed to "wash down", as a vent might allow water to collect in the enclosure.)

Where the speaker is not so exposed (an inside cabin for instance), a better bass performance can be had if the enclosure is a ported or vented type. To help you achieve the best possible result see the optimum enclosure design recommendations. These are by volume only, and for the ported option, an optimum vent size/length is given.

OPTIMUM ENCLOSURE RECOMMENDATIONS

	MS-FR4021 MS-F	RM62FRM692FR7021	MS-FR7021
Sealed Enclosure Volume (cu.ft)	0.07 0.43 0.71	0.43	0.71
Sealed Enclosure Volume (litres)	2 12 20	12	20
Ported Enclosure Volume (cu.ft)	.34 0.9 1.25	0.9	1.25
Ported Enclosure Volume (litres)	9.5 26 36	26	36
Port diameter (mm/in)	50mm [2"] 50mm	[20]60mm(a)] [2 7/16]	[2 7/16"]
Port length (mm/in)	88mm [3 7/16"] 25	[25]mm(b)] B0mm [1	[28]mm [1 1/8"]

TROUBLESHOOTING

Before you contact your FUSION dealer or service centre, FUSION requires that you do some simple trouble shooting to help diagnose the problem.

If the FUSION speaker has been installed by a professional installation company, then we recommend that you return to the company so the technician can assess the problem and advise.

Problem Solution	Solution
No sound	Check all connections from the source unit and amplifier to the speaker terminals are correctly connected
System lacks in bass	Check the connections from the source unit/amplifier to the speaker. Ensure the positive wineffrom the source is connected to the positive of the speaker. Ensure the speakers are mounted firmly to the mounting surface
System lacks in high frequencies	Check polarity
	Check the bass / treble control settings on the source unit
Distorted sound	Check all wiring
	Check that it is not the surrounding panels of the craft rattling. Check connections from the source to the speaker.

SPEAKER GRILLE OPTIONS

FUSION Marine Speakers (with the exception of MS-FR402) feature two grille options, allowing you to customise your speakers to match or enhance the appearance of your craft. Each pair of MS-FR6021 and MS-FR7021 speakers include a choice of two colours (Ice white and midnight black).

NOTE: MS-FR4021 only feature the ice white grille option

ICE WHITE AND MIDNIGHT BLACK GRILLES

The ice white grilles are factory-fitted to the speakers with the midnight black grille options provided in the box (MS-FR6021 & MS-FR7021 only), and offer a high level of protection. FUSION recommends using these grilles in high traffic areas, or where objects are liable to be moving around or knocking into the speakers.

RECOMMENDED ACCESSORY

For unique styling of your FUSION marine speaker installation, FUSION recommends the addition of the MS-FR6021GS / MS-FR7021GS chrome finished speaker grille. The chrome grille adds an impressive, sports styled impression to your installation for stand out appeal.

MS-FR6021GS compatible with MS-FR6021

MS-FR7021GS compatible with MS-FR7021

CARE AND MAINTENANCE

As with all products with a chrome finish exposed to the harsh marine environment, a little care will help preserve the finish and prevent corrosion. FUSION recommends that you clean any salt water and/or salt residue from the speaker grille with a damp cloth soaked in fresh water.

FUSION

WWW.FUSIONELECTRONICS.COM

FUSION Electronics New Zealand 093692900

FUSION Electronics Australia 1300 736 012

FUSION Electronics Europe [phone]

FUSION Electronics USA 6235809000

FUSION Electronics Pacific [phone]
