MS-FR602 - Haut-parleur Fusion - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Enceinte audio sans fil
Dimensions (L x P x H)	200 x 150 x 100 mm
Poids	1,2 kg
Alimentation	Adaptateur secteur 12V / 2A
Technologie sans fil	Bluetooth 5.0
Entrées audio	Auxiliaire 3,5 mm, USB
Puissance de sortie	20 W RMS
Réponse en fréquence	50 Hz - 20 kHz
Autonomie de la batterie	8 heures
Fonctions principales	Lecture Bluetooth, contrôle du volume, prise en charge des appels mains-libres
Entretien et nettoyage	Essuyer avec un chiffon doux et sec. Ne pas utiliser de produits chimiques.
Sécurité	Ne pas exposer à l'eau ou à l'humidité. Utiliser l'adaptateur fourni.
Pièces détachées et réparabilité	Adaptateur secteur et câble audio disponibles en pièces détachées.
Informations générales	Marque: Fusion, Modèle: MS-FR602

FOIRE AUX QUESTIONS - MS-FR602 Fusion

Comment allumer l'enceinte MS-FR602 ?

Appuyez sur le bouton Power situé sur le dessus de l'enceinte pendant 2 secondes jusqu'à ce que le voyant LED s'allume.

Comment connecter mon smartphone en Bluetooth ?

Activez le Bluetooth sur votre téléphone, sélectionnez Fusion MS-FR602 dans la liste des appareils. Le voyant LED clignote puis devient fixe une fois connecté.

Que faire si l'enceinte ne s'allume pas ?

Vérifiez que l'adaptateur secteur est correctement branché et que la prise fonctionne. Si la batterie est déchargée, branchez l'enceinte au secteur pendant au moins 2 heures avant de réessayer.

Comment régler le volume ?

Utilisez les touches + et - sur l'enceinte ou directement sur votre appareil connecté. Le volume maximum est atteint lorsque le voyant clignote rapidement.

Puis-je utiliser l'enceinte en charge ?

Oui, l'enceinte peut être utilisée tout en étant branchée au secteur. Cela n'endommage pas la batterie.

Comment nettoyer l'enceinte ?

Utilisez un chiffon doux et sec pour essuyer la surface. N'utilisez pas de produits abrasifs ou de solvants, et évitez de faire pénétrer de l'eau dans les ouvertures.

L'enceinte émet un son de mauvaise qualité, que faire ?

Assurez-vous que la distance entre l'enceinte et la source Bluetooth ne dépasse pas 10 mètres et qu'aucun obstacle n'interfère. Réduisez également le volume si des distorsions apparaissent.

Comment réinitialiser l'enceinte ?

Éteignez l'enceinte, puis maintenez enfoncés les boutons Volume + et Power simultanément pendant 5 secondes. Le voyant clignotera trois fois pour confirmer la réinitialisation.

Quelle est l'autonomie de la batterie ?

L'autonomie est d'environ 8 heures à volume moyen. Une charge complète prend environ 3 heures.

Puis-je connecter plusieurs enceintes ensemble ?

Non, le modèle MS-FR602 ne prend pas en charge la fonction de couplage en chaîne ou stéréo. Chaque enceinte fonctionne indépendamment.

MODE D'EMPLOI MS-FR602 Fusion

FUSION®

User / Installation Manual

Marine Speakers

MS-FR402, MS-FR602, MS-FR702

FUSION®

www.fusionelectronics.com

FLUSION Electronics New Zealand Ph: [phone]

FLSION Electronics Australia Ph: [phone]

FLSION Electronics Europe Ph: [phone]

FLSION Electronics USA Ph: [phone]

Contents

List Of Contents 4

Product Specifications 4

Line Drawings And Dimensions 5

Installation Guide 8

Optimum Enclosure Recommendations 10

Trouble Shooting 10

Speaker Grille Options 11

RECORD YOUR PRODUCT DETAILS HERE:

MODEL NUMBER DATE OF PURCHASE

AFFIX RECEIPT HERE

PUBLISHED BY FUSION ELECTRONICS LIMITED: © Copyright 2010 by FUSION Electronics Limited. All rights reserved. Specifications and design are subject to change without notice. v7.0

YOU CAN HELP PROTECT THE ENVIRONMENT! Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste dispersal center.

FUSION's Full Range 2-Way Marine Speakers are carefully designed and manufactured specifically for marine use. All feature a unique high tech bass/mid cone, a fluid cooled titanium dome tweeter, engineered to minimise magnetic interference, and are constructed to be water resistant.

These speakers have been thoroughly tested to ensure consistent and reliable performance is achieved in the challenging marine environment. If you have any questions about the installation and/or operation of this product, contact your nearest Authorised FUSION Dealer for further assistance.

List Of Contents

1 Pair Speakers

1 Pair Standard Grilles

1 Pair Sport Grilles (MS-FR602, MS-FR702 only)

1 Pair Cloth Grilles (MS FR602, MS FR702 only)

Wiring Kit

Mounting Hardware

1 Pair Spacer Gaskets

Manual

Warranty Card

Mounting Template

1 Pair FUSION Gel Badges, Green/Black

1 Pair FUSION Gel Badges, White/Black

1 Pair FUSION Gel Badges, Silver/Black

Product Specifications

	MS - FR402 MS - FR602	MS - FR702
Tweeter Type Titanium Dome Titanium Dome Titanium Dome
Max Power (watts) 120 200 260
Efficiency (1W/1M) 87db 90db 91db
Frequency Response 90 - 22kHz 70 - 22kHz	60 - 32kHz
Min. Mounting Depth Allowing Clearance (mm/in)	60mm (2 7/16")	75mm (3") 80mm (3	3/16")
Impedance	4 ohms	4 ohms	4 ohms

CAUTION: For speaker mounting restrictions, please refer to manufacturers recommendations for any related navigational equipment.

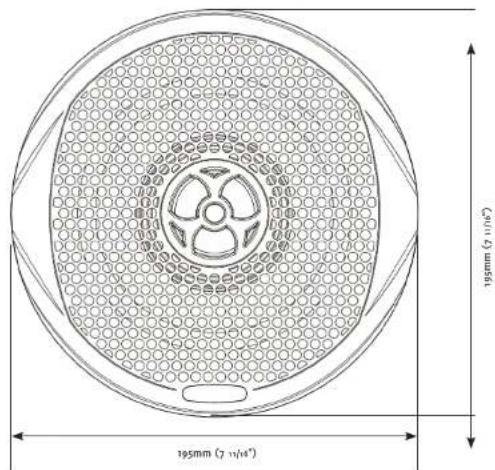

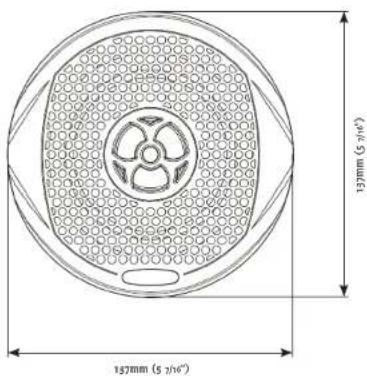

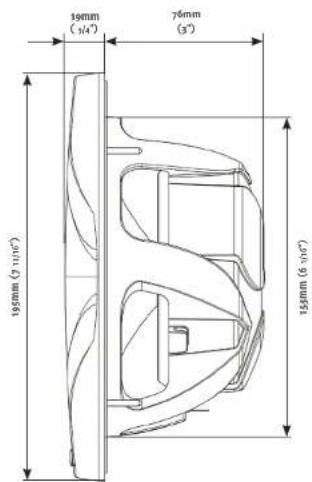

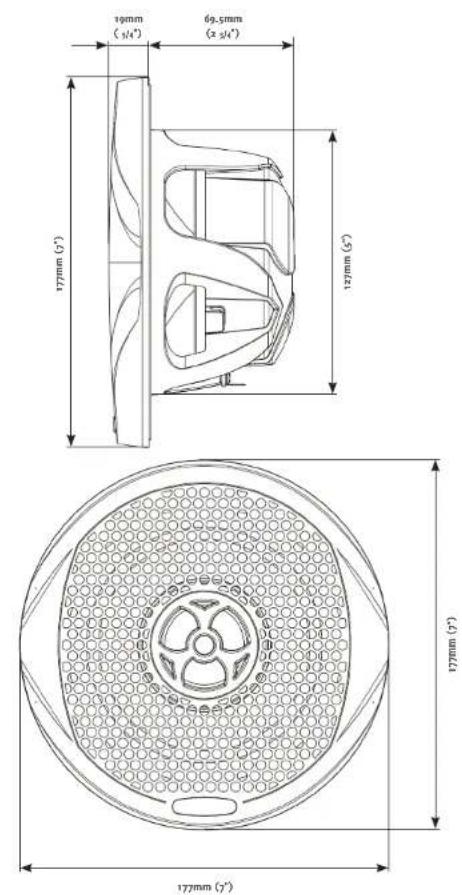

Line Drawings And Dimensions

MS - FR402

[Non-Text]
MS - FR602

MS - FR702

Installation Guide

1. Check clearance around the mounting area before installation, ensuring the area is free from obstruction, and there is adequate depth for the speaker.
2. Check that the area chosen for mounting the speaker is flat. If the area is curved, it may not be possible to fit the speaker without "twisting" the frame.
3. If the installation area is only slightly curved, use the extra thick closed cell foam gasket provided.
4. Using the supplied mounting template, mark the correct diameter on the mounting surface.

0

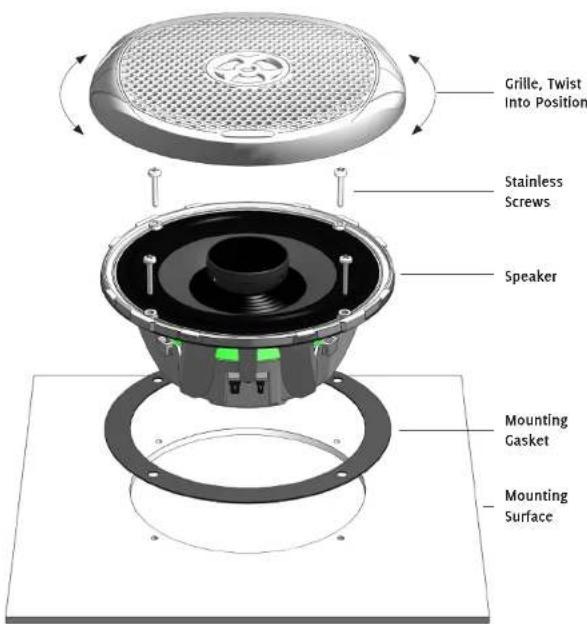

1. Use a suitable cutting tool to remove the marked surface, and drill four holes for the screws to pass through.
   (NOTE: Confirm you are happy with badge position relative to mounting holes)
2. Connect the wires before mounting the speaker. Be sure to observe the correct polarity.
3. With the grille removed, mount the speaker using the four stainless steel screws, and the stainless retainer clips supplied. DO NOT over tighten the screws, especially if the mounting area is not flat.
4. Twist the grille into position.

Installation Tips

Any speaker will only perform to its best capabilities, when correctly placed in the listening area. FUSION Engineers recognise that unlike a home or motor vehicle installation, there are an extremely wide range of marine environments where speakers may be placed. FUSION Full Range Marine Speakers are optimised to perform in the widest possible range of mounting locations, but a little thought and care with placement will always be rewarded with better sound.

• High frequencies are directional. Placing the speakers low down in the boat will lose some of this information. (To improve dispersion of the high frequencies, the grille on your FUSION Full Range Speaker has a uniquely designed "phase correction" feature in the centre, for best performance with the grille on.)
• Speakers should be placed to simulate a "sound stage", by being placed where you are able to hear both speakers in a stereo situation.
• Bass is dependant on the area behind the speaker. Too small an area will restrict bass, too large will compromise bass performance.
• Placing a speaker such that it is very close to an open area (where sound from the back of the loudspeaker has a very short path to compete with sound from the front of the loudspeaker) produces the least bass.
  • If possible, try and make the area behind a speaker an enclosure.

Where the speaker is directly exposed to the outside environment, it is best if this is a sealed enclosure. (Especially if the loudspeaker is exposed to "wash down", as a vent might allow water to collect in the enclosure.)

Where the speaker is not so exposed (an inside cabin for instance), a better bass performance can be had if the enclosure is a ported or vented type. To help you achieve the best possible result see the optimum enclosure design recommendations. These are by volume only, and for the ported option, an optimum vent size/length is given.

Optimum Enclosure Recommendations

	MS - FR402 MS - FR602 MS - FR702
Sealed Enclosure Volume (cu.ft) 0.07 0.43	0.71
Sealed Enclosure Volume (litres) 2 12 20
Ported Enclosure Volume (cu.ft) .34 0.9 1.25
Ported Enclosure Volume (litres) 9.5 26 36
Port diameter (mm/in) 50mm (2") 50mm (2") 60mm (2			r2/m2
Port length (mm/in)	88mm (3 m2 )	25mm (1")	30mm (1 m2 )

Trouble Shooting

Before you contact your FUSION dealer or service centre, FUSION requires that you do some simple trouble shooting to help diagnose the problem.

If the FUSION speaker has been installed by a professional installation company, then we recommend that you return to the company so the technician can assess the problem and advise.

Problem Solution
No sound	Check all connections from the source unit and amplifier to the speaker terminals are correctly connected
System locks in bass	Check the connections from the source unit/ amplifier to the speaker. Ensure the positive wire from the source is connected to the positive of the speaker.
	Ensure the speakers are mounted firmly to the mounting surface
System lacks in high frequencies	Check polarity
	Check the bass / treble control settings on the source unit
Distorted sound	Check all wiring
	Check that it is not the surrounding panels of the craft rat-lling. Check connections from the source to the speaker.

Speaker Grille Options

FUSION Marine Speakers (with the exception of MS-FR402) feature a variety of grille options, allowing you to customise your speakers to match or enhance the appearance of your craft. Each pair of MS-FR602 and MS-FR702 speakers include a choice of three different grilles and three different gel badges.

NOTE: MS-FR402 only feature the standard grille option, but still offer all three gel badge options.

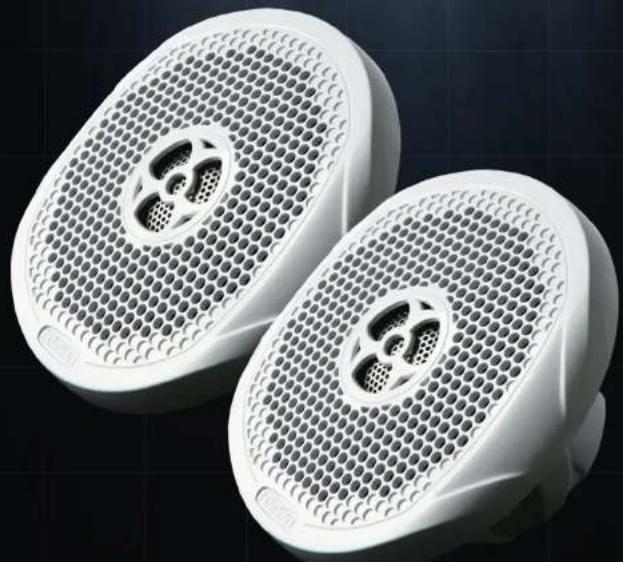

Standard Grilles

The standard grilles are factory-fitted to the speakers, and are the most rugged and offer the highest level of protection. FUSION recommends using the standard grilles in high traffic areas, or where objects are liable to be moving around or knocking into the speakers.

Cloth grilles

The cloth grilles are designed to enhance the internal cabin area. The cloth insert is removable, via the screws on the inside of the grille - allowing you to change the cloth to compliment the cabins decor.

Sport grilles

The sport grilles provide a third grille alternative for your speakers.
