Type de produit	Platine vinyle
Marque	KENWOOD
Modèle	KD 1033
Entraînement	Courroie (Belt Drive)
Vitesses	33 1/3 et 45 tr/min
Dimensions (L x P x H)	456 x 347 x 145 mm
Poids	6 kg
Consommation électrique	7 W
Alimentation	240 V - 50 Hz (modèle pour Royaume-Uni)
Bras de lecture	Bras droit avec contrepoids et anti-skating
Réglage de la force d'appui	Oui, par contrepoids et molette
Cellule incluse	TRIO V-41 ou V-47 (selon région)
Connectique	Sortie RCA (L/R) et prise de terre
Capot	Amovible, fixation par un seul bouton
Lubrification	Huile légère fournie, via un orifice dédié
Durée de vie du diamant	Environ 500 heures (disque 30 cm joué sur une face)
Accessoires fournis	Adaptateur pour EP, contrepoids, poids anti-skating, câbles RCA

FOIRE AUX QUESTIONS - KD 1033 KENWOOD

Comment assembler la platine KENWOOD KD 1033 ?

Retirez les quatre boulons de transport sous le plateau. Placez le plateau sur l'axe central, accrochez la courroie à la poulie du moteur et au guide. Fixez la tête de lecture au bras après avoir aligné la broche. Vissez le contrepoids à l'arrière du bras, puis branchez les câbles RCA (blanc pour gauche, rouge pour droite) et la prise de terre à l'amplificateur.

Comment régler la force d'appui du stylet ?

Enlevez le capuchon du stylet et déverrouillez le bras. Placez le levier de fonction sur DOWN. Tournez le contrepoids pour équilibrer le bras horizontalement. Sans bouger le poids, tournez le cadran indicateur pour mettre le 0 sur la ligne de référence. Ensuite, tournez le contrepoids (le cadran suit) jusqu'à la force recommandée par le fabricant de la cellule, par exemple 2 grammes pour les cellules TRIO fournies.

Comment installer l'anti-skating ?

Accrochez le fil du poids anti-skating dans la rainure correspondant à la force d'appui sur l'axe du bras. Par exemple, pour 1,5 g, utilisez la deuxième rainure à partir de l'arrière ; pour 2 g, la troisième (comme illustré Fig. 7).

Comment changer la cellule ou le stylet ?

Pour le stylet : retirez la tête de lecture, tirez l'ancien stylet et insérez le nouveau (type N-41 ou N-47). Pour la cellule : dévissez les vis de fixation sur la tête, connectez les quatre fils (Fig. 8), placez la cellule, réglez le porte-à-faux avec le gabarit fourni (Fig. 9) et revissez.

Comment entretenir la platine ?

Lubrifiez l'axe du moteur tous les 500 heures environ avec l'huile légère fournie, en évitant tout contact avec la courroie ou les pièces en caoutchouc. Nettoyez la courroie avec un chiffon doux imbibé d'alcool si elle est tachée.

Que faire si le plateau ne tourne pas ?

Vérifiez que les boulons de transport ont été retirés, que la courroie est correctement installée et que le sélecteur de vitesse n'est pas sur 0. Assurez-vous aussi que l'alimentation est branchée et que l'interrupteur est sur ON.

Comment brancher la platine à l'amplificateur ?

Connectez les fiches RCA blanches (L) et rouges (R) aux entrées PHONO de l'amplificateur. Reliez le fil de terre de la platine à la borne GND de l'amplificateur pour éviter les ronflettes.

Quel type de cellule puis-je utiliser ?

Le bras accepte toute tête standard conforme à la norme EIA. Vous pouvez monter n'importe quelle cellule adaptée, en respectant le réglage de la force d'appui et du porte-à-faux.

Comment utiliser le levier de fonction ?

Le levier a trois positions : ON (le plateau tourne, le bras est en position lecture), CUE (le bras se lève pour interrompre la lecture, le plateau continue) et OFF (arrêt complet). Utilisez DOWN pour abaisser le bras en lecture.

Quelle est la durée de vie du diamant et quand le changer ?

Le diamant dure environ 500 heures pour des disques 30 cm joués sur une face. Remplacez-le dès que les aigus deviennent durs ou que le son se dégrade, pour éviter d'user les disques.

MODE D'EMPLOI KD 1033 KENWOOD

The home of the turntable

THE UNIVYL ENGINE

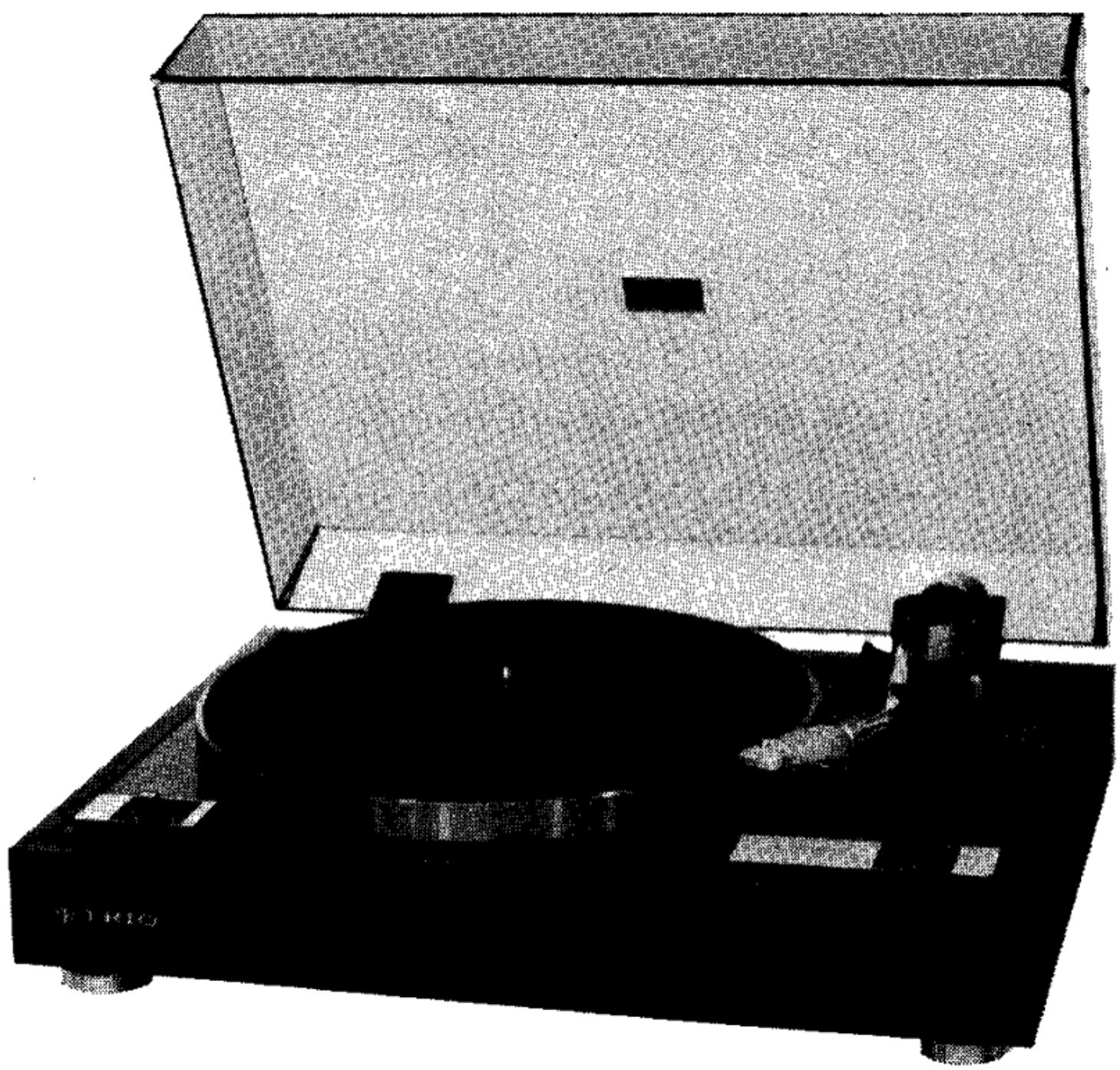

Belt Drive Turntable

KD-1033B

INSTRUCTION MANUAL

WARNING: THIS APPARATUS MUST BE EARTHED.

INTRODUCTION

Thank you for purchasing our turntable.

The purpose of this manual is to acquaint you with the operating features of your new turntable.

We suggest that you read this manual carefully. Knowing how to set up your turntable, to the best advantage, will enhance your listening pleasure right from the start.

CONCERNING LINE VOLTAGE AND FREQUENCY

• Units shipped to U. K. are designed to be operated with 240V-50Hz AC only.

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows.
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol 12 or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

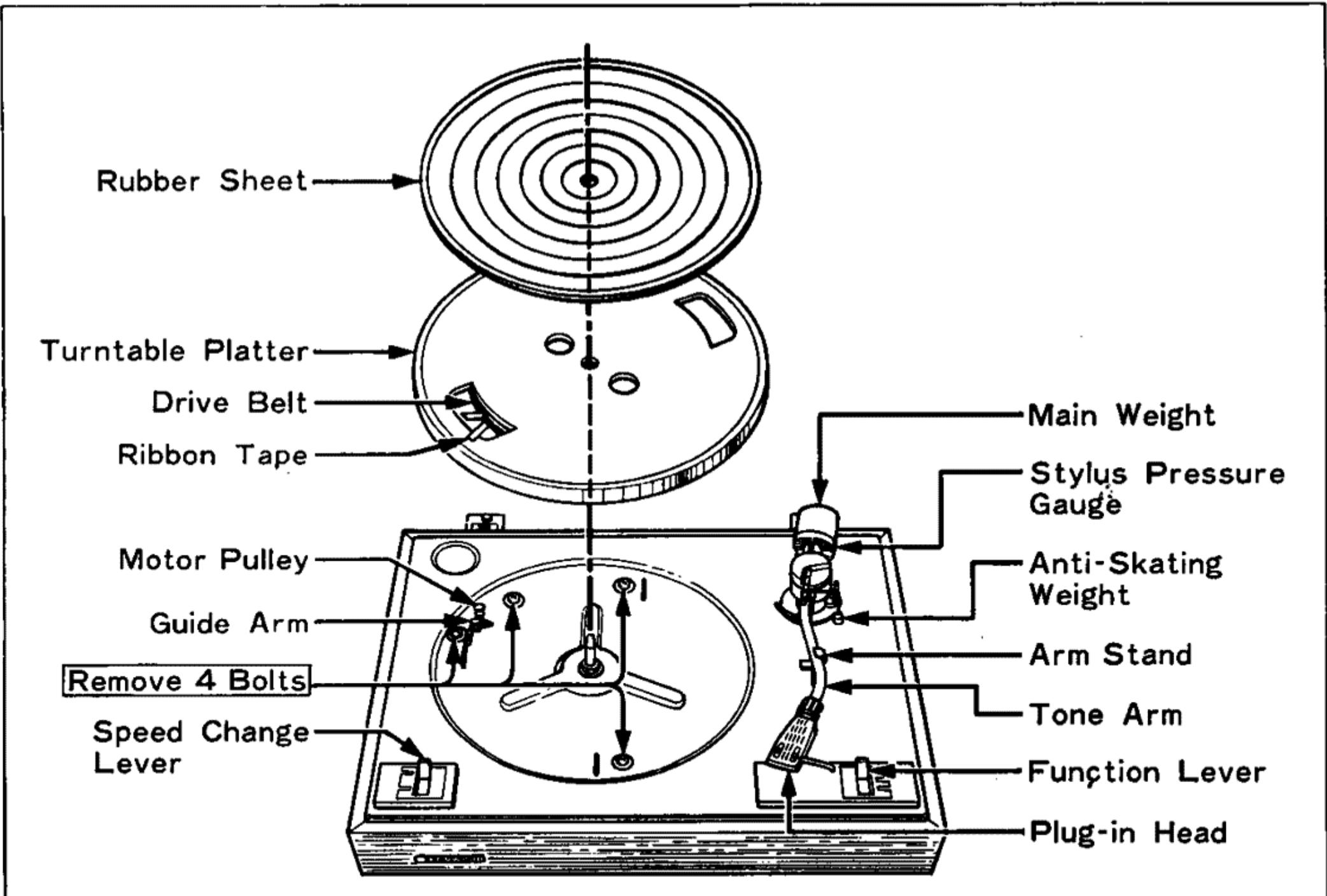

Fig. 3 Turntable Parts Nomenclature

ASSEMBLY PROCEDURE

1. Be sure to remove the four bolts, located beneath the turntable platter position, that are used to protect the motor and other instruments during shipment. They are no longer required after installation.
2. Place the turntable platter on the center shaft, and attach the drive belt to the motor pulley and guide arm. This can be done easily by using the ribbon tape as shown in Fig. 4. Place the rubber sheet on the turntable platter.
3. Attach the plug-in head with the cartridge of your choice to the tonearm after lining up the head pin with the tonearm groove as shown in Fig. 5. Be sure the connecting points have been cleaned thoroughly beforehand. Now turn the ring on the tonearm clockwise to lock the head securely in place.
4. Attach the main weight to the rear end of the tonearm.
5. Connect the output cord (White Pin-Plug "L", Red Pin-Plug "R") extending from the rear of the turntable to the PHONO input terminals that are available usually on the rear panel of most amplifiers. The Ground lead from the turntable should also be connected to the GND terminal of your amplifier.

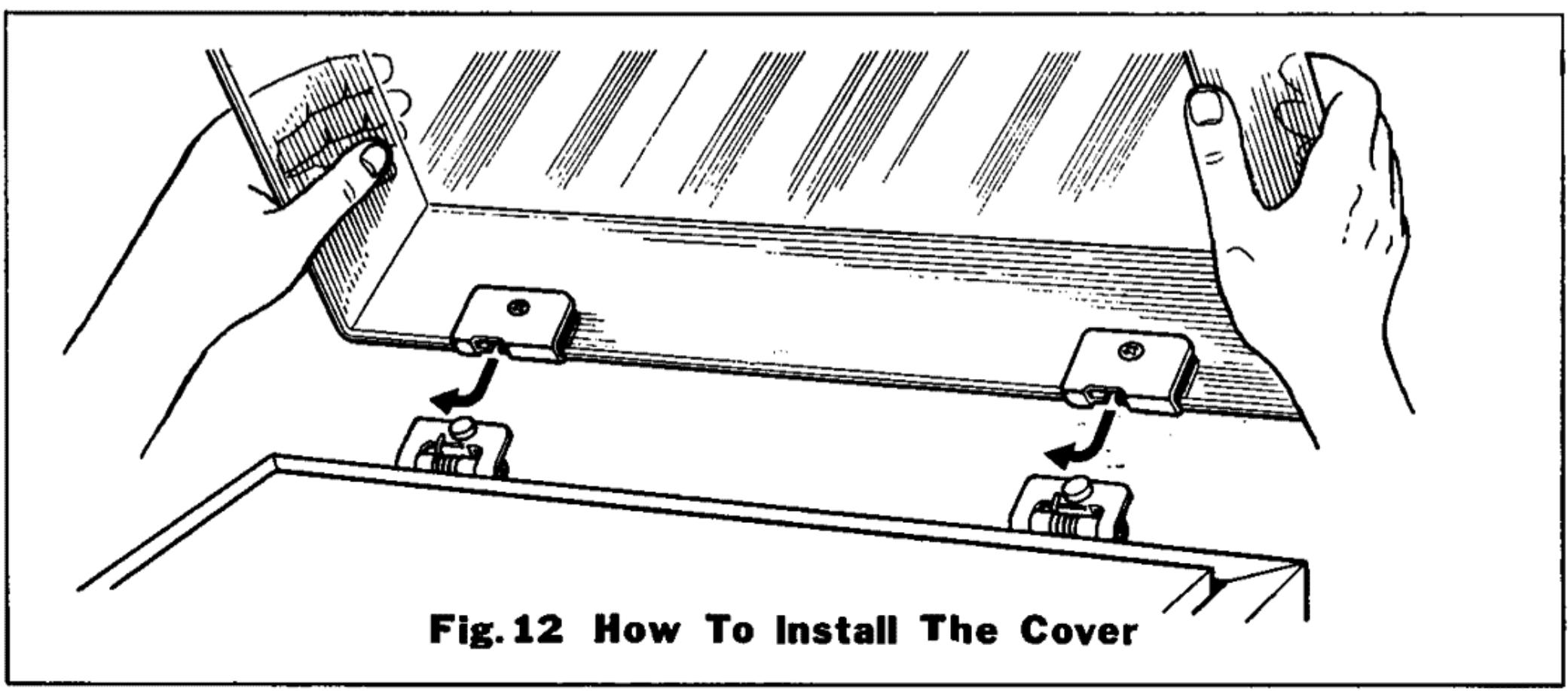

6. Finally attach the cover to the turntable as shown in Fig. 12. It has been especially designed to be attached or removed easily with a "one-touch" operation.

STYLUS PRESSUREADJUSTMENT

1. Remove the stylus cover and release the tonearm from the arm rest lock of the Arm stand.
2. Set the function lever to DOWN position.
3. Turn the main weight and move it forward or backward until the tonearm becomes perfectly balanced horizontally.
4. Holding the main weight fixed in that position, turn only the stylus pressure indicator dial and set the "0" mark to the Reference Line. See Fig. 6. It is important to keep the main weight stationary during this step.
5. Next turn the main weight counterclockwise as shown in Fig. 6. The indicator dial will also turn simultaneously. The main weight should be turned to the setting which corresponds to the recommended stylus pressure of the cartridge you have chosen to use. (Fig. 6 shows an example of stylus pressure setting set for 2 grams.)

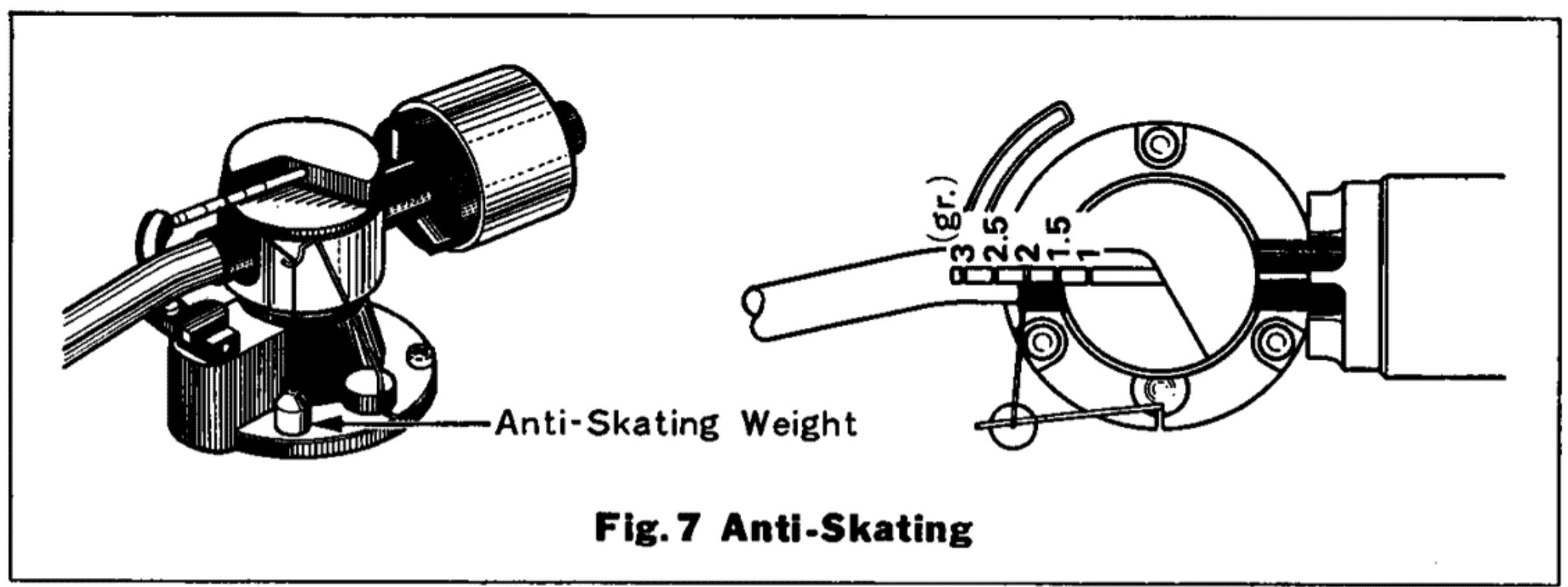

6. Finally be sure to attach correctly the anti-skating weight that is supplied with this turntable. As shown in Fig. 7, the anti-skating string must be hooked through the groove on the shaft extending from the tonearm fulcrum that corresponds to the most suitable stylus pressure. For example, the string should be hooked on the second groove from the rear for 1.5 gram stylus pressure. (Fig. 7 is an example of correct setting for 2 grams).

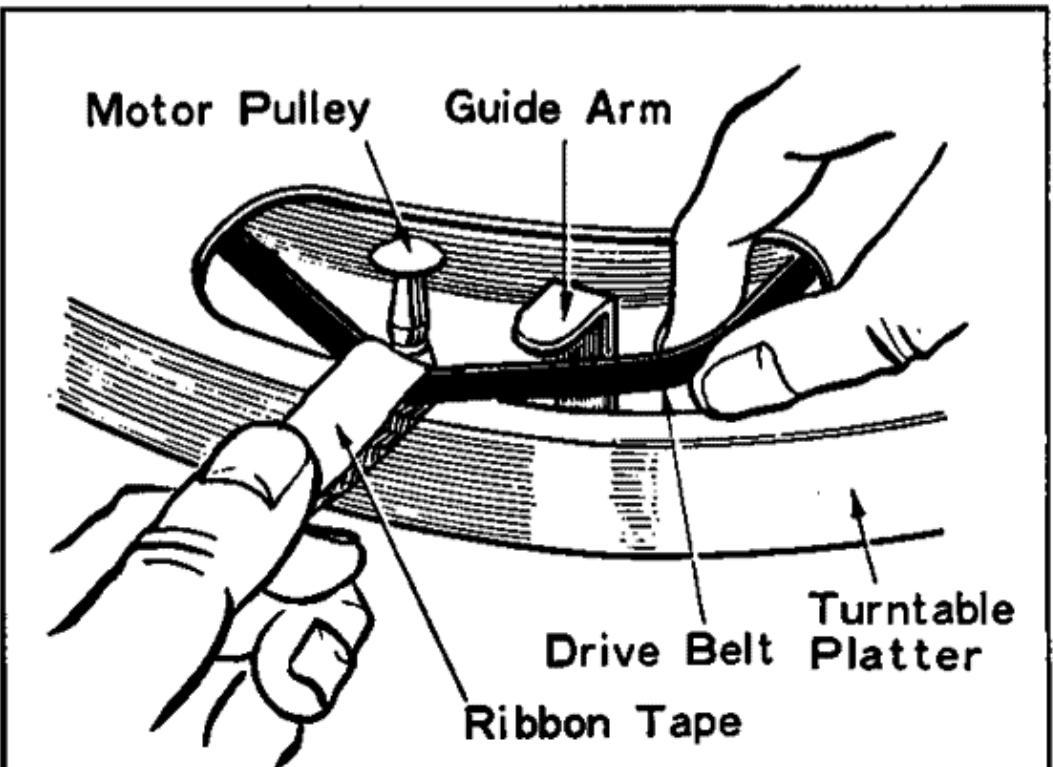

Fig.4 How To Attach The Belt

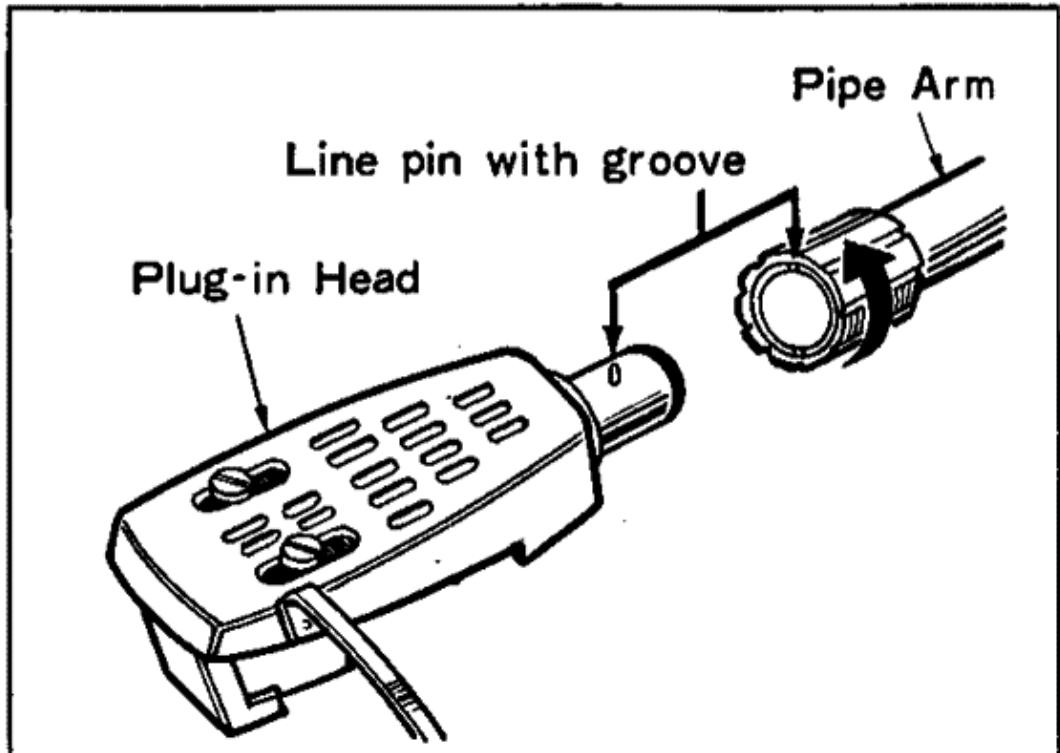

Fig.5 Attaching The Plug-in Head

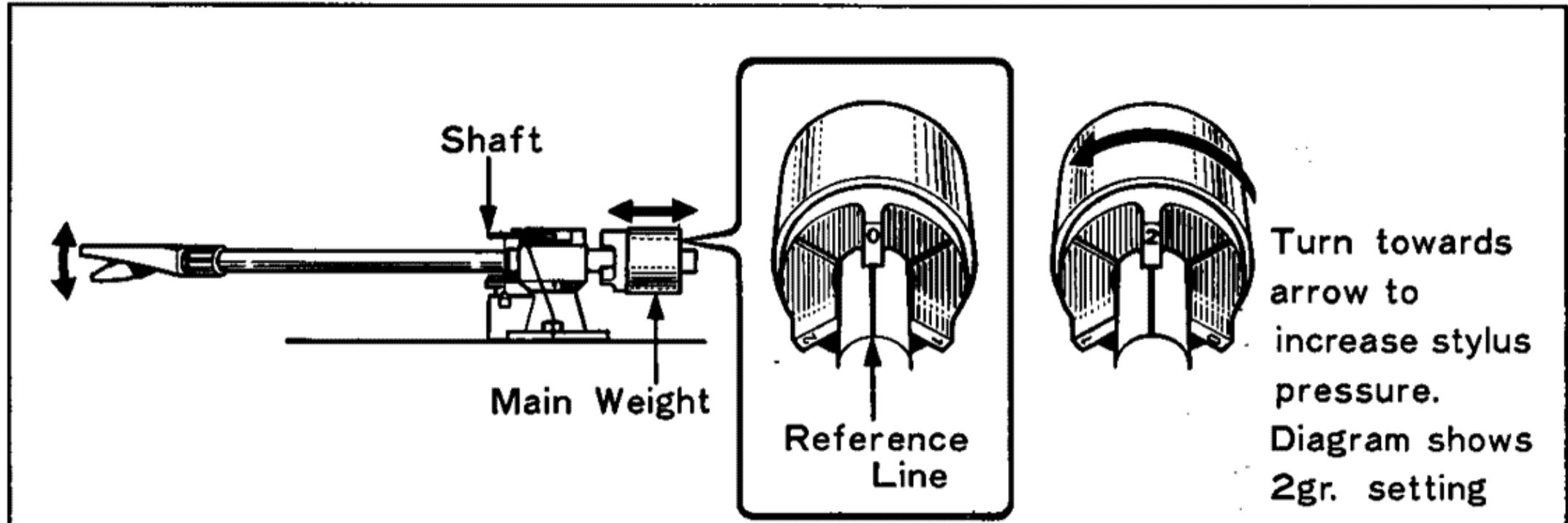

Fig.6 Stylus Pressure Adjustment

OPERATING INSTRUCTIONS

1. Before operating the turntable, recheck the connections to the amplifier and the amplifier control settings to confirm that they have been correctly made.
2. Place a record on the turntable platter. If an EP record is used, the EP adapter that is supplied with this turntable must be inserted first into the center shaft.
3. Set the function lever to ON. This causes the turntable platter to revolve.
4. Set the SPEED selector lever to the correct speed of the record.
5. Use the finger hook on the plug-in head to swing the stylus over the starting position, and then set the function lever to DOWN.
6. When it is desired to interrupt record play, set the function lever to CUE. The tonearm will then ascend, forcing the stylus to leave the record surface, and come to stop above the record which will continue to turn. Switching the function lever to DOWN position will cause record play to resume at approximately the same place where it was cut off.
7. At the end of record play, return the tonearm to the arm rest and switch the function lever to OFF.
8. Always lock the tonearm to the arm rest when finished with the turntable.

ABOUT ANTI-SKATING

This turntable is provided with an anti-skating mechanism to further ensure its top-class performance. Set the anti-skating weight in accordance with the stylus pressure, as shown in Fig. 7.

HOW TO ATTACH THE CARTRIDGE

Cartridge can be attached easily as follows. The tone arm uses EIA standard connectors that can accept any head shell on the market that conforms to this standard.

1. Connect four leads to the cartridge, as shown in Fig. 8.

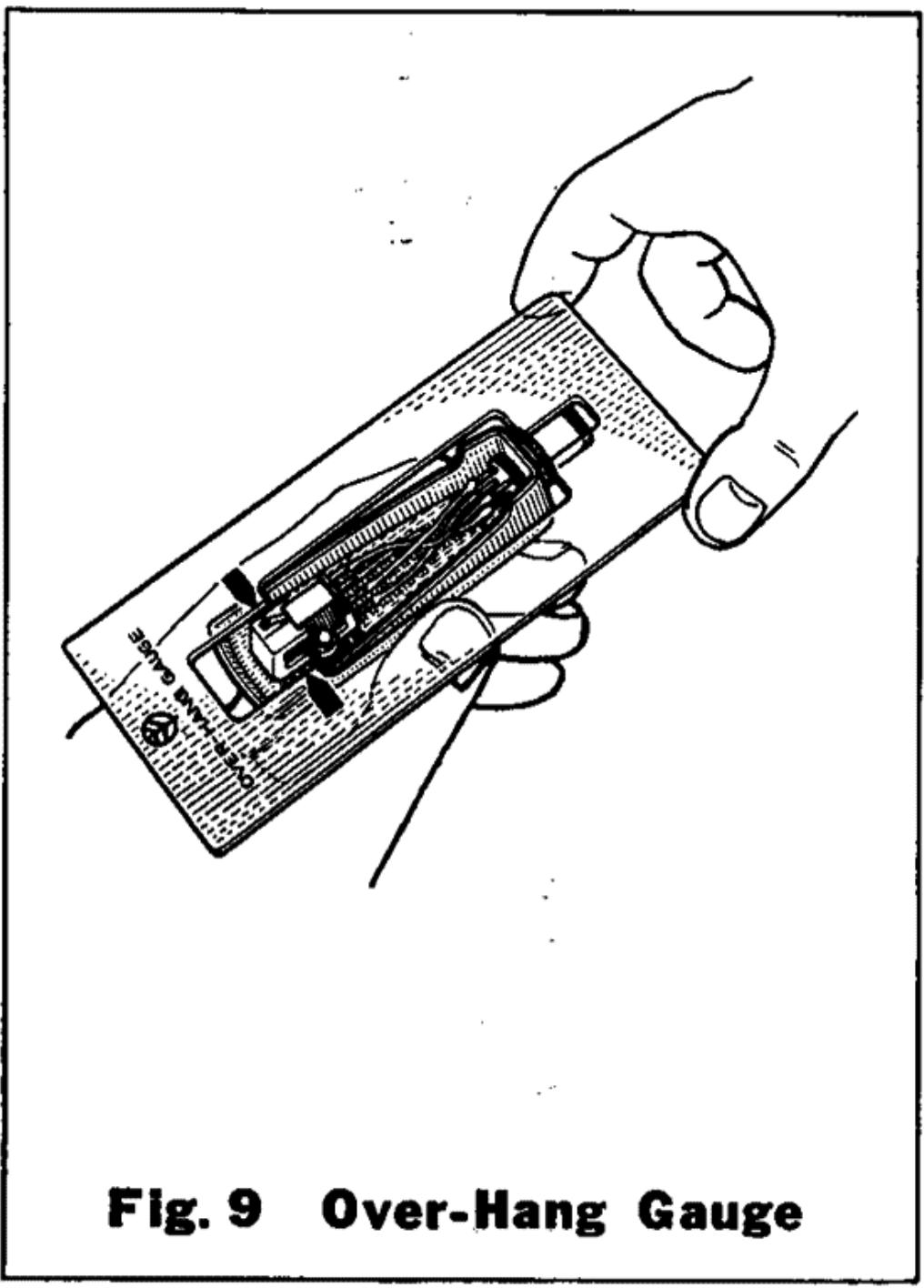

2. Attach the cartridge to the head shell but keep the two screws slightly loose so that the cartridge can be shifted forward or backward as desired. Use appropriate length screws. Slip the overhang gauge over the head shell as shown in Fig. 9, and move the cartridge so that the stylus point lines up with the gauge arrowmarks. Now tighten the cartridge locking screws. This completes correct stylus over-hang adjustment for this turntable.
3. Plug the head with the cartridge into the tone arm, and readjust stylus pressure, as explained on page 2 so that it conforms to the cartridge manufacturer's recommendation.

Cartridge can be replaced easily by removing the old one and attaching the replacement in the above manner.

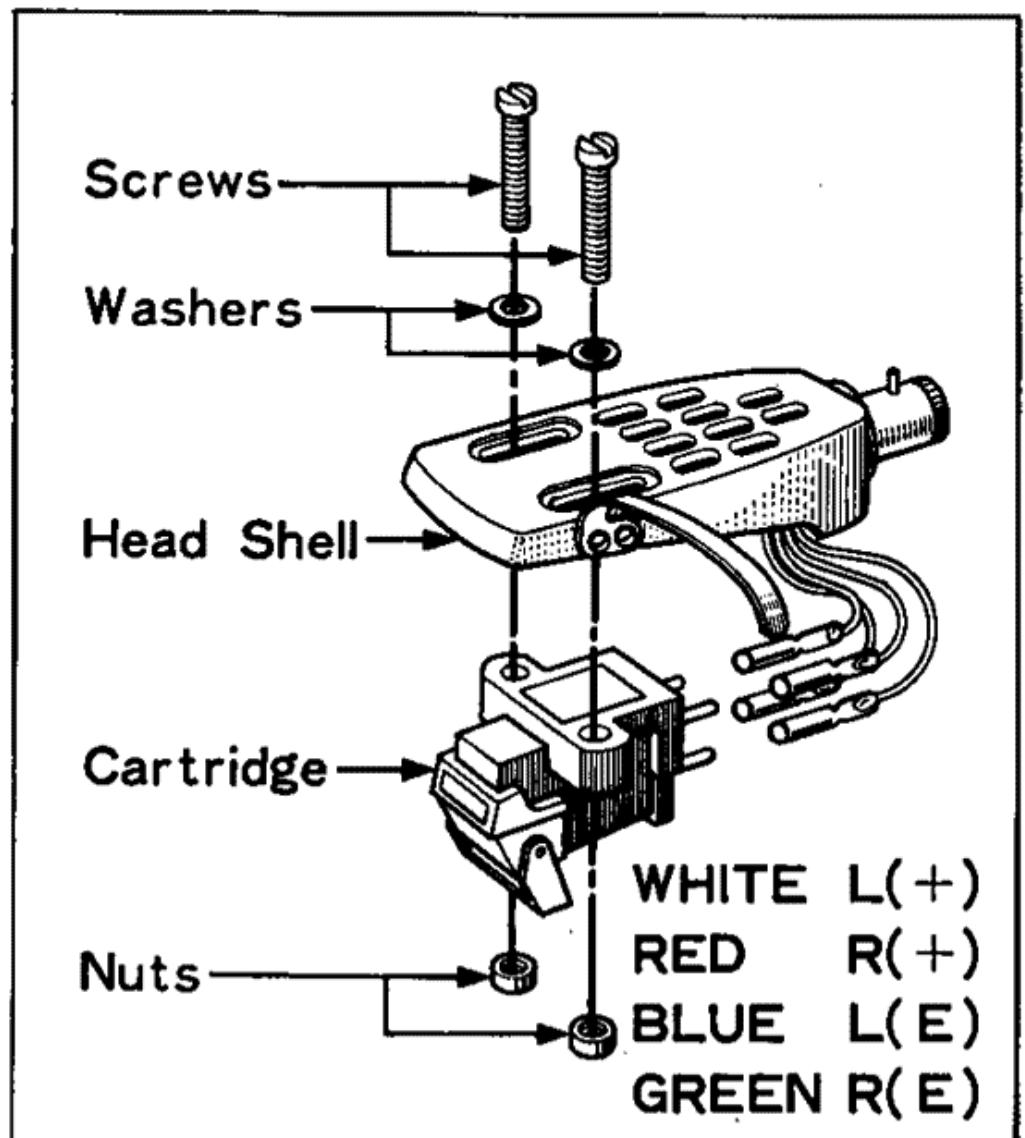

Fig. 8 Attaching The Cartridge

ABOUT THE TRIO CARTRIDGE

The TRIO Cartridge V-41 or V-47 is supplied with the turntables that are shipped to certain areas of the world.

STYLUS PRESSUREADJUSTMENT

Two grams is the recommended stylus pressure for these cartridges and anti-skating adjustments should be made accordingly as explained above.

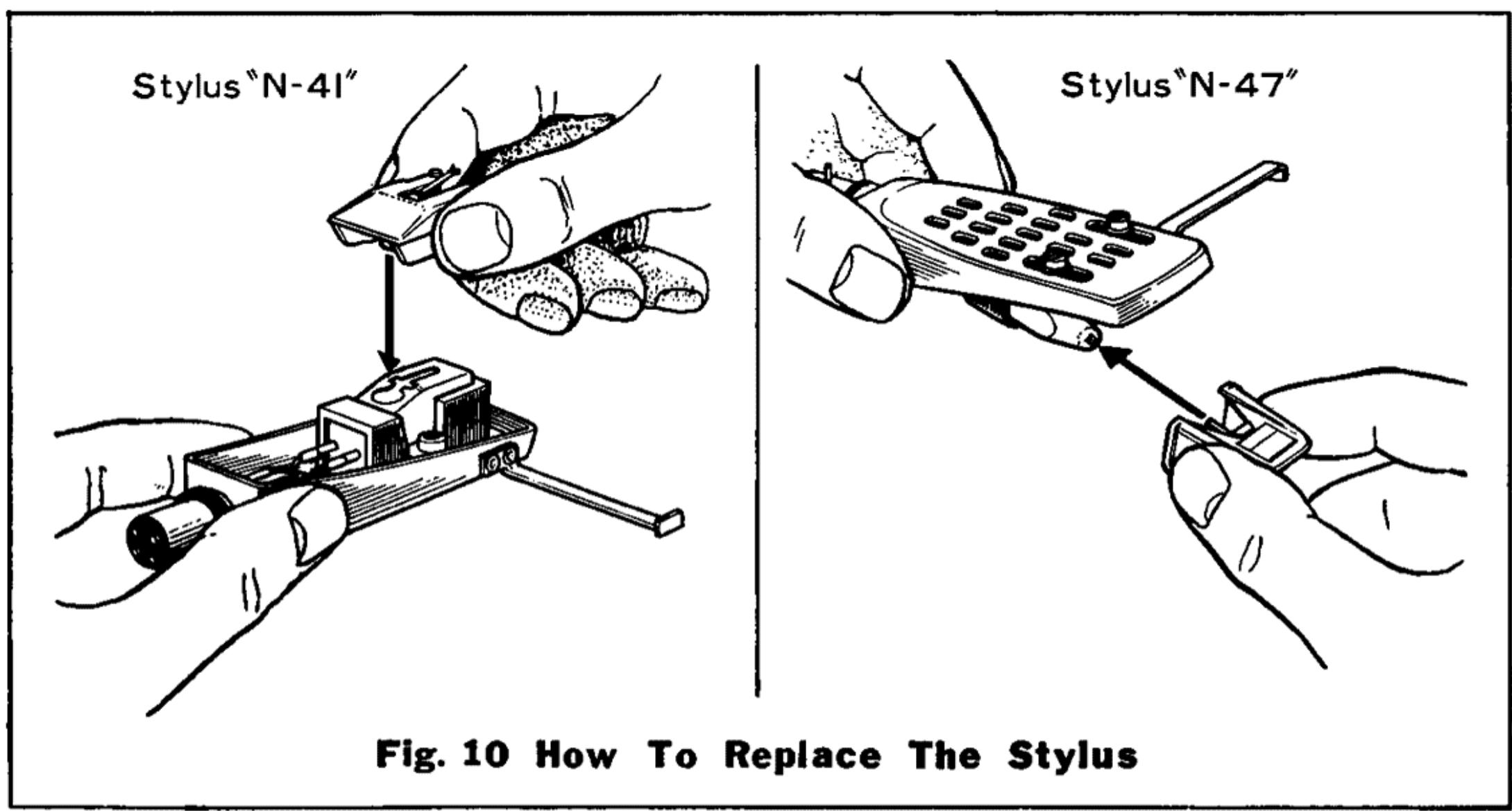

HOW TO REPLACE THE STYLUS

A N-41 or N-47 type stylus is used in this turntable. Replacement may be obtained from the dealer from whom you purchased this turntable. To replace the stylus, first remove the plug-in head. Refer to Fig. 5. Now pull and remove the old stylus, and then insert the new one as shown in Fig. 10.

LIFE OF A STYLUS

Diamond or sapphire styli are usually used in turntables. A diamond stylus is used in this turntable. It is normally good for 500 hours for 12 inch (30 cm) records played on one side, but this varies greatly depending on how it is used.

A worn stylus will cause treble tones to increase in harshness. A stylus should be replaced as soon as this becomes noticeable to prevent record wear.

LUBRICATION

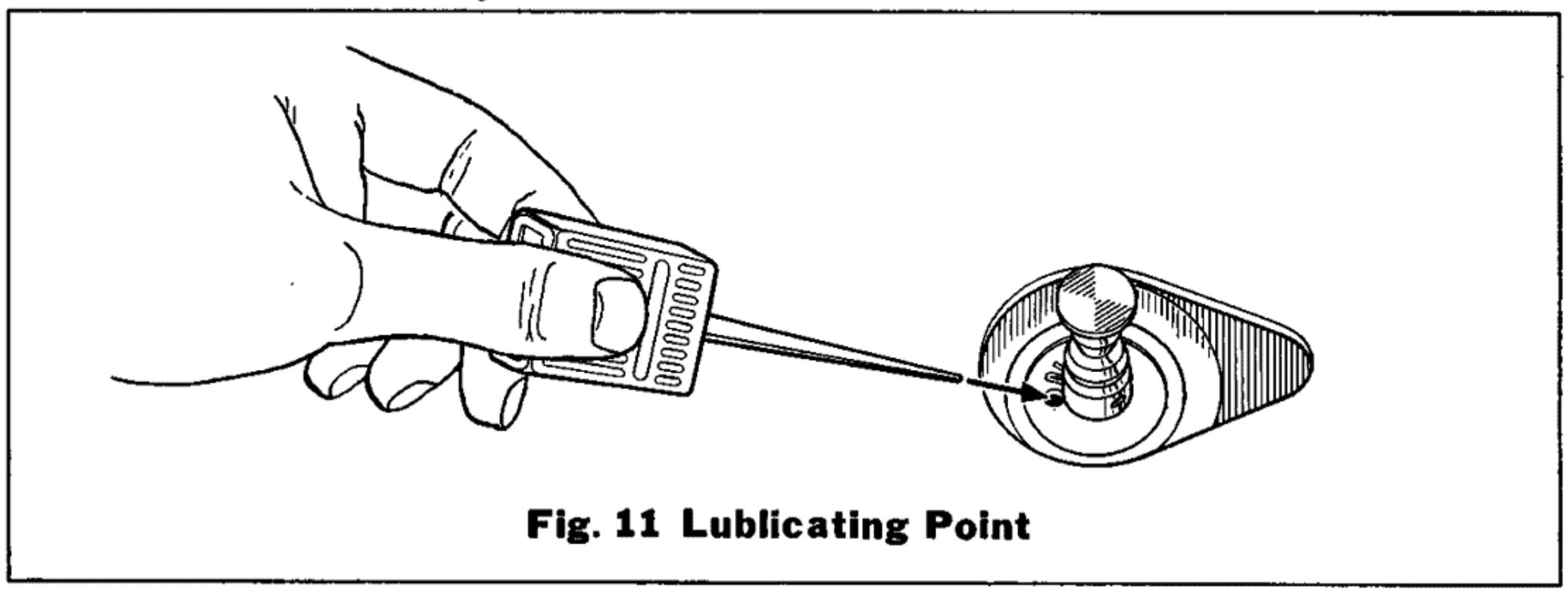

When the turntable platter is removed, you will notice a lubricating hole as shown in Fig. 11. The light motor oil supplied with this turntable should be used for application here — Special care should be taken not to drop oil on rubber components or parts which come into contact with them.

If oil is accidentally dropped on the belt, it should be wiped clean with a soft cloth moistened with alcohol.

RATING

POWER CONSUMPTION

DIMENSIONS

WEIGHT

: 7 watts.

W 456 mm (17 15/16")

D 347 mm (13 11/16")

H 145 mm (5 11/16")

: 6 kg (13.2 1bs)
