PVG 32 - Distributeur hydraulique DANFOSS - Notice d'utilisation et mode d'emploi gratuit

Caractéristiques techniques	Contrôleur de débit hydraulique, conçu pour des applications mobiles et industrielles.
Pression de fonctionnement	Jusqu'à 350 bars.
Débit maximal	Jusqu'à 100 l/min.
Température de fonctionnement	-20°C à +80°C.
Utilisation	Utilisé dans les systèmes hydrauliques pour le contrôle de la vitesse et de la direction des moteurs.
Maintenance	Vérification régulière des joints et des filtres, remplacement si nécessaire.
Sécurité	Respecter les normes de sécurité hydraulique, porter des équipements de protection individuelle.
Informations générales	Produit fiable, recommandé pour une utilisation dans des environnements exigeants.

FOIRE AUX QUESTIONS - PVG 32 DANFOSS

Quel est le rôle principal du DANFOSS PVG 32 ?

Le DANFOSS PVG 32 est un distributeur de commande hydraulique qui permet de contrôler le flux de fluide dans les systèmes hydrauliques.

Comment installer le DANFOSS PVG 32 ?

Assurez-vous de suivre le manuel d'installation fourni, qui décrit les étapes pour monter le distributeur correctement sur votre système hydraulique.

Quels sont les symptômes d'un dysfonctionnement du DANFOSS PVG 32 ?

Les symptômes peuvent inclure des fuites de fluide, un fonctionnement irrégulier, ou un manque de réponse aux commandes.

Comment entretenir le DANFOSS PVG 32 ?

Un entretien régulier consiste à vérifier les connexions, à nettoyer les filtres et à inspecter les joints pour détecter toute usure.

Que faire si le DANFOSS PVG 32 ne répond pas aux commandes ?

Vérifiez les connexions électriques et hydrauliques, et assurez-vous que le fluide hydraulique est à un niveau adéquat.

Où puis-je acheter des pièces de rechange pour le DANFOSS PVG 32 ?

Les pièces de rechange peuvent être achetées auprès de distributeurs agréés Danfoss ou directement sur le site web de Danfoss.

Le DANFOSS PVG 32 est-il compatible avec tous les systèmes hydrauliques ?

Le DANFOSS PVG 32 est conçu pour être compatible avec de nombreux systèmes, mais il est recommandé de vérifier les spécifications techniques pour s'assurer de la compatibilité.

Comment résoudre une fuite sur le DANFOSS PVG 32 ?

Identifiez l'origine de la fuite, remplacez les joints usés et serrez les connexions si nécessaire.

Quel type de fluide hydraulique est recommandé pour le DANFOSS PVG 32 ?

Il est recommandé d'utiliser un fluide hydraulique conforme aux spécifications indiquées dans le manuel d'utilisation du produit.

MODE D'EMPLOI PVG 32 DANFOSS

PVG 32

ENGINEERING TOMORROW

Danfooss

July 2024		1601
February 2023		1506
January 2023		1505
October 2022		1504
June 2022		1503
June 2022		1502
April 2022		1501
May 2021		1401
May 2020		1301
		XX
September 2019		1102
December 2018		1101
September 2018		1001
July 2018		0901
November 2017		0803
August 2017		0802
March 2016		0801
February 2006 - March 2016		BA - 0710
January 2005		AA

PVP

PVP

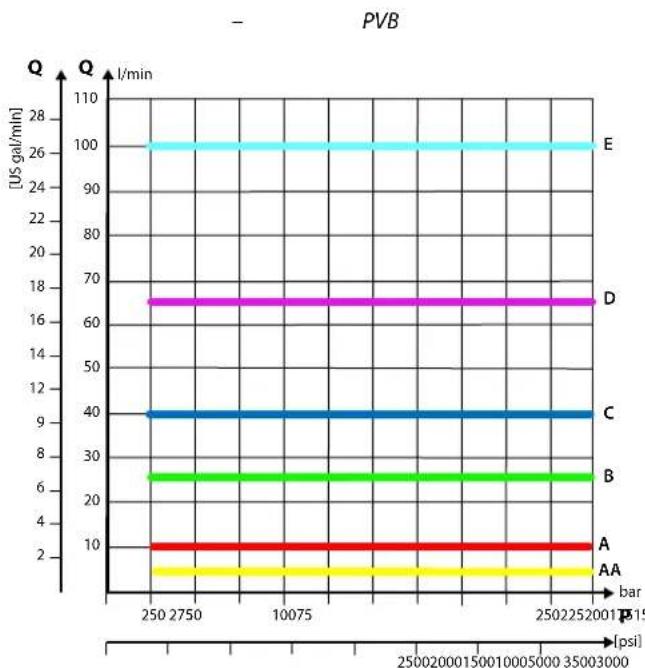

PVB

PVB

PVSP/PVSPM

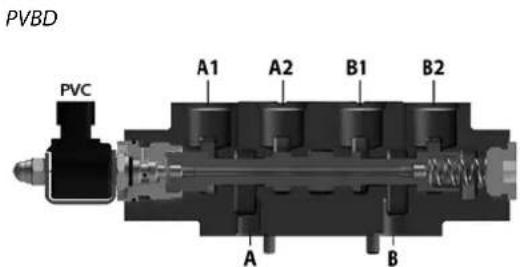

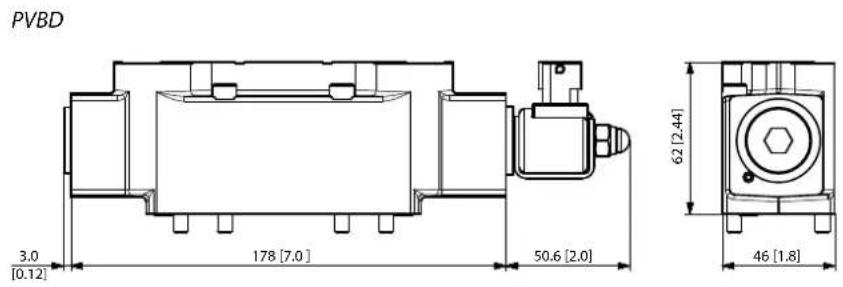

PVBD

PVBS

PVBZ

PVG32

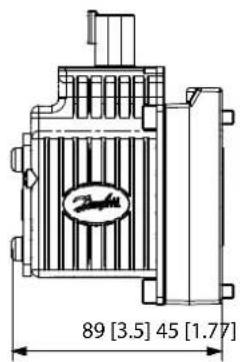

PVE

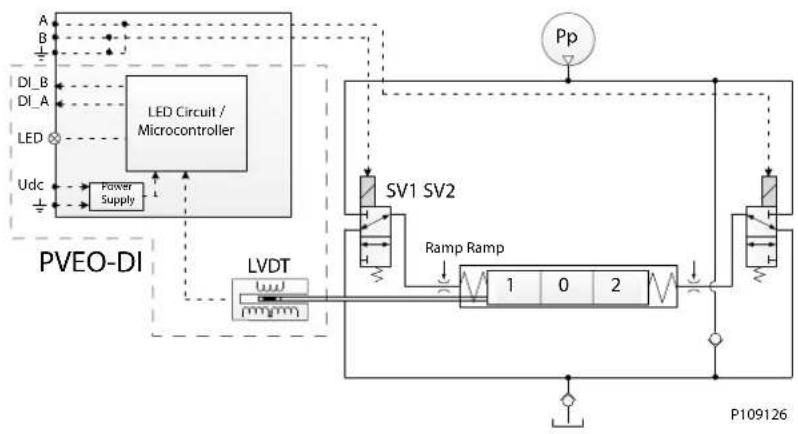

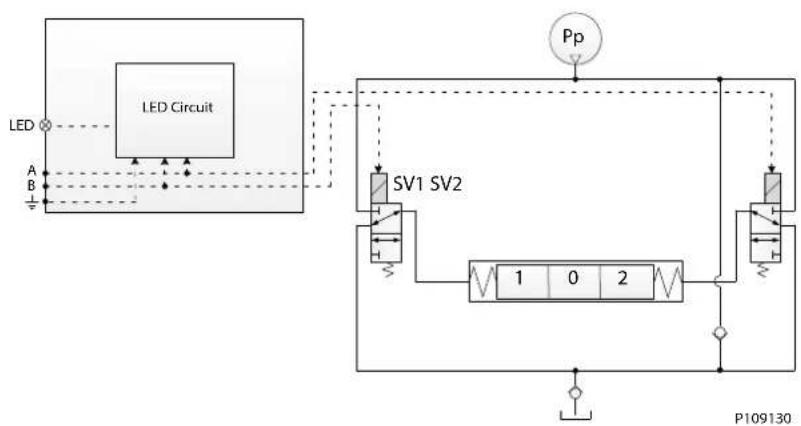

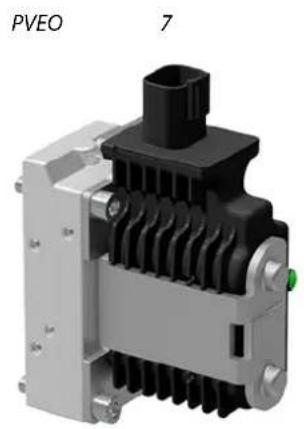

PVEO. 165
PVEO-HP 170
PVEM. 174
PVEA. 179
PVEH. 183
PVES. 187

PVS

PVS/PVSI 206

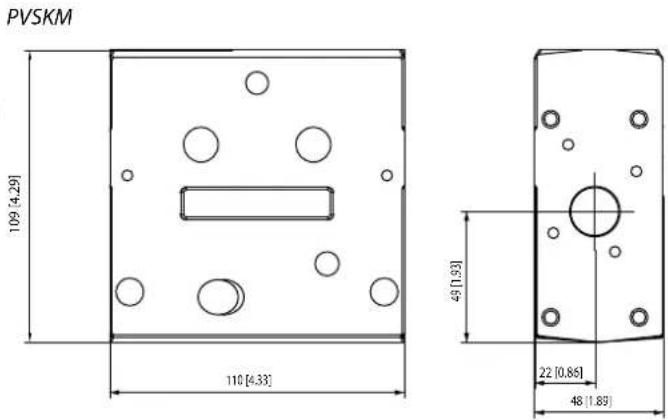

PVSKM

PVAS

PVG32

PVG

---

10. 20.

！

		300 bar [4351 psi]
		350 bar [5075 psi]
		400 bar [5800 psi]
		420 bar [6090 psi]
		25/40 bar [365/580 psi]
		140 l/min [37 US gal/min]
		230 l/min [61 US gal/min]
		100 l/min [26.4 US gal/min]
		125 l/min [33 US gal/min]
		± 7 mm [± 0.28 in]
		± 4.8 mm [± 0.19 in]
		± 8 mm [± 0.32 in]
		± 1.5 mm [± 0.06 in]
		± 0.8 mm [± 0.03 in]
\( {}^{2}/s \) [102 SUS])		20 cm3/min [1.85 in]3/min
		25 cm \( {}^{3} \)/min [2.15 in]3/min
\( {}^{2}/s \) [102 SUS])		1 cm \( {}^{3} \)/min [0.06 in]3/min
		6 cm \( {}^{3} \)/min [0.37 in]3/min
		-30 °C[-22 °F]
		90 °C[194 °F]
		2
		4 mm \( {}^{2}/s \)[39 SUS]
		460 mm \( {}^{2}/s \)[2128 SUS]
		23/19/16
		0.5 l/min	[0.13 US gal/min]

PVG32

PVG

PVP

PVB

PVSP/PVSPM

PVBD

PVBS

PVM

PVE

PVH

PVHC

PVDI

PVSKM

PVS

PVAS

PVP

PVP

• PPRV
  HPCO, PVE PPRV
  PPRV
  PPRV
  PPRV
• PPRV /

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

			**			PVPX*
157B5000	G1/2"	G3/4"	G1/4"	-	M8	-
157B5100	G3/4"			-		-
157B5102	G3/4"			-
157B5200	7/8-14 UNF	1 1/16-12 UNF	1/2-20 UNF	-	5/16-18 UNC	-
157B5300	1-1/16 UN			-		-
110088521	G1/2	G3/4	G1/4 (G1/8)	-	M8	-
11030545	G3/4	G3/4	G1/4 (G1/4)	G1/4	M8	-
11053974	G3/4	G3/4	G1/4 (G1/4)	G1/4	M8	-
			**			PVPX4
11151852	1 1/16-12 UNF 1	1/16-12 UNF 9/16-	18 UNF 9/16-18 UNF M8 -
157B5908	1 1/16-12 UNF 1	1/16-12 UNF 1/2-20	UNF - M8 -
157B5921	JIS 1/2 JIS 3/4 JIS	1/4 - M8 -
157B5925	JIS 3/4 JIS 3/4 JIS	1/4 - M8 -
157B5945	G1/2 G3/4 G1/4 (G1/8) - M8 -
\( 157B5990^2 \)	1 1/16-12 UNF 1	1/16-12 UNF -- M8 -

A

1
2

PPRV

PPRV
PVP

PPRV

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

									PVPX*
110088491	PVE	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8	-
110088511	PVH/PVHC	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	-	M8	-
11066027	PVH/PVHC	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8
11072195	PVE	M27x2	M27x2	M14x1.5	M14x1.5	-	M14x1.5	M8	-
157B5010	PVE	G1/2"	G3/4"	G1/4"	G1/4"	-	-	M8	-
157B5012	PVE	G1/2"	G3/4"	G1/4"	G1/4"	-	-	M8
157B5110	PVE	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8	-
157B5112	PVE	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8
157B5130	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	G1/4"	M8	-
157B5132	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	G1/4"	M8
157B5180	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	-	M8	-
157B5190	PVH/PVHC	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	-	M8	-
157B5210	PVE	7/8-14 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC	-
157B5212	PVE	7/8-14 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC
157B5310	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC	-
157B5312	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC
157B5330	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	5/16-18 UNC	-
157B5332	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC
157B5380	PVE	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	-	5/16-18 UNC	-
157B5390	PVH/PVHC	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	-	5/16-18 UNC	-
11101194	PVE	M22x1.5M16x1.5 (P2)	M22x1.5	M12x1.5	M10x1	-	M16x1.5	M8	-
11008850	PVE	G3/4	G3/4	G1/4	G1/4	-	-	M8
110133171	PVE	G3/4	G3/4	G1/4	G1/4	G1/4	G1/4	M8	-
11020964	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	M8	-
110875901	PVH/PVHC	G3/4	G3/4	G1/4	G1/4	G1/4	-	M8	-
11090453	PVE JIS 3/4 JIS 3/4 JIS 1/4 JIS	1/4 JIS 1/4 JIS 1/4	M8 -
11124965	PVH/PVHC G3/4 G3/4 G1/4 G1	1/4 G1/4 G1/4	M8
11124966	PVH/PVHC G3/4 G3/4 G1/4 G1	1/4 G1/4 G1/4	M8 -
1113094122	PVE	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	-	5/16-18 UNC	-
11167773	PVH/PVHC	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC
111873564	PVE G1/2 G3	/4 G1/4 G1/4 -	-	M8
11190123	PVH/PVHC G1/2 G3/4 G1/4 G1	1/4 -	-	M8
11225941	PVE	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	5/16-18 UNC	-
157B51353	PVE G3/4 G3	/4 G1/4 G1/4 G1	/4 G1/4	M8 -
157B59042	PVE G3/4 G3	/4 G1/4 G1/4 G1	/4 -	M8 -
157B5923	PVE JIS 1/2 JIS 3/4 JIS 1/4 JIS	1/4 -	-	M8 -
157B5926	PVE JIS 3/4 JIS 3/4 JIS 1/4 JIS	1/4 -	-	M8 -
157B5934	PVE G3/4 G3	/4 G1/4 G1/4 -	-	M8 -
157B59432	PVH/PVHC G3/4 G3/4 G1/4 G1	1/4 G1/4 -	M8 -
157B59532	PVE G3/4 G3	/4 G1/4 G1/4 -	-	M8
157B5954	PVE G3/4 G3	/4 G1/4 G1/4 G1	/4 -	M8 -
157B5960	PVE	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	-	9/16-18 UNF	5/16-18 UNF	-
157B59662	PVE G3/4 G3	/4 G1/4 G1/4 -	-	M8
157B5976	PVE G3/4 G3	/4 G1/4 G1/4 -	-	M8
157B59771,4	PVE G3/4 G3	/4 G1/4 G1/4 -	-	M8 -
11101194	PVE	M22 x 1.5	M22 x 1.5	M12 x 1.5	M10 x 1	-	M16 x 1.5	M8	-

• LS
  1
  2
  3
  4

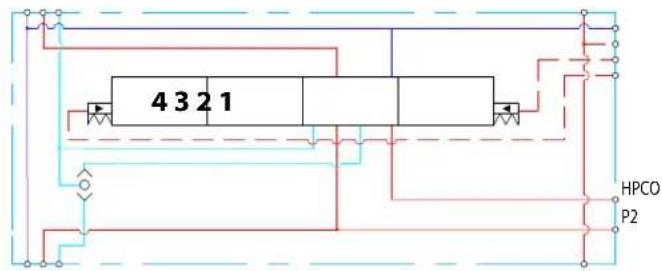

HPCO, PVE PPRV

HPCO, PPRV, TO
PVP

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

								PVPX*
157B5140	G3/4" G3/4" G1/4" G1/4" G1/4" G1/4" M8			-
157B5142	G3/4" G3/4" G1/4" G1/4" G1/4" M8
157B5340	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	5/16-18 UNC	-
157B5342	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	-	5/16-18 UNC
157B5961	M27x2	M27x2	M14x1.5	M14x1.5	-	M14x1.5	M8	-
11101195	M22x1.5M16x1.5 (P2)	M22x1.5	M12x1.5	M10x1	-	M16x1.5	M8	-

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 14	0 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

			(LS1**)				PVPX*
11030683	G3/4	G3/4	G1/4 (G1/4)	G1/4	G1/4	M8	-
157B5001	G1/2	G3/4	G1/4	G1/4	-	M8	-
157B5101	G3/4	G3/4	G1/4	G1/4	-	M8	-
157B5103	G3/4	G3/4	G1/4	G1/4	-	M8
157B5201	7/8-14 UNF 1	1/16-12 UNF	1/2-20 UNF 1/2-20 UNF	--	5/16-18 UNC	-
157B5301	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF 1/2-20 UNF	--	5/16-18 UNC	-
15B5907	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF 1/2-20 UNF	--	M8	-
157B5922	JIS 1/2	JIS 3/4	JIS 1/4	JIS 1/4	-	M8	-
157B5927	JIS 3/4	JIS 3/4	JIS 1/4	JIS 1/4	-	M8	-
157B5946	G1/2	G3/4	G1/4 (G1/8)	G1/4	-	M8	-

PVPX LS

PPRV
PVP

PPRV, TO

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]

				(LS1**)					PVPX*
11051802	PVH/PVHC	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	5/16-18 UNC	-
157B5011	PVE	G1/2"	G3/4"	G1/4"	G1/4"	-	-	M8	-
157B5013	PVE	G1/2"	G3/4"	G1/4"	G1/4"	-	-	M8
157B5111	PVE	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8	-
157B5113	PVE	G3/4"	G3/4"	G1/4"	G1/4"	-	-	M8
157B5131	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	G1/4"	M8	-
157B5133	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	G1/4"	M8
157B5181	PVE	G3/4"	G3/4"	G1/4"	G1/4"	G1/4"	-	M8	-
				(LS1**					PVPX*
157B5191	PVH/PVHC G3	4" G3/4" G1/4"	G1/4" G1/4" - M8
157B5211	PVE	7/8-14 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC	-
157B5213	PVE 7/8-14 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	5/16-18 UNC
157B5311	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC	-
157B5313	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	-	5/16-18 UNC
157B5331	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	5/16-18 UNC	-
157B5333	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	1/2-20 UNF	5/16-18 UNC
157B5381	PVE	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	-	5/16-18 UNC	-
157B5391	PVH/PVHC	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	9/16-18 UNF	-	5/16-18 UNC

PVPX LS

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

					(T02)
11055758	M27x2.0(M27x2.0)	M27x2.0(M14x1.5)	M14x1.5 M14x1	5 M14x1.5	(M14x1.5)	M8
11067570 M27x	2.0 M33x2.0 M14	x1.5 M14x1.5 - M8

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 15	0 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]

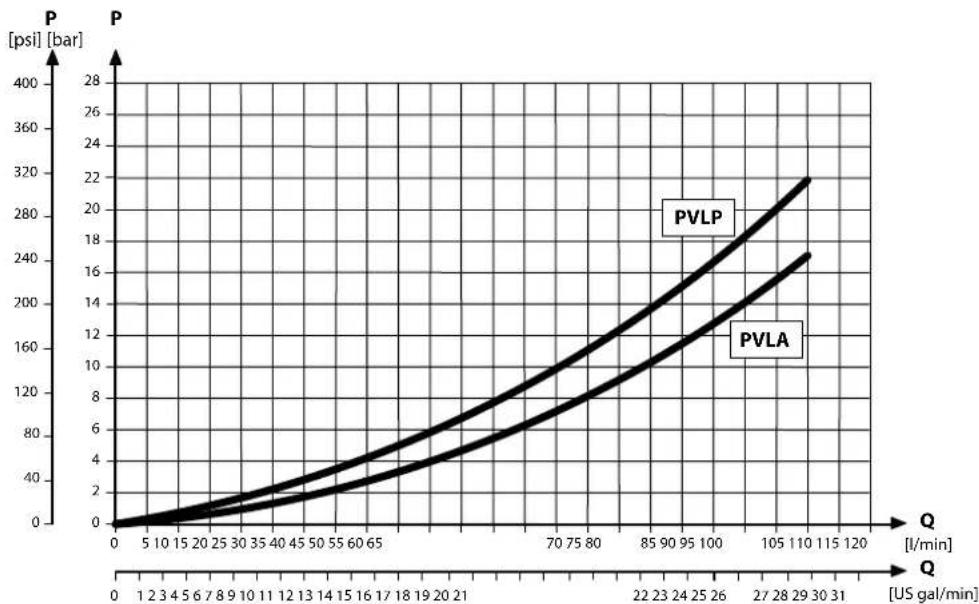

							(T02)		PVLP
\(11012350^1\)	PVE	M27x2.0 M33x2.0 M14x1.5 M14x1.5--M8-
11003806		M27x2.0	M27x2.0(M14x1.5)	M14x1.5 M14x1.5-			M14x1.5(M14x1.5)	M8	-
\(11008854^2\)		G1	G1	G1/4	G1/4	-	-	M8
111241072		1 5/16-12	1 1/16-12	9/16-18	9/16-18	-	-	M8
11196949		G1	G1	-	-	G1/4	-	M8
157B5911		1 5/16-12	1 5/16-12	9/16-18	9/16-18	-	-	5/16-18	-
157B5913		1 5/16-12	1 5/16-12	9/16-18	9/16-18	-	-	5/16-18
157B5938		G1	G1	G1/4	G1/4	-	-	M8	-
157B5941		G1	G1	G1/4	G1/4	-	-	M8
\(157B5948^3\)		G1	G1	G1/4	G1/4	-	-	M8
\(157B5973^4\)		G1	G1	G1/4	G1/4	-	-	M8
157B5978		M27x2.0	M33x2.0	M14x1.5	M14x1.5	-	-	M8	-
11008856	PVH/PVHC	G1	G1	G1/4	G1/4	-	-	M8
\(11051803^3\)		1 5/16-12	1 5/16-12	9/16-18	9/16-18	-	-	5/16-18
157B5916		1 5/16-12	1 5/16-12	9/16-18	9/16-18	-	-	5/16-18	-

1
2
3
4

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 23		0 l/min [61 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

								PVLP
157B5914	G1 G1 G1/4 G PVE	1 5/16-12 UNF	1 5/16-12 UNF	9/16-18 UNF	9/16-18 UNF	1/4 5/16-18	UNC
157B5937		1/4 G1/4 M8 -
157B5940	G1 G1 G1/4 G	1/4 G1/4 M8
157B5912	1 5/16-12	UNF	1 5/16-12 UNF	9/16-18 UNF	9/16-18 UNF	1/4 5/16-18	UNC -
11083156	PVH/PVHC	1 1/16-12 UNF	1 1/16-12 UNF	9/16-18 UNF	9/16-18 UNF	1/4 5/16-18	UNC
157B5986	G1 G1 G1/4 G	1/4 G1/4 M8

PPRV

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 140 l/min [37 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

				**
11093273	PVE G3/4 G3/4 - G1	/4	-	M8
11119094	PVE G3/4 G3/4 - G1	/4	-	M8	-
11119095	PVE	1 1/16-12 UNF	1 1/16-12 UNF	1/2-20 UNF	1/2-20 UNF	-	M8	-
11131344	PHV/PVHC G3/4 G3	/4 - G1/4	-	M8
\( 11168608^1 \)	PVE G3/4 G3/4 - G1/4	-	-	M8

350 [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi] 230 l/min [61 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

			PVLP
11093682	1 5/16-12 UN 5/16-18 UNC
11093684	G1" M8

		350 bar [5075 psi]
		400 bar [5800 psi]
		25/40 bar [365/580 psi]
		140 l/min [37 US gal/min]

PVPX LS

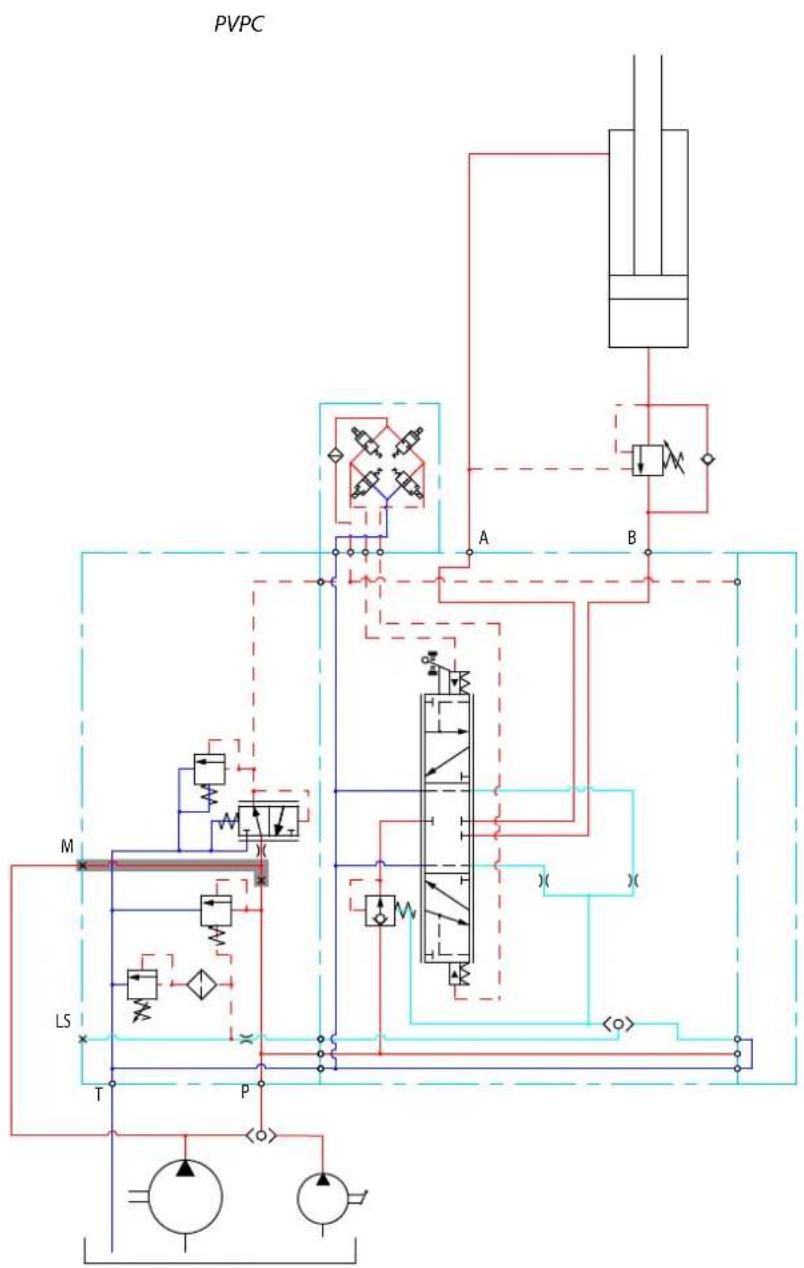

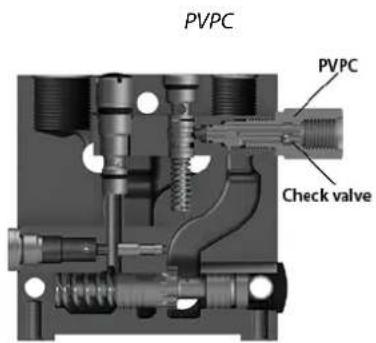

PVPC
PVPVC

M	M	M

NOMO PVPX

	12/24 VDC ± 10%
12 VDC	7.2 Ω ± 7%
24 VDC	28.2 Ω ± 7%
	20 W
	300 ms
	2 bar [30 psi]
	155°C [311°F]
	3/4-16 UNF

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B4236	NO 12 V	DC	1x2 DIN IP 65
157B4238	NO 24 V	DC
157B4246	NC 12 V	DC
157B4248	NC 24 V	DC
157B4976	NC 26 V	DC
157B4981	NO 12 V	DC	1x2 AMP IP 66
157B4982	NO 24 V	DC
157B4983	NC 12 V	DC
157B4984	NC 24 V	DC
11180766	NO 12 V	DC	1x2 DEUTSCH IP 67
11180767	NO 24 V	DC
11180768	NC 12 V	DC
11180769	NC 24 V	DC
11225108	NO 26 V	DC
11225109	NC 26 V	DC

157B4256	PUSH 12 V	DC	1x2 DIN IP 65
157B4257	PUSH & TURN 12 V	DC
157B4258	PUSH 24 V	DC
157B4259	PUSH & TURN 24 V	DC
157B4260	PUSH 26 V	DC
157B4985	PUSH 12 V	DC	1x2 AMP IP 66
157B4986	PUSH 24 V	DC
11193839	PUSH 12 V	DC	1x2 DEUTSCH IP 67
11193836	PUSH 24 V	DC
11225111	PUSH	26 VDC
11225110	PUSH & TURN

157B5601

	157B5400
	G1/4"

	157B5600 157B5700
	G1/4" 1/2-20 UNF

PVPC

PVB

PVB32

PVB

PVB

PVB

POC

LSA/B

LSA/B

PVB

PVB(LSA/B

POC PVBZ

POC PVBZ

PVBZ (POC)

PVB

A/B

350 bar [5076 psi]

420 bar [6090 psi]

125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

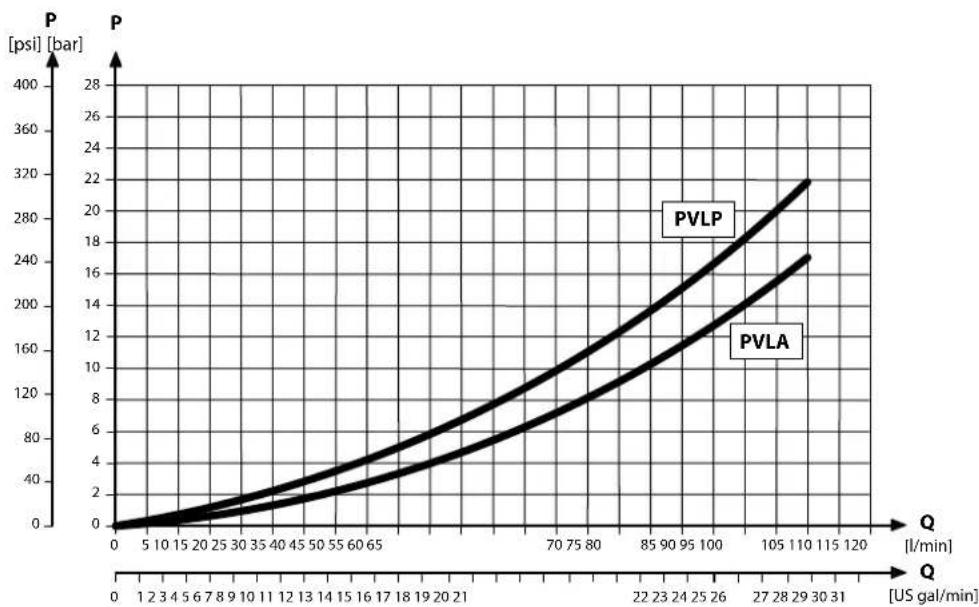

PVLP

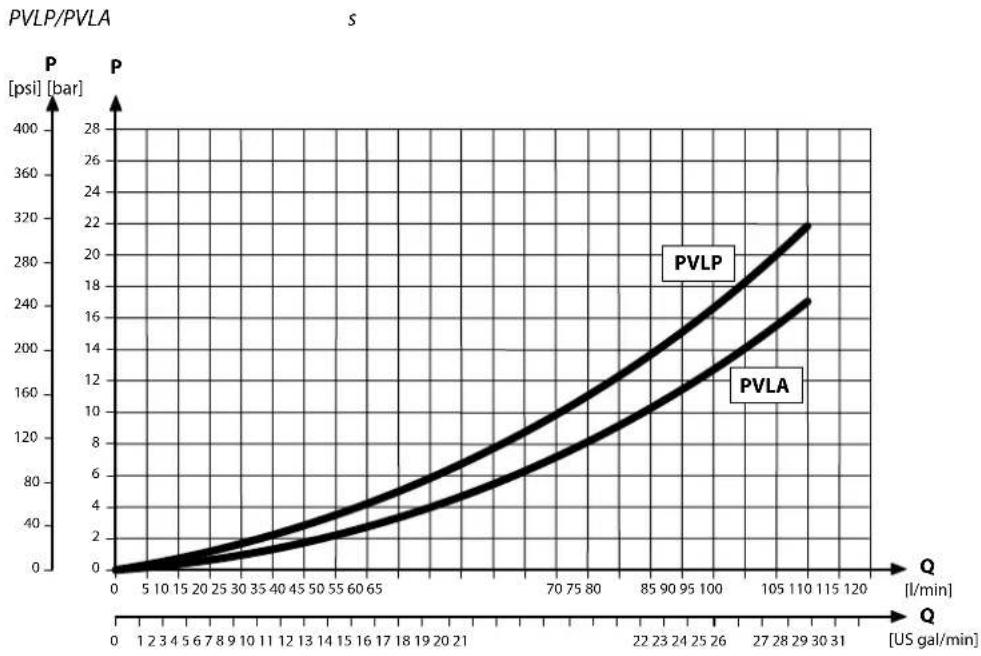

PVLP/PVLA

		PVLP/PVLA
157B6000	G1/2"	—	—	—
157B6010		—	—
157B6030			—	—
11071832				—
157B6400	7/8-14 UNF	—— ——
157B6410		—	—
157B6430			—	—

PVB

PVB

PVB

TO

350 bar [5076 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

PVLP/PVLA

		PVLP/PVLA
157B6100	G1/2"	—	—	—
157B6500	7/8-14 UNF	—	—	—
157B6110	G1/2"	—	—
157B6909	7/8-14 UNF	—	—
157B6130	G1/2"		—	—
157B6530	7/8-14 UNF		—	—
157B6140	G1/2"		—
157B6904	7/8-14 UNF		—
157B6136	G1/2"			—
157B6536	7/8-14 UNF			—

350 bar [5076 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

		POC
157B6051	G½"
157B6052
157B6451	7/8-14 UNF
157B6452
157B6969	1)

1）

PVB

PVB

		*
350 bar [5067 psi] 420 bar [6090 psi] 12	15 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

PVB

PVLP/PVLA

		PVLP/PVLA T0
157B6200	G1/2"	-	-
157B6210		-
157B6230			-
157B6240
157B6600	7/8-14 UNF	-	-
157B6922		-
157B6630			-
157B6906
157B6850	M22x1.5
157B6849	None*	-	-

PVB

PVB

		*
350 bar [5076 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

PVLP/PVLA

		PVLP/PVLA
157B6206	G1/2"	-
157B6236
11036629	7/8-14 UNF	-
11036630

LSA/B PVB

		*
350 bar [5076 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90°C [194°F]
	4 mm²/s [39 SUS]	2 SUS	460 mm²/s [2128 SUS]

PVLP

PVB

PVLP/PVLA

PVB-LSA/B

			PVLP/PVLA
157B6208	G1/2	G1/4	-
157B6238
11036631	7/8-14	1/2-20

A/B

LSAB PVB

A/B

A/B

LS PVB

LS TO PVB

		*
350 bar [5076 psi]	420 bar [6090 psi]	125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

PVLP/PVLA

LSA/B PVB

			PVLP/PVLA T0
157B6203	G1/2" G1/4"		-	-
157B6213			-
157B6233				-
157B6243
157B6603	7/8-14 UNF 1/2-20 UNF		-	-
157B6613			-
157B6633				-
157B6643

350 bar [5076 psi] 420 bar [6090 psi] 130 l/min [34 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]

PVLP

		PVLP/PVLA
11126962	7/8-14 UNF	—
157B6938			—
157B6852	G½"		—
157B6853		—	—

A/B

PVB (LS_A / B)

L S_A / B TO PVB

350 bar [5076 psi] 420 bar [6090 psi] 130 l/min [34 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

PVB

PVLP/PVLA
LSA/B PVB

		A/B	PVLP/PVLA	LSA/B
157B6855	G½" G¼"		—		—
11059838			—
157B6854					—
11126963	7/8-14 UNF ½-20 UNF	UNF	—
11126964

Features

A/B

250 bar [3625 psi] 420 bar [6090 psi] 100 l/min [26 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

		POC	\( {\mathrm{{LS}}}_{\mathrm{A}/\mathrm{B}} \)
157B6251	G1/2"		-	-
157B6252			-	-
157B6261			-
157B6262			-
157B6266
157B6652	7/8-14 UNF		-	-
157B6661			-
157B6662			-
157B6666
157B6954	M22x1.5 mm
157B6958	*
11157082	*	_____

PVBD

A/B

350 bar [5076 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVLP

250 bar [3625 psi] 420 bar [6090 psi] 125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

	POC
157B6958
11005475
11032961
157B6969	-

350 bar [5076]*	420 bar [6090]**	125 l/min [33 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

			T0
11166045	G1/2 BSP G1/4 BSP
11186267	7/8-14 UNF 1/2-20 UNF
11216266	G1/2 BSP G1/4 BSP -
11216270	7/8-14 UNF 1/2-20 UNF -

PVLP &
PVLA

PVLP
PVLP

PVLP/PVLA

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B2032	32 [464]	157B2210	210 [3045]
157B2050	50 [725]	157B2230	230 [3335]
157B2063	63 [913]	157B2240	240 [3480]
157B2080	80 [1160]	157B2250	250 [3626]
157B2100	100 [1450]	157B2265	265 [3844]
157B2125	125 [1813]	157B2280	280 [4061]
157B2140	140 [2031]	157B2300	300 [4351]
157B2150	150 [2176]	157B2320	320 [4641]
157B2160	160 [2321]	157B2350	350 [5076]
157B2175	175 [2538]	157B2380	380 [5511]
157B2190	190 [2756]	—

PVLA

PVLP/PVLA

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B2001	157B2002

PVSP/PVSPM

.

.

PVSP

PVSP

PVSPM

PVSPM

PVSP/PVSPM

	350 bar [5076 psi]
	160 l/min [42 US gal/min]
	60 l/min [12 US gal/min]
	100 l/min [26.4 US gal/min]

157B6708		G½" G1"		3.8 kg [8.38 lb]
157B6808		7/8-14 UNF 1 5/16-12 UNF
157B6728		G½" G1"
157B6828		7/8-14 UNF 1 5/16-12 UNF
157B6707		G½" G1"
157B6727
157B6709	PVSPM

PVSP/PVSPM

1. 1. 1. 1. 5.

3. 4.

157B7900	0.9 mm	1.2 mm	7 bar
157B7902		-
157B7904		1.2 mm 10 bar
157B7903	1.0 mm
157B7905		- 7 bar
\( 157B7950^* \)	0.035 in 0.047 in 101.5 psi

157B7901		1.2 mm	7 bar
\( 157B7951^* \)		0.047 in 101.5 psi

PVC

PVC

	80 l/min [21.1 US gal/min] 100 l/min [26.4 US gal/min]
	280 bar [4061 psi]
	12 VDC; 14 bar
	AMP JPT 2-pin

	157B1501 157B1503
	11027604 —
	M22 x 1.5 mm 7/8-14 UNF

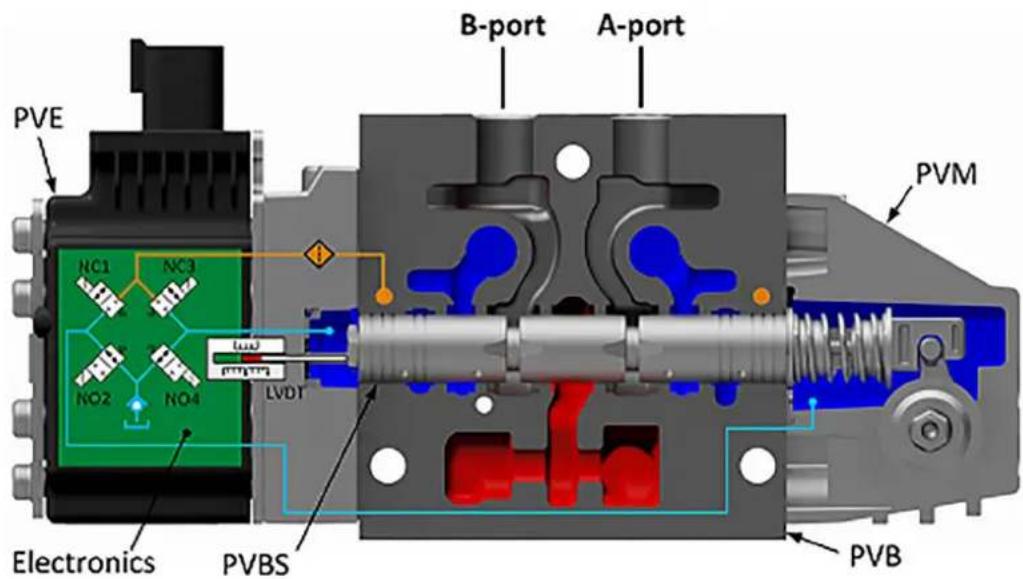

PVE Series 7

B

11189080		A
11189081		B

PVBS

PVBS

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

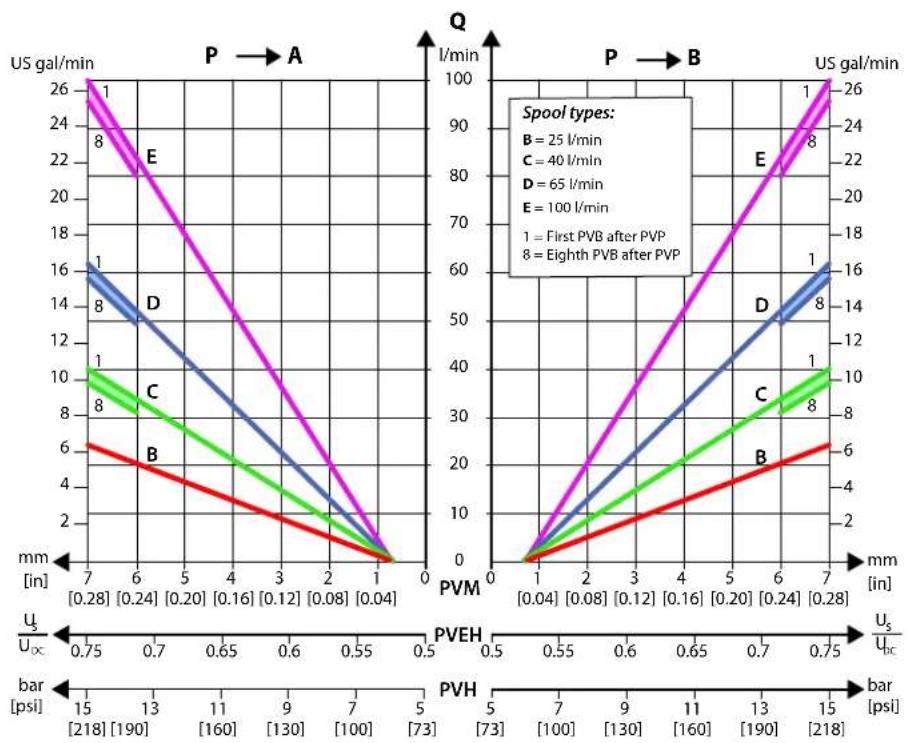

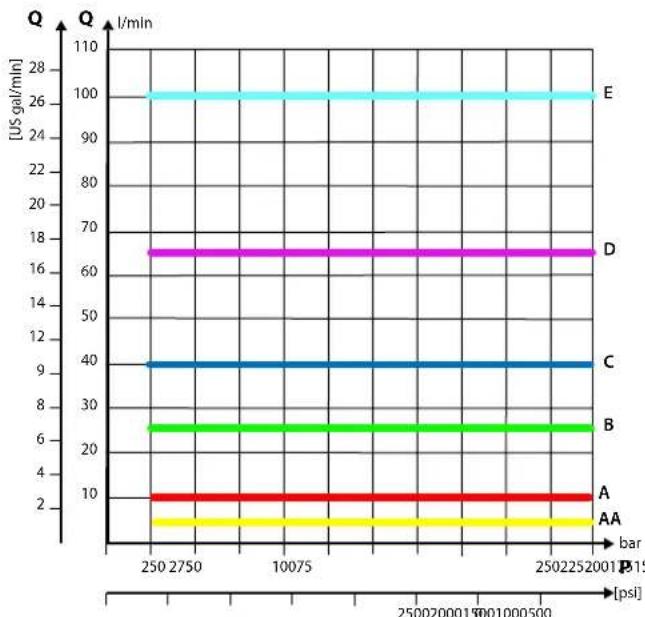

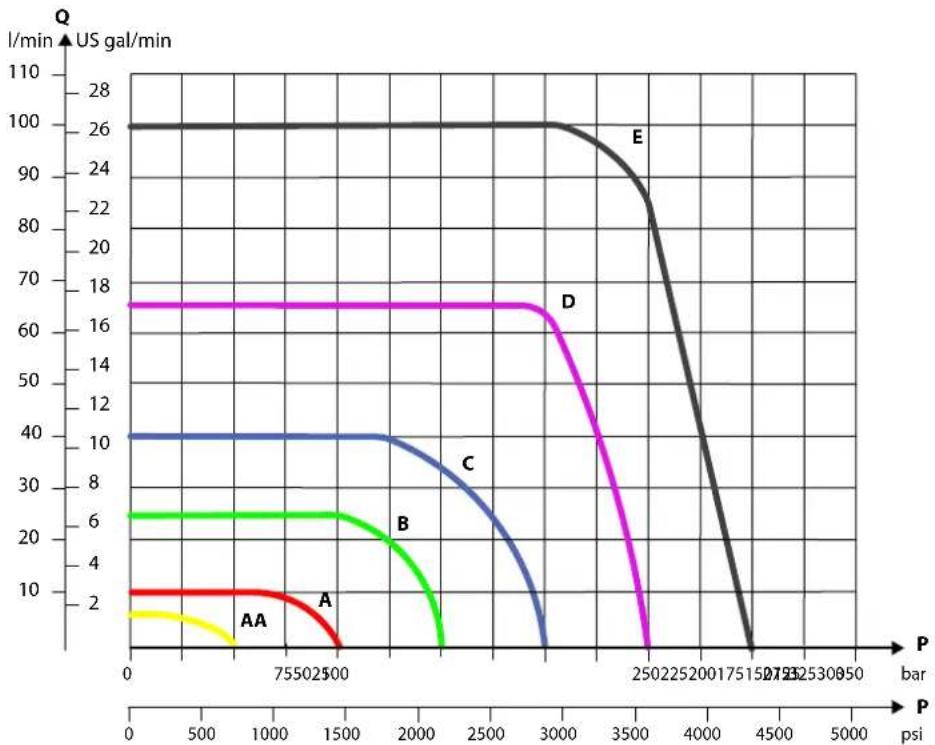

A
B

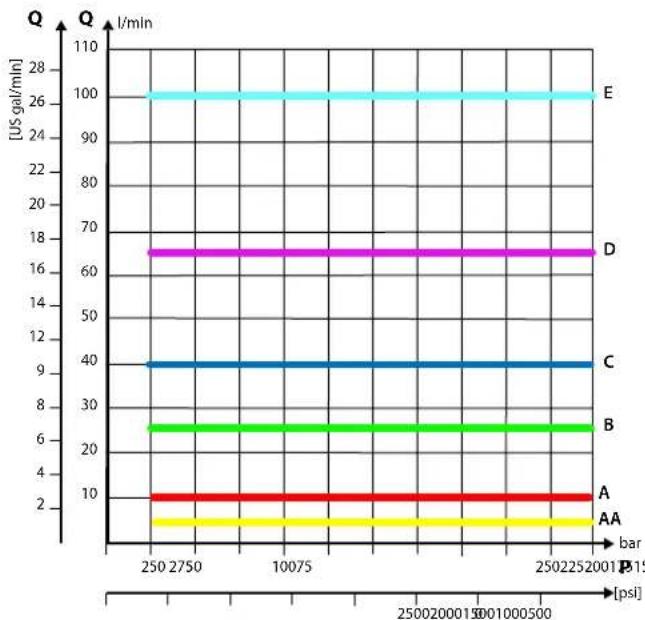

A 10 l/min [2.6 US gal/min]

B 25 l/min [6.6 US gal/min]

A/B: 100 bar [1450 psi]

C 40 l/min [10.6 US gal/min]

D 65 l/min [17.2 US gal/min]

A/B: 125 bar [1810 psi]

E 100 l/min [26.4 US gal/min]

		PVB
157B9672	PVE - 1 [0,26] 1 [0,26]	1 [0,26] 1 [0,26]
157B7005	PVE - 5 [1,3] 5 [1,3] 5	1,3] 5 [1,3]
157B9543	PVE - 10 [2,6] 5 [1,3] 5	[1,3] 10 [2,6]
157B7000	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9509	PVE - 15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]
157B7001	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7002	PVE - 40 [10,6] 40 [10,6]	6] 40 [10,6] 40 [10,6]
157B7003	PVE - 65 [17,2] 65 [17,2]	2] 65 [17,2] 65 [17,2]
157B9920	PVE - 75 [19,8] 75 [19,8]	8] 75 [19,8] 130 [34,3]
157B7004	PVE - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]
157B9977	PVE - 100 [26,4] 100	[26,4] 100 [26,4] 130 [34,3]
157B9674	PVE - 130 [34,3] 100	[26,4] 100 [26,4] 100 [26,4]
157B9503	PVE -		1)	100 [26,4] 100	[26,4] 100 [26,4]
157B70062)	PVE - 130 [34,3] 130	[34,3] 130 [34,3] 130 [34,3]
11137391	PVE		1 [0,26] 1 [0,26]	1 [0,26] 1 [0,26]
157B7025	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B7020	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
11225588	PVE		15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]
157B7021	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7022	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7023	PVE		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
11212900	PVE		80 [21.1] 80 [21.1]	80 [21.1] 80 [21.1]
157B7024	PVE		100 [26,4] 100	[26,4] 100 [26,4]
157B7026	PVE		130 [34,3] 130	[34,3] 130 [34,3]
157B9005	PVH/PVHC - 5 [1,3] 5	[1,3] 5 [1,3] 5 [1,3]
157B9000	PVH/PVHC - 10 [2,6]	10 [2,6] 10 [2,6] 10 [2,6]
11225674	PVH/PVHC - 15 [4,0]	5 [4,0] 15 [4,0] 15 [4,0]
157B9001	PVH/PVHC - 25 [6,6]	25 [6,6] 25 [6,6] 25 [6,6]
157B9002	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9003	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
157B9004	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
157B90062)	PVH/PVHC - 130 [34,3]	130 [34,3] 130 [34,3] 130 [34,3]
157B9025	PVH/PVHC		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9020	PVH/PVHC		10 [2,6] 10 [2,6]	10 [2,6] 10	[2,6]
11122055	PVH/PVHC		15 [4,0] 15 [4,0]	15 [4,0] 15	[4,0]
157B9021	PVH/PVHC		25 [6,6] 25 [6,6]	25 [6,6] 25	[6,6]
157B9022	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B9023	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
157B9024	PVH/PVHC		100 [26,4] 100 [26,4]	100 [26,4] 100	[26,4] 100 [26,4]
\( 157B9026^{2)} \)	PVH/PVHC		130 [34,3] 130 [34,3]	130 [34,3] 130	[34,3] 130 [34,3]

1)
2)

		PVB
157B9524	PVE - 5 [1,3] 5 [1,3] 10	[2,6] 10 [2,6]
11004213	PVE - 5 [1,3] 5 [1,3] 65	[17,2] 65 [17,2]
157B9092	PVE - 10 [2,6] 10 [2,6]	5 [1,3] 5 [1,3]
157B9514	PVE - 10 [2,6] 10 [2,6]	15 [4,0] 15 [4,0]
157B9579	PVE - 10 [2,6] 10 [2,6]	65 [17,2] 65 [17,2]
11129526	PVE - 65 [17,2] 10 [2,6]	65 [17,2] 65 [17,2]
157B9856	PVE - 15 [4,0] 15 [4,0]	10 [2,6] 10 [2,6]
157B9516	PVE - 15 [4,0] 15 [4,0]	10 [2,6] 10 [2,6]
11137748	PVE - 20 [5,3] 20 [5,3]	15 [4,0] 15 [4,0]
157B9515	PVE - 20 [5,3] 20 [5,3]	25 [6,6] 25 [6,6]
11130056	PVE - 25 [6,6] 25 [6,6]	15 [4,0] 15 [4,0]
157B9975	PVE - 100 [26,4] 25 [6,6]	100 [26,4] 100 [26,4]
11119792	PVE - 40 [10,6] 40 [10,6]	25 [6,6] 25 [6,6]
11022810	PVE - 65 [17,2] 65 [17,2]	40 [10,6] 40 [10,6]
157B9566	PVE - 65 [17,2] 65 [17,2]	10 [2,6] 10 [2,6]
11119557	PVE - 75 [19,8] 75 [19,8]	65 [17,2] 65 [17,2]
157B9947	PVE		5 [1,3] 5 [1,3]	25 [6,6] 25 [6,6]
157B9555	PVE		7 [1,8] 7 [1,8]	10 [2,6] 10 [2,6]
11212898	PVE		10 [2,6] 10 [2,6]	5 [1,3] 5 [1,3]
157B9915	PVE		15 [4,0] 15 [4,0]	35 [9,2] 35 [9,2]
11088763	PVE		25 [6,6] 25 [6,6]	40 [10,6] 40 [10,6]
11078499	PVE		40 [10,6] 25 [6,6]	40 [10,6] 40 [10,6]
157B9810	PVE		30 [7,9] 30 [7,9]	20 [5,3] 20 [5,3]
11015763	PVE		40 [10,6] 40 [10,6]	25 [6,6] 25 [6,6]

1)

		PVB
11015765	PVE		40 [10,6] 40 [10,6] 65 [17,2] 65 [17,2]
157B9907	PVE		50 [13,2] 50 [13,2] 5 [1,3] 5 [1,3]
157B9828	PVE		65 [17,2] 65 [17,2] 40 [10,6] 40 [10,6]
11021888	PVE		65 [17,2] 65 [17,2] 40 [10,6] 65 [17,2]
11036502	PVE		100 [26,4] 100 [26,4] 65 [17,2] 2] 65 [17,2]
157B98571)	PVE		130 [34,3] 130 [34,3] 65 [17,2] 2] 65 [17,2]
11119552	PVH/PVHC - 15 [4,0]	15 [4,0] 10 [2,6] 10 [2,6]
11066371	PVH/PVHC - 20 [5,3]	20 [5,3] 15 [4,0] 15 [4,0]
11130928	PVH/PVHC - 25 [6,6]	25 [6,6] 15 [4,0] 15 [4,0]
11130924	PVH/PVHC - 40 [10,6]	40 [10,6] 25 [6,6] 25 [6,6]
11130831	PVH/PVHC - 75 [19,8]	75 [19,8] 65 [17,2] 65 [17,2]
11219179	PVH/PVHC		40 [10,6] 40 [10,6] 25 [6,6] 25 [6,6]
157B9091	PVH/PVHC		5 [1,3] 5 [1,3] 50 [13,2] 50 [13,2]
11305766	PVH/PVHC		5 [1,3] 5 [1,3] 65 [17,2] 65 [17,2]
11248801	PVH/PVHC		25 [6,6] 25 [6,6] 10 [2,6] 10 [2,6]
11263817	PVH/PVHC		40 [10,6] 40 [10,6] 65 [17,2] 65 [17,2]
11239804	PVH/PVHC		65 [17,2] 65 [7,2] 40 [10,6] 40 [10,6]
11188062	PVH/PVHC		100 [26,4] 100 [26,4] 40 [10,6] 6] 40 [10,6]
11288253	PVH/PVHC		100 [26,4] 100 [26,4] 65 [17,2] 2] 65 [17,2]
11123224	PVH/PVHC		130 [34,3] 130 [34,3] 65 [17,2] 2] 65 [17,2]
157B9084	PVH/PVHC		50 [13,2] 50 [13,2] 5 [1,3] 5 [1,3]

		PVB
11084778	PVE - 2 [0,53] 10	[2,6] 10 [2,6] 5 [1,3]
11104114	PVE - 3 [0,79] 10	[2,6] 15 [4,0] 5 [1,3]
11075794	PVE - 5 [1,3] 10	[2,6] 5 [1,3] 10 [2,6]
11098883	PVE - 5 [1,3] 10	[2,6] 10 [2,6] 2 [0,53]
11104452	PVE - 5 [1,3] 15	[4,0] 10 [2,6] 3 [0,79]
157B9633	PVE - 5 [1,3] 25	[6,6] 25 [6,6] 5 [1,3]
11098881	PVE - 5 [1,3] 25	[6,6] 25 [6,6] 25 [6,6]
11126414	PVE - 10 [2,6] 25	[6,6] 25 [6,6] 25 [6,6]
11129522	PVE - 10 [2,6] 25	[6,6] 50 [13,2] 25	[6,6]
157B9952	PVE - 25 [6,6] 38	[10,0] 38 [10,0] 25	[6,6]
157B9635	PVE - 10 [2,6] 40	[10,6] 40 [10,6] 25	[6,6]
11129523	PVE - 10 [2,6] 40	[10,6] 50 [13,2] 40	[10,6]
157B9638	PVE - 25 [6,6] 40	[10,6] 40 [10,6] 25	[6,6]
157B9818	PVE - 40 [10,6] 55	[14,5] 55 [14,5] 40	[10,6]
157B9634	PVE - 25 [6,6] 65	[17,2] 65 [17,2] 25	[6,6]
11124636	PVE - 40 [10,6] 65	[17,2] 65 [17,2] 40	[10,6]
157B9931	PVE - 40 [10,6] 65	[17,2] 65 [17,2] 65	[17,2]
157B9551	PVE - 65 [17,2] 65	[17,2] 65 [17,2] 10	[2,6]
157B9978	PVE - 100 [26,4] 65	[17,2] 100 [26,4] 40	[10,6]
157B9541	PVE - 40 [10,6] 100	[26,4] 65 [17,2]				x
11129528	PVE		5 [1,3] 15 [4,0] 20	[5,3] 10 [2,6]
157B9827	PVE		10 [2,6] 20 [5,3]	20 [5,3] 10 [2,6]
157B9863	PVE		5 [1,3] 25 [6,6] 25	[6,6] 5 [1,3]
11100489	PVE		5 [1,3] 25 [6,6] 40	[10,6] 20 [5,3]
157B9946	PVE		25 [6,6] 25 [6,6]	10 [2,6] 10 [2,6]
157B9858	PVE		10 [2,6] 40 [10,6]	40 [10,6] 10 [2,6]
157B9639	PVE		25 [6,6] 40 [10,6]	40 [10,6] 25 [6,6]
157B9906	PVE		30 [7,9] 40 [10,6]	15 [4,0] 20 [5,3]
157B9632	PVE		25 [6,6] 65 [17,2]	65 [17,2] 25 [6,6]
157B9640	PVE		40 [10,6] 100 [26,4]	100 [26,4] 100	[26,4]
157B9839	PVH/PVHC - 5 [1,3]	25 [6,6] 25 [6,6]	5 [1,3]
11104487	PVH/PVHC - 5 [1,3]	25 [6,6] 25 [6,6]	25 [6,6]
11111729	PVH/PVHC - 25 [6,6]	40 [10,6] 40	[0,6] 25 [6,6]
11234469	PVH/PVHC - 65 [17,2]	65 [17,2] 65	[17,2] 10 [2,6]
11218880	PVH/PVHC		5 [1,3] 25 [6,6] 25	[6,6] 5 [1,3]
11119474	PVH/PVHC		25 [6,6] 40 [10,6]	40 [10,6] 25 [6,6]

		PVB
11088178	PVE	-	65 [17,2]	65 [17,2]	65 [17,2]	65 [17,2]
11076336	PVE	-	100 [26,4]	100 [26,4]	100 [26,4]	100 [26,4]
11088177	PVE		100 [26,4]	100 [26,4]	100 [26,4]	100 [26,4]
11247367	PVH/PVHC	- 25 [6,6]	25 [6,6]	25 [6,6]
11212762	PVH/PVHC	-	40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]
11254993	PVH/PVHC	-	100 [26,4]	100 [26,4]	100 [26,4]	100 [26,4]
11314101	PVH/PVHC		25 [6,6]	25 [6,6]	25 [6,6]
11079716	PVH/PVHC		75 [19,8] 75 [19,8] 75 [19,8] 75 [19,8]
11314142	PVH/PVHC		90 [23,8] 90 [23,8] 90 [23,8] 90 [23,8]

PVBS

		PVB
11251672 PVE			10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
11251668 PVE			25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
11177587 PVE			65 [17,2] 65 [17,2] 65 [17,2]

		PVB
110202931	PVE		*	100 [26,4] 65 [17,2]		*

PVBS

		PVB
11324302	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B7620	PVE		10 [2,6]	10 [2,6]	10 [2,6]	10 [2,6]
157B7621	PVE		25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]
157B7622	PVE		40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]
157B7623	PVE		65 [17,2]	65 [17,2]	65 [17,2]	65 [17,2]
\( 157B7624^1 \)	PVE		100 [26,4]	100 [26,4]	100 [26,4]	100 [26,4]
\( 157B9941^1 \)	PVE		130 [34,3]	130 [34,3]	130 [34,3]	130 [34,3]
157B9620	PVH/PVHC		10 [2,6] 10 [2]	6] 10 [2,6] 10	[2,6]
157B9636	PVH/PVHC		25 [6,6] 25 [6]	6] 25 [6,6] 25	[6,6]
11051805	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
110855011	PVH/PVHC		100 [26,4] 100	[26,4] 100 [26,4]	100 [26,4]

		PVB
157B9911	PVE		30 [7,9] 30 [7,9] 65 [17,2] 65	[17,2]
11229294	PVE		40 [10,6] 40 [10,6] 25 [6,6] 2$	[6,6]
157B95181	PVE		100 [26,4]	100 [26,4]	65 [17,2] 100	[26,4]

		PVB
11129529	PVE		3 [0,8]	10 [2,6]	13 [3,4]	5 [1,3]
157B9691	PVE		15 [4,0]	30 [7,9]	30 [7,9]	15 [4,0]
157B9692	PVE		25 [6,6]	50 [13,2]	65 [17,2]	65 [17,2]
157B9691	PVH/PVHC		15 [4,0]	30 [7,9]	30 [7,9]	15 [4,0]
157B9692	PVH/PVHC		25 [6,6]	50 [13,2]	65 [17,2]	65 [17,2]

		PVB
11145382	PVH/PVHC		150 [39,6]	110 [29,1]	75 [19,8]	70 [18,5]
11196283	PVH/PVHC		100 [26,4]	125 [33] 85 [22,5]	70 [18,5]

		PVB
157B9825	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9820	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10	[2,6]
157B9821	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25	[6,6]
157B9822	PVE		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B9823	PVE		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
\( 157B9824^{1)} \)	PVE		100 [26,4] 100	[26,4] 100 [26,4]	100 [26,4]

1)

PVBS

157B9621	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9622	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9623	PVE		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
\( 157B9624^1 \)	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]

\( 157B9517^1 \)	PVE		\( 100[26,4]100[26,4]65[17,2]65[17,2] \)

		PVB
157B9705	PVMR - 5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9700	PVMR - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
11095634	PVMR - 15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]
157B9701	PVMR - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9702	PVMR - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9703	PVMR - 65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
157B9704	PVMR - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]
157B9725	PVMR		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9720	PVMR		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9721	PVMR		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9722	PVMR		40 [10,6] 40 [10,6]	40 [10,6]
157B9723	PVMR		65 [17,2] 65 [17,2]	65 [17,2]
157B9724	PVMR		100 [26,4] 100	[26,4] 100 [26,4]

		PVB
11100878	PVE		35 [9,2] 35 [9,2] 35 [9,2] 35 [9,2]
11027254	PVE		75 [19,8] 75 [19,8] 75 [19,8]
157B9652	PVE -	25 [6,6] 25 [6,6] 25	[6,6] 25 [6,6]
157B9653	PVE -	40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9654	PVE -	65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
10030501	PVE		10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9698	PVE		15 [4,0] 15 [4,0] 10 [2,6] 10	[2,6]
11055532	PVE		35 [9,2] 35 [9,2] 65 [17,2] 65	[17,2]
11025812	PVE		50 [13,2] 50 [13,2] 75 [19,8]	75 [19,8]
11025212	PVE		18 [4,8] 18 [4,8] 35 [9,2] 35	[9,2]
11025161	PVE		50 [13,2] 50 [13,2] 25 [6,6]	25 [6,6]
11157400	PVE		65 [17,2] 65 [17,2] 25 [6,6]	25 [6,6]
11166644*	PVH/PVHC		50 [13,2] 50 [13,2] 25 [6,6]	25 [6,6]

		PVB
11094317	PVE		2,5 [0,65] 5 [1,3] 5 [1,3] 2,5			[0,65]
11051992	PVE		5 [1,3] 18 [4,8] 18 [4,8] 5 [1,3]
11027284	PVE		6 [1,6] 25 [6,6] 25 [6,6] 6 [1,6]
11117573	PVE		25 [6,6] 35 [9,2] 65 [17,2] 65 [17,2]
11025212	PVE		35 [9,2] 35 [9,2] 18 [4,8] 12			[3,2]
11137744	PVE		35 [9,2] 50 [1,3,2] 75 [19,8]			[75 [19,8]
11027911	PVE		65 [17,2] 65 [17,2] 35 [9,2]			[25 [6,6]
11027922	PVE		75 [19,8] 75 [19,8] 50 [13,2]			[35 [9,2]

		PVB
157B9697	PVE - 1 [0,26] 1 [0,26]	1 [0,26] 1 [0,26]
157B7105	PVE - 5 [1,3] 5 [1,3] 5	[1,3] 5 [1,3]
157B7100	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7101	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9534	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 40 [6,6]
157B7102	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9537	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 65 [10,6]
11091340*	PVE -		1)	40 [10,6] 40 [10,6]		1)
157B9521	PVE -		1)	40 [10,6] 40 [10,6]		1)
157B9677*	PVE - 50 [13,2] 50 [13,2]	50 [13,2] 50 [13,2]
157B7103	PVE - 65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
11007176*	PVE -		1)	65 [17,2] 65 [17,2]		1)
11122809	PVE - 75 [19,8] 75 [19,8]	75 [19,8] 75 [19,8]
157B7104	PVE - 100 [26,4] 100	26,4] 100 [26,4] 100 [26,4]
11144269	PVE - 100 [26,4] 100	26,4] 100 [26,4]				1)
157B71063)	PVE - 130 [34,3] 130	34,3] 130 [34,3] 130 [34,3]
157B9675	PVE		3 [0,8] 3 [0,8]	3 [0,8] 3 [0,8]
157B7125	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B7120	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9647	PVE		15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]
157B9594	PVE		20 [5,3] 20 [5,3]	20 [5,3] 20 [5,3]
157B7121	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
11153790*	PVE		1)	25 [6,6] 25 [6,6]		1)
157B7122	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9538	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
11121691	PVE		65 [17,2] 40 [10,6]	40 [10,6] 40 [10,6]
11108808	PVE		100 [26,4] 40 [10,6]	40 [10,6] 40 [10,6]
157B9649	PVE		55 [14,5] 55 [14,5]	55 [14,5] 55 [14,5]
157B7123	PVE		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
157B9650	PVE		75 [19,8] 75 [19,8]	75 [19,8] 75 [19,8]
11217660*	PVE		*	90 90		*
157B7124	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]
11122118*	PVE		1)	100 [26,4] 100	[26,4]	1)
157B71263)	PVE		130 [34,3] 130	[34,3] 130	[34,3] 130	[34,3]
157B98543)	PVE		130 [34,3] 130	[34,3] 130	[34,3]	1)
157B9105	PVH/PVHC - 5 [1,3] 5	[1,3] 5 [1,3] 5 [1,3]
157B9100	PVH/PVHC - 10 [2,6]	10 [2,6] 10 [2,6] 10 [2,6]
157B9101	PVH/PVHC - 25 [6,6]	25 [6,6] 25 [6,6] 25 [6,6]
157B9102	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9103	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
157B9104	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
157B91063)	PVH/PVHC - 130 [34,3]	130 [34,3] 130 [34,3] 130 [34,3]
157B9125	PVH/PVHC		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9120	PVH/PVHC		10 [2,6] 10 [2,6]	10 [2,6] 10	[2,6]
157B9121	PVH/PVHC		25 [6,6] 25 [6,6]	25 [6,6] 25	[6,6]
157B9122	PVH/PVHC		40 [10,6] 40 [	10,6] 40	[10,6]
157B9123	PVH/PVHC		65 [17,2] 65 [	7,2] 65	[17,2]
157B9124	PVH/PVHC		100 [26,4] 100	[26,4] 100	[26,4] 100	[26,4]
157B91263)	PVH/PVHC		130 [34,3] 130	[34,3] 130	[34,3] 130	[34,3]

1)
3)

		PVB
11004389	PVE - 5 [1,3] 5 [1,3] 65	[17,2] 65 [17,2]
157B9094	PVE	-	15 [4,0]	15 [4,0]	30 [7,9]	30 [7,9]
11217665	PVE	-	25 [6,6]	25 [6,6]	100 [26,4]	100 [26,4]
157B9815	PVE	-	30 [7,9]	30 [7,9]	20 [5,3]	20 [5,3]
11093116	PVE	-	40 [10,6]	40 [10,6]	20 [5,3]	20 [5,3]
11005204	PVE	-	40 [10,6]	40 [10,6]	65 [17,2]	65 [17,2]
157B9595	PVE	-	40 [10,6]	40 [10,6]	100 [26,4]	100 [26,4]
157B9860	PVE	-	50 [13,2]	50 [13,2]	20 [5,3]	20 [5,3]
11091575	PVE	-	55 [14,5]	55 [14,5]	30 [7,9]	30 [7,9]
157B9696	PVE	-	65 [17,2]	65 [17,2]	10 [2,6]	10 [2,6]
157B9506	PVE	-	65 [17,2]	65 [17,2]	40 [10,6]	40 [10,6]
157B9586	PVE	-	65 [17,2]	65 [17,2]	100 [26,4]	100 [26,4]
11137895*	PVE -		*	65 [17,2]	40 [10,6]	*
11122941	PVE		15 [4,0]	15 [4,0]	100 [26,4]	100 [26,4]
157B9830	PVE		25 [6,6] 25 [6,6] 40 [10,6]		40 [10,6]
157B9558	PVE		30 [7,9] 30 [7,9] 10 [2,6] 10 [2,6]
157B9833	PVE		30 [7,9] 30 [7,9] 20 [5,3] 20 [5,3]
157B9813	PVE		30 [7,9] 30 [7,9] 55 [14,5] 55 [14,5]
11100875*	PVE		*		35 [9,2] 18 [4,8]	*
11100881*	PVE		*		35 [9,2] 50 [13,2]	*
157B9567	PVE		40 [10,6] 40 [10,6] 20 [5,3]		20 [5,3]
157B9865	PVE		40 [10,6] 40 [10,6] 25 [6,6]		25 [6,6]
11125125	PVE		40 [10,6] 40 [10,6] 65 [17,2]		65 [17,2]
157B9505	PVE		40 [10,6] 40 [10,6] 100 [26,4] 100 [26,4]
11096423	PVE		50 [13,2] 50 [13,2] 65 [17,2]		65 [17,2]
157B9681	PVE		55 [14,5] 55 [14,5] 30 [7,9]		30 [7,9]
157B9814	PVE		65 [17,2] 65 [17,2] 40 [10,6]		40 [10,6]
11217660*	PVE		*		80 [21,1] 80 [21,1]	*
11202615	PVH/PVHC - 25 [6,6] 25 [6,6] 25 [6,6] 40 [10,6]
157B9847	PVH/PVHC - 30 [7,9] 30 [7,9] 20 [5,3] 20 [5,3]
157B9546	PVH/PVHC - 40 [10,6] 25 [6,6] 20 [5,3] 40 [10,6]
157B9686	PVH/PVHC - 40 [10,6] 30 [7,9] 25 [6,6] 40 [10,6]
157B9685	PVH/PVHC - 40 [10,6] 40 [10,6] 35 [9,2] 40 [10,6]
157B9498	PVH/PVHC - 65 [17,2] 65 [17,2] 40 [10,6]
11140120*	PVH/PVHC -		*		65 [17,2] 65 [17,2]	*
11165855	PVH/PVHC		5 [1,3] 5 [1,3]		3 [0,8] 3 [0,8]
11165919	PVH/PVHC		20 [5,3] 20 [5,3] 15 [4] 15 [4]
11272759	PVH/PVHC		25 [6,6] 25 [6,6] 10 [2,6] 10 [2,6]
11235870	PVH/PVHC		25 [6,6] 25 [6,6] 15 [4] 15 [4]
11200936	PVH/PVHC		40 [10,6] 40 [10,6] 25 [6,6]		25 [6,6]
11092123	PVH/PVHC		40 [10,6] 40 [10,6] 100 [26,4] 100 [26,4]
11200922	PVH/PVHC		65 [17,2] 65 [17,2] 40 [10,6]		40 [10,6]
11153474	PVH/PVHC		80 [21,1] 80 [21,1] 65 [17,2]		65 [17,2]

		PVB
11074918	PVE	-	5 [1,3] 10 [2,6] 5 [1,3] 10 [2,6]
11006879	PVE	-	25 [6,6] 25 [6,6] 65 [17,2] 25 [6,6]
11097891	PVE		40 [10,6] 100 [26,4] 40 [10,6] 40 [10,6]
157B9803	PVE - 65 [17,2] 65 [17]	2] 65 [17,2] 65 [17,2]
11122774	PVE - 90 [23,8] 90 [23]	8] 90 [23,8] 90 [23,8]
157B9802	PVE - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]

		PVB
157B9715	PVMR - 5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9710	PVMR - 10 [2,6] 10 [2]	6] 10 [2,6] 10 [2,6]
157B9711	PVMR - 25 [6,6] 25 [6]	6] 25 [6,6] 25 [6,6]
157B9712	PVMR - 40 [10,6] 40	[10,6] 40 [10,6] 40 [10,6]
157B9678	PVMR - 50 [13,2] 50	[13,2] 50 [13,2] 50 [13,2]
157B9713	PVMR - 65 [17,2] 65	[17,2] 65 [17,2] 65 [17,2]
11128430	PVMR - 80 [21,1] 80	[21,1] 80 [21,1] 80 [21,1]
157B9714	PVMR - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]
\( 157B9716^{1)} \)	PVMR - 130 [34,3] 130	[34,3] 130 [34,3] 130 [34,3]
157B9735	PVMR		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9730	PVMR		10 [2,6] 10 [2]	6] 10 [2,6] 10	[2,6]
157B9731	PVMR		25 [6,6] 25 [6]	6] 25 [6,6] 25	[6,6]
157B9732	PVMR		40 [10,6] 40	[10,6] 40 [10,6]	40 [10,6]
157B9733	PVMR		65 [17,2] 65	[17,2] 65 [17,2]	65 [17,2]
157B9734	PVMR		100 [26,4] 100	[26,4] 100 [26,4]	6,4] 100 [26,4]

1）

		PVB
11107125	PVMR - 5 [1,3] 5 [1,3]	65 [17,2] 65 [17,2]
11119504	PVMR	-	40 [10,6]	40 [10,6]	65 [17,2]	65 [17,2]
11071543	PVMR		30 [7,9]	30 [7,9]	10 [2,6]	10 [2,6]

		PVB
157B9504	PVE - 15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]
157B7401	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7402	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7403	PVE - 65 [17,2] 65 [17,2]	25 [65] 17,2] 65 [17,2]
157B7404	PVE - 100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
\( 157\text{B}7\text{A} 406^{1)} \)	PVE - 130 [34,3] 130 [34,3]	130 [34,3] 130 [34,3]	130 [34,3]
157B9846	PVE -		2)	130 [34,3] 130 [34,3]	130 [34,3] 130 [34,3]
157B9527	PVE		15 [4,0] 15 [4,0]	15 [4,0] 15 [4,0]	15 [4,0]
157B7421	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
157B7422	PVE		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B7423	PVE		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
157B7424	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
157B9085	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
11150180	PVH/PVHC		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]

1）

2)

		PVB
11022518	PVE		25 [6,6]	25 [6,6]	40 [10,6]	40 [10,6]
157B9834	PVE		30 [7,9]	30 [7,9]	20 [5,3]	20 [5,3]
11202228	PVE	-	100 [26,4]	100 [26,4]	50 [13,2]	100 [26,4]
11201797	PVE		150 [39,6]	150 [39,6]	100 [26,4]	100 [26,4]

		PVB
157B7500	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7501	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7502	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7503	PVE - 65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
157B7504	PVE - 100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
157B7520	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]	10 [2,6]
157B7521	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
157B7522	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]	40 [10,6]
157B7523	PVE		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]	65 [17,2]
157B7524	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
11202731	PVH/PVHC		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
11238938	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]	40 [10,6]
11305187	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]	65 [17,2]
11168334	PVH/PVHC		75 [19,8] 75 [19,8]	75 [19,8] 75 [19,8]	75 [19,8]

		PVB
157B9948	PVE		25 [6,6] 25 [6,6]	10 [2,6] 10	2,6]
11008038	PVE		40 [10,6] 40 [10,6]	25 [6,6]	25 [6,6]
11037198	PVE		100 [26,4]	40 [10,6] 40	10,6] 40	10,6]
11126490	PVE		65 [17,2] 65 [17,2]	40 [10,6]	40 [10,6]

		PVB
11131447	PVE	-	10 [2.6]	10 [2.6]	10 [2.6]	10 [2.6]
157B9698	PVE		15 [4,0] 15 [4,0]	10 [2.6] 10 [2.6]

157B9194	PVE-65[17,2]	65[17,2]	65[17,2]

		PVB
157B9750	PVE - 10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9751	PVE - 25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
157B9752	PVE - 40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B9753	PVE - 65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]
157B9754	PVE - 100 [26,4] 100 [26,4] 100 [26,4]
157B9770	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9771	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9772	PVE		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9773	PVE		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
157B9655	PVE		85 [22,5] 85 [22,5]	85 [22,5] 85 [22,5]
157B9774	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]
11198094	PVH/PVHC - 25 [6] 25 [6,6] 25 [6,6]
11239803	PVH/PVHC - 65 [17,2] 65 [17,2] 65
11051903	PVH/PVHC - 100 [26,4] 100 [26,4]
11234468	PVH/PVHC - 130 [34,3] 130 [34,3]
11107159	PVH/PVHC		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
11107222	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B9080	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
11234474	PVH/PVHC		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]
11286861	PVH/PVHC		120 [31,7] 120 [31,7]	120 [31,7] 120 [31,7]

		PVB
157B9578	PVE - 15 [4] 15 [4] 25 [6,6]	25 [6,6]
11020734	PVE -		1)	65 [17,2]	40 [10,6]	1)
11059283	PVE	-	85 [22,5]	85 [22,5]	65 [17,2]	65 [17,2]
11192746	PVE		3 [0,8] 3 [0,8]	10 [2,6]	10 [2,6]

12

		PVB
157B9838	PVE - 15 [4] 50 [13,2] 65 [17,2] 50 [13,2]
157B9914	PVE - 25 [6,6] 65 [17,2] 100 [26,4] 50 [13,2]
11158758	PVE		15 [4] 40 [10,6]	65 [17,2] 15 [4]
11151485	PVE		30 [7,9] 85 [22,5]	110 [29,1] 35 [9,2]
11158757	PVE		20 [5,3] 85 [22,5]	110 [29,1] 40 [10,6]

		PVB
157B9680	PVML - 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]
157B9587	PVML - 130 [34,3]	130 [34,3] 130 [34,3]	130 [34,3] 130 [34,3]

		PVB
11147577	PVE - 5 [1,3] 5 [1,3] 5	1,3] 5 [1,3]
157B9760	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9761	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9762	PVE - 40 [10,6] 40 [10]	6] 40 [10,6] 40 [10,6]
11122703	PVE - 55 [14,5] 55 [14]	5] 55 [14,5] 55 [14,5]
157B9763	PVE - 65 [17,2] 65 [17]	2] 65 [17,2] 65 [17,2]
11143980	PVE - 85 [22,5] 85 [22]	5] 85 [22,5] 85 [22,5]
157B9764	PVE - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]
157B9099	PVE - 120 [31,7] 120	[31,7] 120 [31,7] 120 [31,7]
157B9098	PVE - 130 [34,3] 130	[34,3] 130 [34,3] 130 [34,3]
11140460	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9780	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9781	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9782	PVE		40 [10,6] 40 [10,6]	40 [10,6]
11076654	PVE		50 [13,2] 50 [13,2]	50 [13,2]
157B9783	PVE		65 [17,2] 65 [17,2]	65 [17,2]
11161786	PVE		80 [21,1] 80 [21,1]	80 [21,1]
157B9784	PVE		100 [26,4] 100	[26,4] 100 [26,4]
11142634	PVE		130 [34,3] 130	[34,3] 130 [34,3]
11173684*	PVE		130 [34,3] 130	[34,3] 130 [34,3]
157B9807	PVH/PVHC - 10 [2,6]	10 [2,6] 10 [2,6] 10 [2,6]
157B9805	PVH/PVHC - 25 [6,6]	25 [6,6] 25 [6,6] 25 [6,6]
11046738	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
11080984	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
11193615	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
11218248	PVH/PVHC - 130 [34,3]	130 [34,3] 130 [34,3] 130 [34,3]
11271715	PVH/PVHC		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9806	PVH/PVHC		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B9079	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6]
157B9081	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]
157B9082	PVH/PVHC		100 [26,4] 100	[26,4] 100 [26,4]
\( 11165600^1 \)	PVE - 12.5 [3,3] 50 [13,2] 65 [17,2] 50 [17,2]
157B9665	PVE - 65 [17,2] 65 [17,2] 25 [6,6] 25 [6,6]
\( 11106532^1 \)	PVE - 65 [17,2] 65 [17,2] 25 [13,2] 25 [6,6]
11177401	PVE - 100 [26,4] 100 [26,4] 40 [10,6] 40 [10,6]
11235005	PVE		20 [5,3] 20 [5,3] 15 [4] 15 [4]
11235064	PVE		50[13,2] 50[13,2] 25 [6,6] 25 [6,6]
\( 11189466^1 \)	PVE		100 [26,4] 100 [26,4] 40 [10,6] 40 [10,6]
11168699	PVH/PVHC	- 25 [6,6] 25 [6,6] 10 [2,6]	10 [2,6]
11168692	PVH/PVHC	- 50[13,2] 50[13,2] 30 [7,9] 30 [7,9]
11167604	PVH/PVHC		5 [1,3] 5 [1,3]	3 [0,8]	3 [0,8]
11272764	PVH/PVHC		10 [2,6] 10 [2,6] 65 [17,2] 65 [17,2]
11167338	PVH/PVHC		20 [5,3] 20 [5,3] 15 [4] 15 [4]

		PVB
11136831	PVE	-	25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]
11136827	PVE	-	40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]
11141375	PVE		25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]
11142973	PVH/PVHC	-	100 [26,4]	100 [26,4]	100 [26,4]	100 [26,4]

157B9794	PVE	-	100 [26,4] 100 [26,4] 100 [26,4] 100 [26,4]
157B9804	PVE - 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]	100 [26,4]

		PVB
\( 11181495^1 \)	PVE		17.5 [4,6] 40	10,6] 40 [10,6]	17.5 [4,6]
11146797	PVE		15 [4] 65 [17,2]	40 [10,6] 10	[2,6]
11166644	PVH/PVHC		50 [13,2] 50	13,2] 25 [6,6]	25 [6,6]

11231448	PVMR	-	40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]
157B9196	PVMR	-	65 [17,2]	65 [17,2]	65 [17,2]	65 [17,2]
11231449	PVMR	- 100 [26,4] 100	[26,4] 100 [26,4]	100 [26,4]

PVBS

		PVB
11077423	PVE - 5 [1,3] 5 [1]	3] --
157B7200	PVE - 10 [2,6] 10	[2,6] --
157B7201	PVE - 25 [6,6] 25	[6,6] --
157B7202	PVE - 40 [10,6] 40	[10,6] --
157B7203	PVE - 65 [17,2] 65	[17,2] --
157B7204	PVE - 100 [26,4]	100 [26,4] --
11015830	PVE - 130 [34,3]	130 [34,3] --
157B9200	PVH/PVHC - 10	[2,6] 10 [2,6] --
157B9201	PVH/PVHC - 25	[6,6] 25 [6,6] --
157B9202	PVH/PVHC - 40	[10,6] 40 [10,6] --
157B9203	PVH/PVHC - 65	[17,2] 65 [17,2] --
157B9204	PVH/PVHC - 100	[26,4] 100 [26,4] --
11085447	PVH/PVHC - 130	[34,3] 130 [34,3] --

PVBS

		PVB
157B7300	PVE --- 10 [2,6] 10 [2,6]
157B7301	PVE --- 25 [6,6] 25 [6,6]
157B7302	PVE --- 40 [10,6] 40 [10,6]
157B7303	PVE --- 65 [17,2] 65 [17,2]
157B7304	PVE --- 100 [26,4] 100 [26,4]
157B9301	PVH/PVHC --- 25 [6,6]	25 [6,6]

		PVB
11098878	PVE -- -	25 [6,6] 5 [1,3]
11104486	PVH/PVHC	-	-	-	25 [6,6]	5 [1,3]

157B9588	PVE	-	100 [26,4]	100 [26,4]	-	-

PVBS

		PVB
157B9662	PVE	-	-	-	5 [1,3]	5 [1,3]

		PVB
157B7050	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7051	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7052	PVE - 40 [10,6] 40 [10]	6] 40 [10,6] 40 [10,6]
157B7053	PVE - 65 [17,2] 65 [17]	2] 65 [17,2] 65 [17,2]
157B7054	PVE - 100 [26,4] 100	[26,4] 100 [26,4] 100 [26,4]
11241131	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7071	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7072	PVE		40 [10,6] 40 [10,6]	40 [10,6]
157B7073	PVE		65 [17,2] 65 [17,2]	65 [17,2]
157B7074	PVE		100 [26,4] 100	[26,4] 100 [26,4]
157B9052	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9053	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
157B9054	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4] 100	[26,4]
157B9072	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6]
157B9073	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]
157B9074	PVH/PVHC		100 [26,4] 100	[26,4] 100 [26,4]

		PVB
157B9529 PVE			65 [17,2] 65 [17,2] 40 [10,6] 65 [17,2]

		PVB
157B9533	PVE		10 [2,6]	25 [6,6]	5 [1,3]	25 [6,6]
11120728	PVE		10 [2,6]	40 [10,6]	25 [6,6]	25 [6,6]
157B9536	PVE		25 [6,6]	40 [10,6]	10 [2,6]	40 [10,6]

		PVB
157B7150	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7151	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7152	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7153	PVE - 65 [17,2] 65 [17,2]	2] 65 [17,2] 65 [17,2]
157B7154	PVE - 100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
11067130	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]	10 [2,6]
157B7171	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
157B9556	PVE		30 [7,9] 30 [7,9]	30 [7,9] 30 [7,9]	30 [7,9]
157B7172	PVE		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B7173	PVE		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
157B7174	PVE		100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4]	100 [26,4]
11107242	PVH/PVHC		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B9173	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]

		PVB
157B9592	PVE		40 [10,6] 40 [1	0,6] 15 [4,0] 15	[4,0]
11051961	PVE		100 [26,4] 100	[26,4] 65 [17,2]	65 [17,2]
11139550	PVE		115 [30,4] 115	[30,4] 65 [17,2]	65 [17,2]

		PVB
11122525	PVE		10 [2,6] 10 [2]	6] 10 [2,6] 10	[2,6]
157B7562	PVE		40 [10,6] 40	10,6] 40 [10,6]	40 [10,6]
157B7563	PVE		65 [17,2] 65	17,2] 65 [17,2]	65 [17,2]

		PVB
157B9591	PVE - 40 [10,6] 40 [10,6]	25 [6,6] 25 [6,6]
157B9641	PVE - 50 [13,2] 50 [13,2]	10 [2,6] 10 [2,6]
157B9660	PVE		50 [13,2] 50	[13,2] 10 [2,6]	10 [2,6]
157B9832	PVE		55 [14,5] 55	[14,5] 25 [6,6]	25 [6,6]

		PVB
157B7450	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7451	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7452	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7453	PVE - 65 [17,2] 65 [17,2]	65 [17,2] 65 [17,2]
157B7470	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]	10 [2,6]
157B7471	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
157B7472	PVE		40 [10,6] 40	10,6] 40 [10,6]	40 [10,6]
157B7473	PVE		65 [17,2] 65	17,2] 65 [17,2]	65 [17,2]

		PVB
157B9660	PVE		50 [13,2] 50	13,2] 10 [2,6]	10 [2,6]
157B9083	PVH/PVHC		65 [17,2] 65	17,2] 40 [10,6]	65 [17,2]

		PVB
157B9591	PVE - 40 [10,6] 40 [10,6]	25 [6,6] 25 [6,6]
157B9641	PVE - 50 [13,2] 50 [13,2]	10 [2,6] 10 [2,6]
157B9660	PVE		50 [13,2] 50 [13,2]	10 [2,6]	10 [2,6]
157B9832	PVE		55 [14,5] 55 [14,5]	25 [6,6]	25 [6,6]

157B9835 PVE -	25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]
157B9836 PVE -	40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]

		PVB
157B9845	PVE	-	25 [6,6]	25 [6,6]	25 [6,6]	10 [2,6]

		PVB
11213570	PVE		40 [10.6] 40	10.6] 40 [10.6]	40 [10.6]

		PVB
157B7015	PVE - 5 [1,3] 5 [1,3] 5 [1,3] 5 [1,3]
157B7010	PVE - 10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9540	PVE - 18 [4,8] 18 [4,8] 18 [4,8] 18 [4,8]
157B7011	PVE - 25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
157B7012	PVE - 40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B7013	PVE - 65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]
157B7035	PVE		\( 5\left\lbrack {1,3}\right\rbrack 5\left\lbrack {1,3}\right\rbrack \)	\( 5\left\lbrack {1,3}\right\rbrack 5\left\lbrack {1,3}\right\rbrack \)
157B7030	PVE		10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]		[2,6]
157B7031	PVE		25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]		[6,6]
157B7032	PVE		40 [10,6] 40 [10,6] 40 [10,6]		40 [10,6]
157B7033	PVE		65 [17,2] 65 [17,2] 65 [17,2]		65 [17,2]
157B9015	PVH/PVHC - 5 [1,3] 5 [1,3] 5 [1,3] 5 [1,3]
157B9010	PVH/PVHC - 10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9011	PVH/PVHC - 25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
157B9012	PVH/PVHC - 40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B9013	PVH/PVHC - 65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]

		PVB
157B9683	PVE		100 [26,4]	130 [34,3]	130 [34,3]	100 [26,4]

PVBS

			A---TP---AP	- BB---T
157B9197 PVE	- 10 [2,6]	10 [2,6]	10 [2,6] 10 [2,6]

		PVB
157B7115	PVE - 5 [1,3] 5 [1,3] 5	[1,3] 5 [1,3]
157B7110	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7111	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7112	PVE - 40 [10,6] 40 [10	6] 40 [10,6] 40 [10,6]
157B7113	PVE - 65 [17,2] 65 [17]	2] 65 [17,2] 65 [17,2]
\( 157B9853^* \)	PVE		3 [0,8] 3 [0,8]	3 [0,8] 3 [0,8]
157B7135	PVE		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B7130	PVE		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7131	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7132	PVE		40 [10,6] 40 [10,6]	40 [10,6]
157B7133	PVE		65 [17,2] 65 [17,2]	65 [17,2]
157B7134	PVE		100 [26,4] 100	100 [26,4]
157B9110	PVH/PVHC - 10 [2,6]	0 [2,6] 10 [2,6] 10 [2,6]
157B9112	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9113	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
\( 11243516^* \)	PVH/PVHC		3 [0,8] 3 [0,8]	3 [0,8] 3 [0,8]
11057314	PVH/PVHC		5 [1,3] 5 [1,3]	5 [1,3] 5 [1,3]
157B9130	PVH/PVHC		10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B9131	PVH/PVHC		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]

		PVB
157B9525	PVE	-	20 [5,3]	20 [5,3]	10 [2,6]	10 [2,6]
11041330	PVE	-	40 [10,6]	40 [10,6]	20 [5,3]	20 [5,3]
11190031	PVE		1	25 [6,6]	25 [6,6]	1
11232271	PVE		1	65 [17,2]	65 [17,2]	1

PVBS

		PVB
157B9646	PVE		15 [4] 15 [4]	15 [4] 15 [4]
157B9199	PVE		10 [2.6] 10	2.6] 40 [10.6]	40 [10.6]

PVBS

PVBS

11122566	PVE	-	10 [2.6]	10 [2.6]	10 [2.6]	10 [2.6]
157B7541	PVE	-	25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]
157B7542	PVE	-	40 [10,6]	40 [10,6]	40 [10,6]	40 [10,6]
157B7543	PVE	-	65 [17,2]	65 [17,2]	65 [17,2]	65 [17,2]

157B9507	PVE	-	65 [17,2]	65 [17,2]	100 [26,4]	100 [26,4]
11166963 PVE			65 [17,2]	65 [17,2]	100 [26,4]	100 [26,4]

PVBS

11200910 PVE -	5 [1,3] 5 [1,3]		5 [1,3] 5 [1,3]
11227386	PVH/PVHC	-	25 [6,6]	25 [6,6]	25 [6,6]	25 [6,6]

		PVB
157B7040	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7041	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7042	PVE - 40 [10,6] 40 [10,6]	40 [10,6] 40 [10,6]
157B7043	PVE - 65 [17,2] 65 [17,2]	2] 65 [17,2] 65 [17,2]
157B7044	PVE - 100 [26,4] 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
157B7061	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	25 [6,6]
157B7062	PVE		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B7063	PVE		65 [17,2] 65 [17,2]	7,2] 65 [17,2]	65 [17,2]
157B7064	PVE		100 [26,4] 100	[26,4] 100 [26,4]	100 [26,4]
157B9040	PVH/PVHC - 10 [2,6]	10 [2,6] 10 [2,6] 10 [2,6]
157B9041	PVH/PVHC - 25 [6,6]	25 [6,6] 25 [6,6] 25 [6,6]
157B9042	PVH/PVHC - 40 [10,6]	40 [10,6] 40 [10,6] 40 [10,6]
157B9043	PVH/PVHC - 65 [17,2]	65 [17,2] 65 [17,2] 65 [17,2]
157B9044	PVH/PVHC - 100 [26,4]	100 [26,4] 100 [26,4] 100 [26,4]
157B9062	PVH/PVHC		40 [10,6] 40 [10,6]	[0,6] 40 [10,6]	40 [10,6]
157B9063	PVH/PVHC		65 [17,2] 65 [17,2]	[7,2] 65 [17,2]	[7,2]

		PVB
157B9589	PVE		25 [6,6] 25 [6]	6] 40 [10,6]	40 [10,6]
157B9528	PVE		65 [17,2]	40 [10,6]	65 [17,2]	65 [17,2]
11223873	PVE		65 [17,2]	40 [10,6]	65 [17,2]	40 [10,6]

		PVB
157B9532	PVE		25 [6,6]	5 [1,3] 25 [6,6]	10 [2,6]
11051179	PVE		25 [6,6]	10 [2,6]	25 [6,6]	5 [1,3]
157B9535	PVE		40 [10,6]	10 [2,6]	40 [10,6]	25 [6,6]
11051177	PVE		25 [6,6]	25 [6,6]	40 [10,6]	10 [2,6]

PVBS

		PVB
157B9637 PVE — 10 [2.6] 10 [2.6] 10 [2.6] 10 [2.6]

		PVB
11122564	PVE - 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
157B7141	PVE - 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
157B7142	PVE - 40 [10,6] 40 [10]	6] 40 [10,6] 40 [10,6]
157B7143	PVE - 65 [17,2] 65 [17]	2] 65 [17,2] 65 [17,2]
157B7144	PVE - 100 [26,4] 100	26,4] 100 [26,4] 100 [26,4]
157B7161	PVE		25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]	6,6]
157B7162	PVE		40 [10,6] 40 [10,6]	40 [10,6]	40 [10,6]
157B7163	PVE		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]
157B7164	PVE		100 [26,4] 100	[26,4] 100 [26,4]	100 [26,4]
157B9163	PVH/PVHC		65 [17,2] 65 [17,2]	65 [17,2]	65 [17,2]

		PVB
157B9811	PVE		10 [2,6]	10 [2,6]	40 [10,6]	65 [17,2]
157B9988	PVE		25 [6,6]	10 [2,6]	25 [6,6] 25 [6]	6

		PVB
11104931 PVE	— 40 [10.6] 40 [10.6] 40	[10.6] 40 [10.6]

PVBS

		PVB
11213571	PVE		40 [10.6] 40	10.6] 40 [10.6]	40 [10.6]

		PVB
157B9405	PVE - 5 [1,3] 5 [1,3] 5 [1,3] 5 [1,3]
157B9400	PVE - 10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9401	PVE - 25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
157B9402	PVE - 40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B9403	PVE - 65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]
157B9404	PVE - 100 [26,4] 100 [26,4] 100 [26,4] 100 [26,4]
11051945	PVE		5 [1,3] 5 [1,3] 5 [1,3] 5 [1,3]
11019630	PVE		10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
11019631	PVE		25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
11019633	PVE		40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
11019634	PVE		65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]
11019635	PVE		100 [26,4] 100 [26,4] 100 [26,4] 100 [26,4]
11105665	PVH/PVHC	- 5 [1,3] 5 [1,3] 5	[1,3] 5 [1,3]
11105445	PVH/PVHC	- 10 [2,6] 10 [2,6]	10 [2,6] 10 [2,6]
11105446	PVH/PVHC	- 25 [6,6] 25 [6,6]	25 [6,6] 25 [6,6]
11140563	PVH/PVHC		25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
11140564	PVH/PVHC		65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]

		PV8
157B9573*	PVH/PVHC	-38 [10,0] 25 [6,6] 65 [17,2] 15 [4,0]
157B9651	PVE - 38 [10,0] 25 [6,6] 65 [17,2] 15 [4,0]
11084227	PVE		5 [1,3] 25 [6,6] 25 [6,6] 25 [6,6]
11129527	PVE		40 [10,6] 10 [2,6]
			40 [10,6] 10 [2,6]
11085297	PVE		20 [5,2] 40 [10,6]
			40 [10,6] 10 [2,6]

PVBZ

		PVB
157B9415	PVE		5 [1,3] 5 [1,3] 5 [1,3] 5 [1,3]
157B9410	PVE		10 [2,6] 10 [2,6] 10 [2,6] 10 [2,6]
157B9411	PVE		25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
157B9412	PVE		40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B9413	PVE		65 [17,2] 65 [17,2] 65 [17,2] 65 [17,2]
157B9414	PVE		100 [26,4] 100 [26,4] 100 [26,4] 100 [26,4]
11027130	PVH/PVHC		25 [6,6] 25 [6,6] 25 [6,6] 25 [6,6]
11124250	PVH/PVHC		100 [26,4] 100 [26,4] 100 [26,4] 100 [26,4]

		PVB
11085128	PVE		2 [0,5] 10 [2,6] 10	[2,6] 5 [1,3]

		PVB
11128843	PVE		40 [10,6] 40 [10,6] 40 [10,6] 40 [10,6]
157B9596	PVE		100 [26,4] 80 [21,1] 80 [21,1] 100			[26,4]
11017592	PVE		120 [31,7] 120 [31,7] 120 [31,7]			[31,7]

		PVB
11147069 PVE			100 [26.4] 100	[26.4] 100	[26.4] 100	[26.4]

		PVB
11146502 PVE			100 [26.4] 100	[26.4] 100	[26.4] 100	[26.4]

		PVB
157B9663	PVE - 5 [1,3] 5 [1]	3] 5 [1,3] 5 [1,3]
157B9664	PVE - 25 [6,6] 25	[6,6] 25 [6,6] 25 [6,6]
157B9809	PVE		80 [21,1] 80 [21,1]	80 [21,1] 80 [21,1]

		PVB
11130939 PVE			25 [6,6] 40 [10,6]	40 [10,6] 25 [6,6]

		PVB
157B9866 PVE			25 [6,6] 40 [10,6]	40 [10,6] 25 [6,6]

PVBS

		PVB
157B9859	PVE	-	25 [6.6]	25 [6.6]	-	-

		PVB
157B9859 PVE -	25 [6.6] 25 [6.6] --

		PVB
11098878 PVE			-- 25 [6,6]	5 [1,3]

PVDI

.
.
.

PVDI

PVDI

	10 mA - 100 mA
	5 A
	±0.7 mm (+0.3/-0.2) [±0.028 in (±0.01)]
	1x4 DIN
	IP 65

157B0101
157B0102
157B0103
157B0104
157B0105

PVM

PVML

PVMD/F/R

PVH

PVHC

PVE

PVE

PVED-CC

PVE

一

一

一

一

PVM

PVM

2 × 6 ± 13.4^ ± 19.5^ 22.3^

2×6±13.4°±19.5°22.3°

PVM

	PVM+PVMD PVM+PVE	PVM+PVH PVM+PVMR PVM+PVMF
	2.2 ± 0.2 [19.5 ± 1.8]	2.5 ± 0.2 [22.1 ± 1.8]	6 ± 0.2 [53.1 ± 1.8]
	2.8 ± 0.2 [24.8 ± 1.8]	6.9 ± 0.2 [61.0 ± 1.8]	-
	---
	---
	-	-	3.9 ± 0.2 [34.5 ± 1.8]

	\( 2 \times 6 \)
	\( \pm {19.5}^{ \circ } \)
	±13.4°
	22.3°

157B3161			-		0,4 kg[0,88 lb]
157B3171			-
157B3173			-	-
157B3174				-
157B3184			-
157B3186			-	-
157B3191		-	-
157B3193		- - -	-
157B3194		-	-	-

PVMF

PVMR

PVMR
P A F(
157-205.10

P A F( ）
157-206.10

PVMR

（），PVMF

（ ），PVMF

（）

PVMD

,mm [in]

PVMF/R

,mm [in]

157B0001	PVMD		0,15 - 0,38 kg[0.33 - 0.84 lb]
157B0009
157B0021
157B0005	PVMF		0,34 - 0,57 kg[0.75 - 1.26 lb]
157B0004	PVMR
157B0012
157B0024

157B3202		-
157B3203

PVH

PVH 32

	5 – 15 bar [73 – 218 psi]
	\( {2.5} \pm {0.2}\mathrm{\;N} \cdot \mathrm{m}\left\lbrack {{22.1} \pm {1.8}\mathrm{{lb}} \cdot \mathrm{{in}}}\right\rbrack \)
	\( {6.9} \pm {0.2}\mathrm{\;N} \cdot \mathrm{m}\left\lbrack {{61.0} \pm {1.8}\mathrm{{lb}} \cdot \mathrm{{in}}}\right\rbrack \)
	30 bar [435 psi]

157B0007		9/16-18 UNF	\( {0.2} - {0.75}\mathrm{\;{kg}} \)\( \left\lbrack {{0.44} - {1.65}\mathrm{\;{lb}}}\right\rbrack \)
157B0008		\( G1/4" \)
157B0010		9/16-18 UNF
157B0011		\( G1/4" \)
157B0014		9/16-18 UNF
157B0016		\( G1/4" \)

PVHC,

PVHC

PVHC

PVHC

PVHC characteristics - Spool stroke vs current

DC	12 VDC	24 VDC
	0 - 1500 mA 0 - 750 mA
	4.75 Ω ± 5 % 20.8 Ω ± 5 %
	250 Hz
	40 mA
	20 - 25 bar [290 - 362 psi]

11112037	12V	AMP	IP 66
11112036	24V
11112038	12V	2x2 DEUTSCH	IP 67
11112039	24V

PVEO/PVEM PVG32(PVEO LVDT

PVEH/PVES PVG32

PVED-CC

5

PVED-CC S5

PVED-CC

5

		12 VDC	24 VDC
		520 mA 260 mA
		80 mA 45 mA
		6.24 W 6.24 W
		1 W 1.1 W
bat		11 - 32 VDC
		9 - 35.9 VDC
		5%
		5.5 - 36 VDC*

		-40°C	90°C
			110°C

		13.5 ± 1.5 bar
		20 bar
		40 bar
		0 l/min
		0.7 l/min
	(ISO 4406) 23/19/16
		12 – 75 mm²/s
		4.2 – 12 mm²/s*
		75 – 1000 mm²/s

	2006/95/EC
	2004/108/EC
	ISO4413:2010

AMP Junior Power Timer (2x4)

1. 2.Vbat+
   3.GND
   4.

929930-1(4 pcs)	828901-1(4 pcs)	1-967059-1 (black)*	IP66

DT06-4S-E003(2x4

2. 3.Vbat+
   4.GND
   IP

		1.45%
		0.29%

Spool Position [%]

	440 ms*
	177 ms
	114 ms

11107869		2x4 DEUTSCH IP67
11107870		2x4 AMP IP66
11172734	CANOpen 2x4 DEUTSCH IP67
11169142	CANOpen 2x4 AMP IP66

PVEO

12VDC DC

PVEO-DI

DC DC

PVEO/PVEO-DI
P109195

PVEO-R
P109200

DEUTSCH AMP DIN
30 mm [1.2 in] 38 mm [1.5 in]	40 mm [1.6 in] 0.7 kg [1.54 lb]
		12 VDC	24 VDC
DC		11 to 15 VDC	22 to 30 VDC
		5% 5%
		480 mA 250 mA
		430 mA 220 mA
		950 mA 480 mA

10.0 bar [145 psi] 13.5 bar [196 psi] 15.0 bar [218 psi]

0 l/min 0.3 l/min	[0.08 US gal/min]	0.9 l/min [0.24 US gal/min]

	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]

	80 ms	80 ms
	80 ms	80 ms

Spool Position [%]

	PVG 32 PVG 128/256
	PVEO PVEO-DI	PVEO-R
	0000
DC	110 ms 325 ms	375 ms 520 ms
DC	110 ms 340 ms	350 ms 600 ms

11166843	PVEO	1x4 DEU IP 67 12 V		DC
11166838		1x4 DEU IP 67 24 V		DC
11166866		1x4 AMP IP 66 12 V		DC
11166837		1x4 AMP IP 66 24 V		DC
11166836		1x4 DIN IP 65 12 V		DC
11166743		1x4 DIN IP 65 24 V		DC
11168740*	PVEO-DI	2x4 AMP IP 66 12 V		DC
11166869*		2x4 AMP IP 66 24 V		DC
11166753	PVEO-R	1x4 DEU IP 67 12 V		DC
11166754		1x4 DEU IP 67 24 V		DC
11166867		1x4 AMP IP 66 12 V		DC
11166776		1x4 AMP IP 66 24 V		DC
11166831		1x4 DIN IP 65 12 V		DC
11166908		1x4 DIN IP 65 24 V		DC

PVEO-HP

PVEO-HP

12VDC DC

PVEO-HP

DC DC

PVEO-HP

P109195

DEUTSCH AMP DIN
30 mm [1.2 in] 38 mm [1.5 in]	40 mm [1.6 in] 0.7 kg [1.54 lb]

		12 VDC	24 VDC
DC		DC	DC
		5%
		1093 mA 555 mA
		660 mA 340 mA
		1458 mA 740 mA

		25 bar [363 psi]
		21 bar [305 psi]
		25 bar [363 psi]
		0 l/min [0 US gal/min]
		0 l/min [0 US gal/min]
		0.9 l/min [0.24 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]
	25 bar [365 psi]
	40 bar [580 psi]

	PVEO-HP
	0
DC	90 ms
DC	70 ms

		IP	\( U_{DC} \)
11166765	1x4 DEUTSCH IP 67 12 V		DC
11166766	1x4 DEUTSCH IP 67 24 V		DC
11166763	1x4 AMP 66 12 V		DC
11187524	1x4 AMP 66 24 V		DC
11187551	1x4 DIN 65 12 V		DC
11187562	1x4 DIN 65 24 V		DC

PVEM

PVEM

11-32VDC

PVEM
P109196

PVEM-Q
P109201

DEUTSCH AMP DIN
30 mm [1.2 in] 38 mm [1.5 in]	40 mm [1.6 in] 0.7 kg [1.54 lb]

DC		DC
		5%
S		\( U_S = 0.5 \) \( U_{DC} = 50\% DUT \)
		S DC
		S DC
		12 kΩ
		1 nF

	DC	DC
s)	>200 Hz	>200 Hz
	690 mA	350 mA
10.0 bar [145 psi] 13.5 bar [196 psi] 15.0 bar [218 psi]

0 l/min 0.3 l/min 1.0 l/min		[0.26 US gal/min] [0.08 US gal/min]	0.5 l/min [0.13 US gal/min]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]
	20 / 40 bar [365 / 580 psi]

	PVEM-R PVEM/PVEM-FLB PVEM-Q
	15 ms 15 ms 15 ms
	325 ms 225 ms 125 ms
	110 ms 110 ms 110 ms
DC	310 ms 210 ms 110 ms
DC	90 ms 90 ms 90 ms

	PVEP, PVES PVEA PVEH	PVEM
	<0.5% 2% 4% 15%
	0.2 mm 0.3 mm 0.2 mm 0.0 mm

11166829	PVEM
11166852	PVEM-FLB
11166845	PVEM-R
11166853	PVEM-Q

PVEA

PVEA

11-32 VDC

PVEA-DI

DC		DC
		5%
S		\( U_S = 0.5 \) \( U_{DC} = 50\% DUT \)
		S DC
		S DC
		12 kΩ
		1 nF

	DC	DC
s)	>1000 Hz > 1000 Hz
	290 mA 150 mA

10.0 bar [145 psi]	13.5 bar [196 psi]	15.0 bar [218 psi]

0 l/min	0 l/min	1.0 l/min[0.26 US gal/min]

	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]
	25 / 40 bar [365 / 580 psi]

	PVG 32 (PVEA)
	50 ms
	355 ms
	260 ms
DC	305 ms
DC	210 ms

	PVEP, PVES PVEA PVEH PVEM
	<0.5% 2% 4% 15%
	0.2 mm 0.3 mm 0.2 mm 0.0 mm

11177346	PVEA 1x4 DEU IP67
11177347	PVEA		IP67
11177353	PVEA 1x4 AMP	IP66
11177348	PVEA		IP66
11177345	PVEA-NP1)	1x6 DEU IP67
11177357	PVEA-DI2)	2x4 DEU IP67
11177356	PVEA-DI2)	2x4 AMP IP66
11177355	PVEA-DI2)		IP66

1)

2)

PVEH

PVEH

11-32VDC

DC

DC		DC
		5%
S		\( U_S = 0.5 \) \( U_{DC} = 50\% DUT \)
		S DC
		S DC
		12 kΩ
		1 nF

	DC	DC
s)	>1000 Hz > 1000 Hz
	540 mA 270 mA
	200 mA 200 mA

10.0 bar [145 psi] 13.5 bar [196 psi] 15.0 bar [218 psi]

0.0 l/min 0.0 l/min 0.7 l/min		[0.18 US gal/min]

	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]
	25 / 40 bar [365 / 580 psi]

	PVG 32 PVG 128/256
	40 ms 40 ms
	155 ms 400 ms
	130 ms 300 ms
DC	115 ms 380 ms
DC	90 ms 270 ms

	PVEP, PVES PVEA PVEH	P V E M
	<0.5% 2% 4% 15%
	0.2 mm 0.3 mm 0.2 mm 0.0 mm

11166732 PVEH 1x4 DEUTSCH IP67
11166775 PVEH 1x4 DEUTSCH IP67
11166825 PVEH 1x4 AMP IP66
11166818 PVEH 1x4 AMP IP66
11166824 PVEH 1x4 DIN IP65
11166817 PVEH 1x4 DIN IP65
111668321)	PVEH-U 1x4 AMP IP66				0-10 VDC S
111668211)	PVEH-U 1x4 AMP IP66
111667701)	PVEH-U 1x4 DIN IP65
111667721)	PVEH-U 1x4 DIN IP65
11166840 PVEH-FLB 1x4 DEUTSCH IP67
11166742 PVEH-FLB 1x4 DEUTSCH IP67
11166839 PVEH-FLB 1x4 DIN IP65
111668412)	PVEH-FLA 1x6 DETSCCH IP67
111687382)	PVEH-FLA 1x6 AMP IP66
111687392)	PVEH-FLA 1x6 AMP IP66
111667733)	PVEH-SP 1x6 DETSCCH IP67
111667504)	PVEH-NP 1x6 DETSCCH IP67
111668355)	PVEH-DI 2x4 DETSCCH IP67
111668205)	PVEH-DI 2x4 AMP IP66
111668195)	PVEH-DI 2x4 AMP IP66

1)
2)
3)
4)
5)

PVES

PVES

11-32VDC

PVES

DC		DC
		5%
S		\( U_S = 0.5 \) \( U_{DC} = 50\% DUT \)
		S DC
		S DC
		12 kΩ
		1 nF

	DC	DC
s)	>1000 Hz > 1000 Hz
	560 mA 280 mA

10.0 bar [145 psi] 13.5 bar [196 psi] 15.0 bar [218 psi]

0.03 l/min [0.106 US gal/min]	0.01 l/min [0.026 US gal/min]	0.8 l/min [0.21 US gal/min]

	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]
	25 / 40 bar 265 / 580 psi

	PVES
	45 ms
	170 ms
	135 ms
DC	125 ms
DC	90 ms

	PVEP, PVES PVEA PVEH	PVM
	<0.5% 2% 4% 15%
	0.2 mm 0.3 mm 0.2 mm 0.0	mm

			IP
11166748	PVES 1x4 DEUTSCH	IP67
11166864	PVES 1x4 DEUTSCH	IP67
11166859	PVES 1x4 AMP IP66
11166858	PVES 1x4 AMP IP66
11166849	PVES 1x4 DIN IP65
11166857	PVES 1x4 DIN IP65
111667451)	PVES-U 1x4 DEUTSCH IP67				0-10 VDC S
111667471)	PVES-U 1x4 AMP IP66
111667522)	PVES-SP 1x6 DEUTSCH IP67
113145933)	PVES-P 1x6 DEUTSCH IP67
113145813)	PVES-P 1x6 DEUTSCH IP67

1)

2)

3)

1 x 4 DEUTSCH 2 x 4 DEUTSCH 1 x 6 DEUTSCH
○2 3○ ○1 4○	○4 1○ ○3 2○	○3 4○ ○2 5○ ○1 6○
	○2 3○ ○1 4○

1 x 4 AMP 2 x 4 AMP 1 x 6 AMP 1 x 4 DIN/Hirschman
Pin no. 1 2 3 4	Pin no. 1 2 3 4	6 5 4	3 2 1
	A	B

2x4 AMP (A) U	DC_A	UDC_B GND GND
2x4 AMP (B) DI-B DI-A GND U				DC2

1x4 DIN	UDC	US		GND

1x4 AMP	\( U_{DC\_A} \)	\( U_{DC\_B} GND GND \)
1x4 DEUTSCH	\( U_{DC\_A} \)	GND	GND U	\( U_{DC\_B} \)
1x4 DIN	\( U_{DC\_A} \)	\( U_{DC\_B} - \)	GND

PVEA/PVEH/PVES

1x4 AMP	\( U_S \)	\( U_{DC} \)	GND
1x4 DEUTSCH	\( U_S \)		GND	\( U_{DC} \)
1x4 DIN	\( U_{DC} \)	\( U_S \)		GND
2x4 AMP (A) U	S	UDC	GND
2x4 AMP (B) DI-B DI-A GND U				DC2
2x4 DEUTSCH (A) U	S		GND U	DC
2x4 DEUTSCH (B) U	DC2	GND DI-A DI-B

1x6 AMP	\( U_S \)	\( U_{DC} \)	GND		Float	-
1x6 DEUTSCH	\( U_S \)		-	SP	GND	\( U_{DC} \)

1x6 DEUTSCH	U5		- SP	GND	U	DC

1x6 DEUTSCH	PWM_A		PWM_B	-	GND	\( U_{DC} \)

PVE 7

11189080		A
11189081		B

DC

	S DC S
	S

		LED
					PVEM/H/S PVEA
	*			H 500 750
			-H 250 750
	*			H 1000 1000
			-H 1000 1000
				---
				---
		---		---
		---		---
	*			H 500 750
			-H 250 750
	*			H 500 750
			-H 250 750
	*			H 250 750
				H 250 750

	L	H
	<2 VDC	~Udc

PVEH-FLA (1x6 pin)			(UF)

		DC	Us=0.75·UDC

B

P109155

PVEO-DI

PVEA-DI

PVEH

(DI)

157-435.10

	-0.8 mm ± 0.4 mm 0.8 mm ± 0.4 mm
	200 mA
DI High @ 20 mA > U	DC - 1.5 VDC
DI High @ 100 mA > U	DC - 2.0 VDC
DI Low < 0.2 V	DC

DC
DC
PVEH-FLA

PVEH-SP
PVES-SP

PVEA-NP
PVEH-NP

(NP)
DC

DC S

DC

PVS

PVS/PVSI

PVSI

PVSI

PVE PPRV

T

PVE PPRV, PP

PVS/PVSI

P,T,LX,M
PVSIT

LX PVS/PVS

PVST

PVSI

PVEPPRV PVSI

PVSD

PVE PPRV, PP

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

PVS/PVSI

LX

PVS/PVSI

P,T,LX,M

PVSI

T

一

PVSI

PVSD

PVEPPRV PVSI

PVE PPRV, PP

PVST

PVS/PVSI

PVSI

1X

PVS/PVSI

PVS/PVSI

PVS/PVSI

350 bar [5076 psi] 400 bar [5800 psi] 25	/40 bar [365/580 psi]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B2000	300 bar [4351 psi]		0.475 [1.05]		M8
157B2020	300 bar [4351 psi]		0.475 [1.05]		5/16-18 UNC
157B2004	350 bar [5076 psi]		1.745 [3.85]		5/16-18 UNC
157B2014	350 bar [5076 psi]		1.745 [3.85]		M8
157B2017	350 bar [5076 psi]		1.745 [3.85]		M10
157B2018	350 bar [5076 psi]		1.745 [3.85]	1	M8
\( 157B2902^2 \)	350 bar [5076 psi]		1.745 [3.85]		M8

2

LV PVS/PVSI

LX PVS/PVS LX

PVS/PVSI

LX PVS/PVSI

210 bar [3045 psi] 400 bar [5800 psi] 25	/40 bar [365/580 psi]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B2005	350 bar 5076 psi		1.695 [3.74]	1/2-20 UNF 5/16-18	UNC
157B2015				G1/4"	M8
157B2910				M12x1.5 ISO 6149
157B2011	300 bar [4351 psi]		0.495 [1.09]	G1/8" M8
157B2021				3/8-24 UNF 5/16-18	UNC

P,T,LX,M PVSI

P,T,LX,M PVSIP,T, LMX

PVSI

P,T,LX,M PVSI

210 bar [3045 psi] 250 bar [3625 psi] 25	/40 bar [365/580 psi]

	-30°C [-22°F]		90° [194°F]
	4 mm²/s [39 SUS]	2	460 mm²/s [2128 SUS]

157B2920	G3/8 G1/2 G1/4 G1/4 M8 2.5 kg [5.51 lb]

PVST

PVSTT

PVST

T

PVST

350 bar [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi]

	-30°C [-22°F]		90° [194°F]
	4 mm2/s [39 SUS]	2	460 mm2/s [2128 SUS]

157B2500		G1/2 M8		0.47 kg [1.05 lb]
157B2520		7/8-14 5/16-18
157B2912		M22x1.5 DIN 3852-1	M8 0.6 kg [1.32 lb]
11004462		M22x1.5 ISO 6149

PVSI

PVSI

350 bar [5076 psi] 400 bar [5800 psi] 25/40 bar [365/580 psi]

11091772	PVE 9/16-18-UNF 5/16-18	UNC		1.6 kg [3.53 lb]
11091773	PVE G1/4" M8
11322913	PVH/PVHC G1/4" M8
11322914	PVH/PVHC 9/16-18-UNF 5/	16-18 UNC

PVSD

P P

210 bar [3046 psi]	50 bar [725 psi]	120 l/min [31.7 US gal/min]	\( 1\mathrm{\;{cm}}^{3}\left\lbrack {{0.06}{\mathrm{{in}}}^{3}}\right\rbrack \)

157B2904	G1/2"	G1/4"	3.01 kg [6.64 lb]	M8

PVE PPRV PVSI

PVE PPRV PVSI

350 bar [5076 psi] 400 bar [5800 psi] 25	/40 bar [365/580 psi]

157B2917	M14x1.5 0.48 kg [1.05 lb] M8

PVE PPRV, PP PVST

.

.

m = 311

m = 311 ;

.

PVE PPRV, PP PVST

210 bar [3045 psi] 280 bar [4061 psi] 25/40 bar [365/580 psi]

11050065	M14x1.5	M22x1.5	12 VDC	3.2 kg [7.05 lb]	M8
11067069	M14x1.5	M22x1.5	24 VDC	3.2 kg [7.05 lb]	M8

	3/4" BSP 1-1/16 UNF
	11133574 -
	11150521 11133580

TO

TO

L/min [US gal/min] 25 [6.6] 50 [13.2] 100 [26.4]	Max
	11149045 11149	047 11149049 1	149053
	11149046 11149	048 11149050 1	149054

L/min [US gal/min] 25 [6.6] 50 [13.2] 100 [26.4]	Max
	11175360 -- 11	75362
	11175361 -- 11	75363

L/min [US gal/min] 25 [6.6] 50 [13.2] 100 [26.4]	Max
	--- 11175365
	--- 11175368

			350 bar [5075 psi]
	HPCO
	P-PVG		85 l/min [22.5 US gal/min]
		CC	125 l/min [33 US gal/min]
	P-HPCO		210 l/min [55.48 US gal/min]
		CC	210 l/min [55.48 US gal/min]
	P-P2		85 l/min [22.5 US gal/min]
		CC	125 l/min [33 US gal/min]

		-30 °C [-22°F]
		90 °C [194°F]
		12 - 75 mm/s [65-347 SUS]
		4 mm/s [39 SUS]
		460 mm/s [2128 SUS]
		23/19/16

OC-HPCO Spool schematic

CC-HPCO Spool schematic

1
2
3	PVG/HPCO		On/Off
4	PVG/P2		On/Off

PVSKM

PVSKM

PVG32

PVAS

PVG 32/16

PVG 256/128/32/16

20-48 [0.79 - 1.89] 11188219 361 - 3	72 [14.21 - 14.65] 1	188205
49-60 [1.93 - 2.36] 11188218 373 - 3	84 [14.69 - 15.12] 1	7B8026
61-72 [2.40 - 2.83] 157B8000 385 - 3	96 [15.16 - 15.59] 1	188204
73-84 [2.87 - 3.31] 11188217 397 - 4	08 [15.63 - 16.06] 1	7B8007
85-96 [3.35 - 3.78] 157B8031 409 - 4	20 [16.10 - 16.54] 1	188203
97-108 [3.82 - 4.25] 11188216 421 - 4	432 [16.58 - 17.01] 1	$7B8027
109-120 [4.29 - 4.72] 157B8001 433 - 4	444 [17.05 - 17.48] 1	1188202
121-132 [4.76 - 5.20] 11188215 445 - 4	456 [17.52 - 17.95] 1	157B8008
133-144 [5.24 - 5.67] 157B8021 457 - 4	468 [17.99 - 18.43] 1	1188201
145-156 [5.71 - 6.14] 11188214 469 - 4	480 [18.47 - 18.90] 1	157B8028
157-168 [6.18 - 6.61] 157B8002 481 - 4	492 [18.94 - 19.37] 1	1188200
169-180 [6.65 - 7.09] 11188213 493 - 5	504 [19.41 - 19.84] 1	157B8009
181-192 [7.13 - 7.56] 157B8022 505 - 5	516 [19.88 - 20.31] 1	1188199
193-204 [7.60 - 8.03] 11188212 517 - 5	528 [20.35 - 20.79] 1	157B8029
205-216 [8.07 - 8.50] 157B8003 529 - 5	540 [20.83 - 21.26] 1	1188198
217-228 [8.54 - 8.98] 11188211 541 - 5	552 [21.30 - 21.73] 1	157B8010
229-240 [9.02 - 9.45] 157B8023 553 - 5	564 [21.77 - 22.20] 1	1188197
241-252 [9.49 - 9.92] 11188210 565 - 5	576 [22.24 - 22.68] 1	157B8030
253-264 [9.96 - 10.39] 157B8004 577 - 5	588 [22.72 - 23.15] 1	11188196
265-276 [10.43 - 10.87] 11188209 589 - 600 [23.19 - 23.62] 1	52	157B8061
277-288 [10.91 - 11.34] 157B8024 601 - 612 [23.66 - 24.09] 1	11188195
289-300 [11.38 - 11.81] 11188208 613 - 624 [24.13 - 24.57] 1	157B8081
301-312 [11.85 - 12.28] 157B8005 625 - 636 [24.61 - 25.04] 1	11188194
313-324 [12.32 - 12.76] 11188207 637 - 648 [25.08 - 25.51] 1	157B8062
325-336 [12.80 - 13.23] 157B8025 649 - 660 [25.55 - 25.98] 1	11188189
337-348 [13.27 - 13.70] 11188206 661 - 672 [26.02 - 26.46] 1	157B8082
349-360 [13.74 - 14.17] 157B8006

PVB 32

1 2 3 4

5 6 7 8

9 10 11

12

mm [in]

119[4.69]

167[6.57]

215[8.46]

263[10.35]

311[12.24]

359[14.13]

407[16.02]

455[17.91]

503[19.80]

551[21.69]

599[23.58]

647[25.47]

PVB 16

123456

7891011

PVB 32

1

159[6.26]

199[7.83]

239[9.41]

279[10.98]

319[12.56]

359[14.13]

399[15.71]

439[17.28]

479[18.86]

519[20.43]

559[22.01]

2

207[8.15]

247[9.72]

287[11.30]

327[12.87]

367[14.45]

407[16.02]

447[17.60]

487[19.17]

527[20.74]

567[22.32]

607[23.90]

3

255[10.04]

295[11.61]

335[13.19]

375[14.76]

415[16.34]

455[17.91]

495[19.49]

535[21.06]

575[22.64]

615[24.21]

655[25.79]

4

303[11.93]

343[13.50]

383[15.08]

423[16.65]

463[18.23]

503[19.80]

543[21.38]

583[22.95]

623[24.53]

663[26.10]

-

5

351[13.82]

391[15.39]

431[16.97]

471[18.54]

511[20.12]

551[21.69]

591[23.27]

631[24.84]

671[26.42]

-

-

6

399[15.71]

439[17.28]

479[18.86]

519[20.43]

559[22.01]

599[23.58]

639[25.16]

----

7

447[17.60]

487[19.17]

527[20.75]

567[22.32]

607[23.90]

647[25.47]

----

8

495[19.49]

535[21.06]

575[22.64]

615[24.21]

655[25.79]

----

9

543[21.38]

583[22.95]

623[24.53]

663[26.10]

----

10

591[23.27]

631[24.84]

671[26.42]

----

11

639[25.16]

----

1. 2.

PVAS

PVAS2=

PVB 256
		01234567
PVB 128	0 11187676+	40	11187672+ 126	11187673+ 212	11187656+ 298	11187675+ 384	11187696+ 470	11187697+ 556	11187698+ 642
	1	11187320+ 106	11187677+ 192	11187681+ 278	11187658+ 364	11187685+ 450	11187687+ 536	11187690+ 622
	2	11187617+ 172	11187678+ 258	11187682+ 344	11187686+ 430	11187691+ 516	11187704+ 602
	3	11187655+ 238	11187679+ 324	11187683+ 410	11187705+ 496	11187694+ 582	11187695+ 668
	4	11187684+ 304	11187680+ 390	11187696+ 476	11187697+ 562	11187689+ 648
	5	11187658+ 370	11187699+ 456	11187688+ 542	11187710+ 628
	6	11187693+ 436	11187703+ 522	11187704+ 608
	7	11187705+ 502	11187694+ 588
	8	11187692+ 568	11187709+ 654
	9	11187710+ 634

PVB 16
		0 1 2 3	4 5 6 7 8	9 10
PVB 32	0 - 64 104	144 184	224 264	304 344	384 424
	1 72 112	152 192	232 272	312 352	392 432	-
	2 120 160	200 240	280 320	360 400	440 --
	3 168 208	248 288	328 368	408 448	---
	4 216 256	296 236	276 416	456 ----
	5 264 304	344 384	424 464	----
	6 312 352	392 432	472 ----
	7 360 400	440 480	------
	8 408 448	488 ----
	9 456 496	------
	10 504	------

PVE
PVG32
PVHC PVG32

1 2 3 4 5 6

7 8 9 10 1

1 12

L1 m

m [in] 82 [3.23]

178

[7.01]130[5.12]

226[8.90]

274[10.79]

322[12.68]

370[14.57]

418[16.46]

466[18.35]

514[20.24]

562[22.13]

610[24.02]

L2 130

[5.12mm[in]

141[5.55]

190[7.48]

238 [9.37] 287[11.30]

335[13.19]

384[15.12]

432[17.01]

481[18.94]

529[20.83]

578[22.76]

626[24.65]

675[26.57]

kg [lb] 8,33

[18.36]

11,46[25.26]

14,53[32.03]

17,66[38.93]

20,74[45.72]

23,81[52.49]

26,94[59.39]

30,01[66.16]

33,09[72.95]

36,21[79.83]

39,29[86.62]

42,26[93.17]

PVB 32

1 2 3 4 5

6 7 8 9 10

11

1 L1

122

[4.80]

162 [6.38]

202 [7.95]

242 [9.53]

282 [11.10]

322 [12.68]

362 [14.25]

402 [15.83]

442 [17.40]

482 [18.98]

522 [20.55]

L2 1

89 [7.44]

238 [9.37]

262 [10.31]

311 [12.24]

360 [14.17]

385 [15.16]

434 [17.09]

483 [19.02]

507 [19.96]

551 [21.69]

600 [23.62]

2 L1

170

[6.69]

210 [8.27]

250 [9.84]

290 [11.42]

330 [12.99]

370 [14.57]

410 [16.14]

450 [17.72]

490 [19.29]

530 [20.87]

570 [22.44]

L2 2

38 [9.37]

287 [11.30]

311 [12.24]

360 [14.17]

409 [16.10]

434 [17.09]

483 [19.02]

507 [19.96]

551 [21.69]

600 [23.62]

646 [25.43]

3 L1

218

[8.58]

258 [10.16]

298 [11.73]

338 [13.31]

378 [14.88]

418 [16.46]

458 [18.03]

498 [19.61]

538 [21.18]

578 [22.76]

-

L2 2

87 [11.30]

336 [13.23]

360 [14.17]

409 [16.10]

458 [18.03]

483 [19.02]

527 [20.75]

576 [22.68]

600 [23.62]

646 [25.43]

-

4 L1

266

[10.47]

306 [12.05]

346 [13.62]

386 [15.20]

426 [16.77]

466 [18.35]

506 [19.92]

546 [21.50]

586 [23.07]

-

-

L2 3

36 [13.23]

385 [15.16]

409 [16.10]

458 [18.03]

483 [19.02]

527 [20.75]

576 [22.68]

622 [24.49]

646 [25.43]

-

-

5 L1

314

[12.36]

354 [13.94]

394 [15.51]

434 [17.09]

474 [18.66]

514 [20.24]

554 [21.81]

594 [23.39]

---

L2 3

85 [15.16]

434 [17.09]

458 [18.03]

507 [19.96]

551 [21.69]

576 [22.68]

622 [24.49]

670 [26.38]

---

6 L1

362

[14.25]

402 [15.83]

442 [17.40]

482 [18.98]

522 [20.55]

562 [22.13]

602 [23.70]

---

L2 4

34 [17.09]

483 [19.02]

507 [19.96]

551 [21.69]

600 [23.62]

622 [24.49]

670 [26.38]

---

7 L1

410

[16.14]

450 [17.72]

490 [19.29]

530 [20.87]

570 [22.44]

610 [24.02]

---

L2 4

83 [19.02]

527 [20.75]

551 [21.69]

600 [23.62]

646 [25.43]

670 [26.38]

---

8 L1

458

[18.03]

498 [19.61]

538 [21.18]

578 [22.76]

---

L2 5

27 [20.75]

576 [22.68]

600 [23.62]

646 [25.43]

---

9 L1

506

[19.92]

546 [21.50]

586 [23.07]

---

L2 5

76 [22.68]

622 [24.49]

646 [25.43]

---

10 L1

554

[21.81]

594 [23.39]

---

L2 6

22 [24.49]

670 [26.38]

---

11 L1

602

[23.70]

---

L2 6

70 [26.38]

---

PVG 32/16

(PVB 32

1 2 3 4 5

6 7 8 9

10 11

1

L1

168 216

264 312

360 408

456 504

52 600 6

48

[6,61] [8]

[50] [10,39]

[12,28]

[14,17]

[16,06]

[17,95]

[19,34]

[21,73]

[23,62]

[25,51]

L3 80 mm

[3.15 in]

2

L1

216 264

312 360

408 456

504 552

600 648

696

[8,50] [1]

[0,39] [12]

[28] [14,17]

[16,06]

[17,95]

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

L3 128 mm

[5.04 in]

3

L1

264 312

360 408

456 504

552 600

648 696

744

[10,39]

[12,28]

[14,17]

[16,06]

[17,95]

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

L3 176 mm

[6.93 in]

4

L1

312 360

408 456

504 552

600 648

696 744

792

[12,28]

[14,17]

[6,06]

[17,95]

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

[31,18]

L3 224 mm

[8.82 in]

1 2 3 4

5 6 7 8 9

10 11

5

L1

360 408

456 504

552 600

648 696

744 792 8

40

[14,17]

[16,06]

[17,95]

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

[31,18]

[33,07]

L3 272 mm [10.71 in]

6

L1

408 456

504 552

600 648

696 744

792 840

88

[16,06]

[17,95]

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

[31,18]

[33,07]

[34,96]

L3 320 mm [12.60 in]

7

L1

456 504

552 600

648 696

744 792

840 888

936

[17,95]

[9,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

[31,18]

[33,07]

[34,96]

[36,85]

L3 368 mm [14.49 in]

8

L1

504 552

600 648

696 744

792 840

88 936

984

[19,84]

[21,73]

[23,62]

[25,51]

[27,40]

[29,29]

[31,18]

[33,07]

[34,96]

[36,85]

[38,74]

L3 416 mm [16.38 in]

PVG 100/32

(PVB 100

1 2 3 4 5

6 7 8 9

10 11

1

L1

292 340

388 436

484 532

580 628

676 724

72

[11.50]

[13.39]

[15.28]

[17.17]

[19.06]

[20.94]

[22.83]

[24.72]

[26.61]

[28.50]

[30.39]

L3 170 mm

[6.69 in]

2

L1

359 407

455 503

551 599

647 695

743 791

839

[14.13]

[16.02]

[17.91]

[19.80]

[21.69]

[23.58]

[25.47]

[27.36]

[29.25]

[31.14]

[33.03]

L3 237 mm

[9.33 in]

3

L1

426 474

522 570

618 666

714 762

810 858

906

[16.77]

[18.66]

[20.55]

[22.44]

[24.33]

[26.22]

[28.11]

[30.00]

[31.89]

[33.78]

[35.67]

L3 304 mm

[11.91 in]

1 2 3 4

5 6 7 8 9

10 11

4

L1

493 541

589 637

685 733

781 829

877 925

973

[19.41]

[21.30]

[23.19]

[25.08]

[26.97]

[28.86]

[30.75]

[32.64]

[34.53]

[36.42]

[38.31]

L3 371 mm [14.61 in]

5

L1

560 608

656 704

752 800

848 896

944 992

1040

[22.05]

[23.94]

[25.83]

[27.72]

[29.61]

[31.50]

[33.39]

[35.28]

[37.17]

[39.06]

[40.94]

L3 438 mm [17.24 in]

6

L1

627 675

723 771

819 867

915 963

1011 105

1107

[24.69]

[26.57]

[28.46]

[30.35]

[32.24]

[34.13]

[36.02]

[37.91]

[39.80]

[41.69]

[43.58]

L3 505 mm [19.88 in]

7

L1

694 742

790 838

886 934

982 1030

1078 112

126 1174

[27.32]

[29.21]

[31.10]

[32.99]

[34.88]

[36.77]

[38.66]

[40.55]

[42.44]

[44.33]

[46.22]

L3 572 mm [22.52 in]

8

L1

761 809

857 905

953 1001

1049 109

97 1145

193 1241

[29.96]

[31.85]

[33.74]

[35.63]

[37.52]

[39.41]

[41.30]

[43.19]

[45.08]

[46.97]

[48.86]

L3 639 mm [25.16 in]

PVG 120/32

(PVB 120

PVB

1 2 3 4 5

6 7 8 9 10

11

1

L1

181 [7.13]

229 [9.02]

277 [10.91]

325 [12.80]

373 [14.69]

421 [16.57]

469 [18.46]

517 [20.35]

565 [22.24]

613 [24.13]

661 [26.02]

L2

249.5 [9.82]

297,5 [11,71]

346,5 [13,64]

394,5 [15,53]

417,5 [16,44]

443,5 [17,46]

540,5 [21,28]

588,5 [23,17]

637,5 [25,10]

685,5 [26,99]

734,5 [28,92]

L3 9

8,5 mm [3.88 in]

2

L1

247,0 [9,72]

295,0 [11,61]

343,0 [13,50]

391,0 [15,39]

439,0 [17,28]

487,0 [19,17]

535,0 [21,06]

583,0 [22,95]

631,0 [24,84]

-

-

L2

321,5 [12,66]

370,5 [14,59]

418,5 [16,48]

467,5 [18,41]

515,5 [20,30]

564,5 [22,22]

612,5 [24,11]

661,5 [26,04]

709,5 [27,93]

-

-

L3 1

64,5 mm [6.48 in]

3

L1

313,0 [12,32]

361,0 [14,21]

409,0 [16,10]

457,0 [17,99]

505,0 [19,88]

553,0 [21,77]

601,0 [23,66]

649,0 [25,55]

---

L2

382,5 [15,06]

431,5 [16,99]

479,5 [18,88]

528,5 [20,81]

576,5 [22,70]

625,5 [24,63]

673,5 [26,52]

722,5 [28,44]

---

L3 2

30,5 mm [9.07 in]

4

L1

379,0 [14,92]

427,0 [16,81]

475,0 [18,70]

523,0 [20,59]

571,0 [22,48]

619,0 [24,37]

667,0 [26,26]

---

L2

455,5 [17,93]

503,5 [19,82]

552,5 [21,75]

600,5 [23,64]

649,5 [25,57]

697,5 [27,46]

746,5 [29,39]

---

L3 2

96,5 mm [11.67]

5

L1

445,0 17,52

493,0 19,41

541,0 21,30

589,0 23,19

637,0 25,08

---

L2

515,5 [20,30]

564,5 [22,22]

612,5 [24,11]

661,5 [26,04]

709,5 [27,93]

---

L3 3

62,5 mm [14.27]

6

L1

511,0 20,12

559,0 22,01

607,0 23,90

655,0 25,79

---

L2

588,5 [23,17]

637,5 [25,10]

685,50 [26,99]

734,50 [28,92]

---

L3 4

28,5 mm [16.87]

PVB

1 2 3 4 5

6 7 8 9 10

11

7

L1

577,022,72

625,024,61

673,026,50

L2

649,5[25,57]

697,5[27,46]

746,5[29,39]

L3 4

94,5 mm [19.47]

8

L1

643,025,31

L2

722,50[28,44]

L3 5

60,5 mm [22.07]

PVEO 7 PVG128/32

(PVB 128

1 2345

678910

1

L1

201 [7.91]

249 [9.80]

297 [11.69]

345 [13.58]

393 [15.47]

441 [1.36]

489 [19.25]

537 [21.14]

585 [23.03]

L2

273,5 [10.77]

321,5 [12.66]

370,5 [14.59]

418,5 [16.48]

467,5 [18.41]

515,5 [20.30]

564,5 [22.22]

612,5 [24.11]

661,5 [26.04]

L3 118,5 mm [4.67 in]

2

L1

287 [11.30]

335 [13.19]

383 [15.08]

431 [16.97]

479 [18.86]

527 [20.75]

575 [22.64]

623 [24.53]

671 [26.42]

L2

358,5 [14.11]

406,5 [16.0]

455,5 [17.93]

503,5 [19.82]

552,5 [21.75]

600,5 [23.64]

649,5 [25.57]

697,5 [27.46]

746,5 [29.9]

L3 204,5 mm [8.05 in]

3

L1

373 [14.69]

421 [16.57]

469 [18.46]

517 [20.35]

565 [22.24]

613 [24.13]

661 [26.02]

- - -

L2

443,5 [17,46]

491,5 [19,35]

540,5 [21,28]

588,5 [23,17]

637,5 [25,10]

685,5 [26,99]

734,5 [28,92]

- - -

L3 290,5 mm [11.44 in]

4

L1

459 [18,07]

507 [19,96]

555 [21,85]

603 [23,74]

651 [25,63]

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

L2

528,5 [20,81]

576,5 [22,70]

625,5 [24,63]

673,5 [26,52]

722,5 [28,44]

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

L3 376,5 mm [14.82 in]

5

L1

545 [21,46]

593 [23,35]

641 [25,24]

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

L2

625,5 [24,63]

673,5 [26,52]

722,5 [28,44]

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

L3 462,5 mm [18.21 in]

1 2 3 4 5

6 7 8 9 10

6

L1

631 [24,84]

L2

709,5 [27,93]

L3 548,5

mm [21.59 in]

PVEO 7 PVG256/32

(PVB 256

PVP PVG

Specification Sheet Valve type:
PVG32

Subsidiary / Dealer				Danfoss Sold-To Party No.		Customer
Valve No.				Customer Part No.		Application
Filled in by				Date	Revision No		EAU
Function A-Port B-Port
1	Inlet			157B5130	PVP32
				200	bar
2	Work section 25l/min Closed neutral	PVM32	157B3171	157B6410	PVB32	157B7001	PVBS32	11166838 PVEO
				LSA=	bar	LSB=	bar
3	Work section 25l/min Open neutral	PVM32	157B3171	157B6140	PVB32	157B7101	PVBS32	11166775 PVEH
		PVLP	157B2230	LSA=	bar	LSB=	bar	157B2160 PVLP
4	Work section 65l/min Open neutral	PVM32	157B3171	157B6243	PVB32	157B7123	PVBS32	11177347 PVEA
		PVLP	157B2210	LSA=	bar	LSB=	180 bar	157B2250 PVLP
5	Work section 40l/min Closed neutral	PVM32	157B3171	157B6213	PVB32	157B7022	PVBS32	11166732 PVEH
				LSA=	150	bar	LSB=	150 bar
6				157B2015	PVS32
				LSA=	bar	LSB=	bar
7
				LSA=	bar	LSB=	bar
8
				LSA=	bar	LSB=	bar
9
				LSA=	bar	LSB=	bar
10
				LSA=	bar	LSB=	bar
11
				LSA=	bar	LSB=	bar
12
				LSA=	bar	LSB=	bar
13
				LSA=	bar	LSB=	bar
14
				LSA=	bar	LSB=	bar
15
				LSA=	bar	LSB=	bar
18	Assembly Kit	1.	157B8004	2.	3.			Business Type: New Business
19	Painting (write no if paint not wanted)			No	No paint
20	Customer Text on Group Label							PVE Programming: No
21	Customer Text on Packaging Label (Box)
22	Comment:							EX Certification: None

PVPVM PVG

Specification Sheet Valve type:

PVG 32
Danfoss

Subsidiary / Dealer				Danfoss Sold-To Party No.			Customer
Valve No.				Customer Part No.			Application
Filled in by				Date		Revision No		EAU
Function A-Port B-Port
1	Start Plate w. Pilot pressure			11091773	PVS132
					bar
2	Work Section 10l/min closed neutral	PVM32	15783171	15786140	PVB32		15787000	PVB532	11166775 PVEH
		PVLP	15782230	LSA=	bar	LSB=	bar	15782160	PVLP
3	Work Section 10l/min open neutral	PVM32	15783171	15786410	PVB32		15787100	PVB532	11166775 PVEH
				LSA=	bar	LSB=	bar
4	Mid inlet w. shock valve			11093684	PVPM32
		PVLP	15782280	LSA=	bar	LSB=	bar
5	Work Section 65l/min open neutral	PVM32	15783171	15786243	PVB32		15787123	PVB532	11166775 PVEH
		PVLP	15782210	LSA=	180	bar	LSB=	180 bar	15782250 PVLP
6	Work Section 10l/min closed neutral	PVM32	15783171	15786213	PVB32		15787020	PVB532	11166775 PVEH
				LSA=	180	bar	LSB=	180 bar
7	End Plate			15782015	PVS32
				LSA=	bar	LSB=	bar
8
				LSA=	bar	LSB=	bar
9
				LSA=	bar	LSB=	bar
10
				LSA=	bar	LSB=	bar
11
				LSA=	bar	LSB=	bar
12
				LSA=	bar	LSB=	bar
13
				LSA=	bar	LSB=	bar
14
				LSA=	bar	LSB=	bar
15
				LSA=	bar	LSB=	bar
18	Assembly Kit	1.	15788024	2.	3.				Business Type:
19	Painting (write no if paint not wanted)			No	No paint				New Business
20	Customer Text on Group Label								PVE Programming:
21	Customer Text on Packaging Label (Box)								No
22	Comment:								EX Certification:
									None

PLUS+1

Hydro-Gear

www.hydro-gear.com

Daikin-Sauer-Danfoss

www.daikin-sauer-danfoss.com

dansfous株式会社

Danfoss Power Solutions (Japan) Ltd.

本社·東京營業所 108-0075東京都區川区港南2丁目16番4号品川格蘭卜藏ト拉専一15階TEL 03-6433-2030 FAX [phone]

大阪業所 T530-0001大阪市北区梅田3丁目4番5号每日不才TEL 06-6136-6105 FAX [phone]

福岡營業所 7812-0011福岡市博多区博多駅前2丁目12番9号第6格一-12-2002TEL[phone] FAX[phone]

京都工場 ￥621-0017京都府龟岡市大井町北金岐柿木原35番地TEL0771-22-9600 FAX[phone]

Danfoss

Power Solutions (US) Company

2800 East 13th Street

Ames, IA 50010, USA

Phone: [phone]

Danfoss

Power Solutions GmbH & Co. OHG

Krokamp 35

D-24539 Neumunster, Germany

Phone: [phone]

Danfoss

Power Solutions ApS

Nordborgvej 81

DK-6430 Nordborg, Denmark

Phone: [phone]

Danfoss

Power Solutions Trading

(Shanghai) Co., Ltd.

Building #22, No. 1000 Jin Hai Rd

Jin Qiao, Pudong New District

Shanghai, China 201206

Phone: [phone]
