| Caractéristiques techniques | Four à micro-ondes avec puissance de 800 W, capacité de 20 L, 5 niveaux de puissance, plateau tournant de 24,5 cm. |
|---|---|
| Fonctions d'utilisation | Modes de cuisson : micro-ondes, décongélation, cuisson rapide, réchauffage. |
| Maintenance et nettoyage | Nettoyage intérieur avec un chiffon humide, utilisation d'un produit non abrasif recommandé. |
| Sécurité | Système de verrouillage de sécurité, protection contre la surchauffe, arrêt automatique en cas de porte ouverte. |
| Informations générales | Dimensions : 44 x 34 x 26 cm, poids : 12 kg, garantie de 2 ans. |
FOIRE AUX QUESTIONS - Style TAURUS
Questions des utilisateurs sur Style TAURUS
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Four à micro-ondes au format PDF gratuitement ! Retrouvez votre notice Style - TAURUS et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Style de la marque TAURUS.

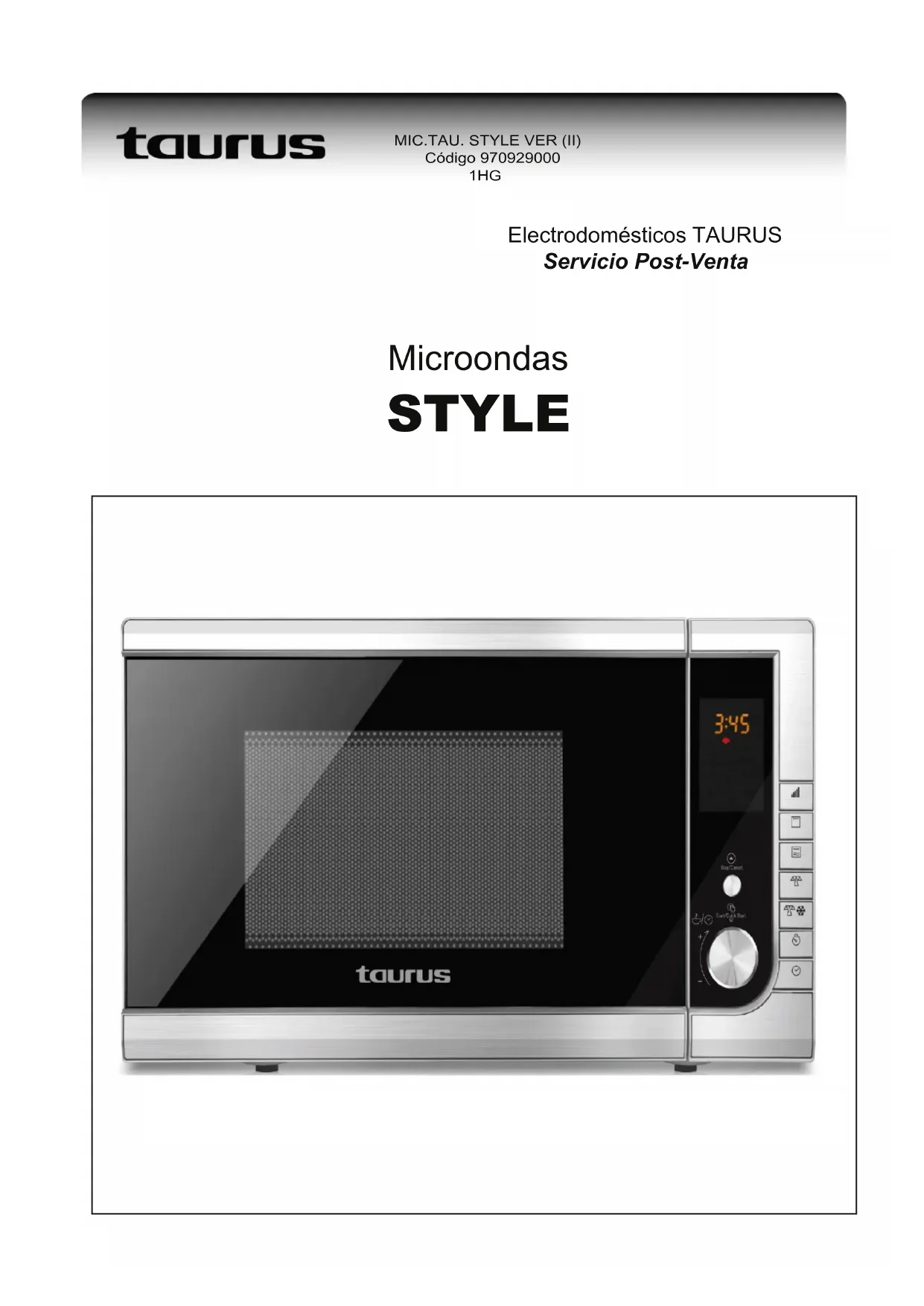

MODE D'EMPLOI Style TAURUS
Electrodomésticos TAURUS
Servicio Post-Venta
Microondas
STYLE

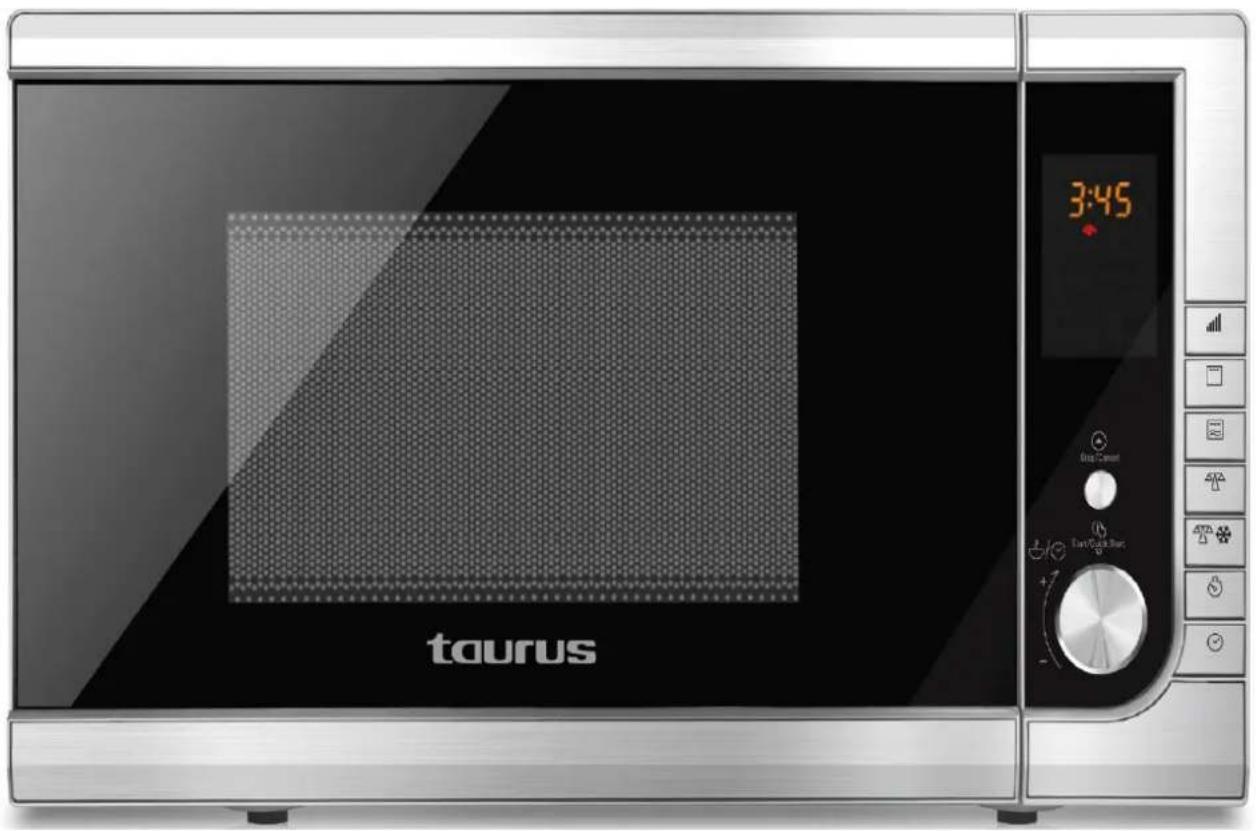

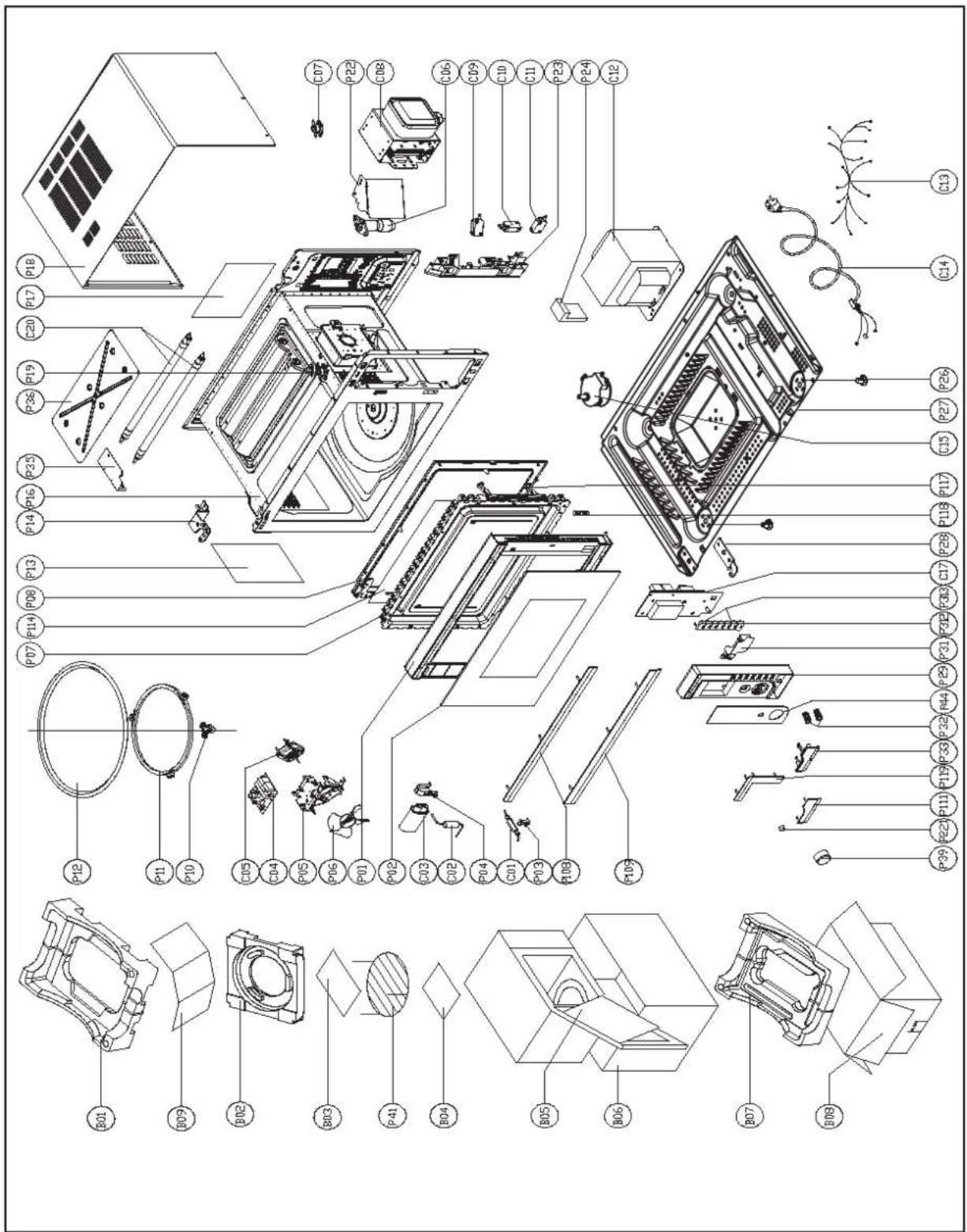

Exterior view of a taurus microwave oven with digital display showing 3:45, no visible text or symbols on the main device body.Explosionado

taurus
MIC.TAU. STYLE VER (II)
Código 970929000
1HG
Despiece 1/2


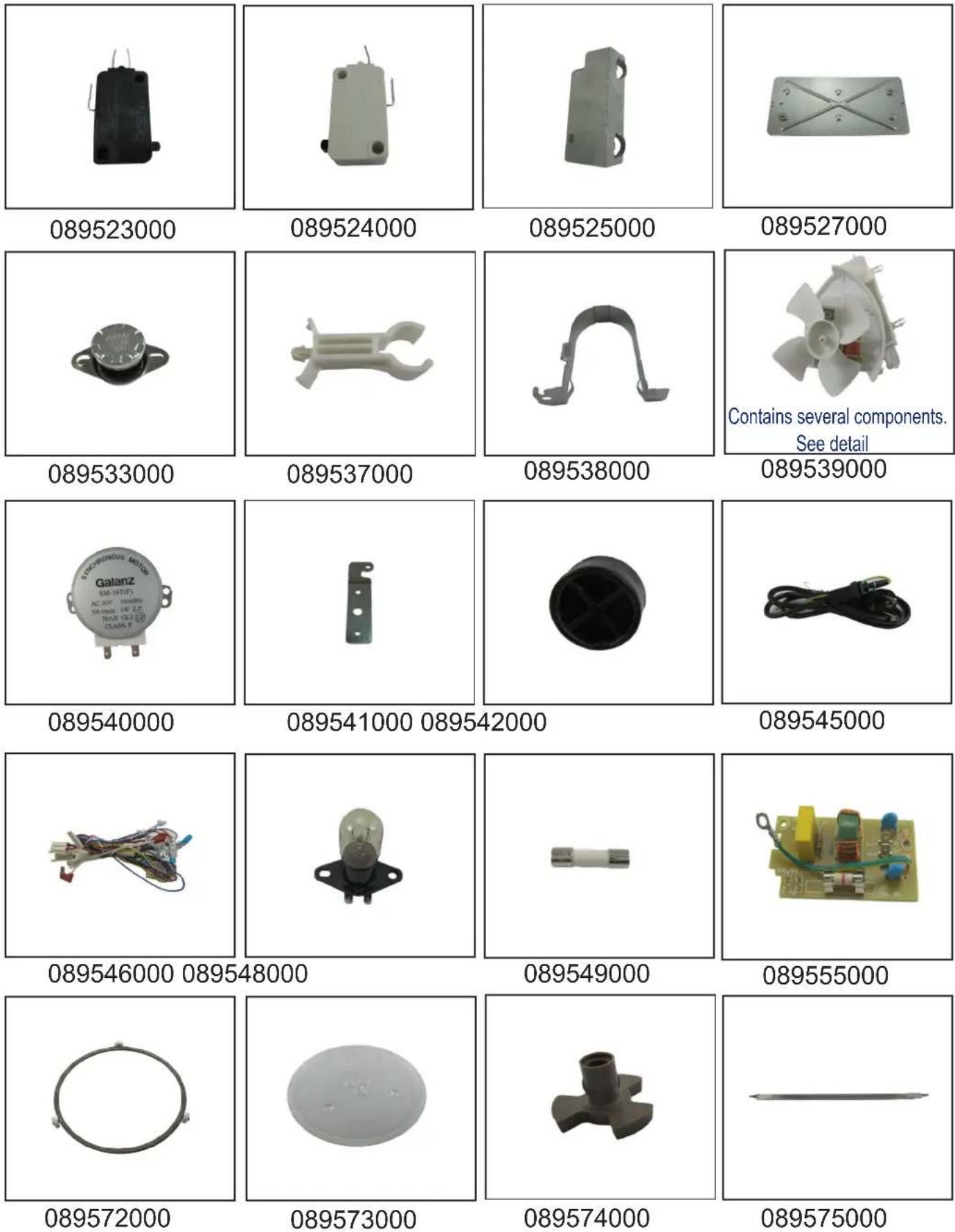

| No | CODIGO | DESCRIPCIONUNID. | |
| C09 | 089523000 M | CRORRUPTOR 3 TERMINALES 9KE 1 | |
| C10 | 089524000 M | CRORRUPTOR PUERTA 2 TERMINALES 9KE 1 | |
| P35 | 089525000 S | OPORTE RESISTENCIA MICRO. 9KE 1 | |
| P36 | 089527000 PL | LACA PROTECTORA MICRO. 9KE 1 | |
| C07 | 089533000 T | TERMOSTATO 180°C MICRO.9KE 1 | |
| P03 | 089537000 S | OPORTE PORTAFUSIBLE MICRO. 9KE 1 | |
| P04 | 089538000 S | OPORTE CONDENSADOR MICRO. 9KE 1 | |
| C05-P05-P06 | 089539000 CJ | UTO.MOTOR+VENTILADOR MICRO. 9KE 1 | |
| C15 | 089540000 M | MOTOR GIRATORIO MICRO. 9KE 1 | |
| P28 | 089541000 | BISAGRA IN | FERIOR MICROONDAS 9KE 1 |
| P26 | 089542000 P | E MICROONDAS 9KE 1 | |
| C14 | 089545000 C | ONEXION RED MICROONDAS 9KE | |
| C13 | 089546000 C | ABLEADO MICROONDAS 9KE | |
| P21-C06 | 089548000 P | ORTALAMPARA+LAMPARA MICRO (VER IV) 9KE | |
| C04-1 | 089549000 F | USIBLE MICRO (VER IV) 9KE | |
| C04 | 089555000 P | CB TRONIC/LAURENT 9KE | |
| P11 | 089572000 A | ARRASTRE PLATO MICROONDAS LAURENT 9KE | |
| P12 | 089573000 P | LATO MICROONDAS LAURENT 9KE | |
| P10 | 089574000 E | JE PLATO MICROONDAS LAURENT 9KE | |
| C20 | 089575000 R | RESISTENCIA LAURENT 9KE | |
| C01 | 089577000 C | ONJUNTO FUSIBLE LAURENT 9KE | |
| C02 | 089578000 D | ODO MICROONDAS LAURENT 9KE | |
| C03 | 089579000 C | ONDENSADOR MICROONDAS LAURENT 9KE | |
| C08 | 089580000 M | AGNETRON MICROONDAS LAURENT 9KE | |
| C12 | 089581000 T | TRANSFORMADOR MICROONDAS LAURENT 9KE | |
| P22 | 089582000 S | OPORTE CONDUCTOR AIRE LAURENT 9KE | |
| P35 | 089582000 S | OPORTE CONDUCTOR AIRE LAURENT 9KE | |
| P13 | 089584000 M | ICA PROTECTORA MICROONDAS LAURENT 9KE | |
| P23 | 089671000 S | OPORTE MICRORRUPTOR ELBRUS | |
| P31 | 089683000 | ACCIONADOR PULSADOR STYLE | 1 |
| C17 | 089684000 | PCB MICROONDAS STYLE | 1 |

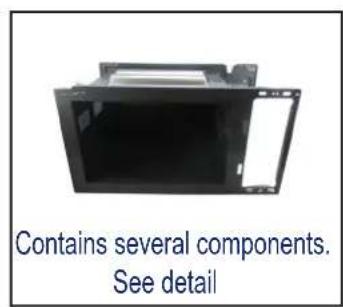

| P29-P32-P33-P44-P111-P119-P221-P312P313 | 089685000 P | ANEL CONTROL MICROONDAS STYLE | |
| P01-P02-P07-P08-P14-P108-P109-P114-P117-P118 | 089686000 C | JUTO PUERTA MICROONDAS STYLE | |
| P27 | 089687000 B | ASE MICROONDAS STYLE | |
| P18 | 089688000 C | UERPO SUPERIOR MICROONDAS STYLE | |
| P16-P17 | 089689000 C | UERPO MICROONDAS STYLE | |
| P19 | 089690000 T | ERMOSTATO 120°C MICROONDAS | |
| P39 | 089691000 M | ANDO MICROONDAS STYLE | |
| P24 | 089692000 P | ROTECTOR GOMA MICROONDAS | |
| CANJE | 970929000 | MIC.TAU. STYLE VER (II) | |
Nota informativa
| Ecología y reciclabilidad del producto |
| En caso de proceder con la eliminación, ya sea de forma total o de alguna de las partes del producto, los residuos que se generen se deberán depositar por los medios adecuados a manos de un gestor de residuos autorizado para la Recogida selectiva de Residuos de Aparatos Eléctricos y Electrónicos.En el caso de pilas/baterías estas deben depositarse en contenedores especiales autorizados o por los medios adecuados a través de un gestor de residuos. |
Características Técnicas
Mod: Style (Ver II)
Typ GBD239G4B-P
INPUT 230-240V 50Hz
1400W(MICRO) 1000W(GRILL)
OUTPUT 900W 2450MHz

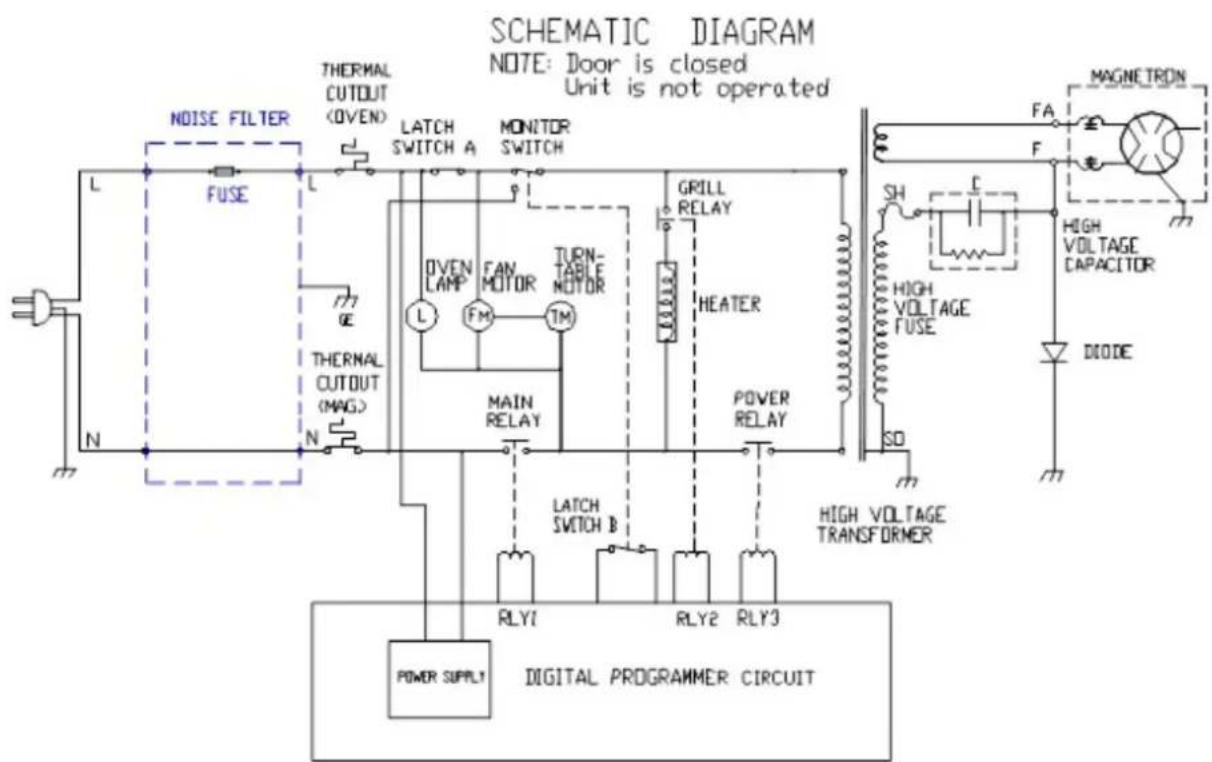

Esquema Eléctrico

