Caractéristiques techniques	Compatible avec les barres de toit THULE, dimensions adaptées pour une protection optimale contre la pluie.
Utilisation	Conçu pour être monté à l'avant du véhicule, il protège les passagers et le chargement de l'eau de pluie.
Maintenance et réparation	Nettoyage à l'eau savonneuse recommandé, vérifier régulièrement l'état des fixations.
Sécurité	Assurez-vous que le Rain Blocker est correctement fixé avant de prendre la route pour éviter tout accident.
Informations générales	Produit léger, facile à installer et à retirer, idéal pour les voyages sous la pluie.

FOIRE AUX QUESTIONS - Rain Blocker G2 Front THULE

Comment installer le THULE Rain Blocker G2 Front ?

Pour installer le THULE Rain Blocker G2 Front, commencez par positionner le bloqueur de pluie sur le devant de votre véhicule. Assurez-vous qu'il est bien aligné avec les points de fixation. Suivez ensuite les instructions fournies dans le manuel pour fixer le bloqueur en utilisant les clips et vis adaptés.

Le THULE Rain Blocker G2 Front est-il compatible avec tous les modèles de véhicules ?

Le THULE Rain Blocker G2 Front est conçu pour s'adapter à une large gamme de véhicules, mais il est recommandé de vérifier la compatibilité avec votre modèle spécifique avant l'achat. Consultez le site de THULE ou le manuel du produit pour plus d'informations.

Comment nettoyer le THULE Rain Blocker G2 Front ?

Pour nettoyer le THULE Rain Blocker G2 Front, utilisez un chiffon doux et de l'eau savonneuse. Évitez les produits chimiques abrasifs qui pourraient endommager le matériau. Rincez à l'eau claire et laissez sécher à l'air libre.

Que faire si le THULE Rain Blocker G2 Front ne reste pas en place ?

Si le THULE Rain Blocker G2 Front ne reste pas en place, vérifiez que tous les clips et vis sont correctement fixés. Assurez-vous également que le bloqueur est bien ajusté et qu'aucun débris n'empêche une bonne installation. Si le problème persiste, contactez le service client de THULE pour obtenir de l'aide.

Le THULE Rain Blocker G2 Front est-il résistant aux intempéries ?

Oui, le THULE Rain Blocker G2 Front est conçu pour résister aux intempéries et protéger votre véhicule contre la pluie et le vent. Cependant, il est conseillé de vérifier régulièrement son état pour s'assurer qu'il n'y a pas de dommages.

Quelle est la garantie du THULE Rain Blocker G2 Front ?

Le THULE Rain Blocker G2 Front est généralement couvert par une garantie limitée de 2 ans. Pour plus de détails sur la garantie, veuillez consulter le site web de THULE ou le manuel d'utilisation.

MODE D'EMPLOI Rain Blocker G2 Front THULE

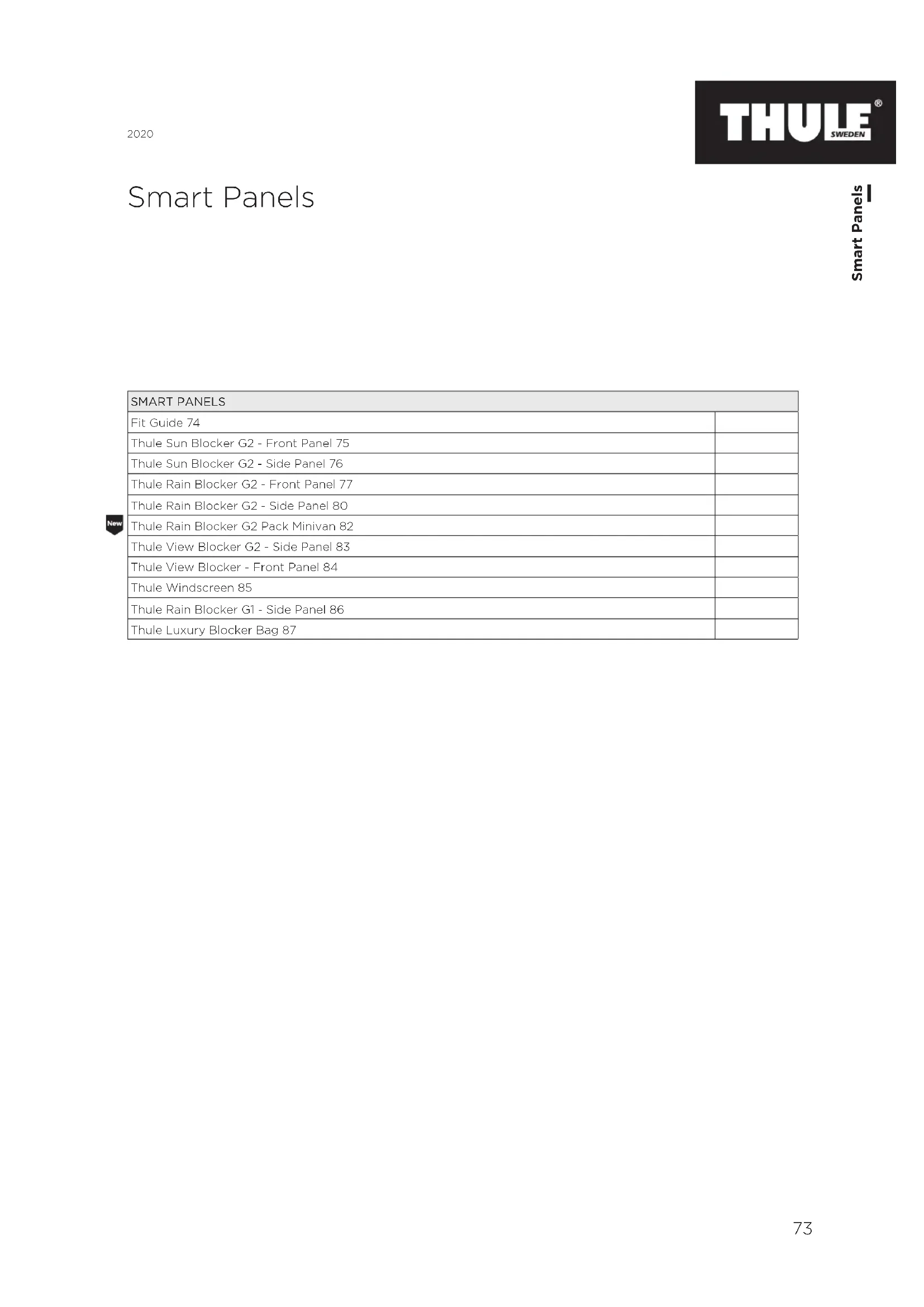

Smart Panels

SMART PANELS
Fit Guide 74
Thule Sun Blocker G2 - Front Panel 75
Thule Sun Blocker G2 - Side Panel 76
Thule Rain Blocker G2 - Front Panel 77
Thule Rain Blocker G2 - Side Panel 80
Thule Rain Blocker G2 Pack Minivan 82
Thule View Blocker G2 - Side Panel 83
Thule View Blocker - Front Panel 84
Thule Windscreen 85
Thule Rain Blocker G1 - Side Panel 86
Thule Luxury Blocker Bag 87

Smart Panels - Fit Guide

KEY INFORMATION

Select your vehicle type

。
Motorhome

O
Caravan

O
Van

O
Minivan

Select your awning type (check the label in the awning box)

Wall-mounted awning

○ TO 5200

○ TO 8000

○ TO 4900

○ TO 5102

○ T 3200

○ TO 2000

○ TO 5003

○ TO 5002

○ Tristor

○ Tristorll

○ V10XL

Roof-mounted awning

○	TO 9200
○	TO 6300
○	TO 6200
○	TO 6900

Rail-mounted awning

○ TO 1200

Select your awning length (check the label in the awning box)

O 1.90 m

2.30 m

3.00 m

4.00 m

5.00 m

6.00 m

2.50 m

3.25 m

4.25 m

5.50 m

2.60 m

3.50 m

0 4.50 m

2.70 m

3.75 m

Select your awning projection

2.00 m

2.50 m

2.75 m

3.00 m

Measure your mounting height

Mounting height (A) = distance between bottom of awning cassette and ground

Thule Sun Blocker G2 - Front

Sun protection

INFO

• Height (A) 1.70 m
• Length (B) 1.00 m - 4.80 m
• Colours Black, grey (transparent screen)

• Available for Thule Omnistor awnings:

• 5200, 8000, 4900, 5102, 3200, 2000, 9200, 6300, 6200, 1200, 5003
• 5002, 6900, Tristor, TristorII, V10XL

A = Approximate height of the panel B = Approximate length of the panel

Diagram of a solar panel with labeled dimensions A and B, showing no text or symbols beyond labels

FEATURES

• Lets the breeze in while keeping the sun out, without loss of view
• Easy and quick installation:

- the front panel is suitable for all Thule Omnistor awnings

- the panel easily slides into the awning's lead rail

- all front panels can be rolled up and are fixed with a side release buckle

- Modular system:

- combination of a panel with the Thule QuickFit tent is possible

(only in case the tent is smaller than the awning and if there is some space in the awning's lead rail to slide the panel in)

- Fabric material:

- micro-aired screen fabric, a transparent and light screen fabric

- Content:

- 1 front panel

- ground fixation: pegs and ropes

MODULARITY

User instruction

Four-panel image showing a white modular device with black base panels, displayed side by side (no text or symbols visible)

AWNING TYPE LENGTH (B) MIN. AWNING LENGTH HEIGHT (A)			WEIGHT (bruto) SKU NO
All Thule Omnistor awnings	1.00 m -		3072852.4 kg1.70 m · 7 kg	1.3 kg 307284
	2.40 m 2.60 m 2.1 kg
	2.80 m 3.00 m			307286
	3.30 m 3.50 m			307287
	3.80 m	4.00 m		3 kg	307288
	4.30 m	4.50 m		3.3 kg	307289
	4.80 m	5.00m		3.6 kg	307290

Thule Sun Blocker G2 - Side

Sun protection

INFO

• Mounting height (A) 1.90 m - 2.64 m
  • Projection (B) 2.00 m, 2.50 m, 2.75 m, 3.00 m
  • Colours Black, grey (transparent screen)
  • Available for Thule Omnistor awnings:
• 5200, 8000, 4900, 5102, 3200, 9200, 6300, 6200, 1200*, 5003
• 5002, 6900, Tristor, TristorII, V10XL by adding spare parts
  *Special model for Thule Omnistor 1200
• Not compatible with Master Movano adapter (ref. 308059)

Diagram of a solar panel structure with labeled dimensions A, B, and H (no text or symbols beyond labels)

A = Distance between bottom of awning's cassette and ground B = Approximate length of the awning when opened H = Awning incline

FEATURES

• Lets the breeze in while keeping the sun out, without loss of view
• Easy and quick installation:

- the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

- Modular system:

• combination of a panel with the Thule QuickFit tent possible (only in case of same mounting height)
• side panel can be installed on both sides of the awning with the same rafter

- Durable material:

• aluminium rafter
• micro-aired screen fabric, a transparent and light screen fabric

- Content:

• 1 side panel
• 1 aluminium rafter with channel
• connection pieces for Thule Omnistor awnings for both sides of the awning
• ground fixation: pegs and ropes

User instruction

MODULARITY

Exterior view of a modern office building (no signage)

Exterior view of a modern industrial or storage unit with a flat roof and black insulation (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a modern modular tent or enclosure with transparent glass panels and black bands (no text or symbols visible)

AWNING TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900• 5102 • 6300 •6200 • 5003 •5002	2.00 m 1.90 m	- 2.24 m Small 21	cm 2.7 kg 307399
T 3200	2.50 m	1.90 m - 2.24 m S	small 21 cm 3.5 kg 301338
TO 5200 • 4900• 6300 • 6200 •5003 • 5002		2.25 m - 2.44 m	Medium	23 cm	3.6 kg	307278
		2.45 m - 2.64 m	Large	43 cm	3.6 kg	307279
TO 1200		2.25 m - 2.49 m	TO 1200	48 cm	3.8 kg	307398
TO 8000 • 6900	2.75 m	2.25 m - 2.44 m	Medium	23 cm	4 kg	307280
		2.45 m - 2.64 m	Large	43 cm	4 kg	307281
TO 9200	3.00 m	2.25 m - 2.44 m	Medium	23 cm	4.4 kg	307282
		2.45 m - 2.64 m	Large	43 cm	4.4 kg	307283

Thule Rain Blocker G2 - Front

Rain and wind protection

INFO

• Height (A) 1.85 m, 2.10 m, 2.30 m
• Length (B) 1.02 m - 2.00 m
• Colours Black, white, grey
• Available for Thule Omnistor awnings:
- 5200, 8000, 4900, 5102, 3200, 2000, 9200, 6300, 6200, 1200, 5003
- 5002, 6900, Tristor, TristorII, V10XL

Exterior view of a solar panel structure with labeled dimensions A and B (no text or symbols beyond labels)

A = Approximate height of the panel
B = Approximate length of the panel

FEATURES

• Protects against rain and wind while keeping the incidence of light thanks to the large window

• Easy and quick installation:

• the front panel slides into the awning's lead rail

• all panels can be rolled up and are fixed with a side release buckle
• Modular system:
• various possibilities to combine the different panels thanks to smart connections
• Fabric material:
• top-quality PVC fabric with welded connections of the fabric
• Content:

- 1 front panel

• smart connections to connect with other Thule Rain Blocker G2 Front Panels
• ground fixation: pegs and pins

Close-up of hands installing or adjusting a black component on a white wall (no text or symbols visible)

MODULARITY

User instruction

AWNING TYPE	PANEL TYPE	LENGTH (B)	HEIGHT (A)	WEIGHT (bruto)	SKU NO
Combine with side panel: Minivan
T 3200	J	1.12 m	1.85 m	1.9 kg	301354
T 3200 • 5200 • 4900 • 5102	A	1.27 m		2 kg	306454
T 3200	K	1.47 m		2.2 kg	301355
T 3200	L	1.81 m		2.5 kg	301356
Combine with side panels: Small and TO 1200 V2
All Thule Omnistor awnings	B	1.27 m	2.10 m	2.2 kg	301320
	C	1.47 m		2.4 kg	301321
	D	1.67 m		2.6 kg	301322
	E	1.92 m		3 kg	301323
Combine with side panels: Medium, Large, X-Large, XX-Large, Van and Caravan
All Thule Omnistor awnings	F	1.02 m	2.30 m	2 kg	307303
	G	1.52 m		2.4 kg	307304
	H	1.72 m		2.6 kg	307305
	I	2.00 m		3 kg	307306

PANEL TYPE

BCDE 1.27 m 1.47 m 1.67 m 2.10 m 1.92 m 301320 301321 301322 301323

FGHI 1.02 m 1.52 m 1.72 m 2.00 m 2.30 m 307303 307304 307305 307306

FRONT COMBINATION

• Full front combination possible
- Connection pieces to the next front panel included
- Thule advises the following combinations for full awning length

COMPATIBLE SIDE PANEL AWNING LENGTH (L) FRONT COMBINATION
MINIVAN	2.50 m J + A
	2.60 m A + A
	2.70 m J + K
	3.00 m J + L
S TO 1200 V2	2.60 m B + B
	2.80 m B + C
	3.00 m B + D
	3.25 m B + E
	3.50 m C + E
	3.75 m D + E
	4.00 m E + E
	4.25 m B + C + C
	4.50 m C + C + C
	5.00 m D + D + D
	5.50 m D + E + E
M L XL XXL VAN CARAVAN	3.00 m F + F + F
	3.25 m G + H
	3.50 m F + G + F
	3.75 m	H + I
	4.00 m	F + I + F
	4.25 m F + G + H
	4.50 m	F + I + G
	5.00 m	G + I + G
	5.50 m	I + G + I
	6.00 m	I + I + I

PANEL SETS

AWNING TYPE	AWNING LENGTH (L)	PANEL TYPE	SKU NO
T 3200	2.50 m	J + A	301360
TO 4900 • 5102	2.60 m	A + A	301361
T 3200	2.70 m	J + K	301362
T 3200 • 4900	3.00 m	J + L	301363

M/L / XL / XXL / VAN / CARAVAN 5 / TO 1200 V2 MINIVAN ± L A

Thule Rain Blocker G2 - Side

Rain and wind protection

INFO

• Mounting height (A) 1.80 m - 3.04 m
  • Projection (B) 2.00 m, 2.50 m, 2.75 m, 3.00 m
  • Colours Black, white, grey
  • Available for Thule Omnistor awnings:
• 5200, 8000, 4900, 5102, 3200, 9200, 6300, 6200, 1200, 5003
• 5002, 6900, Tristor, TristorII, V10XL by adding spare parts
• Special model for TO 1200, Ducato H2: can be combined with a Thule Rain Blocker G2 Front Panel
• Not compatible with Master Movano adapter (ref. 308059)

A B H

A = Distance between bottom of awning's cassette and ground B = Approximate length of the awning when opened H = Awning incline

FEATURES

• Protects against wind and rain while keeping the incidence of light thanks to the large window
• Easy and quick installation:

- the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

- can easily be attached to the support leg of the awning or to another Thule Rain Blocker G2 panel thanks to the smart connections

- Modular system:

• various possibilities to combine the different panels
• side panels can be installed on both sides of the awning with the same rafter

• Durable materials:

- aluminium rafter

- top-quality PVC fabric with welded connections of the fabric

- Content:

• 1 side panel
• 1 aluminium rafter with channel
• connection pieces for Thule Omnistor awnings for both sides of the awning
• smart connections to connect the panel with the awning support leg
• ground fixation: pegs and pins

Instruction manual

Minivan

• VW California T5/T6

2003
- PSA Minivan > 2016

Van

• Fiat Ducato > 2006
  • Peugeot Boxer > 2006
  • Citroën Jumper > 2006
  • VW Crafter > 2017

INSTALLATION

MODULARITY

AWNING TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900• 5102	2.00 m	1.80 m - 1.99 m Minivan 21 cm 4 kg 306515
TO 5200 • 4900• 6300 • 6200• 5003 • 5002		2.05 m - 2.24 m Small* 23 cm 4 kg 307400
T 3200	2.50 m	1.80 m - 1.99 m Minivan 27 cm 4.5 kg 301339
TO 5200 • 4900• 6300 • 6200• 5003 • 5002		2.05 m - 2.24 m Small* 23 cm 4.8 kg 307291
		2.25 m - 2.44 m	Medium	23 cm 5 kg 307292
		2.45 m - 2.64 m	Large	43 cm	5 kg	307293
		2.65 m - 2.84 m	X-Large	63 cm	5 kg	307294
TO 1200		2.35 m - 2.54 m	TO 1200 V2*	50 cm	4.8 kg	301422
TO 6300 • 6200		2.30 m - 2.50 m	Van	37 cm	5 kg	307302
TO 6300 • 6200		2.35 m - 2.54 m	Caravan	33 cm	5 kg	301332
TO 8000 • 6900	2.75 m	2.25 m - 2.44 m	Medium	23 cm	5.6 kg	307295
		2.45 m - 2.64 m	Large	43 cm	5.6 kg	307296
		2.65 m - 2.84 m	X-Large	63 cm	5.6 kg	307297
		2.85 m - 3.04 m	XX-Large	83 cm	5.8 kg	306516
TO 9200	3.00 m	2.25 m - 2.44 m	Medium	23 cm	5.8 kg	307298
		2.45 m - 2.64 m	Large	43 cm	5.8 kg	307299
		2.65 m - 2.84 m	X-Large	63 cm 6 kg 307300
		2.85 m - 3.04 m	XX-Large 83 cm 6 kg 306517

*Not possible to use in combination with a Thule QuickFit | EasyLink awning tent

New

Thule Rain Blocker G2 Pack Minivan

Complete set of rain blocker panels for minivans

INFO

• Mounting height (A) 1.80 m - 1.99 m
  • Projection (B) 2.00 m
• Colours Black, white, grey
  • Available for Thule Omnistor awnings:

- 5102 (2.60 m)

- 4900 (2.60 m)

A = distance between bottom of awning's cassette and ground

B = approximate length of the awning when opened

H = awning incline

Product display setup with four front panels and a black TPU6 box, plus a plus sign (no text or symbols on main components)

FEATURES

• Set of 2 side panels and 2 front panels (1.27 m) for Thule Omnistor 5102 and Thule Omnistor 4900 awning length 2.60 m, mounted on minivans
• Protects against wind and rain while keeping the incidence of light thanks to the large window
• Easy and quick installation:

- the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

- can be easily attached to the support leg of the awning or to another Thule Rain Blocker G2 panel thanks to the smart connections

• Durable materials:
- aluminium rafter
- top-quality PVC fabric with welded connections of the fabric
- A luxurious blocker bag is included to store your tension rafters, panels and fixation material
- Content:

• 2 side panels
• 2 aluminium rafters with channel
• 2 front panels (1.27 m - type A)
• connection pieces for Thule Omnistor awnings for both sides of the awning
• smart connections to connect the panel with the awning support leg and front panels
• ground fixation: pegs and pins
• luxury blocker bag

SUITABLE MINIVANS

• Volkswagen T5/T6 (California, ...)
- Ford Custom
• Ford Custom Nugget
• Peugeot Traveller, Citroën Spacetourer (Campster), Toyota Proace
- Renault Traffic
• Mercedes Benz V-Klasse Marco Polo
• PSA minivan > 2016

Thule Rain Blocker G2 Pack Mininvan
AWNNG TYPE PRO	OJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5102 • 4900(2.60 m)	2.00 m 1.80 m	- 1.99 m Minivan 2	cm 12 kg 301329

Thule View Blocker G2 - Side

Rain, wind and sun protection

INFO

- Mounting height (A) 2.25 m - 2.64 m

• Projection (B) 2.50 m

- Colours Black, white, grey

• Available for Thule Omnistor awnings: - 5200, 4900, 6300, 6200, 5003

A = distance between bottom of awning's cassette and ground

B = approximate length of the awning when opened

H = awning incline

Diagram of a metal panel or support structure with labeled dimensions A, B, and H (no text or symbols beyond labels)

FEATURES

• Protects against rain, wind and sun whilst creating complete privacy
• Easy and quick installation:

- the side panel slides into an aluminium rafter with channel, installed between the awning's cassette and lead rail

- can easily be attached to the support leg of the awning or to other Thule Rain Blocker G2 panels thanks to the smart connections

• Modular system:

• various possibilities to combine with Thule Rain Blocker G2 front panels

• combination of a panel with the Thule QuickFit tent possible (only in case of same mounting height)
• side panel can be installed on both sides of the awning with the same rafter

• Durable material:

• aluminium rafter
• top-quality non-transparent PVC fabric with welded connections of the fabric

- Content:

• 1 side panel
• 1 aluminium rafter with channel
• connection pieces for Thule Omnistor awnings for both sides of the awning
• smart connections to connect the panel with the awning support leg
• ground fixation: pegs and pins

AWNNG TYPE PROJECTION (B) MOUNTING HEIGHT (A) H WEIGHT SKU NO
TO 5200 • 4900• 6300 • 6200• 5003 • 5002	2.50 m	2.25 m - 2.44 m Medium 23 cm 5 kg 308380
		2.45 m - 2.64 m Large 43 cm 5 kg 308381

Thule View Blocker - Front

Creates shade and protects against rain

INFO

• Height (A) 1.40 m
• Length (B) 2.40 m, 2.80 m, 3.30 m, 3.80 m, 4.30 m, 4.80 m
• Colours Grey (non-transparent)
• Available for Thule Omnistor awnings:
- 8000, 5200, 5003, 4900, 9200, 6300, 6200, 1200, 2000, 5102
- 5002, 6900, Tristor, TristorII, V10XL

A = approximate height of the panel

B = approximate length of te panel

A B

FEATURES

• Offers protection against rain, wind and sun and easily creates privacy as well
• Easy and quick installation:

- the front panel slides into the awning's lead rail

- all panels can be rolled up and are fixed with straps

• Durable material:
- micro-aired screen fabric
- Content:

- 1 front panel

- ground fixation: pegs and ropes

AWNING TYPE LENGTH (B) HEIGHT (A) WEIGHT (bruto) SKU NO
All Thule Omnistor Awnings	2.40 m	3075921.40 m	2.5 kg 307588
	2.80 m 2.8 kg
	3.30 m 3.2 kg
	3.80 m 3.4 kg
	4.30 m 3.8 kg
	4.80 m 4 kg

Thule Windscreen

Wind protection

INFO

• Height 1.55 m
  • Fabric height 1.38 m
  • Length Up to 3.00 m extension
• Weight 4.50 kg
  • Colour Grey (transparent screen)

FEATURES

• Protection against wind as well as an easy way to create privacy
• Micro-aired to avoid the wind from pushing too much the fabric
• Quick & easy to install thanks to its automatic roll in/out system
• Can be fixed to the vehicle via wall fixation or into the caravan rail via the rope fixation
• Unroll it and connect it to the awning support leg or make it free standing using the delivered strap kit
  • Storage bag included
• Content:
• windscreen
• rope fixation (caravan)
• 2x wall fixation (motorhome)
• adapter
• guy-ropes
• 4 pegs
• storage bag

Instruction manual

Exterior view of a solar panel with extended roof and side-mounted panel (no text or symbols visible)

Close-up of a metallic cylindrical object with a textured surface and a black top, no visible text or symbols.

306456

Thule

Windscreen

• Storage bag

• Rope fixation (caravan) • Wall fixation


Close-up of a metallic cylindrical object with grid pattern, attached to a vertical metal bracket (no text or symbols visible)

Close-up of a metallic cylindrical object with a black plastic clip attached, showing a textured surface and a white border (no text or symbols visible)

Black cylindrical object with 'THULE' branding, no visible text or symbols on the object itself

Thule Rain Blocker G1 - Side

Rain protection

INFO

• Mounting height (A) 2.15 m - 2.49 m: TO Caravan + Caravan Style 2.15 m - 2.49 m: TO Caravan 1.86 m - 2.11 m: TO 2000
  • Projection (B) 2.00 m, 2.30 m

• Colours White, grey
  • Only available for Thule Omnistor awnings:

• Caravan, Caravan Style: lengths from 2.60 m up to 4.50 m

• Caravan: length 2.60 m
• 2000: length 2.60 m on a VW T4

Diagram of a rectangular panel with labeled dimensions A and B (no text or symbols on the panel itself)

A = distance between bottom of awning's cassette and ground B = approximate length of the awning when opened

FEATURES

• Offers protection against rain and wind and easily creates privacy as well
• Easy and quick installation:

- the side panel slides onto a steel coated rafter, mounted between the awning's cassette and lead rail

- Content:

• 1 side panel
• coated steel rafter with spring
• connection pieces to the Thule Omnistor awning
• ground fixation: pegs and pins

AWNING TYPE LENGTH PROJECTION (B)			MOUNTING HEIGHT (A)	WEIGHT (bruto) SKU NO
TO Caravan • Caravan Style	2.60 m - 4.50 m 2	30 m 2.15 m - 2.49	m 4.5 kg 308869
TO Caravan 2.60 m 2.00 m 2.15 m - 2.49 m 4 kg 308870
TO 2000	2.60 m	2.00 m	1.86 m - 2.11 m	3.6 kg	308871

Thule Luxury Blocker Bag

INFO

• Luxurious bag to store the tension rafter, panel and fixation material
• Colour: black
  • Dimensions: 130 L x 20 cm W x 20 cm H

Black rectangular electronic device labeled 'TRULE' with a strap (no additional text or symbols visible)

301568

Thule

Luxury Blocker Bag
