MODE D'EMPLOI Cabaneta Profijt Meubel
![]() | Klacht - MontageaanwijzingSAV - Notice de montageComplaint - Assembly instructionReklamation - Montageanleitung | ![]() | ![]() | 07/06/2016 | |||||
| COW C022 0112 MI 1 / 10 | |||||||||
| - Dit meubel werd met veel zorg samengesteld en onderging een eindcontrole.Indien er toch iets mis is met deze colli vragen wij u vriendelijk op onderstaande tabel aan te geven wat er nodig isom het meubel volledig af te werken.- Ce meuble a été fabriqué avec le plus grand soin et fait l'objet d'un contrôle de qualité.Si malgré cela le colisprésentait quand même containes anomalies (pieces manquantes,endommagées),merci de bien vouloir nous lescommuniquer au moyer de ce formulaire.- This piece of furniture has been carefully assembled and passed a quality control.However should you find anythingwrong with this furniture,we advise you to use the underneath shedule.It can be used to indicate the parts required tocomplete the assembly of your furniture.- Unsere Möbel werden unter strenger kontroile hergestellt.Sollten evll.doch einmal Beschädigungen oder Mängelauftreten,so bitten wirdie benötigten Teile auf der tabelle hierunter anzugeben. | ![]() | ||||||||
15 min | ![]() | ![]() | ![]() | ![]() | |||||
| EKC | |||||||||
| EIJ | |||||||||
| AantalArtikelNr | 115 | ||||||||
| 594872879A | 4x30 | 8 | ![]() | ![]() | |||||
| B | 594873109 38 | 4x40 | |||||||
| C | 594871359 1 | ||||||||
| D | 594871369 1 | ||||||||
| E | 594872699 4 | 3.5x16 | |||||||
| F | 594805249 24 | ||||||||
| G | 594870269 12 | M4x24 | |||||||
| H1 | 595481949 6 | ||||||||
| H2 | 595481939 6 | ||||||||
| 0112 | 0115 | ||||||||
| Nr | Artikeln | Nr | Artikeln | ||||||
| 1 COW 020A 112 1 | 1 | COW 020A 112 1 | |||||||
| 2 C-05651 3 | 2 | C-05651 3 | |||||||
| 3 C-05648 3 | 3 | C-05648 3 | |||||||
| 4 C-05671-M1 1 | 4 | C-05670-M1 1 | |||||||
| 5 C-05669-M1 1 | 5 | C-05667-M1 1 | |||||||
| 6 C-05691-M4 1 | 6 | C-05869-M1 1 | |||||||
| 7 C-05691-M2 1 | 7 | C-05868-M1 1 | |||||||
| 8 COW 020B 112 1 | 8 | COW 020B 112 1 | |||||||
| 9 | 591249459 EKC-591249909 EKJ 1 | 9 | 591249499 EKC-591249949 EKJ 1 | ||||||
| 10 | 591249469=EKC-591249919=EKJ 1 | 10 | 591250419 EKC-591250429 EKJ 1 | ||||||
| 11 | 591249699 EKC-591250149 EKJ 1 | 11 | 591249699 EKC-591250149 EKJ 1 | ||||||
| 12 | 591249709 EKC-591250159 EKJ 2 | 12 | 591249709 EKC-591250159 EKJ 2 | ||||||
| 13 | 591249669 EKC-591250119 EKJ 2 | 13 | 591249669 EKC-591250119 EKJ 2 | ||||||
| 14 | 591249719 EKC-591250169 EKJ 2 | 14 | 591249719 EKC-591250169 EKJ 2 | ||||||
| 15 | 591249449 EKC-591249899 EKJ 2 | 15 | 591249449 EKC-591249899 EKJ 2 | ||||||
| 0112 | 0115 | ||||
| Nr | Artikeln | Nr | Artikeln | ||
| 1 COW 020A 112 1 | 1 | COW 020A 112 1 | |||
| 2 C-05651 3 | 2 | C-05651 3 | |||
| 3 C-05648 3 | 3 | C-05648 3 | |||
| 4 C-05671-M1 1 | 4 | C-05670-M1 1 | |||
| 5 C-05669-M1 1 | 5 | C-05667-M1 1 | |||
| 6 C-05691-M4 1 | 6 | C-05869-M1 1 | |||
| 7 C-05691-M2 1 | 7 | C-05868-M1 1 | |||
| 8 COW 020B 112 1 | 8 | COW 020B 112 1 | |||
| 9 | 591249459 EKC-591249909 EKJ | 1 | 9 | 591249499 EKC-591249949 EKJ | 1 |
| 10 | 591249469=EKC-591249919=EKJ | 1 | 10 | 591250419 EKC-591250429 EKJ | 1 |
| 11 | 591249699 EKC-591250149 EKJ | 1 | 11 | 591249699 EKC-591250149 EKJ | 1 |
| 12 | 591249709 EKC-591250159 EKJ | 2 | 12 | 591249709 EKC-591250159 EKJ | 2 |
| 13 | 591249669 EKC-591250119 EKJ | 2 | 13 | 591249669 EKC-591250119 EKJ | 2 |
| 14 | 591249719 EKC-591250169 EKJ | 2 | 14 | 591249719 EKC-591250169 EKJ | 2 |
| 15 | 591249449 EKC-591249899 EKJ | 2 | 15 | 591249449 EKC-591249899 EKJ | 2 |
REQOR ![]() | |||||


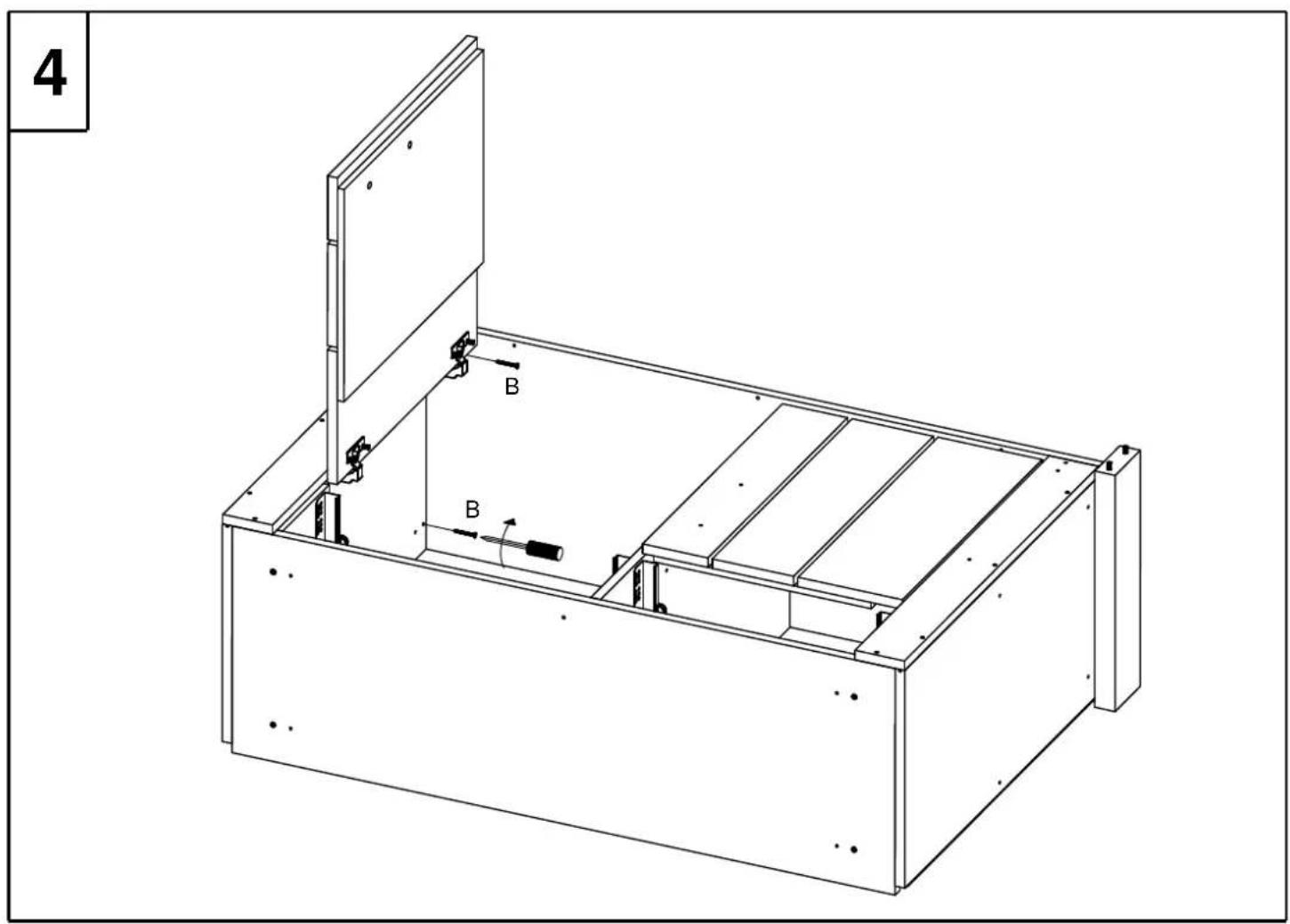

6 B B B B B
8


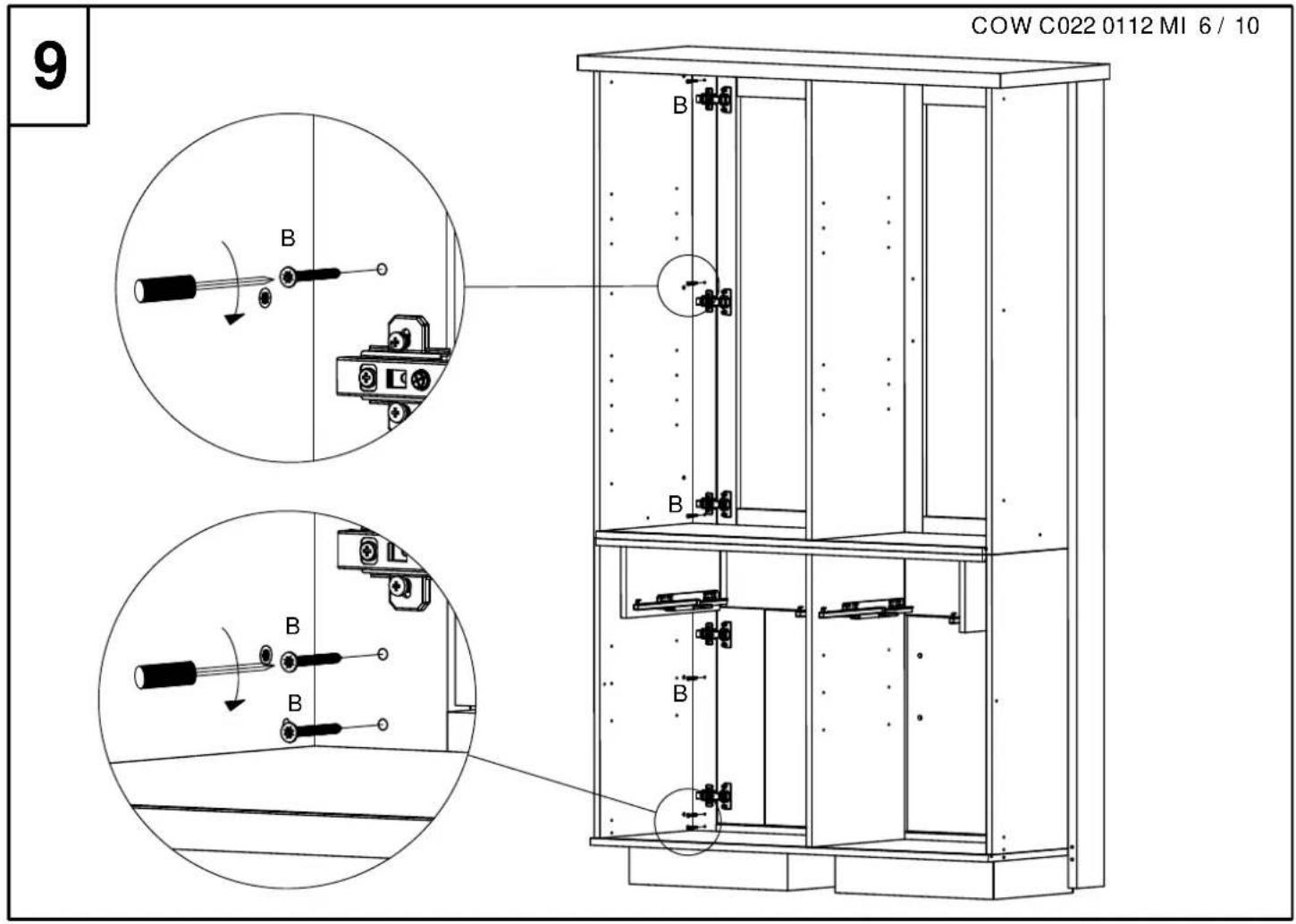

9 COW C022 0112 MI 6 / 10


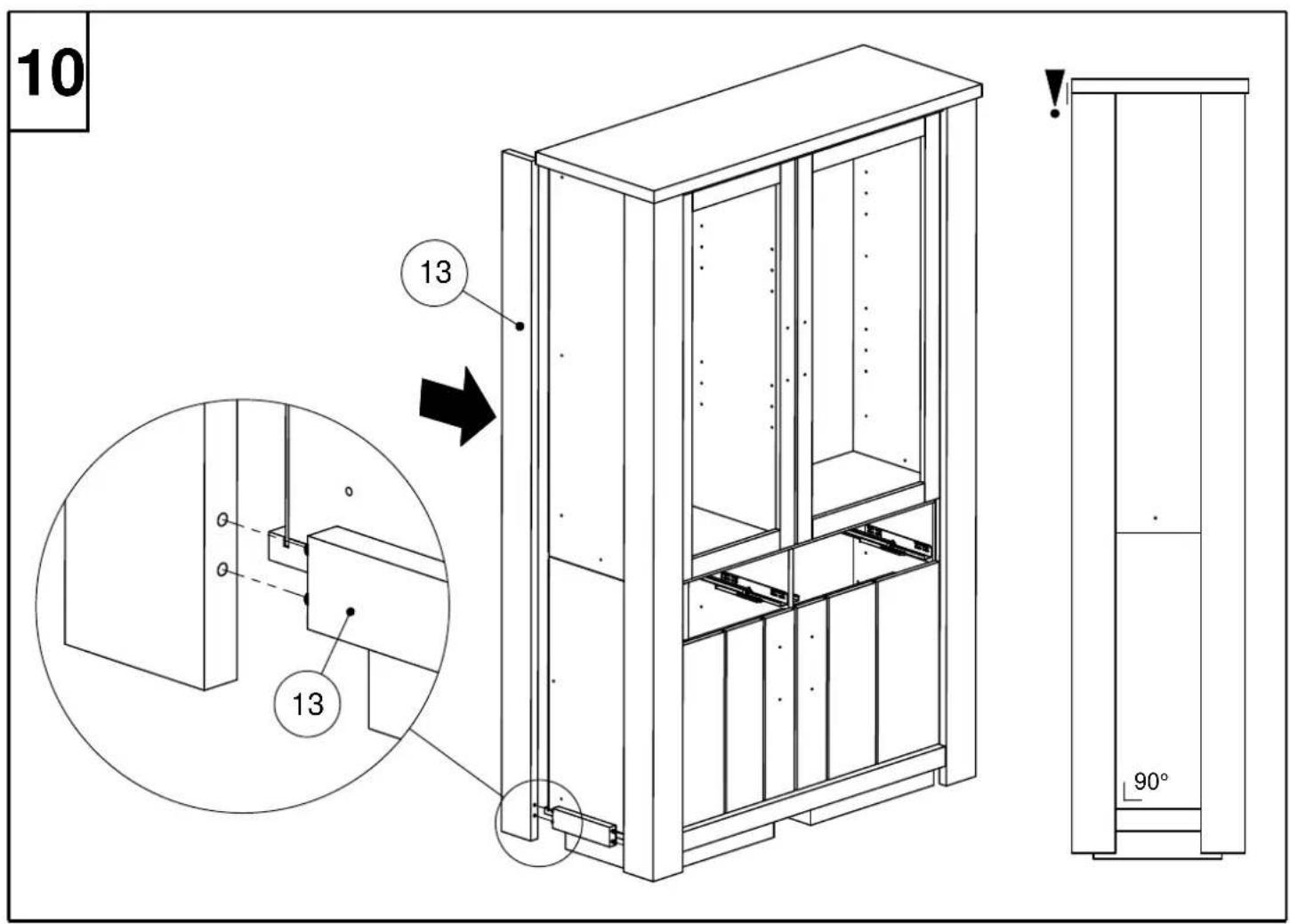

10 13 13 90°


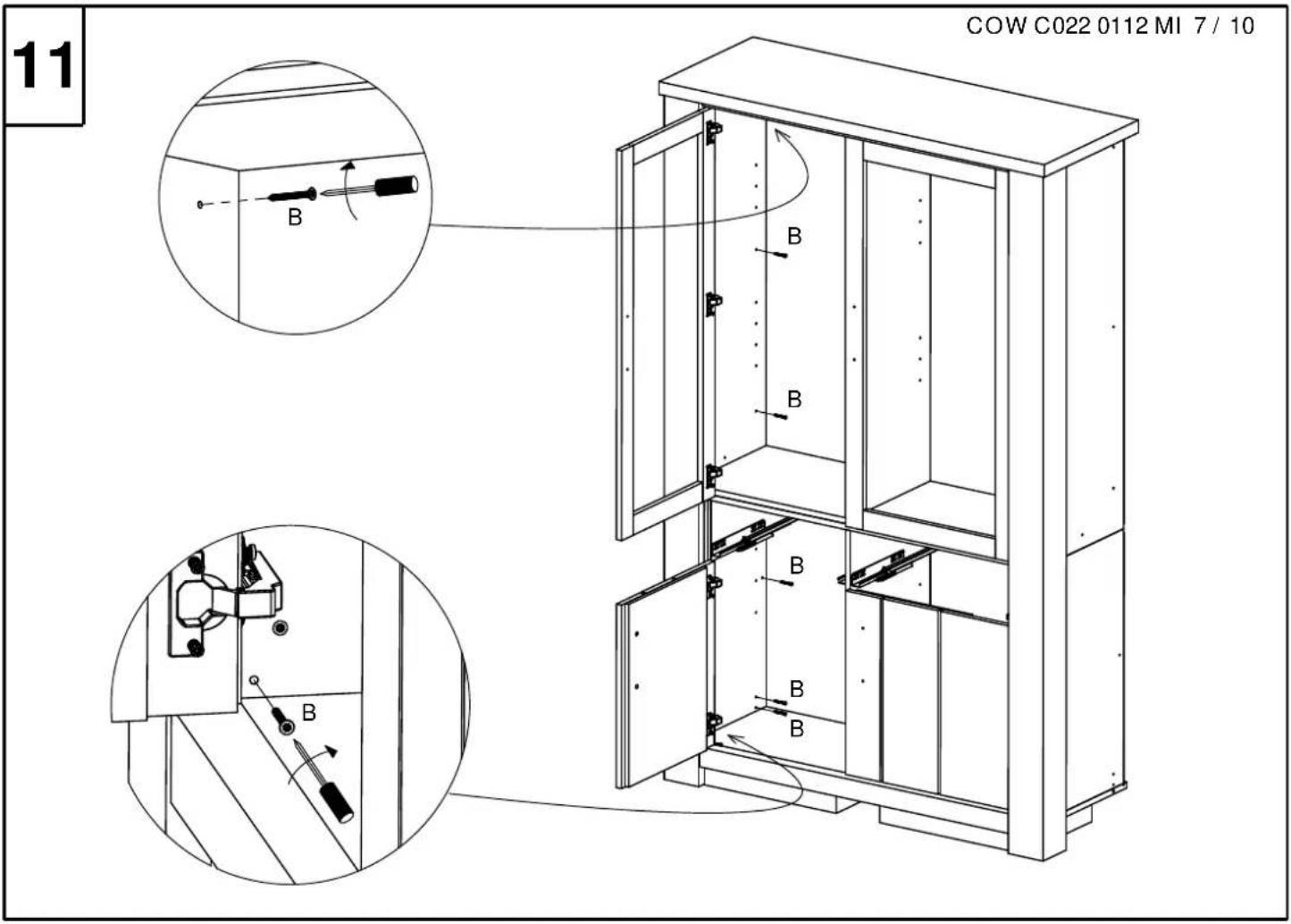

11 COW C022 0112 MI 7 / 10
COW C022 0112 MI 8 / 10


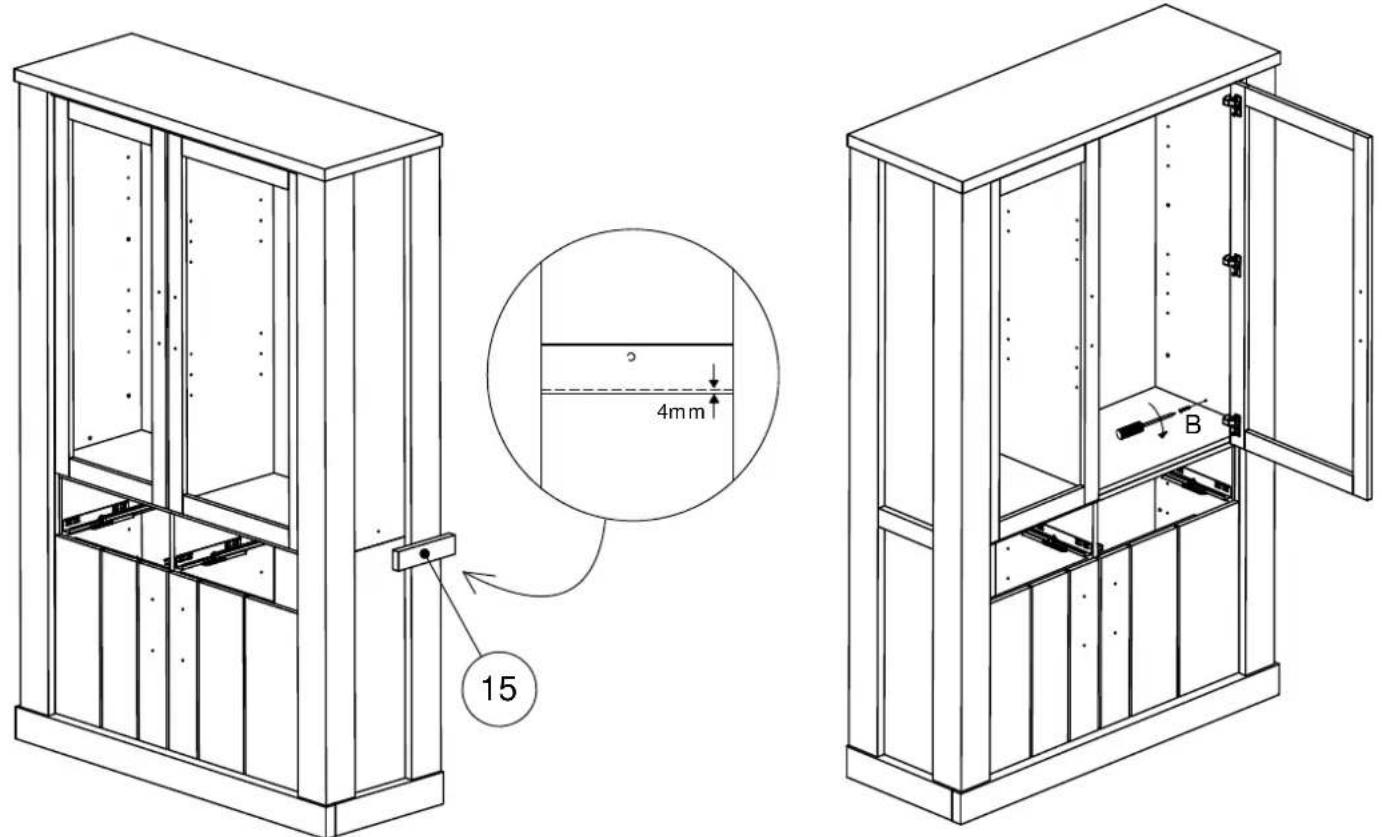

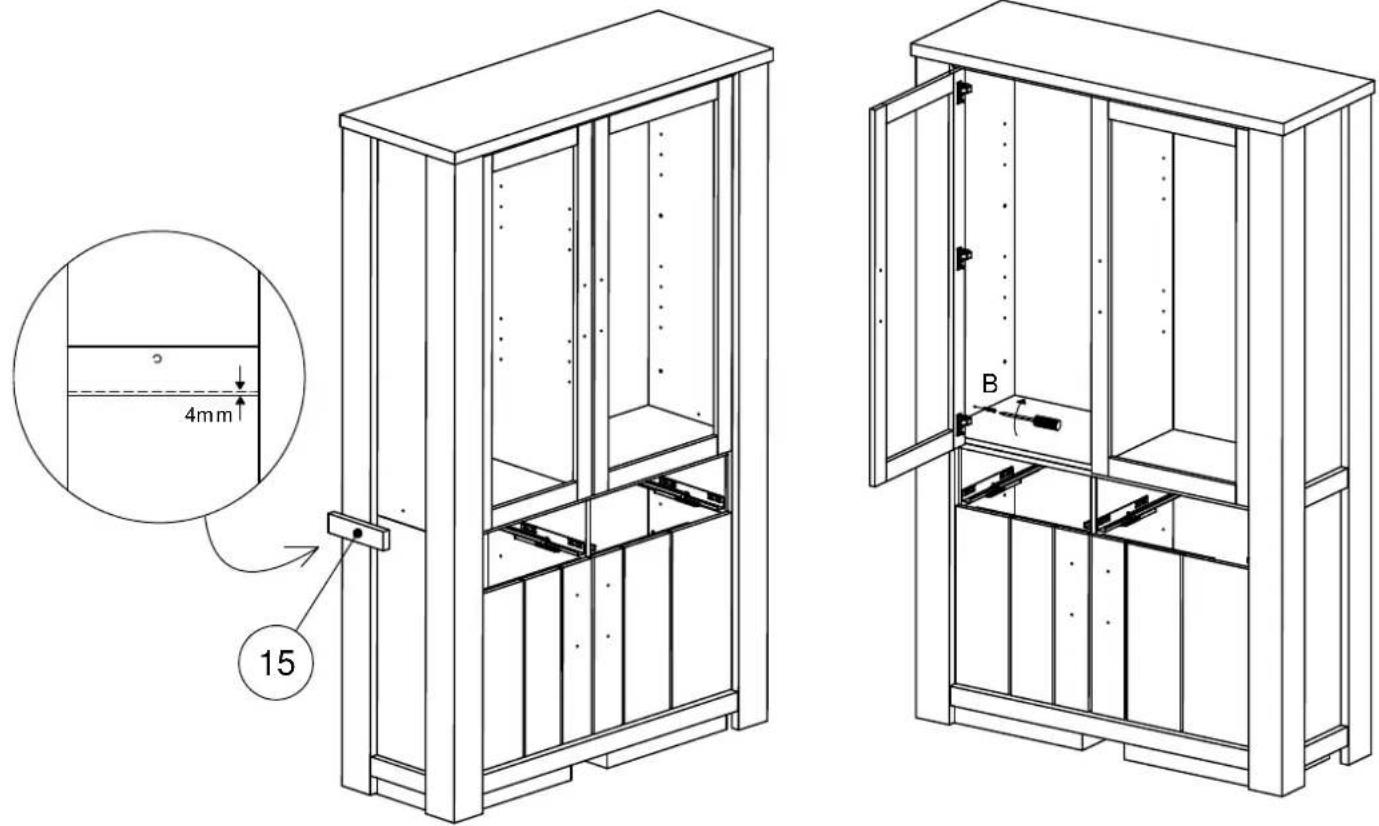

4mm 15 B15
COW C022 0112 MI 9 / 10


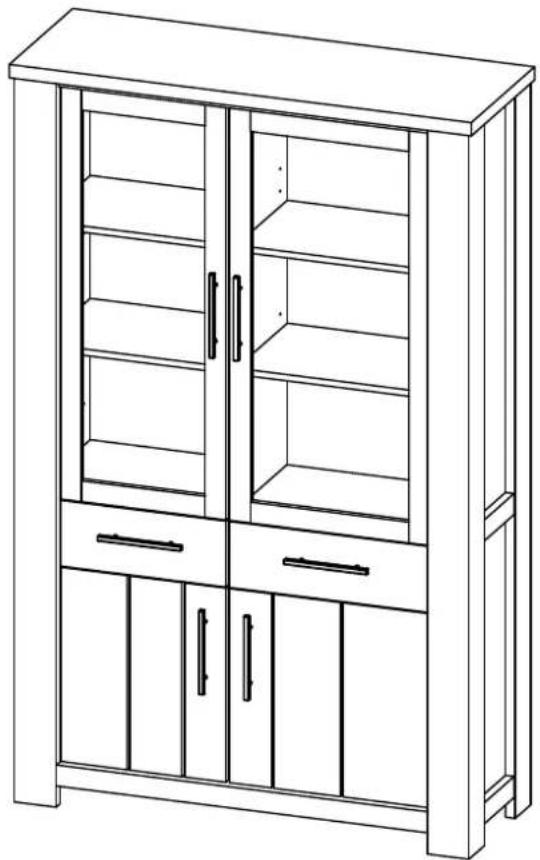

Technical line drawing of a cabinet with open doors and internal compartments (no text or symbols)16


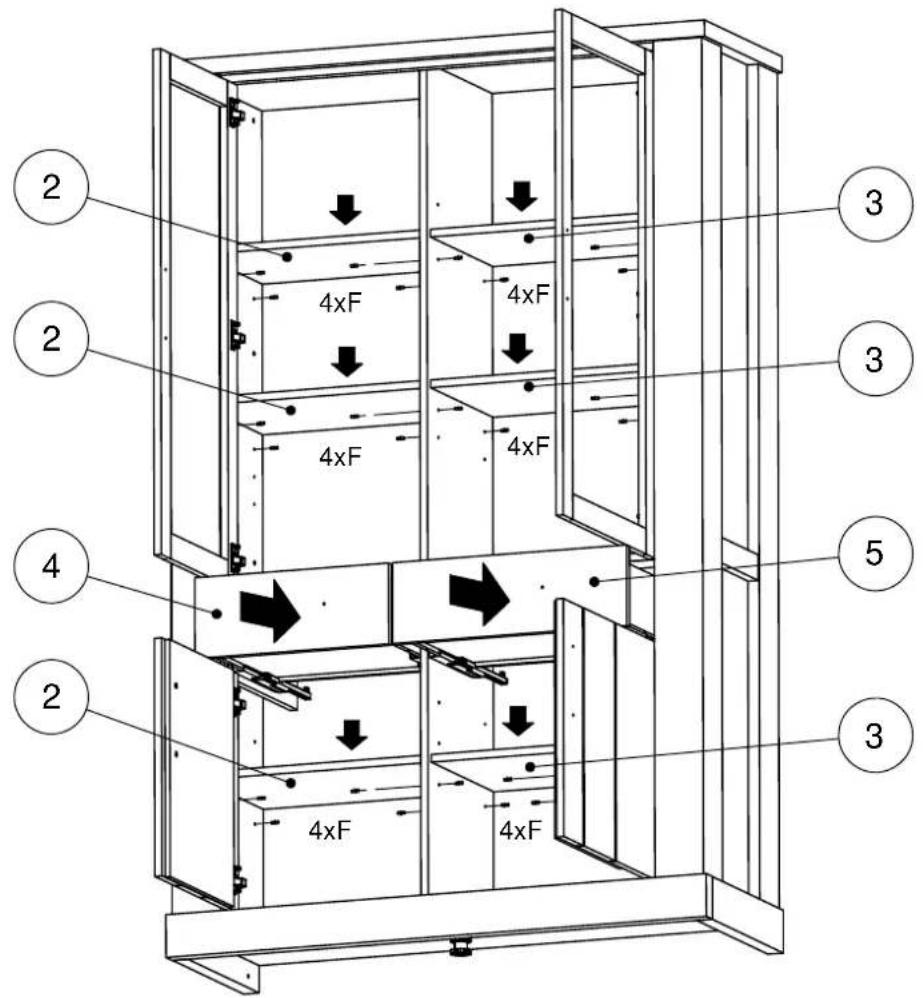

2 2 4xF 4xF 4xF 4xF 3 3 5 3 2 4xF 4xF17
COW C022 0112 MI 10 / 10


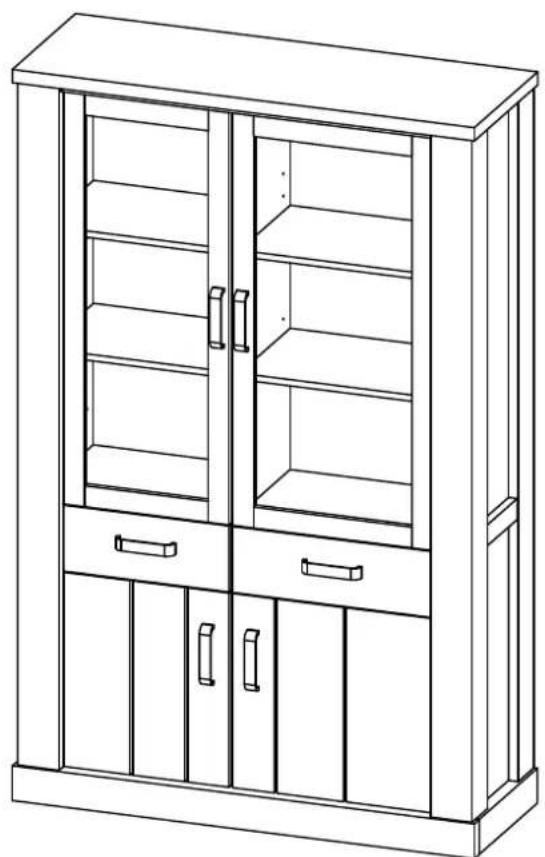

Line drawing of a two-door cabinet with double doors and drawers, no text or symbols present

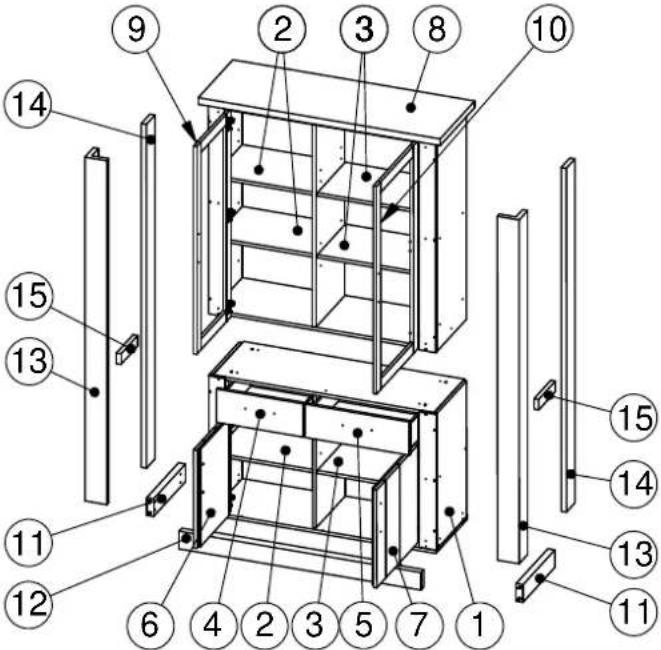

| - Dit meubel werd met veel zorg samengestoid en onderging een eindcontrole. Indien er toch lets mis is met deze colli vragen wij u vriendelijk op onderstaande tabel aan te geven wat er nodig is om het meubel volledig af te werken. - Ce meuble a été fabriqué avec le plus grand soin et fait l'objet d'un contrôle de qualité. Si malgré cela le colis presentait quand-même certaines anomalies (pièces manquantes, endommagées), merci de bien vouloir nous les communiquer au moyen de ce formulaire. This piece of furniture has been carefully assembled and passed a quality control. However should you find anything wrong with this furniture, we advise you to use the underneath shedule. It can be used to indicate the parts required to complete the assembly of your furniture. - Unsere Möbel werden unter strenger kontrolle hergestellt. Sollten evt. doch einmal Beschädigungen oder Mängel auftreten, so bitten wir, die benötigten Tello auf der labelle hierunter anzugeben. | ![]() | ||||||||
| 15 min | EKC EIJ | ||||||||
| Nr | Artikel | Aantal | Nr | Artikel | Aantal | ||||
| A | 594872879 | ![]() | 8 | I | 594822019 | 8x40 | 4 | ||
| B | 594873109 | ![]() | 38 | ||||||
| C | 594871359 | ![]() | 1 | ||||||
| D | 594871059 | ![]() | 1 | ||||||
| E | 594872699 | ![]() | 4 | ||||||
| F | 594805249 | ![]() | 24 | ||||||
| G | 594870269 | ![]() | 12 | ||||||
| H1 | 595481949 | ![]() | 6 | ||||||
| H2 | 595481939 | ![]() | 6 | ||||||
| 0112 0115 | |||||||||
| Nr | Artikel | n | Nr | Artikel | n | ![]() | |||
| 1 | COW 020A 112 | 1 | 1 | COW 020A 112 | 1 | ||||
| 2 | C-05651 | 3 | 2 | C-05651 | 3 | ||||
| 3 | C-05648 | 3 | 3 | C-05648 | 3 | ||||
| 4 | C-05671-M1 | 1 | 4 | C-05670-M1 | 1 | ||||
| 5 | C-05669-M1 | 1 | 5 | C-05667-M1 | 1 | ||||
| 6 | C-05691-M4 | 1 | 6 | C-05869-M1 | 1 | ||||
| 7 | C-05691-M2 | 1 | 7 | C-05868-M1 | 1 | ||||
| 8 | COW 020B 112 | 1 | 8 | COW 020B 112 | 1 | ||||
| 9 | 591249459 EKC- 591249909 EKJ | 1 | 9 | 591249499 EKC- 591249949 EKJ | 1 | ||||
| 10 | 591249469 EKC- 591249919 EKJ | 1 | 10 | 591250419 EKC- 591250429 EKJ | 1 | ||||
| 11 | 591249379 EKC- 591249829 EKJ | 2 | 11 | 591249379 EKC- 591249829 EKJ | 2 | ||||
| 12 | 591249439 EKC- 591249889 EKJ | 1 | 12 | 591249439 EKC- 591249889 EKJ | 1 | ||||
| 13 | 591249419 EKC- 591249869 EKJ | 2 | 13 | 591249419 EKC- 591249869 EKJ | 2 | ||||
| 14 | 591249429 EKC- 591249879 EKJ | 2 | 14 | 591249429 EKC- 591249879 EKJ | 2 | ||||
| 15 | 591249449 EKC- 591249899 EKJ | 2 | 15 | 591249449 EKC- 591249899 EKJ | 2 | ||||


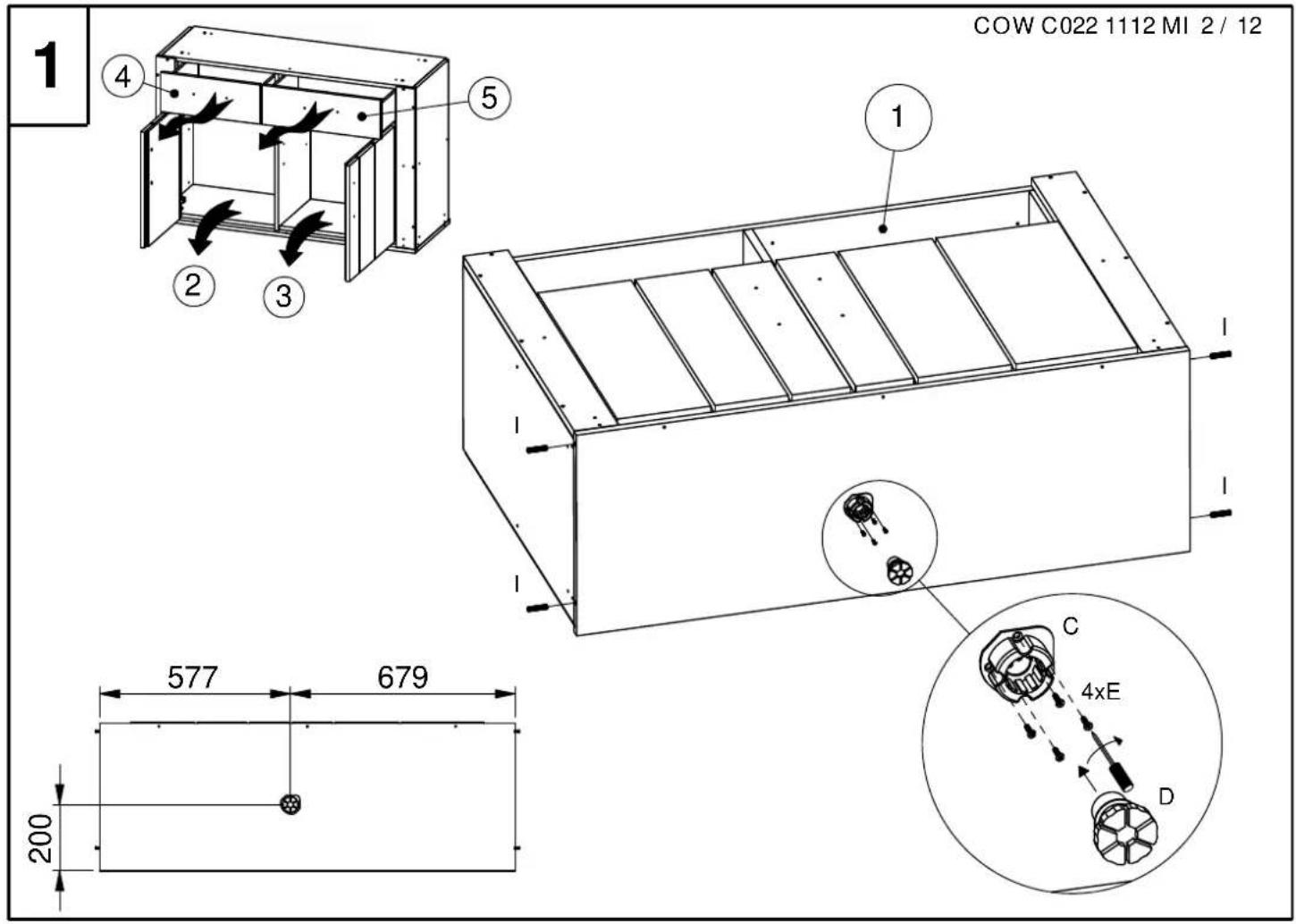

COW C022 1112 MI 2 / 12 1 4 5 ① ② ③ ④ ⑤ 577 679 200 C 4xE D


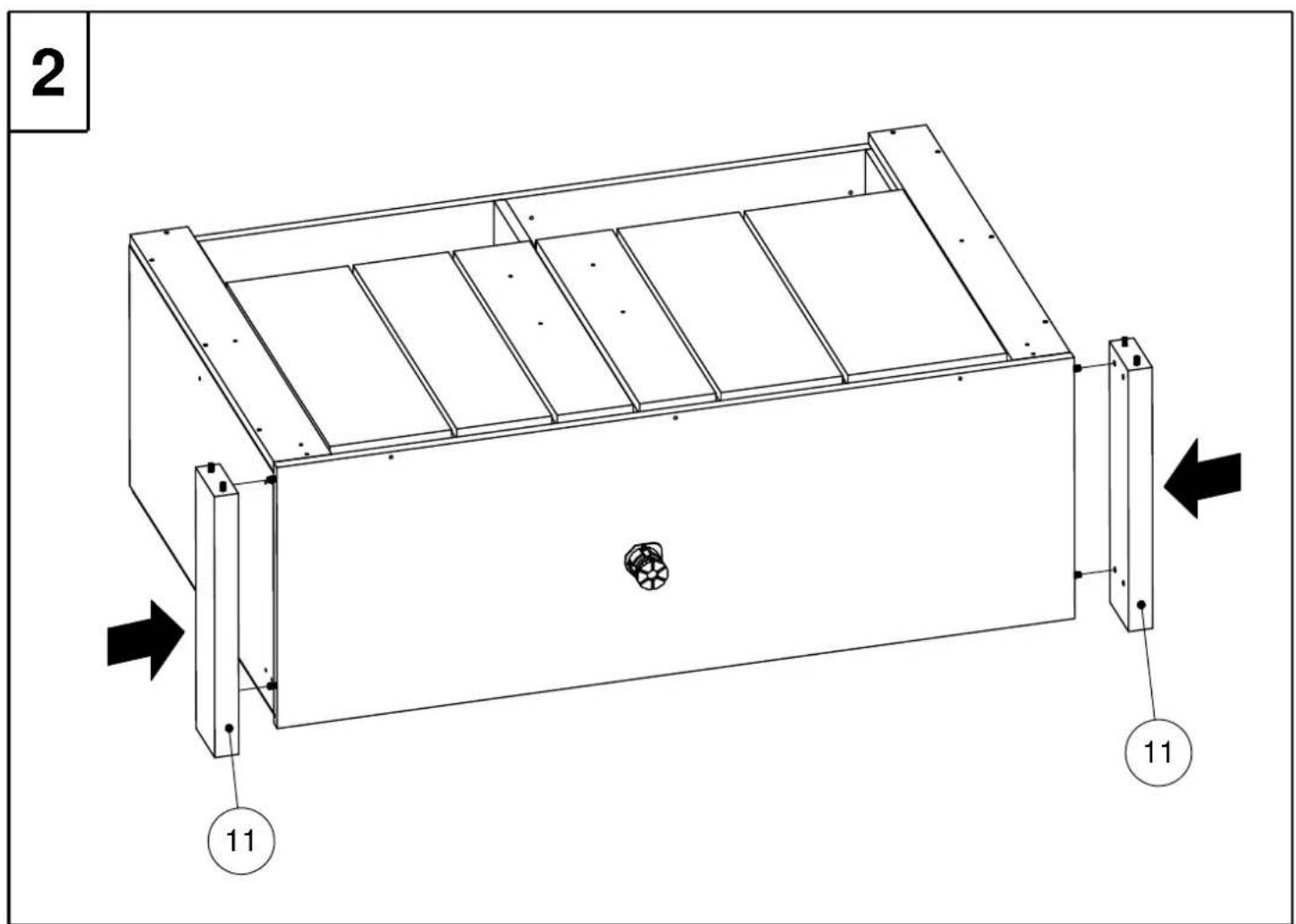

2 11 11


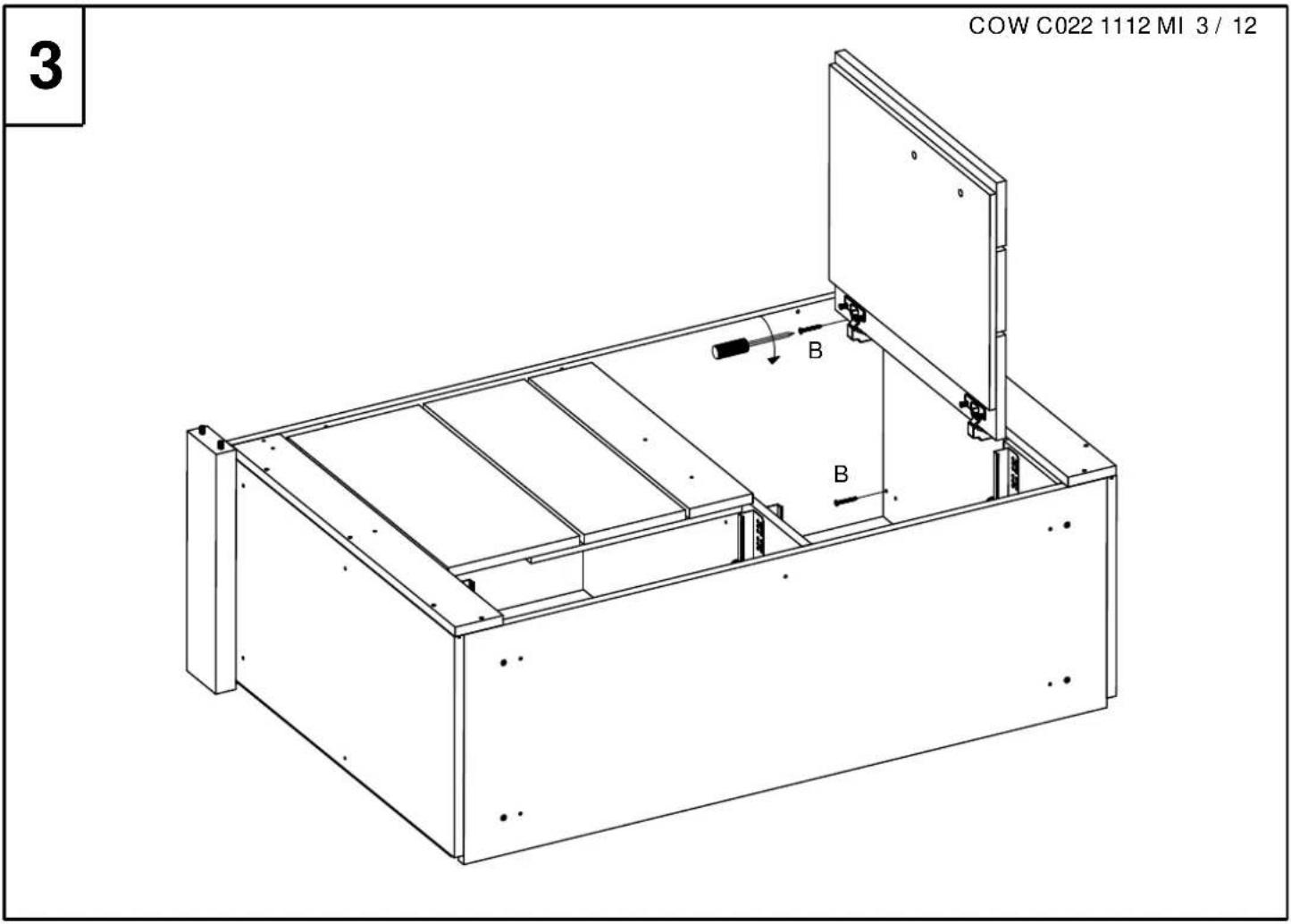

3 COW C022 1112 MI 3 / 12


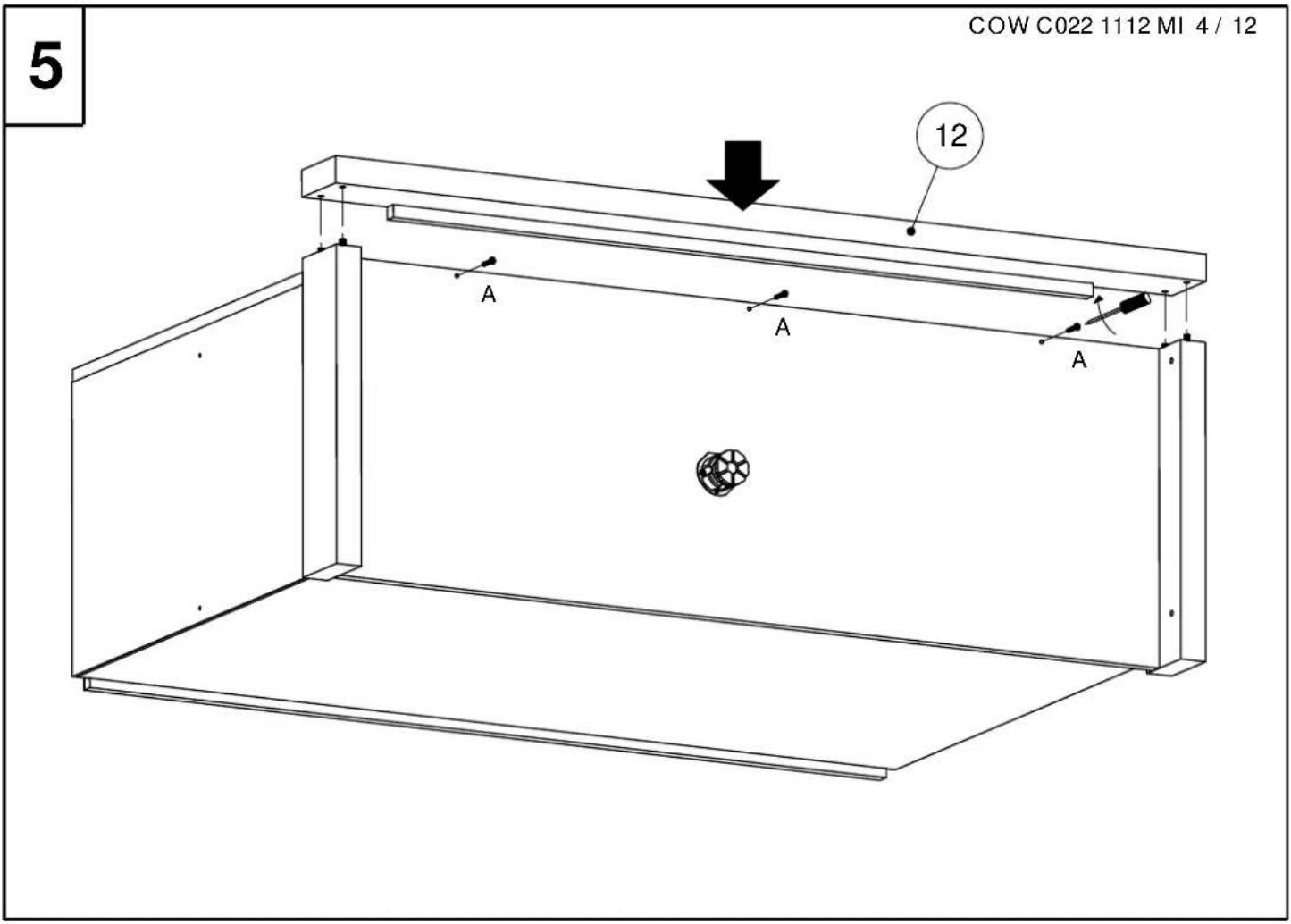

5 COW C022 1112 MI 4 / 12 12 A A A


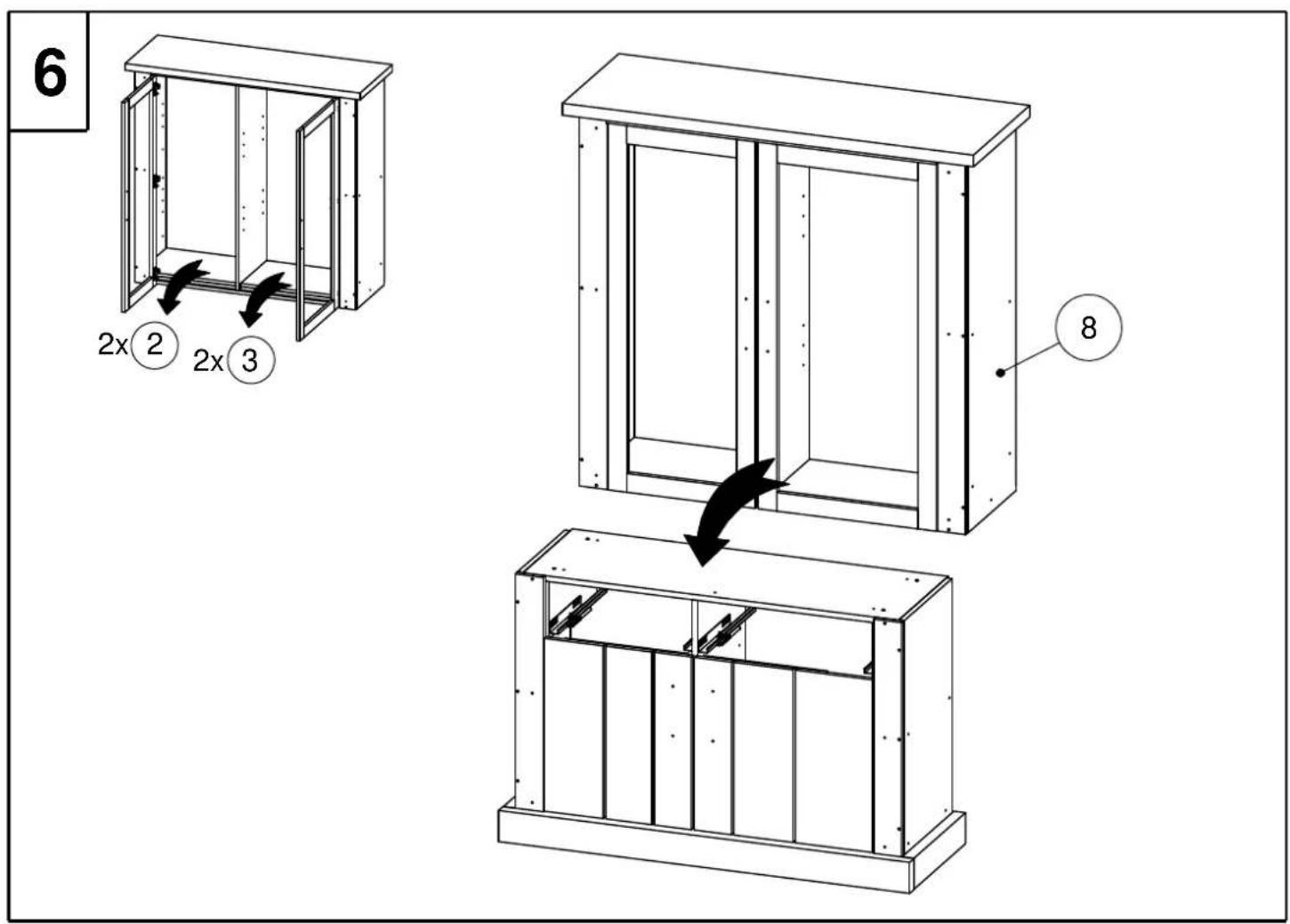

6 2x② 2x③ 8


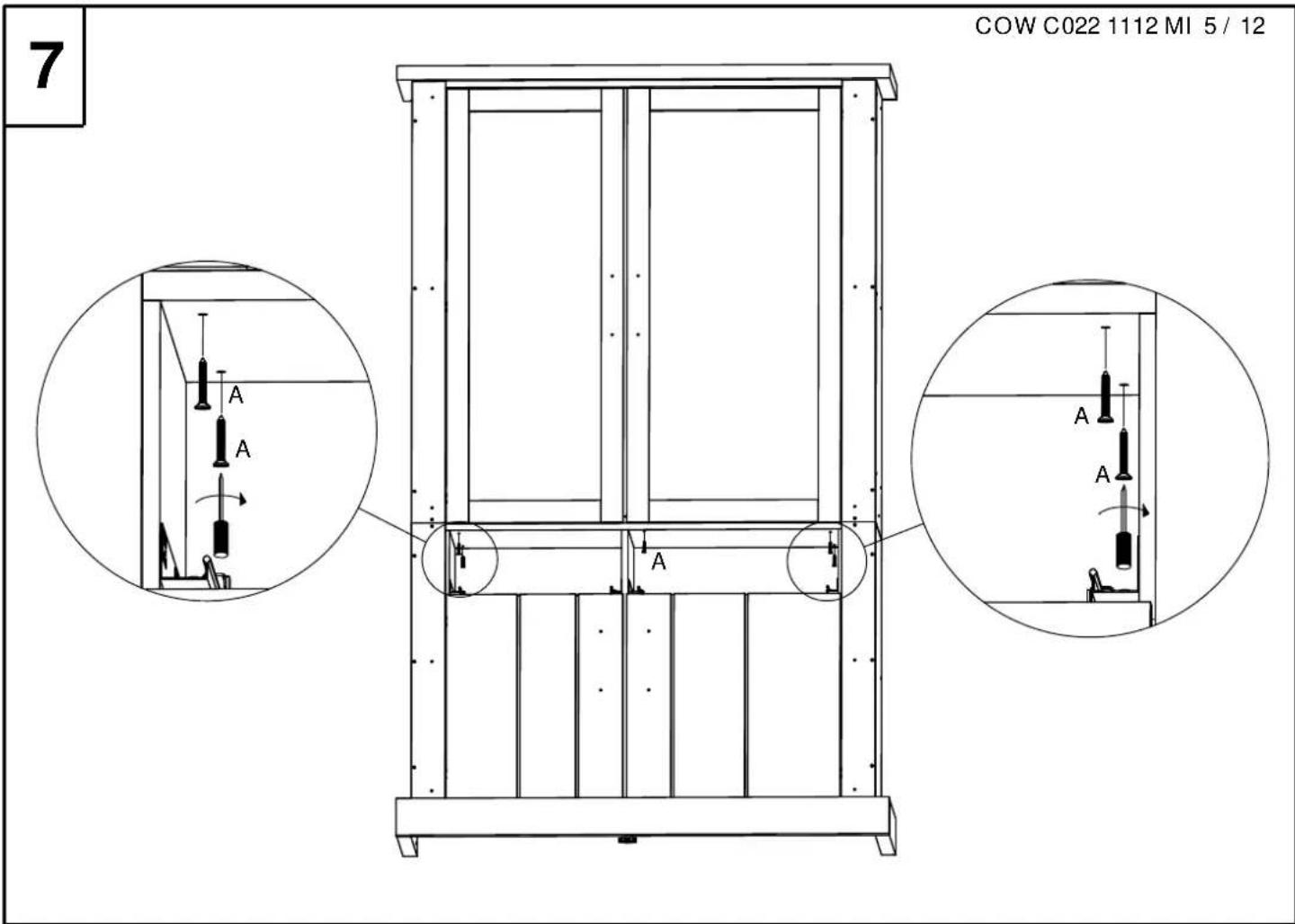

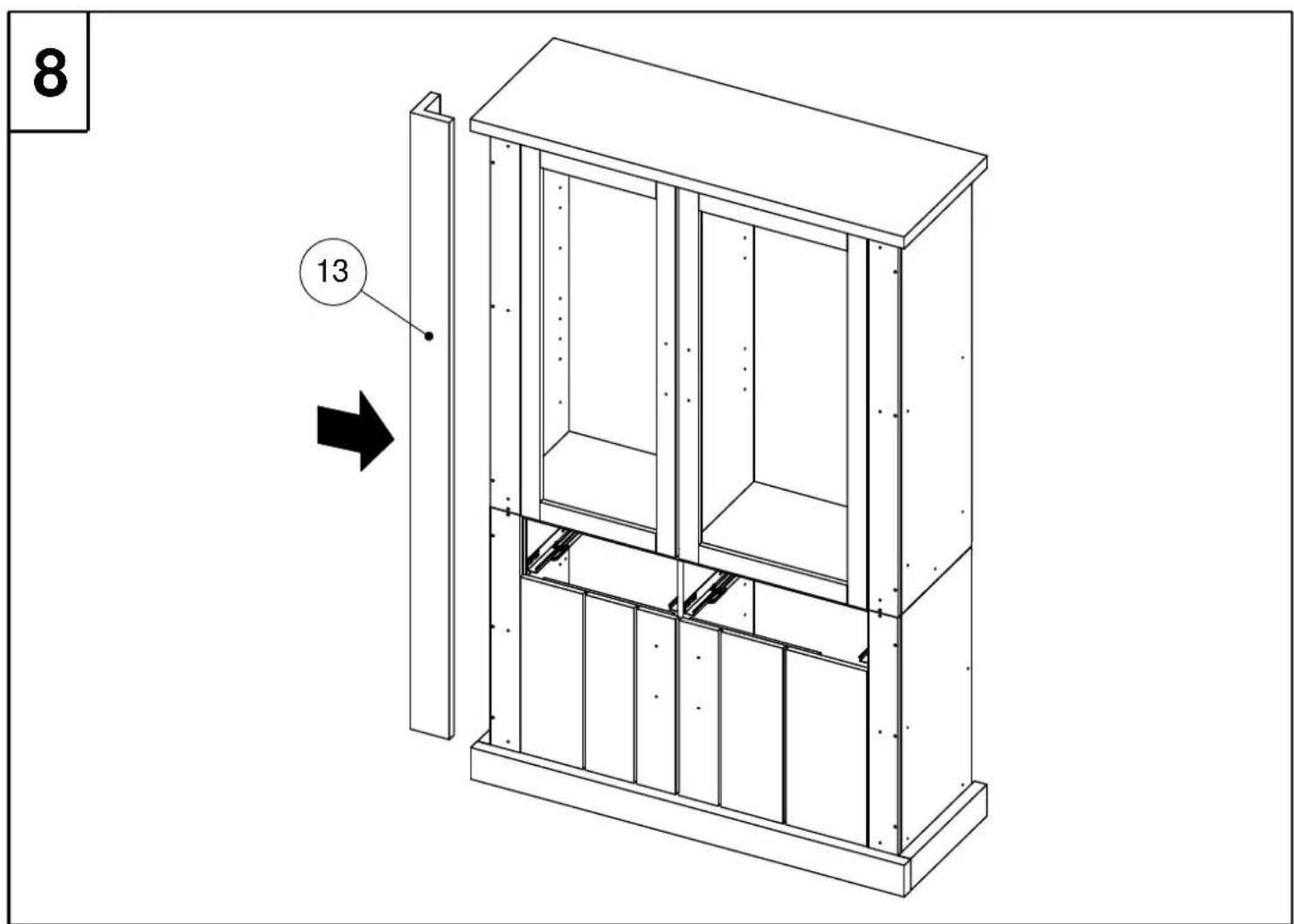

8 13


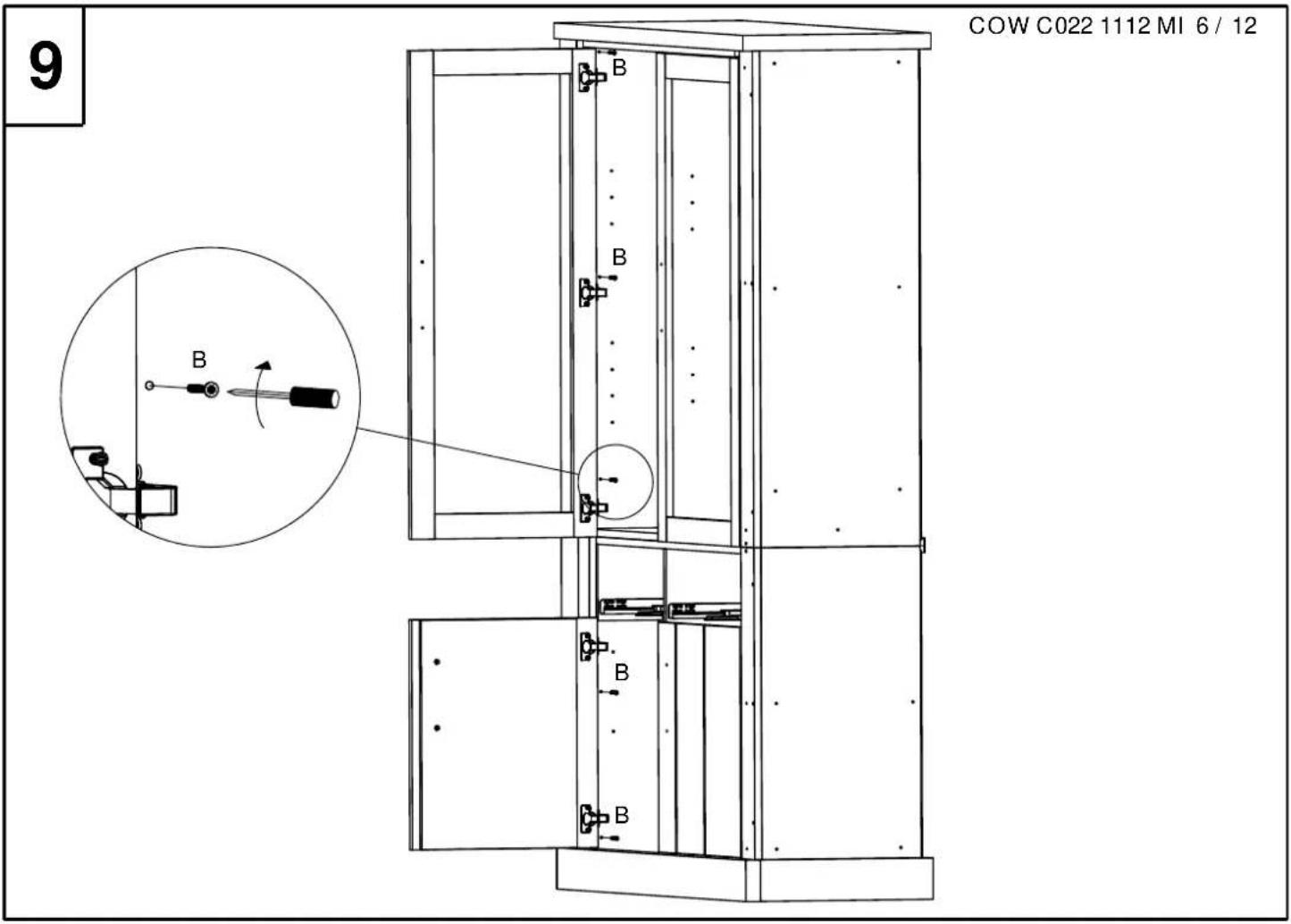

9 COW C022 1112 MI 6 / 12


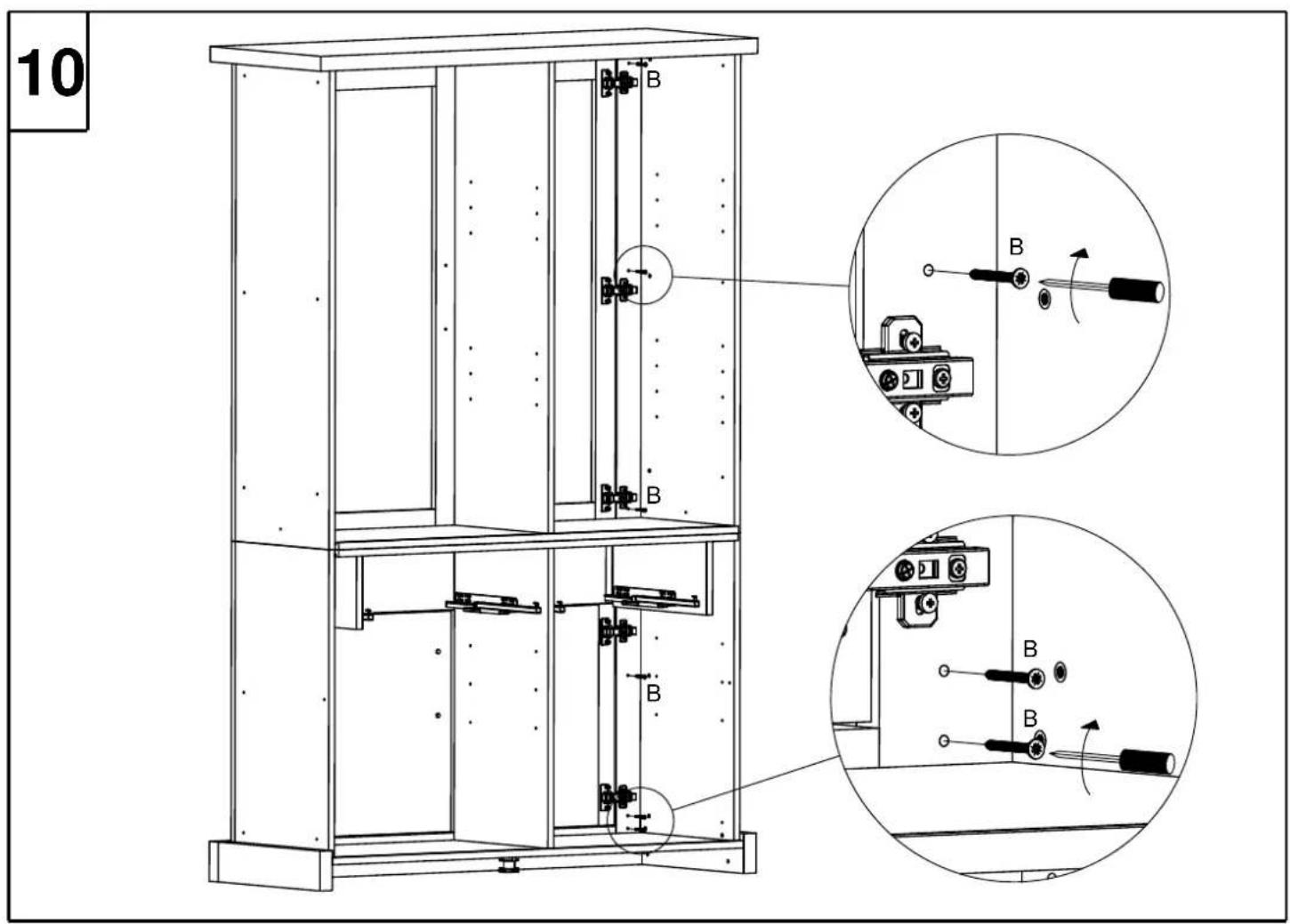

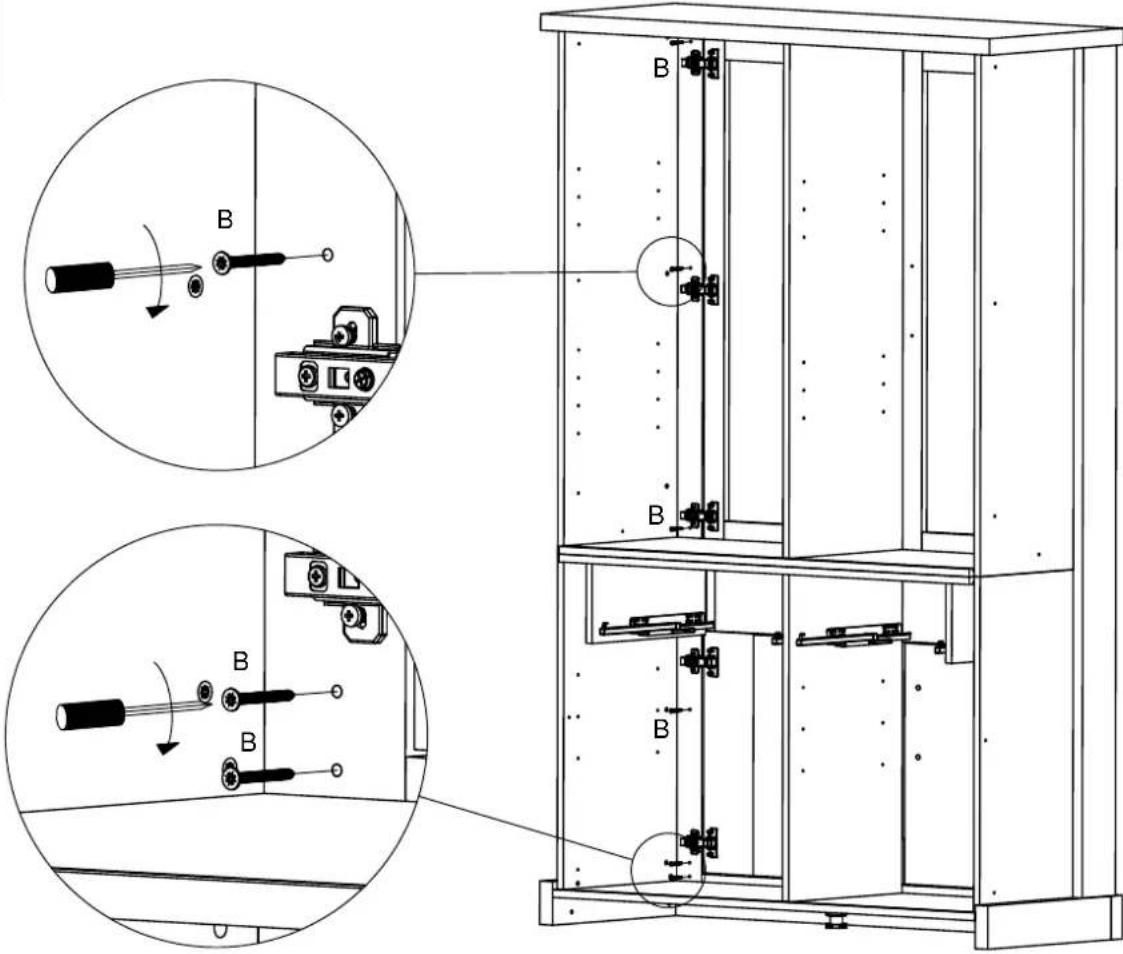

10 B B B B B B11
COW C022 1112 MI 7 / 12


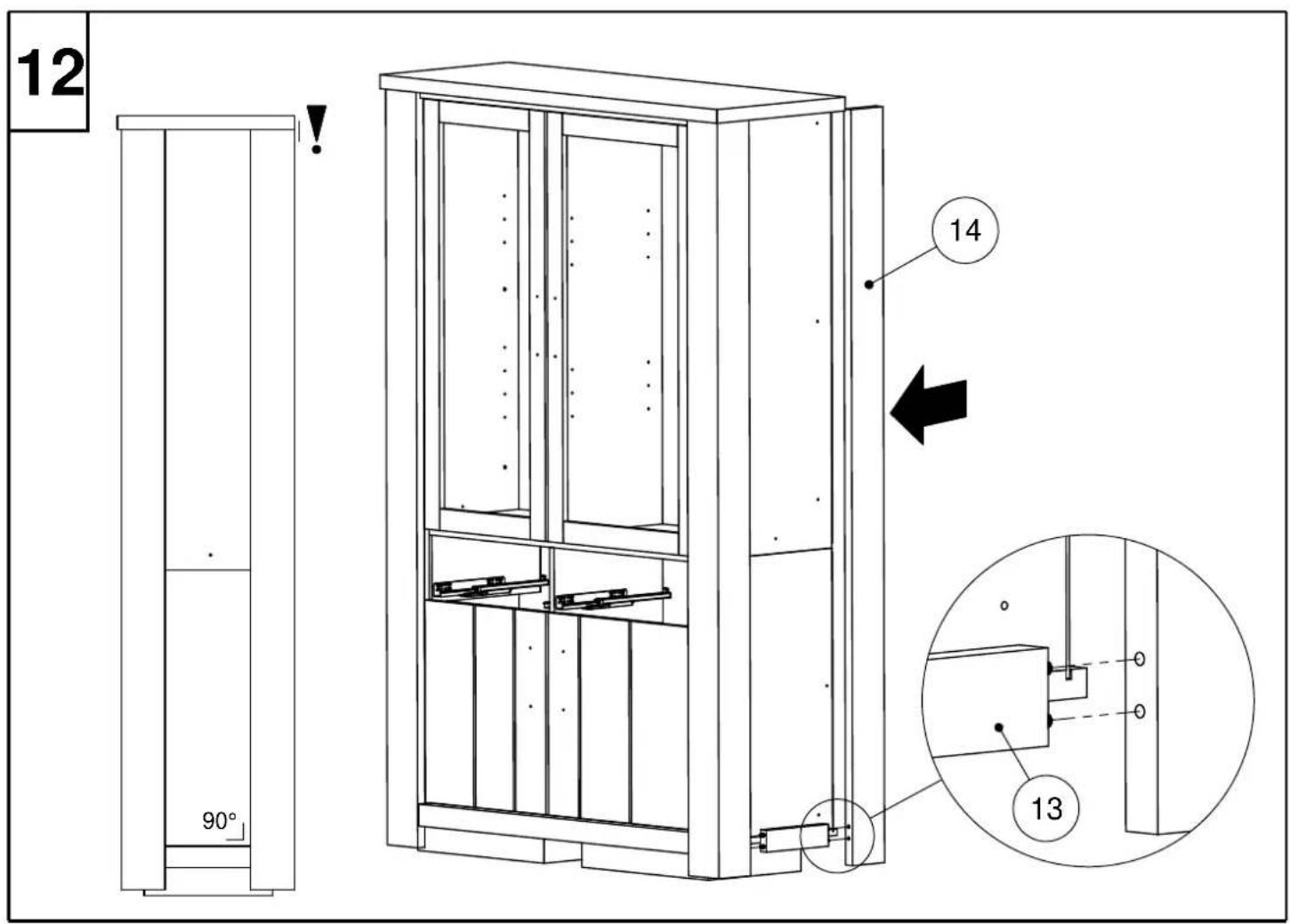

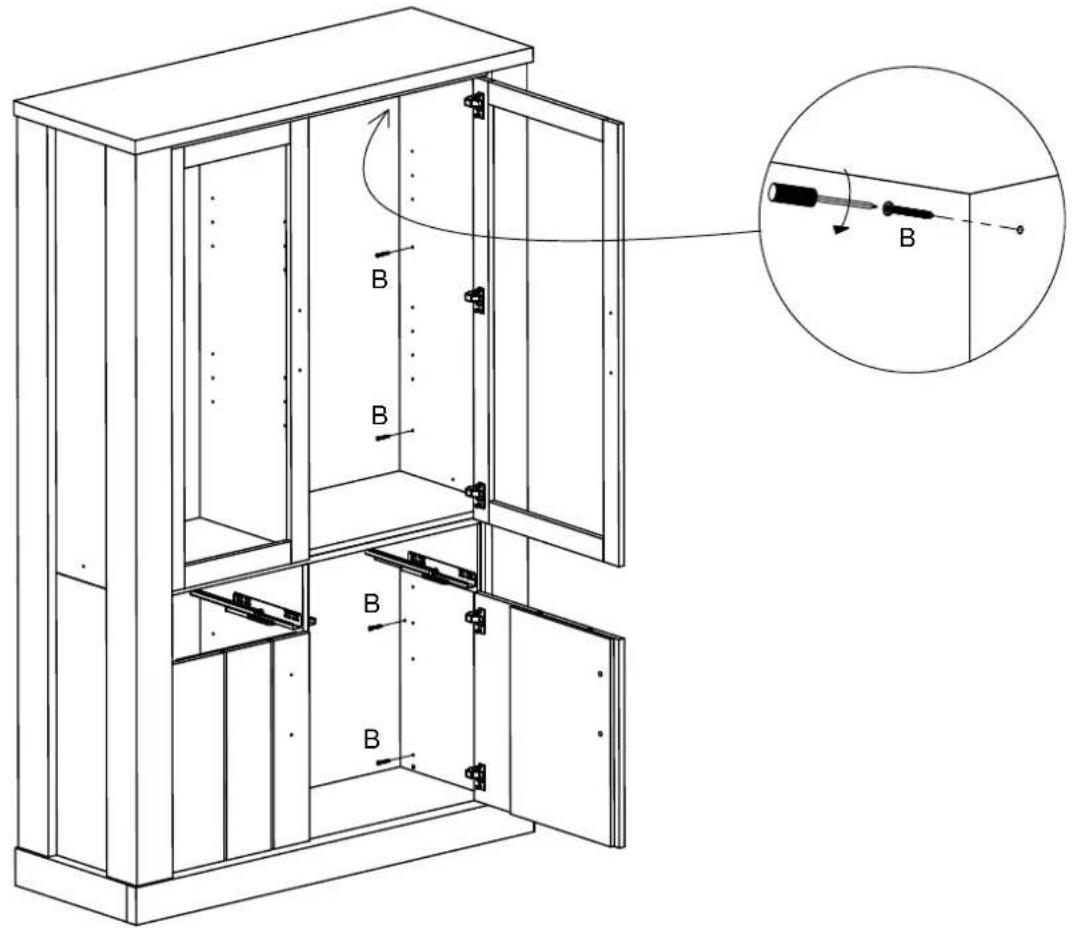

Technical diagram of a cabinet with labeled components and an inset showing a mechanical component with a rotating arrow.13
COW C022 1112 MI 8 / 12


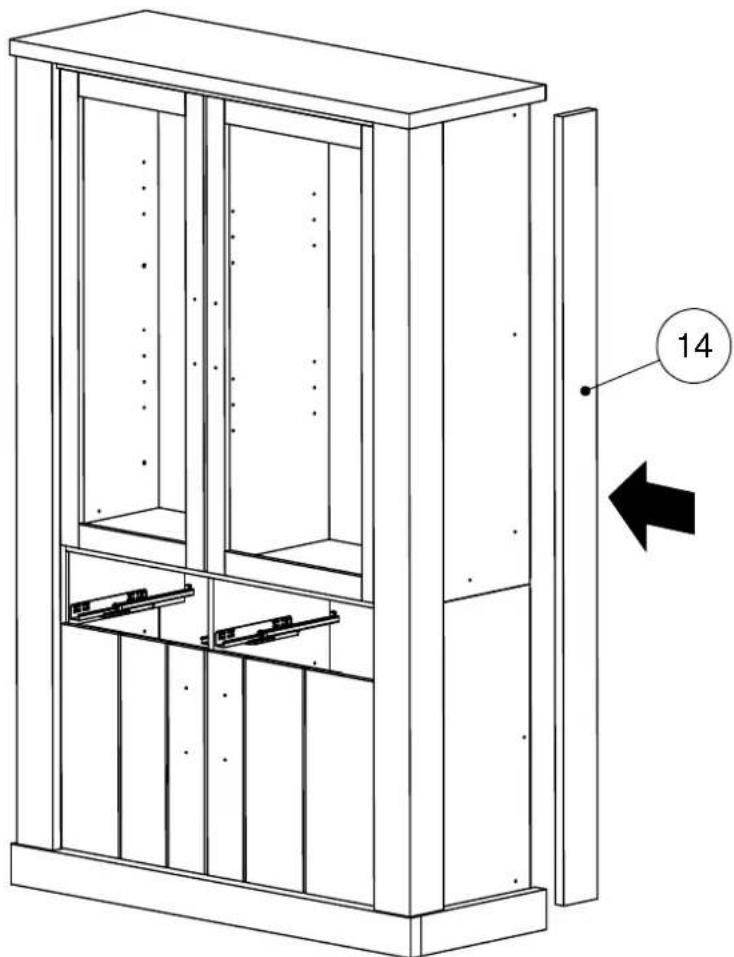

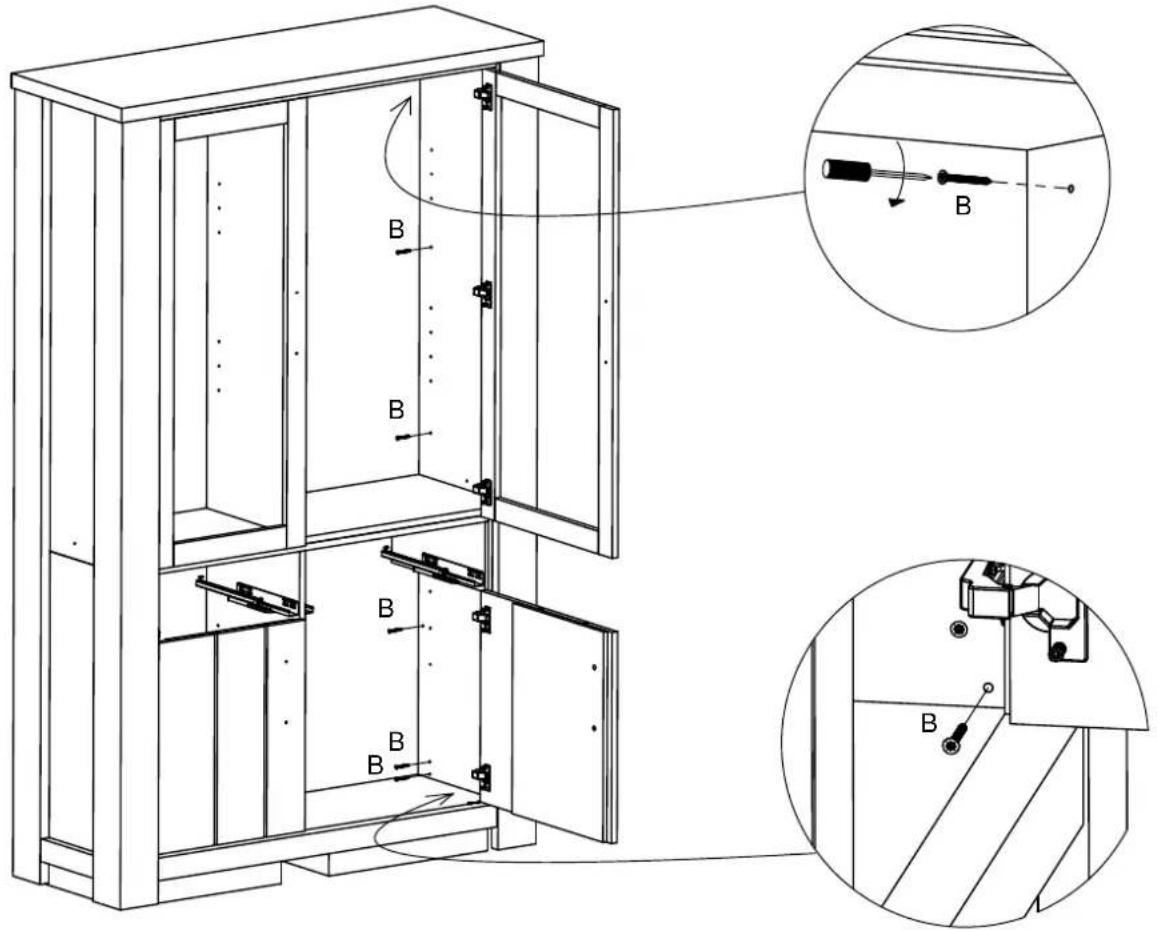

Technical diagram of a mechanical device with labeled components and two circular insets showing mechanical assembly details.14


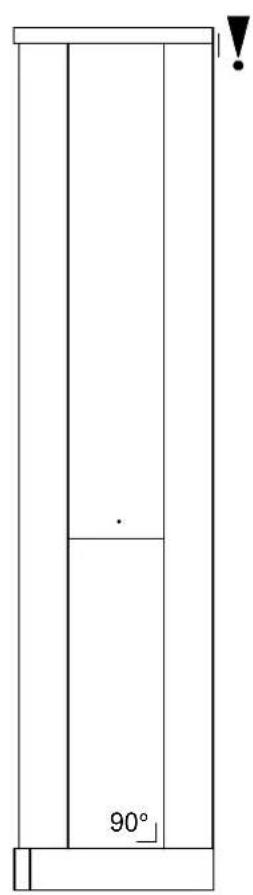

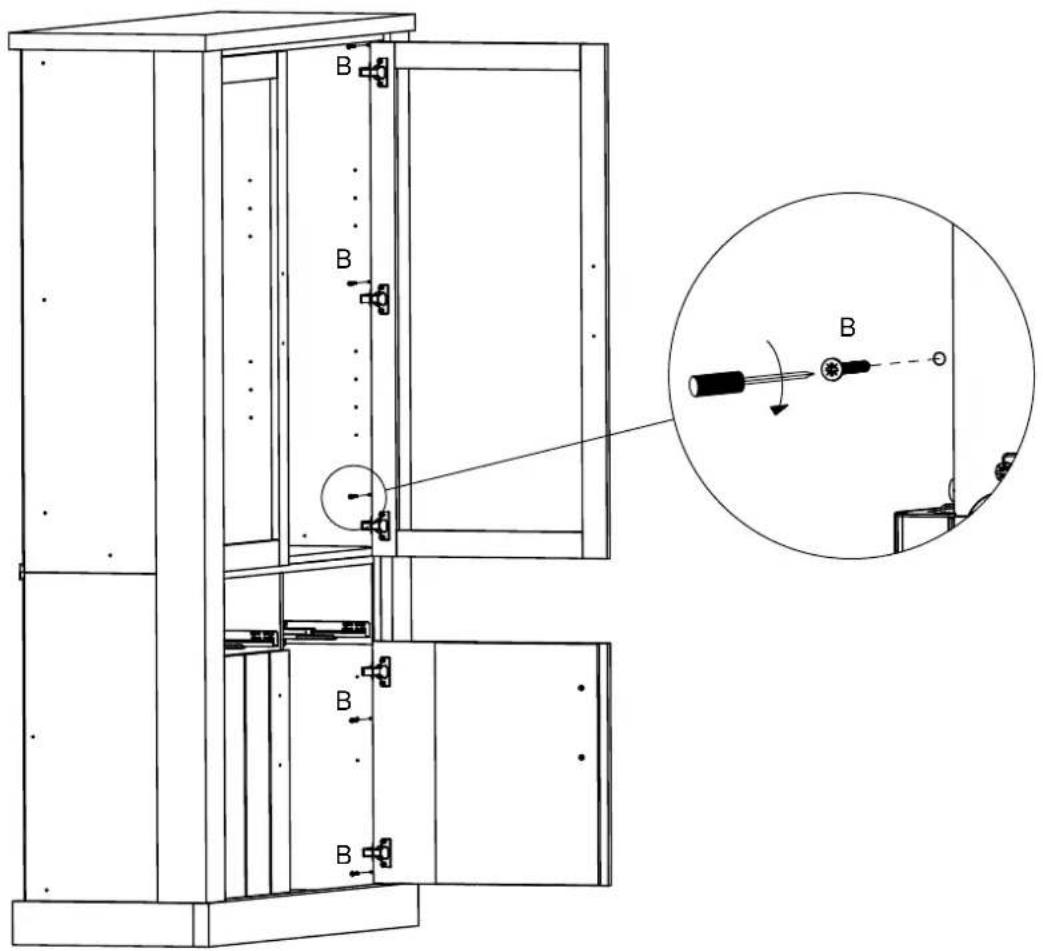

14 90°15
COW C022 1112 MI 9 / 12


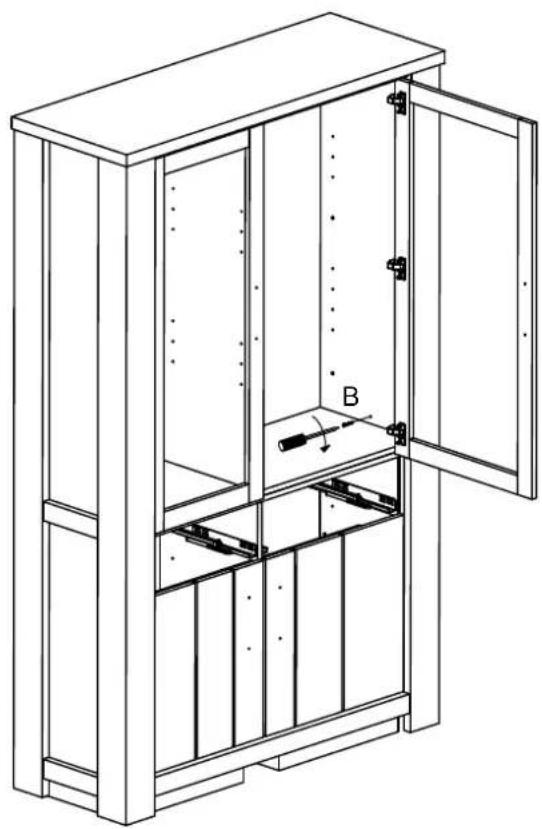

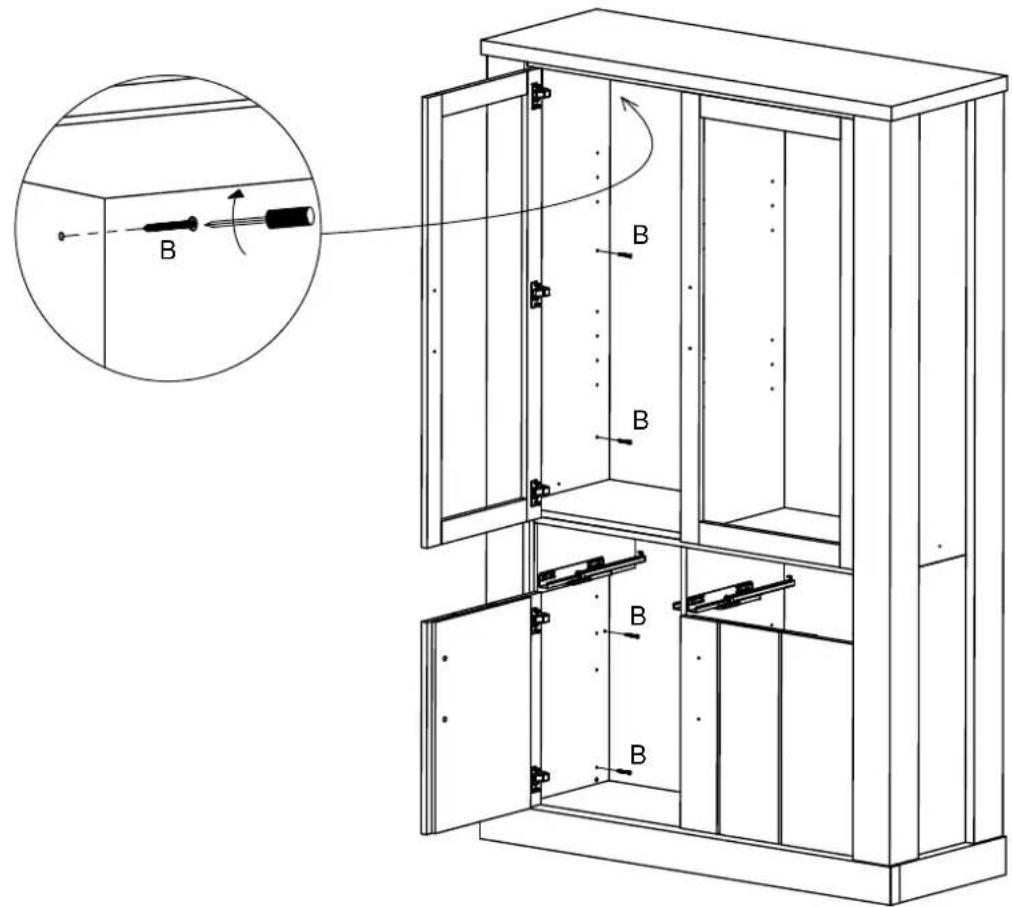

Technical diagram of a cabinet with labeled parts and an inset showing a mechanical component with B-axis indicators.16
COW C022 1112 MI 10 / 12


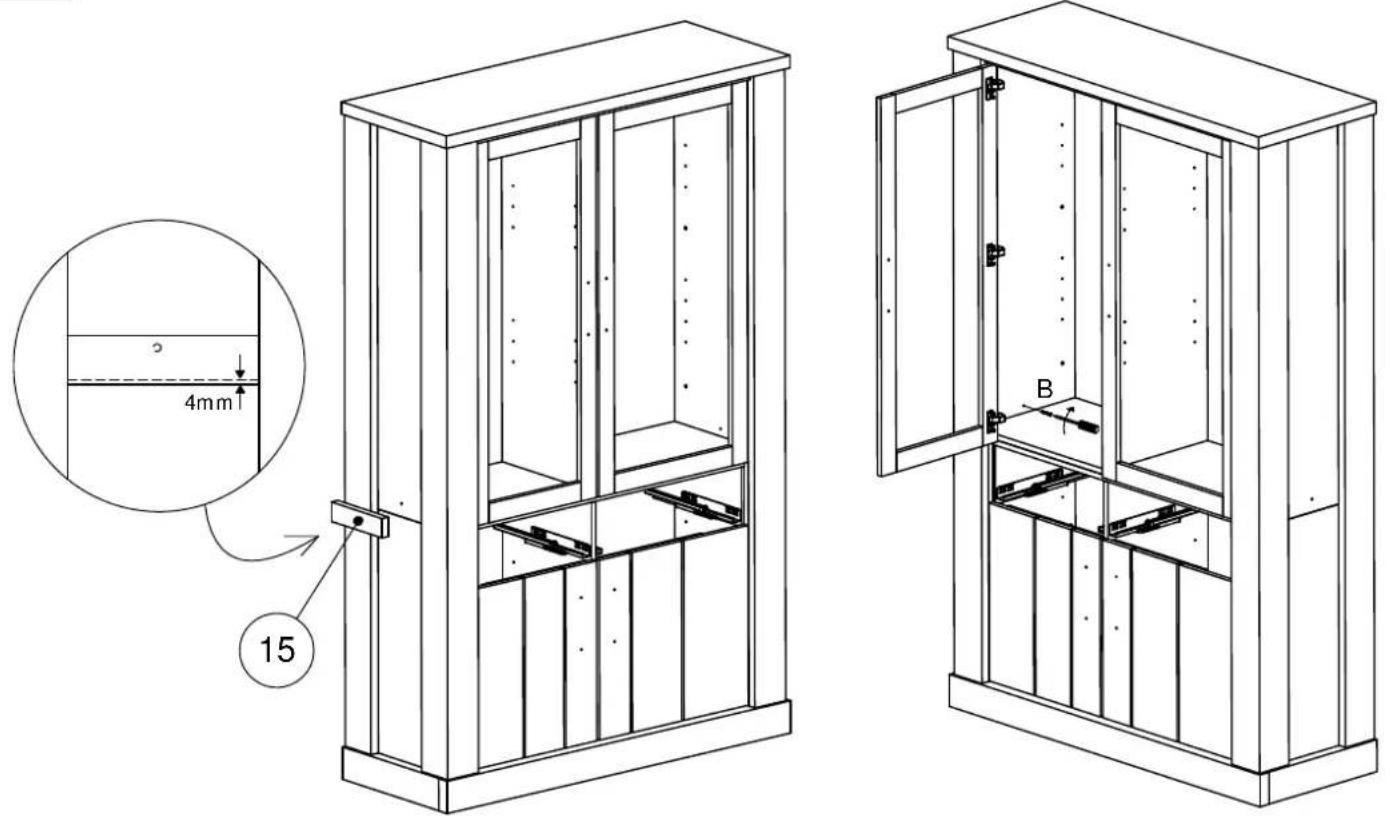

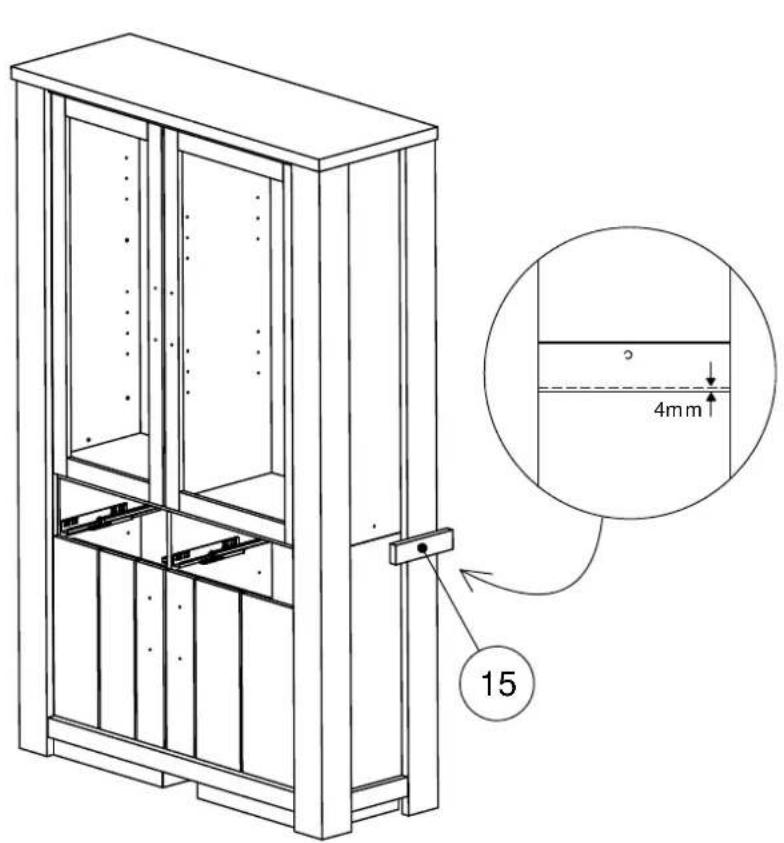

4mm 15 B19
COW C022 1112 MI 11 / 12
COW C022 1112 MI 12 / 12


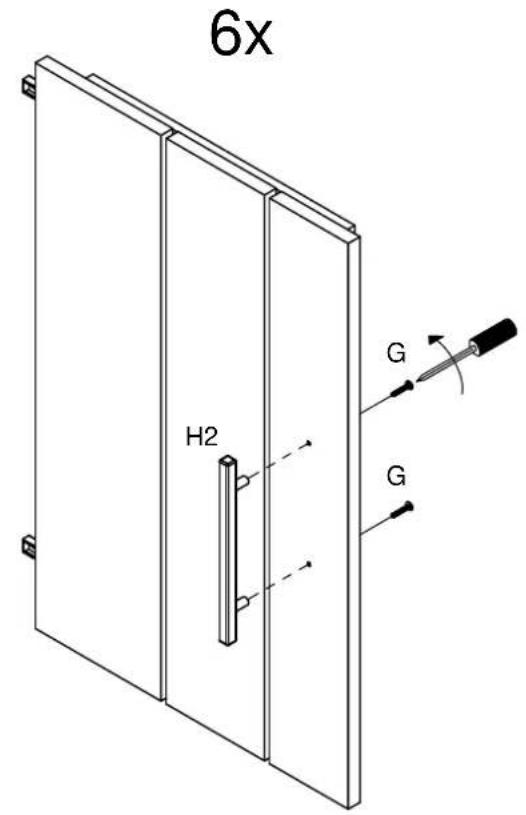

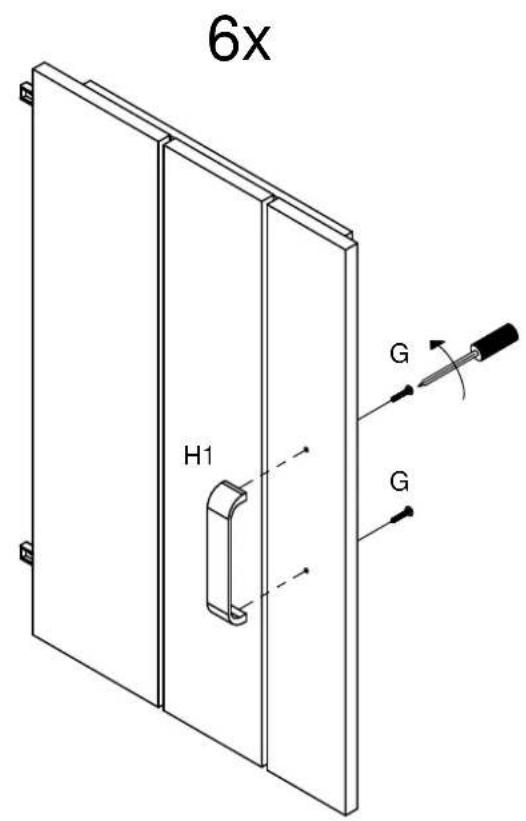

6x H1 G G


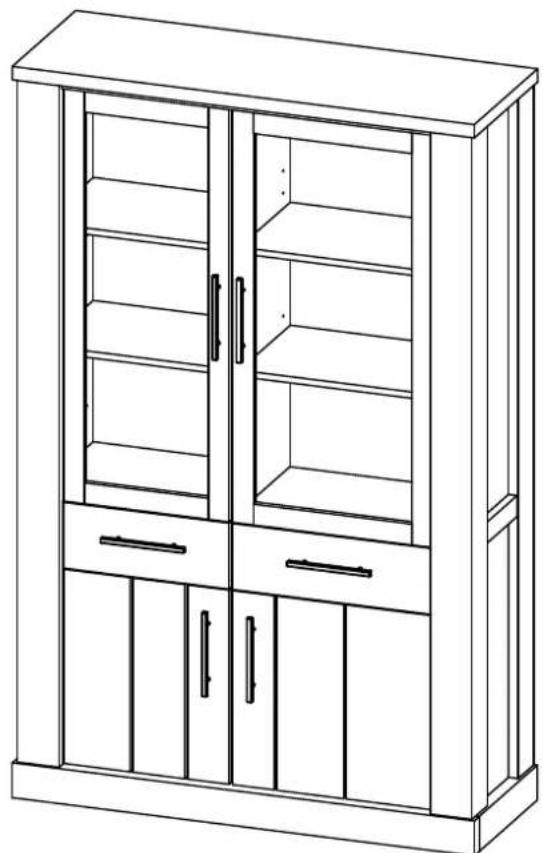

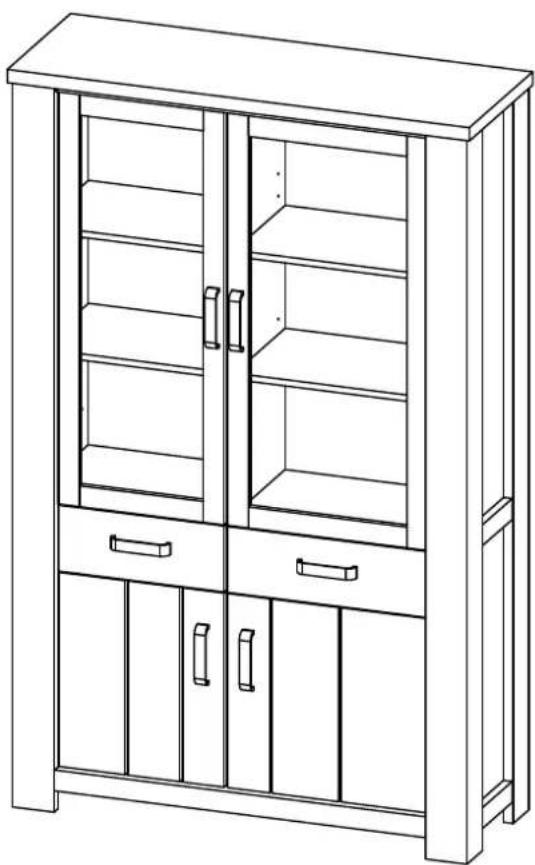

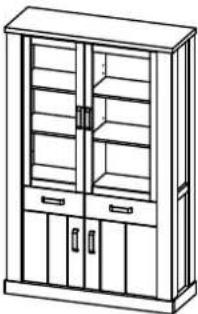

Line drawing of a multi-level cabinet with double doors and drawers (no text or symbols)
