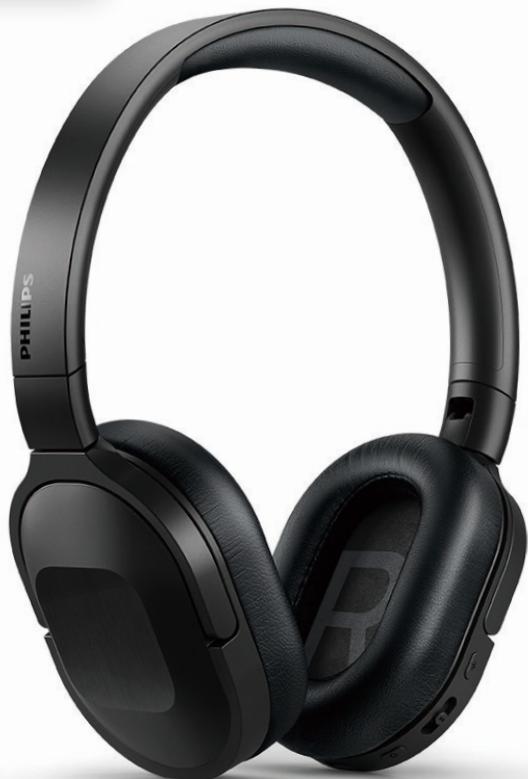

ANC TAH6506BK - Casque audio PHILIPS - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Casque audio sans fil avec réduction de bruit active
Caractéristiques techniques principales	Technologie de réduction de bruit active, son haute fidélité, connectivité Bluetooth 5.0
Alimentation électrique	Rechargeable via USB-C
Dimensions approximatives	Dimensions non spécifiées
Poids	Poids non spécifié
Compatibilités	Compatible avec la plupart des appareils Bluetooth
Type de batterie	Batterie lithium-ion
Tension	Non spécifiée
Puissance	Non spécifiée
Fonctions principales	Réduction de bruit active, contrôle tactile, assistant vocal intégré
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'exposition à l'eau
Pièces détachées et réparabilité	Disponibilité des pièces non spécifiée
Informations générales utiles	Durée de vie de la batterie jusqu'à 30 heures, garantie limitée

FOIRE AUX QUESTIONS - ANC TAH6506BK PHILIPS

Comment activer la fonction ANC sur les écouteurs PHILIPS ANC TAH6506BK ?

Pour activer la fonction ANC, maintenez enfoncé le bouton ANC situé sur l'écouteur gauche jusqu'à ce que vous entendiez un signal sonore.

Les écouteurs ne se connectent pas à mon appareil Bluetooth.

Assurez-vous que les écouteurs sont en mode appairage. Pour cela, maintenez enfoncé le bouton d'alimentation jusqu'à ce que le voyant clignote en bleu et rouge. Vérifiez également que votre appareil Bluetooth est activé et à proximité.

Quelle est l'autonomie de la batterie des écouteurs PHILIPS ANC TAH6506BK ?

Les écouteurs offrent jusqu'à 30 heures d'autonomie avec ANC désactivé et environ 20 heures avec ANC activé.

Comment charger les écouteurs ?

Utilisez le câble USB-C fourni pour charger les écouteurs. Branchez le câble dans le port de charge sur l'écouteur droit et connectez l'autre extrémité à une source d'alimentation.

Comment réinitialiser les écouteurs PHILIPS ANC TAH6506BK ?

Pour réinitialiser les écouteurs, maintenez enfoncés les boutons de volume + et - pendant environ 5 secondes jusqu'à ce que le voyant clignote en rouge et bleu.

Les écouteurs ne se chargent pas.

Vérifiez que le câble USB-C et la source d'alimentation fonctionnent correctement. Essayez de nettoyer le port de charge des écouteurs et de redémarrer vos écouteurs.

Puis-je utiliser les écouteurs pendant la charge ?

Non, il n'est pas recommandé d'utiliser les écouteurs pendant la charge pour éviter des dommages à la batterie.

Comment ajuster le son des écouteurs ?

Vous pouvez ajuster le volume en utilisant les boutons de volume situés sur l'écouteur droit. Pour une meilleure expérience, assurez-vous que l'égaliseur de votre appareil est configuré selon vos préférences.

Les écouteurs ne détectent pas le microphone lors des appels.

Assurez-vous que les écouteurs sont correctement connectés à votre appareil et que le microphone n'est pas couvert. Testez le microphone en utilisant une autre application d'appel.

Comment nettoyer mes écouteurs ?

Utilisez un chiffon doux et sec pour nettoyer les surfaces des écouteurs. Évitez d'utiliser des produits chimiques ou de l'eau directement sur les écouteurs.

Les écouteurs sont-ils résistants à l'eau ?

Les écouteurs PHILIPS ANC TAH6506BK ne sont pas résistants à l'eau. Évitez de les exposer à l'humidité ou à la pluie.

MODE D'EMPLOI ANC TAH6506BK PHILIPS

User manual

Register your product and get support at

www.philips.com/support

Contents

1 Important safety instructions 2
Hearing Safety 2
General information 2
2 Your Bluetooth over-ear
headphones 3
What's in the box 3
Other devices 3
Overview of your Bluetooth wireless headphone 4
3 Get started 5
Charge the battery 5
Pair the headphones with your mobile phone 5
4 Use your headphones 6
Connect the headphone to your Bluetooth device 6
Manage your calls and music 6
5 Technical data 8
6 Notice 9
Declaration of conformity 9
Disposal of your old product and battery 9
Remove the integrated battery 9
Compliance with EMF 9
Environmental information 10
Notice of compliance 10
7 Trademarks 11
8 Frequently asked questions 12

1 Important safety instructions

Hearing Safety

Danger

• To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is.

Be sure to observe the following guidelines when using your headphone.

• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume continuously upwards as your hearing adapts.
• Do not turn up the volume so high that you can't hear what's around you.
• You should use caution or temporarily discontinue use in potentially hazardous situations.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
  Using headphones with both ears covered while driving is not recommended and may be illegal in some areas while driving.
• For your safety, avoid distractions from music or phone calls while in traffic or other potentially dangerous environments.

General information

To avoid damage or malfunction:

Caution

• Do not expose headphones to excessive heat
• Do not drop your headphones.
• Headphones shall not be exposed to dripping or splashing.
• Do not allow your headphones to be submerged in water.
• Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.
• If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.
• The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Replacement of a battery with an incorrect type that can defeat a safeguard;
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Never use your headphones when you are operating a motor vehicle, riding a bicycle, running or walking in traffic areas. It is dangerous and illegal in many places.

About operating and storage temperatures and humidity

• Operating temperature: 0^ C (32^ F) to 40^ C (104^ F)
  Storage temperature: -10^ (14°F) to 45^ (113°F)
  Operating humidity: 8% - 90% RH (No condensation)
  Storage humidity: 5% - 90% RH (No condensation)
  Maximum operating altitude: 3000m
  Battery life may be shorter in high or low temperature conditions.

2 Your Bluetooth over-ear headphones

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/support.

With this Philips over-ear headphones, you can:

• enjoy convenient wireless handsfree calls;
• enjoy and control wireless music;
  switch between calls and music;
• enjoy noise cancelation.

What's in the box

Philips Bluetooth headphones Philips
TAH6506

USB-C charging cable (for charging only)

Audio cabel

Carrying case

Quick start guide

Global Warranty

Safety leaflet

Other devices

A mobile phone or device (e.g. notebook, PAD, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headphone (see 'Technical data' on page 8).

Overview of your Bluetooth wireless headphone

① ANC Mode Button
② Multi-Function Button (MFB)
③ Power Button
④ USB-C
⑤ Indicator LED(White/Blue)
⑥ Voice Mic
⑦ 3.5mm Audio jack

3 Get started

Charge the battery

Note

• Before you use your headphone for the first time, charge the battery for 2 hours for optimum battery capacity and lifetime.
• Use only the original USB charging cable to avoid any damage.
• Finish your call before charging the headphone, as connecting the headphone for charging will power the headphone off.

Connect the supplied USB charging cable to:

• The USB type C charging slot on the headphones and;
• The charger/USB port of a computer.

LED turns white during charging and turns off when the headphones in fully charged.

Tip

• Normally, a full charge takes 2 hours.

Pair the headphones with your mobile phone

Before you use the headphones with your mobile phone for the first time, pair it with a mobile phone. A successful pairing establishes a unique encrypted link between the headphones and mobile phone. The headphones store the last 4 devices in the memory. If you try to pair more than 4 devices, the earliest paired device is replaced by the new one.

1 Make sure that the headphones are fully charged and turned off.
2 Press and hold for 5 seconds until the blue and white LED flashes alternately.

The head phone remain in pairing mode for 5 minutes.

3 Make sure that the mobile phone is turned on and its Bluetooth feature is activated.
4 Pair the headphones with the mobile phone. For detailed information, refer to the user manual of your mobile phone.

The following example shows you how to pair the headphones with your mobile phone.

Activate the Bluetooth feature of your mobile phone, select Philips TAH6506

Philips TAH6506

4 Use your headphones

Connect the headphone to your Bluetooth device

1 Turn on your mobile phone/ Bluetooth device.

2 Press and hold the on/off button to turn the headphones on.

The blue LED will turn on 2s.
The headphones are reconnected to the last connected mobile phone/ Bluetooth device automatically.

Tip

• If you turn on the mobile phone/Bluetooth device or activate the Bluetooth feature after turning on the headphones, you have to reconnect the headphones and mobile phone/Bluetooth device manually.

Note

• If the headphones fail to connect to last connected Bluetooth device within range in 5 minutes, it will change to pairing mode, then will switch off automatically if it's still not connected to any Bluetooth device 3 minutes later.

Wired Connection

You can also use the headphones with the audio cable provided. Connect the supplied audio cable to the headphones and external audio device.

Tip

• The function keys will be disabled when using line-in mode.

Multi-point connection

Pairing

• Pairing the headphones to 2 devices, e.g. mobile phone and notebook.

Switch between device

• At anytime, only can listen to music from 1 device. Another device will be for phone call.
• Pause the audio from 1 device and then start play audio from the another device.

Note

• When streaming audio from Device 1, receiving a call from Device 2 will automatically pause Device 1 playback. And the call will be routed automatically to headphones.
• Ending the call will automatically resume playback from device 1.

Manage your calls and music

On/off

Task	Button	Operation
Turn the headphones on	Power button	Press and hold for 2 seconds.
Turn the headphones off	Power button	Press and hold for 2 seconds. → The blue LED is on and fades out.

Music control

Task	Button	Operation
Play or pause music	MFB	Press 1 time
Adjust volume.	MFB	Push up/ push down
Next track.	MFB	Push up and hold 1s
Previous track.	MFB	Push down and hold 1s

Call control

Task	Button	Operation
Pick up/hang up a call	MFB	Press once
Reject call	MFB	Press and hold 1s
Answer new call during a call.	MFB	Press once
Reject new call during a call.	MFB	Press and hold 1s
Switch call when answered two calls	MFB	Press once
Mute / unmute	ANC	Press once

ANC control

Task	Button	Operation
ANC ON/ OFF	ANC Mode button	Press once

Turn ON / OFF Bluetooth

Task	Button	Operation
Turn ON/OFF	Power	Press twice
Bluetooth

Smartphone voice assist function

(e.g. Google app, Siri)

Task	Button	Operation
Wake up smartphone voice assist function	MFB	Press and hold 1 seconds

Note

• Please refer to the operating instructions of the smartphone.

Other headphones indicator status

Headphones status	Indicator
The headphones are connected to a Bluetooth device, while the headphones in standby mode or while you are listening to music.	The blue LED blink slowly.
The headphones are ready for pairing.	The LED flashes blue and white alternately.
The headphones are on but not connected to a Bluetooth device.	The white LED flashes slowly. If no connection can be made, the headphones will turn itself off within 3 minutes.
Low battery level.	The white LED blink slowly until it is out of power
Battery is fully charged.	White LED is off.

Note

• If you do not wear the headphone for more than 5 minutes, the headphone will be powered off.

5 Technical data

Music time: 30 hours (ANC on: 25 hours)
- Talk time: 30 hours(ANC on: 25 hours)
- Charging time: 2 hours
- Rechargeable lithium polymer battery (300 mAh)
Bluetooth version: 5.0
Compatible Bluetooth profiles:

HFP (Hands-Free Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)

Frequency range: 2.402- 2.480 GHz
Transmitter power: < 10 dBm
- Operating range: Up to 10 meters (33 feet)
Type -C-USB port for charging
Supported audio codec: SBC

Note

• Specifications are subject to change without notice.

6 Notice

Declaration of conformity

Hereby, MMD Hong Kong Holding Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.p4c.philips.com.

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Remove the integrated battery

If there is no collection/recycling system for electronic products in your country, you can protect the environment by removing and recycling the battery before disposing the headphones.

Make sure the headphone is disconnected from the charging case before removing the battery.

Compliance with EMF

This product complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Notice of compliance

The device complies with the FCC rules, Part 15. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC rules

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Canada:

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence- exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device.

CANICES-3(B)/NMB-3(B)

IC Radiation Exposure Statement:

This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

7 Trademarks

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Top Victory Investment Limited is under license. Other trademarks and trade names are those of their respective owners.

Siri

Siri is a trademark of Apple Inc., registered in the U.S. and other countries.

Google

Google is a trademark of Google LLC. The Google Assistant is not available in certain languages and countries.

8 Frequently asked questions

My Bluetooth headphone does not turn on.

The battery level is low. Charge the headphone.

I cannot pair my Bluetooth headphone with my Bluetooth device.

The Bluetooth is disabled. Enable the Bluetooth feature on your Bluetooth device and turn on the Bluetooth device before you turn on the headphone.

How to reset pairing.

Press and hold both Power + ANC button for 3s, the LED lights up blue and then goes off.

I hear but cannot control music on my Bluetooth device (e.g. play/pause/skip forward/backward).

Make sure the Bluetooth audio source supports AVRCP (see 'Technical data' on page 8).

The volume level of the headphone is too low.

Some Bluetooth devices cannot link the volume level with the headphone through volume sync. In this case, you have to adjust the volume on your Bluetooth device independently to achieve an appropriate volume level.

The Bluetooth device cannot find the headphone.

• The headphone may be connected to a previously paired device. Turn off the connected device or move it out of range.
• Pairing may have been reset or the headphone has been previously paired with another device. Pair the headphone with the Bluetooth device again as described in the user manual. (see 'Pair the headphone with your Bluetooth device at the first time' on page 6).

My Bluetooth headphone is connected to a Bluetooth stereo enabled mobile phone, but music only plays on the mobile phone speaker.

Refer to the user manual of your mobile phone. Select to listen to music through the headphone.

The audio quality is poor and crackling noise can be heard.

• The Bluetooth device is out of range. Reduce the distance between your headphone and Bluetooth device, or remove obstacles between them.
  Charge your headphone.

2021 © MMD Hong Kong Holding Limited. All rights reserved.
Specifications are subject to change without notice. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips NV. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited or one of its affiliates, and MMD Hong Kong Holding Limited is the warrantor in relation to this product. All other company and product names may be trademarks of its respective companies with which they are associated.
