Type de produit	Enceinte audio d'extérieur type rocher
Marque	Q-ACOUSTICS
Modèle	Oi65LW (Qi 65LW)
Utilisation	Extérieur, pose au sol ou sur terrasse
Indice de protection	IPX4 (avec bouchons de port installés)
Matériau	Plastique robuste résistant aux UV
Grille	Métallique perforée, amovible
Connectique	Bornes à ressort, câble jusqu'à 4 mm²
Installation	Sur sol meuble, dalle ou bois, câble enterré
Orientation recommandée	Grille face à la zone d'écoute, sans obstacle
Surface couverte (paire)	30 à 40 m²
Distance maximale de câble	45 m (AWG 12) / 30 m (AWG 14) / 20 m (AWG 16)
Alimentation	Passive, nécessite amplificateur externe
Entretien	Nettoyage avec chiffon humide, pas de produits chimiques
Sécurité	Ne pas immerger, pas d'exposition à l'eau salée
Garantie	5 ans (défauts de fabrication)
Réparabilité	Retour au revendeur ou distributeur agréé
Accessoires inclus	Bouchons de port, adhésif pour grille
Température de fonctionnement	-20°C à 50°C (estimation)
Poids approximatif	3 kg (estimation)
Dimensions approximatives	Diamètre 250 mm, hauteur 300 mm

FOIRE AUX QUESTIONS - Oi65LW Q-ACOUSTICS

Où installer l'enceinte Oi65LW ?

L'enceinte peut être installée directement sur le sol, une terrasse en bois ou une dalle pierre. Pour une installation sur terre, il est recommandé de poser une dalle stable au préalable. La grille doit faire face à la zone d'écoute, sans obstacle comme des buissons.

Quel câble utiliser pour connecter l'enceinte ?

Utilisez un câble d'enceinte adapté à la distance : AWG 12 (4 mm²) jusqu'à 45 m, AWG 14 (2,5 mm²) jusqu'à 30 m, AWG 16 (1,6 mm²) jusqu'à 20 m. Pour l'extérieur, le câble doit être résistant à l'humidité et aux UV.

Comment brancher les fils sur les bornes ?

Dénudez les conducteurs sur 10 mm, puis enfoncez-les dans les bornes à ressort. Le fil positif se connecte à la borne rouge, le négatif à la borne noire. Serrez le couvercle une fois les fils passés dans l'encoche prévue.

L'enceinte est-elle résistante à l'eau ?

Oui, avec les bouchons de port en caoutchouc installés, elle offre une protection IPX4 contre les projections d'eau. Sans les bouchons, le niveau de protection est moindre. Ne pas immerger l'enceinte.

Comment installer les bouchons de port ?

Les bouchons se trouvent dans l'emballage. Pour les installer, retirez la grille en tirant doucement, puis enfoncez les bouchons dans les trous de chaque côté du tweeter. Replacez la grille en vérifiant qu'elle est bien en place.

Peut-on utiliser l'enceinte en intérieur ?

Oui, elle peut être utilisée en intérieur, mais son design est conçu pour l'extérieur. En intérieur, elle peut être posée au sol ou sur une étagère, en veillant à ne pas obstruer la grille.

Comment nettoyer l'enceinte ?

Utilisez un chiffon humide sans produits chimiques. N'utilisez pas de nettoyeur haute pression ou de tuyau d'arrosage, car cela pourrait endommager les haut-parleurs.

Que faire si l'enceinte n'émet aucun son ?

Vérifiez d'abord les connexions des câbles (polarité et contact). Assurez-vous que l'amplificateur est sous tension et que la source fonctionne. Testez avec une autre paire d'enceintes si possible.

Quelle est la garantie de l'enceinte ?

La garantie est de 5 ans contre tout défaut de matériaux et de fabrication. Elle ne couvre pas la mauvaise utilisation ou l'usure normale. Pour toute réparation, contactez votre revendeur ou le distributeur agréé.

Faut-il un amplificateur spécifique ?

L'enceinte est passive, donc elle nécessite un amplificateur externe. Utilisez un ampli compatible avec une impédance de 8 ohms (valeur typique) et une puissance adaptée. Consultez les spécifications techniques de l'enceinte pour plus de détails.

MODE D'EMPLOI Oi65LW Q-ACOUSTICS

Warning Notices

It is important to ensure that the installation complies with relevant building regulations. If in doubt always consult a qualified installer.
- Before drilling mounting holes or laying speaker cables ensure that there is no conflict with other in-wall/in-ceiling or underground installed items such as water or gas pipes, or electrical cabling etc.
- Ensure that the speaker model is suitable for use in the intended application. Note that these products are not suitable for use in a marine environment where they will be exposed to salt: spray.
- These products should only be cleaned using a damp cloth without the use of chemical cleaning agents. Do not use a garden hose or high pressure water jet as it may damage the speakers.

• The Qi 45EW should NOT be positioned where water or rain will be driven directly into the grille (Figure 1). The speaker should always be mounted such that water will naturally drain away from the grille. For IPX4 protection in wet environments, the rubber ports plugs must be fitted.

• The Qi 65LW should NOT be positioned on ground where there is insufficient drainage and risk of being submerged in standing water.

SPEAKER CABLE GENERAL GUIDELINES

[ALWAYS ENSURE LOCAL REGULATIONS ARE MET]

Use speaker cable that has the correct rating, it is important to ensure that the wire gauge is adequate to cope with the longest run of cable required. When running speaker cables outside ensure they are moisture proof and resistant to UV exposure. If burying speaker cables in a trench use additional protection such as PVC piping or a cable rated for direct burial into the ground.

Distance	A.W.G.	mm2
up to 45m	12	4.0
up to 30m	14	2.5
up to 20m	16	1.6

Minimum recommended wire gauges (single run to one speaker)

Qi 45EW Vertical Mounting

Qi 45EW Horizontal Mounting

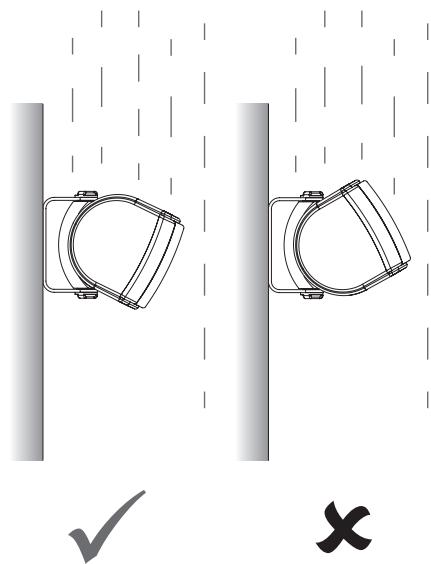

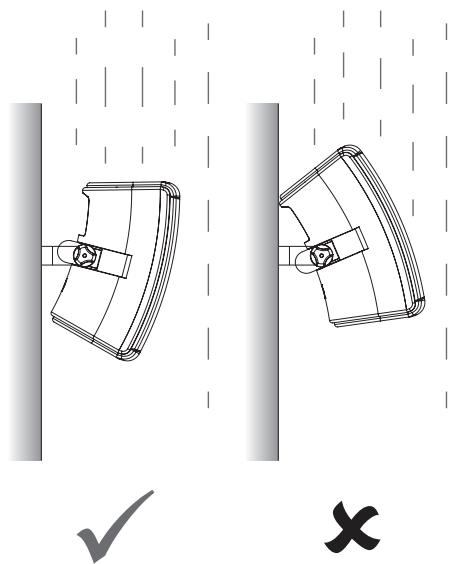

Figure 1. Qi 45EW installation orientation when exposed to rain.

Sound coverage area:

For large areas multiple pairs speakers may be required to give good stereo results. As a rough guide the recommended maximum area covered by two speakers should be no more than 30 - 40m^2

INSTALLING THE Qi 65LW ROCK SPEAKER

Step 1

Select a suitable location for the speaker taking note of the Warning Notices. The Qi 65LW can be installed directly on the ground, wood decking or a stone patio for example. Where it is mounted on earth it is recommended that a paving slab or similar is laid first to provide a firm horizontal base. This can then be covered with earth to camouflage. For best audio performance it is recommended that at least two speakers are installed. The perforated speaker grille/s should face the normal listening position and not be obstructed with shrubs or other objects (Figure 2) as this will reduce the sound level and audio performance.

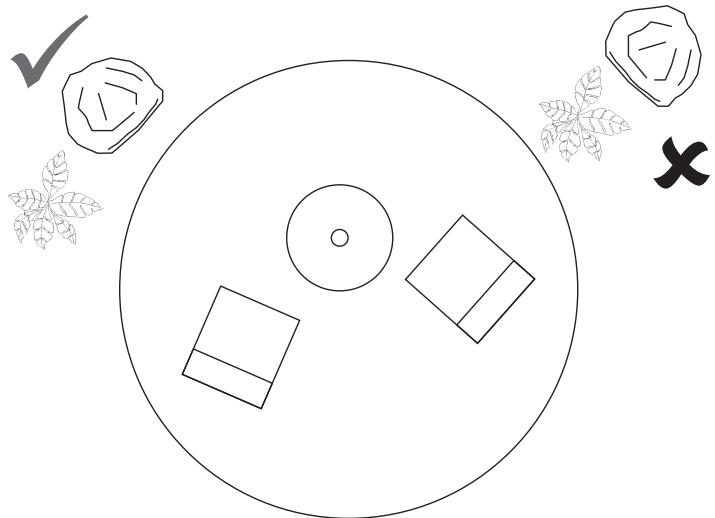

Figure 2. Position speakers clear of acoustic obstructions

Step 2

Make sure all audio equipment is switched off. Remove [unscrew] the square speaker connector cover on the base of the speaker to expose the speaker terminals. Any outer jacket should be trimmed back 50 mm. Feed the speaker wires through the cover and the then strip back the individual speaker conductors 10 mm so that there are bare wire ends. Attach the speaker leads using the pushdown spring clip terminals at the bottom of the speaker. The positive conductor should be connected to the red terminal and the negative conductor to the black terminal (Figure 3).

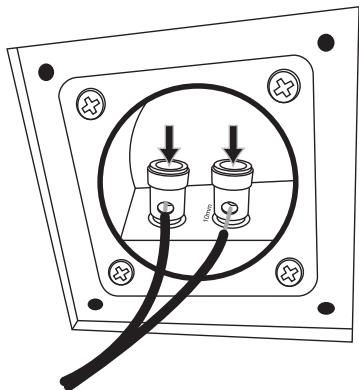

Figure 3. Qi 65LW Speaker cable connections

Step 3

Re-secure the speaker terminal cover plate. Position the speaker on its base ensuring that the cable exits through the notch at the rear of the speaker. Test the speaker/s with a music source to ensure there are no unwanted buzzes or vibrations from the supporting surface or nearby objects.

INSTALLING THE Qi 45EW INDOOR AND OUTDOOR LOUDSPEAKER

Step 1

Ensure that the package contains; Speaker, 1 x C-bracket, 2 x C-bracket lock nuts, 2 x rubber port plugs, 2 x speaker terminal weather protection boots and 1 x packet of grille adhesive. The speaker contains a 'C' mounting bracket and integrated angle adjustor that enables the speaker to be easily installed and adjusted in either a vertical or horizontal position.

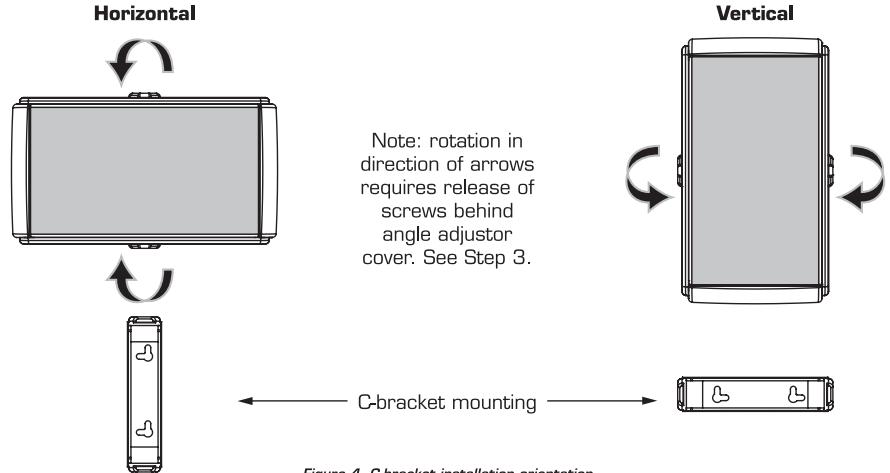

Figure 4. C-bracket installation orientation

Step 2

Decide on the preferred orientation of the speaker ensuring that all relevant Warning Notices are observed. For vertical speaker mounting the C-bracket should be mounted horizontally and for horizontal speaker mounting the C-bracket should be mounted vertically (Figure 4).

Using the bracket (separated from the speaker) as a template mark the position of the two fixing points on the surface to which the speaker is to be secured. It is important to ensure that there is sufficient room to both mount and adjust the angle of the speaker from any adjacent surfaces, so check this before drilling. Fixings should be selected (these are not included) that are appropriate for the mounting surface. Key slots are provided in the C-bracket that will accommodate an M4 sized pan screw head. Drill the holes and fit rawl plugs if required. Drive in the screws leaving 5 mm of screw thread exposed on each. The bracket should be positioned over the exposed screw heads to check that the screws are accurately positioned and of the correct size to locate into the key slots. (Figure 5). The bracket should then be removed for attachment to the speaker in a safe location.

Horizontal

Figure 5. Ensure correct position of screws into key slots

Step 3

If mounting the speaker horizontally or requiring side to side rotation of a vertically mounted speaker (Figure 4), remove the plastic angle adjustor cover at the rear of the speaker by pulling it firmly (Figure 6), this will allow access to 2 locking screws (Figure 7). These should both be unscrewed a couple of turns each so that the angle adjustor can be rotated left or right (up or down) as required.

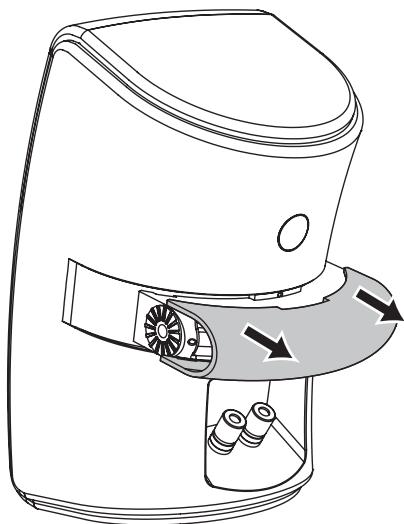

Figure 6. Qi 45EW removing angle adjustor cover

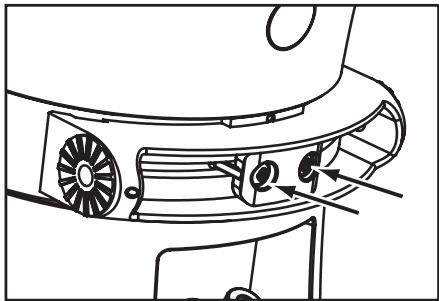

Figure 7. Qi 45EW Angle Adjustor screws DO NOT REMOVE only loosen 2 turns

Note:

With a right angled screw driver it is possible to make adjustments with the speaker mounted on the wall as the cover can be removed and replaced with the C-bracket attached. Once the required angle is obtained the screws can be tightened and the cover clicked firmly back into place.

Step 4

Mount the C-bracket onto the speaker's angle adjustor using the 2 securing lock nuts (Figure 8). Ensure that the C-bracket is the correct way up so that when the speaker is mounted the screws will slot and secure correctly as shown in Figure 5. Tighten both locking nuts once the required C-bracket angle has been set.

Note: The locking nuts can be loosened and further adjustment undertaken when the speaker is on the wall if necessary.

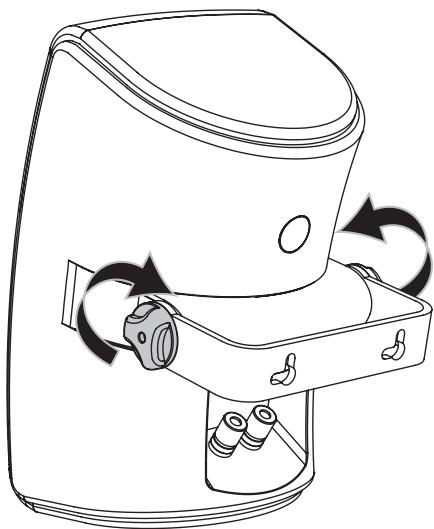

Figure 8. Qi 45EW attach the C-bracket to the speaker

Step 5

If fitted remove the rubber speaker terminal weather protection boots and keep these for use at Step 7.Weather protection boots are also packed separately within the carton.

Step 6

Mount the speaker on to the wall by passing the pre-installed (Step 2) securing screws through the C-bracket and slotting it down behind the screw heads. Using a right angled screwdriver tighten the screws so that the bracket is clamped securely to the wall.

Step 7

Strip back the individual speaker conductors 10mm so that there are bare wire ends. Attach the speaker leads using the screw terminals at the rear of the speaker. The positive conductor should be connected to the red terminal and the negative conductor to the black terminal (Figure 9). Ensure that the weather protection boots are replaced over the terminals and that there are NO shorting strands of copper between the positive and negative terminals.

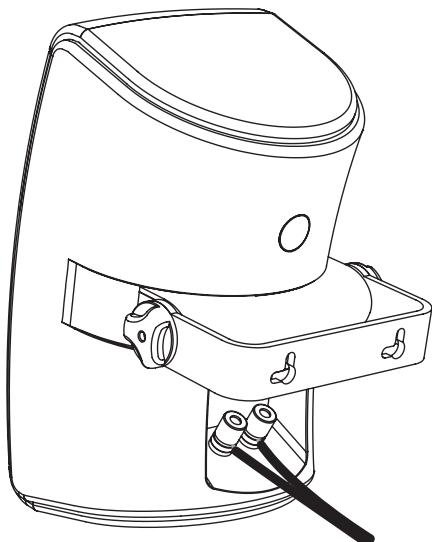

Figure 9. Qi 45EW speaker cable connections

Step 8

Position the speaker at the desired angle and tighten both the 2 rear angle adjusted locking screws (if necessary) and the C-bracket locking nuts.

Step 9

If the speakers are to be used where there is a possibility that water may be blown into the grille, the 'port' holes either side of the tweeter can be plugged using the supplied rubber port plugs. These should be pressed firmly into place (Figure 10).

Note: It is recommended that the plugs are only fitted when it is necessary to comply with IPX4, since the installation will reduce the amount of bass produced by the speaker. To meet IPX4 the port plugs must be fitted.

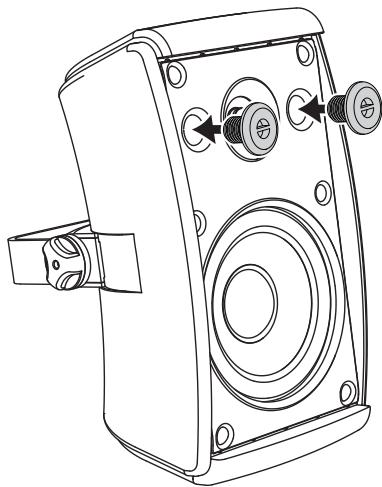

Figure 10. Insertion of rubber port plugs into port holes

Step 10

Included in the speaker pack is some flexible grille adhesive, this provides additional securing for the grille should it be considered necessary. To use gently pull the grille on both sides and pull away from the speaker (Figure 11). Press 4 pieces of the adhesive into the recess slot as indicated (Figure 12). Replace the grille by first ensuring that all grille edges are inside the bezel moulding and then pushing carefully back into place.

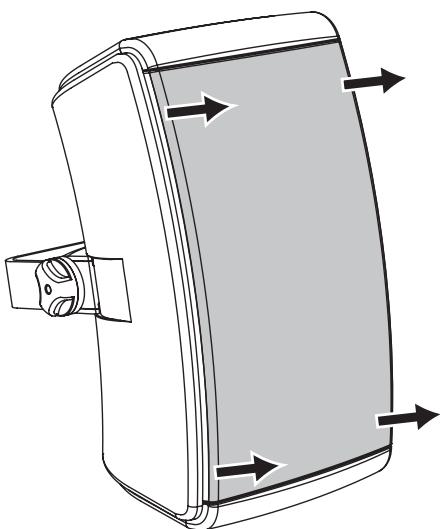

Figure 11. Qi 45EW grille removal

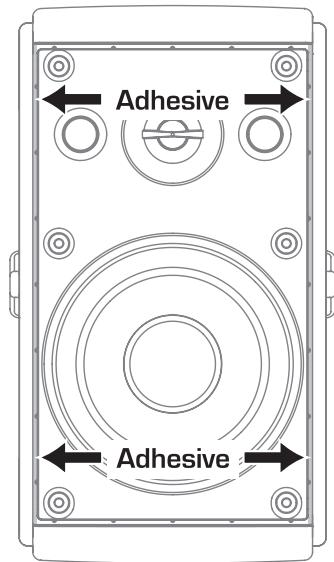

Figure 12. Positioning of adhesive strips before replacing grille

Step 11

Test the speaker to ensure that it is working correctly with no unwanted buzzes or rattles.

Q Install Warranty

Q Install loudspeakers are warranted free of defects in materials and workmanship for a period of 5 years from the date of purchase. During the warranty period Q Install will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by the warranty.

Goods for repair should, in the first instance, be returned to the supplying dealer. If this is not possible the item/s should be sent carriage paid, preferably in the original packaging, to Q Install or their appointed regional distributor accompanied by proof of purchase. Damage sustained by goods in transit to the repair centre is not covered by the warranty. Return carriage will be paid by Q Install or their distributor as appropriate.

The warranty does not in any way affect your legal rights.
