Type d'appareil	Blender
Capacité du bol	Non précisé
Puissance	Non précisé
Nombre de vitesses	3
Programmes pré-définis	Oui
Matériau du bol	Plastique
Fonction pulse	Oui
Couleur	Beige et noir
Type de commande	Molette rotative
Accessoires inclus	Non précisé
Protection sécurité	Oui
Nettoyage facile	Oui
Poids	Non précisé
Dimensions	Non précisé
Garantie	Non précisé
Utilisation recommandée	Mixage, préparation de smoothies

FOIRE AUX QUESTIONS - POWER 3 MAGIMIX

Comment puis-je nettoyer le MAGIMIX POWER 3 ?

Pour nettoyer le MAGIMIX POWER 3, démontez les accessoires et lavez-les à l'eau chaude savonneuse. Vous pouvez également les placer dans le lave-vaisselle, sauf si cela est indiqué autrement dans le manuel d'utilisation. Essuyez la base de l'appareil avec un chiffon humide.

Que faire si le moteur ne fonctionne pas ?

Vérifiez que l'appareil est correctement assemblé et que le couvercle est bien en place. Assurez-vous également qu'il est branché sur une prise fonctionnelle. Si le moteur ne démarre toujours pas, contactez le service après-vente.

Le MAGIMIX POWER 3 fait un bruit étrange, que dois-je faire ?

Un bruit étrange peut indiquer un problème avec les accessoires ou le moteur. Vérifiez que rien n'est coincé dans les lames ou le bol. Si le bruit persiste, il est recommandé d'arrêter l'appareil et de contacter le service client.

Comment puis-je m'assurer que les accessoires sont compatibles ?

Tous les accessoires fournis avec le MAGIMIX POWER 3 sont conçus pour être compatibles avec cet appareil. Pour des accessoires supplémentaires, consultez le manuel ou le site officiel de MAGIMIX pour vérifier la compatibilité.

Puis-je utiliser le MAGIMIX POWER 3 pour des aliments chauds ?

Oui, le MAGIMIX POWER 3 peut traiter des aliments chauds, mais évitez de dépasser la température recommandée indiquée dans le manuel. Laissez les aliments très chauds refroidir légèrement avant de les mettre dans l'appareil.

Quel type de garantie est offert avec le MAGIMIX POWER 3 ?

Le MAGIMIX POWER 3 est généralement fourni avec une garantie de 2 ans. Veuillez consulter votre manuel d'utilisation ou le site web de MAGIMIX pour les détails spécifiques concernant la garantie.

Comment puis-je obtenir des pièces de rechange ?

Les pièces de rechange peuvent être commandées via le site officiel de MAGIMIX ou auprès de revendeurs agréés. Assurez-vous de connaître le modèle exact de votre appareil lors de la commande.

Le moteur se coupe pendant l'utilisation, que faire ?

Si le moteur se coupe, cela peut être dû à une surcharge. Vérifiez que vous n'avez pas mis trop d'ingrédients dans le bol. Laissez l'appareil refroidir pendant quelques minutes avant de le redémarrer.

MODE D'EMPLOI POWER 3 MAGIMIX

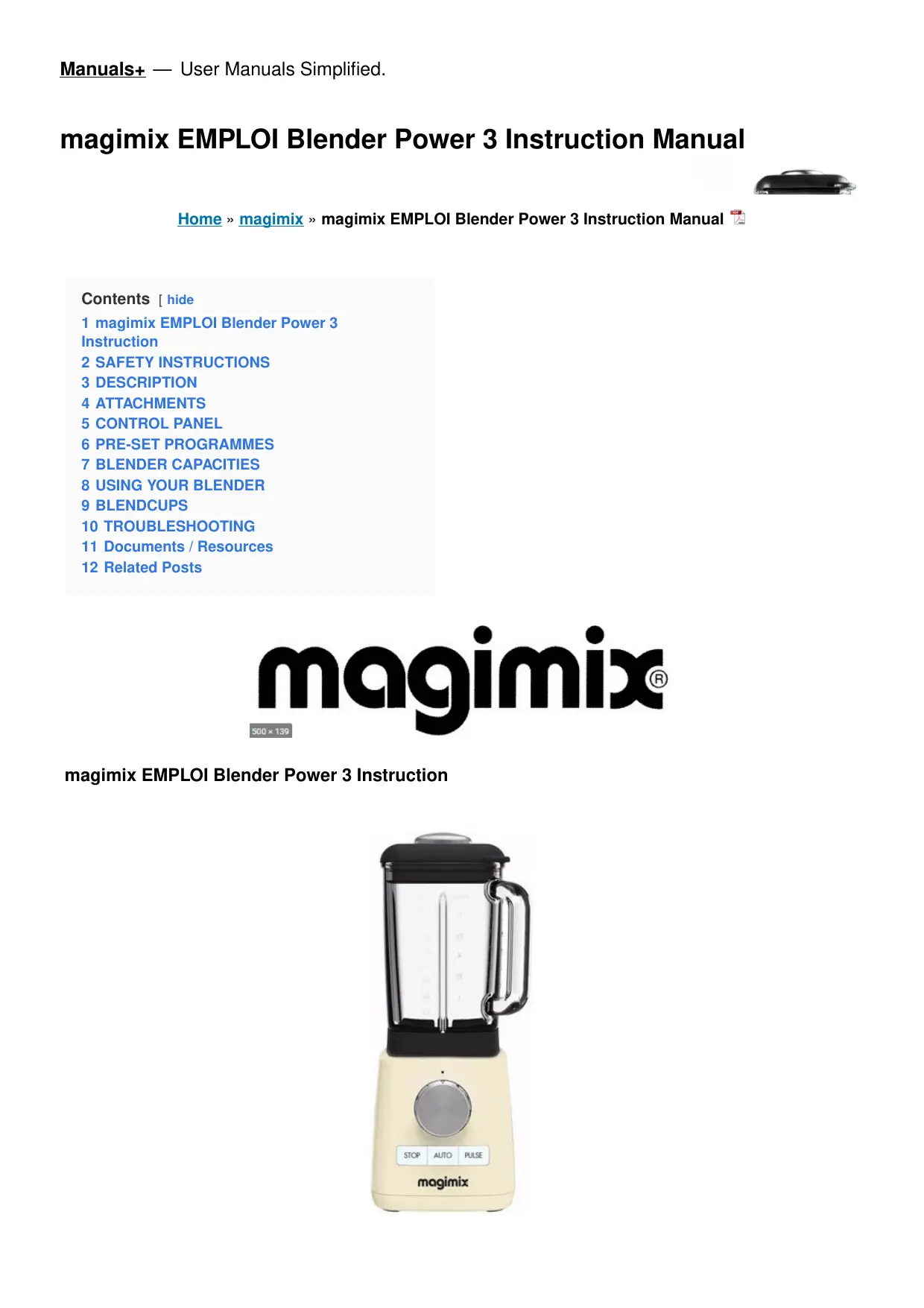

magimix EMPLOI Blender Power 3 Instruction Manual

Home » magimix » magimix EMPLOI Blender Power 3 Instruction Manual

Contents [hide

1 magimix EMPLOI Blender Power 3 Instruction
2 SAFETY INSTRUCTIONS
3 DESCRIPTION
4 ATTACHMENTS
5 CONTROL PANEL
6 PRE-SET PROGRAMMES
7 BLENDER CAPACITIES
8 USING YOUR BLENDER
9 BLENDCUPS
10 TROUBLESHOOTING
11 Documents / Resources
12 Related Posts

magimix EMPLOI Blender Power 3 Instruction

WARNING: the safety instructions are an integral part of the appliance For your own safety, please read them carefully before using it for the first time

• Never go above the Max18 L mark
• Never run the blender if the lid if not secured properly or if the lid seal and blades are not assembled correctly
• Never put your fingers or anything other than the spatula delivered with the product in the bowl while the blender is operating
• If the blades get stuck, always disconnect the blender before removing the ingredients
• Always disconnect the blender (i) if it is left without surveillance, (ii) before mounting, dismounting or cleaning, (iii) before changing the attachments and (iv) when you need to go near any moving
• All surfaces in contact with food must be cleaned with soapy water or washing-up liquid (see further details under CLEANING)
• Special precautions must be taken when handling sharpened blades, when emptying the bowl and during cleaning. There is a risk of injury if the blender is used incorrectly
• Never immerse the blender in water or other liquids in order to avoid the risk of electrocution
• Do not place the blender on or near a gas burner or hot plate nor in a hot oven
• This appliance is intended solely for use in the home
• Do not use the blender outside
• Children must not play with the blender The blender must not be used by children Keep the blender and its cord out of reach of children
• The blender can be used by persons whose, physical, sensory or mental capacities are reduced, or by persons who have no experience or knowledge of the appliance, provided they are properly supervised or have been instructed beforehand on using the blender safely and they understand the risks involved
• Use of the appliance in the following cases is not covered by the warranty: in staff kitchen areas in stores, offices and other working environments, in farms, by guests in hotels, motels, bed & breakfasts, guest houses and other residential environments

RISK OF BURNS

• NEVER process hot ingredients (solid or liquid) in the BlendCups or mill attachment, as blending hot foods in a lidded jug can lead to a build-up of pressure, forcing out scalding steam or liquids
• Processing hot foods in the 18l jug: blending hot ingredients at high speed can lead to a build-up of pressure, forcing out scalding steam or liquids Always take care when pouring in a hot liquid, as it may suddenly boil up and escape from the jug
• Never introduce hot ingredients (solid or liquid) if they are over 60^ in temperature Always make sure the lid is firmly fitted but the measuring cap is only loosely positioned, to allow any steam to escape Always use the SOUP program or start at a low speed and gradually increase it Never use the PULSE button

MAINS CONNECTION

• Your appliance must be connected to an earthed socket with the original power cord

• Check that the voltage indicated on its identification plate corresponds to the voltage of your mains supply

• Never allow the power cord to dangle over the edge of your worktop or counter, and make sure that it does not come into contact with hot surfaces

AFTER-SALES SERVICE

• If the power cord has been damaged, it must be replaced by the manufacturer, a Magimix-approved service agent or a similarly qualified person, in order to avoid all risks
• The use of parts that are not recommended or sold by Magimix may result in injury, fire or electric shock

KEEP THESE SAFETY INSTRUCTIONS FOR FUTURE REFERENCE

DESCRIPTION

Carefully wash all the parts (except the motor unit) before using for the first time

ATTACHMENTS

Mill attachment

Glass mill attachment is ideal for grinding spices or Parmesan, and making small amounts of savory dips Mill supplied with a special blade assembly for processing dry ingredients See p28

BlendCups

Compact blend-and-go jugs (400 & 700 ml) for blending small amounts and/or carrying around homemade drinks

Citrus press

This attachment slots onto the blender lid, so that you can easily prepare citrus juices and add them directly to your preparations. See p 31

Blender Kit

A premium box containing:

2 BlendCups (400ml & 700ml), with 1 watertight lid and 1 easy grip handle 1 Mill attachment, with a blade assembly and shake and pour lid

Depending on the model/attachments sold separately **Solely for cold preparations

CONTROL PANEL

• Switching your appliance on: first select a speed or programme, then press AUTO
• Manual mode: always start at the slowest speed and gradually increase it
• Never run continuously for more than 60 seconds
  PULSE: maximum speed for an even smoother texture / pulsing to give you complete control

PRE-SET PROGRAMMES

5 pre-set programmes of cycles and speeds to ensure the best result every time

As these programmes are for use with the 18l jug, please read the instructions on how to adapt them to the other jugs

Clean

Cleaning Automatic rinsing programme

Ice

Crushed glass

For crushing ice

Smoothie

Drinks

For blending milkshakes, smoothies and cocktails

Soups

Soups

For making pureed soups and cream soups (hot or cold)

Desserts

Frozen desserts

For making instant desserts (using frozen fruit) and mixing or pureeing dense and compact ingredients

1.8I jug

BlendCup

Mill attachment

The lengths of the cycles have been established on the basis of the maximum blender capacities (see p 24). You can stop the programme before the end of the cycle if you are processing smaller amounts or prefer a coarser texture

BLENDER CAPACITIES

To make best use of your appliance, please follow the recommendations below:

	1.8l jug	BlendCup	Mill attachment
Dried breadcrumbs	x	x	3 breakfast rusk (30g) Sp 4, 14 s
Fruit compote	500g chilled cooked fruit Sp 1, then Sp 3 + spatula	x	200g chilled cooked fruit Sp 1 then Sp 3
Frozen desserts	300g frozen fruit (2cm cubes) Desserts + spatula	x	x
Ground spices	x	x	100g Sp 4, 20 s
Coffee beans	x	x	80 g Sp 4, 40 s
Crushed ice	300g (approx. 15-20 ice cubes) Ice	x	x
Milkshakes	1.6l Smoothies	0.4l or 0.7l Smoothies	x
Walnuts, almonds	x	x	100g Sp 3, 20 s
Onion	200g Sp 1 30 s + spatula	x	100g Sp 1, 30 s
Parmesan	x	x	80g (2cm cubes) Sp 4, 50 s
Pancake batter	1l Sp 3, 10 s + Sp 4, 20 s	x	x
Pureed vegetables	200g chilled cooked vegetables Sp 1, 50 s	x	200g chilled cooked vegetables Sp 1, 50 s
Smoothies	1.8l Smoothies	0.4l or 0.7l Smoothies	x
Hot soups	1.6l Soups	A	A
king sugar	x	x	200g caster sugar Sp4 + Pulse, 60 s
Raw meat	x	x	200g (2cm cubes) Sp 4 10 s

A blender is not designed to knead dough or mash potatoes Whatever the attachment or recipe concerned, the blender must not be used continuously for more than 60 seconds

USING YOUR BLENDER

1 Assemble the base

Place the seal on the rim of the blade assembly, making sure it is completely flat.

2 Assemble the jug

Place the upright jug on the motor unit.

Add the ingredients (max. 1.8l).

Push the lid down firmly into place. Loosely position the cap.

Select a speed or programme. Press AUTO.

If necessary, use the spatula to help with the mixing.

Wait until the blades have completely stopped moving before opening.

ADVICE

• Ice / frozen or sticky ingredients such as honey, banana and avocado
• Fresh fruit and vegetables except for banana and avocado
  Leaves, herbs such as spinach and fresh herbs
• Hard or dry ingredients such as cereals, nuts and carrots
• Liquids such as water, milk and fruit juice

• Cut the food into chunks measuring approx 2cm
• Coarsely chop the herbs or leaves before adding them
• Always add the ingredients in the order specified in the recipe
• When processing thick mixtures, always start at a low speed, otherwise the food will stick to the sides and not come into contact with the blades. If necessary, add a little liquid and use the spatula
• To add ingredients, either remove the measuring cap or stop the machine and remove the lid
• Never run your blender if the jug is empty To process dry ingredients such as nuts and spices, we recommend using the mill attachment, which has a specially designed blade assembly.

Never fill above the MAX mark. Never add solid or liquid ingredients if they are above 60^ in temperature.

Tips

• Hot soups: wait for the ingredients to cool to 60^ C (tasting temperature) before blending. Make sure that the measuring cap is only loosely positioned on the lid, to allow any steam to escape. Either use the SOUP program or start at a low speed and gradually increase it. Never use the PULSE button
• Crushed ice: the ICE function reduces ice cubes to a very fine, snow-like pow-der If you want more coarsely crushed ice, put a small number of ice cubes (100/150g max) in the jug and use the PULSE button
• To fold ingredients into a mixture without chopping them (eg chocolate chips in a cake mixture), add them at the end and run your blender for a further 5-10 seconds at a slow speed (05)
• Using frozen fruit: when fruit come out of the freezer it sometimes forms a solid block Break this block into cubes measuring roughly 2cm before putting in the jug, to avoid damaging your blender
• To rescue a lumpy sauce, blend it for 15 s at Speed 3

Automatic overload failsafe

Your appliance is fitted with a safety system that cuts the motor if it is overloaded or has been running for too long. The indicator light then starts to flash

• Turn to the selector to 0 and unplug your appliance
• Wait for about 30 minutes before restarting your blender
• Reduce the amount of ingredients in the jug and/or add some liquid

MILL ATTACHMENT

1 Assemble the base

Place the seal on the rim of the blade assembly, making sure it is completely flat.

Put the ingredients in the mill attachment. Position the blade assembly on the mill attachment.

Screw the holder tightly onto the mill attachment.

2 Assemble the jug

Place the upright mill attachment on the motor unit.

Press down with your hand to check that it is ready to run.

Select a speed and press AUTO

• Instant crumble: crush digestives or butter biscuits and divide between fruit salad / ice cream verrines
• Icing sugar: pour in 200g caster sugar Blend for 1 min at Speed 4 For an even finer consistency, blend for a further minute
• Cake icing: pour 200g icing sugar into the jug with 1 egg white Blend for 20 s at Speed 1 Never blend hot liquids. The blade assembly can be extremely hot after use.

BLENDCUPS

• Liquids

water, milk, fruit juice

• Frozen foodsor sticky

ingredients honey, banana, avocado

• Hard or dry ingredients

cereals, nuts, carrots

Leaves, herbs

spinach, fresh herbs

• Fresh fruit and vegetables

except for banana and avocado

For the best possible result:

• Cut the ingredients into small chunks (approx2cm)
• Roughly chop leaves or herbs before adding to the jug, especially if they are large or thick
• Always add the ingredients in the right order
  Always add a little liquid
• Use ice cubes (max 4 cubes) rather than crushed ice

Never use hot liquids

Never fill above the MAX level

Never put the BlendCups in the microwave Do not use sparkling liquids in the BlendCups

2 Assemble the base

Position the seal on the rim of the blade assembly, making sure it is completely flat.

3 Blend

Place the BlendCup on the motor unit (locking pins at the back).

PRESS on the BlendCup to activate the blender.

Select a speed or programme and press AUTO.

Drink immediately or take away.

Wait until the blades have completely stopped moving.

Remove the BlendCup.
Unscrew the holder.

If necessary, screw on the lid.

Tips and advice

• Run at a low speed for the first few seconds, until all the ingredients are caught up in the blades, then gradually increase the speed
• Never run the blender continuously for more than 1 minute, otherwise the ingredients may heat up and pressure may build up inside the jug
• If blending is difficult, reduce either the speed or the amount being processed. If the preparation is thick, add some liquid (without going above the MAX mark)
• Dense or sticky (eg nut-based) preparations tend to stick to the sides If this happens, switch the blender off, wait until the blades have come to a complete standstill and shake the jug downwards to send the ingredients back towards the blades
• The base of the jug is shaped to fit the cupholder in your vehicle

CITRUS PRESS

CLEANING

Automatic cleaning programme

As soon as you have finished using your appliance, fill the jug up halfway with warm water + a few drops of washing-up liquid Close the lid tightly, select the CLEAN program and press AUTO

Thorough cleaning

• Unplug the appliance and remove all the parts, not forgetting the seals
• All the parts are dishwasher safe (except motor unit): use the short cycle and place all the small parts on the upper rack
• For the best results, we nevertheless recommend washing the lid and the seals by hand
• Never leave the blade assembly to soak, and check that the blades move freely before reassembling
• Clean the base with a damp cloth

Unscrew the holder with the aid of the spatula.

The top of the measuring cap can be removed.

Check that the locking pins slide smoothly, and clean them if necessary.

Electrical and electronic goods at the end of their lifetime

It is against European law to treat electrical and electronic equipment (WEEE) as regular household waste Your appliance contains many materials that can be recovered or recycled It should be taken to a WEEE collection point For more details about collection points, please contact your local council or your household waste recycling centre You can also take your appliance to an electrical goods store

TROUBLESHOOTING

Problem	Solution
The lid is stiff	As the lid is designed to be watertight, it can be a little hard to fit, especially if the appliance is new or has not been used for a long time ◆ Pour a little vegetable oil onto some kitchen paper and rub the seal
Flashing light	Jug or attachment incorrectly positioned Motor overload: switch your appliance off and wait for 30 minutes before sw itching it back on
Your appliance will not start	Check the plug/socket If the white indicator light is on, reposition the jug, then select a speed or pr ogramme and press AUTO
The ingredients are not properly mixed/blended	Add some liquid Always add the ingredients in the right order Glass jug: use the spatula Cut the ingredients into smaller pieces
Leaking base	Check that the blade assembly seal is correctly positioned Check that the support is screwed on properly to the base of the jug Glass jug: use the spatula
Desserts programme does not work	Frozen fruit: break into cubes measuring roughly 2cm before putting in the blender, to avoid damaging your appliance Do not exceed the blender capacity and add a little liquid Use the spatula
The motor smells	There may be a faint smell when you use your appliance for the first time or if the motor is overloaded◆ This poses absolutely no risk, and the smell will I go away after you have used your appliance a few times◆ Allow the motor to cool for 30 minutes before restarting it
Stained plastic parts	Some ingredients, such as curry and carrots, may give rise to some staining◆ Pour some vegetable oil onto kitchen paper and rub the parts before adding the ingredients

The mixture tends to stick to the sides

Add some liquid

Use the spatula, start at a low speed and gradually increase it

Documents / Resources

magimix EMPLOI Blender Power 3 [pdf] Instruction Manual EMPLOI, Blender Power 3

Related Posts

Manuals+, home privacy

Godox P2400 Power Pack Instruction Manual

P2400 Power Pack

Hunting Instruction Manual

Hunting Instruction Manual - Optimized PDF Hunting Instruction Manual - Original PDF

Digital Anemometer Instruction Manual

Digital Anemometer Instruction Manual - Download [optimized] Digital Anemometer Instruction Manual - Download

svenlars Montage Instruction Manual

svenlars Montage Instruction Manual www.svenlars.nl Questions? [e-mail]
