X-H1 - Appareil photo hybride FUJIFILM - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil X-H1 FUJIFILM au format PDF.
| Type de produit | Appareil photo hybride |
| Marque | Fujifilm |
| Modèle | X-H1 |
| Capteur | X-Trans CMOS III APS-C (23.5 × 15.6 mm) - 24,3 mégapixels effectifs |
| Monture d'objectif | Fujifilm X mount |
| Dimensions (L × H × P) | 139,8 × 97,3 × 85,5 mm |
| Poids (nu) | Environ 623 g (sans batterie, accessoires ni carte mémoire) |
| Poids (avec batterie et carte) | Environ 673 g |
| Alimentation | Batterie rechargeable NP-W126S (7,2 V, 1260 mAh) |
| Viseur | OLED couleur 0,5 pouce, 3,69 millions de points, grossissement 0,75× |
| Écran arrière | LCD tactile 3,0 pouces, 1,04 million de points, inclinable à 3 axes |
| Stabilisation | Stabilisation mécanique du capteur sur 5 axes (IBIS) |
| Vitesse d'obturation | Mécanique : 30 s à 1/8000 s, pose B (max. 60 min) ; électronique : 30 s à 1/32000 s |
| Rafale | Jusqu'à 14 images/s (obturateur électronique) |
| Sensibilité ISO | ISO 200 - 12800 (extensible à 100 - 51200) |
| Vidéo | 4K (UHD) jusqu'à 30p, Full HD jusqu'à 60p, HD 720p jusqu'à 120p |
| Stockage | Double slot SD/SDHC/SDXC compatible UHS-II |

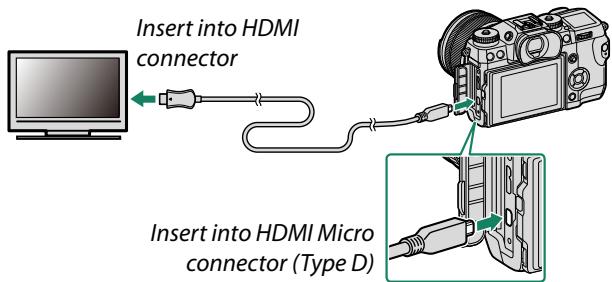

| Connexions | USB 3.0 Micro-B, HDMI Micro (type D), micro jack 3,5 mm (microphone), prise télécommande 2,5 mm |
| Flash intégré | Flash EF-X8 fourni (guide 8 à ISO 100) |
| Entretien | Nettoyage du capteur par ultrasons intégré ; mise à jour du firmware via site Fujifilm |

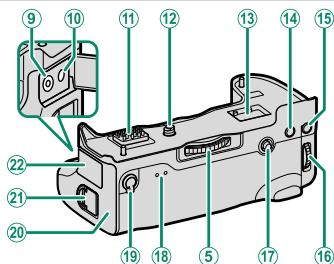

| Accessoires compatibles | Grip booster vertical VPB-XH1, chargeur BC-W126, flashs externes, télécommande RR-90 |
| Température de fonctionnement | -10 °C à +40 °C |
FOIRE AUX QUESTIONS - X-H1 FUJIFILM
Questions des utilisateurs sur X-H1 FUJIFILM
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Appareil photo hybride au format PDF gratuitement ! Retrouvez votre notice X-H1 - FUJIFILM et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil X-H1 de la marque FUJIFILM.
MODE D'EMPLOI X-H1 FUJIFILM
DIGITAL CAMERA
Owner's Manual
Introduction
Thank you for your purchase of this product. Be sure that you have read this manual and understood its contents before using the camera. Keep the manual where it will be read by all who use the product.
For the Latest Information
The latest versions of the manuals are available from:
http://fujifilm-dsc.com/en/manual/
The site can be accessed not only from your computer but also from smartphones and tablets.
For information on firmware updates, visit:
http://www.fujifilm.com/support/digital Cameras/software/
Menu List iv
1 Before You Begin 1
2 First Steps 25
3 Basic Photography and Playback 43
4 Movie Recording and Playback 49
5 Taking Photographs 55
6 The Shooting Menus 97
7Playback and the Playback Menu 151
8 The Setup Menus 177
9 Shortcuts 211
10 Peripherals and Optional Accessories 223
11 Connections 241
12 Technical Notes 255
Menu List
Camera menu options are listed below.
Shooting Menus
Adjust settings when shooting photos or movies.
See page 97 for details.
| 10 | IMAGE QUALITY SETTING | |
| 1/3 | IMAGE SIZE | 98 |
| IMAGE QUALITY | 99 | |
| RAW RECORDING | 99 | |
| FILM SIMULATION | 100 | |
| GRAIN EFFECT | 101 | |
| DYNAMIC RANGE | 101 | |
| D RANGE PRIORITY | 102 | |
| WHITE BALANCE | 102 | |
| 2/3 | HIGHLIGHT TONE | 106 |
| SHADOW TONE | 106 | |
| COLOR | 106 | |
| SHARPNESS | 106 | |
| NOISE REDUCTION | 107 | |
| LONG EXPOSURE NR | 107 | |
| LENS MODULATION OPTIMIZER | 107 | |
| COLOR SPACE | 107 | |
| 3/3 | PIXEL MAPPING | 108 |
| SELECT CUSTOM SETTING | 108 | |
| EDIT/SAVE CUSTOM SETTING | 109 |
| AF/MF SETTING | |
| FOCUS AREA | 110 |
| AF MODE | 111 |
| AF-C CUSTOM SETTINGS | 112 |
| STORE AF MODE BY ORIENTATION | 115 |
| AF POINT DISPLAY | 115 |
| NUMBER OF FOCUS POINTS | 116 |
| PRE-AF | 116 |
| AF ILLUMINATOR | 116 |
| AF/MF SETTING | |
| FACE/EYE DETECTION SETTING | 117 |
| AF+MF | 118 |
| MF ASSIST | 119 |
| FOCUS CHECK | 119 |
| INTERLOCK SPOT AE & FOCUS AREA | 120 |
| INSTANT AF SETTING | 120 |
| DEPTH-OF-FIELD SCALE | 120 |
| RELEASE/FOCUS PRIORITY | 120 |
| 3/3 TOUCH SCREEN MODE | 121 |
| SHOOTING SETTING | |
| 1/2 | DRIVE SETTING |
| SELF-TIMER | |
| INTERVAL TIMER SHOOTING | |
| SHUTTER TYPE | |
| FLICKER REDUCTION | |
| ISO AUTO SETTING | |
| IS MODE | |
| MOUNT ADAPTER SETTING | |

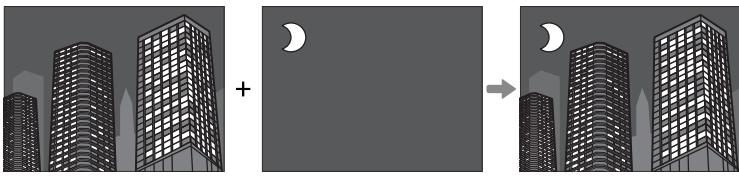

| 2/2 | MULTI EXPOSURE |
| WIRELESS COMMUNICATION | |

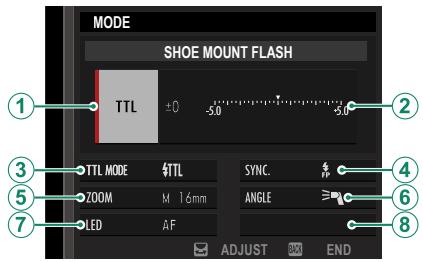

| FLASH FUNCTION SETTING | 134 |
| RED EYE REMOVAL | 134 |
| TTL-LOCK MODE | 135 |
| LED LIGHT SETTING | 135 |
| MASTER SETTING | 136 |
| CH SETTING | 136 |
| MOVIE SETTING | |
| 1/4 | MOVIE MODE |
| FULL HD HIGH SPEED REC | |
| FILM SIMULATION (MOVIE) | |
| DYNAMIC RANGE (MOVIE) | |
| WHITE BALANCE (MOVIE) | |
| HIGHLIGHT TONE (MOVIE) | |
| SHADOW TONE (MOVIE) | |
| COLOR (MOVIE) | |
| 2/4 | SHARPNESS (MOVIE) |
| NOISE REDUCTION (MOVIE) | |
| F-Log RECORDING | |
| PERIPHERAL LIGHT CORRECTION (MOVIE) | |
| FOCUS AREA (MOVIE) | |
| MOVIE AF MODE | |
| AF-C CUSTOM SETTING (MOVIE) | |
| PRE-AF (MOVIE) | |
| MOVIE SETTING | |
| 3/4 | FACE/EYE DETECTION SETTING (MOVIE) |
| MF ASSIST (MOVIE) | |
| FOCUS CHECK (MOVIE) | |
| HDMI OUTPUT INFO DISPLAY | |
| 4K MOVIE OUTPUT | |
| FULL HD MOVIE OUTPUT | |
| 4K HDMI STANDBY QUALITY | |
| HDMI REC CONTROL | |
| 4/4 | AUDIO SETTING |
| TIME CODE SETTING | |
| TALLY LIGHT | |
| MOVIE SILENT CONTROL | |

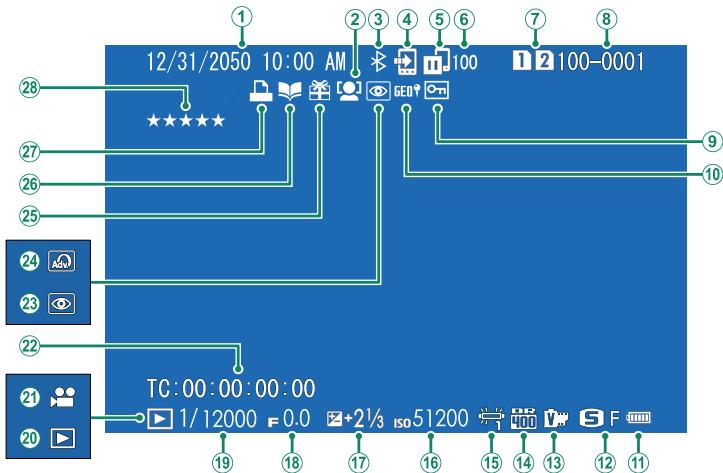

ThePlaybackMenu
Adjust playback settings.
See page 157 for details.
| PLAY BACK MENU | |
| SWITCH SLOT | 157 |
| RAW CONVERSION | 158 |
| ERASE | 160 |
| SIMULTANEOUS DELETE(RAW SLOT1.JPG SLOT2) | 162 |
| CROP | 162 |
| RESIZE | 163 |
| PROTECT | 164 |
| IMAGE ROTATE | 165 |
| 2/3 | PLAY BACK MENU |
| RED EYE REMOVAL | |
| VOICE MEMO SETTING | |
| COPY | |
| IMAGE TRANSFER ORDER | |
| WIRELESS COMMUNICATION | |
| SLIDE SHOW | |
| PHOTOBOOK ASSIST | |
| PC AUTO SAVE | |
| 3/3 | PRINT ORDER (DPOF) |
| instax PRINTER PRINT | |
| DISP ASPECT |
Setup Menu
Adjust basic camera settings.
See page 177 for details.
| USER SETTING | |
| FORMAT | 178 |
| DATE/TIME | 179 |
| TIME DIFFERENCE | 179 |
| 言語/LANG. | 180 |
| MY MENU SETTING | 180 |
| SENSOR CLEANING | 181 |
| RESET | 181 |
| SOUND SETTING | |
| AF BEEP VOL. | 182 |
| SELF-TIMER BEEP VOL. | 182 |
| OPERATION VOL. | 182 |
| SHUTTER VOLUME | 183 |
| SHUTTER SOUND | 183 |
| PLAYBACK VOLUME | 183 |
| SCREEN SETTING | |
| 1/3 | EVEF BRIGHTNESS :184 |
| EVEF COLOR :184 | |
| EVEF COLOR ADJUSTMENT :184 | |
| LCD BRIGHTNESS :185 | |
| LCD COLOR :185 | |
| LCD COLOR ADJUSTMENT :185 | |
| IMAGE DISP. :186 | |
| AUTOROTATE DISPLAYS :186 | |
| 2/3 | PREVIEW EXP./WB IN MANUAL MODE :187 |
| NATURAL LIVE VIEW :187 | |
| FRAMING GUIDELINE :188 | |
| AUTOROTATE PB :188 | |
| FOCUS SCALE UNITS :189 | |
| APERTURE UNIT FOR CINEMA LENS :189 | |
| DUAL DISPLAY SETTING :189 | |
| DISP. CUSTOM SETTING :190 | |
| 3/3 | SUB MONITOR SETTING :191 |
| SUB MONITOR BACKGROUND COLOR :191 | |
| BUTTON/DIAL SETTING | |
| 1/3 | FOCUS LEVER SETTING |
| EDIT/SAVE QUICK MENU | |
| FUNCTION (Fn) SETTING | |
| SELECTOR BUTTON SETTING | |
| COMMAND DIAL SETTING | |
| ISO DIAL SETTING (H) | |
| ISO DIAL SETTING (L) | |
| ISO DIAL SETTING (A) | |
| 2/3 | SHUTTER AF |
| SHUTTER AE | |
| SHOOT WITHOUT LENS | |
| SHOOT WITHOUT CARD | |
| FOCUS RING | |
| FOCUS RING OPERATION | |
| AE/AF-LOCK MODE | |
| EXPO. COMP. BUTTON SETTING | |
| 3/3 | APERTURE RING SETTING (A) |
| APERTURE SETTING | |
| TOUCH SCREEN SETTING | |
| LOCK | |
| POWER MANAGEMENT | |
| AUTO POWER OFF | |
| PERFORMANCE | |
| SAVE DATA SETTING | |
| FRAME NO. | 203 |
| SAVE ORG IMAGE | 204 |
| EDIT FILE NAME | 204 |
| CARD SLOT SETTING (STILL IMAGE) | 204 |
| SELECT SLOT(SEQUENTIAL) | 204 |
| SELECT SLOT(Sequential) | 205 |
| SELECT FOLDER | 205 |
| COPYRIGHT INFO | 205 |
| CONNECTION SETTING | |

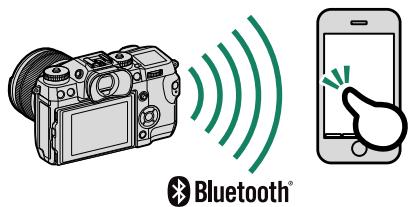

| Bluetooth SETTINGS | 206 |
| NETWORK SETTING | 207 |
| PC AUTO SAVE | 207 |
| instax PRINTER CONNECTION SETTING | 208 |
| PC CONNECTION MODE | 209 |
| GENERAL SETTINGS | 210 |
| INFORMATION | 210 |
| RESET WIRELESS SETTING | 210 |
Table of Contents
Introduction
For the Latest Information..
Menu List.. iv
Shooting Menus. iv
The Playback Menu..
Setup Menus. vi
Supplied Accessories. xvii
About This Manual .xviii
Symbols and Conventions .xviii
Terminology . xviii
Before You Begin 1

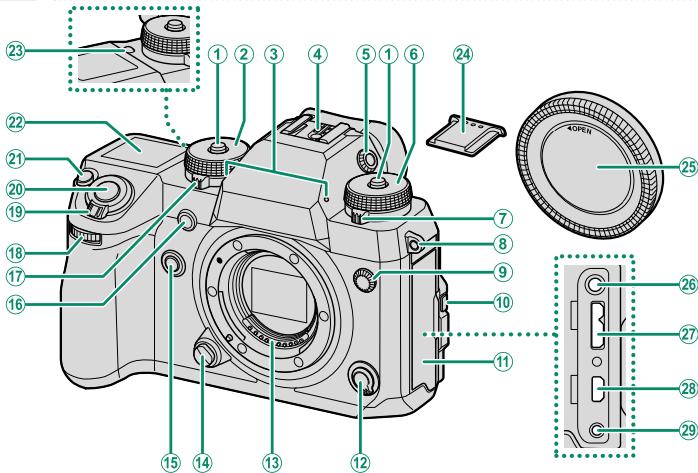

Parts of the Camera 2
The Serial Number Plate 4
The Selector. 4
The Focus Stick. 4
The Shutter Speed and Sensitivity Dials. 5
The Metering Dial. 5
The Drive Dial. 6
The Command Dials. 7
The Indicator Lamp 8
Focusing the Viewfinder. 8

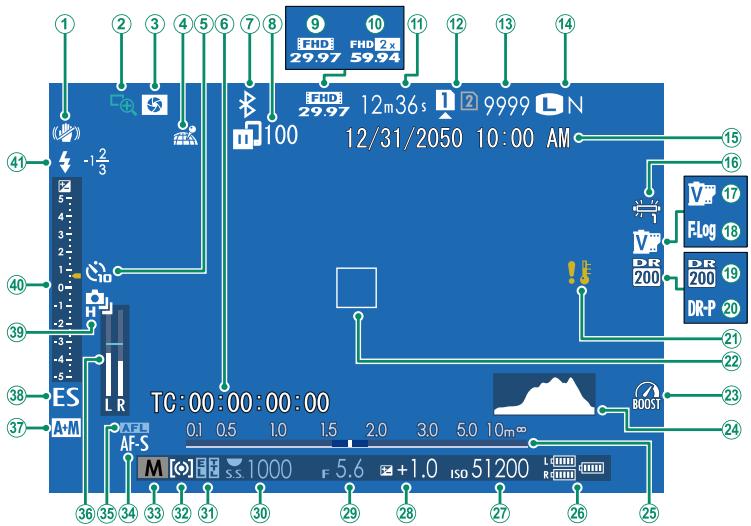

The LCD Monitor 9

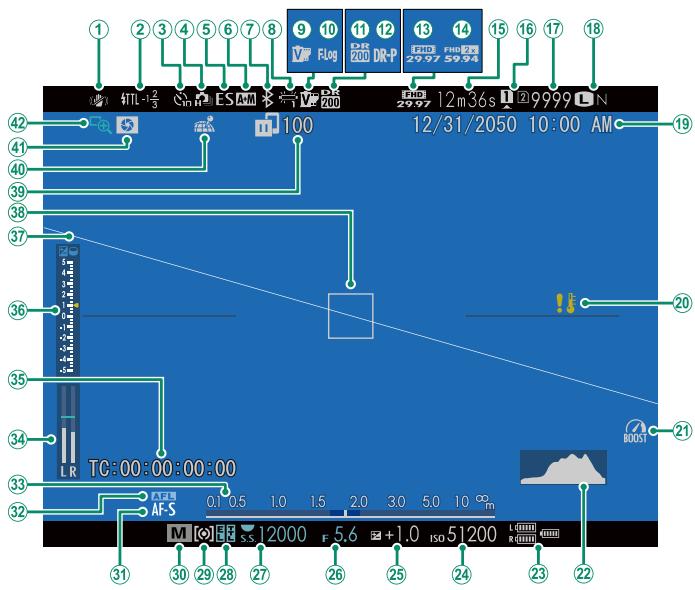

Camera Displays. 10
The Electronic Viewfinder 10
The LCD Monitor 12
Display Rotation. 13
Choosing a Display Mode. 14
Adjusting Display Brightness. 14
The Eye Cup. 15

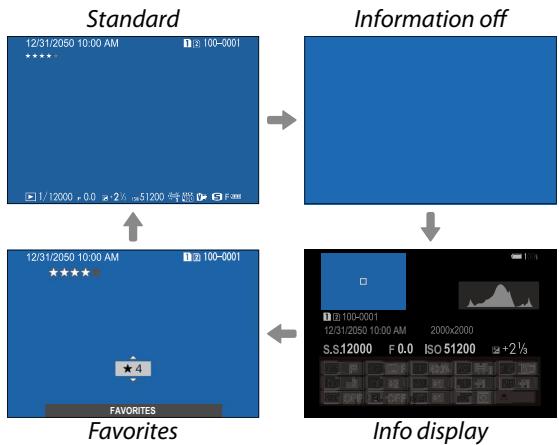

The DISP/BACK Button 15
The Dual Display. 16
Customizing the Standard Display. 17
The Secondary LCD Monitor. 19

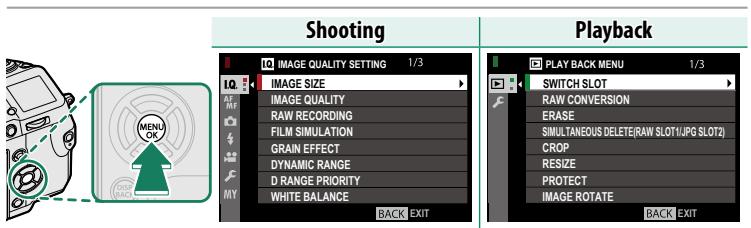

Using the Menu 20

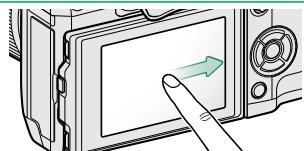

Touch Screen Mode 21
Shooting Touch Controls 21
Playback Touch Controls. 24
2 First Steps
25
Attaching the Strap. 26
Attaching a Lens 28
Charging the Battery 29
Inserting the Battery 32
Inserting Memory Cards 34
Using Two Cards 35
Compatible Memory Cards 36
Turning the Camera On and Off 37
Checking the Battery Level 38
Basic Setup. 39
Choosing a Different Language. 41
Changing the Time and Date 41
3 Basic Photography and Playback
43
Taking Photographs (Mode P) 44
Viewing Pictures. 47
删除 Pictures 48
4 Movie Recording and Playback
49
Recording Movies 50
Adjusting Movie Settings 52
Viewing Movies. 53
5 Taking Photographs
55
P,S,A,and M Modes. 56

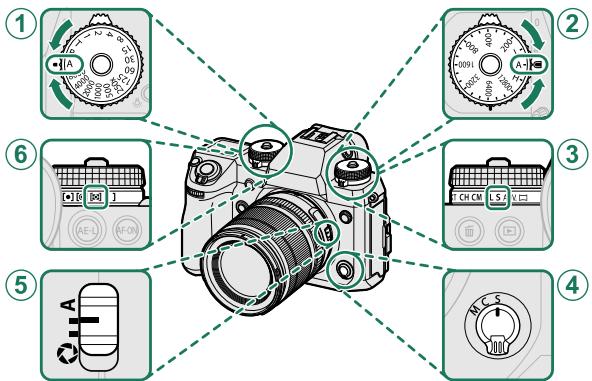

Mode P: Program AE. 56

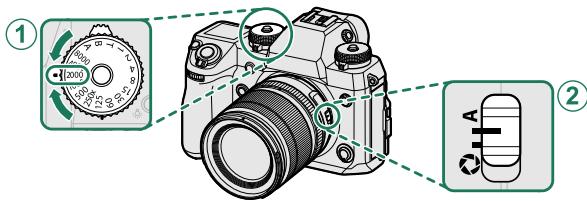

Mode S:Shutter-Priority AE 58

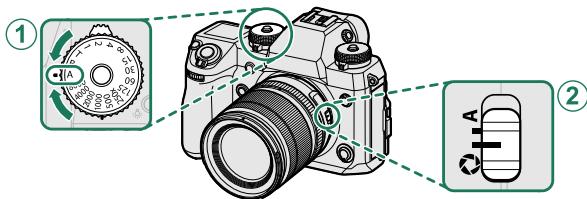

Mode A: Aperture-Priority AE. 62

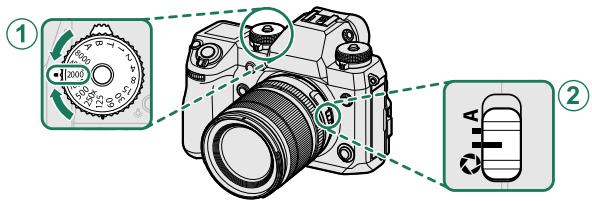

Mode M: Manual Exposure 63
Autofocus 64
Focus Mode 65
Autofocus Options (AF Mode) 67
Focus-Point Selection. 69
Manual Focus 73
Checking Focus. 75
Sensitivity 77
Auto Sensitivity (A) 78
Metering 79
Exposure Compensation 80
Focus/Exposure Lock. 81
Other Controls 82
BKT Bracketing 83
AE BKT 83
ISO ISO BKT 84
FILMSIMULATION BKT. 84
WB WHITE BALANCE BKT 84
DYNAMIC RANGE BKT. 84
Continuous Shooting (Burst Mode) 85
ADV. Advanced Filters 87
Advanced Filter Options. 88
Panoramas 89
Flash Photography 92

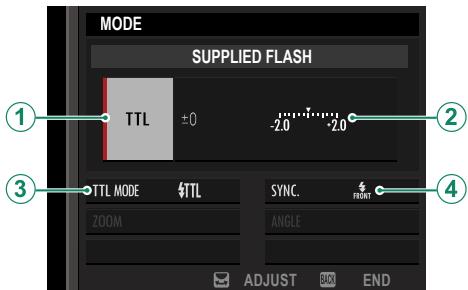

Flash Settings. 94
6 The Shooting Menus 97
IMAGE QUALITY SETTING 98
IMAGE SIZE 98
IMAGE QUALITY 99
RAW RECORDING 99
FILMSIMULATION 100
GRAIN EFFECT 101
DYNAMIC RANGE 101
D RANGE PRIORITY. 102
WHITE BALANCE 102
HIGHLIGHT TONE 106
SHADOW TONE 106
COLOR. 106
SHARPNESS 106
NOISE REDUCTION 107
LONG EXPOSURE NR. 107
LENS MODULATION OPTIMIZER 107
COLOR SPACE 107
PIXEL MAPPING 108
SELECT CUSTOM SETTING 108
EDIT/SAVE CUSTOM SETTING 109
AF/MF SETTING 110
FOCUS AREA 110
AF MODE 111
AF-C CUSTOM SETTINGS 112
STORE AF MODE BY ORIENTATION 115
AF POINT DISPLAY[1] 115
NUMBER OF FOCUS POINTS 116
PRE-AF 116
AFILLUMINATOR 116
FACE/EYE DETECTION SETTING 117
AF+MF 118
MF ASSIST 119
FOCUS CHECK. 119
INTERLOCK SPOT AE & FOCUS AREA 120
INSTANT AF SETTING 120
DEPTH-OF-FIELD SCALE. 120
RELEASE/FOCUS PRIORITY 120
TOUCH SCREEN MODE 121
SHOOTING SETTING 123
DRIVE SETTING. 123
SELF-TIMER. 125
INTERVAL TIMER SHOOTING 126
SHUTTERTYPE 127
FLICKER REDUCTION 128
ISO AUTO SETTING 128
IS MODE 129
MOUNT ADAPTER SETTING 129
MULTI EXPOSURE 132
WIRELESS COMMUNICATION. 133
FLASH SETTING 134
FLASH FUNCTION SETTING 134
RED EYE REMOVAL 134
TTL-LOCK MODE 135
LED LIGHT SETTING 135
MASTER SETTING 136
CH SETTING. 136
MOVIESETTING 137
MOVIE MODE 137
FULL HD HIGH SPEED REC. 138
FILMSIMULATION(MOVIE) 139
DYNAMIC RANGE (MOVIE) 139
WHITE BALANCE (MOVIE) 140
HIGHLIGHT TONE (MOVIE) 140
SHADOW TONE (MOVIE) 140
COLOR (MOVIE) 141
SHARPNESS (MOVIE) 141
NOISE REDUCTION (MOVIE) 141
F-Log RECORDING 141
PERIPHERAL LIGHT CORRECTION (MOVIE) 142
FOCUS AREA (MOVIE) 142
MOVIE AF MODE. 142
AF-C CUSTOM SETTING (MOVIE) 143
PRE-AF (MOVIE) 143
FACE/EYE DETECTION SETTING (MOVIE) 144
MF ASSIST (MOVIE) 144
FOCUS CHECK (MOVIE) 144
HDMI OUTPUT INFO DISPLAY 145
4K MOVIE OUTPUT 145
FULL HD MOVIE OUTPUT 145
4K HDMI STANDBY QUALITY 146
HDMI REC CONTROL 146
AUDIO SETTING. 146
TIME CODE SETTING 148
TALLY LIGHT 150
MOVIESILENTCONTROL 150
7Playback and the Playback Menu 151
ThePlaybackDisplay. 152
The DISP/BACK Button 153
Viewing Pictures. 155
Playback Zoom. 156
Multi-FramePlayback 156
ThePlayback Menu 157
SWITCH SLOT 157
RAWCONVERSION 158
ERASE 160
SIMULTANEOUS DELETE(RAW SLOT1/JPG SLOT2) 162
CROP. 162
RESIZE 163
PROTECT. 164
IMAGE ROTATE 165
RED EYE REMOVAL 166
VOICE MEMO SETTING 167
COPY 168
IMAGE TRANSFER ORDER 169
WIRELESS COMMUNICATION. 170
SLIDE SHOW 170
PHOTOBOOK ASSIST 171
PC AUTO SAVE. 172
PRINT ORDER (DPOF) 173
instax PRINTER PRINT 174
DISP ASPECT 175
8 The Setup Menus 177
USER SETTING 178
FORMAT 178
DATE/TIME 179
TIME DIFFERENCE 179
言語/LANG. 180
MY MENU SETTING 180
SENSOR CLEANING 181
RESET 181
Sound Setting 182
AF BEEP VOL. 182
SELF-TIMER BEEP VOL. 182
OPERATION VOL. 182
SHUTTERTVOLUME 183
SHUTTER SOUND 183
PLAYBACKVOLUME 183
SCREEN SETTING 184
EVF BRIGHTNESS. 184
EVF COLOR. 184
EVF COLOR ADJUSTMENT 184
LCD BRIGHTNESS 185
LCD COLOR 185
LCD COLOR ADJUSTMENT 185
IMAGE DISP. 186
AUTOROTATE DISPLAYS 186
PREVIEW EXP./WB IN MANUAL MODE 187
NATURAL LIVE VIEW 187
FRAMINGGUIDELINE 188
AUTOROTATE PB. 188
FOCUS SCALE UNITS 189
APERTURE UNIT FOR CINEMA LENS 189
DUAL DISPLAY SETTING. 189
DISP.CUSTOM SETTING. 190
SUB MONITOR SETTING 191
SUB MONITOR BACKGROUND COLOR. 191
F BUTTON/DIAL SETTING. 192
FOCUS LEVER SETTING 192
EDIT/SAVE QUICK MENU 193
FUNCTION (Fn) SETTING 194
SELECTOR BUTTON SETTING 196
COMMANDDIAL SETTING 196
ISO DIAL SETTING (H) 197
ISO DIAL SETTING (L) 197
ISO DIAL SETTING (A) 197
SHUTTER AF. 198
SHUTTER AE. 198
SHOOT WITHOUT LENS 198
SHOOT WITHOUT CARD. 199
FOCUS RING 199
FOCUS RING OPERATION 199
AE/AF-LOCK MODE. 199
EXPO.COMP.BUTION SETTING 200
APERTURE RING SETTING (A) 200
APERTURE SETTING 200
TOUCH SCREEN SETTING 201
LOCK 201
POWER MANAGEMENT 202
AUTO POWER OFF 202
PERFORMANCE 202
SAVE DATA SETTING 203
FRAME NO. 203
SAVE ORG IMAGE 204
EDITFILENAME 204
CARD SLOT SETTING (STILL IMAGE) 204
SELECT SLOT(SEQUENTIAL) 204
SELECT SLOT(SEQUENTIAL) 205
SELECT FOLDER 205
COPYRIGHT INFO 205
±b CONNECTION SETTING 206
Bluetooth SETTINGS 206
NETWORK SETTING 207
PC AUTO SAVE 207
instax PRINTER CONNECTION SETTING 208
PC CONNECTION MODE 209
GENERAL SETTINGS 210
INFORMATION 210
RESET WIRELESS SETTING 210
9 Shortcuts 211
Shortcut Options 212
The Q (Quick Menu) Button 213
The Quick Menu Display 213
Viewing and Changing Settings 214
Editing the Quick Menu 215
The Fn (Function) Buttons 216
Assigning Roles to the Function Buttons 218
MYMY MENU 220
MY MENU SETTING 220
10 Peripherals and Optional Accessories 223
External Flash Units 224
Using an External Flash 225
SUPPLIED FLASH 226
SYNC TERMINAL 227
SHOE MOUNT FLASH 228
MASTER(OPTICAL) 231
Vertical Power-Booster Grips. 235
Attaching the Power-Booster Grip 236
Inserting and Removing Batteries 237
Using the VPB-XH1 238
Charging the Batteries 239
11 Connections 241
HDMI Output 242
Connecting to HDMI Devices 242
Shooting 243
Playback 243
Wireless Transfer 244
Connecting to Smartphones and Tablets: FUJIFILM Camera Remote 244
Copying Pictures to a Computer: PC AutoSave 246
Tethered Shooting: FUJIFILM X Acquire/FUJIFILM Tether Shooting Plug-in/Hyper-Utility Software HS-V5 246
Connecting to Computers via USB 247
Tethered Shooting: FUJIFILM X Acquire/FUJIFILM Tether Shooting Plug-in/Hyper-Utility Software HS-V5 250
Copying Pictures to a Computer 250
Creating JPEG Copies of RAW Images: FUJIFILM X RAW STUDIO. 251
instax SHARE Printers 252
Establishing a Connection 252
Printing Pictures 253
12 Technical Notes 255
Accessories from FUJIFILM. 256
Software from FUJIFILM 258
FUJIFILM Camera Remote 258
FUJIFILM PC AutoSave 258
MyFinePix Studio 258
RAWFILECONVERTEREX2.0 258
FUJIFILM X RAW STUDIO 259
FUJIFLMXAcquire 259
FUJIFILM Tether Shooting Plug-ins for Lightroom 259
Hyper-Utility Software HS-V5 259
For Your Safety. 260
Product Care. 269
Cleaning the Image Sensor. 270
Firmware Updates 271
Checking the Firmware Version 271
Troubleshooting 272
Warning Messages and Displays. 279
Memory Card Capacity 282
Specifications 283
Supplied Accessories
The following are included with the camera:
- NP-W126S rechargeable battery
- BC-W126 battery charger
EF-X8 shoe mounted flash unit - Body cap
Metal strap clips (× 2) - Clip attaching tool
- Protective covers (× 2)
Shoulder strap - Cable protector
- Hot shoe cover (comes attached to hot shoe)
- Sync terminal cap (comes attached to camera)
Vertical power-booster grip connector cover (comes attached to camera) - Owner's Manual (this manual)
If you purchased a lens kit, check that a lens is included. If you purchased a kit with a VPB-XH1 vertical power-booster grip, check that it includes:
- one vertical power-booster grip (including battery tray and connector cap)
- two NP-W126S rechargeable batteries, and
- one AC-9VS AC power adapter.
For information on compatible computer software, see "Software from FUJIFILM" (国 258).
About This Manual
This manual contains instructions for your FUJIFILM X-H1 digital camera. Be sure you have read and understood its contents before proceeding.
Symbols and Conventions
The following symbols are used in this manual:
Information that should be read to prevent damage to the product.
Additional information that may be helpful when using the product.
Pages on which related information may be found.
Menu and other text in the displays are shown in bold. Illustrations are for explanatory purposes only; drawings may be simplified, while photographs are not necessarily taken with the model of camera described in this manual.
Terminology
The optional SD, SDHC, and SDXC memory cards the camera uses to store pictures are referred to as "memory cards". The electronic viewfinder may be referred to as the "EVF" and the LCD monitor as the "LCD".
Before You Begin
Parts of the Camera
① Dial lock release. 5
②.Shutter speed dial 5,56,58,62,63
(3) Microphone 51, 146
(4) Hot shoe. 92, 228
(5) Diopter adjustment control. 8
6 Sensitivity dial. 5, 77, 128
7 Drive dial.. 6
⑧ Strap anchor. 26
9 Sync terminal 227
10 Tilt lock release. 9
11 Connector cover. 31, 61, 242, 247
12 Focus mode selector. 65
Lens signal contacts
Lens release button 28
(15) Fn2 button. 216
AF-assist illuminator 116, 150 Self-timer lamp. 125
(17) Metering dial. 79
18 Front command dial 7, 196
(19) ON/OFF switch 37
20 Shutter button 46
21 Fn1 button. 216 (exposure compensation) button....80
22 Secondary LCD monitor. 19
23 Secondary monitor backlight button.....19
24 Hot shoe cover. 92, 228
25 Body cap. 28
26 Microphone jack (0 3.5 mm) 51
27 Micro USB (Micro-B) USB 3.0/ USB 2.0 connector 31,61,247
28HDMI Micro connector (Type D) 242
29 Remote release connector ( 一 2 . 5 m m )....61
(30) (delete) button 48
(31) (playback) button. 47
32 Eye cup. 15
33 Electronic viewfinder (EVF) 8, 10, 14
VIEW MODE button. 14
35 AE-L (exposure lock) button 82, 216
36 AF-ON button. 82, 216
③7, 155, 196
38 Q (quick menu) button 213
39 Indicator lamp. 8, 150
4 Memory card slot cover 34
4 Focus stick (focus lever) 4, 69, 192
42 Memory card slot cover latch 34
43 Selector buttons. 4, 196
44 MENU/OK button 20
45 DISP(display)/BACK button 15,153
(46) Speaker. 53, 183
47 Battery-chamber cover latch 32
48 Battery-chamber cover 32
49 Tripod mount
50 Vertical power-booster grip connector cover 235
LCD monitor. 9, 12, 14 Touch screen. 21, 121, 201
52 Eye sensor 14
(53) Memory card slot 1. 34
(54) Memory card slot 2. 34
55 Battery latch 33
56 Battery chamber 32
The Serial Number Plate
Do not remove the serial number plate, which provides the FCC ID, KC mark, serial number, and other important information.
Serial number plate
The Selector
Press the selector up () , right () , down () , or left () to highlight items.
The up, right, down, and left buttons also double as function buttons Fn3 through
Fn6 (216).
The Focus Stick
Tilt or press the focus stick to select the focus area. The focus stick can also be used to navigate the menus.
The Shutter Speed and Sensitivity Dials
Press the dial lock release to release the dial before rotating it to the desired setting. Press the release again to lock the dial in place.
The Metering Dial
Rotate the dial to choose the metering mode.
The Drive Dial
Rotate the dial to choose from the following the drive modes.
| Mode | 国 | |
| Movie | 50 | |
| BKT Bracketing | 83 | |
| CH High-speed burst | 85 | |
| CM Mid-speed burst | ||
| CL Low-speed burst | ||
| Mode | 图 |
| S Single frame | 44 |
| ADV. Advanced filter | 87 |
| Panorama | 89 |
The Command Dials
Rotate or press the command dials to:
| Front command dial | Rear command dial | |
| Rotate | ·Select menu tabs or page through menus ·Adjust aperture1,2 ·Adjust sensitivity2,3 ·View other pictures during playback | ·Highlight menu items ·Choose the desired combination of shutter speed and aperture (program shift) ·Choose a shutter speed2 ·Adjust exposure compensation by pressing the button and rotating the dial ·Adjust settings in the quick menu ·Choose the size of the focus frame ·Zoom in or out in full frame play-back ·Zoom in or out in multi-frame playback |
| Press | ·Switch back and forth between aperture and sensitivity2,3 ·Press and hold to choose the option selected for BUTTON/DIAL SETTING > COMMAND/DIAL SETTING in the (set-up) menu | ·Perform the function assigned to the DIAL function button ·Zoom in on the active focus point4 ·Press and hold to choose the manual focus mode focus display4 ·Zoom in on the active focus point during playback |
1 Aperture set to A (auto) and lens equipped with aperture ring or COMMAND selected for
2 BUTTON/DIAL SETTING > APERTURE RING SETTING (A).
2 Can be changed using BUTTON/DIAL SETTING > COMMAND DIAL SETTING.
3 ISO dial set to A and COMMAND selected for BUTTON/DIAL SETTING > ISO DIAL SETTING (A).
4 Available only if FOCUS CHECK is assigned to a function button.
The Indicator Lamp
When the viewfinder is not in use, camera status is shown by the indicator lamp.
| Indicator lamp | Camera status |
| Glows green | Focus locked. |
| Blinks green | Focus or slow shutter speed warning. Pictures can be taken. |
| Blinks green and orange | • Camera on: Recording pictures. Additional pictures can be taken. • Camera off: Uploading pictures to a smartphone or tablet. * |
| Glows orange | Recording pictures. No additional pictures can be taken at this time. |
| Blinks orange | Flash charging; flash will not fire when picture is taken. |
| Blinks red | Lens or memory error. |
- Displayed only if pictures are selected for upload.
Warnings may also appear in the display. The Movie Setting > TALLY LIGHT option can be used to choose the lamp (indicator or AF-assist) that lights during movie recording and whether the lamp blinks or remains steady.
Focusing the Viewfinder
The camera is equipped with diopter adjustment in the range -4 to +2m^-1 to accommodate individual differences in vision. Rotate the diopter adjustment control until the viewfinder display is in sharp focus.
The LCD Monitor
The LCD monitor can be tilted for easier viewing, but be careful not to touch the wires or trap fingers or other objects behind the monitor. Touching the wires could cause camera malfunction.
The LCD monitor also functions as a touch screen that can be used for:
- Touch photography (国国 22)
Focus area selection (21) - Function selection (国国 23)
- Muting camera controls during movie recording (国23)
Full-frame playback (国24)
"Tall" (Portrait) Orientation
The display can also be tilted to take pictures from high or low angles when the camera is rotated to take pictures in "tall" (portrait) orientation. Press the tilt lock release and tilt the display as shown in Figure 1. To take high-angle shots, hold the camera in the orientation shown in Figure 2.
Figure 1
Figure 2
Camera Displays
This section lists the indicators that may be displayed during shooting.
For illustrative purposes, displays are shown with all indicators lit.
The Electronic Viewfinder
① IS mode 129
② Flash (TTL) mode 94, 228 Flash compensation 228
③ Self-timerindicator. 125
(4) Continuous mode 85
⑤ Shutter type. 127
⑥ AF+MF indicator 118
⑦ Bluetooth ON/OFF 206
White balance. 102
(9) Film simulation. 100
10 F-Log recording. 141
11 Dynamic range. 101
12 D-range priority. 102
13 Movie mode. 50, 137
14 Full HD high-speed recording. 138
15 Time remaining 51
16 Card slot options 35,204
17 Number of available frames* 282
18 Image quality and size 98, 99
19 Date and time 39,41,179
20 Temperature warning. 281
21 Boost mode. 202, 238
(22) Histogram. 18
23 Battery level 38
Sensitivity. 77
25 Exposure compensation 80
26 Aperture. 57, 62, 63
27Shutter speed. 57,58,63
AE lock. 82, 199
TTL lock. 135, 195, 219
29 Metering. 79
30 Shooting mode. 56
31 Focus mode+ 65
32 AFlock 82,199
33 Distance indicator. 75
34 Recording level. 146
35 Time code. 148
③ 6 Exposure indicator. 63,80
37 Virtual horizon. 18
38 Focus frame 69, 81
39 Image transfer status. 244
40 Location data download status.210
Depth-of-field preview 62, 75
42 Focus check. 76, 119
- Shows "9999" if there is space for over 9999 frames.
† In-focus ( ) or manual focus ( NF ) indicator may also be displayed.
The LCD Monitor
① IS mode 129
(2) Focus check. 76, 119
③ Depth-of-field preview 62,75
(4) Location data download status................................210
(5) Self-timer indicator. 125
(6) Time code 148
⑦ Bluetooth ON/OFF 206
8 Image transfer status. 244
(9) Movie mode. 50, 137
10 Full HD high-speed recording. 138
Time remaining 51
12 Card slot options 35, 204
13 Number of available frames* 282
14 Image quality and size 98, 99
15 Date and time 39,41,179
16 White balance. 102
(17) Film simulation 100
18 F-Log recording. 141
(19) Dynamic range. 101
20 D-range priority. 102
21 Temperature warning. 281
22 Focus frame 69,81
23 Boost mode. 202, 238
24 Histogram 18
25 Distance indicator. 75
26 Battery level 38
Sensitivity. 77
28 Exposure compensation 80
29 Aperture. 57,62,63
30Shutter speed. 57,58,63
③ AE lock. .82,199
TTL lock. 135,195,219
32 Metering. 79
33 Shooting mode. 56
34 Focus mode 65
35 AFlock. 82,199
36 Recording level. 146
37 AF+MF indicator. 118
(38)Shutter type. 127
39 Continuous mode 85
40 Exposure indicator 63,80
41 Flash (TTL) mode 94,228 Flash compensation. 228
-
Shows "9999" if there is space for over 9999 frames.
-
In-focus (or manual focus) indicator may also be displayed.
Display Rotation
When ON is selected for SCREEN SET-UP > AUTOROTATE DISPLAYS, the indicators in the viewfinder and LCD monitor automatically rotate to match camera orientation.
Choosing a Display Mode
Press the VIEW MODE button to cycle through the following display modes:
- EYE SENSOR: Putting your eye to the viewfinder turns the viewfinder on and the LCD monitor off; taking your eye away turns the viewfinder off and LCD monitor on.
- EVF ONLY: Viewfinder on, LCD monitor off.
- LCD ONLY: LCD monitor on, viewfinder off.
- EVF ONLY + : Putting your eye to the viewfinder turns the viewfinder on; taking it away turns the viewfinder off. The LCD monitor remains off.
- EYE SENSOR + LCD IMAGE DISP: Putting your eye to the viewfinder during shooting turns the viewfinder on, but the LCD monitor is used for the display of images once you remove your eye from the viewfinder after shooting.
The Eye Sensor
The eye sensor may respond to objects other than your eye or to light shining directly on the sensor. The eye sensor is disabled while the LCD monitor is tilted.
Eye sensor
Adjusting Display Brightness
The brightness and hue of the viewfinder and LCD monitor can be adjusted using the items in the SCREEN SET-UP menu. Choose EVF BRIGHTNESS or EVF COLOR to adjust viewfinder brightness or hue, LCD BRIGHTNESS or LCD COLOR to do the same for the LCD monitor.
The Eye Cup
To remove the eye cup, press the bottom in with both thumbs and slide eye cup up.
The DISP/BACK Button
The DISP/BACK button controls the display of indicators in the viewfinder and LCD monitor.
Indicators for the EVF and LCD must be selected separately. To choose the EVF display, place your eye to the viewfinder while using the DISP/BACK button.
Viewfinder
Full screen
Standard
Dual display (manual focus mode only)
LCD Monitor
Standard
Information off
Dual display
manual focus mode only)
Info display
The Dual Display
The dual display consists of a large full-frame window and a smaller close-up of the focus area.
The content of the large and small windows in the display can be switched using 2 SCREEN SET-UP > DUAL DISPLAY SETTING.
Customizing the Standard Display
To choose the items shown in the standard indicator display:
1 Display standard indicators.
Use the DISP/BACK button to display standard indicators.
2 Select DISP.CUSTOM SETTING.
Select 2 SCREEN SET-UP > DISP. CUSTOM SETTING in the setup menu.
3 Choose items.
Highlight items and press MENU/OK to select or deselect.
- FRAMING GUIDELINE
ELECTRONIC LEVEL
FOCUS FRAME
AF DISTANCE INDICATOR - MF DISTANCE INDICATOR
- HISTOGRAM
- LIVE VIEW HIGHLIGHT ALERT
- SHOOTING MODE
APERTURE/S-SPEED/ISO
INFORMATIONBACKGROUND - Expo. Comp. (Digit)
- Expo. Comp. (Scale)
FOCUS MODE
PHOTOMETRY - SHUTTERTYPE
FLASH
CONTINUOUS MODE
DUAL IS MODE
- TOUCH SCREEN MODE
WHITE BALANCE
FILMSimulation
DYNAMIC RANGE
- BOOST MODE
- FRAMES REMAINING
- IMAGE SIZE/QUALITY
MOVIE MODE &REC.TIME
- IMAGE TRANSFER ORDER
- MIC LEVEL
BATTERY LEVEL
- FRAMING OUTLINE
4 Save changes.
Press DISP/BACK to save changes.
5 Exit the menus.
Press DISP/BACK as needed to exit the menus and return to the shooting display.
Virtual Horizon
Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down. For a 3D display (shown), press the function button to which ELECTRONIC LEVEL is assigned (194, 218).
Framing Outline
Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds.
-Histograms
Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.
- Optimal exposure: Pixels are distributed in an even curve throughout the tone range.
Overexposed: Pixels are clustered on the right side of the graph. - Underexposed: Pixels are clustered on the left side of the graph.
To view separate RGB histograms and a display showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the function button to which HISTOGRAM is assigned (194, 218).
① Overexposed areas blink
② RGB histograms
The Secondary LCD Monitor
The secondary LCD monitor shows eight camera settings, four as text (items 1 to 4) and four as icons (items 5 to 8). Use SCREEN SET-UP > SUB MONITOR SETTING to choose the items displayed. Items for display when you are taking photographs can be selected separately from those shown in movie mode; in the
lists that follow, items not available in movie mode are indicated by asterisks (^^)
At default settings, the secondary LCD shows the following:
- Text: ① SHUTTERTPEED, ② APERTURE, ③ EXPO. COMP., ④ ISO
- Icons: ⑤ FILM SIMULATION, ⑥ WHITE BALANCE, ⑦ IMAGE SIZE*, ⑧ SHOOTING MODE
The following options are also available:
- Text: MOVIE MODE, FRAMES REM.*, REC. TIME, NONE
- Icons: PHOTOMETRY, DRIVE MODE , FOCUS MODE, IMAGE QUALITY , BATTERY LEVEL, CARD SLOT OPTIONS, SHUTTERTYPE, DYNAMIC RANGE, MOVIE MODE*, NONE
The Secondary Monitor Backlight
To turn on the secondary monitor backlight when you find the secondary LCD monitor too dark to read, press the secondary monitor backlight button. Press the button again to turn the backlight off.
Background Color
The background color (black or white) for the secondary monitor can be selected using the 2 SCREEN SET-UP > SUB MONITOR BACKGROUND COLOR option in the 2 (setup) menu. Note that the background is displayed in white whenever the secondary monitor backlight is on.
Using the Menus
To display the menus, press MENU/OK.
To navigate the menus:
1 Press MENU/OK to display the menus.
2 Press the selector left to highlight the tab for the current menu.
3 Press the selector up or down to highlight the tab (0, 0, 0, 1, 2, 3, 4) containing the desired item.
4 Press the selector right to place the cursor in the menu.
Use the front command dial to select menu tabs or page through menus and the rear command dial to highlight menu items.
Touch Screen Mode
The LCD monitor also functions as a touch screen.
Shooting Touch Controls
Touch Controls and the EVF
If ON is selected for BUTTON/DIAL SETTING > TOUCH SCREEN SETTING > TOUCH SCREEN ON/OFF, the LCD monitor can be used to select the focus area while pictures are being framed in the electronic viewfinder (EVF). Use EVF TOUCH SCREEN AREA SETTINGS to choose the area of the monitor employed for touch controls.
LCD Monitor Touch Controls
Touch controls can be used for such operations as choosing the focus area and taking photographs. The operation performed can be selected by tapping the touch-screen mode indicator in the display to cycle through the following options:
| Mode | Description | |
| SHOT | TOUCH SHOOTING | Tap your subject in the display to focus and release the shutter. |
| AF | AF | Tap to select a focus point. In focus mode S (AF-S), focus will lock, while in focus mode C (AF-C), the camera will continually adjust focus in response to changes in the distance to the subject. |
| AREA | AREA | Tap to select a point for focus or zoom. The focus frame will move to the selected point. |
| OFF | OFF | Touch focus and shooting disabled. |
Touch control settings can be adjusted using AF/MF SETTING > TOUCH SCREEN MODE (121). To disable touch controls and hide the touch screen mode indicator, select OFF for BUTTON/DIAL SETTING > TOUCH SCREEN SETTING > TOUCH SCREEN ON/OFF.
Muting Movie Controls
Movie settings can be adjusted using touch-screen controls, preventing the sounds made by camera controls being recorded with the movie. When ON is selected for MOVIE SETTING > MOVIE SILENT CONTROL in the shooting menu, a SET icon will be displayed in the LCD
SETicon
monitor; tap the icon to access the following controls:
- SHUTTERTPEED*
WIND FILTER
APERTURE
HEADPHONES VOLUME
EXPOSURE COMPENSATION
FILMSimulation(MOVIE)
ISO - WHITE BALANCE (MOVIE)
- INTERNAL MIC LEVEL
-
ADJUSTMENT/EXTERNAL MIC LEVEL ADJUSTMENT
-
Selecting ON for Movie SETTING > Movie Silent CONTROL disables dial controls.
Touch Function
Functions can be assigned to the following flick gestures in much the same way as function buttons (216):
- Flickrup: T-Fn1
- Flick left: T-Fn2
- Flick right: T-Fn3
- Flick down: T-Fn4
In some cases, touch-function flick gestures display a menu; tap to select the desired option.
Playback Touch Controls
When ON is selected for BUTTON/DIAL SETTING > TOUCH SCREEN SETTING > TOUCH SCREEN ON/OFF, touch controls can be used for the following playback operations:
- Swipe: Swipe a finger across the display to view other images.
- Pinch-out: Place two fingers on the display and spread them apart to zoom in.
- Pinch-in: Place two fingers on the display and slide them together to zoom out.
Pictures can be zoomed out until the entire image is visible but no further.
- Double-tap: Tap the display twice to zoom in on the focus point.
- Drag: View other areas of the image during playback zoom.
First Steps
Attaching the Strap
Attach the strap clips to the camera and then attach the strap.
1 Attach a protective cover.
Place a protective cover over the eyelet as shown, with the black side of the cover toward the camera.
Protective cover
2 Open a strap clip.
Use the clip attaching tool(A) to open a strap clip (B).
3 Slide the clip onto the tool.
Slide the clip onto the tool so that it hooks over the projection.
4 Place the strap clip on an eyelet.
Hook the strap eyelet in the clip opening. Remove the tool, using the other hand to keep the clip in place.
Keep the tool in a safe place, as you will need it to open the strap clips when removing the strap.
5 Pass the clip through the eyelet.
Rotate the clip fully through the eyelet until it clicks closed.
6 Fasten the strap.
Insert the strap through a protective cover and strap clip and fasten the buckle as shown.
Strap clip
To avoid dropping the camera, be sure the strap is correctly secured.
Buckle
Repeat the above steps for the second eyelet.
Attaching a Lens
The camera can be used with lenses for the FUJIFILM X-mount.
Remove the body cap from the camera and the rear cap from the lens. Place the lens on mount, keeping the marks on the lens and camera aligned (①), and then rotate the lens until it clicks into place (②).
When attaching lenses, ensure that dust or other foreign matter does not enter the camera and be careful not to touch the camera's internal parts. Do not press the lens release button while attaching the lens and be sure the latch has securely clicked into place.
-Removing Lenses
To remove the lens, turn the camera off, then press the lens release button (①) and rotate the lens as shown (②).
To prevent dust accumulating on the lens or inside the camera, replace the lens caps and camera body cap when the lens is not attached.
Lenses and Other Optional Accessories
The camera can be used with lenses and accessories for the FUJIFILM X-mount.
Before attaching or removing (exchanging) lenses, attach the lens caps and check that the lenses are free of dust and other foreign matter. Do not change lenses in direct sunlight or under another bright light source, as light focused into the interior of the camera could cause it to malfunction. See the manual provided with the lens for information on use.
Charging the Battery
The battery is not charged at shipment. Before use, charge the battery in the supplied battery charger.
An NP-W126S rechargeable battery is supplied with the camera. Charging takes about 150 minutes.
1 Place the battery in the charger.
Place the battery in the supplied battery charger as shown.
2 Plug the charger in.
Plug the charger into an indoor power outlet. The charging indicator will light.
3 Charge the battery.
Remove the battery when charging is complete.
The Charging Indicator
The charging indicator shows battery charge status as follows:
| Charging indicator | Battery status | Action |
| Off | Battery not inserted. | Insert the battery. |
| Battery fully charged. | Remove the battery. | |
| On | Battery charging. | — |
| Blinks | Battery fault. | Unplug the charger and remove the battery. |
The supplied AC cord is for use exclusively with the supplied battery charger. Do not use the supplied charger with other cords or the supplied cord with other devices.
Do not affix labels or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.
Do not short the battery terminals. The battery could overheat.
Read the cautions in "The Battery and Power Supply".
Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction.
Do not remove the labels from the battery or attempt to split or peel the outer casing.
The battery gradually loses its charge when not in use. Charge the battery one or two days before use. If the battery fails to hold a charge, it has reached the end of its charging life and must be replaced.
Unplug the charger when it is not in use.
Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.
Note that charging times increase at low or high temperatures.
Charging via Computer
The battery also charges if the camera is connected to a computer. Turn the camera off, insert the battery, and connect a USB cable as shown, making sure the connectors are fully inserted. The charging time is not affected by the type of cable used.
Micro USB (Micro-B) USB 3.0
Micro USB (Micro-B) USB 2.0
Battery status is shown by the indicator lamp.
| Indicator lamp | Battery status |
| On | Battery charging |
| Off | Charging complete |
| Blinks | Battery fault |
Connect the camera directly to the computer; do not use a USB hub or keyboard. Charging stops if the computer enters sleep mode; to resume charging, activate the computer and disconnect and reconnect the USB cable. Charging may not be supported depending on the model of computer, computer settings, and the computer's current state.
Inserting the Battery
After charging the battery, insert the battery in the camera as described below.
1 Open the battery-chamber cover.
Slide the battery-chamber latch as shown and open the battery-chamber cover.
Do not open the battery-chamber cover when the camera is on. Failure to observe this precaution could damage image files or memory cards.
Do not use excessive force when handling the battery-chamber cover.
2 Insert the battery.
Using the battery to keep the battery latch pressed to one side, insert the battery contacts first in the direction shown by the arrow. Confirm that the battery is securely latched.
Insert the battery in the orientation shown. Do not use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.
3 Close the battery-chamber cover. Close and latch the cover.
If the cover does not close, check that the battery is in the correct orientation. Do not attempt to force the cover shut.
-Removing the Battery
Before removing the battery, turn the camera off and open the battery-chamber cover.
To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.
The battery may become hot when used in high-temperature environments. Observe caution when removing the battery.
Inserting Memory Cards
Pictures are stored on memory cards (sold separately).
The camera can be used with two cards, one in each of its two slots.
1 Open the memory card slot cover.
Unlatch and open the cover.
Do not open the memory card-slot cover when the camera is on. Failure to observe this precaution could damage image files or memory cards.
2 Insert the memory card.
Holding the card in the orientation shown, slide it in until it clicks into place at the back of the slot. Close and latch the memory card slot cover.
Be sure card is in the correct orientation; do not insert at an angle or use force.
3 Format the memory card (178).
Format memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device.
-Removing Memory Cards
Before removing memory cards, turn the camera off and open the memory card slot cover.
Press and release the card to eject it part way (to prevent the card falling from the slot, press the center of the card and release it slowly, without removing your finger from the card). The card can then be removed by hand.
Using Two Cards
The camera can be used with two cards, one in each of its two slots. At default settings, photos are saved to the card in the second slot only when the card in the first slot is full. This can be changed using SAVE DATA SET-UP > CARD SLOT SETTING (STILL IMAGE).
| Option | Description | Display |
| SEQUENTIAL (default) | The card in the second slot is used only when the card in the first slot is full. If the second slot is selected for SAVE DATA SET-UP > SELECT SLOT(SEQUENTIAL), re-cording will start on the card in the second slot and switch to the first slot when the card in the second slot is full. | 12 |
| BACKUP | Each picture is recorded twice, once to each card. | 12 |
| RAW / JPEG | As forSEQUENTIAL, except that the RAW copy of pictures taken with FINE+RAW or NORMAL+RAW selected for IMAGE QUALITY SETTING > IMAGE QUALITY will be saved to the card in the first slot and the JPEG copy to the card in the second slot. | 12RJ |
The card used to store movies can be selected using SAVE DATA SET-UP > SELECT SLOT(SEQUENTIAL).
Compatible Memory Cards
FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been approved for use in the camera; UHS-II cards can be used in both slots, while cards with a UHS speed class of 3 or better are recommended for movies. A complete list of approved memory cards is available at http://www.fujifilm.com/support/digital Cameras/compatibility/. Operation is not guaranteed with other cards. The camera cannot be used with xD-Picture Cards or MultiMediaCard (MMC) devices.
Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
Memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting a memory card, slide the write-protect switch to the unlocked position.
Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.
miniSD or microSD adapters that are larger or smaller than memory cards may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.
Do not affix labels or other objects to memory cards. Peeling labels can cause camera malfunction.
Movie recording may be interrupted with some types of memory card.
Formatting a memory card in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals. Renaming the files on the camera can cause problems during playback.
Turning the Camera On and Off
Use the ON/OFF switch to turn the camera on and off.
Rotate the switch to ON to turn the camera on, or to OFF to turn the camera off.
Fingerprints and other marks on the lens or viewfinder can affect pictures or the view through the viewfinder. Keep the lens and viewfinder clean.
Press the button to start playback. Press the shutter button halfway to return to shooting mode.
The camera will turn off automatically if no operations are performed for the length of time selected for POWER MANAGEMENT > AUTO POWER OFF. To reactivate the camera after it has turned off automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.
Checking the Battery Level
After turning the camera on, check the battery level in the display.
Battery level is shown as follows:
| Indicator | Description |
| □□□ | Battery partially discharged. |
| □□□ | Battery about 80% full. |
| □□□ | Battery about 60% full. |
| □□□ | Battery about 40% full. |
| □□ | Battery about 20% full. |
| □□(red) | Low battery. Charge as soon as possible. |
| □□(blinks red) | Battery exhausted. Turn camera off and recharge battery. |
Basic Setup
When you turn the camera on for the first time, you can choose a language and set the camera clock. At default settings, you can also pair the camera with a smartphone or tablet so that you can later synchronize the clocks or download pictures. Follow the steps below when turning the camera on for the first time.
If you intend to pair the camera with a smartphone or tablet, install and launch the latest version of the FUJIFILM Camera Remote App on the smart device before proceeding. For more information, visit: http://app.fujifilm-dsc.com/en/camera_remote/
1 Turn the camera on.
A language-selection dialog will be displayed.
2 Choose a language.
Highlight a language and press MENU/OK.
3 Pair the camera with the smartphone or tablet.
Press MENU/OK to pair the camera with a smartphone or tablet running the FUJIFILM Camera Remote app.
To skip pairing, press DISP/BACK.
4 Check the time.
When pairing is complete, you will be prompted to set the camera clock to the time reported by the smartphone or tablet. Check that the time is correct.
To set the clock manually, press DISP/BACK (图41).
5 Set the clock.
Press MENU/OK to set the camera clock to the time reported by the smartphone or tablet and exit to shooting mode.
If the battery is removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on.
-Skipping the Current Step
Press DISP/BACK to skip the current step. A confirmation dialog will be displayed; select NO to avoid repeating any steps you skipped the next time the camera is turned on.
Choosing a Different Language
To change the language:
1 Display language options. Select 2 USER SETTING > 言語/LANG..
2 Choose a language. Highlight the desired option and press MENU/OK.
Changing the Time and Date
To set the camera clock:
1 Display DATE/TIME options. Select USER SETTING > DATE/TIME.
2 Set the clock. Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change. Press MENU/OK to set the clock.
MEMO
Basic Photography andPlayback
Taking Photographs (Mode P)
This section describes how to take pictures using program AE (mode P). See pages 56-63 for information on S, A, and M modes.
1 Adjust settings for program AE.
① Shutter speed (56): Select A (auto).
② Sensitivity (77): Select A (auto).
③ Drive mode (6): Select S (single frame).
4 Focus mode (65): Select S (single AF).
⑤ Aperture (56): Select A (auto).
6 Metering (79): Select (multi).
To use the shutter speed and sensitivity dials, press the dial lock release and rotate the dial to the desired setting.
2 Check the shooting mode.
Confirm that appears in the display.
3 Ready the camera.
Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.
To prevent pictures that are out of focus or too dark (underexposed), keep your fingers and other objects away from the lens and AF-assist illuminator.
4 Frame the picture.
-Lenses with Zoom Rings
Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in.
5 Focus.
Press the shutter button halfway to focus.
If the subject is poorly lit, the AF-assist illuminator may light.
If the camera is able to focus, it will beep twice and focus area and focus indicator will glow green. Focus and exposure will lock while the shutter button is pressed halfway.
If the camera is unable to focus, the focus frame will turn red, !AF will be displayed, and the focus indicator will blink white.
6 Shoot.
Smoothly press the shutter button the rest of the way down to take the picture.
To view pictures full frame, press
Additional pictures can be viewed by pressing the selector left or right or rotating the front command dial. Press the selector or rotate the dial right to view pictures in the order recorded, left to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired frame.
Pictures taken using other cameras are marked with a "gift image" icon to warn that they may not display correctly and that playback zoom may not be available.
- Two Memory Cards
If two memory cards are inserted, you can press and hold the button to choose a card for playback. You can also select a card using the PLAY BACK MENU > SWITCH SLOT option.
Deleting Pictures
Use the button to delete pictures.
Deleted pictures cannot be recovered. Copy important pictures to a computer or other storage device before proceeding.
1 With a picture displayed full frame, press the button and select FRAME.
2 Press the selector left or right to scroll through pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.
Protected pictures cannot be deleted. Remove protection from any pictures you wish to delete (164).
Pictures can also be deleted from the menus using the 回 PLAY BACK MENU > ERASE option (160).
Movie Recording andPlayback
1 Rotate the drive dial to
2 Adjust settings for program AE.
① Shutter speed (56): Select A (auto).
② Sensitivity (77): Select A (auto).
③ Focus mode (65): Select S (single AF).
4 Aperture (56): Select A (auto).
⑤ Metering (79): Select (multi).
To use the shutter speed and sensitivity dials, press the dial lock release and rotate the dial to the desired setting.
3 Press the shutter button to start recording. A recording indicator (⊙) and the time remaining are displayed while recording is in progress.
4 Press the button again to end recording. Recording ends automatically when the maximum length is reached or the memory card is full.
-Using an External Microphone
Sound can be recorded with external microphones that connect using jacks 3.5mm in diameter; microphones that require plug-in power cannot be used. See the microphone manual for details.
Sound is recorded via the built-in microphone or an optional external microphone. Do not cover the microphone during recording. Note that the microphone may pick up lens noise and other sounds made by the camera during recording.
Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.
Adjusting Movie Settings
Movie settings can be adjusted using the Movie SETTING option in the shooting menu (137).
Depth of Field
Choose low f-numbers to soften background details.
The indicator lamp lights while recording is in progress (the Movie SETTING > TALLY LIGHT option can be used to choose the lamp—indicator or AF-assist—that lights during movie recording and whether the lamp blinks or remains steady). During recording, you can change exposure compensation by up to ± 2 EV and adjust zoom using the zoom ring on the lens (if available).
If the lens is equipped with an aperture mode switch, select the aperture mode before beginning recording. If an option other than A is selected, shutter speed and aperture can be adjusted while recording is in progress.
While recording is in progress, you can:
- Adjust sensitivity
- Use the VIEW MODE button and the eye sensor to switch between the EVF and LCD monitor displays
-
Refocus using any of the following methods:
-
Press the shutter button halfway
- Press the AF-ON button
-
Use touch screen controls
-
Display a histogram or artificial horizon by pressing the button to which HISTOGRAM or ELECTRONIC LEVEL has been assigned
Recording may be unavailable at some settings, while in other cases settings may not apply during recording.
The slot to which movies are recorded can be selected using the SAVE DATA SET-UP > SELECT SLOT(SEQUENTIAL) option in the (setup) menu. To choose the focus area for movie recording, select MOVIE SETTING > FOCUS AREA (MOVIE) and use the focus stick (focus lever) and rear command dial (69).
In full-frame playback, movies are identified by a icon. Press the selector down to start movie playback.
The following operations can be performed while a movie is displayed:
| Selector | Full-frame playback | Playback in progress (▶) | Playback paused (■) |
| ▲ | — | End playback | |
| ▼ | Start playback | Pause playback | Start/resume playback |
| ←▶ | View other pictures | Adjust speed | Single frame rewind/ advance |
Progress is shown in the display during playback.
Do not cover the speaker during playback.
Press MENU/OK to pause playback and display volume controls. Press the selector up or down to adjust the volume; press MENU/OK again to resume playback. Volume can also be adjusted using SOUND SET-UP > PLAYBACK VOLUME.
Playback Speed
Press the selector left or right to adjust playback speed during playback. Speed is shown by the number of arrows (▶ or ←).
Arrows
Taking Photographs
P, S, A, and M Modes
P, S, A, and M modes give you varying degrees of control over shutter speed and aperture.
Mode P: Program AE
Let the camera choose shutter speed and aperture for optimal exposure. Other values that produce the same exposure can be selected with program shift.
Adjust settings as follows:
① Shutter speed: A (auto)
② Aperture: A (auto)
Confirm that P appears in the display.
If the subject is outside the metering range of the camera, the shutter speed and aperture displays will show - - - .
To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting.
Program Shift
If desired, you can rotate the rear command dial to select other combinations of shutter speed and aperture without altering exposure (program shift).
Program shift is not available in any of the following circumstances:
In movie mode
- With flash units that support TTL auto
- When an auto option is selected for IMAGE QUALITY SETTING > DYNAMIC RANGE
To cancel program shift, turn the camera off.
Mode S:Shutter-Priority AE
Choose a shutter speed and let the camera adjust aperture for optimal exposure.
Adjust settings as follows:
① Shutter speed: Choose a shutter speed
② Aperture: A (auto)
Confirm that S appears in the display.
If the correct exposure cannot be achieved at the selected shutter speed, aperture will be displayed in red. If the subject is outside the metering range of the camera, the aperture display will show“- - - ”
To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting (the dial can be used even while the shutter button is pressed halfway). Shutter speed can also be adjusted in increments of 13 EV by rotating the rear command dial.
Time (T)
Rotate the shutter speed dial to T (time) to choose slow shutter speeds for long time-exposures. Use of a tripod is recommended to prevent the camera moving during the exposure.
1 Rotate the shutter speed dial to T.
2 Rotate the rear command dial to choose a shutter speed.
3 Press the shutter button all the way down to take a picture at the selected shutter speed. At speeds of 1 s or slower, a count-down timer will be displayed while the exposure is in progress.
To reduce "noise" (mottling) in long time-exposures, select ON for IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.
Bulb (B)
Select a shutter speed of B (bulb) for long time-exposures in which you open and close the shutter manually. Use of a tripod is recommended to prevent the camera moving during the exposure.
1 Rotate the shutter speed dial to B.
2 Press the shutter button all the way down. The shutter will remain open for up to 60 minutes while the shutter button is pressed; the display shows the time elapsed since the exposure started.
Selecting an aperture of A fixes shutter speed at 30~s
To reduce "noise" (mottling) in long time-exposures, select ON for IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.
-Using a Remote Release
An optional RR-90 remote release can be used for long time-exposures. The RR-90 connects via the Micro USB (Micro-B) USB 2.0 connector.
Alternatively, electronic releases from third-party suppliers can be connected via the remote release connector ( 2.5 mm 3-pole mini jack).
Mode A: Aperture-Priority AE
Choose an aperture and let the camera adjust shutter speed for optimal exposure.
Adjust settings as follows:
① Shutter speed: A (auto)
② Aperture: Select 5 and rotate the lens aperture ring to adjust aperture
Confirm that A appears in the display.
If the correct exposure cannot be achieved at the selected aperture, shutter speed will be displayed in red. If the subject is outside the metering range of the camera, the shutter speed display will show“- - - ”
To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting.
Aperture can be adjusted even while the shutter button is pressed halfway.
Previewing Depth of Field
When PREVIEW DEPTH OF FIELD is assigned to a function button, pressing the button displays a 5 icon and stops aperture down to the
selected setting, allowing depth of field to be previewed in the display.
Mode M: Manual Exposure
Alter exposure from that selected by the camera.
Adjust settings as follows:
① Shutter speed: Choose a shutter speed
② Aperture: Select and rotate the lens aperture ring to adjust aperture
Confirm that M appears in the display. The amount the picture would be under or over-exposed at current settings is shown by the exposure indicator; adjust shutter speed and aperture until the desired exposure is reached.
To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting. Shutter speed can be adjusted in increments of 13 EV by rotating the rear command dial.
- Exposure Preview
To preview exposure in the LCD monitor, select an option other than OFF for SCREEN SET-UP > PREVIEW EXP./WB IN MANUAL MODE. Select OFF when using the flash or on other occasions on which exposure may change when the picture is taken.
Autofocus
Take pictures using autofocus.
1 Rotate the focus mode selector to S or C (65).
2 Use AF/MF SETTING > AF MODE to choose an AF mode (图67).
3 Choose the position and size of the focus frame (69).
4 Take pictures.
For information on the autofocus system, visit:
http://fujifilm-x.com/af/en/index.html
Focus Mode
Use the focus mode selector to choose how the camera focuses.
Choose from the following options:
| Mode | Description |
| S(AF-S) | Single AF: Focus locks while the shutter button is pressed halfway.Choose for stationary subjects. |
| C(AF-C) | Continuous AF: Focus is continually adjusted to reflect changes in the distance to the subject while the shutter button is pressed halfway.Use for subjects that are in motion. Eye-detection AF is not available. |
| M(manual) | Manual: Focus manually using the lens focus ring. Choose for manual control of focus or in situations in which the camera is unable to focus using autofocus (73). |
Regardless of the option selected, manual focus will be used when the lens is in manual focus mode.
If ON is selected for AF/MF SETTING > PRE-AF, focus will be adjusted continuously in modes S and C even when the shutter button is not pressed.
The Focus Indicator
The focus indicator turns green when the subject is in focus and blinks white when the camera is unable to focus. Brackets (()) indicate that the camera is focusing and are displayed continuously in mode C. WF is displayed in manual focus mode.
Focus indicator
Autofocus Options (AF Mode)
Choose how the camera focuses in modes S and C.
1 Press MENU/OK and go to the shooting menu.
2 Select AF/MF SETTING > AF MODE.
3 Choose an AF mode.
This feature can also be accessed via shortcuts (212).
How the camera focuses depends on the focus mode.
Focus Mode S (AF-S)
| Option | Description | Sample image |
| SINGLE POINT | Camera focuses on subject in selected focus point. Use for pin-point focus on selected subject. | |
| ZONE | Camera focuses on subject in selected focus zone. Focus zones include multiple focus points, making it easier to focus on subjects in motion. | |
| WIDE | Camera focuses automatically on high-contrast subjects; display shows areas in focus. | |
| ALL ALL | Rotate the rear command dial in the focus-point selection display (69, 70) to cycle through AF modes in the following order: SINGLE POINT, ZONE, and WIDE. | |
Focus Mode C (AF-C)
| Option | Description | Sample image |
| SINGLE POINT | Focus tracks subject at selected focus point. Use for subjects moving toward or away from camera. | |
| ZONE | Focus tracks subject in selected focus zone. Use for subjects that are moving fairly predictably. | |
| TRACKING | Focus tracks subjects moving through wide area of frame. | |
| ALL ALL | Rotate the rear command dial in the focus-point selection display (69, 70) to cycle through AF modes in the following order: SINGLE POINT, ZONE, and TRACKING. | |
Focus-Point Selection
Choose a focus point for autofocus.
Viewing the Focus-Point Display
1 Press MENU/OK and go to the shooting menu.
2 Select AF/MF SETTING > FOCUS AREA to view the focus-point display.
3 Use the focus stick (focus lever) and rear command dial to choose a focus area.
The focus point can also be selected using touch controls (图21).
Selecting a Focus Point
Use the focus stick (focus lever) to choose the focus point and the rear command dial to choose the size of the focus frame. The procedure varies with the option selected for AF mode.
| AF mode | Focus stick | Rear command dial | ||
| Tilt | Press | Rotate | Press | |
| - | Select focus point | Select center focus point | Choose from 6 frame sizes | Restore original size |
| [1] | Choose from 3 frame sizes | |||
| [ ] | — | |||
Manual focus-point selection is not available when WIDE/TRACKING is selected in focus mode S.
If ALL is selected for AF mode, you can rotate the rear command dial in the focus-point selection display to cycle through AF modes in the following order: SINGLE POINT (6 frame sizes), ZONE (3 frame sizes), and either WIDE (focus mode S) or TRACKING (focus mode C).
The Focus-Point Display
The focus-point display varies with the option selected for AF mode.
AF mode
Focus frames are shown by small squares () , focus zones by the large squares.
| SINGLE POINT | ZONE | WIDE/TRACKING |
| Number of points available can be selected using AF/MF SETTING > NUMBER OF FOCUS POINTS. | Choose from zones with 7 × 7, 5 × 5, or 3 × 3 focus points. | Position focus frame over subject and press MENU/OK. |
Available Focus Points
TTL contrast-detect AF offers more focus points (①) than intelligent hybrid AF (②) , which combines phase-detection with TTL contrast-detect AF.
Burst Mode Focus-Frame Selection
When continuous high-speed (CH) is selected for drive mode, the number of focus frames available in focus mode C drops.
Single point
Zone
Tracking
Autofocus
Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below.
- Very shiny subjects such as mirrors or car bodies.
- Subjects photographed through a window or other reflective object.
- Dark subjects and subjects that absorb rather than reflect light, such as hair or fur.
- Insubstantial subjects, such as smoke or flame.
- Subjects that show little contrast with the background.
- Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).
Checking Focus
To zoom in on the current focus area for precise focus, press the center of the rear command dial. Use the focus stick (focus lever) to choose another focus area. Press the center of the rear command dial again to cancel zoom.
Normal display
Focus zoom
In focus mode S, zoom can be adjusted by rotating the rear command dial when STANDARD or FOCUS PEAK HIGHLIGHT is selected for AF/MF SETTING > MF ASSIST (119). Focus zoom is not available in focus mode C or when AF/MF SETTING > PRE-AF is on or an option other than SINGLE POINT is selected for AF MODE.
Use BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING to change the function performed by the center of the rear command dial or assign its default function to other controls (218).
Manual Focus
Adjust focus manually.
1 Rotate the focus mode selector to M.
will appear in the display.
2 Focus manually using the lens focus ring. Rotate the ring left to reduce the focus distance, right to increase.
3 Take pictures.
Use 2 BUTTON/DIAL SETTING > FOCUS RING to reverse the direction of rotation of the focus ring.
Regardless of the option selected, manual focus will be used when the lens is in manual focus mode.
Quick Focus
To use autofocus to focus on the subject in the selected focus area, press the button to which focus lock or AF-ON has been assigned (the size of the focus area can be chosen with the rear command dial). In manual focus mode, you can use this feature to quickly focus on a chosen subject using either single or continuous AF according to the option chosen for AF/ MF SETTING > INSTANT AF SETTING.
Checking Focus
A variety of options are available for checking focus in manual focus mode.
The Manual Focus Indicator
The manual focus indicator indicates how closely the focus distance matches the distance to the subject in the focus brackets. The white line indicates the distance to the subject in the focus area (in meters or feet according to the option selected for SCREEN SET-UP > FOCUS SCALE UNITS in the setup menu), the blue bar the depth of field, or in other words the distance in front of and behind the subject that appears to be in focus.
Focus distance (white line)
Depth of field
If both AF DISTANCE INDICATOR and MF DISTANCE INDICATOR are selected in the 2 SCREEN SET-UP > DISP. CUSTOM SETTING list, the manual focus indicator can also be viewed using the depth-of-field indicator in the standard display. Use the DISP/BACK button to display standard indicators.
Use the AF/MF SETTING > DEPTH-OF-FIELD SCALE option to choose how depth of field is displayed. Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, Pixel BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays.
Focus Zoom
If ON is selected for AF/MF SETTING > FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated. Use the focus stick (focus lever) to choose another focus area. Press the center of the rear command dial to exit zoom.
If STANDARD or FOCUS PEAK HIGHLIGHT is selected for AF/MF SETTING > MF ASSIST, zoom can be adjusted by rotating the rear command dial.
MF Assist
The AF/MF SETTING > MF ASSIST option can be used to check focus when pictures are framed in the LCD monitor or electronic viewfinder in manual focus mode.
The MF ASSIST menu can be displayed by pressing and holding the center of the rear command dial.
The following options are available:
- FOCUS PEAK HIGHLIGHT: Highlights high-contrast outlines. Rotate the focus ring until the subject is highlighted.
- DIGITAL SPLIT IMAGE: Displays a split image in the center of the frame. Frame the subject in the split-image area and rotate the focus ring until the four parts of the split image are correctly aligned.
Adjust the camera's sensitivity to light.
Press the sensitivity dial lock release, rotate the dial to the desired setting, and press the release again to lock the dial in place.
| Option | Description |
| A (auto) | Sensitivity is automatically adjusted in response to shooting conditions according to option chosen for SHOOTING SETTING > ISO AUTO SETTING. Choose from AUTO1, AUTO2, and AUTO3. |
| 12800–200 | Adjust sensitivity manually. Selected value is shown in display. |
| H (25600/51200), L (100/125/160) | Choose for special situations. Note that mottling may appear in pictures taken at H, while L reduces dynamic range. |
Use 2 BUTTON/DIAL SETTING > ISO DIAL SETTING (H) to choose the sensitivity assigned to the H position.
Use 2 BUTTON/DIAL SETTING > ISO DIAL SETTING (L) to choose the sensitivity assigned to the L position.
If COMMAND is selected for BUTTON/DIAL SETTING > ISO DIAL SETTING (A), sensitivity can also be adjusted by setting sensitivity to A and rotating the front command dial.
-Adjusting Sensitivity
High values can be used to reduce blur when lighting is poor, while lower values allow slower shutter speeds or wider apertures in bright light; note, however, that mottling may appear in pictures taken at high sensitivities.
Auto Sensitivity (A)
Use SHOOTING SETTING > ISO AUTO SETTING to choose the base sensitivity, maximum sensitivity, and minimum shutter speed for the A position on the sensitivity dial. Settings for AUTO1, AUTO2, and AUTO3 can be stored separately; the defaults are shown below.
| Item | Options | Default | ||
| AUTO1 | AUTO2 | AUTO3 | ||
| DEFAULT SENSITIVITY | 12800–200 | 200 | ||
| MAX. SENSITIVITY | 12800–400 | 800 | 1600 | 3200 |
| MIN. SHUTTER SPEED | 1/500–1/4 SEC, AUTO | AUTO | ||
The camera automatically chooses a sensitivity between the default and maximum values; sensitivity is only raised above the default value if the shutter speed required for optimal exposure would be slower than the value selected for MIN. SHUTTER SPEED.
If the value selected for DEFAULT SENSITIVITY is higher than that selected for MAX. SENSITIVITY, DEFAULT SENSITIVITY will be set to the value selected for MAX. SENSITIVITY.
The camera may select shutter speeds slower than MIN. SHUTTER SPEED if pictures would still be underexposed at the value selected for MAX. SENSITIVITY. If AUTO is selected for MIN. SHUTTER SPEED, the camera will automatically choose a minimum shutter speed approximately equal to the inverse of the lens' focal length, in seconds (for example, if the lens has a focal length of 50~mm , the camera will choose a minimum shutter speed in the neighborhood of 120 s). The minimum shutter speed is not affected by the option selected for image stabilization.
Choose how the camera meters exposure.
Rotate the metering dial to select from the options below.
The selected option will only take effect when AF/MF SETTING > FACE/EYE DETECTION SETTING is FACE OFF/EYE OFF.
| Mode | Description |
| [·](spot) | The camera meters lighting conditions in an area at the center of the frame equivalent to 2% of the total. Recommended with backlit subjects and in other cases in which the background is much brighter or darker than the main subject. |
| [◎](center-weighted) | The camera meters the entire frame but assigns the greatest weight to the area at the center. |
| [k](multi) | The camera instantly determines exposure based on an analysis of composition, color, and brightness distribution. Recommended in most situations. |
| [ ](average) | Exposure is set to the average for the entire frame. Provides consistent exposure across multiple shots with the same lighting, and is particularly effective for landscapes and portraits of subjects dressed in black or white. |
Exposure Compensation
Adjust exposure.
Hold the button and rotate the rear command dial until the desired value is displayed in the viewfinder or LCD monitor.
The amount of compensation available varies with the shooting mode. Exposure compensation can be previewed in the shooting display, although the display may not accurately reflect its effects if:
the exposure compensation amount exceeds ± 3 EV,
200% or 400% is selected for DYNAMIC RANGE, or
STRONG or WEAK is selected for D RANGE PRIORITY.
Exposure compensation can still be previewed in the viewfinder or LCD monitor by pressing the shutter button halfway.
In movie mode, the display may not accurately reflect the effects of exposure compensation when 200 or 400 is selected for DYNAMIC RANGE (MOVIE) or ON is selected for F-Log RECORDING.
An accurate preview can be obtained by selecting mode M and adjusting exposure directly.
The + Button
If ON/OFF SWITCH is selected for BUTTON/DIAL SETTING > EXPO. COMP. BUTTON SETTING, exposure compensation can be set by pressing the button once, rotating the rear command dial, and then pressing the button again. Exposure compensation can be assigned to other controls using BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING.
Focus/Exposure Lock
Compose photographs with off-center subjects.
1 Focus: Position the subject in the focus frame and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).
2 Recompose: Keep the shutter button pressed halfway.
3 Shoot: Press the button all the way down.
Focus lock using the shutter button is only available when ON is selected for BUTTON/DIAL SETTING > SHUTTTER AF, SHUTTTER AE.
Other Controls
At default settings, you can use the AE-L button to lock exposure without locking focus. If the AF-ON button is assigned AF LOCK ONLY (194, 216), it can similarly be used to lock focus without locking exposure.
The controls used for AE LOCK ONLY, AF LOCK ONLY, and AE/ AF LOCK can be chosen using BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING (194, 216). While the assigned control is pressed, pressing the shutter button halfway will not end the lock. If AE&AF ON/OFF SWITCH is selected for BUTTON/DIAL SETTING > AE/AF-LOCK MODE, the lock can only be ended by pressing the control a second time.
Automatically vary settings over a series of pictures.
1 Rotate the drive dial to BKT.
2 Navigate to DRIVE SETTING > BKT SETTING in the SHOOTING SETTING menu and select AE BKT, ISO BKT, FILM SIMULATION BKT, WHITE BALANCE BKT, or DYNAMIC RANGE BKT.
This feature can also be accessed via shortcuts (212).
3 Take photographs.
AE BKT
Choose the number of shots in the bracketing sequence and the order in which the shots are taken. You can also choose the amount exposure is varied with each shot and whether the shots are taken one at a time or in a single burst.
Regardless of the bracketing amount, exposure will not exceed the limits of the exposure metering system.
ISO ISO BKT
Select a bracketing amount (± 1/3, ± 2/3, or ± 1) . Each time the shutter is released, the camera will take a picture at the current sensitivity and process it to create two additional copies, one with sensitivity raised and the other with sensitivity lowered by the selected amount.
FILMSIMULATIONBKT
Each time the shutter is released, the camera takes one shot and processes it to create copies with different film simulation settings.
WB WHITE BALANCE BKT
Select a bracketing amount (± 1, ± 2, or ± 3) . Each time the shutter is released, the camera takes one shot and processes it to create three copies: one at the current white balanced setting, one with fine-tuning increased by the selected amount, and another with fine-tuning decreased by the selected amount.
DYNAMIC RANGE BKT
Each time the shutter button is pressed, the camera takes three shots with different dynamic ranges: 100% for the first, 200% for the second, and 400% for the third.
While dynamic range bracketing is in effect, sensitivity will be restricted to a minimum of ISO 800 (or to a minimum of ISO 200 to 800 when an auto option is selected for sensitivity); the sensitivity previously in effect is restored when bracketing ends.
BKT SETTING
Settings for exposure, sensitivity, film simulation, and white balance bracketing can be adjusted using SHOOTING SETTING > DRIVE SETTING > BKT SETTING.
Capture motion in a series of pictures.
1 Rotate the drive dial to select the overall frame advance rate from CH(high), CM(medium), and CL(low).
2 If you selected CH or CL in Step 1, use SHOOTING SETTING > DRIVE SETTING to choose the frame rate (in CM mode, the camera shoots at about 6 fps).
This feature can also be accessed via shortcuts (212).
3 Keep the shutter button pressed to take photos at the rate selected in Step 2.
Shooting ends when the shutter button is released or the memory card is full.
If file numbering reaches 999 before shooting is complete, the remaining pictures will be recorded to a new folder.
Burst shooting may not begin if the space available on the memory card is insufficient.
Frame rate varies with the subject, shutter speed, sensitivity, and focus mode. Frame rates may slow and recording times increase as more shots are taken. The flash may or may not fire, depending on shooting conditions.
-Focus and Exposure
Select focus mode C to vary focus with shot; to vary exposure with each shot, select OFF for BUTTON/DIAL SETTING > SHUTTER AE.
Selecting CH in focus mode C restricts the choice of focus frames.
Exposure and focus tracking performance may vary with such factors as aperture, sensitivity, and exposure compensation.
ADV. Advanced Filters
Take photos with filter effects.
1 Rotate the drive dial to ADV..
2 Navigate to DRIVE SETTING>ADV. FILTER SETTING in the SHOOTING SETTING menu and choose a filter effect.
This feature can also be accessed via shortcuts (212).
3 Take photographs.
Advanced Filter Options
Choose from the following filters:
| Filter | Description |
| TOY CAMERA | Choose for a retro toy camera effect. |
| MINIATURE | The tops and bottoms of pictures are blurred for a diorama effect. |
| POP COLOR | Create high-contrast images with saturated colors. |
| HIGH-KEY | Create bright, low-contrast images. |
| LOW-KEY | Create uniformly dark tones with few areas of em-phasized highlights. |
| DYNAMIC TONE | Dynamic tone expression is used for a fantasy effect. |
| SOFT FOCUS | Create a look that is evenly soft throughout the whole image. |
| PARTIAL COLOR (RED) | Areas of the image that are the selected color are recorded in that color. All other areas of the image are recorded in black-and-white. |
| PARTIAL COLOR (ORANGE) | |
| PARTIAL COLOR (YELLOW) | |
| PARTIAL COLOR (GREEN) | |
| PARTIAL COLOR (BLUE) | |
| PARTIAL COLOR (PURPLE) |
Depending on the subject and camera settings, images may in some cases be grainy or vary in brightness or hue.
Follow an on-screen guide to create a panorama.
1 Rotate the drive dial to .
2 To select the size of the angle through which you will pan the camera while shooting, press the selector left. Highlight a size and press MENU/OK.
3 Press the selector right to view a choice of pan directions. Highlight a pan direction and press MENU/OK.
4 Press the shutter button all the way down to start recording. There is no need to keep the shutter button pressed during recording.
5 Pan the camera in the direction shown by the arrow. Shooting ends automatically when the camera is panned to the end of the guides and the panorama is complete.
-For Best Results
For best results, use a lens with a focal length of 35mm or less (50 mm or less in 35 mm format). Prop your elbows against your sides and move the camera slowly in a small circle at a steady speed, keeping the camera parallel or at right angles to the horizon and being careful only to pan in the direction shown by the guides. Use a tripod for best results. If the desired results are not achieved, try panning at a different speed.
If the shutter button is pressed all the way down before the panorama is complete, shooting will end and no panorama may be recorded. Shooting may also be interrupted if the camera is panned too quickly or too slowly. Panning the camera in a direction other than that shown cancels shooting.
Panoramas are created from multiple frames; if ON is selected for BUTTON/DIAL SETTING > SHUTTER AE, exposure for the entire panorama is determined by the first frame. The camera may in some cases record an greater or lesser angle than selected or be unable to stitch the frames together perfectly. The last part of the panorama may not be recorded if shooting ends before the panorama is complete.
The desired results may not be achieved with moving subjects, subjects close to the camera, unvarying subjects such as the sky or a field of grass, subjects that are in constant motion, such as waves and waterfalls, or subjects that undergo marked changes in brightness. Panoramas may be blurred if the subject is poorly lit.
-Viewing Panoramas
In full-frame playback, you can use the rear command dial to zoom panoramas in or out. Alternatively, you can play the panorama back using the selector.
Press the selector down to start playback and press again to pause. Press the selector left or right to choose the pan direction while playback is in progress or to scroll the panorama manually while playback is paused; vertical panoramas will scroll vertically, horizontal panoramas horizontally. To exit to full-frame playback, press the selector up. To view other images, exit to full-frame playback and press the selector left or right.
Flash Photography
Use the supplied EF-X8 shoe-mounted flash unit for additional lighting at night or indoors under low light.
1 Remove the hot shoe cover and slide the flash onto the hot shoe as shown, stopping when it clicks into place.
2 Raise the flash.
3 Select FLASH FUNCTION SETTING in the FLASH SETTING menu.
If the flash is not raised, settings will be adjusted for units connected via the sync terminal (227).
This feature can also be accessed via shortcuts (212).
4 Highlight items using the selector and rotate the rear command dial to change the highlighted setting (94).
5 Press DISP/BACK to put the changes into effect.
Depending on the distance to the subject, some lenses may cast shadows in photos taken with the flash.
The flash will not fire at some settings, for example in panorama mode or when the electronic shutter is used.
Choose shutter speeds slower than 250X when using the flash in exposure mode S (shutter-priority AE) or manual (M).
In TTL mode, the flash may fire several times with each shot. Do not move the camera until shooting is complete.
Flash Settings
The following settings are available when the supplied EF-X8 shoe-mounted flash unit is attached.
| Setting | Description |
| ① Flash control mode | Choose from the following options: • TTL: TTL mode. Adjust flash compensation (②) and choose a flash mode (③). • M: The flash fires at the selected output (②) regardless of subject brightness or camera settings. Output is expressed in fractions of full power, from 1/2 to 1/4. The desired results may not be achieved at low values if they exceed the limits of the flash control system; take a test shot and check the results. • ⑤ (COMMANDER): Choose if the flash is being used to control remote synced flash units, for example as part of a studio flash system. • ⑥ OFF (OFF): The EF-X8 does not fire. Flash units connected via the sync terminal will still fire when the shutter is released, but can be disabled by lowering the EF-X8 and turning the units off in the flash settings menu. |
| ② Flash compensation/output | Adjust flash level. The options available vary with the flash control mode (①). |
| ③ Flash mode (TTL) | Choose a flash mode for TTL flash control. The options available vary with the shooting mode (P, S, A, or M) selected. • AUTO (FLASH AUTO): The flash fires only as required; flash level is adjusted according to subject brightness. A icon displayed when the shutter button is pressed halfway indicates that the flash will fire when the photo is taken. • FILT (STANDARD): The flash fires with every shot if possible; flash level is adjusted according to subject brightness. The flash will not fire if not fully charged when the shutter is released. • FILT Slow SYNC.: Combine the flash with slow shutter speeds when photographing portrait subjects against a backdrop of night scenery. The flash will not fire if not fully charged when the shutter is released. |
| ④ Sync | Choose whether the flash is timed to fire immediately after the shutter opens (FRONT/1ST CURTAIN) or immediately before it closes (AR2ND CURTAIN). 1ST CURTAIN is recommended in most circumstances. |
Red-Eye Removal
Red-eye removal is available when an option other than OFF is selected for FLASH SETTING > RED EYE REMOVAL and AF/MF SETTING > FACE/EYE DETECTION SETTING is ON. Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas.
-Flash Sync Speed
The flash will synchronize with the shutter at shutter speeds of 1250 s or slower.
-Optional Flash Units from FUJIFILM
The camera can be used with optional FUJIFILM shoe-mounted flash units.
Third-Party Flash Units
Do not use third-party flash units that apply over 300V to the camera hot shoe.
The Shooting Menus
IMAGE QUALITY SETTING
Adjust image quality settings.
To display image quality settings, press MENU/OK in the shooting display and select the (IMAGE QUALITY SETTING) tab.
The options available vary with the shooting mode selected.
IMAGE SIZE
Choose the size and aspect ratio at which still pictures are recorded.
| Option | Image size |
| L 3:2 | 6000 × 4000 |
| M 3:2 | 4240 × 2832 |
| S 3:2 | 3008 × 2000 |
| Option | Image size |
| L 16:9 | 6000 × 3376 |
| M 16:9 | 4240 × 2384 |
| S 16:9 | 3008 × 1688 |
| Option | Image size |
| L 1:1 | 4000 × 4000 |
| M 1:1 | 2832 × 2832 |
| S 1:1 | 2000 × 2000 |
IMAGE SIZE is not reset when the camera is turned off or another shooting mode is selected.
Aspect Ratio
Pictures with an aspect ratio of 3:2 have the same proportions as a frame of 35mm film, while an aspect ratio of 16:9 is suited to display on High Definition (HD) devices. Pictures with an aspect ratio of 1:1 are square.
IMAGE QUALITY
Choose a file format and compression ratio. Select FINE or NORMAL to record JPEG images, RAW to record RAW images, or FINE+RAW or NORMAL+RAW to record both JPEG and RAW images. FINE and FINE+RAW use lower JPEG compression ratios for higher-quality JPEG images, while NORMAL and NORMAL+RAW use higher JPEG compression ratios to increase the number of images that can be stored.
The Function Buttons
To toggle RAW image quality on or off for a single shot, assign RAW to a function button (218). If a JPEG option is currently selected for image quality, pressing the button temporarily selects the equivalent JPEG+RAW option. If a JPEG+RAW option is currently selected, pressing the button temporarily selects the equivalent JPEG option, while if RAW is selected, pressing the button temporarily selects FINE. Taking a picture or pressing the button again restores the previous setting.
RAW RECORDING
Choose whether to compress RAW images.
| Option | Description |
| UNCOMPRESSED | RAW images are not compressed. |
| LOSSLESS COMPRESSED | RAW images are compressed using a reversible algorithm that reduces file size with no loss of image data. The images can be viewed in RAW FILE CONVERTER EX 2.0 (国258), FUJIFILM X RAW STUDIO (国259), or other software that supports "lossless"RAW compression. |
FILM SIMULATION
Simulate the effects of different kinds of film, including black-and-white (with or without color filters). Choose a palette according to your subject and creative intent.
| Option | Description |
| PROVIA/STANDARD | Standard color reproduction. Suited to a wide range of subjects, from portraits to landscapes. |
| Velvia/VIVID | A high-contrast palette of saturated colors, suited to nature photos. |
| ASTIA/SOFT | Enhances the range of hues available for skin tones in portraits while preserving the bright blues of daylight skies. Recommended for outdoor portrait photography. |
| CLASSIC CHROME | Soft color and enhanced shadow contrast for a calm look. |
| PRO Neg. Hi | Offers slightly more contrast than PRO Neg. Std. Recommended for outdoor portrait photography. |
| PRO Neg. Std | A soft-toned palette. The range of hues available for skin tones is enhanced, making this a good choice for studio portrait photography. |
| ETERNAL/CINEMA | Film movies using a palette that features subdued colors and deep shadows. |
| ACROS* | Take black-and-white photos with rich gradation and out-standing sharpness. |
| MONochrome* | Take pictures in standard black and white. |
| SEPIA | Take pictures in sepia. |
- Available with yellow (Ye), red (R), and green (G) filters, which deepen shades of gray corresponding to hues complementary to the selected color. The yellow (Ye) filter deepens purples and blues and the red (R) filter blues and greens. The green (G) filter deepens reds and browns, including skin tones, making it a good choice for portraits.
Film simulation options can be combined with tone and sharpness settings.
Film simulation settings can also be accessed via shortcuts (212).
For more information, visit: http://fujifilm-x.com/en/x-stories/the-world-of-film-simulation-episode-1/
GRAIN EFFECT
Add a film grain effect. Select an amount (STRONG or WEAK) or choose OFF to turn film grain off.
| Options | ||
| STRONG | WEAK | OFF |
DYNAMIC RANGE
Control contrast. Choose lower values to increase contrast when shooting indoors or under overcast skies, higher values to reduce loss of detail in highlights when photographing high-contrast scenes. Higher values are recommended for scenes that include both sunlight and deep shade, for such high-contrast subjects as sunlight on water, brightly-lit autumn leaves, and portraits taken against a blue sky, and for white objects or people wearing white; note, however, that mottling may appear in pictures taken at higher values.
| Options | |||
| AUTO | 100 100% | 200 200% | 400 400% |
If AUTO is selected, the camera will automatically choose either 100% or 200% according to the subject and shooting conditions. Shutter speed and aperture will be displayed when the shutter button is pressed halfway.
200 200% is available at sensitivities of from ISO 400 to ISO 12800, 400 400% at sensitivities of from ISO 800 to 12800.
D RANGE PRIORITY
Reduce loss of detail in highlights and shadows for natural-looking results when photographing high-contrast scenes.
| Option | Description |
| AUTO | Contrast is adjusted automatically in response to lighting conditions. |
| STRONG | Adjust dynamic range by a large amount for very high-contrast scenes. |
| WEAK | Adjust dynamic range by a smaller amount for moderately high-contrast scenes. |
| OFF | Contrast reduction off. |
WEAK is available at sensitivities of from ISO 400 to ISO 12800, STRONG at sensitivities of from ISO 800 to 12800. When an option other than OFF is selected, HIGHLIGHT TONE, SHADOW TONE, and DYNAMIC RANGE will be adjusted automatically; if you wish to adjust these settings manually, choose OFF.
WHITE BALANCE
For natural colors, choose a white balance option that matches the light source.
| Option | Description |
| AUTO | White balance is adjusted automatically. |
| Ω1/Ω2/Ω3 | Measure a value for white balance. |
| K | Choose a color temperature. |
| * | For subjects in direct sunlight. |
| * | For subjects in the shade. |
| * | Use under "daylight" fluorescent lights. |
| * | Use under "warm white" fluorescent lights. |
| * | Use under "cool white" fluorescent lights. |
| * | Use under incandescent lighting. |
| * | Reduces the blue cast typically associated with underwater light-ing. |
Results vary with shooting conditions. Play pictures back after shooting to check colors.
White balance is adjusted for flash lighting only in AUTO and modes. Turn the flash off using other white balance options.
White balance options can also be accessed via shortcuts (212).
Fine-Tuning White Balance
Pressing MENU/OK after selecting a white balance option displays the dialog shown at right; use the selector to fine-tune white balance or press DISP/BACK to exit without fine-tuning.
Custom White Balance
Choose _1, _2 , or _3 to adjust white balance for unusual lighting conditions. White balance measurement options will be displayed; frame a white object so that it fills the display and press the shutter button all the way down to measure white
balance (to select the most recent custom value and exit without measuring white balance, press DISP/BACK, or press MENU/OK to select the most recent value and display the fine-tuning dialog).
- If "COMPLETED!" is displayed, press MENU/OK to set white balance to the measured value.
- If "UNDER" is displayed, raise exposure compensation and try again.
- If "OVER" is displayed, lower exposure compensation and try again.
K:Color Temperature
Selecting K in the white balance menu displays a list of color temperatures; highlight a color temperature and press MENU/OK to select the highlighted option and display the fine-tuning dialog.
Color Temperature:
Color temperature is an objective measure of the color of a light source, expressed in Kelvin (K). Light sources with a color temperature close to that of direct sunlight appear white; light sources with a lower color temperature have a yellow or red cast, while those with a higher color temperature are tinged with blue. You can match color temperature to the light source, or choose options that differ sharply from the color of the light source to make pictures "warmer" or "colder."
HIGHLIGHT TONE
Adjust the appearance of highlights. Choose from seven options between +4 and -2.
| Options | ||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 |
SHADOW TONE
Adjust the appearance of shadows. Choose from seven options between +4 and -2.
| Options | ||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 |
COLOR
Adjust color density. Choose from nine options between +4 and -4.
| Options | ||||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
SHARPNESS
Sharpen or soften outlines. Choose from nine options between +4 and -4.
| Options | ||||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
NOISE REDUCTION
Reduce noise in pictures taken at high sensitivities. Choose from nine options between +4 and -4 .
| Options | ||||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
LONG EXPOSURE NR
Select ON to reduce mottling in long time-exposures.
| Options | |
| ON | OFF |
LENS MODULATION OPTIMIZER
Select ON to improve definition by adjusting for diffraction and the slight loss of focus at the periphery of the lens.
| Options | |
| ON | OFF |
COLOR SPACE
Choose the gamut of colors available for color reproduction.
| Option | Description |
| sRGB | Recommended in most situations. |
| Adobe RGB | For commercial printing. |
PIXEL MAPPING
Use this option if you notice bright spots in your pictures.
1 Press MENU/OK in the shooting display and select the IMAGE QUALITY SETTING tab.
2 Highlight Pixel MAPPING and press MENU/OK to perform pixel mapping. Processing may take a few seconds.
Results are not guaranteed.
- Be sure the battery is fully charged before beginning pixel mapping.
- Pixel mapping is not available when the camera temperature is elevated.
SELECT CUSTOM SETTING
Recall settings saved with EDIT/SAVE CUSTOM SETTING. Settings can be recalled from any of the seven custom settings banks.
| Banks | ||||
| CUSTOM 1 | CUSTOM 2 | CUSTOM 3 | CUSTOM 4 | |
| CUSTOM 5 | CUSTOM 6 | CUSTOM 7 | ||
EDIT/SAVE CUSTOM SETTING
Save up to 7 sets of custom camera settings for commonly-encountered situations. Saved settings can be recalled using IMAGE QUALITY SETTING > SELECT CUSTOM SETTING.
1 Press MENU/OK in shooting mode to display the shooting menu. Select the IMAGE QUALITY SETTING tab, then highlight EDIT/SAVE CUSTOM SETTING and press MENU/OK.
2 Highlight a custom settings bank and press MENU/OK to select.
3 Adjust the following as desired:
DYNAMIC RANGE
HIGHLIGHT TONE
- D RANGE PRIORITY
- SHADOW TONE
FILMSimulation
COLOR
- GRAIN EFFECT
SHARPNESS
- WHITE BALANCE
- NOISE REDUCTION
4 Press DISP/BACK. A confirmation dialog will be displayed; highlight OK and press MENU/OK.
To store current camera settings in the selected bank, highlight SAVE CURRENT SETTINGS in Step 3 and press MENU/OK. Banks can be renamed using EDIT CUSTOM NAME.
To restore default settings for the current bank, select RESET.
To display focus settings, press MENU/OK in the shooting display and select the (AF/MF SETTING) tab.
The options available vary with the shooting mode selected.
FOCUS AREA
Choose the focus area for autofocus, manual focus, and focus zoom.
AF MODE
Choose the AF mode for focus modes S and C.
| Option | Description |
| ■ SINGLE POINT | The camera focuses on the subject in the selected focus point. The number of focus points available can be selected using AF/MF SETTING > NUMBER OF FOCUS POINTS. Use for pin-point focus on a selected subject. |
| ■ ZONE | The camera focuses on the subject in the selected focus zone. Focus zones include multiple focus points, making it easier to focus on subjects that are in motion. |
| ■ WIDE/TRACKING | In focus mode C, the camera tracks focus on the subject in the selected focus point while the shutter button is pressed halfway. In focus mode S, the camera automatically focuses on high-contrast subjects; the areas in focus are shown in the display. The camera may be unable to focus on small objects or subjects that are moving rapidly. |
| ALL ALL | Rotate the rear command dial in the focus-point selection display (■ 69, 70) to cycle through AF modes in the following order: ■ SINGLE POINT, ■ ZONE, and ■ WIDE/TRACKING. |
AF-C CUSTOM SETTINGS
Select focus-tracking options for focus mode C. Choose from Sets 1-5 according to your subject or select Set 6 for custom focus-tracking options.
| Option | Description |
| SET 1 MULTI PURPOSE | A standard tracking option that works well with the typical range of moving subjects. |
| SET 2 UNUSED OBSTACLES & CONTINUE TO TRACK SUBJECT | The focus system attempts to track the chosen subject. Choose with subjects that are hard to keep in the focus area or if other objects are likely to enter the focus area with the subject. |
| SET 3 FOR ACCELERATING/ DECELERATING SUBJECT | The focus system attempts to compensate for subject acceleration or deceleration. Choose for subjects prone to rapid changes in velocity. |
| SET 4 FOR SUDDENLY APPEARING SUBJECT | The focus system attempts to focus quickly on subjects entering the focus area. Choose for subjects that appear abruptly or when rapidly switching subjects. |
| SET 5 FOR ERRATICALLY MOVING & ACCEL./DECEL. SUBJECT | Choose for hard-to-track subjects prone not only to sudden changes in velocity but also to large movements front to back and left to right. |
| SET 6 CUSTOM | Adjust TRACKING SENSITIVITY, SPEED TRACKING SENSITIVITY, and ZONE AREA SWITCHING to suit your preferences based on the values for Sets 1-5 (113, 115). |
Focus Tracking Options
The individual parameters that are part of a focus tracking set are described below.
TRACKING SENSITIVITY
This parameter determines how long the camera waits to switch focus when an object enters the focus area behind or in front of the current subject. The higher the value, the longer the camera will wait.
| Options | ||||
| 0 | 1 | 2 | 3 | 4 |
The higher the value, the longer it takes the camera to refocus when you attempt to switch subjects. The lower the value, the more likely the camera is to switch focus from your subject to other objects in the focus area.
SPEED TRACKING SENSITIVITY
This parameter determines how sensitive the tracking system is to changes in subject velocity. The higher the value, the greater the precision with which the system attempts to respond to sudden movement.
| Options | ||
| 0 | 1 | 2 |
The higher the value, the more difficulty the camera will have focusing in situations in which autofocus does not perform well, such as when the subject is highly reflective or low in contrast.
ZONE AREA SWITCHING
This parameter determines the focus area given priority in zone AF.
| Option | Description |
| CENTER | Zone AF assigns priority to subjects in the center of the zone. |
| AUTO | The camera locks focus on the subject at the center of the zone and then switches focus areas as necessary to track it. |
| FRONT | Zone AF assigns priority to the subjects closest to the camera. |
This option takes effect only when ZONE is selected for AF mode.
Set Values
Parameter values for the different sets are listed below.
| TRACKING SENSITIVITY | SPEED TRACKING SENSITIVITY | ZONE AREA SWITCHING | |
| SET 1 | 2 | 0 | AUTO |
| SET 2 | 3 | 0 | CENTER |
| SET 3 | 2 | 2 | AUTO |
| SET 4 | 0 | 1 | FRONT |
| SET 5 | 3 | 2 | AUTO |
Custom Focus Tracking Options
Follow the steps below to adjust settings for Set 6.
1 Select AF-C CUSTOM SETTINGS > SET 6 CUSTOM.
2 Press the selector up or down to highlight items and rotate the front command dial to change. To reset settings to their original values, press l
3 Press DISP/BACK when settings are complete.
STORE AF MODE BY ORIENTATION
Choose whether the focus mode and focus area used when the camera is in portrait orientation are stored separately from those used when the camera is in landscape orientation.
| Option | Description |
| OFF | The same settings are used in both orientations. |
| FOCUS AREA ONLY | The focus area for each orientation can be selected separately. |
| ON | The focus mode and focus area can be selected separately. |
AF POINT DISPLAY
Choose whether individual focus frames are displayed when ZONE or WIDE/TRACKING is selected for AF/MF SETTING > AF MODE.
NUMBER OF FOCUS POINTS
Choose the number of focus points available for focus-point selection in manual focus mode or when SINGLE POINT is selected for AF MODE.
| Option | Description |
| 91 POINTS (7 × 13) | Choose from 91 focus points arranged in a 7- by 13-point grid. |
| 325 POINTS (13 × 25) | Choose from 325 focus points arranged in a 13- by 25-point grid. |
PRE-AF
If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed halfway. Note that this increases the drain on the battery.
| Options | |
| ON | OFF |
AF ILLUMINATOR
If ON is selected, the AF-assist illuminator will light to assist autofocus.
| Options | |
| ON | OFF |
The camera may be unable to focus using the AF-assist illuminator in some cases. If the camera is unable to focus, try increasing the distance to the subject.
Avoid shining the AF-assist illuminator directly into your subject's eyes.
FACE/EYE DETECTION SETTING
Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that emphasize portrait subjects. Faces can be de
tected with the camera in vertical or horizontal orientation; if a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders. You can also choose whether the camera detects and focuses on eyes when Intelligent Face Detection is on. Choose from the following options:
| Option | Description |
| FACE ON/EYE OFF | Intelligent Face Detection only. |
| FACE ON/EYE AUTO | The camera automatically chooses which eye to focus on when a face is detected. |
| FACE ON/RIGHT EYE PRIORITY | The camera focuses on the right eye of subjects detected using Intelligent Face Detection. |
| FACE ON/LEFT EYE PRIORITY | The camera focuses on the left eye of subjects detected using Intelligent Face Detection. |
| FACE OFF/EYE OFF | Intelligent Face Detection and eye priority off. |
In some modes, the camera may set exposure for the frame as a whole rather than the portrait subject.
If the subject moves as the shutter button is pressed, the face may not be in the area indicated by the green border when the picture is taken.
If the camera is unable to detect the subject's eyes because they are hidden by hair, glasses, or other objects, the camera will instead focus on faces.
Face/eye detection options can also be accessed via shortcuts (图212).
AF+MF
If ON is selected in focus mode S, focus can be adjusted manually by rotating the focus ring while the shutter button is pressed halfway. Standard and focus peaking MF assist options are supported.
Options
ON
OFF
Lenses with a focus distance indicator must be set to manual focus mode (MF) before this option can be used. Selecting MF disables the focus distance indicator. Set the focus ring to the center of the focus distance indicator, as the camera may fail to focus if the ring is set to infinity or the minimum focus distance.
AF + MF Focus Zoom
When ON is selected for AF/MF SETTING > FOCUS CHECK and SINGLE POINT selected for AF MODE, focus zoom can be used to zoom in on the selected focus area. The zoom ratio (2.5× or 6×) can be selected using the rear command dial.
MF ASSIST
Choose how focus is displayed in manual focus mode.
| Option | Description |
| STANDARD | Focus is displayed normally (focus peaking and digital split image are not available). |
| DIGITAL SPLIT IMAGE | Displays a black-and-white (MONochrome) or color (COLOR) split image in the center of the frame. Frame the subject in the split-image area and rotate the focus ring until the three parts of the split image are correctly aligned. |
| FOCUS PEAK HIGHLIGHT | The camera heightens high-contrast outlines. Choose a color and peaking level. |
You can also choose MF assist options by holding the center of the rear command dial.
FOCUS CHECK
If ON is selected, the display will automatically zoom in on the selected focus area when the focus ring is rotated in single AF or manual focus mode.
| Options | |
| ON | OFF |
Pressing the center of the rear command dial cancels focus zoom.
INTERLOCK SPOT AE & FOCUS AREA
Select ON to meter the current focus frame when SINGLE POINT is selected for AF MODE and SPOT is selected for PHOTOMETRY.
| Options | |
| ON | OFF |
INSTANT AF SETTING
Choose whether the camera focuses using single AF (AF-S) or continuous AF (AF-C) when the button to which focus lock is assigned is pressed in manual focus mode.
| Options | |
| AF-S | AF-C |
DEPTH-OF-FIELD SCALE
Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, PILKEL BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays.
| Options | |
| PIXEL BASIS | FILM FORMAT BASIS |
RELEASE/FOCUS PRIORITY
Choose how the camera focuses in focus mode AF-S or AF-C.
| Option | Description |
| RELEASE | Shutter response is prioritized over focus. Pictures can be taken when the camera is not in focus. |
| FOCUS | Focus is prioritized over shutter response. Pictures can be only taken when the camera is in focus. |
TOUCH SCREEN MODE
Choose the shooting operations performed using touch controls.
Still Photography
| Mode | Description |
| TOUCH SHOOTING | Tap your subject in the display to focus and release the shutter. In burst mode, pictures will be taken while you keep your finger on the display. |
| AF | Tap to select a focus point. In focus mode S(AF-S), focus will lock, while in focus mode C(AF-C), the camera will continually adjust focus in response to changes in the distance to the subject. Focus lock and continuous focus can be ended by tapping the AF OFF icon. |
| AREA | Tap to select a point for focus or zoom. The focus frame will move to the selected point. |
| OFF | Touch focus and shooting disabled. |
Movie Recording
We recommend that you select AREA for MOVIE AF MODE in the shooting menu (MOVIE SETTING) tab before recording movies using touch controls (in some movie modes, AREA will be selected automatically).
| Mode | Description |
| TOUCH SHOOTING | Tap your subject in the display to focus and start recording. In focus mode C (AF-C), the camera will continually adjust focus in response to changes in the distance to the subject; to refocus in focus mode S (AF-S) or to focus on a new subject in focus mode C, tap the subject in the monitor. To end recording, press the shutter button. |
| AF | Tap your subject in the display to focus and press the shutter button to start or end recording. In focus mode C (AF-C), the camera will continually adjust focus in response to changes in the distance to the subject; to refocus in focus mode S (AF-S) or to focus on a new subject in focus mode C, tap the subject in the monitor. |
| AREA | Tap to select a focus point and press the shutter button to start or end recording. In focus mode C (AF-C), the camera will continually adjust focus in response to changes in the distance to the subject in the selected focus point. In focus mode S (AF-S), you can move the focus point by tapping the display, but can only refocus using the AF-ON button (216). |
| OFF | Touch focus and shooting disabled. |
To disable touch controls and hide the touch screen mode indicator, select OFF for BUTTON/DIAL SETTING > TOUCH SCREEN SETTING > TOUCH SCREEN ON/OFF.
SHOOTING SETTING
Adjust shooting options.
To display shooting options, press MENU/OK in the shooting display and select the (SHOOTING SETTING) tab.
The options available vary with the shooting mode selected.
DRIVE SETTING
Adjust settings for the various drive modes.
| Option | Description |
| BKT SETTING | Choose the settings used when the drive dial is rotated to BKT (124). |
| CH HIGH SPEED BURST | Select the frame rate used when the drive dial is rotated to CH (continuous high speed): 14, 11, or 8 fps. Note that 14 fps is available only with the electronic shutter and 11 fps only with the electronic shutter or a power-booster grip. |
| CL LOW SPEED BURST | Select the frame rate used when the drive dial is rotated to CL (continuous low speed): 5, 4, or 3 fps. |
| ADV. FILTER SETTING | Choose the filter used when the drive dial is rotated to ADV. (88). |
BKT SETTING
Use BKT SELECT to choose a bracketing type and the AE BKT, ISO BKT, FILM SIMULATION BKT, and WHITE BALANCE BKT options to choose the bracketing amount for each type.
| Option | Description |
| BKT SELECT | Choose from AE BKT, ISO ISO BKT, FILM SIMULATION BKT, WHITE BALANCE BKT, and DYNAMIC RANGE BKT. |
| AE BKT | Adjust exposure bracketing settings. • FRAMES/STEP SETTING: Choose the number of shots in the bracketing sequence (FRAMES) and the amount exposure is varied with each shot (STEP). • 1 FRAME/CONTINUOUS: Choose whether the shots in the bracketing sequence are taken one at a time (1 FRAME) or in a single burst (CONTINUOUS). • SEQUENCE SETTING: Choose the order in which the shots are taken. |
| ISO BKT | Choose from ±½, ±½, and ±1. |
| FILM SIMULATION BKT | Choose the three film simulation types used for film simulation bracketing (100). |
| WHITE BALANCE BKT | Choose from ±1, ±2, and ±3. |
SELF-TIMER
Choose a shutter release delay.
| Option | Description |
| 2 SEC | The shutter is released two seconds after the shutter button is pressed. Use to reduce blur caused by the camera moving when the shutter button is pressed. The self-timer lamp blinks as the timer counts down. |
| 10 SEC | The shutter is released ten seconds after the shutter button is pressed. Use for photographs in which you wish to appear yourself. The self-timer lamp blinks immediately before the picture is taken. |
| OFF | Self-timer off. |
If an option other than OFF is selected, the timer will start when the shutter button is pressed all the way down. The display shows the number of seconds remaining until the shutter is released. To stop the timer before the picture is taken, press DISP/BACK.
Stand behind the camera when using the shutter button. Standing in front of the lens can interfere with focus and exposure.
The self-timer turns off automatically when the camera is turned off.
INTERVAL TIMER SHOOTING
Configure the camera to take photos automatically at a preset interval.
1 Highlight INTERVAL TIMER SHOOTING in the (SHOOTING SETTING) tab and press MENU/OK.
2 Use the selector to choose the interval and number of shots. Press MENU/OK to proceed.
3 Use the selector to choose the starting time and then press MENU/OK. Shooting will start automatically.
Interval timer photography cannot be used at a shutter speed of B (bulb) or with multiple exposure photography. In burst mode, only one picture will be taken each time the shutter is released.
Use of a tripod is recommended.
Check the battery level before starting. We recommend using the AC-9VS AC power adapter supplied with the VPB-XH1 vertical power-booster grip.
The display turns off between shots and lights a few seconds before the next shot is taken. The display can be activated at any time by pressing the shutter button.
To continue shooting until the memory card is full, set the number of shots to .
SHUTTERTYPE
Choose the shutter type. Choose the electronic shutter to mute the shutter sound.
| Option | Description |
| MS MECHANICAL SHUTTER | Take pictures with the mechanical shutter. |
| ES ELECTRONIC SHUTTER | Take pictures with the electronic shutter. |
| EF E-FRONT CURTAIN SHUTTER | Reduces the lag between the shutter button being pressed and the start of the exposure. |
| M-E MECHANICAL + ELECTRONIC | The camera chooses the mechanical or electronic shutter according to shooting conditions. |
| EF+ M E-FRONT + MECHANICAL | The camera chooses the mechanical or electronic front curtain shutter according to shooting conditions. |
| EF+ M-E E-FRONT + MECHANICAL + ELECTRONIC | The camera chooses the mechanical, electronic, or electronic front curtain shutter according to shooting conditions. |
If E ELECTRONIC SHUTTER, MECHANICAL + ELECTRONIC, or E-FRONT + MECHANICAL + ELECTRONIC is selected, shutter speeds faster than 1/8000 s can be chosen by rotating the shutter speed dial to 8000 and then rotating the rear command dial.
When using the electronic shutter, note the following:
Distortion may be visible in shots of moving subjects.
- Distortion may also be visible in hand-held shots taken at high shutter speeds; use of a tripod is recommended.
- Banding and fog may occur in shots taken under fluorescent lights or other flickering or erratic illumination.
- When taking pictures with the shutter muted, respect your subjects' image rights and right to privacy.
When using the electronic front-curtain shutter, note the following:
- Faster shutter speeds are more likely to result in uneven exposure and loss of resolution in out-of-focus areas of the frame.
When the electronic shutter is used, the flash is disabled, sensitivity is restricted to values of ISO 12800-200, and long exposure noise reduction has no effect.
FLICKER REDUCTION
Select ON to reduce flicker in pictures and the display when shooting under fluorescent lighting and other similar light sources.
| Options | |
| ON | OFF |
| Enabling flicker reduction disables the electronic shutter and increases the time needed to record pictures. | |
ISO AUTO SETTING
Choose the base sensitivity, maximum sensitivity, and minimum shutter speed for the A position on the sensitivity dial. Settings for AUTO1, AUTO2, and AUTO3 can be stored separately; the defaults are shown below.
| Item | Options | Default | ||
| AUTO1 | AUTO2 | AUTO3 | ||
| DEFAULT SENSITIVITY | 12800–200 | 200 | ||
| MAX. SENSITIVITY | 12800–400 | 800 | 1600 | 3200 |
| MIN. SHUTTER SPEED | 1/500–1/4 SEC, AUTO | AUTO | ||
The camera automatically chooses a sensitivity between the default and maximum values; sensitivity is only raised above the default value if the shutter speed required for optimal exposure would be slower than the value selected for MIN. SHUTTER SPEED.
If the value selected for DEFAULT SENSITIVITY is higher than that selected for MAX. SENSITIVITY, DEFAULT SENSITIVITY will be set to the value selected for MAX. SENSITIVITY.
The camera may select shutter speeds slower than MIN. SHUTTER SPEED if pictures would still be underexposed at the value selected for MAX. SENSITIVITY. If AUTO is selected for MIN. SHUTTER SPEED, the camera will automatically choose a minimum shutter speed approximately equal to the inverse of the lens' focal length, in seconds (for example, if the lens has a focal length of 50~mm , the camera will choose a minimum shutter speed in the neighborhood of 12 s ). The minimum shutter speed is not affected by the option selected for image stabilization.
IS MODE
Reduce blur.
| Option | Description |
| CONTINUOUS | Image stabilization on. |
| SHOOTING ONLY | Image stabilization enabled only when the shutter button is pressed halfway (focus mode C) or the shutter is released. |
| OFF | Image stabilization off; appears in the display. Choose when the camera is mounted on a tripod or otherwise fixed in place. |
The setting selected with the lens image stabilization switch, if any, takes priority over the setting chosen with IS MODE. Note that vibration or camera sounds may be noticeable as image stabilization takes effect.
MOUNT ADAPTER SETTING
Adjust settings for M-mount lenses connected using an optional FUJIFILM M MOUNT ADAPTER.
Choosing a Focal Length
If the lens has a focal length of 21, 24, 28, or 35mm , choose a matching option in the MOUNT ADAPTER SETTING menu.
For other lenses, select option 5 or 6 and use the selector to enter the focal length.
Distortion Correction
Choose from STRONG, MEDIUM, or WEAK options to correct BARREL or PINCUSHION distortion.
Color Shading Correction
Color (shading) variations between the center and edges of the frame can be adjusted separately for each corner.
To use color shading correction, follow the steps below.
1 Rotate the rear command dial to choose a corner. The selected corner is indicated by a triangle.
2 Use the selector to adjust shading until there is no visible difference in color between the selected corner and the center of the image. Press the selector left or right to adjust colors on the cyan-red axis. Press the selector up or down to adjust colors on the blue-yellow axis.
To determine the amount required, adjust color shading correction while taking photos of blue sky or a sheet of gray paper.
Peripheral Illumination Correction
Choose from values between -5 and +5. Choosing positive values increases peripheral illumination, while choosing negative values reduces peripheral illumination. Positive values are recommended for vintage lenses, negative val
ues to create the effect of images taken with an antique lens or a pinhole camera.
To determine the amount required, adjust peripheral illumination correction while taking photos of blue sky or a sheet of gray paper.
MULTI EXPOSURE
Create a photograph that combines two exposures.
1 After rotating the drive dial to S, select ON for MULTI EXPOSURE in the (SHOOTING SETTING) tab and press MENU/OK.
2 Take the first shot.
3 Press MENU/OK. The first shot will be shown superimposed on the view through the lens and you will be prompted to take the second shot.
To return to Step 2 and retake the first shot, press the selector left. To save the first shot and exit without creating a multiple exposure, press DISP/BACK.
4 Take the second shot, using the first frame as a guide.
5 Press MENU/OK to create the multiple exposure, or press the selector left to return to Step 4 and retake the second shot.
To end multiple exposure photography, select OFF for MULTI EXPOSURE.
WIRELESS COMMUNICATION
Connect to smartphones running the latest version of the FUJIFILM Camera Remote app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.
For downloads and other information, visit: http://app.fujifilm-dsc.com/en/camera_remote/
FLASH SETTING
Adjust flash-related settings.
To display flash-related settings, press MENU/OK in the shooting display and select the (FLASH SETTING) tab.
The options available vary with the shooting mode selected.
FLASH FUNCTION SETTING
Choose a flash control mode, flash mode, or sync mode or adjust the flash level. The options available vary with the flash.
See page 224 for more information.
RED EYE REMOVAL
Remove red-eye effects caused by the flash.
| Option | Description |
| FLASH+REMOVAL | A red-eye reduction pre-flash is combined with digital red-eye removal. |
| FLASH | Flash red-eye reduction only. |
| REMOVAL | Digital red-eye removal only. |
| OFF | Flash red-eye reduction and digital red-eye removal off. |
Flash red-eye reduction can be used in TTL flash control mode. Digital red-eye removal is performed only when a face is detected and is not available with RAW images.
TTL-LOCK MODE
Instead of adjusting flash level with each shot, TTL flash control can be locked for consistent results across a series of photographs.
| Option | Description |
| LOCK WITH LAST FLASH | Flash output is locked at the value metered for the most recent photo. An error message will be displayed if no previously metered value exists. |
| LOCK WITH METERING FLASH | The camera emits a series of pre-flashes and locks flash output at the metered value. |
To use TTL lock, assign TTL-LOCK to a camera control and then use the control to enable or disable TTL lock (图218).
Flash compensation can be adjusted while TTL lock is in effect.
LED LIGHT SETTING
Choose whether to use the flash unit's LED video light (if available) as a catchlight or AF-assist illuminator when taking photos.
| Option | Role of LED video light in still photography |
| CATCHLIGHT | Catchlight |
| AF ASSIST | AF-assist illuminator |
| AF ASSIST+CATCHLIGHT | AF-assist illuminator and catchlight |
| OFF | None |
This option can also be accessed via the FLASH FUNCTION SETTING menu.
MASTER SETTING
Choose a flash group (A, B, or C) for the flash mounted on the camera hot shoe when it functions as a master flash controlling remote flash units via FUJIFILM wireless optical flash control, or choose OFF to limit master flash output to a level that does not affect the final picture.
| Options | |||
| Gr A | Gr B | Gr C | OFF |
This option can also be accessed via the FLASH FUNCTION SETTING menu.
CH SETTING
Choose the channel used for communication between the master flash and remote flash units when using FUJIFILM optical wireless flash control. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity.
| Options | |||
| CH1 | CH2 | CH3 | CH4 |
Adjust movie-recording options.
To display options for movie recording, press MENU/OK in the shooting display and select the (MOVIE SETTING) tab.
The options available vary with the shooting mode selected.
MOVIE MODE
Before shooting movies, choose the frame rate, bit rate, and frame size and aspect ratio.
1 In the shooting menu, select Movie SETTING, then highlight Movie MODE and press MENU/OK.
2 Press the selector up or down to highlight the desired frame size and aspect ratio (①) and press the selector right. Choose from 4K 16:9 (4K, aspect ratio 16:9), 4K 17:9 (4K, aspect ratio 17:9), HD 16:9 (Full HD, aspect ratio 16:9), HD 17:9 (Full HD, aspect ratio 17:9), and HD 16:9 (HD, aspect ratio 16:9).
3 Press the selector up or down to highlight a frame rate (②) and press the selector right.
| Options | |||||
| 59.94P | 50P | 29.97P | 25P | 24P | 23.98P |
4 Press the selector up or down to highlight a bit rate (③) and press MENU/OK.
| Options | ||
| 200Mbps | 100Mbps | 50Mbps |
FULL HD HIGH SPEED REC
Record high-frame-rate Full HD movies that play back in slow motion, giving you time to view fast-moving subjects or details too fleeting for the naked eye: a batter's swing, darting insects, or swiftly-flowing waters.
| Option | Description |
| 2x 59.94P 120P | Record Full HD footage at 2x, 4x, or 5x speed and frame rates of 120 or 100 fps. The movies play back at ½, ¼, or ½ speed. Maxi-mum recording length is 6 minutes. |
| 2x 50P 100P | |
| 4x 29.97P 120P | |
| 4x 25P 100P | |
| 5x 24P 120P | |
| 5x 23.98P 120P | |
| OFF | High-speed recording off. |
High-speed movies are recorded with no sound.
FILMSIMULATION(MOVIE)
Choose a film simulation effect for movie recording.
| Option | Description |
| PROVIA/STANDARD | See "FILM SIMULATION" (100). |
| Velvia/VIVID | |
| ASTIA/SOFT | |
| CLASSIC CHROME | |
| PRO Neg. Hi | |
| PRO Neg. Std | |
| ETERNA/CINEMA | |
| ACROS | |
| MONochrome | |
| SEPIA |
DYNAMIC RANGE (MOVIE)
Choose a dynamic range for movie recording.
| Option | Description |
| 100 100% | See “DYNAMIC RANGE” (101). |
| 200 200% | |
| $400 400% |
The MOVIE SETTING > DYNAMIC RANGE (MOVIE) option is available when OFF is selected for MOVIE SETTING > F-Log RECORDING. 200% is available at sensitivities of from ISO 400 to ISO 12800, 400% at sensitivities of from ISO 800 to 12800. Auto dynamic range adjustment (AUTO) is not supported.
WHITE BALANCE (MOVIE)
Adjust white balance for movie recording.
| Option | Description |
| AUTO | See “WHITE BALANCE” (国102). |
| Ω1/Ω2/Ω3 | |
| K | |
| * | |
| * | |
| *1 | |
| *2 | |
| *3 | |
| * |
HIGHLIGHT TONE (MOVIE)
Choose how the camera records highlights when shooting movies.
| Options | ||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 |
SHADOW TONE (MOVIE)
Choose how the camera records shadows when shooting movies.
| Options | ||||||
| +4 | +3 | +2 | +1 | 0 | -1 | -2 |
COLOR (MOVIE)
Adjust color density for movie recording.
Options
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
SHARPNESS (MOVIE)
Sharpen or soften outlines in movies.
Options
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
NOISE REDUCTION (MOVIE)
Reduce noise in movies shot at high sensitivities.
Options
| +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 |
F-Log RECORDING
Select ON to record movies using a soft gamma curve with a wide gamut suitable for further processing post-production. The minimum value for sensitivity is set to ISO 800.
PERIPHERAL LIGHT CORRECTION (MOVIE)
Select ON to enable peripheral illumination correction during movie recording.
Select OFF if you notice banding in movies recorded using this option. If ON is selected when a lens that does not transmit data to the camera is attached using a FUJIFILM M MOUNT ADAPTER (available separately), peripheral illumination will be adjusted according to the option selected for SHOOTING SETTING > MOUNT ADAPTER SETTING > PERIPHERAL ILLUMINATION CORRECTION in the shooting menu (图 131).
FOCUS AREA (MOVIE)
Choose the focus area for movies shot using autofocus or manual focus.
MOVIE AF MODE
Choose how the camera selects the focus point for movie recording.
| Option | Description |
| MULTI | Automatic focus-point selection. |
| AREA | The camera focuses on the subject in the selected focus area. |
AF-C CUSTOM SETTING (MOVIE)
Select focus-tracking options when recording movies in focus mode C.
TRACKING SENSITIVITY
Choose how long the camera waits to switch focus when an object enters the focus area behind or in front of the current subject. See "TRACKING SENSITIVITY" (113).
| 0 | ||||
| 0 | 1 | 2 | 3 | 4 |
AF SPEED
Adjust the autofocus response speed.
| Options | ||||||||||
| -5 | -4 | -3 | -2 | -1 | 0 | +1 | +2 | +3 | +4 | +5 |
PRE-AF (MOVIE)
If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed halfway. Note that this increases the drain on the battery.
| Options | |
| ON | OFF |
FACE/EYE DETECTION SETTING (MOVIE)
Enable or disable Intelligent Face Detection (117) when recording movies.
| Option | Description |
| FACE ON/EYE OFF | See “FACE/EYE DETECTION SETTING” (117). |
| FACE ON/EYE AUTO | |
| FACE ON/RIGHT EYE PRIORITY | |
| FACE ON/LEFT EYE PRIORITY | |
| FACE OFF/EYE OFF |
When Intelligent Face Detection is enabled, the camera will focus using continuous AF even when single AF (S) is chosen with the focus selector. Intelligent Face Detection is not available in manual focus mode.
MF ASSIST (MOVIE)
Choose how focus is displayed in manual focus mode.
| Option | Description |
| STANDARD | See“MF ASSIST”(119). |
| DIGITAL SPLIT IMAGE | |
| FOCUS PEAK HIGHLIGHT |
FOCUS CHECK (MOVIE)
If ON is selected, the display will automatically zoom in on the selected focus area when the focus ring is rotated in single AF or manual focus mode.
| Options | |
| ON | OFF |
HDMI OUTPUT INFO DISPLAY
If ON is selected, HDMI devices to which the camera is connected will mirror the information in the camera display.
| Options | |
| ON | OFF |
4K MOVIE OUTPUT
Choose the destination for 4K movies shot while the camera is connected to an HDMI recorder or other device that supports 4K.
| Option | Description |
| SD 4K HDMI FHD | 4K movies are recorded to a camera memory card in 4K and output to the HDMI device in Full HD. |
| SD FHD HDMI 4K | 4K movies are output to the HDMI device in 4K and recorded to the camera memory card in Full HD. |
| SD - HDMI 4K | 4K movies are output to the HDMI device in 4K. The camera does not record 4K movies to a memory card. |
This option is only available when 4K 16:9 or 4K 17:9 is selected for MOVIE SETTING > MOVIE MODE in the shooting menu.
FULL HD MOVIE OUTPUT
Choose the destination for Full HD movies shot while the camera is connected to an HDMI device.
| Option | Description |
| SD FHD HDMI FHD | Full HD movies are output to the HDMI device and recorded to the camera memory card. |
| SD - HDMI FHD | Full HD movies are not recorded to the camera memory card but are output to the HDMI device. |
This option is only available when FHD: 16:9 or FHD: 17:9 is selected for MOVIE SETTING > MOVIE MODE in the shooting menu.
4K HDMI STANDBY QUALITY
Choose whether output to connected HDMI devices switches from 4K to Full HD during standby.
| Option | Description |
| ZK | Output to HDMI devices continues at 4K during standby. |
| FHD | Output to HDMI devices switches to Full HD during standby, reducing the drain on the battery. |
HDMI REC CONTROL
Choose whether the camera sends movie start and stop signals to the HDMI device when the shutter button is pressed to start and stop movie recording.
| Options | |
| ON | OFF |
AUDIO SETTING
Adjust audio-related settings for movie recording.
INTERNAL MIC LEVEL ADJUSTMENT
Adjust the recording level for the built-in microphone.
| Option | Description |
| AUTO | The camera adjusts the recording level automatically. |
| MANUAL | Adjust the recording level manually. Press the selector right to choose from 25 recording levels. |
| OFF | Turn the built-in microphone off. |
EXTERNAL MIC LEVEL ADJUSTMENT
Adjust the recording level for external microphones.
| Option | Description |
| AUTO | The camera adjusts the recording level automatically. |
| MANUAL | Adjust the recording level manually. Press the selector right to choose from 25 recording levels. |
| OFF | Disable recording using external microphones. |
MIC LEVEL LIMITER
Reduces distortion caused by input that exceeds the limits of the microphone's audio circuits.
| Options | |
| ON | OFF |
WIND FILTER
Choose whether to enable wind noise reduction during movie recording.
| Options | |
| ON | OFF |
LOW CUT FILTER
Choose whether to enable the low-cut filter, reducing low-frequency noise during movie recording.
| Options | |
| ON | OFF |
HEADPHONES VOLUME
Adjust the volume of audio output to headphones connected to the VPB-XH1 vertical power-booster grip.
| Option | Description |
| 10—1 | Choose a volume of from 1 to 10. |
| 0 | Mute output to the headphones. |
TIME CODE SETTING
Adjust time code (hour, minute, second, and frame number) display settings for movie recording.
TIME CODE DISPLAY
Select ON to display time codes during movie recording and playback.
| Options | |
| ON | OFF |
START TIME SETTING
Choose the time code starting time.
| Option | Description |
| MANUAL INPUT | Highlight this option and press the selector right to choose a start time manually. |
| CURRENT TIME | Set the start time to the current time. |
| RESET | Set the start time to 00:00:00. |
COUNT UP SETTING
Choose whether time is clocked continuously or only during movie recording.
| Option | Description |
| REC RUN | Time is clocked only during movie recording. |
| FREE RUN | Time is clocked continuously. |
DROP FRAME
At frame rates of 59.94P, and 29.97P, a discrepancy will gradually develop between the time code (measured in seconds) and the actual recording time (measured in fractions of a second). Choose whether the camera drops frames as necessary to match the recording time to the time code. Selecting a frame rate of 23.98P disables frame drop.
| Option | Description |
| ON | The camera drops frames as necessary to maintain a strict match between the time code and the actual recording time. |
| OFF | Frames are not dropped. |
The time code display varies with the option selected.
HDMI TIME CODE OUTPUT
Choose whether time codes are output to HDMI devices.
| Options | |
| ON | OFF |
TALLY LIGHT
Choose the lamp (indicator or AF-assist) that lights during movie recording and whether the lamp blinks or remains steady.
Indicator lamp
AF-assist illuminator
| Option | Description |
| FRONT OFFREAR | The indicator lamp lights during movie recording. |
| FRONT OFFREAR | The indicator lamp blinks during movie recording. |
| FRONT OFFREAR | The indicator and AF-assist lamps light during movie recording. |
| FRONT OFFREAR | The AF-assist lamp lights during movie recording. |
| FRONT OFFREAR | The indicator and AF-assist lamps blink during movie recording. |
| FRONT OFFREAR | The AF-assist lamp blinks during movie recording. |
| FRONT OFFREAR | The indicator and AF-assist lamps remain off during movie recording. |
MOVIE SILENT CONTROL
Select ON to disable camera dials and adjust movie settings using touch-screen controls, preventing the sounds made by camera controls being recorded with the movie (23).
| Options | |
| ON | OFF |
Playback and the Playback Menu
ThePlaybackDisplay
This section lists the indicators that may be displayed during playback.
For illustrative purposes, displays are shown with all indicators lit.
① Date and time 39, 41, 179
② Face detection indicator. 117
③ Bluetooth ON/OFF. 206
④ Image transfer order. 169
(5) Image transfer status. 244
(6) Number of frames selected for upload...169
7 Card slot 157
⑧ Frame number. 203
9 Protected image 164
10 Location data. 210, 245
(11) Battery level 38
12 Image size/quality 98, 99
(13) Film simulation. 100
14 Dynamic range. 101
(15) White balance. 102
Sensitivity. 77
17 Exposure compensation 80
18 Aperture. 57,62,63
(19)Shutter speed. 57,58,63
20Playback mode indicator. 47
21 Movie icon. 53
22 Time code 148
23 Red-eye removal indicator 134, 166
24 Advanced filter 87
25 Gift image 47
26 Photobook assist indicator. 171
DPOF print indicator 173
28 Rating. 153
The DISP/BACK Button
The DISP/BACK button controls the display of indicators during playback.
-Favorite: Rating Pictures
To rate the current picture, press DISP/BACK and press the selector up and down to select from zero to five stars.
Viewing Photo Information
The photo information display changes each time the selector is pressed up.
Basic data
Info display 2
Info display 1
Zooming in on the Focus Point
Press the center of the rear command dial to zoom in on the focus point. Press again to return to full-frame playback.
Viewing Pictures
Read this section for information on playback zoom and multi-frame playback.
Use the rear command dial to go from full-frame playback to playback zoom or multi-frame playback.
Full-frame playback
Multi-frame playback
Nine-frame view
Hundred-frame view
Playback zoom
DISP/BACK
MENU/OK
Medium zoom
Maximum zoom
Playback Zoom
Rotate the rear command dial right to zoom in on the current picture, left to zoom out. To exit zoom, press DISP/BACK, MENU/OK, or the center of the rear command dial.
The maximum zoom ratio varies with the option selected for IMAGE QUALITY SETTING > IMAGE SIZE. Playback zoom is not available with cropped or resized copies saved at a size of 640.
Scroll
When the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display.
Navigation window
Multi-Frame Playback
To change the number of images displayed, rotate the rear command dial left when a picture is displayed full frame.
Use the selector to highlight images and press MENU/OK to view the highlighted image full frame. In the nine- and hundred-frame displays, press the selector up or down to view more pictures.
The Playback Menu
Adjust playback settings.
The playback menu is displayed when you press MENU/OK in playback mode.
SWITCH SLOT
Choose the card from which images will be played back.
If two memory cards are inserted, you can press and hold the button to choose a card for playback.
RAW CONVERSION
RAW pictures store information on camera settings separately from the data captured by the camera image sensor. Using PLAY BACK MENU > RAW CONVERSION, you can create JPEG copies of RAW pictures using different options for the settings listed on page 159. The original image data are unaffected, allowing a single RAW image to be processed in a multitude of different ways.
1 With a RAW picture displayed, press MENU/OK to display the playback menu.
2 Press the selector up or down to highlight l PLAY BACK MENU > RAW CONVERSION and press MENU/OK to display settings.
These options can also be displayed by pressing the Q button during playback.
3 Press the selector up or down to highlight a setting and press the selector right to display options. Press the selector up or down to highlight the desired option and press MENU/OK to select and return to the settings list. Repeat this step to adjust additional settings.
4 Press the Q button to preview the JPEG copy and press MENU/OK to save.
The settings that can be adjusted when converting pictures from RAW to JPEG are:
| Setting | Description |
| REFLECT SHOOTING COND. | Create a JPEG copy using the settings in effect at the time the photo was taken. |
| IMAGE SIZE | Choose an image size. |
| IMAGE QUALITY | Adjust image quality. |
| PUSH/PULL PROCESSING | Adjust exposure. |
| DYNAMIC RANGE | Enhance details in highlights for natural contrast. |
| D RANGE PRIORITY | Reduce loss of detail in highlights and shadows for natural-looking results when photographing high-contrast scenes. |
| FILM SIMULATION | Simulate the effects of different types of film. |
| GRAIN EFFECT | Add a film grain effect. |
| WHITE BALANCE | Adjust white balance. |
| WB SHIFT | Fine-tune white balance. |
| HIGHLIGHT TONE | Adjust highlights. |
| SHADOW TONE | Adjust shadows. |
| COLOR | Adjust color density. |
| SHARPNESS | Sharpen or soften outlines. |
| NOISE REDUCTION | Process the copy to reduce mottling. |
| LENS MODULATION OPTIMIZER | Improve definition by adjusting for diffraction and the slight loss of focus at the periphery of the lens. |
| COLOR SPACE | Choose the color space used for color reproduction. |
ERASE
Delete individual pictures, multiple selected pictures, or all pictures.
Deleted pictures cannot be recovered. Protect important pictures or copy them to a computer or other storage device before proceeding.
| Option | Description |
| FRAME | Delete pictures one at a time. |
| SELECTED FRAMES | Delete multiple selected pictures. |
| ALL FRAMES | Delete all unprotected pictures. |
FRAME
1 Select FRAME for ERASE in the playback menu.
2 Press the selector left or right to scroll through pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.
SELECTED FRAMES
1 Select SELECTED FRAMES for ERASE in the playback menu.
2 Highlight pictures and press MENU/OK to select or deselect (pictures in photobooks or printer orders are shown by ). Selected pictures are indicated by check marks () .
3 When the operation is complete, press DISP/BACK to display a confirmation dialog.
4 Highlight OK and press MENU/OK to delete the selected pictures.
ALL FRAMES
1 Select ALL FRAMES for ERASE in the playback menu.
2 A confirmation dialog will be displayed; highlight OK and press MENU/OK to delete all unprotected pictures.
Pressing DISP/BACK cancels deletion; note that any pictures deleted before the button was pressed cannot be recovered.
If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures.
SIMULTANEOUS DELETE(RAW SLOT1/JPG SLOT2)
Taking photos with RAW/JPEG selected for SAVE DATA SET-UP > CARD SLOT SETTING (STILL IMAGE) creates two copies: a RAW image recorded to the card in Slot 1 and a JPEG image recorded to the card in Slot 2. Choose whether deleting the RAW image will also delete the JPEG copy.
| Option | Description |
| ON | Deleting the RAW image from the card in Slot 1 also deletes the JPEG copy from the card in Slot 2. |
| OFF | Deleting the RAW image from the card in Slot 1 does not delete the JPEG copy from the card in Slot 2. |
CROP
Create a cropped copy of the current picture.
1 Display the desired picture.
2 Select CROP in the playback menu.
3 Use the rear command dial to zoom in and out and press the selector up, down, left, or right to scroll the picture until the desired portion is displayed.
4 Press MENU/OK to display a confirmation dialog.
5 Press MENU/OK again to save the cropped copy to a separate file.
Larger crops produce larger copies; all copies have an aspect ratio of 3:2. If the size of the final copy will be 640, YES will be displayed in yellow.
RESIZE
Create a small copy of the current picture.
1 Display the desired picture.
2 Select RESIZE in the playback menu.
3 Highlight a size and press MENU/OK to display a confirmation dialog.
4 Press MENU/OK again to save the resized copy to a separate file.
The sizes available vary with the size of the original image.
PROTECT
Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK.
- FRAME: Protect selected pictures. Press the selector left or right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete.
- SET ALL: Protect all pictures.
- RESET ALL: Remove protection from all pictures.
Protected pictures will be deleted when the memory card is formatted.
Protecting images currently selected for upload to paired smartphones or tablets removes upload marking.
IMAGE ROTATE
Rotate pictures.
1 Display the desired picture.
2 Select IMAGE ROTATE in the playback menu.
3 Press the selector down to rotate the picture 90^ clockwise, up to rotate it 90^ counterclockwise.
4 Press MENU/OK. The picture will automatically be displayed in the selected orientation whenever it is played back on the camera.
Protected pictures cannot be rotated. Remove protection before rotating pictures.
The camera may not be able to rotate pictures created with other devices. Pictures rotated on the camera will not be rotated when viewed on a computer or on other cameras.
Pictures taken with 2 SCREEN SET-UP > AUTOROTATE PB are automatically displayed in the correct orientation during playback.
RED EYE REMOVAL
Remove red-eye from portraits. The camera will analyze the image; if red-eye is detected, the image will be processed to create a copy with reduced red-eye.
1 Display the desired picture.
2 Select RED EYE REMOVAL in the playback menu.
3 Press MENU/OK.
Results vary depending on the scene and the camera's success in detecting faces. Red eye cannot be removed from pictures that have already been processed using red-eye removal, which are indicated by a icon during playback.
The amount of time needed to process the image varies with the number of faces detected.
Red eye removal cannot be performed on RAW images.
VOICE MEMO SETTING
Add a voice memo to the current photograph.
1 Select ON for VOICE MEMO SETTING in the playback menu.
2 Display a photo to which you wish to add a voice memo.
3 Press and hold the center of the front command dial to record the memo. Recording ends after 30 s or when you release the dial.
The new memo will be recorded over any existing memos. Deleting the picture also deletes the memo.
Voice memos cannot be added to movies or protected pictures.
-Playing Voice Memos
Pictures with voice memos are indicated by icons during playback. To play a memo, select the picture and press the center of the front command dial; a progress bar will be displayed while the memo plays back. Volume can be adjusted by pressing MENU/OK to pause playback and then pressing the selector up or down to adjust the volume. Press MENU/OK again to resume playback. Volume can also be adjusted using SOUND SET-UP > PLAYBACK VOLUME.
COPY
Copy pictures between the cards in the first and second slots.
1 Select COPY in the playback menu.
2 Highlight one of the following options and press the selector right:
- SLOT1 SLOT2: Copy pictures from the card in the first slot to the card in the second slot.
- SLOT2 SLOT1: Copy pictures from the card in the second slot to the card in the first slot.
3 Highlight one of the following options and press MENU/OK:
- FRAME: Copy selected pictures. Press the selector left or right to view pictures and press MENU/OK to copy the current picture.
- ALL FRAMES: Copy all pictures.
Copying ends when the destination is full.
IMAGE TRANSFER ORDER
Select photos for upload to a paired smartphone or tablet.
1 Select IMAGE TRANSFER ORDER > SELECT FRAMES in the playback menu.
2 Highlight photos and press MENU/OK to select or deselect. Repeat until all the desired photos have been selected.
3 Press DISP/BACK to exit to playback.
If ON is selected for both CONNECTION SETTING > Bluetooth SETTINGS > Bluetooth ON/OFF and AUTO IMAGE TRANSFER, upload will begin shortly after you exit to playback or turn the camera off.
If PAIRING/TRANSFER ORDER is selected for CONNECTION SETTING > GENERAL SETTINGS > BUTTON SETTING, photos can also be marked for upload using the Fn1 button. If ON is selected for CONNECTION SETTING > Bluetooth SETTINGS > AUTO IMAGE TRANSFER, photos will automatically be marked for upload as they are taken. Image transfer orders can contain a maximum of 999 pictures. To remove upload marking from all pictures in the current order, select IMAGE TRANSFER ORDER > RESET ORDER. The following cannot be selected for upload:
- Protected pictures
Movies - RAW images
-Gift" pictures (pictures taken with other cameras)
WIRELESS COMMUNICATION
Connect to smartphones running the latest version of the FUJIFILM Camera Remote app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.
For downloads and other information, visit: http://app.fujifilm-dsc.com/en/camera_remote/
SLIDE SHOW
View pictures in an automated slide show. Press MENU/OK to start and press the selector right or left to skip ahead or back. Press DISP/BACK at any time during the show to view on-screen help. The show can be ended at any time by pressing MENU/OK.
The camera will not turn off automatically while a slide show is in progress.
PHOTOBOOK ASSIST
Create books from your favorite photos.
Creating a Photobook
1 Select NEW BOOK for 2 PLAY BACK MENU > PHOTOBOOK ASSIST.
2 Scroll through the images and press the selector up to select or deselect. Press MENU/OK to exit when the book is complete.
Neither photographs or smaller nor movies can be selected for photobooks.
The first picture selected becomes the cover image. Press the selector down to select the current image for the cover instead.
3 Highlight COMPLETE PHOTOBOOK and press MENU/OK (to select all photos for the book, choose SELECT ALL). The new book will be added to the list in the photobook assist menu.
Books can contain up to 300 pictures. Books that contain no photos are automatically deleted.
-Photobooks
Photobooks can be copied to a computer using MyFinePix Studio software.
Viewing Photobooks
Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the selector left or right to scroll through the pictures.
Editing and Deleting Photobooks
Display the photobook and press MENU/OK. The following options will be displayed; select the desired option and follow the on-screen instructions.
- EDIT: Edit the book as described in "Creating a Photobook".
- ERASE: Delete the book.
PC AUTO SAVE
Upload pictures from the camera to a computer running the latest version of FUJIFILM PC AutoSave (note that you must first install the software and configure the computer as a destination for images copied from the camera).
For downloads and other information, visit: http://app.fujifilm-dsc.com/en/pc_autosave/
PRINT ORDER (DPOF)
Create a digital "print order" for DPOF-compatible printers.
1 Select回PLAY BACK MENU > PRINT ORDER (DPOF).
2 Select WITH DATE to print the date of recording on pictures, WITHOUT DATE to print pictures without dates, or RESET ALL to remove all pictures from the print order before proceeding.
3 Display a picture you wish to include in or remove from the print order.
4 Press the selector up or down to choose the number of copies (up to 99). To remove a picture from the order, press the selector down until the number of copies is 0.
5 Repeat steps 3-4 to complete the print order.
6 The total number of prints is displayed in the monitor. Press MENU/OK to exit.
The pictures in the current print order are indicated by a icon during playback.
Print orders can contain a maximum of 999 pictures.
If a memory card is inserted containing a print order created by another camera, you will need to delete the order before creating as described above.
instax PRINTER PRINT
To print pictures to optional FUJIFILM instax SHARE printers, first select CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password, then follow the steps below.
1 Turn the printer on.
2 Select PLAY BACK MENU > instax PRINTER PRINT. The camera will connect to the printer.
3 Use the selector to display the picture you want to print, then press MENU/OK. The picture will be sent to the printer and printing will start.
Pictures taken with other cameras cannot be printed.
The area printed is smaller than the area visible in the LCD monitor.
The displays may vary depending on the printer connected.
DISP ASPECT
Choose how High Definition (HD) devices display pictures with an aspect ratio of 3:2 (this option is available only when an HDMI cable is connected). Select 16:9 to display the image so that it fills the screen with its top and bottom cropped out, 3:2 to display the entire image with black bands at either side.
| Option | ||
| 16:9 | 3:2 | |
| Display | ||
MEMO
The Setup Menus
USER SETTING
Adjust basic camera settings.
To access basic camera settings, press MENU/OK, select the (SET UP) tab, and choose USER SETTING.
FORMAT
To format a memory card:
1 Select USER SETTING > FORMAT in the (SET UP) tab.
2 Highlight the slot containing the card you wish to format and press MENU/OK.
3 A confirmation dialog will be displayed. To format the memory card, highlight OK and press MENU/OK. To exit without formatting the memory card, select CANCEL or press DISP/BACK.
All data—including protected pictures—will be deleted from the memory card. Be sure important files have been copied to a computer or other storage device.
Do not open the battery-chamber cover during formatting.
The format menu can also be displayed by pressing the center of the rear command dial while pressing and holding the button.
DATE/TIME
To set the camera clock:
1 Select USER SETTING > DATE/TIME in the (SET UP) tab.
2 Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change. To change the order in which the year, month, and day are displayed, highlight the date format and press the selector up or down.
3 Press MENU/OK to set the clock.
TIME DIFFERENCE
Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the difference between your local and home time zone:
1 Highlight + LOCAL and press MENU/OK.
2 Use the selector to choose the time difference between local time and your home time zone. Press MENU/OK when settings are complete.
To set the camera clock to local time, highlight LOCAL and press MENU/OK. To set the clock to the time in your home time zone, select HOME. If LOCAL is selected, will be displayed in yellow for about three seconds when the camera is turned on.
Options
+LOCAL
HOME
言語/LANG.
Choose a language.
MY MENU SETTING
Edit the items listed in the My (MY MENU) tab, a personalized custom menu of frequently-used options.
1 Highlight USER SETTING > MY MENU SETTING in the (SET UP) tab and press MENU/OK to display the options at right.
2 Press the selector up or down to highlight ADD ITEMS and press MENU/OK. Options that can be added to "my menu" are highlighted in blue.
Items currently in "my menu" are indicated by check marks.
3 Highlight an item and press MENU/OK to add it to "my menu".
4 Press MENU/OK to return to the edit display.
5 Repeat Steps 3 and 4 until all the desired items have been added.
"My menu" can contain up to 16 items.
Editing "My Menu".
To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.
SENSOR CLEANING
Remove dust from the camera image sensor.
- OK: Clean the sensor immediately.
- WHEN SWITCHED ON: Sensor cleaning will be performed when the camera is turned on.
- WHEN SWITCHED OFF: Sensor cleaning will be performed when the camera turns off (sensor cleaning is not however performed if the camera turns off in playback mode).
Dust that cannot be removed using sensor cleaning can be removed manually (图270).
RESET
Reset shooting or setup menu options to default values.
1 Highlight the desired option and press MENU/OK.
| Option | Description |
| SHOOTING MENU RESET | Reset all shooting menu settings other than custom white balance and custom settings banks created using EDIT/SAVE CUSTOM SETTING to default values. |
| SET-UP RESET | Reset all setup menu settings other than DATE/ TIME, TIME DIFFERENCE, and CONNECTION SETTING to default values. |
2 A confirmation dialog will be displayed; highlight OK and press MENU/OK.
SOUND SETTING
Make changes to camera sounds.
To access sound settings, press MENU/OK, select the (SET UP) tab, and choose SOUND SET-UP.
AF BEEP VOL.
Choose the volume of the beep that sounds when the camera focuses. The beep can be muted by selecting OFF.
| Options | |||
| (high) | (medium) | (low) | (OFF (mute)) |
SELF-TIMER BEEP VOL.
Choose the volume of the beep that sounds while the self-timer is active. The beep can be muted by selecting OFF.
| Options | |||
| (high) | (medium) | (low) | OFF (mute) |
OPERATION VOL.
Adjust the volume of the sounds produced when camera controls are operated. Choose OFF to disable control sounds.
| Options | |||
| (high) | (medium) | (low) | OFF (mute) |
SHUTTER VOLUME
Adjust the volume of the sounds produced by the electronic shutter. Choose OFF to disable the shutter sound.
Options
SHUTTERTOUND
Choose the sound made by the electronic shutter.
Options
PLAYBACK VOLUME
Adjust the volume for movie playback. Choose from 10 options between 10 (high) and 1 (low) or select 0 to mute audio during movie playback.
Options
SCREEN SETTING
Make changes to display settings.
To access display settings, press MENU/OK, select the (SET UP) tab, and choose SCREEN SET-UP.
EVF BRIGHTNESS
Adjust the brightness of the display in the electronic viewfinder. Select MANUAL to choose from 13 options from +5 (bright) to -7 (dark), or select AUTO for automatic brightness adjustment.
EVF COLOR
Adjust the hue of the display in the electronic viewfinder. Choose from 11 options between +5 and -5 .
EVF COLOR ADJUSTMENT
Adjust the color of the display in the electronic viewfinder.
1 Adjust colors using the selector.
2 Press MENU/OK.
LCD BRIGHTNESS
Adjust monitor brightness. Choose from 11 options between +5 and -5.
| Options | ||||||||||
| +5 | +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 | -5 |
LCD COLOR
Adjust monitor hue. Choose from 11 options between +5 and -5.
| Options | ||||||||||
| +5 | +4 | +3 | +2 | +1 | 0 | -1 | -2 | -3 | -4 | -5 |
LCD COLOR ADJUSTMENT
Adjust the color of the display in the LCD monitor.
1 Adjust colors using the selector.
2 Press MENU/OK.
IMAGE DISP.
Choose how long images are displayed after shooting. Colors may differ slightly from those in the final image and "noise" mottling may be visible at high sensitivities.
| Option | Description |
| CONTINUOUS | Pictures are displayed until the MENU/OK button is pressed or the shutter button is pressed halfway. To zoom in on the active focus point, press the center of the rear command dial; press again to cancel zoom. |
| 1.5 SEC | Pictures are displayed for the selected time or until the shutter button is pressed halfway. |
| 0.5 SEC | |
| OFF | Pictures are not displayed after shooting. |
AUTOROTATE DISPLAYS
Choose whether the indicators in the viewfinder and LCD monitor rotate to match camera orientation.
| Options | |
| ON | OFF |
PREVIEW EXP./WB IN MANUAL MODE
Select PREVIEW EXP./WB to enable exposure and white balance preview in manual exposure mode, or choose PREVIEW WB to preview only white balance (PREVIEW WB is recommended in situations in which exposure and white balance are likely to change during shooting, as may be the case when you use a flash with an incandescent monitoring lamp). Select OFF when using a flash or on other occasions on which exposure may change when the picture is taken.
| Options | ||
| PREVIEW EXP./WB | PREVIEW WB | OFF |
NATURAL LIVE VIEW
Choose OFF to preview the effects of film simulation, white balance, and other settings in the monitor, ON to make shadows in low-contrast, back-lit scenes and other hard-to-see subjects more visible.
| Options | |
| ON | OFF |
If ON is selected, the effects of camera settings will not be visible in the monitor and colors and tone will differ from those in the final picture. The display will however be adjusted to show the effects of advanced filters and of monochrome and sepia settings.
FRAMING GUIDELINE
Choose a framing grid for shooting mode.
| Option | |||||||||
| GRID 9 | GRID 24 | HD FRAMING | |||||||
| (1) | |||||||||
| A six-by-four grid. | Frame HD pictures in the crop shown by the lines at the top and bottom of the display. | ||||||||
Framing guides are not shown at default settings but can be displayed using SCREEN SET-UP > DISP. CUSTOM SETTING (190). HD framing can be customized using FUJIFILM Tether Shooting Plug-in PRO or Hyper-Utility Software HS-V5.
AUTOROTATE PB
Choose ON to automatically rotate "tall" (portrait-orientation) pictures during playback.
| Options | |
| ON | OFF |
FOCUS SCALE UNITS
Choose the units used for the focus distance indicator.
| Options | |
| METERS | FEET |
APERTURE UNIT FOR CINEMA LENS
Choose whether the camera displays aperture as a T-number (used for movie camera lenses) or an f/-number (used for still camera lenses) when an optional FUJINON MKX-series lens is attached. For information on using cinema lenses, see the documentation provided with the lens.
| Option | Description |
| T NUMBER | A measure of lens aperture commonly used by cinematographers. Lens transmittance is taken into account to better calculate exposure. |
| F NUMBER | A measure of lens aperture commonly used by photographers. Lens transmittance is assumed to be 100%, meaning that the same aperture may produce different exposures depending on the lens. |
DUAL DISPLAY SETTING
Choose the content of the two windows in the dual display.
| Option | Description |
| R:FOCUS L:FRAME | The right (small) window shows a close-up of the focus area, while the left (large) window shows the entire frame. |
| R:FRAME L:FOCUS | The right (small) window shows the entire frame, while the left (large) window shows a close-up of the focus area. |
DISP.CUSTOM SETTING
Choose the items shown in the standard indicator display.
1 In shooting mode, use the DISP/BACK button to display standard indicators.
2 Press MENU/OK and select 2 SCREEN SET-UP > DISP. CUSTOM SETTING in the 2 (SET UP) tab.
3 Highlight items and press MENU/OK to select or deselect.
| Item | Default | Item | Default |
| FRAMING GUIDELINE | □ | FLASH | ✔ |
| ELECTRONIC LEVEL | □ | CONTINUOUS MODE | ✔ |
| FOCUS FRAME | ✔ | DUAL IS MODE | ✔ |
| AF DISTANCE INDICATOR | □ | TOUCH SCREEN MODE | ✔ |
| MF DISTANCE INDICATOR | ✔ | WHITE BALANCE | ✔ |
| HISTogram | □ | FILM SIMULATION | ✔ |
| LIVE VIEW HIGHLIGHT ALERT | □ | DYNAMIC RANGE | ✔ |
| SHOOTING MODE | ✔ | BOOST MODE | ✔ |
| APERTURE/S-SPEED/ISO | ✔ | FRAMES REMAINING | ✔ |
| INFORMATION BACKGROUND | ✔ | IMAGE SIZE/QUALITY | ✔ |
| Expo. Comp. (Digit) | □ | MOVIE MODE & REC. TIME | ✔ |
| Expo. Comp. (Scale) | ✔ | IMAGE TRANSFER ORDER | ✔ |
| FOCUS MODE | ✔ | MIC LEVEL | ✔ |
| PHOTOMETRY | ✔ | BATTERY LEVEL | ✔ |
| SHUTTER TYPE | ✔ | FRAMING OUTLINE | □ |
4 Press DISP/BACK to save changes.
5 Press DISP/BACK as needed to exit the menus and return to the shooting display.
SUB MONITOR SETTING
Choose the items shown in the secondary LCD monitor.
1 Press MENU/OK and select SCREEN SET-UP > SUB MONITOR SETTING in the (SET UP) tab.
2 Select STILL MODE or MOVIE MODE.
3 Highlight items for display in positions ① to ⑧ and press MENU/OK to select or deselect. Items not available when MOVIE MODE is selected are indicated by asterisks (^ )
- Text (items ① to ④): SHUTTTER SPEED, APERTURE, EXPO. COMP., ISO, MOVIE MODE, FRAMES REM. *, REC. TIME, NONE
- Icons (items ⑤ to ⑧): SHOOTING MODE, PHOTOMETRY, DRIVE MODE, FOCUS MODE, WHITE BALANCE, IMAGE SIZE, IMAGE QUALITY, BATTERY LEVEL, CARD SLOT OPTIONS, SHUTTER TYPE, FILM SIMULATION, DYNAMIC RANGE, MOVIE MODE, NONE
4 Press DISP/BACK to save changes.
SUB MONITOR BACKGROUND COLOR
Make the display in the secondary monitor easier to read by choosing the background color suited to current ambient lighting conditions.
| Option | Description |
| BLACK | Recommended for use with dark ambient lighting. |
| WHITE | Recommended for use with bright ambient lighting. |
Regardless of the option selected, the background is displayed in white whenever the secondary monitor backlight is on.
BUTTON/DIAL SETTING
Access options for camera controls.
To access control options, press MENU/OK, select the (SET UP) tab, and choose BUTTON/DIAL SETTING.
FOCUS LEVER SETTING
Choose the functions performed by the focus stick (focus lever).
| Option | Description |
| LOCK (OFF) | The focus stick cannot be used during shooting. |
| PUSH TO UNLOCK | Press the stick to view the focus-point display and tilt the stick to select a focus point. |
| ON | Tilt the stick to view the focus-point display and select a focus point. |
EDIT/SAVE QUICK MENU
Choose the items displayed in the quick menu.
1 Select BUTTON/DIAL SETTING > EDIT/SAVE QUICK MENU in the (SET UP) tab.
2 The current quick menu will be displayed; use the selector to highlight the item you wish to change and press MENU/OK.
3 Highlight any of the following options and press MENU/OK to assign it to the selected position.
- IMAGE SIZE
- IMAGE QUALITY
FILMSIMULATION
GRAIN EFFECT
DYNAMIC RANGE - D RANGE PRIORITY*
- WHITE BALANCE
HIGHLIGHT TONE - SHADOW TONE*
- COLOR*
SHARPNESS - NOISE REDUCTION*
- SELECT CUSTOM SETTING*
- AF MODE (MOVIE AF MODE)
- AF-C CUSTOM SETTINGS
-
Stored in custom settings bank.
-
FACE/EYE DETECTION SETTING
MF ASSIST - TOUCH SCREEN MODE
SELF-TIMER - SHUTTERTYPE
- FLASH FUNCTION SETTING
FLASH COMPENSATION
MOVIE MODE
FULL HD HIGH SPEED REC
FLICKER REDUCTION - INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
- EVF/LCD BRIGHTNESS
- EVF/LCD COLOR
- NONE
Select NONE to assign no option to the selected position. When SELECT CUSTOM SETTING is selected, current settings are shown in the quick menu by the label BASE.
The quick menu can also be accessed in shooting mode by holding the Q button.
FUNCTION (Fn) SETTING
Choose the roles played by the function buttons.
1 Select BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING in the (SET UP) tab.
2 Highlight the desired control and press MENU/OK.
3 Highlight any of the following options and press MENU/OK to assign it to the selected control.
EXPO.COMP.
- IMAGE SIZE
- IMAGE QUALITY
- RAW
FILMSIMULATION
- GRAIN EFFECT
DYNAMIC RANGE
- D RANGE PRIORITY
WHITE BALANCE
- SELECT CUSTOM SETTING
FOCUS AREA
FOCUS CHECK
AF MODE
- AF-C CUSTOM SETTINGS
- FACE/EYE DETECTION SETTING
- DRIVE SETTING
SELF-TIMER
- SHUTTERTYPE
ISO AUTO SETTING
- MULTI EXPOSURE
WIRELESS COMMUNICATION
- FLASH FUNCTION SETTING
- TTL-LOCK
- MODELING FLASH
FULL HD HIGH SPEED REC
FLICKER REDUCTION - INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
MOVIE SILENT CONTROL - PREVIEW DEPTH OF FIELD
- PREVIEW EXP/WB IN MANUAL MODE
NATURAL LIVE VIEW
HISTOGRAM
ELECTRONIC LEVEL
AE LOCK ONLY - AF LOCK ONLY
AE/AF LOCK - AF-ON
APERTURE SETTING
PERFORMANCE - AUTO IMAGE TRANSFER
- Bluetooth ON/OFF
- PLAYBACK
- NONE (control disabled)
Function button assignment options can also be accessed by holding the DISP/BACK button. The selector cannot be assigned more than one role at a time.
EXPO. COMP., AE LOCK ONLY, AF LOCK ONLY, AE/AF LOCK, and AF-ON cannot be assigned to the touch function buttons (T-Fn1 through T-Fn4).
AF-ON
If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway.
MODELING FLASH
If MODELING FLASH is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash).
TTL-LOCK
If TTL-LOCK is selected, you can press the control to lock flash output according to the option selected for FLASH SETTING > TTL-LOCK MODE (135).
SELECTOR BUTTON SETTING
Choose the roles played by the up, down, left, and right buttons on the selector.
| Option | Description |
| Fn BUTTON | The selector buttons serve as function buttons. |
| FOCUS AREA | The selector buttons can be used to position the focus area. |
Selecting FOCUS AREA prevents you accessing the functions assigned to the function buttons.
COMMANDDIAL SETTING
Choose the roles played by the command dials.
| Option | Description |
| FRONT COMMANDDIAL 1 | Assign shutter speed (S.S. (PROGRAM SHIFT)) or aperture (APERTURE)1 to FRONT COMMAND DIAL 1. |
| FRONT COMMANDDIAL 2 | Assign shutter speed (S.S. (PROGRAM SHIFT)), aperture (APERTURE)1, sensitivity (ISO)2, or no role (NONE) to FRONT COMMAND DIAL 2 or FRONT COMMANDDIAL 3. |
| REAR COMMANDDIAL 3 | Assign shutter speed (S.S. (PROGRAM SHIFT)), aperture (APERTURE)1, sensitivity (ISO)2, or no role (NONE) to the rear command dial. |
| EXP. COMPENSATIONASSIGNMENT | Choose the command dial or dials that can be used to adjust exposure compensation while the button is pressed: the front command dial (←FRONT COMMAND DIAL), rear command dial (→REAR COMMAND DIAL), or both (→BOTH). |
1 Aperture set to A (auto) and lens equipped with aperture ring or COMMAND selected for 2 BUTTON/DIAL SETTING > APERTURE RING SETTING (A).
2 ISO dial set to A and COMMAND selected for 2 BUTTON/DIAL SETTING > ISO DIAL SETTING (A).
COMMAND DIAL SETTING can also be accessed by pressing and holding the center of the front command dial. You can also press the center of the front command dial to cycle through settings in the order FRONT COMMAND DIAL 1, FRONT COMMAND DIAL 2, and FRONT COMMAND DIAL 3.
ISO DIAL SETTING (H)
Choose the ISO sensitivity assigned to the H position on the sensitivity dial.
| Options | |
| 25600 | 51200 |
ISO DIAL SETTING (L)
Choose the ISO sensitivity assigned to the L position on the sensitivity dial.
| Options | ||
| 100 | 125 | 160 |
ISO DIAL SETTING (A)
Choose how sensitivity is adjusted when the sensitivity dial is rotated to A.
| Option | Description |
| AUTO | Sensitivity is automatically adjusted in response to shooting condi- tions according to option chosen for ☑ SHOOTING SETTING > ISO AUTO SETTING. Choose from AUTO1, AUTO2, and AUTO3. |
| COMMAND | Sensitivity is adjusted manually by rotating the front command dial. |
SHUTTER AF
Choose whether the camera focuses when the shutter button is pressed halfway.
| Option | Description |
| AF-S | ON: Focus locks when the shutter button is pressed halfway. OFF: No focus operation is performed when the shutter button is pressed halfway. |
| AF-C | ON: The camera focuses while the shutter button is pressed halfway. OFF: No focus operation is performed when the shutter button is pressed halfway. |
SHUTTER AE
If ON is selected, exposure will lock while the shutter button is pressed halfway.
| Option | Description |
| AF-S/MF | ON: Exposure locks when the shutter button is pressed halfway. OFF: Exposure does not lock when the shutter button is pressed halfway. |
| AF-C | ON: Exposure locks while the shutter button is pressed halfway. OFF: Exposure does not lock when the shutter button is pressed halfway. |
Select OFF to allow the camera to adjust exposure before each shot taken in burst mode.
SHOOT WITHOUT LENS
Choose ON to enable the shutter release when no lens is attached.
| Options | |
| ON | OFF |
SHOOT WITHOUT CARD
Choose whether the shutter can be released without a memory card inserted in the camera.
| Option | Description |
| ON | When no memory card is inserted, the shutter can be released to test camera function and the shooting and setup menus can be displayed. |
| OFF | The shutter is disabled if no memory card is inserted, preventing accidental loss of pictures taken without a memory card. |
FOCUS RING
Choose the direction in which the focus ring is rotated to increase the focus distance.
| Options | |
| CW (clockwise) | CCW (counterclockwise) |
FOCUS RING OPERATION
Choose how the camera adjusts focus in response to the movement of the focus ring.
| Option | Description |
| NONLINEAR | Focus speed is not affected by the speed at which the ring is rotated. |
| LINEAR | Focus speed changes linearly with the speed at which the ring is rotated. |
AE/AF-LOCK MODE
This option determines the behavior of the button to which exposure and/or focus lock is assigned. If AE&AF ON WHEN PRESSING is selected, exposure and/or focus will lock while the button is pressed. If AE&AF ON/OFF SWITCH is selected, exposure and/or focus will lock when the button is pressed and remain locked until it is pressed again.
| Options | |
| AE&AF ON WHEN PRESSING | AE&AF ON/OFF SWITCH |
EXPO. COMP. BUTTON SETTING
Control the behavior of the rear command dial and the button to which exposure compensation is assigned. If ON WHEN PRESSING is selected, exposure compensation can be adjusted by holding the button while rotating dial; if ON/OFF SWITCH is selected, exposure compensation can be set by pressing the button once, rotating the dial, and then pressing the button again.
| Options | |
| ON WHEN PRESSING | ON/OFF SWITCH |
APERTURE RING SETTING (A)
Choose whether the front command dial can be used to adjust aperture when aperture is set to A (auto).
| Options | Description |
| AUTO | The camera adjusts aperture automatically. |
| COMMAND | Aperture can be adjusted using the front command dial. |
APERTURE SETTING
Choose the method used to adjust aperture when using lenses with no aperture rings.
| Option | Description |
| AUTO + MANUAL | Rotate the front command dial to choose the aperture. Rotate past minimum aperture to choose A (auto). |
| AUTO | Aperture is selected automatically; camera functions in exposure mode P (program AE) or S (shutter-priority AE). |
| MANUAL | Rotate the front command dial to choose the aperture; camera functions in exposure mode A (aperture-priority AE) or M (manual). |
TOUCH SCREEN SETTING
Enable or disable touch-screen controls.
| Option | Description |
| TOUCH SCREEN ON/OFF | ON: Touch controls enabled; the LCD monitor functions as a touch screen. OFF: Touch controls disabled; the LCD monitor cannot be used as a touch screen. |
| EVF TOUCH SCREEN AREA SETTINGS | Select the area of the LCD monitor used for touch controls while the viewfinder is active. The area used for touch controls can be selected from: • □ (all) □ (left half) • □ (right half) □ (top left quarter) • □ (top right quarter) □ (bottom left quarter) • □ (bottom right quarter) |
| Choose OFF to disable touch controls while the viewfinder is active. |
LOCK
Lock selected controls to prevent unintended operation.
| Options | Description |
| LOCK SETTING | Choose from the following:UNLOCK: Reset lock options.ALL FUNCTION: Lock all controls in the FUNCTION SELECTION list.SELECTED FUNCTION: Lock only the controls selected in the FUNCTION SELECTION list. |
| FUNCTION SELECTION | Choose the controls locked when SELECTED FUNCTION is chosen for LOCK SETTING. |
POWER MANAGEMENT
Adjust power management settings.
To access power management settings, press MENU/OK, select the (SET UP) tab, and choose POWER MANAGEMENT.
AUTO POWER OFF
Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, the camera must be turned off manually.
| Options | |||||
| 5 MIN | 2 MIN | 1 MIN | 30 SEC | 15 SEC | OFF |
PERFORMANCE
Select BOOST to improve focus and viewfinder display performance.
| Option | AF performance (speed) | Viewfinder display quality | Viewfinder frame rate (approx.) |
| BOOST | Fast | High | 100 fps |
| NORMAL | Normal | Normal | 60 fps |
SAVE DATA SETTING
Make changes to file management settings.
To access file management settings, press MENU/OK, select the (SET UP) tab, and choose SAVE DATA SET-UP.
FRAME NO.
New pictures are stored in image files named using a four-digit file number assigned by adding one to the last file number used. The file number is displayed during playback as shown. FRAME NO. controls whether file num
Frame number
12 100-0001
Directory
File
number
number
bering is reset to 0001 when a new memory card is inserted or the current memory card is formatted.
| Option | Description |
| CONTINUOUS | Numbering continues from the last file number used or the first available file number, whichever is higher. Choose this option to reduce the number of pictures with duplicate file names. |
| RENEW | Numbering is reset to 0001 after formatting or when a new memory card is inserted. |
If the frame number reaches 999-9999, the shutter release will be disabled. Format the memory card after transferring to a computer any pictures you wish to keep.
Selecting F USER SETTING > RESET sets FRAME NO. to CONTINUOUS but does not reset the file number.
Frame numbers for pictures taken with other cameras may differ.
SAVE ORG IMAGE
Choose ON to save unprocessed copies of pictures taken using RED EYE REMOVAL.
| Options | |
| ON | OFF |
EDIT FILE NAME
Change the file name prefix. sRGB images use a four-letter prefix (default "DSCF"), Adobe RGB images a three-letter prefix ("DSF") preceded by an underscore.
| Option | Default prefix | Sample file name |
| sRGB | DSCF | ABCD0001 |
| AdobeRGB | _DSF | _ABC0001 |
CARD SLOT SETTING ( STILL IMAGE)
Choose the role played by the card in the second slot.
| Option | Description |
| SEQUENTIAL | The card in the second slot is used only when the card in the first slot is full. |
| BACKUP | Each picture is recorded twice, once to each card. |
| RAW/JPEG | As forSEQUENTIAL, except that the RAW copy of pictures taken with FINE+RAW or NORMAL+RAW selected for IMAGE QUALITY SETTING > IMAGE QUALITY will be saved to the card in the first slot and the JPEG copy to the card in the second slot. |
SELECT SLOT(SEQUENTIAL)
Choose the card that is recorded to first whenSEQUENTIAL is selected for CARD SLOT SETTING (STILL IMAGE).
| Options | |
| SLOT 1 | SLOT 2 |
SELECT SLOT(Sequential)
Choose the slot used to store movies.
| Options | |
| SLOT 1 | SLOT 2 |
SELECT FOLDER
Create folders and choose the folder used to store subsequent pictures.
SELECT FOLDER
To choose the folder in which subsequent pictures will be stored, press the selector up or down to highlight an existing folder and press MENU/OK.
CREATE FOLDER
Enter a five-character folder name to create a new folder in which to store subsequent pictures.
COPYRIGHT INFO
Copyright information, in the form of Exif tags, can be added to new images as they are taken. Changes to copyright information are reflected only in images taken after the changes are made.
| Option | Description |
| DISP COPYRIGHT INFO | View the current copyright information. |
| ENTER AUTHOR'S INFO | Enter the creator's name. |
| ENTER COPYRIGHT INFO | Enter the name of the copyright holder. |
| DELETE COPYRIGHT INFO | Delete the current copyright information. This change applies only to images taken after this option is selected; copyright information recorded with existing images is not affected. |
To access connection settings, press MENU/OK, select the (SET UP) tab, and choose CONNECTION SETTING.
For more information on wireless connections, visit: http://fujifilm-dsc.com/wifi/
Bluetooth SETTINGS
Adjust Bluetooth settings.
| Option | Description |
| PAIRING REGISTRATION | To pair the camera with a smartphone or tablet, select this option, then launch FUJIFILM Camera Remote on the smart device and tap PAIRING REGISTRATION. |
| DELETE PAIRING REG. | End pairing. |
| Bluetooth ON/OFF | ON: The camera automatically establishes a Bluetooth connection with paired devices when turned on. OFF: The camera does not connect via Bluetooth. |
| AUTO IMAGE TRANSFER | ON: Mark photos for upload as they are taken. OFF: Photos are not marked for upload as they are taken, but JPEG images can be selected for upload using the IMAGE TRANSFER ORDER option in the playback menu. |
Install the latest version of the FUJIFILM Camera Remote app on your smartphone or tablet before pairing the device with your camera or uploading images.
When ON is selected for both Bluetooth ON/OFF and AUTO IMAGE TRANSFER or images are currently selected for upload using the IMAGE TRANSFER ORDER option in the (playback) menu, upload to paired devices will begin shortly after you exit to playback or turn the camera off. IMAGE TRANSFER ORDER can also be used to select pictures for upload when AUTO IMAGE TRANSFER is off.
NETWORK SETTING
Adjust settings for connection to wireless networks.
| Option | Description |
| WIRELESS ACCESS POINT SETTING | ·SIMPLE SETUP: Connect to an access point using simple settings. ·MANUAL SETUP: Manually adjust settings for connection to a wireless network. Choose the network from a list (SELECT FROM NETWORK LIST) or enter the name manually (ENTER SSID). |
| WIRELESS IP ADDRESS SETTING | ·AUTO: The IP address is assigned automatically. ·MANUAL: Assign an IP address manually. Manually choose the IP address (IP ADDRESS), network mask (NETMASK), and gateway address (GATEWAY ADDRESS). |
PC AUTO SAVE
Adjust settings for connection to computers via wireless LAN.
| Option | Description |
| PC AUTO SAVE SETTING | Choose the method used for connection to computers via a wireless LAN. • SIMPLE SETUP: Connect using WPS. • MANUAL SETUP: Choose the network from a list (SELECT FROM NETWORK LIST) or enter the name manually (ENTER SSID). |
| DELETE REGISTERED DESTINATION PC | Remove selected destinations. |
| DETAILS OF PREVIOUS CONNECTION | View computers to which the camera has recently connected. |
instax PRINTER CONNECTION SETTING
Adjust settings for connection to optional FUJIFILM instax SHARE printers.
The Printer Name (SSID) and Password
The printer name (SSID) can be found on the bottom of the printer; the default password is "1111". If you have already chosen a different password to print from a smartphone, enter that password instead.
PC CONNECTION MODE
Adjust settings for connection to a computer.
| Option | Description |
| USB CARD READER | Connecting the camera to a computer via USB automatically enables data transfer mode, allowing data to be copied to the computer. The camera functions normally when not connected. |
| USB TETHER SHOOTING AUTO | Connecting the camera to a computer via USB automatically enables tethered shooting mode. You can also use FUJIFILM X Acquire to save and load camera settings, allowing you to reconfigure the camera in an instant or share settings with other cameras of the same type. The camera functions normally when not connected. |
| USB TETHER SHOOTING FIXED | The camera functions in tethered shooting mode even when not connected to a computer. At default settings, pictures are not saved to the memory card, but pictures taken while the camera is not connected will be transferred to the computer when it is connected. |
| WIRELESS TETHER SHOOTING FIXED | Choose this option for wireless remote photography. Select a network using CONNECTION SETTING > NETWORK SETTING. |
| USB RAW CONV. | Connecting the camera to a computer via USB automatically enables USB raw conversion mode, allowing FUJIFILM X RAW STUDIO to use the camera's image processing engine to rapidly convert RAW files to high-quality JPEG images. The camera functions normally when not connected. |
POWER MANAGEMENT > AUTO POWER OFF settings also apply during tethered shooting. Select OFF to prevent the camera turning off automatically.
Tethered shooting is available with software such as Hyper-Utility Software HS-V5 (available separately) or FUJIFILM X Acquire (available for free download from the FUJIFILM website) or when the FUJIFILM Tether Shooting Plug-in PRO or Tether Shooting Plug-in (both available separately) is used with Adobe® Photoshop® Lightroom® 6/Adobe® Photoshop® Lightroom® Classic CC.
GENERAL SETTINGS
Adjust settings for connection to wireless networks.
| Option | Description |
| NAME | Choose a name (NAME) to identify the camera on the wireless network (the camera is assigned a unique name by default). |
| RESIZE IMAGE FOR SMARTPHONE 3D | Choose ON (the default setting, recommended in most circumstances) to resize larger images to 8M for upload to smart-phones, OFF to upload images at their original size. Resizing applies only to the copy uploaded to the smartphone; the original is not affected. |
| GEOTAGGING | Choose whether location data downloaded from a smartphone are embedded in pictures as they are taken. |
| LOCATION INFO | Display the location data last downloaded from a smartphone. |
| BUTTON SETTING | Choose the role played by function buttons assigned the WIRELESS COMMUNICATION function. • PAIRING/TRANSFER ORDER: The buttons can be used for pairing and selecting images for transfer. • WIRELESS COMMUNICATION: The buttons can be used for wireless connections. |
INFORMATION
View the camera's MAC and Bluetooth address.
RESET WIRELESS SETTING
Restore wireless settings to their default values.
Shortcuts
Shortcut Options
Customize camera controls to suit your style or situation.
Frequently-used options can be added to the Q menu or a custom "my" menu or assigned to an Fn (function) button for direct access:
- The Q menu (213): The Q menu is displayed by pressing the Q button. Use the Q menu to view or change the options selected for frequently-used menu items.
- "My menu" (220): Add frequently-used options to this custom menu, which can be viewed by pressing MENU/OK and selecting the "MY MENU") tab.
- The function buttons (图216): Use the function buttons for direct access to selected features.
The Q (Quick Menu) Button
Press for quick access to selected options.
The Quick Menu Display
At default settings, the quick menu contains the following items:
① SELECT CUSTOM SETTING
② AF MODE
③ DYNAMIC RANGE
(4) WHITE BALANCE
(5) NOISE REDUCTION
(6) IMAGE SIZE
⑦ IMAGE QUALITY
⑧ FILM SIMULATION
(9) HIGHLIGHT TONE
10 SHADOW TONE
1) COLOR
12 SHARPNESS
(13) SELF-TIMER
14 FACE/EYE DETECTION SETTING
(15) FLASH FUNCTION SETTING
16 EVF/LCD BRIGHTNESS
The quick menu shows the options currently selected for items ②-16 , which can be changed as described on page 215.
-SELECT CUSTOM SETTING
The IMAGE QUALITY SETTING > SELECT CUSTOM SETTING item (item
①) shows the current custom settings bank:
- BASE: No custom settings bank selected.
- C1-C7: Select a bank to view the settings saved using the IMAGE QUALITY SETTING > EDIT/SAVE CUSTOM SETTING option.
BASE: The current custom settings bank.
Viewing and Changing Settings
1 Press Q to display the quick menu during shooting.
2 Use the selector to highlight items and rotate the rear command dial to change.
Changes are not saved to the current settings bank. Settings that differ from those in the current settings bank (C1-C7) are shown in red.
3 Press to exit when settings are complete.
The quick menu can also be edited using touch controls.
Editing the Quick Menu
To choose the items displayed in the quick menu:
1 Press and hold the Q button during shooting.
2 The current quick menu will be displayed; use the selector to highlight the item you wish to change and press MENU/OK.
3 Highlight any of the following options and press MENU/OK to assign it to the selected position.
- IMAGE SIZE
- IMAGE QUALITY
FILMSIMULATION* - GRAIN EFFECT
DYNAMIC RANGE
D RANGE PRIORITY* - WHITE BALANCE
HIGHLIGHT TONE - SHADOW TONE*
- COLOR*
SHARPNESS - NOISE REDUCTION*
- SELECT CUSTOM SETTING*
- AF MODE (MOVIE AF MODE)
-
AF-C CUSTOM SETTINGS
-
Stored in custom settings bank.
-
FACE/EYE DETECTION SETTING
MF ASSIST - TOUCH SCREEN MODE
SELF-TIMER - SHUTTERTYPE
- FLASH FUNCTION SETTING
FLASH COMPENSATION
MOVIE MODE
FULL HD HIGH SPEED REC
FLICKER REDUCTION - INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
- EVF/LCD BRIGHTNESS
- EVF/LCD COLOR
- NONE
Select NONE to assign no option to the selected position. When SELECT CUSTOM SETTING is selected, current settings are shown in the quick menu by the label BASE.
The quick menu can also be edited using 2 BUTTON/DIAL SETTING > EDIT/SAVE QUICK MENU.
The Fn (Function) Buttons
Assign a role to the function buttons for quick access to the selected feature.
The functions assigned to T-Fn1 through T-Fn4 can be accessed by flicking the monitor.
The default assignments are:
Fn1 button
Exposure compensation
Fn2 button
Drive settings
Fn3 button
AFmode
Fn4 button
Film simulation
Fn5 button
White balance
Fn6 button
Performance
T-Fn1 (flick up)
Histogram
T-Fn2 (flick left)
Preview depth of field
T-Fn3 (flick right)
Internal/external mic level adjustment
T-Fn4 (flick down)
Electronic level
AE-L button
AE lock only
AF-ON button
AF-ON
Center of rear command dial
Focus check
Assigning Roles to the Function Buttons
To assign roles to the buttons:
1 Press and hold the DISP/BACK button until a control selection menu is displayed.
2 Highlight a control and press MENU/OK.
3 Highlight the desired role and press MENU/OK to assign it to the selected control. Choose from:
EXPO.COMP.
- IMAGE SIZE
- IMAGE QUALITY
- RAW
FILMSimulation
- GRAIN EFFECT
DYNAMIC RANGE
D RANGE PRIORITY
- WHITE BALANCE
- SELECT CUSTOM SETTING
FOCUS AREA
FOCUS CHECK
AF MODE
- AF-C CUSTOM SETTINGS
- FACE/EYE DETECTION SETTING
- DRIVE SETTING
SELF-TIMER
- SHUTTERTYPE
ISO AUTO SETTING
- MULTI EXPOSURE
WIRELESS COMMUNICATION
- FLASH FUNCTION SETTING
- TTL-LOCK
- MODELING FLASH
FULL HD HIGH SPEED REC
FLICKER REDUCTION - INTERNAL/EXTERNAL MIC LEVEL ADJUSTMENT
MOVIE SILENT CONTROL - PREVIEW DEPTH OF FIELD
- PREVIEW EXP/WB IN MANUAL MODE
NATURAL LIVE VIEW
HISTOGRAM
ELECTRONIC LEVEL
AE LOCK ONLY - AF LOCK ONLY
- AE/AF LOCK
- AF-ON
- APERTURE SETTING
PERFORMANCE - AUTO IMAGE TRANSFER
- Bluetooth ON/OFF
- PLAYBACK
- NONE (control disabled)
Button assignments can also be selected using BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING. The selector cannot be assigned more than one role at a time.
EXPO. COMP., AE LOCK ONLY, AF LOCK ONLY, AE/AF LOCK, and AF-ON cannot be assigned to the touch function buttons (T-Fn1 through T-Fn4).
AF-ON
If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway.
MODELING FLASH
If MODELING FLASH is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash).
TTL-LOCK
If TTL-LOCK is selected, you can press the control to lock flash output according to the option selected for FLASH SETTING > TTL-LOCK MODE (135).
MY MENU
Access a personalized menu of frequently-used options.
To display "my menu", press MENU/OK in the shooting display and select the (MY MENU) tab.
The my tab is only available if options have been assigned to MY MENU.
MY MENU SETTING
To choose the items listed in the (MY MENU) tab:
1 Highlight ±b USER SETTING > MY MENU SETTING in the (SET UP) tab and press MENU/OK to display the options at right.
2 Press the selector up or down to highlight ADD ITEMS and press MENU/OK. Options that can be added to "my menu" are highlighted in blue.
Items currently in "my menu" are indicated by check marks.
3 Highlight an item and press MENU/OK to add it to "my menu".
4 Press MENU/OK to return to the edit display.
5 Repeat Steps 3 and 4 until all the desired items have been added.
"My menu" can contain up to 16 items.
Editing "My Menu".
To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.
MEMO
Peripherals and Optional Accessories
External Flash Units
Flash units can be mounted on the hot shoe or connected via the sync terminal.
Optional external flash units are more powerful than the EF-X8 supplied with the camera. Some support high-speed sync (FP) and can be used at shutter speeds faster than the sync speed, while others can function as master flash units controlling remote units via optical wireless flash control.
Red-Eye Removal
Red-eye removal is available when an option other than OFF is selected for FLASH SETTING > RED EYE REMOVAL and a “FACE ON” option is selected for AF/MF SETTING > FACE/EYE DETECTION SETTING. Red-eye removal minimizes “red-eye” caused when light from the flash is reflected from the subject's retinas.
Using an External Flash
To adjust settings for a flash unit mounted on the hot shoe or connected via the sync terminal:
1 Connect the unit to the camera.
2 In shooting mode, select FLASH FUNCTION SETTING in the (FLASH SETTING) menu tab. The options available vary with the flash unit.
| Menu | Description | 图例 |
| SUPPLIED FLASH | Displayed when the supplied EF-X8 flash unit is mounted on the hot shoe and raised. | 92 |
| SYNC TERMINAL | Adjust settings for flash units connected via the sync terminal. SYNC TERMINAL is displayed if the EF-X8 is lowered and either no flash unit, or an incompatible flash unit, is mounted on the hot shoe. | 227 |
| SHOE MOUNT FLASH | Displayed when an optional flash unit is mounted on the hot shoe and turned on. | 228 |
| MASTER (OPTICAL) | Displayed if an optional flash unit functioning as a master flash for FUJIFILM optical wireless remote flash control is connected and turned on. | 231 |
3 Highlight items using the selector and rotate the rear command dial to change the highlighted setting.
4 Press DISP/BACK to put the changes into effect.
SUPPLIED FLASH
See "Flash Photography" (92) for information on using the supplied EF-X8 shoe-mounted flash unit.
SYNCTERMINAL
Adjust settings for flash units connected via the sync terminal. SYNC TERMINAL is displayed if the EF-X8 is lowered and either no flash unit, or an incompatible flash unit, is mounted on the hot shoe.
| Setting | Description |
| ① Flash control mode | Choose from the following options: · M: A trigger signal is transmitted via the hot shoe X contacts when a picture is taken. Choose a shutter speed slower than the sync speed; even slower speeds may be required if the unit uses long flashes or has a slow response time. · ③OFF (OFF): The trigger signal is disabled. |
| ② Sync | Choose whether the flash is timed to fire immediately after the shutter opens (FRONT/1ST CURTAIN) or immediately before it closes (REAR/2ND CURTAIN). 1ST CURTAIN is recommended in most circumstances. |
The Sync Terminal
Use the sync terminal to connect flash units that require a sync cable.
SHOE MOUNT FLASH
The following options are available when an optional shoe-mounted flash unit is attached and turned on.
| Setting | Description |
| ① Flash control mode | The flash control mode selected with the flash unit. This can in some cases be adjusted from the camera; the options available vary with the flash. • TTL: TTL mode. Adjust flash compensation (②). • M: The flash fires at the selected output regardless of subject brightness or camera settings. Output in some cases can be adjusted from the camera (②). • MULTI: Repeating flash. Compatible shoe-mounted flash units will fire multiple times with each shot. • ③OFF (OFF): The flash does not fire. Some flash units can be turned off from the camera. |
| ② Flash compensation/output | The options available vary with flash control mode. • TTL: Adjust flash compensation (the full value may not be applied if the limits of the flash control system are exceeded). In the cases of the EF-X20, EF-20, and EF-42, the selected value is added to the value selected with the flash unit. • M/MULTI: Adjust flash output (compatible units only). Choose from values expressed as fractions of full power, from 1/4 (mode M) or 1/4 (MULTI) down to 1/512 in increments equivalent to 1/3 EV. The desired results may not be achieved at low values if they exceed the limits of the flash control system; take a test shot and check the results. |
| ③ Flash mode (TTL) | Choose a flash mode for TTL flash control. The options available vary with the shooting mode (P, S, A, or M) selected. • FTTL (FLASH AUTO): The flash fires only as required; flash level is adjusted according to subject brightness. A icon displayed when the shutter button is pressed halfway indicates that the flash will fire when the photo is taken. • FTTL (STANDARD): The flash fires with every shot if possible; flash level is adjusted according to subject brightness. The flash will not fire if not fully charged when the shutter is released. • FTTL (SLOW SYNC): Combine the flash with slow shutter speeds when photographing portrait subjects against a backdrop of night scenery. The flash will not fire if not fully charged when the shutter is released. |
| ④ Sync | Control flash timing. • FRONT (1ST CURTAIN): The flash fires immediately after the shutter opens (generally the best choice). • REAR (2ND CURTAIN): The flash fires immediately before the shutter closes. • (AUTO FP(HSS)): High-speed sync (compatible units only). The camera automatically engages front-curtain high-speed sync at shutter speeds faster than the flash sync speed. Equivalent to 1ST CURTAIN when MULTI is selected for flash control mode. |
| ⑤ Zoom | The angle of illumination (flash coverage) for units that support flash zoom. Some units allow the adjustment to be made from the camera. If AUTO is selected, zoom will automatically be adjusted to match coverage to lens focal length. |
| ⑥ Lighting | If the unit supports this feature, choose from: • FLASH POWER PRIORITY: Gain range by slightly reducing coverage. • (STANDARD): Match coverage to picture angle. • (EVEN COVERAGE PRIORITY): Slightly increase coverage for more even lighting. |
| ⑦ LED light | Choose how the built-in LED light functions during still photography (compatible units only): as a catchlight (↓/CATCHLIGHT), as an AF-assist illuminator (AF/AF ASSIST), or as both a catchlight and an AF-ASSIST illuminator (AF/AF ASSIST+CATCHLIGHT). Choose OFF to disable the LED during photography. |
| ⑦ Number of flashes* | Choose the number of times the flash fires each time the shutter is released in MULTI mode. |
| ⑧ Frequency* | Choose the frequency at which the flash fires in MULTI mode. |
- Full value may not be applied if limits of flash control system are exceeded.
MASTER(OPTICAL)
The options will be displayed if the unit is currently functioning as master flash for FUJIFILM optical wireless remote flash control.
The master and remote units can be placed in up to three groups (A, B, and C) and flash mode and flash level adjusted separately for each group. Four channels are available for communication between the units; separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity.
| Setting | Description |
| ① Flash control mode (group A) | Choose flash control modes for groups A, B, and C. TTL% is available for groups A and B only. • TTL: The units in the group fire in TTL mode. Flash compensation can be adjusted separately for each group. • TTL%: If TTL% is selected for either group A or B, you can specify the output of the selected group as a percentage of the other and adjust overall flash compensation for both groups. • M: In mode M, the units in the group fire at the selected output (expressed as a fraction of full power) regardless of subject brightness or camera settings. • MULTI: Choosing MULTI for any group sets all the units in all groups to repeating flash mode. All units will fire multiple times with each shot. • ⑤OFF (OFF): If OFF is selected, the units in the group will not fire. |
| ② Flash control mode (group B) | |
| ③ Flash control mode (group C) | |
| ④ Flash compensation/ output (group A) | Adjust flash level for the selected group according to option selected for flash control mode. Note that the full value may not be applied if the limits of the flash control system are exceeded. • TTL: Adjust flash compensation. • M/MULTI: Adjust flash output. • TTL%: Choose the balance between groups A and B and adjust overall flash compensation. |
| ⑤ Flash compensation/ output (group B) | |
| ⑥ Flash compensation/ output (group C) | |
| ⑦ Flash mode (TTL) | Choose a flash mode for TTL flash control. The options available vary with the shooting mode (P, S, A, or M) se-lected. • AUTO (FLASH AUTO): The flash fires only as required; flash level is adjusted according to subject brightness. A icon displayed when the shutter button is pressed halfway indicates that the flash will fire when the photo is taken. • FTL (STANDARD): The flash fires with every shot if possi-ble; flash level is adjusted according to subject bright-ness. The flash will not fire if not fully charged when the shutter is released. • AUTO (SLOW SYNC.): Combine the flash with slow shutter speeds when photographing portrait subjects against a backdrop of night scenery. The flash will not fire if not fully charged when the shutter is released. |
| ⑧ Sync | Control flash timing. • FRONT (1ST CURTAIN): The flash fires immediately after the shutter opens (generally the best choice). • REAR (2ND CURTAIN): The flash fires immediately before the shutter closes. • AUTO FP(HSS): High-speed sync (compatible units only). The camera automatically engages front-curtain high-speed sync at shutter speeds faster than the flash sync speed. Equivalent to 1ST CURTAIN when MULTI is selected for flash control mode. |
| ⑨ Zoom | The angle of illumination (flash coverage) for units that support flash zoom. Some units allow the adjustment to be made from the camera. If AUTO is selected, zoom will automatically be adjusted to match coverage to lens focal length. |
| 10 Lighting | If the unit supports this feature, choose from: • (FLASH POWER PRIORITY): Gain range by slightly reducing coverage. • (STANDARD): Match coverage to picture angle. • (EVEN COVERAGE PRIORITY): Slightly increase coverage for more even lighting. |
| 11 Master | Assign the master flash to group A (Gr A), B (Gr B), or C (Gr C). If OFF is selected, output from the master flash will be held to a level that does not affect the final picture. Available only if the unit is mounted on the camera hot shoe as a master flash for FUJIFILM optical wireless remote flash control in TTL, TTL%, or M mode. |
| 11 Number of flashes | Choose the number of times the flash fires each time the shutter is released in MULTI mode. |
| 12 Channel | Choose the channel used by the master flash for communication with the remote flash units. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity. |
| 12 Frequency | Choose the frequency at which the flash fires in MULTI mode. |
Vertical Power-Booster Grips
The VPB-XH1 vertical power-booster grip can be used to supplement the camera battery or when holding the camera rotated to take pictures in portrait ("tall") orientation.
① Q (quick menu) button
② Shutter button
(3) Control lock
(4) Front command dial/role selection button
(5) Lock screw knob
⑥ Tripod socket
Eyelet for camera strap
(8) Fn1 (function 1) button
9 9 V DC-IN connector
10 Headphone jack socket
1 Connector
12 Lock screw
(13) Compartment for connector cover supplied with camera
14 AF-ON button
15 AE-L button
16 Rear command dial/ focus assist button
17 Focus stick (focus lever)
Indicator lamps
19 Performance selector
20 Battery tray
21 Battery-chamber cover latch
22 Connector cover
All controls perform the same function as the matching controls on the camera.
Attaching the Power-Booster Grip
Check that the camera is off before attaching or removing the power-booster grip. The camera vertical power-booster grip contact cover (A) can be stored in the grip. Keep the grip contact cap (B) in a safe place when not in use.
Fully tighten the lock screw knob after attaching the grip. After removing the grip, replace the grip contact cover (A) and contact cap (B). Do not touch the contacts.
The grip is not waterproof, and caution is required to prevent the entry of dirt, dust, water, noxious gases, salt, and other foreign matter. Do not place the grip on wet surfaces. Before use, be sure that the battery tray and battery-chamber cover are fully closed.
Inserting and Removing Batteries
Insert the batteries as shown.
The batteries can be removed as shown.
Use only NP-W126S batteries. Be sure the camera is off before exchanging batteries.
-Battery Level
When the VPB-XH1 is connected, the camera battery level display shows the camera battery level and the level of the batteries inserted in the VPB-XH1. When a full complement of batteries are inserted in the camera and the VPB-XH1, the left battery in the VPB-XH1 (①) will be used until no charge remains, followed by the right battery (②) and finally by the camera battery (③).
Using the VPB-XH1
When a power-booster grip is attached, the performance selector can be used to improve shutter response and boost the frame advance rate in continuous (burst) mode.
| Position | Maximum frame rate* | Release lag |
| BOOST (boosted) | 11 fps† | 45 ms† |
| NORMAL (normal) | 8.0 fps | 50 ms |
- Regardless of the option chosen with the performance selector, the maximum frame rate with electronic shutter is 14 fps.
† Requires at least two batteries with some charge remaining, or if an AC power adapter is connected, a battery with some charge remaining inserted in the camera. Maximum frame rate if these conditions are not met is 8.0 fps.
Movie recording, long time-exposures, or burst or interval timer photography may end unexpectedly depending on the battery level or temperature.
The performance selector takes priority over the option chosen for POWER MANAGEMENT > PERFORMANCE.
Charging the Batteries
The batteries in the VPB-XH1 can be charged when the camera is off or the grip is removed from the camera. Connect the grip's supplied AC-9VS AC power adapter to the 9V DC-IN connector. The indicator lamps will light green while the battery charges; the lamp on the left shows the status of the left battery, the lamp on the right the status of the right battery.
| Indicator lamp | Battery status |
| Off | Charging complete |
| On | Charging in progress |
| Blinks | Charging fault |
The batteries charge simultaneously; charging takes about two hours. The batteries will not charge while the camera is on, but power will be supplied to the camera. For more information, see pages 30 and 263.
Use only the supplied AC power adapter.
Using the AC-9VS Power Adapter
Connect the power cable to the AC-9VS and plug it into a power outlet.
The supplied power cable is for use exclusively with the AC-9VS. Do not the adapter with other cords or the cable with other devices.
Connections
HDMI Output
Camera shooting and playback displays can be output to HDMI devices.
Connecting to HDMI Devices
Connect the camera to TVs or other HDMI devices using a third-party HDMI cable.
1 Turn the camera off.
2 Connect the cable as shown below, making sure the connectors are fully inserted.
Use an HDMI cable no more than 1.5m (4.9 ft.) long.
3 Configure the device for HDMI input as described in the documentation supplied with the device.
4 Turn the camera on. You can now shoot and play back pictures while viewing the television display and save pictures to the HDMI device.
The USB cable cannot be used while an HDMI cable is connected.
Shooting
Shoot photos and record movies while viewing the scene through the camera lens on or saving footage to the HDMI device.
This feature can be used to save 4K and Full HD movies to an HDMI recorder.
Playback
To start playback, press the camera button. The camera monitor turns off and pictures and movies are output to the HDMI device. Note that the camera volume controls have no effect on sounds played on the TV; use the television volume controls to adjust the volume.
Some televisions may briefly display a black screen when movie playback begins.
Wireless Transfer
Access wireless networks and connect to computers, smartphones, or tablets. For more information, visit: http://fujifilm-dsc.com/wifi/
Connecting to Smartphones and Tablets: FUJIFILM Camera Remote
Install the latest version of the FUJIFILM Camera Remote app on your smartphone or tablet to connect to the camera via Bluetooth or a wireless LAN.
-FUJIFILM Camera Remote
For downloads and other information, visit: http://app.fujifilm-dsc.com/en/camera_remote/
Smart Phones and Tablets: Bluetooth® Pairing
Use CONNECTION SETTING > Bluetooth SETTINGS > PAIRING REGISTRATION to pair the camera with smartphones or tablets. Pairing offers a simple method for downloading photos from the camera.
Photos are downloaded via a wireless connection.
Smartphones and Tablets: Wireless LAN
Use the WIRELESS COMMUNICATION options in SHOOTING SETTING or the playback menu to connect to a smartphone or tablet via a wireless LAN. Once connected, you can browse the images on the camera, download selected images, control the camera remotely, or copy location data to the camera.
Copying Pictures to a Computer: PC AutoSave
Install the latest version of FUJIFILM PC Autosave to your computer to upload pictures from the camera over wireless networks.
-FUJIFILM PC AutoSave
For downloads and other information, visit: http://app.fujifilm-dsc.com/en/pc_autosave/
Computers: Wireless Connections
You can upload pictures from the camera using the PC AUTO SAVE option in the playback menu.
Tethered Shooting: FUJIFILM X Acquire/FUJIFILM Tether Shooting Plug-in/Hyper-Utility Software HS-V5
FUJIFILM X Acquire, the FUJIFILM Tether Shooting Plug-in, and Hyper-Utility Software HS-V5 can be used for tethered shooting. Before proceeding, select WIRELESS TETHER SHOOTING FIXED for CONNECTION SETTING >
PC CONNECTION MODE in the camera menus. For more information, visit the following website:
http://app.fujifilm-dsc.com/en/# tether
For more information on FUJIFILM X Acquire, the FUJIFILM Tether Shooting Plug-in, and Hyper-Utility Software HS-V5, see "Software from FUJIFILM" (国国 258).
Connecting to Computers via USB
Connect the camera to a computer to download pictures or take pictures remotely.
Before downloading pictures or taking pictures remotely, connect the camera to a computer and check that it functions normally.
1 Find a memory card containing pictures you want to copy to the computer and insert the card into the camera.
Loss of power during transfer could result in loss of data or damage to the memory card. Insert a fresh or fully-charged battery before connecting the camera.
2 Adjust settings according to whether you will be using the camera for tethered shooting (250), copying pictures to a computer (250), or creating JPEG copies of RAW pictures (251).
3 Turn the camera off and connect a third-party USB 3.0 or 2.0 cable (either type can be used), making sure the connectors are fully inserted.
Use a USB 3.0 cable for higher speeds with computers that support USB 3.0.
4 Turn the camera on.
5 Copy pictures to your computer. During tethered shooting, you can copy pictures using tethered shooting software such as the FUJIFILM Tethered Shooting Plug-in PRO. Otherwise you can use MyFinePix Studio or applications provided with your operating system.
6 When transfer is complete, turn the camera off and disconnect the USB cable.
The Cable Protector
The cable protector prevents accidental disconnection of USB cables and the like. To use the cable protector:
① Attach the protector as shown and tighten the lock screw.
② Connect the cable and pass it through the protector as shown.
(1)
If a memory card containing a large number of images is inserted, there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures.
The USB cable must be no more than 1.5m (4.9 ft.) long and be suitable for data transfer. Connect the camera directly to the computer; do not use a USB hub or keyboard.
Make sure that the computer does not display a message stating that copying is in progress and that the indicator lamp is off or lit green before turning the camera off or disconnecting the USB cable (if the number of images copied is very large, data transfer may continue after the message has cleared from the computer display). Failure to observe this precaution could result in loss of data or damage to the memory card.
Disconnect the camera before inserting or removing memory cards.
In some cases, it may not be possible to access pictures saved to a network server using the software in the same way as on a standalone computer.
The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.
Tethered Shooting: FUJIFILM X Acquire/FUJIFILM Tether Shooting Plug-in/Hyper-Utility Software HS-V5
FUJIFILM X Acquire, the FUJIFILM Tether Shooting Plug-in, and Hyper-Utility Software HS-V5 can be used for tethered shooting. Before proceeding, select USB TETHER SHOOTING AUTO or USB TETHER SHOOTING FIXED for CONNECTION
SETTING > PC CONNECTION MODE in the camera menus. For more information, visit the following website:
http://app.fujifilm-dsc.com/en/# tether
For more information on FUJIFILM X Acquire, the FUJIFILM Tether Shooting Plug-in, and Hyper-Utility Software HS-V5, see "Software from FUJIFILM" (国 258).
Copying Pictures to a Computer
Before copying pictures to a computer, select USB CARD READER for CONNECTION SETTING > PC CONNECTION MODE. The software that can be used to copy pictures varies with your computer operating system.
Windows
Use MyFinePix Studio to copy pictures to your computer, where they can be stored, viewed, organized, and printed. See "Software from FUJIFILM" (258) for more information.
Mac OS X/macOS
Pictures can be copied to your computer using Image Capture (supplied with your computer) or other software.
Creating JPEG Copies of RAW Images: FUJIFILM X RAW STUDIO
FUJIFILM X RAW STUDIO can be used to create JPEG copies of RAW images. Before proceeding, select USB RAW CONV. for CONNECTION SETTING > PC CONNECTION MODE in the camera menus.
For more information on FUJIFILM X RAW STUDIO, see "Software from FUJIFILM" (国258).
instax SHARE Printers
Print pictures from your digital camera to instax SHARE printers.
Establishing a Connection
Select CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password.
The Printer Name (SSID) and Password
The printer name (SSID) can be found on the bottom of the printer; the default password is "1111". If you have already chosen a different password to print from a smartphone, enter that password instead.
Printing Pictures
1 Turn the printer on.
2 Select 1 PLAY BACK MENU > instant PRINTER PRINT. The camera will connect to the printer.
3 Use the selector to display the picture you want to print, then press MENU/OK.
Pictures taken with other cameras cannot be printed.
The area printed is smaller than the area visible in the LCD monitor.
The displays may vary depending on the printer connected.
4 The picture will be sent to the printer and printing will start.
MEMO
Technical Notes
Accessories from FUJIFILM
The following optional accessories are available from FUJIFILM. For the latest information on the accessories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/products/digital Cameras/index.html.
Rechargeable Li-ion batteries
NP-W126S: Additional high-capacity NP-W126S rechargeable batteries can be purchased as required.
Battery chargers
BC-W126: Replacement battery chargers can be purchased as required. At +20^ / + 68^ , the BC-W126 charges an NP-W126/NP-W126S in about 150 minutes.
DC couplers
CP-W126: Connect the AC-9VS power adapter supplied with optional power-booster grips to the camera for extended shooting or playback or when using the camera with a computer.
Remote releases
RR-90: Use to reduce camera shake or keep the shutter open during a time exposure.
Stereo microphones
MIC-ST1: An external microphone for movie recording.
FUJINON lenses
XF-/XC-series lenses: Interchangeable lenses for use exclusively with the FUJIFILM X-mount.
FUJINON MKX-series lenses: Cinema lenses for the FUJIFILM X mount.
Macro extension tubes
MCEX-11/16: Attach between the camera and the lens to shoot at high reproduction ratios.
Teleconverters
XF1.4X TC WR: Increases the focal length of the compatible lenses by about 1.4x .
XF2X TC WR: Increases the focal length of the compatible lenses by about 2.0×
Mount adapters
FUJIFILM M MOUNT ADAPTER: Allows the camera to be used with a wide selection of M-mount lenses.
Body caps
BCP-001: Cover the camera lens mount when no lens is attached.
Eye cups
EC-XH W: Attach this wide viewfinder eyecup to prevent light leaking into the viewfinder window.
Shoe-mounted flash units
EF-X500: In addition to manual and TTL flash control, this clip-on flash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the flash sync speed. Featuring support for the optional EF-BP1 battery pack and FUJIFILM optical wireless flash control, it can be used as a master or remote flash unit for remote wireless flash photography.
EF-BP1: A battery pack for shoe-mounted flash units. Takes up to 8 AA batteries.
EF-42: This clip-on flash unit has a Guide Number of 42/137 (ISO 100, m/ft.) and supports manual and TTL flash control.
EF-X20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.) and supports manual and TTL flash control.
EF-20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.) and supports TTL flash control (manual flash control is not supported).
Vertical power-booster grips
VPB-XH1: See "Vertical Power-Booster Grips" (235).
Grip belts
GB-001: Improves grip. Combine with a hand grip for more secure handling.
Cover kits
CVR-XT2: A set of covers for the X-H1. Contains a terminal cover, hot-shoe cover, and vertical power-booster grip connector cover.
instax SHARE printers
SP-1/SP-2/SP-3: Connect via wireless LAN to print pictures on instax film.
This camera is not compatible with the AC-9V AC power adapter.
Software from FUJIFILM
The camera can be used with the following FUJIFILM software.
FUJIFILM Camera Remote
Establish a wireless connection between your camera and a smartphone or tablet (244).
http://app.fujifilm-dsc.com/en/camera_remote/
FUJIFILM PC AutoSave
Download pictures from your camera over wireless networks (246).
http://app.fujifilm-dsc.com/en/pc_autosave/
MyFinePix Studio
Manage, view, print, and edit the many images downloaded from your digital camera (250).
http://fujifilm-dsc.com/mfs/
Once download is complete, double-click the downloaded file ("MFPS_Setup.EXE") and follow the on-screen instructions to complete installation.
RAW FILE CONVERTER EX 2.0
View RAW pictures on your computer and convert them into other formats (251).
http://fujifilm-dsc.com/rfc/
FUJIFILM X RAW STUDIO
When the camera is connected to a computer via USB, FUJIFILM X RAW STUDIO can use the camera's unique X Processor Pro image processing engine to rapidly convert RAW files to high-quality JPEG images.
http://fujifilm-x.com/x-stories/fujifilm-x-raw-studio-features-users-guide/
FUJIFLMXAcquire
This application for Windows and mac OS lets you connect to the camera via USB or Wi-Fi and automatically download photos to a specified folder as they are taken.
http://fujifilm-x.com/x-stories/fujifilm-x-acquire-features-users-guide/
FUJIFILM Tether Shooting Plug-ins for Lightroom
Plug-ins for Adobe Photoshop Lightroom 6/Adobe Photoshop Lightroom Classic CC.
- FUJIFILM Tether Shooting Plug-in PRO
http://fujifilm-x.com/x-stories/fujifilm-tetherplug-in-pro-features/
FUJIFILM Tether Shooting Plug-in http://www.fujifilm.com/products/digital Cameras/accessories/ others/#soft
Hyper-Utility Software HS-V5
This computer application lets you connect to the camera via USB or Wi-Fi, control the camera remotely, and save pictures taken with the camera directly to the computer.
http://www.fujifilm.com/products/digital Cameras/accessories/others/#soft
IMPORTANT SAFETY INSTRUCTIONS
- Read Instructions: All the safety and operating instructions should be read before the appliance is operated.
- Retain Instructions: The safety and operating instructions should be retained for future reference.
- Reed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
- Follow Instructions: All operating and use instructions should be followed.
Installation
Power Sources: This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.
Grounding or Polarization: This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Alternate Warnings: This video product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
Overloading: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.
This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to. This video product should never be placed near or over a radiator or heat register.
Attaches: Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
Water and Moisture: Do not use this video product near water—for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Power-Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
Accessories: Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Antennas
Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
Use
Cleaning: Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Object and Liquid Entry: Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.
Lightning: For added protection for this video product receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.
Service
Servicing: Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service: Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
- When the power-supply cord or plug is damaged
- If liquid has been spilled, or objects have fallen into the video product.
If the video product has been exposed to rain or water. - If the video product has been dropped or the cabinet has been damaged.
If the video product does not operate normally follow the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
When the video product exhibits a distinct change in performance - this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
Safety Check: Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.
Be sure to read these notes before use
Safety Notes
Make sure that you use your camera correctly. Read these safety notes and your Owner's Manual carefully before use.
After reading these safety notes, store them in a safe place.
About the Icons
The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.
WARNING
This icon indicates that death or serious injury can result if the information is ignored.
CAUTION
This icon indicates that personal injury or material damage can result if the information is ignored.
The icons shown below are used to indicate the nature of the instructions which are to be observed.
Triangular icons tell you that this information requires attention ("Important").
Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
Filled circles with an exclamation mark indicate an action that must be performed ("Required").
The symbols on the product (including the accessories) represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)
WARNING
Unplug om power socket
If a problem arises, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera when it is emitting smoke, is emitting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer.
Do not allow water or foreign objects to enter the camera. If water or foreign objects get inside the camera, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera can cause a fire or electric shock. Contact your FUJI FILM dealer.
Do not use the camera in the bathroom or shower. This can cause a fire or electric shock.
WARNING
Never attempt to change or take apart the camera (never open the case). Failure to observe this precaution can cause fire or electric shock.
Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILM dealer.
Do not place the camera on an unstable surface. This can cause the camera to fall or tip over and cause injury.
Never attempt to take pictures while in motion. Do not use the camera while walking or driving. This can result in you falling down or being involved in a traffic accident.
Do not touch any metal parts of the camera during a thunderstorm. This can cause an electric shock due to induced current from the lightning discharge.
Do not use the battery except as specified. Load the battery as shown by the indicator.
Do not disassemble, modify, or heat batteries. Do not drop, strike, or throw batteries or otherwise subject them to strong impacts. Do not use batteries that show signs of leaking, deformation, discoloration, or other abnormalities. Use only designated chargers to recharge rechargeable batteries and do not attempt to recharge non-rechargeable Li-ion or alkaline batteries. Do not short batteries or store them with metallic objects. Failure to observe these precautions could result in the batteries overheating, igniting, rupturing, or leaking, causing fire, burns, or other injury.
Use only batteries or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire.
If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away.
Do not use the charger to charge batteries other than those specified here. The supplied charger is for use only with batteries of the type supplied with the camera. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak, overheat or burst.
WARNING
Using a flash too close to a person's eyes may cause visual impairment. Take particular care when photographing infants and young children.
Do not remain in prolonged contact with hot surfaces. Failure to observe this precaution could result in low-temperature burns, particularly at high ambient temperatures or with users who suffer from poor circulation or reduced sensation, in which case use of a tripod or similar precautions are recommended.
Do not leave one part of the body in contact with the product for prolonged periods while the product is on. Failure to observe this precaution could result in low-temperature burns, particularly during prolonged use, at high ambient temperatures, or with users who suffer from poor circulation or reduced sensation, in which case use of a tripod or similar precautions are recommended.
Do not use in the presence of flammable objects, explosive gases, or dust.
When carrying the battery, install it in a digital camera or keep it in the hard case. When storing the battery, keep it in the hard case. When discarding, cover the battery terminals with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst.
Keep memory cards, hot shoes, and other small parts out of the reach of small children. Children may swallow small parts; keep out of reach of children. Should a child swallow a small part, seek medical attention or call emergency.
Keep out of reach of small children. Among the elements that could cause injury are the strap, which could become entangled about a child's neck, causing strangulation, and the flash, which could cause visual impairment.
Follow the directions of airline and hospital personnel. This product generates radio-frequency emissions that could interfere with navigational or medical equipment.
CAUTION
Do not use this camera in locations affected by oil fumes, steam, humidity or dust. This can cause a fire or electric shock.
Do not leave this camera in places subject to extremely high temperatures. Do not leave the camera in locations such as a sealed vehicle or in direct sunlight. This can cause a fire.
Do not place heavy objects on the camera. This can cause the heavy object to tip over or fall and cause injury.
Do not move the camera while the AC power adapter is still connected. Do not pull on the connection cord to disconnect the AC power adapter. This can damage the power cord or cables and cause a fire or electric shock.
CAUTION
Do not cover or wrap the camera or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fire.
When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the battery and disconnect and unplug the AC power adapter. Failure to do so can cause a fire or electric shock.
When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power socket can cause a fire.
CAUTION
When a memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card. Injury could result to those struck by the ejected card.
Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. Contact your FUJIFILM dealer to request internal cleaning every two years. Please note that this service is not free of charge.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
The Battery and Power Supply
Note: Check the type of battery used in your camera and read the appropriate sections.
WARNING Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
The following describes the proper use of batteries and how to prolong their life. Incorrect use can shorten battery life or cause leakage, overheating, fire, or explosion.
Li-ion Batteries
Read this section if your camera uses a rechargeable Li-ion battery.
The battery is not charged at shipment. Charge the battery before use. Keep the battery in its case when not in use.
Notes on the Battery
The battery gradually loses its charge when not in use. Charge the battery one or two days before use.
Battery life can be extended by turning the camera off when not in use.
Battery capacity decreases at low temperatures; a depleted battery may not function when cold. Keep a fully charged spare battery in a warm place and exchange as necessary, or keep the battery in your pocket or other warm place and insert it in the camera only when shooting. Do not place the battery in direct contact with hand warmers or other heating devices.
Charging the Battery
Charge the battery in the supplied battery charger. Charging times will increase at ambient temperatures below +10^ (+50^) or above +35^ (+95^) . Do not attempt to charge the battery at temperatures above 40^ (+104^) ; at temperatures below 0^ (+32^) , the battery will not charge.
Do not attempt to recharge a fully charged battery. The battery does not however need to be fully discharged before charging.
The battery may be warm to the touch immediately after charging or use. This is normal.
Battery Life
At normal temperatures, the battery can be recharged about 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life and should be replaced.
Storage
Performance may be impaired if the battery is left unused for extended periods when fully charged. Run the battery flat before storing it.
If the camera will not be used for an extended period, remove the battery and store it in a dry place with an ambient temperature of from +15^ to +25^ (+59^ to +77^) . Do not store in locations exposed to extremes of temperature.
Cautions: Handling the Battery
- Do not transport or store with metal objects such as necklaces or hairpins.
- Do not expose to flame or heat.
- Do not disassemble or modify.
- Use with designated chargers only.
- Dispose of used batteries promptly.
- Do not drop or subject to strong physical shocks.
- Do not expose to water.
- Keep the terminals clean.
- The battery and camera body may become warm to the touch after extended use. This is normal.
Caution: Disposal
Dispose of used batteries in accord with local regulations. Attention should be drawn to the environmental aspects of battery disposal. Use the apparatus under moderate climate.
AC Power Adapters (Available Separately)
Use only FUJIFILM AC power adapters designated for with this camera. Other adapters could damage the camera.
The AC power adapter is for indoor use only.
- Be sure the DC plug is securely connected to the camera.
- Turn the camera off before disconnecting the adapter. Disconnect the adapter by the plug, not the cable.
- Do not use with other devices.
Do not disassemble.
- Do not expose to high heat and humidity.
- Do not subject to strong physical shocks.
- The adapter may hum or become hot to the touch during use. This is normal.
- If the adapter causes radio interference, reorient or relocate the receiving antenna.
Using the Camera
- Do not aim the camera at extremely bright light sources, such as the sun in a cloudless sky. Failure to observe this precaution could damage the camera image sensor.
- Strong sunlight focused through the viewfinder may damage the panel of electronic viewfinder (E/V). Do not aim the electronic viewfinder at the sun.
Take Test Shots
Before taking photographs on important occasions (such as at weddings or before taking the camera on a trip), take a test shot and view the results to ensure that the camera is functioning normally. FUJIFILM Corporation cannot accept liability for damages or lost profits incurred as a result of product malfunction.
Notes on Copyright
Unless intended solely for personal use, images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner. Note that some restrictions apply to the photographing of stage performances, entertainments, and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws.
Handling
To ensure that images are recorded correctly, do not subject the camera to impact or physical shocks while images are being recorded.
Liquid Crystal
In the event that the display is damaged, care should be taken to avoid contact with liquid crystal. Take the urgent action indicated should any of the following situations arise:
If liquid crystal comes in contact with your skin, clean the area with a cloth and then wash thoroughly with soap and running water.
If liquid crystal enters your eyes, flush the affected eye with clean water for at least 15 minutes and then seek medical assistance.
- If liquid crystal is swallowed, rinse your mouth thoroughly with water. Drink large quantities of water and induce vomiting, then seek medical assistance.
Although the display is manufactured using extremely high-precision technology, it may contain pixels that are always lit or that do not light. This is not a malfunction, and images recorded with the product are unaffected.
Trademark Information
Digital Split Image is a trademark or registered trademark of FUJIFILM Corporation. xD-Picture Card and are trademarks of FUJIFILM Corporation. The typefaces included herein are solely developed by DynaComware Taiwan Inc. Macintosh, Mac OS, and macOS are trademarks of Apple Inc. in the U.S.A. and other countries. Windows is a registered trademark of Microsoft Corporation in the U.S.A. and other countries. Adobe, the Adobe logo, Photoshop, and Lightroom are trademarks or registered trademarks of Adobe Systems Incorporated in the U.S.A. and other countries. Wi-Fi® and Wi-Fi Protected Setup® are registered trademarks of the Wi-Fi Alliance. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by FUJIFILM is under license. The SDHC and SDXC logos are trademarks of SD-3C, LLC. The HDMI logo is a trademark or registered trademark of HDMI Licensing LLC. All other trade names mentioned in this manual are the trademarks or registered trademarks of their respective owners.
Electrical/Interference
This camera may interfere with hospital or aviation equipment. Consult with hospital or airline staff before using the camera in a hospital or on an aircraft.
Color Television Systems
NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A., Canada, and Japan. PAL (Phase Alternation by Line) is a color television system adopted mainly in European countries and China.
Exif Print (Exif Version 2.3)
Exif Print is a newly revised digital camera file format in which information stored with photographs is used for optimal color reproduction during printing.
IMPORTANT NOTICE: Read Before Using the Software
Direct or indirect export, in whole or in part, of licensed software without the permission of the applicable governing bodies is prohibited.
NOTICES
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Please read the "Safety Notes" and make sure you understand them before using the camera.
Perchlorate Material—special handling may apply. See:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate
For Customers in the U.S.A.
Tested To Comply With FCC Standards FOR HOME OR OFFICE USE
Contains IC: 10293A-WMBNBM26A
Contains FCC ID: COF-WMBNBM26A
FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement: This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W / kg . Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.
Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujilm-specified ferrite-core A/V cable, USB cable, and DC supply cord.
A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.
For Customers in Canada
CAN ICES-3 (B)/NMB-3(B)
CAUTION: This Class B digital apparatus complies with Canadian ICES-003.
Industry Canada statement: This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios. The County Code Selection feature is disabled for products marketed in the US/Canada.
Radiation Exposure Statement: The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. X-H1 has been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules.
Disposal of Electrical and Electronic Equipment in Private Households
In the European Union, Norway, Iceland and Liechtenstein. This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
This symbol on the batteries or accumulators indicates that those batteries shall not be treated as household waste.
If your equipment contains easy removable batteries or accumulators please dispose these separately according to your local requirements.
The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.
In Japan: This symbol on the batteries indicates that they are to be disposed of separately.
Wireless Network and Bluetooth Devices: Cautions
This product complies with the following EU Directives:
RoHS Directive 2011/65/EU
RE Directive 2014/53/EU
Hereby, FUJIFILM Corporation declares that the radio equipment type FF170002 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: http://www.fujifilm.com/products/digital Cameras/x/fujifilm_x_h1/pdf/index/fujifilm_x_h1cod.pdf
This compliance is indicated by the following conformity marking placed on the product:
C
This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth®).
IMPORTANT: Read the following notices before using the camera's built-in wireless transmitter.
This product, which contains encryption function developed in the United States, is controlled by the United States Export Administration Regulations and may not be exported or re-exported to any country to which the United States embargoes goods.
- Use only a wireless network or Bluetooth device. FUJIFILM does not accept liability for damages resulting from unauthorized use. Do not use in applications requiring a high degree of reliability, for example in medical devices or other systems that may directly or indirectly impact human life. When using the device in computer and other systems that demand a greater degree of reliability than offered by wireless network or Bluetooth devices, be sure to take all necessary precautions to ensure safety and prevent malfunction.
- Use only in the country in which the device was purchased. This device conforms to regulations governing wireless network and Bluetooth devices in the country in which it was purchased. Observe all location regulations when using the device. FUJIFILM does not accept liability for problems arising from use in other jurisdictions.
- Do not use the device in locations subject to magnetic fields, static electricity, or radio interference. Do not use the transmitter in the vicinity of microwave ovens or in other locations subject to magnetic fields, static electricity, or radio interference that may prevent reception of wireless signals. Mutual interference may occur when the transmitter is used in the vicinity of other wireless devices operating in the 2.4 GHz band.
- The wireless transmitter operates in the 2.4 GHz band using DSSS, OFDM and GFSK modulation.
-
Security: Wireless network and Bluetooth devices transmit data via radio and consequently their use requires greater attention to security than applies in the case of wired networks.
-
Do not connect to unknown networks or networks to which you do not have access rights, even if they are displayed on your device, as such access may be considered unauthorized. Connect only to networks to which you have access rights.
- Be aware that wireless transmissions may be vulnerable to interception by third parties.
The following may be punishable by law:
Disassembly or modification or this device
- Removal of device certification labels
- This device operates on the same frequency as commercial, educational, and medical devices and wireless transmitters. It also operates on the same frequency as licensed transmitters and special unlicensed low-voltage transmitters used in RFID tracking systems for assembly lines and in other similar applications.
To prevent interference with the above devices, observe the following precautions. Confirm that the RFID transmitter is not in operation before using this device. Should you observe that the device causes interference in licensed transmitters used for RFID tracking, immediately stop using the affected frequency or move the device to another location. If you notice that this device causes interference in low-voltage RFID tracing systems, contact a FUJIFILM representative. - Do not use this device on board an aircraft. Note that Bluetooth may remain on even when the camera is off. Bluetooth can be disabled by selecting OFF for CONNECTION SETTING > Bluetooth SETTINGS > Bluetooth ON/OFF.
Be sure to read these notes before using the lens
Safety Notes
- Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
After reading these safety notes, store them in a safe place.
About the Icons
The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.
WARNING
This icon indicates that death or serious injury can result if the information is ignored.
CAUTION
This icon indicates that personal injury or material damage can result if the information is ignored.
The icons shown below are used to indicate the nature of the instructions which are to be observed.
Triangular icons tell you that this information requires attention ("Important").
Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
Filled circles with an exclamation mark indicate an action that must be performed ("Required").
WARNING
Do not immerse
Do not immerse in or expose to water. Failure to observe this precaution can cause a fire or electric shock.
Do not disassemble
Do not disassemble (do not open the case). Failure to observe this precaution can cause fire, electric shock, or injury due to product malfunction.
Do not touch internal parts
Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.
Do not place on unstable surfaces. The product may fall, causing injury.
Do not view the sun through the lens or camera viewfinders. Failure to observe this precaution can cause permanent visual impairment.
CAUTION
Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fire or electric shock.
Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day. Failure to observe this precaution can cause fire.
Keep out of the reach of small children. This product could cause injury in the hands of a child.
Do not handle with wet hands. Failure to observe this precaution can cause electric shock.
Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns.
When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns.
Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.
Product Care
To ensure continued enjoyment of the product, observe the following precautions.
Camera body: Use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth. Use a blower to remove dust from the monitor, taking care to avoid scratches, and then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. To prevent dust entering the camera, replace the body cap when no lens is in place.
Image sensor: Multiple photographs marred by spots or blotches in identical locations may indicate the presence of dust on the image sensor. Clean the sensor using USER SETTING > SENSOR CLEANING.
Cleaning the Image Sensor
Dust that cannot be removed using ±b USER SETTING > SENSOR CLEANING can be removed manually as described below.
Note that there will be a charge to repair or replace the image sensor if it is damaged during cleaning.
1 Use a blower (not a brush) to remove dust from the sensor.
Do not use a brush or blower brush. Failure to observe this precaution could damage the sensor.
2 Check whether the dust has been successfully removed. Repeat Steps 1 and 2 as necessary.
3 Replace the body cap or lens.
Firmware Updates
Updates to product firmware may result in changes not described in the manual. For more information, visit: http://www.fujifilm.com/support/digital Cameras/software
Checking the Firmware Version
The camera will only display the firmware version if a memory card is inserted.
1 Turn the camera off and check that a memory card is inserted.
2 Turn the camera on while pressing the DISP/BACK button. The current firmware version will be displayed; check the firmware version.
3 Turn the camera off.
To view the firmware version or update firmware for optional accessories such as interchangeable lenses, shoe-mounted flash units, and mount adapters, mount the accessories on the camera.
Troubleshooting
Consult the table below should you encounter problems using your camera. If you don't find the solution here, contact your local FUJIFILM distributor.
Power and Battery
| Problem | Solution |
| The camera does not turn on. | ·The battery is exhausted: Charge the battery or insert a fully-charged spare battery (29). ·The battery is inserted incorrectly: Reinsert in the correct orientation (32). ·The battery-chamber cover is not latched: Latch the battery-chamber cover (32). |
| The monitor does not turn on. | The monitor may not turn on if the camera is turned off and then on again very quickly. Keep the shutter button pressed halfway until the monitor activates. |
| The battery runs down quickly. | ·The battery is cold: Warm the battery by placing it in a pocket or other warm place and reinsert it in the camera immediately before taking a picture. ·There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth. ·ON is selected for AF/MF SETTING > PRE-AF: Turn PRE-AF off (116). ·The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. |
| The camera turns off suddenly. | ·The battery is exhausted: Charge the battery or insert a fully-charged spare battery (29). |
| Charging does not start. | Reinsert the battery in the correct orientation and make sure that the charger is plugged in (29, 32). |
| Charging is slow. | Charge the battery at room temperature. |
| The charging lamp blinks, but the battery does not charge. | ·There is dirt on the battery terminals: Clean the terminals with a soft, dry cloth (◎ 32). ·The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. If the battery still fails to charge, contact your FUJIFILM dealer (◎ 256). |
Menu and Displays
| Problem | Solution |
| Display is not in English. | Select ENGLISH for √USER SETTING > 言語/LANG. (图41, 180). |
Shooting
| Problem | Solution |
| No picture is taken when the shutter button is pressed. | ·The memory card is full: Insert a new memory card or delete pictures (34, 160). ·The memory card is not formatted: Format the memory card (178). ·There is dirt on the memory card contacts: Clean the contacts with a soft, dry cloth. ·The memory card is damaged: Insert a new memory card (34). ·The battery is exhausted: Charge the battery or insert a fully-charged spare battery (29). ·The camera has turned off automatically: Turn the camera on (37). ·You are using a third-party mount adapter: Select ON for SHOOT WITHOUT LENS (198). ·The indicator lamp was orange when you attempted to record a panorama: Wait until the indicator lamps turns off (8). |
| Mottling ("noise") appears in the monitor or viewfinder when the shutter button is pressed halfway. | Gain is increased to aid composition when the subject is poorly lit and aperture is stopped down, which may result in noticeable mottling when images are previewed in the displays. Images taken with the camera are unaffected. |
| The camera does not focus. | The subject is not suited to autofocus: Use focus lock or manual focus (国 81). |
| No face is detected. | ·The subject's face is obscured by sunglasses, a hat, long hair, or other objects: Remove the obstructions (国 117). ·The subject's face occupies only a small area of the frame: Change the composition so that the subject's face occupies a larger area of the frame (国 117). ·The subject's head is tilted or horizontal: Ask the subject to hold their head straight (国 117). ·The camera is tilted: Keep the camera level. ·The subject's face is poorly lit: Shoot in bright light. |
| Wrong subject is selected. | The selected subject is closer to the center of the frame than the main subject. Recompose the picture or turn face detection off and frame the picture using focus lock (国 81). |
| The flash does not fire. | ·The flash is disabled: Adjust settings (国 94). ·The flash is lowered: Raise the flash (国 92). ·The battery is exhausted: Charge the battery or insert a fully-charged spare battery (国 29). ·The camera is in bracketing or continuous mode: Select single frame mode (国 6). |
| The flash does not fully light the subject. | ·The subject is not in range of the flash: Position the subject in range of the flash. ·The flash window is obstructed: Hold the camera correctly. ·Shutter speed is faster than the sync speed: Choose a slower shutter speed (国 58, 63, 284). |
| Pictures are blurred. | The lens is dirty: Clean the lens. The lens is blocked: Keep objects away from the lens (图45). !AF is displayed during shooting and the focus frame is displayed in red: Check focus before shooting (图46). |
| Pictures are mottled. | Shutter speed is slow and the ambient temperature is high: This is normal and does not indicate a malfunction. Pixel mapping is required: Perform pixel mapping using IMAGE QUALITY SETTING > Pixel MAPPING (图108). The camera has been used continuously at high temperatures or a temperature warning is displayed: Turn the camera off and wait for it to cool down (图37, 281). |
Playback
| Problem | Solution |
| Pictures are grainy. | The pictures were taken with a different make or model of camera. |
| Playback zoom is unavailable. | The pictures were created using RESIZE or with a different make or model of camera. |
| No sound in movie playback. | •Playback volume is too low: Adjust playback volume (183). •The microphone was obstructed: Hold the camera correctly during recording. •The speaker is obstructed: Hold the camera correctly during playback. |
| Selected pictures are not deleted. | Some of the pictures selected for deletion are protected. Remove protection using the device with which it was originally applied (164). |
| File numbering is unexpectedly reset. | The battery-chamber cover was opened while the camera was on. Turn the camera off before opening the battery-chamber cover (203). |
Connections
| Problem | Solution |
| The monitor is blank. | The camera is connected to a TV: Pictures will be displayed on the TV instead of in the camera monitor (国 14, 242). |
| No picture or sound on TV. | • The camera is not properly connected: Connect the camera properly (国 242). • Input on the television is set to "TV": Set input to "HDMI" (国 242). • The volume on the TV is too low: Use the controls on the television to adjust the volume (国 242). |
| Both the TV and camera monitor are blank. | The display mode selected with the VIEW MODE button is EVF ONLY + S#E##ON: Put your eye to the viewfinder or use the VIEW MODE button to choose another display mode. |
| The computer does not recognize the camera. | Be sure the camera and computer are correctly connected (国 247). |
| Cannot transfer RAW or JPEG files to computer. | Use MyFinePix Studio to transfer pictures (Windows only; 国 247). |
Wireless Transfer
For additional information on troubleshooting wireless connections, visit:
http://digital-cameras.support.fujifilm.com/app?pid=x
| Problem | Solution |
| Problem connecting or uploading pictures to smartphone. | ·The smartphone is too far away: Move the devices closer (图244). ·Nearby devices are causing radio interference: Move the camera and smartphone away from microwave ovens or cordless phones (图244). |
| Cannot upload images. | ·The smartphone is connected to another device: The smartphone and camera can connect to only one device at a time. End the connection and try again (图244). ·There are several smartphones in the vicinity: Try connecting again. The presence of multiple smartphones can make connection difficult (图244). ·The image was created on another device: The camera may not be able to upload images created on other devices. ·The image is a movie: Although you can select movies for upload when viewing the contents of camera memory on your smartphone, upload will take some time. Movies intended for display on a smartphone or tablet should be recorded at a frame size of 1280×720 (HD) or smaller. For information on viewing the pictures on the camera, visit: http://app.fujifilm-dsc.com/en/camera_remote/ |
| Smartphone will not display pictures. | Select ON for GENERAL SETTINGS > RESIZE IMAGE FOR SMARTPHONE 3D. Selecting OFF increases upload times for larger images; in addition, some phones may not display images over a certain size (图210). |
Miscellaneous
| Problem | Solution |
| The camera is unresponsive. | ·Temporary camera malfunction: Remove and reinsert the battery (32). ·The battery is exhausted: Charge the battery or insert a fully-charged spare battery (29). ·The camera is connected to a wireless LAN: End the connection. |
| The camera does not function as expected. | Remove and reinsert the battery (32). If the problem persists, contact your FUJIFILM dealer. |
| No sound. | Adjust the volume (182). |
| Pressing the Q button does not display the quick menu. | TTL-LOCK is active: End TTL-LOCK (135). |
Warning Messages and Displays
The following warnings appear in the display.
| Warning | Description |
| □ (red) | Low battery. Charge the battery or insert a fully-charged spare battery. |
| □ (blinks red) | Battery exhausted. Charge the battery or insert a fully-charged spare battery. |
| !AF (displayed in red with red focus frame) | The camera cannot focus. Use focus lock to focus on another subject at the same distance, then recompose the picture. |
| Aperture or shutter speed displayed in red | The subject is too bright or too dark and the picture will be over- or under-exposed. Use the flash for additional light-ing when taking photographs of poorly-lit subject. |
| FOCUS ERROR | |
| LENS CONTROL ERROR | Camera malfunction. Turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer. |
| TURN OFF THE CAMERA AND TURN ON AGAIN | |
| NO CARD | The shutter can only be released when a memory card is inserted. Insert a memory card. |
| CARD NOT INITIALIZED | · The memory card is not formatted or the memory card has been formatted in a computer or other device: Format the memory card using ▲USER SETTING > FORMAT. · The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. · Camera malfunction: Contact a FUJIFILM dealer. |
| LENS ERROR | Turn the camera off, remove the lens, and clean the mounting surfaces, then replace the lens and turn the camera on. If the problem persists, contact a FUJIFILM dealer. |
| CARD ERROR | ·The memory card is not formatted for use in the camera: For-mat the card. ·The memory card contacts require cleaning or the memory card is damaged: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. ·Incompatible memory card: Use a compatible card. ·Camera malfunction: Contact a FUJIFILM dealer. |
| PROTECTED CARD | The memory card is locked. Unlock the card. |
| BUSY | The memory card is incorrectly formatted. Use the camera to format the card. |
| MEMORY FULL | The memory card is full and pictures cannot be recorded. Delete pictures or insert a memory card with more free space. |
| WRITE ERROR | ·Memory card error or connection error: Reinsert the card or turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer. ·Not enough memory remaining to record additional pictures: Delete pictures or insert a memory card with more free space. ·The memory card is not formatted: Format the memory card. |
| FRAME NO. FULL | The camera has run out of frame numbers (current frame number is 999-9999). Insert a formatted memory card and select RENEW for SAVE DATA SET-UP > FRAME NO.. Take a picture to reset frame numbering to 100-0001, then select CONTINUOUS for FRAME NO.. |
| READ ERROR | The file is corrupt or was not created with the camera: The file cannot be viewed. The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. Camera malfunction: Contact a FUJIFILM dealer. |
| PROTECTED FRAME | An attempt was made to delete or rotate to a protected picture. Remove protection and try again. |
| CAN NOT CROP | The picture is damaged or was not created with the camera. |
| DPOF FILE ERROR | Print orders can contain no more than 999 pictures. Copy any additional pictures you wish to print to another memory card and create a second print order. |
| CAN NOT ROTATE | The selected picture cannot be rotated. |
| CAN NOT ROTATE | Movies cannot be rotated. |
| CAN NOT SET DPOF | The picture cannot be printed using DPOF. |
| CAN NOT SET DPOF | Movies cannot be printed using DPOF. |
| CANNOT EXECUTE | Red-eye removal cannot be applied to movies. |
| CANNOT EXECUTE | Red-eye removal cannot be applied to pictures created with other devices. |
| MISMATCH: 4K MODE AND EXTERNAL MONITOR CHANGE MOVIE MODE | The movie mode selected with the camera is not compatible with the device to which the camera is connected via HDMI. Try selecting a different movie mode (137). |
| !(yellow) | Turn the camera off and wait for it to cool. Mottling may increase in pictures taken when this warning is displayed. |
| !(red) | Turn the camera off and wait for it to cool. While this warning is displayed, movie recording may not be available, mottling may increase, and performance, including frame advance rate and display quality, may drop. |
Memory Card Capacity
The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate.
| Capacity | 8 GB | 16 GB | |||
| FINE | NORMAL | FINE | NORMAL | ||
| Photos | 3:2 | 540 | 800 | 1110 | 1660 |
| RAW (UNCOMPRESSED) | 150 | 320 | |||
| RAW (LOSSLESS COMPRESSED) | 310 | 640 | |||
| Movies, 7 | 21K 2160³ | 9 minutes | 20 minutes | ||
| HD 1080⁴ | 9 minutes | 20 minutes | |||
| HD 720⁵ | 19 minutes | 39 minutes | |||
1 Use a UHS speed class 3 card or better.
2 Assumes default bit rate.
3 Individual movies cannot exceed 15 minutes in length, or 30 minutes if filmed using a power-booster grip.
4 Individual movies cannot exceed 20 minutes in length, or 30 minutes if filmed using a power-booster grip.
5 Individual movies cannot exceed 30 minutes in length.
Although movie recording will continue without interruption when the file size reaches 4GB, subsequent footage will be recorded to a separate file which must be viewed separately.
Specifications
| System | |||
| Model | FUJIFILM X-H1 | ||
| Product Number | FF170002 | ||
| Effective pixels | Approx. 24.3 million | ||
| Image sensor | 23.5 mm × 15.6 mm (APS-C), X-Trans CMOS III sensor with primary color filter | ||
| Storage media | FUJIFILM-recommended SD/SDHC/SDXC memory cards | ||
| Memory card slots | Two SD memory card slots (UHS-II compliant) | ||
| File system | Compliant with Design Rule for Camera File System (DCF), Exif 2.3, and Digital Print Order Format (DPOF) | ||
| File format | • Still pictures: Exif 2.3 JPEG (compressed); RAW (original RAF format, uncompressed or compressed using a lossless algorithm; special purpose software required); RAW+JPEG available • Movies: H.264 standard with stereo sound (MOV) • Audio (voice memos): Stereo sound (WAV) | ||
| Image size | L3 3:2 (6000 × 4000) M3 2:2 (4240 × 2832) S3 2 (3008 × 2000) | L1 16:9 (6000 × 3376) M1 16:9 (4240 × 2384) S1 16:9 (3008 × 1688) | L1 1:1 (4000 × 4000) M1 1:1 (2832 × 2832) S1 1:1 (2000 × 2000) |
| RAW (6000 × 4000) | |||
| LPanorama: vertical (2160 × 9600)/horizontal (9600 × 1440) Mpanorama: vertical (2160 × 6400)/horizontal (6400 × 1440) | |||
| Lens mount | FUJIFILM X mount | ||
| Sensitivity | • Still pictures: Standard output sensitivity equivalent to ISO 200–12800 in increments of 1/3 EV; AUTO; extended output sensitivity equivalent to ISO 100, 125, 160, 25600, or 51200 • Movies: Standard output sensitivity equivalent to ISO 200–12800 in increments of 1/3 EV; AUTO; extended output sensitivity equivalent to ISO 25600 | ||
| Metering | 256-segment through-the-lens (TTL) metering; MULTI, SPOT, AVERAGE, CENTER WEIGHTED | ||
| Exposure control | Programmed AE (with program shift); shutter-priority AE; aperture-priority AE; manual exposure | ||
| Exposure compensation | • Still pictures: -5 EV-+5 EV in increments of 1/3 EV • Movies: -2 EV-+2 EV in increments of 1/3 EV | ||
System
| Shutter speed | Mode P | Mode A | Modes S and M | Bulb |
| MECHANICAL SHUTTER | 4 s to 1/8000 S | 30 s to 1/8000 S | 15 min. to 1/8000 S | Max. 60 min. |
| ELECTRONIC SHUTTER | 4 s to 1/32000 S | 30 s to 1/32000 S | 15 min. to 1/32000 S | Fixed at 1 s |
| E-FRONT CURTAIN SHUTTER | 4 s to 1/8000 S | 30 s to 1/8000 S | 15 min. to 1/8000 S | Max. 60 min. |
| E-FRONT + MECHANICAL | ||||
| MECHANICAL + ELECTRONIC | 4 s to 1/32000 S | 30 s to 1/32000 S | 15 min. to 1/32000 S | Max. 60 min. |
| E-FRONT CURTAIN + MECHANICAL + ELECTRONIC |
| Continuous | Frame rate | Frames per burst | |
| CH | 14 fps | 14 | Up to approximately 40 |
| 11 fps | 11 | Up to approximately 49 | |
| 8.0 fps | 8.0 | Up to approximately 51 | |
| CM | - | 6.0 | Up to approximately 52 |
| CL | 5.0 fps | 5.0 | Up to approximately 54 |
| 4.0 fps | 4.0 | Up to approximately 56 | |
| 3.0 fps | 3.0 | Up to approximately 59 | |
Note that 14 fps is available only with the electronic shutter and 11 fps only with the electronic shutter or a power-booster grip.
The frame rate varies with shooting conditions and the number of images recorded. In addition, the frame rate and number of frames per burst may vary depending on the type of memory card used.
Focus
Mode: Single or continuous AF; manual focus with focus ring
- Focus-area selection: SINGLE POINT, ZONE, WIDE/TRACKING, ALL
- Autofocus system: Intelligent hybrid AF (TTL contrast-detect/ phase-detection AF) with AF-assist illuminator
System
White balance Custom 1, Custom 2, Custom 3, color temperature selection, auto, direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, incandescent, underwater
Self-timer Off, 2 sec., 10 sec.
Flash mode MODE:TTL MODE(FLASH AUT MANUAL,COMMANDER,OFF
- SYNC. MODE: 1ST CURTAIN, 2ND CURTAIN, AUTO FP (high-speed sync)
- RED EYE REMOVAL: FLASH+REMOVAL, FLASH, REMOVAL, OFF
Hot shoe Accessory shoe with TTL contacts; supports sync speeds as fast as 1/250 s
Sync contact X contact; supports sync speeds as fast as 1/250 s
Sync terminal Provided
Viewfinder 0.5-in., 3690k-dot color OLED viewfinder with diopter adjustment (-4 to +2m^-1 ); magnification 0.75× with 50mm lens (35 mm format equivalent) at infinity and diopter set to -1.0m^-1 ; diagonal angle of view approximately 38.0^ (horizontal angle of view approximately 30.0^ ); eye point approx. 23mm
LCD monitor -Rear monitor: 3.0-in/7.6 cm, 1040k-dot color LCD touch screen with 3-way tilt
- Shoulder monitor: 1.28-in/3.25 cm, 128 × 128 -dot memory LCD monitor
Movies (with stereo - Movie size: 4K 16:9, 4K 17:9, FHD 16:9, FHD 17:9, HD 16:9
- Frame rate: 59.94P, 50P, 29.97P, 25P, 24P, 23.98P
- Bit rate: 200Mbps, 100Mbps, 50Mbps
Input/output terminals
Microphone connector 3.5 mm mini-stereo jack
Digital input/output USB3.0/USB2.0 High-Speed; Micro USB connector (Micro-B)
HDMI output HDMI Micro connector (type D)
Remote release 2.5 mm 3-pole mini jack connector
Power supply/other
Power supply
NP-W126S rechargeable battery (supplied with camera)
Battery life
Photographs: The number of frames varies with the option selected for PERFORMANCE:
Camera battery alone
| PERFORMANCE | LCD | EVF |
| BOOST | Approx. 220 | Approx. 180 |
| NORMAL | Approx. 310 | Approx. 300 |
With VPB-XH1 vertical power-booster grip
| PERFORMANCE | LCD | EVF |
| BOOST | Approx. 650 | Approx. 530 |
| NORMAL | Approx. 900 | Approx. 870 |
- Movies: The length of footage that can be recorded varies with the movie mode:
| Mode | Actual battery life of movie capture | Continuance battery life of movie capture |
| 4K | Approx. 35 minutes | Approx. 45 minutes |
| HD | Approx. 45 minutes | Approx. 75 minutes |
| High-speed movies | Approx. 40 minutes | — |
Approximate number of frames that can be taken in mode P under the following conditions:
Battery type: NP-W126S
- Lens: XF 35 mm f/1.4 R
- Supplied flash: Disabled
CIPA standard, measured using battery supplied with camera and SD memory card.
Note: Battery life varies with battery charge level and will decline at low temperatures.
Camera size
139.8 mm × 97.3 mm × 85.5 mm (39.5 mm excluding projections, measured at thinnest part)/5.50 in. × 3.83 in. × 3.37 in. (1.56 in.)
(W× H× D)
Approx. 623 g/22.0 oz., excluding battery, accessories, and memory card
Camera weight
Approx. 673 g/23.7 oz., including battery and memory card
Shooting weight
- Temperature: -10^ to +40^ / + 14^ to +104^
Operating conditions - Humidity: 10% to 80% (no condensation)
Wireless transmitter
Wireless LAN
Standards IEEE 802.11b/g/n (standard wireless protocol)
Operating frequency - Japan, China: 2,412 MHz-2,472 MHz (13 channels)
(center frequency) Other countries: 2,412 MHz-2,462 MHz (11 channels)
Access protocols Infrastructure
Bluetooth
Standards Bluetooth version 4.0 (Bluetooth Low Energy)
Operating frequency 2,402 MHz-2,480 MHz
(center frequency)
EF-X8 shoe-mounted flash unit
Guide number GN8 (ISO100), GN11 (ISO200)
Dimensions 39.7mm× 24.2mm× 63.4mm / 1.6in.× 1.0in.× 2.5in.
(W×H×D)
Weight Approx. 41 g/1.4 oz.
NP-W126S rechargeable battery
Nominal voltage 7.2V
Nominal capacity 1260 mAh
Operating 0^ to +40^ / + 32^ to +104^
temperature
Dimensions 36.4mm× 47.1mm× 15.7mm / 1.4in.× 1.9in.× 0.6in.
(W×H×D)
Weight Approx. 47 g/1.7 oz.
BC-W126 battery charger
Rated input 100V-240V AC,50/60Hz
Input capacity 13-21VA
Rated output 8.4V DC,0.6A
Supported batteries NP-W126S rechargeable batteries
Charging time Approx. 150 minutes (+20^ / +68^)
Operating 5^ C to +40^ C / +41^ F to +104^ F
temperature
Dimensions 65mm× 91.5mm× 28mm / 2.6in.× 3.6in.× 1.1in, excluding
(W× H× D) projections
Weight Approx. 77g / 2.7oz
VPB-XH1 vertical power-booster grip
| Power supply | ·Battery: NP-W126S rechargeable battery ·AC power adapter: AC-9VS AC power adapter ·Charging time: Approx. 120 minutes (when charging two batteries simultaneously) |
| Operating temperature | -10°C to +40°C/+14°F to +104°F (0°C to 40°C/+32°F to +104°F when batteries are charging) |
| Dimensions (W×H×D) | 141.2 mm×56.6 mm×65.8 mm/5.6 in.×2.2 in.×2.6 in., excluding projections |
| Weight | Approx. 300 g/10.6 oz., excluding battery |
AC-9VS AC power adapter
| Rated input | 100V – 240V AC, 50/60 Hz |
| Rated output | 9.0V DC, 2.0 A |
| Operating temperature | 0°C to +40°C/+32°F to +104°F |
| Dimensions (W × H × D) | 43.3 mm × 31.3 mm × 101 mm/1.7 in. × 1.2 in. × 4 in., excluding projections |
| Weight | Approx. 170 g/6.0 oz. (without the connection cord) |
- VPB-XH1 vertical power-booster grip supplied with VPB-XH1 kit only.
Weight and dimensions vary with the country or region of sale. Labels, menus, and other displays may differ from those on the actual camera.
Specifications and performance are subject to change without notice. FUJIFILM will not be held liable for any errors this manual may contain. The appearance of the product may differ from that described in this manual.
MEMO
FUJIFILM
FUJIFILM Corporation
7-3, AKASAKA 9-CHOME, MINATO-KU, TOKYO 107-0052, JAPAN
http://www.fujifilm.com/products/digital Cameras/index.html
